Clayton WartHog 603-105G Guide

WARNING
Respiratory protection is recommended
operating this equipment.
WARNING
Eye protection is required when operating this
equipment.
WARNING
Hearing protection is recommended when
operating this equipment.
WARNING
Read and understand operator’s manual before
using this equipment.
SAFETY LEGEND
WARNING
WH-1xxG August 03, 2021
Safety – Operation – Maintenance
Keep this document in a safe place
Read and understand this manual before operating your air tool
• A HEPA lter must be installed in this vacuum at all times.
• If this vacuum is used to collect hazardous material, personal protective equipment should be used when opening the vacuum or
emptying its contents.
• Any alteration to this equipment by a third party will nullify its warranty
WartHog Vacuum Tank
Poly General Dust
Models: 603-105G, 603-107G, 603-115G
603-105G
WH-1xxG_cover_A
603-107G
WH-1xxG_cover_B
Scan this QR code for
online instructions and
documentation, or visit
www.ClaytonHowTo.com
603-115G
WH-1xxG_cover_C

Repair or Warranty Contact Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
WH-1xxG www.DustlessMadeSimple.com • [email protected]
Page 2
TABLE OF CONTENTS
Applications & Environments...............................................................................................3
What’s In the Box ................................................................................................................3
Consumables/Accessories ..................................................................................................4
Specications & Requirements............................................................................................4
Getting Started ....................................................................................................................5
Illustrated Parts Breakdown.................................................................................................7
Limited Lifetime Warranty Terms And Conditions ..............................................................10

Repair or Warranty Contact Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
WH-1xxG www.DustlessMadeSimple.com • [email protected]
Page 3
The vacuum tank and associated lters are for dry collection only.
Do not use this equipment for cleaning or extracting fuel residues from any vehicle or equipment.
Do not use this equipment for cleaning or extracting live sparks or burning embers.
Do not use this equipment in combustible Dust or Gas atmospheres.
In addition to the WartHog vacuum tank, the following items have been shipped with the tank:
NOTE:Clayton power heads are shipped in a separate box. These instructions assume you have both a vacuum tank and an appropriate
power head. Refer to the instruction manual included with the power head for additional information.
APPLICATIONS & ENVIRONMENTS
WHAT’S IN THE BOX
GL_012
Filter Bags
GL_009
Poly Bag 5‑Pack
HEPA Filter
GL_010
HEPA Timer Card
GL_004
HEPA Pre‑Filter
GL_011

Repair or Warranty Contact Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
WH-1xxG www.DustlessMadeSimple.com • [email protected]
Page 4
Recommended consumables:
PHYSICAL:
603-105G
Weight ............................................................................................................................................................................TBD lbs (TBD kg)
Dimensions (L x W x H).................................................................................................................................................. TBD in (TBD cm)
Capacity .............................................................................................................................................................................5 gal (19 liters)
603-107G
Weight ............................................................................................................................................................................TBD lbs (TBD kg)
Dimensions (L x W x H).................................................................................................................................................. TBD in (TBD cm)
Capacity .............................................................................................................................................................................7 gal (26 liters)
603-115G
Weight ............................................................................................................................................................................TBD lbs (TBD kg)
Dimensions (L x W x H).................................................................................................................................................. TBD in (TBD cm)
Capacity ...........................................................................................................................................................................15 gal (57 liters)
CONSUMABLES/ACCESSORIES
Item Vacuum Tank Model
603-105G 603-107G 603-115G
Filter Bags 627-0913B 627-1414B 627-16B
HEPA Filter 627-12H 627-12H 627-12H
HEPA Pre-lter 627-12P 627-12P 627-12P
Poly Bag 5-Pack 600-114DM-05 600-114DM-05 600-114DM-05
SPECIFICATIONS & REQUIREMENTS

Repair or Warranty Contact Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
WH-1xxG www.DustlessMadeSimple.com • [email protected]
Page 5
1. Unbox the vacuum tank.
2. Visually inspect vacuum tank to ensure that no parts are missing or damaged.
3. Remove items shipped in the vacuum tank.
4. Attach the Handle [603-115G].
• Remove the 4 screws from the handle slots on both sides of the vacuum tank using a 1/2 in socket or open end wrench.
• Slide the handle into the handle slots on the side of the vacuum tank.
• Insert the screws through the holes in the handle and into vacuum tank; nger tighten until all 4 screws are started.
• Tighten using a 1/2 in socket or open end wrench.
GETTING STARTED
603-115G
Handle
Screws (x2)
Screws (x2)
WH-1xxG_001

Repair or Warranty Contact Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
WH-1xxG www.DustlessMadeSimple.com • [email protected]
Page 6

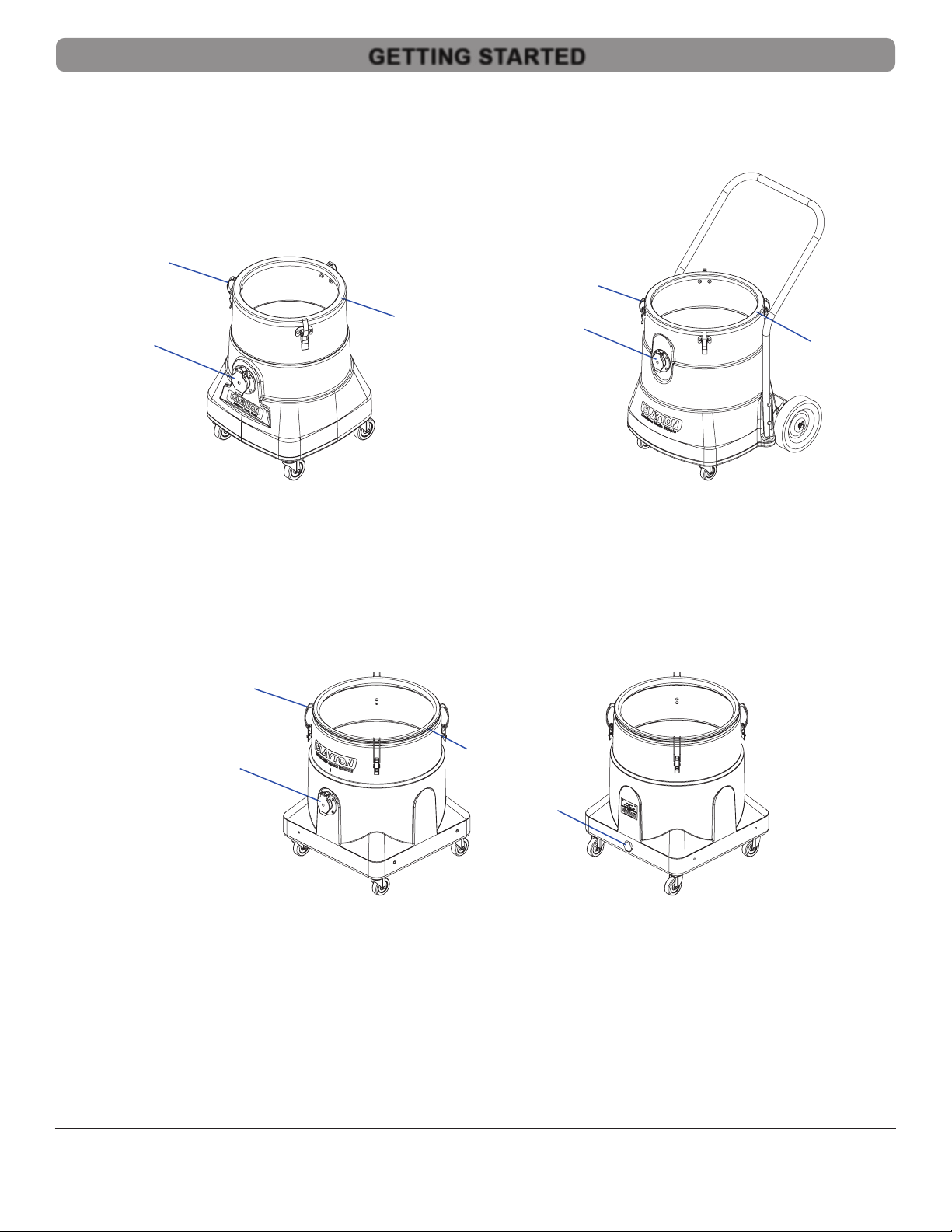

5. Familiarize yourself with the vacuum tank.
6. Refer to the appropriate power head instructions for additional information.
GETTING STARTED
603-105G
Latch
Inlet Port
Gasket
WH-1xxG_002
603-115G
Latch
Inlet Port
Gasket
WH-1xxG_006
Hole Plug
603-107G
Latch
Inlet Port
Gasket
WH-1xxG_004 WH-1xxG_005

Repair or Warranty Contact Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
WH-1xxG www.DustlessMadeSimple.com • [email protected]
Page 7

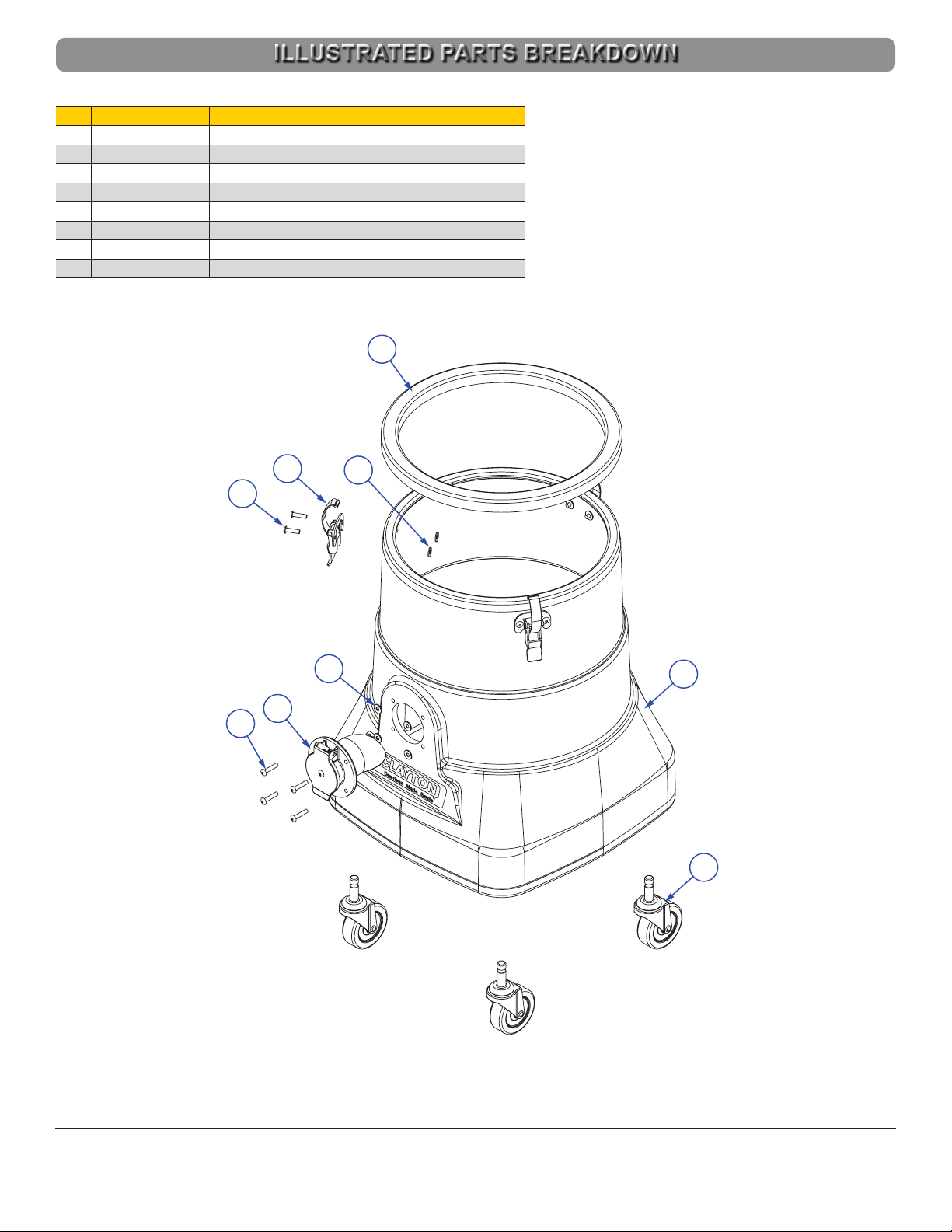

ILLUSTRATED PARTS BREAKDOWNILLUSTRATED PARTS BREAKDOWN
603-105G
Seq Item No Description
1 602-104 Vacuum Tank Poly Yellow 5Gal (10.83lbs PMS123)
2 701-025-001S Caster, 2.5 in, Swivel 11 X 35mm Stem
3 911-039 Molded Gasket For 5 Gallon Poly Tank
4 923-A006 Inlet Valve, Cast Assembly
5 951-003 Latch, Draw Style, Warthog Vacuums
6 RE0623-SDSSS-Z Rivet Blind 3/16 X 0.719 Sealed SS (.376-.5)
7 RE0630-SDSSS-Z Rivet Blind 3/16 X 0.938 Sealed SS (.501-.625)
8 WE133203-RFS-Z Washer .203ID X .500OD .047H Round Stainless Steel
1
2
3
4
5
6
7
8
8
WH-1xxG_008

ILLUSTRATED PARTS BREAKDOWN
Repair or Warranty Contact Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
WH-1xxG www.DustlessMadeSimple.com • [email protected]
Page 8
ILLUSTRATED PARTS BREAKDOWN
603-107G
Seq Item No Description
1 602-114 7 Gal Poly Tank, Cleanup, Yellow
2 701-025-001S Caster, 2.5 in, Swivel 11 X 35mm Stem
3 911-047 Gasket, Molded Silicone, 7 Gallon Tank
4 914-12P Hole Plug 3/4 NPT, Polypropylene Hex Head
5 923-A006 Inlet Valve, Cast Assembly
6 951-009 Draw Latch SS Wire Bale Locking
7 RE0616-SDSSS-Z Rivet Blind 3/16 X 0.500 Sealed SS (.126-.250)
8 RE0623-SDSSS-Z Rivet Blind 3/16 X 0.719 Sealed SS (.376-.5)
9 WE133203-RFS-Z Washer .203ID X .500OD .047H Round Stainless Steel
WH-1xxG_009
1
2
5
8
3
9
WH-1xxG_010
4
7
6

Repair or Warranty Contact Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
WH-1xxG www.DustlessMadeSimple.com • [email protected]
Page 9
ILLUSTRATED PARTS BREAKDOWN
603-115G
Seq Item No Description
1 601-122 Axle Retaining Plate For WH-115
2 601-123 Axle, Poly Warthog 15 Gal
3 602-107 Vacuum Tank Poly Yellow 15Gal
4 610-141-4 Handle, 15 Gallon Warthog Vacuum
5 701-025-001S Caster, 2.5 in, Swivel 11 X 35mm Stem
6 701-08-001 Wheel, 8 in, 1/2 Axle, Offset
7 911-044 Gasket, 15 Gal Poly Lip
8 923-A006 Inlet Valve, Cast Assembly
9 929-RR.75 Retaining Ring, Split, .75 Shaft
10 929-WW.500 Washer, Triple Wave, .516ID .860OD
11 951-003 Latch, Draw Style, Warthog Vacuums
12 RE0623-SDSSS-Z Rivet Blind 3/16 X 0.719 Sealed SS (.376-.5)
13 RE0630-SDSSS-Z Rivet Blind 3/16 X 0.938 Sealed SS (.501-.625)
14 SE162008-HHSM-Z Screw 1/4-20 X 1/2in SS Hex
15 SE201824-HHSM-Z Screw 5/16-18 X 1.5in SS Hex
16 WE133203-RFS-Z Washer .203ID X .500OD .047H Round SS
WH-1xxG_011
5
13
3
7
15
4
8
16
WH-1xxG_012
1
9
26
10
14
11
12
16

Repair or Warranty Contact Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
WH-1xxG www.DustlessMadeSimple.com • [email protected]
Page 10
Warranty Terms
Clayton Associates, Inc. guarantees its manufactured products against defects in materials or workmanship and will either repair or replace
all parts that prove defective under normal use during the lifetime of the products. The warranty period shall commence from the date of paid
invoice.
This warranty does not cover (a) repairs due to normal wear, accident, neglect, misuse, or use other than as indicated in the instruction booklet
(b) products manufactured by third parties and distributed by Clayton (c) wear items such as bearings, rotor blades, regulators, valve stems,
levers, shrouds, guards, O‑rings, seals, gaskets, motor brushes, and other wearable parts.
Repair within the Continental US
During the rst 90 days of the warranty period, Clayton will provide parts and labor to the customer’s site at no charge or pay freight costs
associated with returning the products for repair to a Clayton selected service location and repair the product at no charge. Clayton personnel
will determine the best way to repair the product.
Past 90 days, Clayton will provide parts to the customer’s site at no charge or the customer may ship the product to a Clayton selected service
location at customer’s expense and Clayton will repair the product at no charge and provide return shipping.
Repair Outside the Continental US
Clayton will provide parts to the customer’s site at no charge or the customer may ship the product to a Clayton selected service location at
customer’s expense and Clayton will repair the product at no charge and provide return shipping.
Limitation of Liability
Clayton shall not in any event be liable for any damages, loss of production time or prots, whether based on contract, warranty, negligence,
strict liability or otherwise, including without limitation any consequential, incidental or special damages, arising with respect to the equipment
or its failure to operate.
Clayton Associates, Inc. makes no other warranty or representation of any kind, except that of title, and all other warranties, express or implied,
including warranties of merchantability or tness for any particular purpose, are hereby expressly disclaimed.
LIMITED LIFETIME WARRANTY TERMS AND CONDITIONS

THIS PAGE IS INTENTIONALLY BLANK
