Clayton WartHog WTX-107T-0 Guide

WARNING
Respiratory protection is recommended
operating this equipment.
WARNING
Eye protection is required when operating this
equipment.
WARNING
Hearing protection is recommended when
operating this equipment.
WARNING
Read and understand operator’s manual before
using this equipment.
SAFETY LEGEND
WARNING
WTX-0 October 06, 2022
Safety – Operation – Maintenance
Keep this document in a safe place
Read and understand this manual before operating your air tool
• A HEPA Filter must be installed in this vacuum at all times.
• If this vacuum is used to collect hazardous material, appropriate personal protective equipment may be required.
• Any alteration to this equipment by a third party will nullify its warranty.
WartHog WTX Power Head
Electric Industrial HEPA Vacuum
Models: WTX-107T-0, WTX-115T-0, WTX-205T-0, WTX-215T-0
• Designed for toxic dust cleanup and housekeeping
• Dry Recovery Only
Scan this QR code for
online instructions and
documentation, or visit
www.ClaytonHowTo.com
WTX-0_cover

TABLE OF CONTENTS
Repair or Warranty Contact Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
WTX-0 www.DustlessMadeSimple.com • [email protected]
Page 2
Important Safety Instructions...............................................................................................3
Applications & Environments...............................................................................................4
What’s In the Box ................................................................................................................4
Specications & Requirements............................................................................................4
Getting Started ....................................................................................................................5
Differential Pressure Gauge ................................................................................................7
Before Each Use .................................................................................................................7
Bag Filter Change................................................................................................................8
Safe Filter Change...............................................................................................................9
Pre‑Filter Change ..............................................................................................................10
HEPA Filter Change...........................................................................................................11

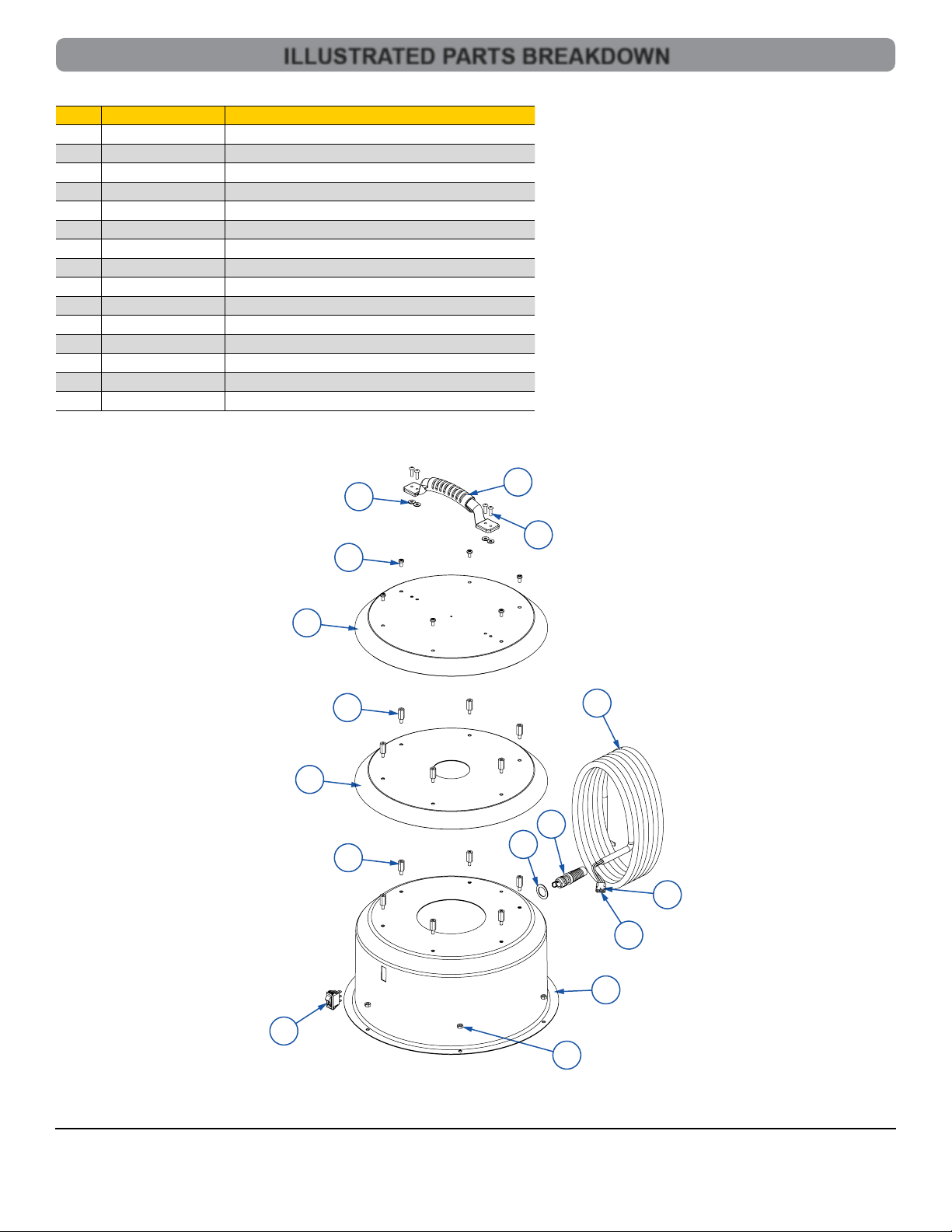

Illustrated Parts Breakdown...............................................................................................12
Limited Lifetime Warranty Terms And Conditions ..............................................................16
EC Declaration of Conformity............................................................................................17

Repair or Warranty Contact Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
WTX-0 www.DustlessMadeSimple.com • [email protected]
Page 3
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE
When using an electrical appliance, basic precautions should always be followed, including the following:
WARNING
To reduce the risk of re, electric shock, or injury:
• Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing.
• This unit is to be used only indoors and in a dry location.
• Use only as described in this manual. Use only manufacturer’s recommended attachments.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors,
or dropped into water, return it to a service center.
• Handle provided on power head is used only for removal of power head during maintenance.
• Before separation of power head from tank, users must disengage draw latches on tank.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners.
• Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may
reduce air ow.
• Keep hair, loose clothing, ngers, and all parts of body away from openings and moving parts.
• Turn off all controls before unplugging.
• Do not use to pick up ammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Connect to a properly grounded outlet only. Refer to “EARTHING/GROUNDING INSTRUCTIONS” on page 3.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without all lters in place.
• Do not allow to be used as a toy. Close attention necessary when used by or near children.
• Use extra care when cleaning on stairs
EARTHING/GROUNDING INSTRUCTIONS
This appliance must be earthed/grounded. If it should malfunction or breakdown, earthing/grounding provides a path of least resistance
for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment-earthing/grounding
conductor and earthing/grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and earthed/grounded in
accordance with all local codes and ordinances.
WARNING – Improper connection of the equipment-earthing/grounding conductor can result in a risk of electric shock. Check with a qualied
electrician or service person if you are in doubt as to whether the outlet is properly earthed/grounded. Do not modify the plug provided with the
appliance – if it will not t the outlet, have a proper outlet installed by a qualied electrician.
Refer to Name Plate for electrical requirements.
• USA 120 V
This appliance has a earthing/grounding attachment plug that looks like the
plug illustrated in Figure 1. Make sure that the appliance is connected to an
outlet having the same conguration as the plug. No adapter should be used
with this appliance.
• International 120 V
This appliance has an IEC 60309 120 V earthing/grounding attachment plug.
Make sure that the appliance is connected to an outlet having the same
conguration as the plug. No adapter should be used with this appliance.
• International 220 V – 240 V
This appliance has an IEC 60309 250 V earthing/grounding attachment plug.
Make sure that the appliance is connected to an outlet having the same
conguration as the plug. No adapter should be used with this appliance.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Figure 1: Earthed/Grounded Outlet and Plug
GL_002
Grounded
Outlet Box
Grounded Outlet
Grounding Pin

Repair or Warranty Contact Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
WTX-0 www.DustlessMadeSimple.com • [email protected]
Page 4
• Designed for toxic dust cleanup and housekeeping.
• Dry recovery only.
Do not use this equipment for cleaning or extracting fuel residues from any vehicle or equipment.
Do not use this equipment for cleaning or extracting live sparks or burning embers.
Do not use this equipment in combustible dust or gas atmospheres.
NOTE:Clayton vacuum tanks ship in their own box and include bags, lters, and other components. These instructions assume you have
both a power head and an appropriate Clayton vacuum tank. Refer to the instruction manual included with the vacuum tank for
additional information.
PHYSICAL:
Weight....................................................................................................................................................................................TBD lbs (TBD kg)
Dimensions (Diameter x Height).......................................................................................................................... 17.5 x 12 in (44.5 x 30.5 cm)
Sound Level........................................................................................................................................................................................... 67 dBA
POWER CONSUMPTION:
Power Rating ..............................................................................................................................................................................................2 hp
Power Consumption.............................................................................................................................................................. 12.5 A @ 120 Vac
7.5 A @ 220 – 240 Vac
FILTRATION:
HEPA Filter Efciency ...............................................................................................................................................99.995% @ 0.3 μm (H14)
Filter Bag Efciency ............................................................................................................................................................. 95% @ 0.5 micron
PERFORMANCE:
120 Vac
Vacuum Flow.......................................................................................................................................................... 120 CFM (204 SCMH)
Vacuum Suction ..........................................................................................................................................................120 inH
2
O (30 kPa)
220 – 240 Vac
Vacuum Flow.......................................................................................................................................................... 115 CFM (196 SCMH)
Vacuum Suction .......................................................................................................................................................... 115 inH
2
O (29 kPa)
APPLICATIONS & ENVIRONMENTS
WHAT’S IN THE BOX
WTX-0_001
WartHog WTX Power Head
SPECIFICATIONS & REQUIREMENTS

Repair or Warranty Contact Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
WTX-0 www.DustlessMadeSimple.com • [email protected]
Page 5
1. The vacuum power head and the vacuum tank ship in separate boxes.
2. Unbox the vacuum power head.
3. Visually inspect the power head to verify that no parts are missing or damaged.
4. Familiarize yourself with the power head.
5. Power Head Vents:
• NEVER BLOCK THE POWER HEAD VENTS.
• NEVER WRAP THE POWER CORD AROUND THE POWER HEAD VENTS.

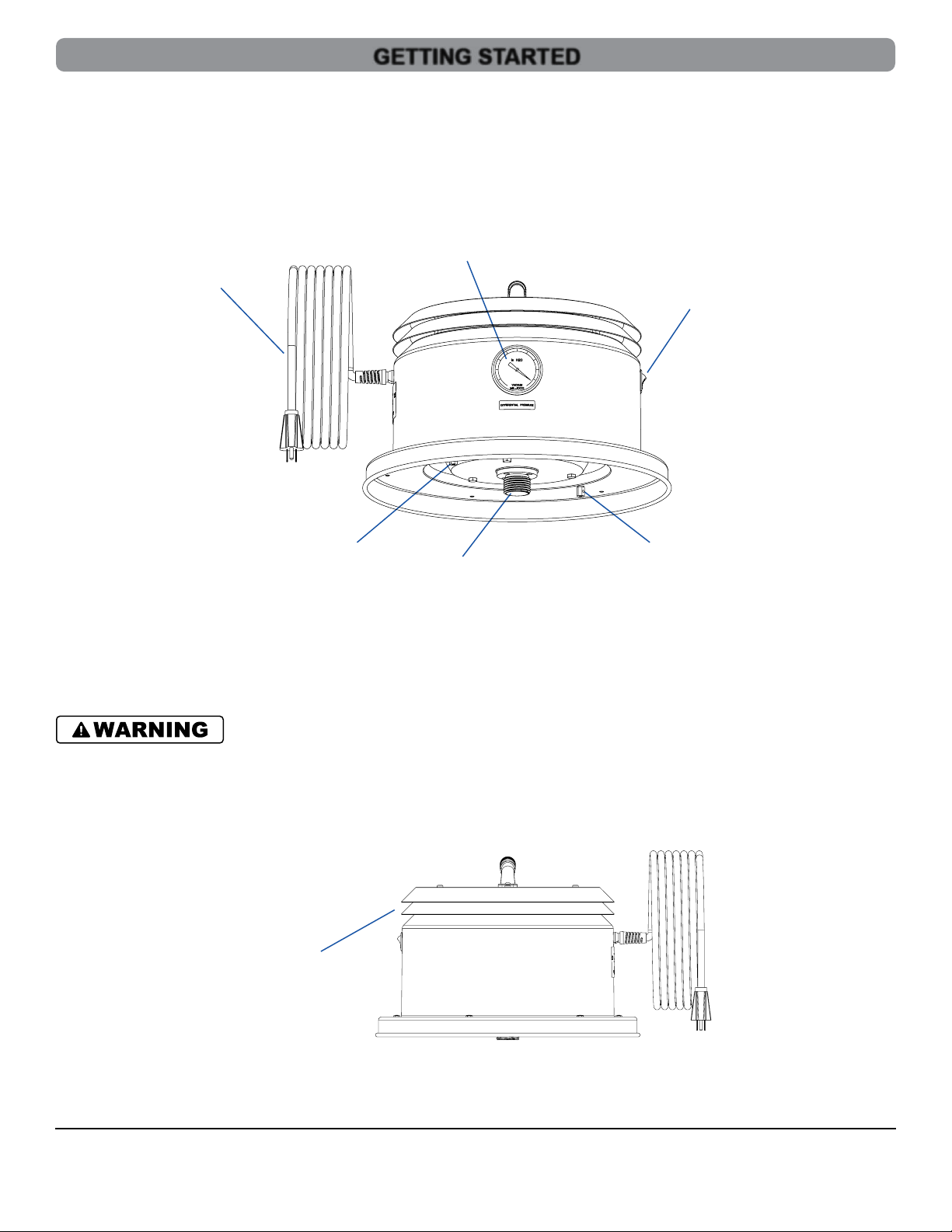

GETTING STARTED
Differential
Pressure Gauge
Filter Adapter
Power Cord
HEPA Wire Lock
Hex Standoff
HEPA Wire Lock
Hex Standoff
Power Switch
WTX-0_002
Power Head
Vents
WTX-0_003

Repair or Warranty Contact Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
WTX-0 www.DustlessMadeSimple.com • [email protected]
Page 6
Prepare the vacuum for use.
1. Install a lter bag on the tank.
• Unfold and uff a new lter bag.
• Push the inlet tube into the hole on the cardboard collar of the lter bag.
• Grasp the sides of the cardboard collar and push it all the way onto the inlet tube.
• Verify the bottom of the collar is past the opening on the underside of the inlet tube.
2. Unbox a new HEPA lter.
• Remove the Clayton HEPA timer card from the box and set aside.
• Remove the HEPA cable lock from the box and set aside.
• Remove the HEPA lter from the box and remove from plastic bag.
3. Install a new HEPA lter.
• Holding the power head on its side, screw the new HEPA lter onto the lter adapter.
• Verify the white inner ring of the HEPA lter is fully seated against the underside of the power head.
–If it is not, rotate it clockwise until fully seated.
• Refer to the instructions included with the HEPA cable lock to install the cable lock.
4. Attach the power head.
• Position the power head on the tank.
• Rotate the power head so that the power switch on the power head
is aligned with the inlet port on the vacuum tank.
• Latch the power head to the tank.
5. Activate the HEPA lter timer.
• Attach the new HEPA timer card with a zip tie (included) to the top
handle of the vacuum.
• Follow the directions on timer card to activate it.
GETTING STARTED

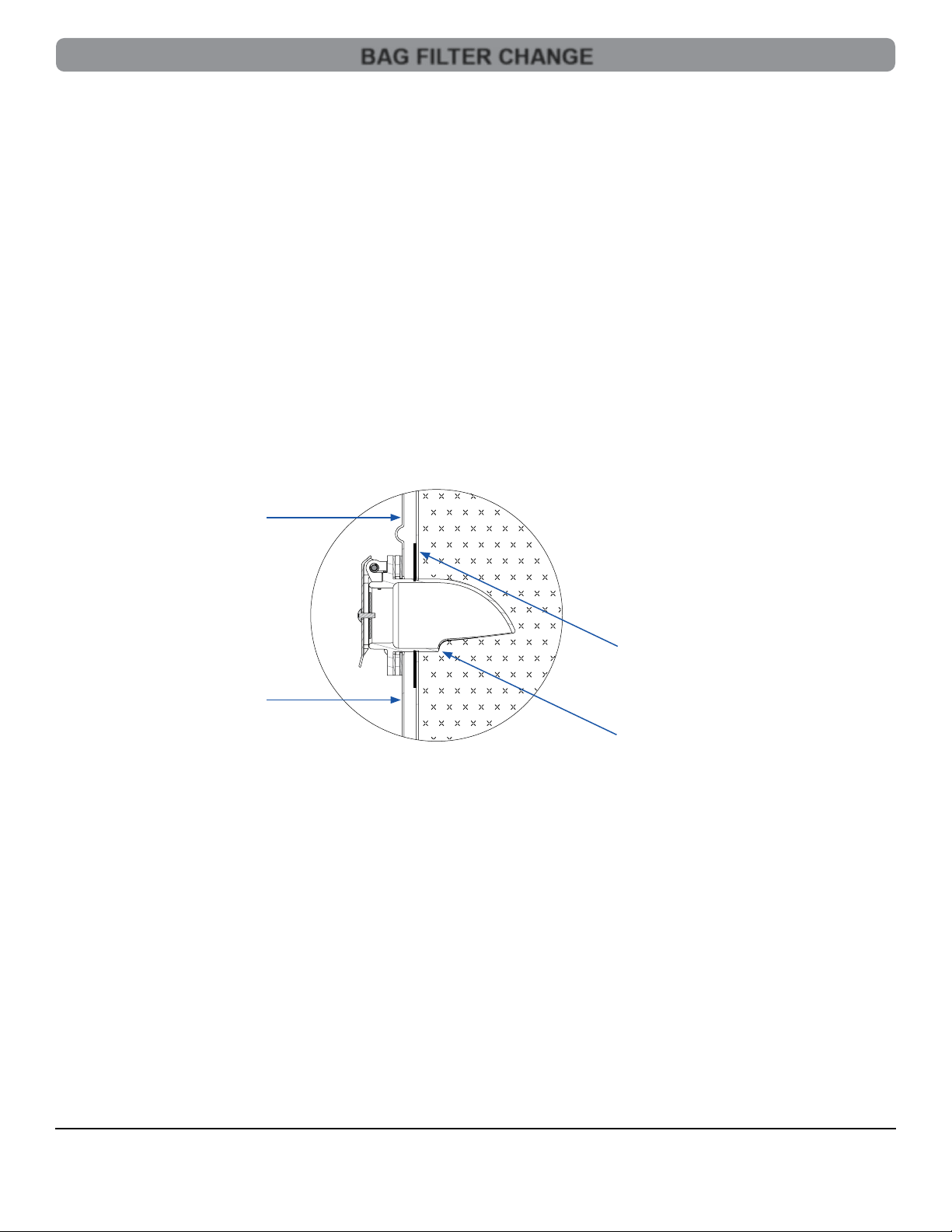

GL_005
Filter Bag
Bottom and top of
Cardboard Bag Collar
must be ush to tank
Push Cardboard Bag Collar
past this point
Tank Wall
Tank Wall
WTX-0_004
Inlet Port
aligned with …
Power Switch …

Repair or Warranty Contact Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
WTX-0 www.DustlessMadeSimple.com • [email protected]
Page 7
Principle of Operation
As the bag lter, pre-lter, and HEPA lter become loaded with debris, the debris restricts airow through the lters. This restriction increases
the differential pressure which is displayed on the Differential Pressure Gauge located on the side of the power head. This can help determine
when to change the bag lter, HEPA lter, and/or pre-lter.
Clayton recommends that the bag lter be changed when it is approximately 75% full by volume. Keep in mind that if the debris is something
like ne powder it will create more restriction and therefore a greater differential pressure than something like rivet stems.
The differential pressure gauge has a range of 0 to -100.
We recommend that each customer use the following procedure to test the vacuum in situ to determine gauge readings for both
clean lters and a bag lter that is 75% full.
Each customer should tailor their differential pressure testing schedule based on how quickly the bag lter typically reaches capacity within
their specic environment.
1. Plug the power head/vacuum into an appropriate outlet.
2. Activate the vacuum.
• Toggle the power switch to the ON position.
3. Read the Gauge.
• Hold the inlet port open with your hand (do not insert a hose).
• Read the Differential Pressure Gauge.
• Close the inlet port.
• Deactivate the vacuum.
4. Change the Filters.
• Based on the Differential Pressure Gauge reading, if it is determined that the bag lter needs to be replaced refer to “Bag Filter
Change” on page 8 for complete information.
• After having replaced the bag lter, if the Differential Pressure Gauge does not return to the clean lter reading, the pre-lter and/or
HEPA lter may need to be replaced.
Refer to:
–“Pre‑Filter Change” on page 10 and/or
–“HEPA Filter Change” on page 11
for complete information.
1. Attach the vacuum hose.
• Open the inlet port on the vacuum tank.
• Insert the metal sleeve of the vacuum hose into the inlet port on the vacuum tank.
2. Plug the power head/vacuum into an appropriate outlet.
3. Activate the vacuum.
• Toggle the power switch to the ON position.
DIFFERENTIAL PRESSURE GAUGE
BEFORE EACH USE

Repair or Warranty Contact Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
WTX-0 www.DustlessMadeSimple.com • [email protected]
Page 8
If this vacuum is used to collect hazardous material, appropriate personal protective equipment may be required.
The bag lter should be replaced when ¾ full.
1. Safe the vacuum.
• Disconnect the vacuum from power source.
• Remove all hoses from the vacuum.
2. Remove the power head.
• Unlatch the power head from the tank.
• Lift the power head and the attached HEPA lter off the tank using the top handle.
• Carefully place the power head on the oor – avoid damaging the HEPA lter.
3. Remove the lter bag.
• Grasp the cardboard collar of the bag lter and slide it off the inlet port on the vacuum tank.
• Holding your hand over the opening on the bag, lift the bag out of the tank.
• Dispose of the bag according to company policy.
4. Install a new lter bag.
• Unfold and uff a new lter bag.
• Push the inlet tube into the hole on the cardboard collar of the lter bag.
• Grasp the sides of the cardboard collar and push it all the way onto the inlet tube.
• Verify the bottom of the collar is past the opening on the underside of the inlet tube.
5. Verify the HEPA lter is seated.
• Holding the power head on its side, examine the HEPA lter.
• Verify the white inner ring of the HEPA lter is fully seated against the underside of the power head.
–If it is not, rotate it clockwise until fully seated.
6. Replace the power head.
• Position the power head on the tank.
• Rotate the power head so that the power switch on the power head is aligned with the inlet port on the vacuum tank.
• Latch the power head to the tank.
BAG FILTER CHANGE
GL_005
Tank Wall
Tank Wall
Bottom and top of
cardboard bag collar
must be ush to tank
Push cardboard bag
collar past this point
Filter Bag

Repair or Warranty Contact Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
WTX-0 www.DustlessMadeSimple.com • [email protected]
Page 9
Principle of Operation
Safe Filter Change (SFC) uses a second Clayton HEPA vacuum and a Safe Filter Change Hose to create a downdraft within the primary
vacuum while changing the bag lter.
If this vacuum is used to collect hazardous material, appropriate personal protective equipment may be required.
The bag lter should be replaced when ¾ full.
1. Connect the vacuums.
• Verify the power switch on both vacuums is in the OFF position.
• Remove all hoses from the primary vacuum.
• Position the support vacuum with its inlet port facing the SFC port on the primary vacuum.
• Open the inlet port on the support vacuum.
• Insert one metal sleeve of the SFC hose into the inlet port on the support vacuum.
• Open the SFC port on the primary vacuum.
• Insert the other metal sleeve of the SFC hose into the SFC port on the primary vacuum.
• Plug both vacuums into power.
2. Remove the power head.
• Unlatch the primary vacuum’s power head from the tank.
• Slowly lift the primary vacuum power head and attached HEPA lter approximately 1 inch off the tank using the top handle.
• Toggle the support vacuum power switch to the ON position to create the downdraft.
• Toggle the primary vacuum power switch to the ON position to prevent any debris from falling off the HEPA lter.
• Carefully lift the primary vacuum power head and attached HEPA lter off the tank using the top handle.
• Carefully place the power head on the oor – avoid damaging the HEPA lter. The primary power head should remain running.
3. Remove the bag lter.
• Turn a large disposal bag inside out around your arms.
• Using the disposal bag like a large mitten, grasp the cardboard collar of the bag lter and slide it off the inlet port.
• The disposal bag should remain between the user and the bag lter.
• Gently lift the bag lter while drawing the disposal bag down and around the bag lter.
• Gather the neck of the disposal bag and seal the bag closed using tape or ties.
• Dispose of the bag lter according to company policy.
4. Install a new bag lter.
• Unfold and uff a new bag lter.
• Push the inlet tube into the hole on the cardboard collar of the bag lter.
• Grasp the sides of the cardboard collar and push it all the way onto the inlet tube.
• Verify the bottom of the collar is past the opening on the underside of the inlet tube.
continued on next page
SAFE FILTER CHANGE
GL_005
Filter Bag
Bottom and top of
Cardboard Bag Collar
must be ush to tank
Push Cardboard Bag Collar
past this point
Tank Wall
Tank Wall

Repair or Warranty Contact Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
WTX-0 www.DustlessMadeSimple.com • [email protected]
Page 10
5. Verify the HEPA lter is seated.
• Holding the power head on its side, examine the HEPA lter.
• Verify the white inner ring of the HEPA lter is fully seated against the underside of the power head.
–If it is not, rotate it clockwise until fully seated.
6. Replace the primary power head.
• Carefully position the primary power head on the primary tank.
• Toggle the primary vacuum power switch to the OFF position.
• Rotate the power head so that the power switch on the power head is aligned with the inlet port on the vacuum tank.
• Latch the power head to the tank.
• Toggle the support vacuum power switch to the OFF position.
7. Disconnect the vacuums.
• Disconnect the SFC hose from the primary vacuum SFC port.
• Disconnect the SFC hose from the support vacuum inlet port.
If this vacuum is used to collect hazardous material, appropriate personal protective equipment may be required.
Replace the pre-lter every ve (5) bag lter changes or when it becomes visibly dirty.
1. Safe the vacuum.
• Disconnect the vacuum from the power source.
• Remove all hoses from the vacuum.
2. Remove the power head.
• Unlatch the power head from the tank.
• Lift the power head and the attached HEPA lter off the tank using the top handle.
• Carefully place the power head on the oor – avoid damaging the HEPA lter.
3. Remove the pre‑lter.
• The pre-lter is wrapped around the HEPA lter and secured with Velcro.
• Find the seam and carefully peel the Velcro apart.
• Dispose of the pre-lter according to company policy.
4. Install a new pre‑lter.
• Unfold a new pre-lter and remove the thin Velcro cover strip from the Velcro hooks.
• Wrap the pre-lter tightly around the HEPA lter.
• Secure the pre-lter by adhering the Velcro hooks to the side of the pre-lter.
5. Verify the HEPA lter is seated.
• Holding the power head on its side, examine the HEPA lter.
• Verify the white inner ring of the HEPA lter is fully seated against the underside of the power head.
–If it is not, rotate it clockwise until fully seated.
6. Replace the power head.
• Position the power head on the vacuum tank.
• Rotate the power head so that the power switch on the power head is aligned with the inlet port on the vacuum tank.
• Latch the power head to the tank.
SAFE FILTER CHANGE
PRE-FILTER CHANGE

Repair or Warranty Contact Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
WTX-0 www.DustlessMadeSimple.com • [email protected]
Page 11
If this vacuum is used to collect hazardous material, appropriate personal protective equipment may be required.
The HEPA lter should be replaced when it is damaged, clogged, or when the HEPA timer card has reached 12 months. Never attempt to clean
the HEPA lter as this will damage it.
1. Safe the vacuum.
• Disconnect the vacuum from the power source.
• Remove all hoses from the vacuum.
2. Remove the power head.
• Unlatch the power head from the vacuum tank.
• Lift the power head and the attached HEPA lter off the tank using the top handle.
• Carefully place the power head on the oor – avoid damaging the HEPA lter.
3. Unbox a new HEPA lter.
• Remove the Clayton HEPA timer card from the box and set aside.
• Remove the HEPA cable lock from the box and set aside.
• Remove the HEPA lter from the box and remove it from the plastic bag.
4. Remove the old HEPA lter.
• Holding the power head on its side cut the HEPA cable lock and remove it.
• Unscrew the HEPA lter from the lter adapter.
• Dispose of the HEPA lter according to company policy.
5. Install a new HEPA Filter.
• Holding the power head on its side, screw the new HEPA lter onto the threaded lter adapter.
• Verify the white inner ring of the HEPA lter is fully seated against the underside of the power head.
–If it is not, rotate it clockwise until fully seated.
• Refer to the instructions included with the HEPA cable lock to install the cable lock.
6. Replace the power head.
• Carefully position the power head on the vacuum tank.
• Rotate the power head so that the power switch on the power head is aligned with the inlet port on the vacuum tank.
• Latch the power head to the vacuum tank.
7. Activate the HEPA lter timer.
• Remove the old HEPA timer card from the power head.
• Attach the new HEPA timer card with a zip tie (included) to the top handle of the vacuum.
• Follow the directions on the timer card to activate.
HEPA FILTER CHANGE

ILLUSTRATED PARTS BREAKDOWN
Repair or Warranty Contact Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
WTX-0 www.DustlessMadeSimple.com • [email protected]
Page 12
603-WTX-0 (Sheet 1 of 4)
ILLUSTRATED PARTS BREAKDOWN
Seq Item No Description
1 350-023 Strain Relief For 20 Amp Cord
2 605-310A HH Vac Head Handle Cap SS Black
3 605-310D HH Vac Head Exhaust Bafe SS Black
4 605-314E WTX Vac Enclosure Toxic Cleanup 120V SS Black
5 900-143N515P-30 Cord 14/3 15A Cord Lock Plug 30ft Yel
6 900-M14R3 Molex Receptacle, 14 ga, 3 Position
7 900-M14S Molex Socket Terminal, 14 ga
8 900-SW-SPDT-01 Switch Rocker Rect 20A 120V SPDT On-Off-On Black
9 930-027 Handle, Carry, Flex Rubber
10 FE103212-HZSM-Z Hex Standoff, 10-32 MF x 3/4 in SS
11 NE10320608-HNSZ Nut 10-32 Nylon Lock SS Short
12 RE0620-SDSSS-Z Rivet Blind 3/16 x 0.625 Sealed SS (.251-.375)
13 SE103206-XPSM-Z Screw 10-32 x 3/8in SS TORX
14 WE133203-RFS-Z Washer .203ID x .500OD .047H Round Stainless Steel
15 WE481803-RZSZ Shim .750 ID x 1.125 OD x .048 Round Stainless
WTX-0_008
1
6
11
2
7
12
3
8
13
4
9
14
5
10
10
15

Repair or Warranty Contact Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
WTX-0 www.DustlessMadeSimple.com • [email protected]
Page 13
ILLUSTRATED PARTS BREAKDOWN
603-WTX-0 (Sheet 2 of 4)
WTX-0_009
1
2
3
5
6
4
Seq Item No Description
1 911-803-1 Handle Cap Sound Control Foam
2 911-803-2 Exhaust Bafe Sound Control Foam
3 911-803-3 Enclosure Top Sound Control Foam
4 911-803-4 Base Ring Sound Control Foam
5 911-803-5 Motor Plate Sound Control Foam
6 911-803-6 Enclosure Foam 1 Sound Control
6 911-803-7 Enclosure Foam 2 Sound Control
6 911-803-8 Enclosure Foam 3 Sound Control

ILLUSTRATED PARTS BREAKDOWN
Repair or Warranty Contact Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
WTX-0 www.DustlessMadeSimple.com • [email protected]
Page 14
ILLUSTRATED PARTS BREAKDOWN
603-WTX-0 (Sheet 3 of 4)
WTX-0_005
1
4
7
10
2
8
11
3
6
9
12
14
15
16
17
18
19
WTX-0_006
5
13
Wiring Harness is representative
actual Harness May Differ in appearance
Seq Item No Description
1 600-A108-120 Motor Assembly 120V
2 601-021 Filter Adapter, WartHog
3 601-121 Mesh Disc, 3 in Diameter
4 605-310B16 HH Vac Head Base 16in SS Black
5 900-WH003 Wiring Harness, Wgx General
6 911-011 Gasket, Filter Adapter
7 911-Q6600-220T Conical Motor Gasket Silica Gel
8 925-V40R100-02 Gauge Vacuum 2.5in 0-100 in/H2O Panel Mount
9 927-04L 1/4 PC Elbow
10 927-04L-04F FTG, 1/4 x 1/4 Elbow, PC To FNPT
11 930-015 Tubing .250OD x .125ID PTFE
12 FE103208-HZSM-B Hex Standoff, 10-32 MF x 1/2 SS With Bore
13 NE10320608-HNSZ Nut 10-32 Nylon Lock SS Short
14 NE10320615-HNSZ Nut, 10-32 Nylon Lock, SS, High
15 NE16201420-HNSZ Nut 1/4-20 Hex Lock SS
16 SE162005-PPSM-Z Screw, 1/4-20 x 5/16 PH, SS
17 SE162064-HHSM-Z Screw 1/4-20 x 4in SS Hex
18 922-T.25GN 1/4 in OD. Nylon Tubing Green
19 600-WF-1364F Washer Fiber 13/64 ID x 3/8OD

Repair or Warranty Contact Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
WTX-0 www.DustlessMadeSimple.com • [email protected]
Page 15
ILLUSTRATED PARTS BREAKDOWN
603-WTX-0 (Sheet 4 of 4)
Seq Item No Description
1 600-Q6600-220T Motor Bypass 120V 13.5A 2HP 120CFM
2 605-310C HH Vac Head Motor Collar SS
3 911-04G08 Grommet 7/32 ID, 1/2 OD
4 911-803-5 Motor Plate Sound Control Foam
5 SE101212-PPSS-Z Screw, Sheet Metal, #10 X .750, Phillips, SS
6 WE133203-RFS-Z Washer .203ID X .500OD .047H Round Stainless Steel
WTX-0_007
4
1
5
2
6
3

Repair or Warranty Contact Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
WTX-0 www.DustlessMadeSimple.com • [email protected]
Page 16
Warranty Terms
Clayton Associates, Inc. guarantees its manufactured products against defects in materials or workmanship and will either repair or replace
all parts that prove defective under normal use during the lifetime of the products. The warranty period shall commence from the date of paid
invoice.
This warranty does not cover (a) repairs due to normal wear, accident, neglect, misuse, or use other than as indicated in the instruction booklet
(b) products manufactured by third parties and distributed by Clayton (c) wear items such as bearings, rotor blades, regulators, valve stems,
levers, shrouds, guards, O‑rings, seals, gaskets, motor brushes, and other wearable parts.
Repair within the Continental US
During the rst 90 days of the warranty period, Clayton will provide parts and labor to the customer’s site at no charge or pay freight costs
associated with returning the products for repair to a Clayton selected service location and repair the product at no charge. Clayton personnel
will determine the best way to repair the product.
Past 90 days, Clayton will provide parts to the customer’s site at no charge or the customer may ship the product to a Clayton selected service
location at customer’s expense and Clayton will repair the product at no charge and provide return shipping.
Repair Outside the Continental US
Clayton will provide parts to the customer’s site at no charge or the customer may ship the product to a Clayton selected service location at
customer’s expense and Clayton will repair the product at no charge and provide return shipping.
Limitation of Liability
Clayton shall not in any event be liable for any damages, loss of production time or prots, whether based on contract, warranty, negligence,
strict liability or otherwise, including without limitation any consequential, incidental or special damages, arising with respect to the equipment
or its failure to operate.
Clayton Associates, Inc. makes no other warranty or representation of any kind, except that of title, and all other warranties, express or implied,
including warranties of merchantability or tness for any particular purpose, are hereby expressly disclaimed.
LIMITED LIFETIME WARRANTY TERMS AND CONDITIONS

Brad Clayton
President
Clayton Associates, Inc.
Place of Issue: Lakewood, New Jersey, USA November 23, 2018
Repair or Warranty Contact Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
WTX-0 www.DustlessMadeSimple.com • [email protected]
Page 17
Clayton Associates, Inc. of 1650 Oak Street, Lakewood New Jersey 08701 U.S.A. declare on our own responsibility that the
following equipment:
Industrial HEPA Filtered, Electrically Powered Vacuum Cleaners and Accessories for Dry Recovery
• Vacuum Models (where XXXX is the Tank Model):
WGX-XXXX-0, WGP-XXXX-0, WTX-XXXX-0, WTP-XXXX-0
WGX-XXXX-1, WGP-XXXX-1, WTX-XXXX-1, WTP-XXXX-1
• Tank Models: 107G, 107T, 115G, 115T, 205G, 205T, 215G, 215T
• With serial numbers ranging from WH0000001 through WH9999999
Are designed and manufactured in compliance with the essential requirements and other relevant provisions of the following
applicable directives:
• Machinery Directive 2006/42/EC
• The Electromagnetic Compatibility Directive 2004/108/EC
Compliance has been obtained by application of the following standards:
• EN ISO 12100:2010-11
• EN 60335-1:2012/A13 excluding 25.6
• EN 60335‑2‑69:2012 specically Annex AA: Requirements for vacuum cleaners and dust extractors for the
collection of hazardous dusts
• EN 55014‑1:2017
• EN 55014-2:2015
The legally authorized entity, established in the EU for compiling the technical le is ExVeritas Limited, Unit 16-18, Abenbury
Way, Wrexham Industrial Estate, Wrexham, LL13 9UZ, United Kingdom.
File Number: 18FILE0423
Subject to use for the purpose for which it was designed in accordance with relevant standards and with the manufacturer’s
recommendations. We hereby declare that the equipment specied above conforms to the listed Directives and Standards.
EC DECLARATION OF CONFORMITY

Brad Clayton
President
Clayton Associates, Inc.
Place of Issue: Lakewood, New Jersey, USA November 23, 2018
Repair or Warranty Contact Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
WTX-0 www.DustlessMadeSimple.com • [email protected]
Page 18
EC DECLARATION OF CONFORMITY
Clayton Associates, Inc. of 1650 Oak Street, Lakewood New Jersey 08701 U.S.A. declare on our own responsibility that the
following equipment:
Industrial HEPA Filtered, Electrically Powered Vacuum Cleaners
• Vacuum Models (where XXXX is the Tank Model):
WGX-XXXX-0, WGP-XXXX-0, WTX-XXXX-0, WTP-XXXX-0
WGX-XXXX-1, WGP-XXXX-1, WTX-XXXX-1, WTP-XXXX-1
• Tank Models: 107G, 107T, 115G, 115T, 205G, 205T, 215G, 215T
• With serial numbers ranging from WH0000001 through WH9999999
Were tested to verify the integrity of the HEPA lter and the assembled machine.
Test Procedure:
• The test was performed using an aerosol generator and a photometer.
• The system was challenged with 18 microliters/mᶟ Poly Alfa Olen (PAO).
• The system was tted with a HEPA lter, part number 627-12H having a certied minimum efciency of 99.995%.
Test Results:
• The ltration efciency of the assembled WartHog vacuum was 99.9978%
• Test performed at: 740 Driving Park Avenue, Rochester NY 14613 USA
Declaration:
• The assembled unit meets the standard for US HEPA ltration and EU H14.

THIS PAGE IS INTENTIONALLY BLANK

Repair or Warranty Contact Clayton Associates, Inc. • 1650 Oak Street • Lakewood, New Jersey 08701 • P.+1-732-363-2100 F.+1-732-364-6084
www.DustlessMadeSimple.com • [email protected]
Clayton products are proudly made in the USA
