CHAT®50 |Personal Speakerphone
Quick Start Guide

CHAT 50 FEATURES ..........................................................1
CONFIGURING THE CHAT 50............................................2
CONNECTING YOUR CHAT 50 .........................................3
Co n n e C t i n g t h e ChAt 50 t o APC........................................ 3
CONFIGURING AND TESTING YOUR CHAT 50................4
ChAt 50 Au d i o Co n f i g u r A t i o n ............................................. 4
USING THE CHAT 50..........................................................5
ChAt 50 Led in d i C A t o r s ..................................................... 5
Vo L u m e & mu t e Bu t t o n s ....................................................... 5
SPECIFICATIONS AND REQUIREMENTS.........................6
sy s t e m re q u i r e m e n t s ............................................................ 6
Co n n e C t i o n s ......................................................................... 6
Au d i o ................................................................................... 6
Po w e r .................................................................................. 6
Co n t r o L s ............................................................................. 6
en V i r o n m e n t A L ...................................................................... 6
Pr o C e s s i n g ........................................................................... 6
me C h A n i C A L ........................................................................... 6
Co m P L i A n C e ........................................................................... 6
mo d e L nu m B e r s .................................................................... 6
Table of Contents

QUICK START GUIDE
1

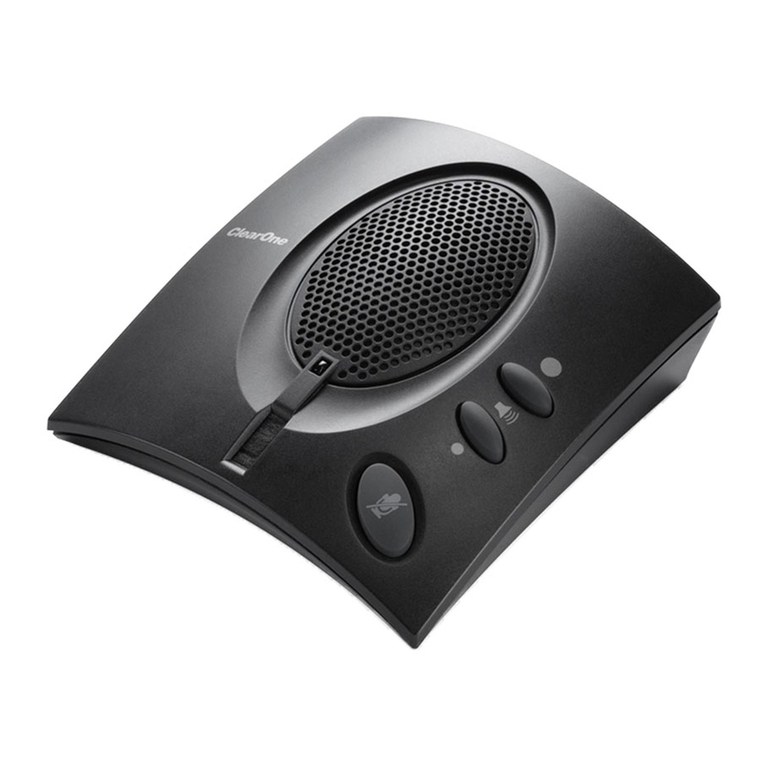

Figure 1 - CHAT 50 Details
CHAT 50 Features

CHAT 50 Group Speaker Phone
2
Configuring the CHAT 50
The CHAT 50 can be used right out of the box and there’s no software to
download or install if it is to be used only with a PC.
If the CHAT 50 is to be used with any other device or if the CHAT 50
firmware requires updates, follow the instructions in the CHAT 50 User’s
Manual to setup and configure the CHAT 50.
The latest version of the software and CHAT 50 User’s Manual can be
found on the ClearOne Website at:
http://www.clearone.com/support/downloads.php?content=main
Scroll down the page to the CHAT 50/150 section and click the relevant
links.
Follow the instructions in the manual to install and configure the CHAT 50
device.

QUICK START GUIDE
3
Connecting Your CHAT 50
The following describes how to connect your CHAT 50 to a PC.
The CHAT 50 can also be connected to a number of other devices. For
information on connecting the CHAT 150 to other devices, refer to the
CHAT 50 User’s Manual.
Co n n e C t i n g t h e ChAt 50 t o APC
Use the included USB 2.0 cable to connect the CHAT 50 to your PC
(Figure 1).
Figure 2 - Connecting to a PC

CHAT 50 Group Speaker Phone
4
Configuring and Testing Your CHAT 50
Consult the CHAT 50 User’s Manual for all device and software
configuration procedures as needed.
ChAt 50 Au d i o Co n f i g u r A t i o n
To ensure optimal sound quality, the CHAT 50 MUST be tuned properly
prior to use or after the device has been moved. The CHAT 50’s audio
settings must also be customized for the specific application it is to be
used with and for the specific device it is to be connected to.
The CHAT 50 derives its audio settings from the Windows sound settings
if it is attached to a PC or through the 3rd party application’s settings
(Skype, Yahoo, etc.) Refer to the tuning procedures in the Optimizing
Sound Quality section in the CHAT 50 User’s Manual or consult the
specific 3rd party application’s tuning adjustments.
For further details on configuring various devices for the CHAT 50 audio
settings, refer to the CHAT 50 User’s Manual.

QUICK START GUIDE
5
Using the CHAT 50
ChAt 50 Led in d i C A t o r s
The three microphone LED indicators illuminate blue when the CHAT
50 microphones are active. The indicators illuminate red when the
microphones are muted.
The seven volume LED indicators illuminate blue to indicate the current
volume setting—more lights indicate higher volume.
Vo L u m e & mu t e Bu t t o n s
Use the Volume Up/Down buttons (indicated by a large dot and a small
dot) to adjust the volume level of the CHAT 50. Holding down either
button will change the volume rapidly.
Use the Mute button to mute the CHAT 50’s microphone until the Mute
button is pressed again. If you are using the CHAT 50 with a PC, you can
also use the Speaker Volume Control in Windows, as well as the CHAT
50 software to adjust the volume and mute the microphone.

CHAT 50 Group Speaker Phone
6
Specifications and Requirements
System Requirements
Windows XP, Vista or 7
Connections
USB:
Version 2.0 Compatible
Type: Mini-B Female
3.5mm Line I/O Mini-Plug:
Tip: Output, Ring: Input, Sleeve: Ground
Frequency Response:
20 Hz - 20 kHz +/- 1 dB
Maximum Input Level: +6 dBu
Input Impedance: 10 kΩ
Output Impedance: 50 Ω
Audio
Speaker
Bandwidth: 220 Hz - 14 kHz
Max Output Level:
80 dB SPL @ 1 foot (0.30 meter)
Microphone
Bandwidth: 50 Hz - 7.75 kHz
Power
USB: 5 VDC @ 500 mA Maximum
External: Input:100-240 VAC, Output:7 VDC
@ 500 mA, Tip: Power, Ring: Ground
Controls
Volume Up, Volume Down, Microphone Mute
Environmental
Operating Temperature:
41 - 104° F (5 - 40° C)
Processing
Full Duplex
Acoustic Echo Cancellation (AEC)
Noise Cancellation (NC)
Line Echo Cancellation (LEC) - Selectable
Automatic Level Control (ALC)
Mechanical
Dimensions (W x D x H):
3.8” x 4.1” x 1.8”
(9.7 cm x 10.4 cm x 4.6 cm)
Weight:
0.55 lbs (0.25 kg)
Compliance
RoHS
REACH
FCC Class B Part 15
ICES-003
UL Listed
CE Listed
Model Numbers
910-159-001 CHAT 50 USB
910-159-002 CHAT 50 USB Plus
910-159-002-01 CHAT 50 USB Plus
International
910-159-003 CHAT 50 Global Traveler

Caution: Read the Safety Information in
the instruction manual
Technical Support
U.S. PATENTS: D539,274; D556,189; D531,999.
OTHER PATENTS PENDING.
© 2010 ClearOne Communications, Inc. All rights reserved.
Information in this document is subject to change without notice. 800-159-002 Revision 3.0 October 2010
