ClearView POWER SLIDE User manual

VERSION 2
ASSEMBLY INSTRUCTIONS

2
2
Our Range
clearviewaccessories.com.au
Towing Mirrors Power Boards
Rock Tamers Tyre Spider
Easy Slides
Cable SaverClip on Trays
Cutlery Set
Pantry
Power Slides
Fridge Cage
Expanda Slide

3
Introduction
clearviewaccessories.com.au
Clearview Accessories began in 2006, as a family run business owned by entrepreneur,
Mike Cowan and his son-in-law, Jay Praag. In the years that followed, Mike and Jay
turned their small family business with three full-time employees, into one of Australia’s
most respected 4WD and Touring Brands.
With a strong passion for the automotive industry, quality design and discipline in
professional workmanship, our trust is built within our values of creating high quality
ADR compliant designs.
Since our inception, our unrelenting commitment to creating solutions found nowhere
else, has helped us establish our position as a leader in manufacturing unique 4wd and
touring accessories. With an entrenched enterprising spirit, we are dedicated to
creating value for, and delighting our customers.
From humble beginnings, Clearview Accessories has grown and today manufactures a
range of unique, quality products for your next off-road adventure!
Contact us:
Clearview Accessories
3 Frog Court, Craigieburn VIC 3064
Phone: [phone]
Email: [email protected]
Website: clearviewaccessories.com.au
Due to Clearview's Continuous Improvement Program, information may change without notice.
Clearview takes no responsibility for the result of incorrect use of these installation instructions.
Thank you
for choosing
Clearview Accessories®
facebook.com/clearviewaccessories
instagram.com/clearviewaccessories
youtube.com/clearviewaccessories
Find us on social media

Contents
4clearviewaccessories.com.au
Introduction
Installing your Fridge
Getting Started
Before You Start
Assembly Instructions
3
Our Range 2
5
6
7
Safe Usage
FAQs
Positioning the Slide
Warranty
11
12
13
14
15

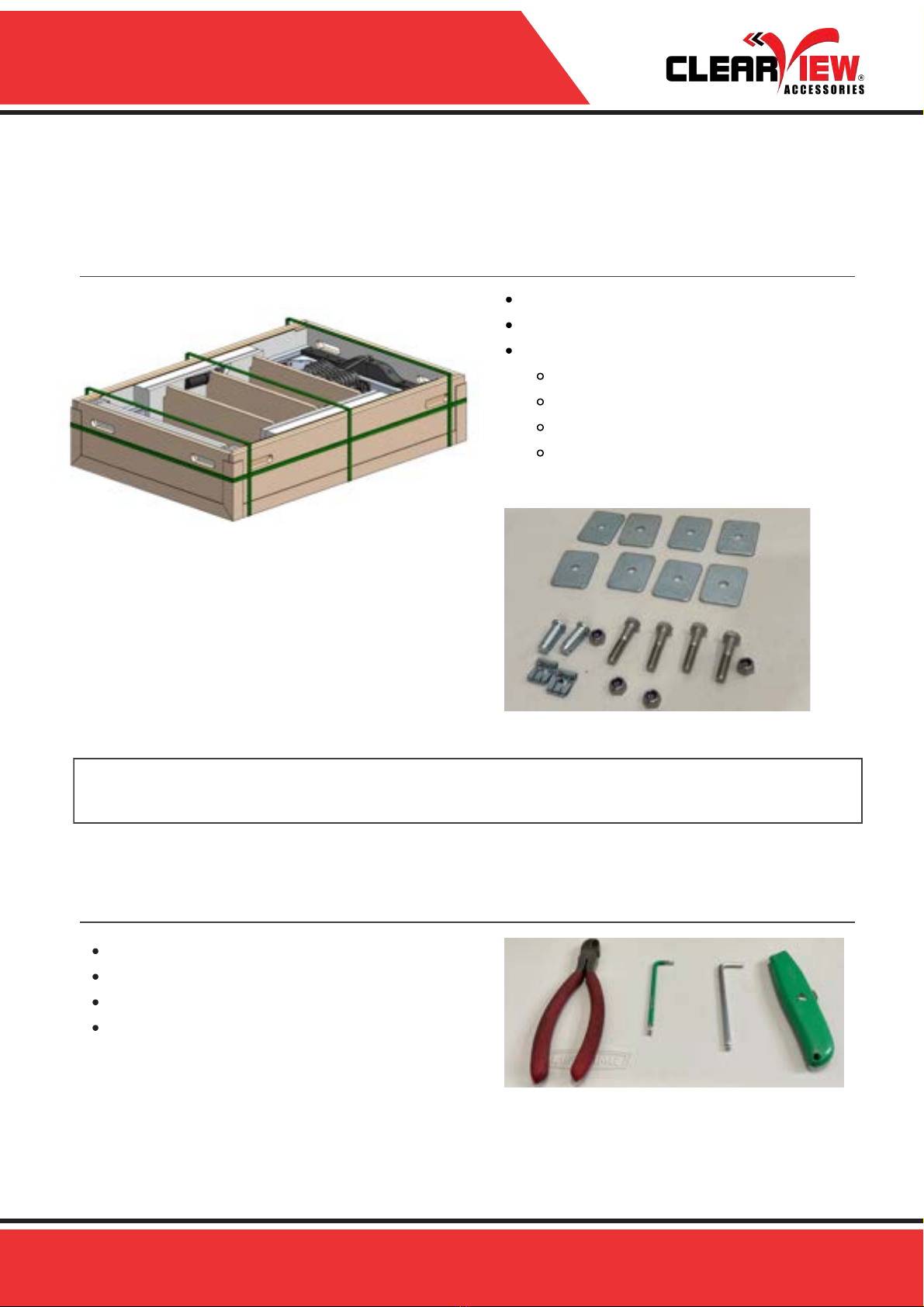

Getting Started
T25mm Allen Key
5mm Allen Key
Stanley Knife
Side Cutters
Tools Required:
FOR TECHNICAL SUPPORT CALL 03 8351 9933
What's in the box
5
Easy access to cold food and drinks with the press of a button!
If anything is missing, or damaged, please do not install your new Power Slide™
and contact us on 03 8351 9933 or via: [e-mail]
1 x The Clearview Power Slide®
1 x Tie Down Strap Kit
1 x Fixing Kit Contains:
8x clamp plates
4x stainless steel bolts
2x Clevis pins
2x Clevis clips

Cautions | warnings
CAUTION WARNING
Before you Start
SCAN THE QR CODE
AND VIEW OUR VIDEO
DEMONSTRATING
FOR TECHNICAL SUPPORT CALL 03 8351 99336
Read through the fitting instructions before installation of Clearview
Accessories.
Always install the accessory following the fitting instructions. Failure to do so
may cause damage to the vehicle or the accessory.
Ensure all recyclable discarded vehicle accessory components and packaging
are recycled following local recycling regulations.
Safely store and protect any removed vehicle components.
Remove all metal swarf and dust from all vehicle surfaces if the surface is used
for accessory installation.
Release the latch and push your slide in gently. If you’re slamming the slide in, it
will cause damage, resulting in the latches not releasing properly.
The Assembly Guide
for the Power Slide™
SCAN ME
Want to watch the video instead?
Please note that our Clearview Power Slide® is not designed for safe operation
in an outdoor environment or to withstand the elements. Constant exposure to
the elements such as rain and moisture can cause damage to the electrical
components.

Assembly Instructions
clearviewaccessories.com.au
The Clearview Power Slide® should only be mounted to a solid, fixed, flat
timber/metal surface. Do not attempt to fit the Power Slide to an existing inbuilt
fridge slide, warranty on the Power Slide™ will be made void if attempted.
This guide is for fitting a Clearview Power Slide® to a vehicle drawer system. Some
assembly of the slide is required prior to installation, as it has been partially dismantled
for packaging and freight. Please remove any cargo barrier dividers or shelving over the
drawer system and ensure there are no tie down lugs under the proposed positioning of
the slide. Please also ensure the top of the mounting surface is flat and free from debris.
We recommend having an additional person to help with the handling of the box and
setting up of the Power Slide™.

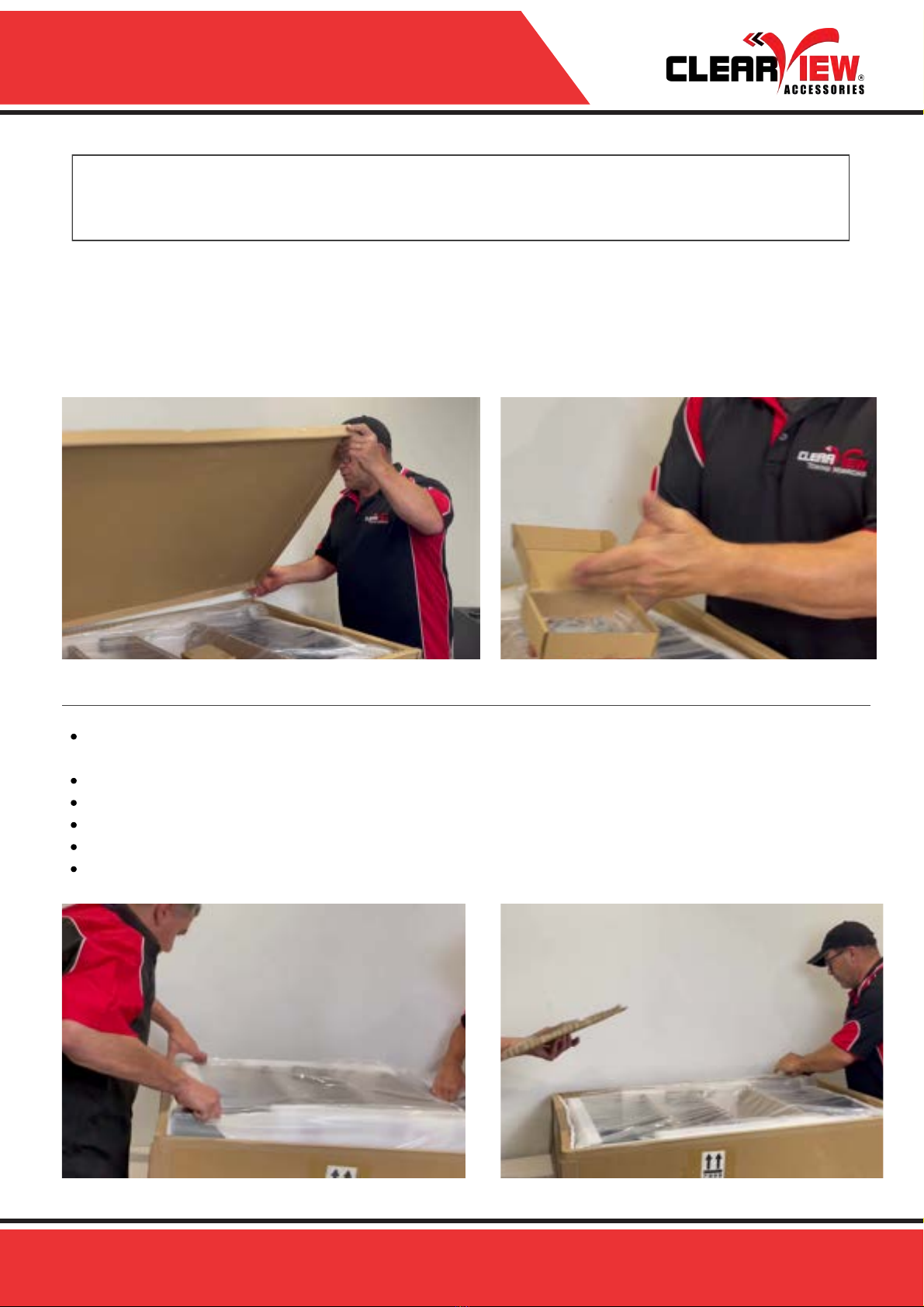

Inspect the box for damage.
Use the side cutter to safely cut and remove straps securing the box and remove lid.
Locate the fixing kit within the packaging and set aside.
Gently remove the Power Slide™ safely from the box and place onto a sturdy bench/table.
Remove the cardboard infills and foam inserts.
Unboxing
7

Assembly Instructions
Use the Stanley knife to safely cut and remove the plastic bag (start from the top and work
your way around), ensuring that you do not damage any parts of the Power Slide™.
Slightly hang the front end of the Power Slide™ over the edge of the bench/table, ensuring
that it will remain in its spot.
NB: It is recommended to use a G-Clamp to help keep the Power Slide™ secure on the
bench/table.
Using a T25 Torx key, remove the two protector covers by undoing the 4x T25 screws that
secure the protector covers located underneath.
8clearviewaccessories.com.au
Re-arrange the Power Slide™ on the bench/table
so that it isn't hanging over the edge anymore.
Remove the remaining foam and cardboard inserts
within the Power Slide™.
NB: Please ensure to avoid damaging the
actuators between the foam and cardboard
packaging when handling.

Assembly Instructions
9
clearviewaccessories.com.au

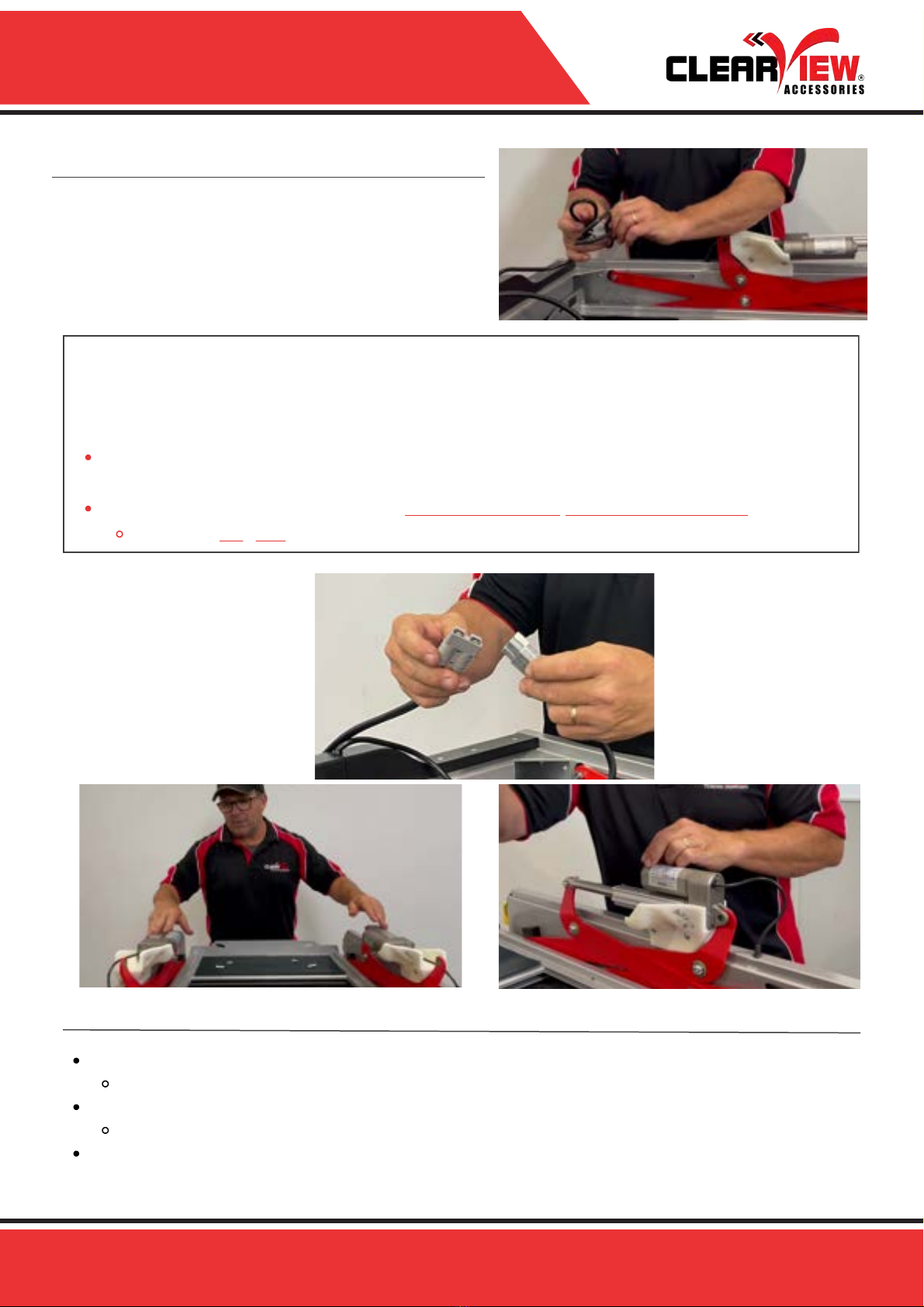

Getting power to the Power Slide™
Locate the wiring adaptor on the back of the
Power Slide™, undo the twist tie that keeps
the wire neat, and release the wiring.
Use the UP direction on switch to run the actuators up along the actuator ramps.
NB: The switch is located on the front of the Power Slide™
Slowly guide and drive the actuators into position, the actuators will run and turn over.
As you get close, slowly guide actuator until you get to the right position.
Please be mindful to keep your hands and body safely away from the actuators/any
moving parts to avoid getting caught etc.
Running the actuators into position
Before extending the actuators, ensure to remove actuator cable away from the
scissor arm area (both sides) to avoid jamming/damaging the actuator wires.
The power supply needs to be a minimum 15 Amp with a 6mm cable.
Refer to Page 11 for 'Positioning and Mounting your Power Slide™.
IMPORTANT - If you are running the Anderson Plug power supply from the vehicle
to the Power Slide™, you need to secure the Power Slide™ to your vehicle before
the next step, as you will need power to extend the actuators and place the clevis
pins and clips in.

Assembly Instructions
10 clearviewaccessories.com.au

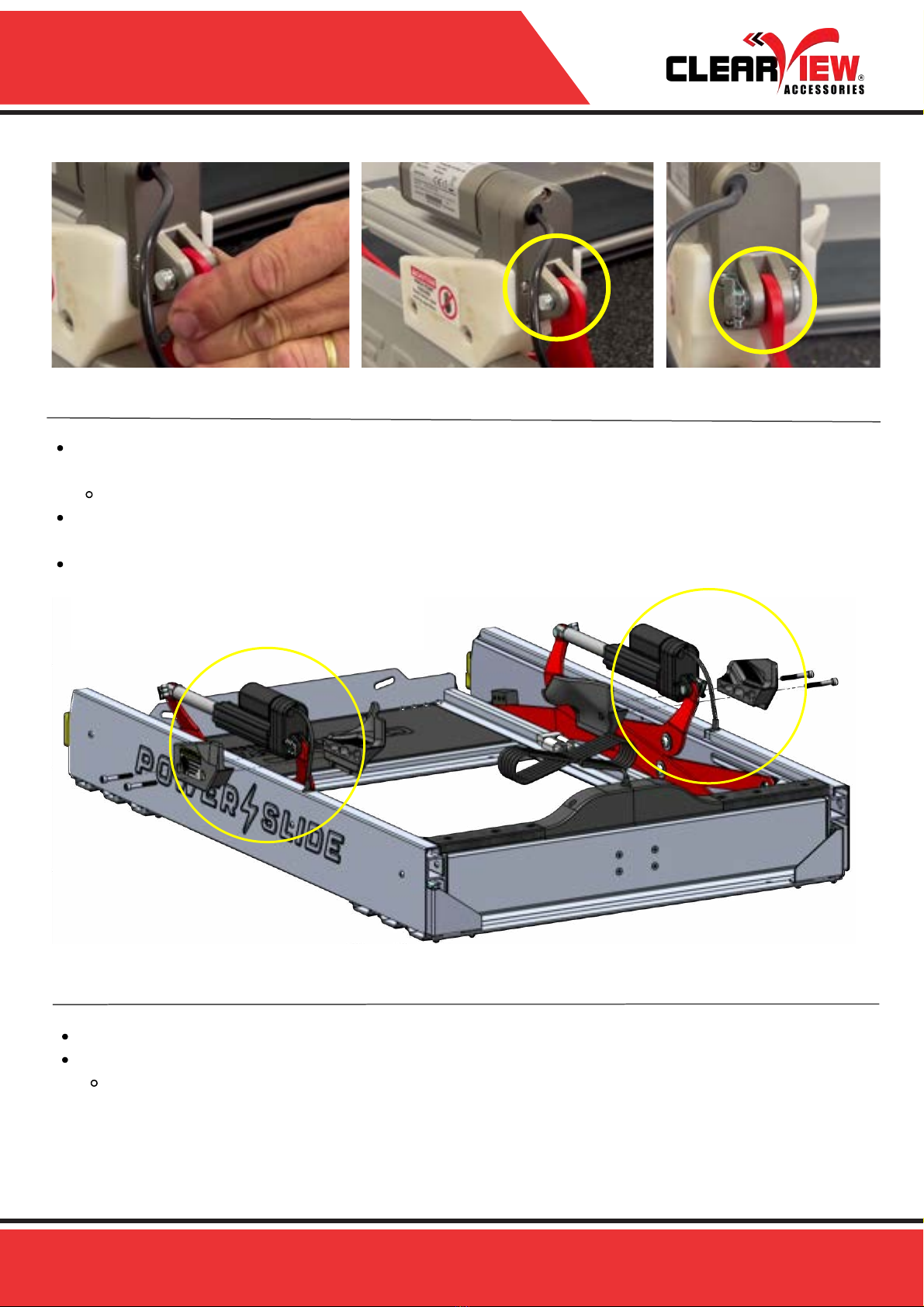

Align the actuators, then locate your clevis pin through the inner side and then push the clevis
pin through the inner hole provided.
Repeat this for the following side (Refer images 1 & 2)
Then secure the clevis pins with the clevis clips, attaching the clip from the outer side (Refer
image 3)
Once the Clevis clips are secure, you will need to cycle the Power Slide™ until the actuators
reach their home position.
Aligning and Securing the Actuators
Use a 5mm Allen key to undo the actuator ramps from the outside.
Gently remove the actuator ramps on both sides.
NB: Actuator ramps can be kept in box or discarded as they are only required for safe
transporting and flat packing of the Power Slide™.
Removing the Actuator ramp
You can now mount and secure the Power Slide™ into your vehicle if you haven’t already
assembled this inside the vehicle prior.
12 3

Positioning the Slide
11
clearviewaccessories.com.au
Positioning and mounting the Power Slide™
Temporarily place your fridge into the Power Slide™ in the stowed position.
Test the position of the Power Slide™ to ensure it remains clear of vehicle side trims and
rear door in all possible configurations, including closing the vehicle rear door with the
Power Slide™ in its secured stowed position.
Take care when testing whether the vehicle rear door can be closed without contacting
the Power Slide™ or fridge.
If the Power Slide™ needs to be repositioned, simply remove temporary fixing screws and
move the Power Slide™ into desired location.
Ensure the Power Slide™ does not extend further than the drawer front panels.
Once the position has been finalised, drill through drawer timber top using 8.5mm drill bit
through rear fixing holes on the Power Slide™ base plate.
Feed the supplied M8 mounting plate through the drilled holes from the underside of the
drawer top and tighten using M8 Nyloc nut and washer.
With the rear of the Power Slide™ secured, fully extend the tray assembly and repeat the
mounting process at front fixing holes on the Power Slide™ base plate.
Vacuum all swarf and the Power Slide™ is now ready for use.
IMPORTANT - When fitting a fridge to the Power Slide™, always use quality tie-
down straps and never travel with the fridge unrestrained.

Installing your fridge
12 clearviewaccessories.com.au
Installing and securing a fridge to the Power Slide™.
Lower the Power Slide™ and place your fridge into the Power Slide tray, ensuring best
access to controls, power socket and lid.
The Power Slide™ has provisions for four tie-down straps, one in each corner of the fridge
tray.
An additional strap bracket is included on the tray, should you choose to use this as a tie
down point instead.
To secure fridge, hold the strap by the buckle above the Power Slide™ and feed the loose
end of the strap down through the tie down point and through the Power Slide™ strap
provision from inside to out.
Then thread the loose end of the strap through the cam buckle from behind, keep pulling
the strap through and in a downward direction while holding cam buckle to tighten strap.
Repeat this process on remaining tie down straps.
For rear tie down straps, ensure the buckles are facing inwards (towards the fridge) to
avoid creating a 'catch point' that may inhibit vertical movement of the Power Slide™.
IMPORTANT - When fitting a fridge to the Power Slide, always use quality tie-
down straps and never travel with the fridge unrestrained.

Safe Usage
13
clearviewaccessories.com.au
IMPORTANT - When fitting a fridge to the Power Slide™, always use quality tie-
down straps and never travel with the fridge unrestrained.
Do not overload or use the slide in a manner contrary to its intended operation as you
may damage your equipment and void warranty.
When stowing the Power Slide™, ensure the slide lock and transit lock are engaged
for safety.
The Clearview Power Slide® has a maximum weight capacity of 180Kg on the fridge tray
at the maximum extension of slide.
WARNING
Due to the nature of the scissor arm mechanism, the Power Slide™ has some pinch
points to be aware of. Do not place hands, fingers or objects in the areas shown
below as they are pinch hazards.
Potential Pinch Hazard

FAQS:
Can I install my Power Slide™ in my ute
tray?
The Clearview Power Slide® is designed to
be installed internally within a canopy,
vehicle or trailer.
Please note that our Clearview Power
Slide® is not designed for safe operation in
an outdoor environment or to withstand
the elements. Constant exposure to the
elements such as rain and moisture can
cause damage to the electrical
components.
What is the assembly time?
Depending on the complexity of the
assembly, a dealer should be able to
assemble the Power Slide™ in
approximately 40 minutes to an hour. To
assemble the Power Slide™ at home, this
may take anywhere between 1 hour to 1.5
hours.
How far does the Power Slide™ drop
down?
The Clearview Power Slide® smoothly
lowers the fridge up to 290mm.
Keep the slide runners, tray and
bearings free from dirt and grit
Clean your slide regularly, wiping it
down with a clean, damp cloth to
remove any dirt or grit.
Avoid any waxy lubricants and WD-40
as they can attract dirt and grit.
How do I maintain my Power Slide™?
Regular routine maintenance will help to
ensure continued smooth operation of
your Clearview Power Slide®!
Are spare parts available?
Yes. We have spare parts for all our
products on our website. Our dealers also
have a list of all our spare parts. If you
cannot find the parts that you require,
please contact us or any of our dealers to
assist you with your inquiry
14 clearviewaccessories.com.au
Please note that the Clearview Power Slide® is not designed for safe operation in an
outdoor environment or to withstand the elements. Constant exposure to the elements
such as rain and moisture can cause damage to the electrical components.

clearviewaccessories.com.au
Warranty
Clearview Easy Slides® and Power Slides™ are designed and manufactured to the highest
quality standards. We stand behind our Easy Slides® and Power Slides™ with a 3-year
Manufacturer’s Warranty.
Clearview Accessories® warranty applies to the original purchaser only. Please ensure that
your receipt is kept in a safe place. A receipt will be required to make a warranty claim on any
Clearview® product. If we determine that a Clearview Easy Slide® or Clearview Power Slide®
is defective in materials or workmanship during the Warranty, we will either repair or replace
the product. Repair or replacement is solely at the discretion of Clearview Accessories®.
Please ensure that you fit the Clearview® products in accordance with the product
information provided and all relevant vehicle safety and compliance laws; and use the
Clearview® product for the purpose for which it was originally designed. This warranty does
not apply to failure or damage caused by incorrect or faulty fitment, accidental or intentional
damage, alteration, acts of nature, vandalism, collision, road hazards or adverse conditions,
misuse, abuse or neglect of the Clearview® product, including improper repair or
maintenance or failing to repair and maintain the product, failure of other products, operation
of the product outside of its environmental or technical specifications, or repair or
modification carried out by anyone other than Clearview Accessories®. No charges will be
accepted for external labour or materials without the prior advice or clearance from
Clearview® claims team. Clearview Accessories® warranty does not cover any scratches or
chips.
Clearview Easy Slides® and Clearview Power Slides® are not designed to be modified for
convenient use in alternative applications. Alteration, modification, or manipulation of our
products will void all warranty with Clearview Accessories®.
All claims under this warranty should lodged through our website warranty section
https://www.clearviewaccessories.com.au/about/warranty/ with the detail of the fault, proof
of purchase, proof of identification and vehicle fitment details where relevant. If your claim is
accepted for defects in material or workmanship Clearview® will, at its discretion, offer to
repair, replace parts, or return and refund.
Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and for compensation for
any other reasonably foreseeable loss or damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the failure does not
amount to a major failure. In the event of a minor failure, the company reserves the right to
choose to repair or replace the product.
Clearview Accessories | ABN: 59 140 145 393
3 Frog Court, Craigieburn VIC 3064
Phone: [phone] | Email: [email protected]
15

Clearview Accessories
3 Frog Court, Craigieburn VIC 3064
[phone]
[email protected]
clearviewaccessories.com.au
