Clemas & Co FW2Z22-001 User manual

Clemas & Co Ltd
CLEANING MACHINES
FW2Z22-001

INDEX
1.1 Identification of main parts
1.2 Accessories provided
1.3 Identification details of manufacturer
1.4 Marking plate
1.5 Intended uses
1.6 Allowed environmental conditions
1.7 Noise level
1.8 Storage
1.9 Scrapping
1.10 Technical details
1.11 Warranty
Safety section
2.1 Safety details
2.2 Safety warnings
2.3 Safety plates and symbols
2.4 Outstanding risks
2.5 Applied directives
Installation section
3.1 Handling
3.2 Installation
Operation section
4.1 Description of controls
4.2 Work cycle
4.3 Releasing and removing the removable container
4.4 Use of the manual filter shaking system
Maintenance section
5.1 Informative notes
5.2 General safety warning
5.3 Maintenance operations
5.4 Replacing the main filter
5.5 Troubleshooting

INFORMAZIONI GENERALI
Rev. 001
07/03/2023
3/32
1. GENERAL INFORMATION
➢SYMBOLS USED
This symbol is used to alert the operator to important procedures or precautions
to be followed in order to prevent damages to users or the machine.
This symbol is used to alert the operator to important general information.
➢WARNINGS
The operator must be properly instructed in the use of this machine.
This machine must not be used to vacuum hazardous dust.
Congratulations for your choice!
Clemas & Co Ltd. thanks you for having chosen our product and reminds you that Clemas
markets industrial cleaning machines and is currently among the UK leaders of such appliances.
Our company's tradition and professionalism guarantee the technical quality of your choice. In fact, all
our products are made with top quality materials and according to criteria that confer reliability,
robustness and functionality that satisfy even the most demanding customers.
Do not hesitate to contact us for any requirement, be it a technical or sales query. We are glad to be at
your disposal for any clarification and information.
This manual is the property of FIORENTINI S. p. A.
Total or partial reproduction and transmission to third parties by any mechanical,
electronic or other means is forbidden without written authorisation from the
manufacturer. A single original copy is provided unless otherwise specified when placing
the order.
The manual is delivered with relative machine, of whom itconstitutes integral part, and must accompany the machine
in case of transfer. It is recommended to keep it in a safe place for the entire life of the machine itself. The buyer is
responsible to make it available to all persons concerned. Iflost, request a copy from FIORENTINI.
FIORENTINI disclaims any liability for any damage caused to persons and/or property deriving from failure to
comply with the instructions in this manual.
FIORENTINI reserves the right to make any change deemed useful from a technical and/or sales aspect, at
any time and without prior notice. Therefore, the data and information provided are subject to change and/or
be updated.

INFORMAZIONI GENERALI
Rev. 001
07/03/2023
4/32
➢CONSULTING THE MANUAL
The manual covers in detail all matters deemed necessary for easy and safe use of the machine, as
required by EU Directives in terms of product safety.
Therefore, all operators authorised to use the machine are advised to carefully read the entire
manual and strictly apply its content, requesting clarification from FIORENTINI if in doubt. The
manual must also be used as a reference document whenever a procedure or operation must be
remembered or new operators must be trained.
For the sake of publishing, the pictures and diagrams may differ slightly from the actual
appearance, however, they are not misleading.
Special symbols and text that is bold and/or in italics draw the attention of the reader to very
important information with particular attention on safety.
➢WARRANTY
The terms and conditions of the warranty are set out in the following points unless specified
otherwise in the confirmation order.
OBJECT OF THE WARRANTY
The floor scrubber has been designed and built for a long-term use without relevant problems;
however, in case of anomalies during the warranty period, FIORENTINI Co. undertakes to repair
and/or replace parts which have shown early breakage or wear and tear caused by defective
materials, working defects or imperfect assembly for free.
The warranty does not cover parts that break or wear prematurely due to:
•failure to comply with the instructions provided in this manual;
•tampering and/or changes made or commissioned without FIORENTINI’s approval;
•use of non-original spare parts;
•interventions carried out by unauthorised personnel;
•lack of maintenance;
•natural disasters.
DURATION OF THE WARRANTY
The warranty is valid for a period of 12 months from the date of delivery and cannot be extended
as a result of replacements or repairs made during this period.
RETURNING MATERIAL
Written approval must be provided by the FIORENTINI Technical Assistance Department before
shipping parts that are to be replaced or repaired under warranty.
The defective parts must be packaged properly to avoid being damaged during transport, shipped
ex-works and accompanied by:

INFORMAZIONI GENERALI
Rev. 001
07/03/2023
5/32
•the serial number taken from the identification plate of the support (point 2.1);
•code and position of the component taken from the spare parts list;
•an accurate description of the defect and how it occurred.
With regard to the defective electrical and electronic equipment
please send this separately from other material
for the waste containing hazardous substances
to be separated and to recycle the (WEEE)
in accordance with Directive 2002/96/EEC.
EXCLUSIONS
The warranty does not cover normal wear parts and materials (brushes, squeegee blades, etc…),
and those parts whose lifetime cannot be determined in advance.
APPLICATION MODES
The defective parts must be delivered to FIORENTINI in order to establish the cause of the
anomaly and apply the warranty. FIORENTINI will decide whether the parts are to be repaired or
replaced under warranty in their workshop, by third parties or on site. For works carried out on
site, energy sources and any special equipment required for maintenance must be supplied by the
customer.
REQUESTS FOR INTERVENTION
Possible intervention demands have to be addressed to the technical assistance service of
FIORENTINI Co. in writing or by phone, just after a attentive analysis of fault and of causes, so that
it would be necessary to report to the agent the following data:
•Machine model, obtained from the relative identification plate (point 2.1.);
•serial number, obtained from the relative identification plate (point 2.1.);
•an accurate description of the defect and how it occurred;
•checks and/or adjustments made;
•code and position of the component taken from the spare parts list.
The components under warranty are delivered ex-works; those being replaced remain the
property of FIORENTINI.
A missing machine data plate will imply the immediate loss of any warranty rights.

INFORMAZIONI GENERALI
Rev. 001
07/03/2023
6/32
1.5. DECLARATION OF CONFORMITY
The declaration of conformity is delivered together with the support and the User and
Maintenance Instruction Manual.

INFORMAZIONI GENERALI
Rev. 001
07/03/2023
-7 -/32

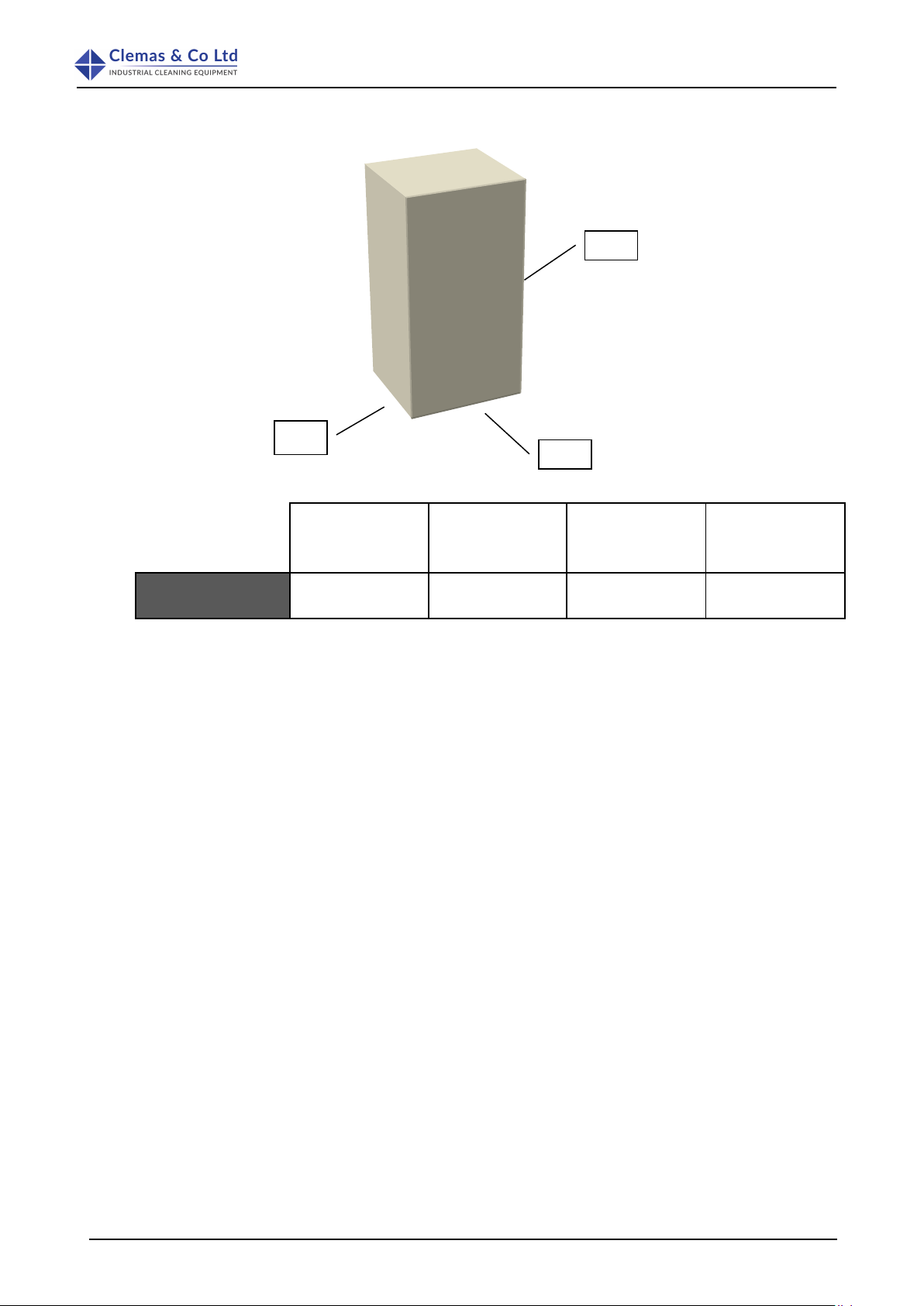

1.1 Identification of main parts
1) Suction unit
2) Button ON/OFF
3) Release fasteners
4) Push handle
5) Container release lever
6) Filter chamber
7) Filter shaker lever
8) Fixed wheels
9) Castors
10) Suction inlet
11) Removable container
2
9
6
4
7
11
1
3
8
10
5

INFORMAZIONI GENERALI
Rev. 001
07/03/2023
-8 -/32
1.2 Accessories provided

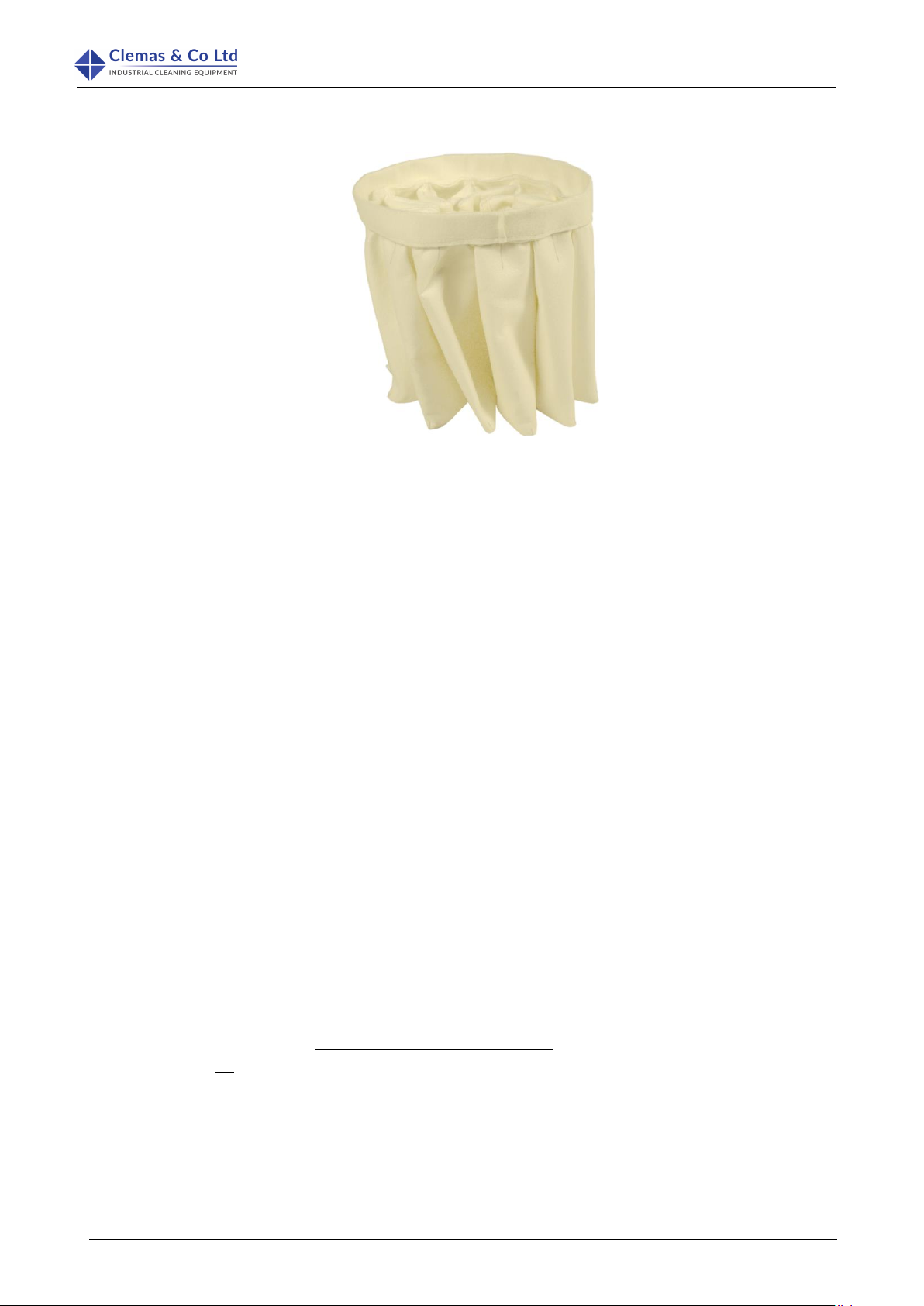

FI.0154.0000 - 16 POCKETS ANTISTATIC "M" POLYESTER FILTER
1.3 Producer’s identification data
ING. O. FIORENTINI S.p.A.
“THE BEST IN FLOOR MACHINES”
HEAD QUARTER:
50033 PIANCALDOLI (FI) –Fax. [phone]
Via Piancaldoli 1896 –Tel. [phone]
BRACHES:
20132 MILANO –Fax. [phone]
Via Palmanova 211/a –Tel. [phone]
00012 Guidonia Montecelio (ROMA) –Fax. [phone] - 353314
Via B. Pontecorvo 20 –Tel. [phone] –353015

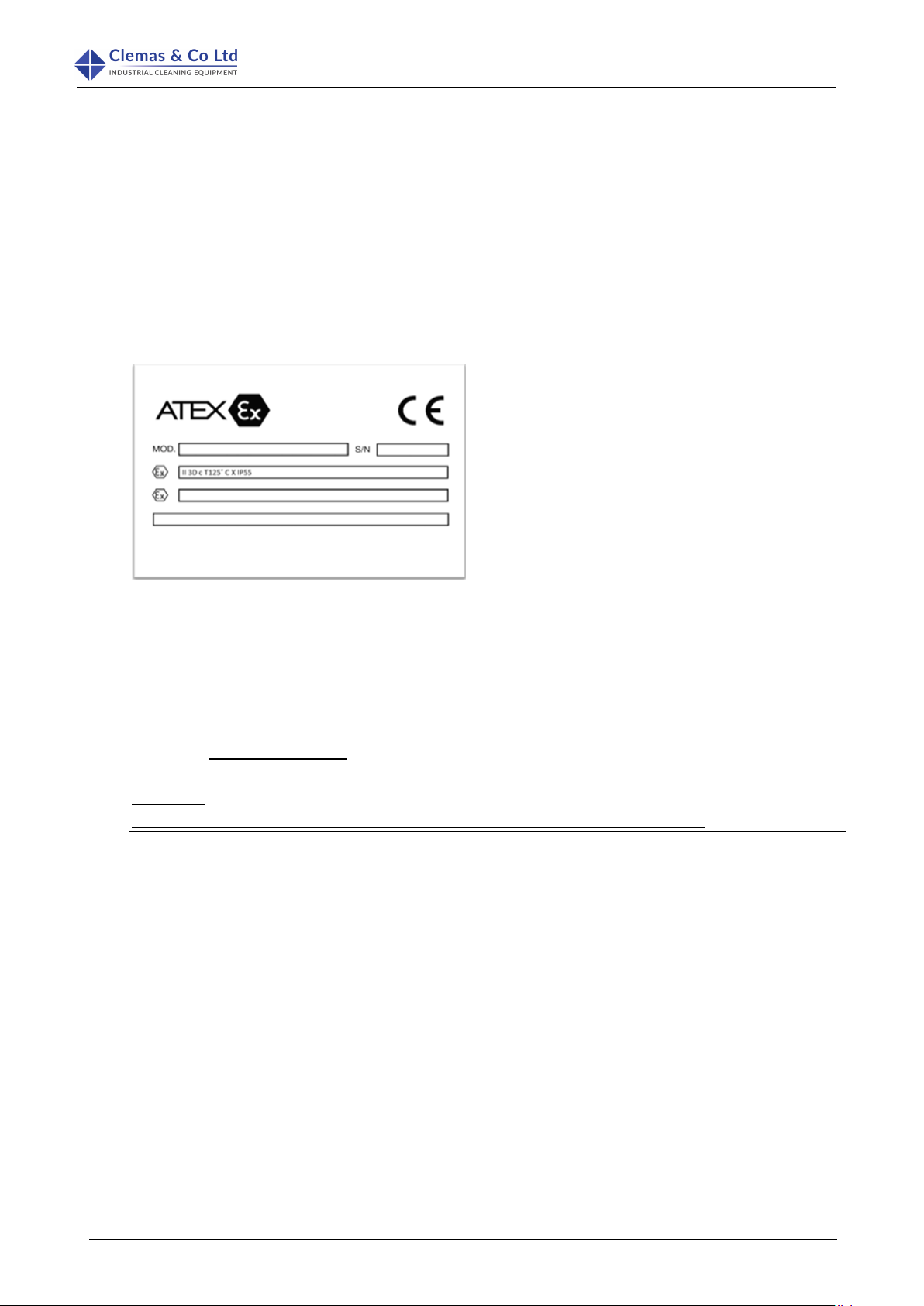

1.4 Marking plate
In compliance with the Machine Directive 2006/42/CE on vacuum cleaners, the machine is
fitted with CE plates.
When contacting the manufacturer or dealer, always quote the details shown on the vacuum
cleaner plate.

INFORMAZIONI GENERALI
Rev. 001
07/03/2023
-9 -/32
1.5 Intended uses
This particular model has been designed, constructed and equipped with safety devices for
solid dust and debris vacuuming applications only. The machine is provided with appropriate
specific anti-static filters to operate in explosive atmosphere areas( Z22 CLASSIFIED AREA,
according ATEX 2014/34/EU Directive).
Warning!
Always use specific filters for the type of dust or materials to be vacuumed.
Any other use is considered IMPROPER.
The vacuum cleaner is in any case intended for professional industrial use.
1.6 Allowed environmental conditions
To ensure the correct operation of the vacuum cleaner, this must be positioned protected
against atmospheric agents (rain, hail, snow, fog, dusts in suspension, etc.) with an
environmental running temperature between 5°C and 45°C and relative humidity not above
70%.
The work environment must be clean, well-enough lit and devoid of explosive atmosphere.

INFORMAZIONI GENERALI
Rev. 001
07/03/2023
-10 -/32
1.7 Noise level
Noise level readings were taken in accordance with the provisions of Machine Directive
2006/42/CE standards.
Sound tests performed on this specific vacuum cleaner model have been taken from a
distance of 1 meter and from a height of 1,60 meters, showing an acoustic pressure no
higher than:
80 dB (A)
The vibrations transmitted by the machine are lower than 2,5 m2/s.
Attention!
Pursuant to articles L.D. 81/08, workers exposed to sound pressure levels above 85 dB (A)
must be protected by special individual protection devices.
It is therefore necessary, if such working conditions exist, to provide workers with such
approved individual protection devices and to inform them of the risks relating to noise
exposure.
1.8 Storage
Remove the filter and clean it, empty the container and store the vacuum cleaner in a place
protected against atmospheric agents with a temperature between 0°C and 40°C. Cover with
a nylon sheet to prevent accumulation of dust.
1.9 Scrapping
In case of scrapping, all the component parts of the vacuum cleaner will have to be disposed
of through adequate disposal channels in accordance with applicable legislation.
Before scrapping, all plastic and rubber parts will have to be separated from the electrical
material. Parts made of plastic, aluminium and steel only may be recycled if collected by
special centres.

INFORMAZIONI GENERALI
Rev. 001
07/03/2023
-11 -/32
1.10 Technical details
Power
kW
1,1
Voltage
Volt
230
Max. vacuums rate
mm H2O
2.250
Max. air flow rate
m3/h
215
Noise level
dB (A)
80
Filter type
Poliestere M
Filter surface
cm2
20.000
Capacity
lt
40
Suction inlet
Ø
50
Dimensions
cm.
63x55x124H
2.1 Safety details
The person in charge of safety shall be responsible for informing workers about the risks
associated with vacuum cleaner operation.
The obligation also exists of training workers so they are able to protect themselves and
others.
Failure to observe basic safety regulations and Warnings could cause accidents during vacuum
cleaner operation, maintenance and repair. Accidents can often be avoided by recognising
potentially dangerous situations before these occur. Operators should be aware of potential
hazards and be trained and skilled enough. They should also have the tools necessary to
perform these duties properly.
ING.O.FIORENTINI S.p.A.. shall under no circumstances be deemed liable for accidents or
damage caused by use of the vacuum cleaner by personnel not properly trained or who use it
in an improper manner, as well as by even partial failure to comply with the safety regulations
and intervention procedures indicated in this manual.
The safety Warnings and warning notices are indicated in this manual and on the product.
Unless these hazard messages are heeded, the operator could become involved in accidents
with serious consequences for him/herself and for other people.
The safety messages are highlighted by the following symbols:

INFORMAZIONI GENERALI
Rev. 001
07/03/2023
-12 -/32
Attention!
Unless these messages are heeded, operator injuries could occur.
Warning!
Unless these messages are heeded, vacuum cleaner damage could occur.
ING.O.FIORENTINI S.p.A.. cannot foresee all possible circumstances capable of representing a
potential hazard. The warnings in this manual and on the products should not therefore be
deemed exhaustive. In the event of tools, procedures, work or machining methods being used
that are not explicitly recommended by ING.O.FIORENTINI S.p.A.. make sure no hazards exist
for operators and others.
Only ever use original ING.O.FIORENTINI S.p.A.. spare parts.
ING.O.FIORENTINI S.p.A.. declines all liability in the event of non-original spare parts being
used.
2.2 Safety warnings
Attention!
The following indications are, by themselves, not enough to fully protect against all the
hazards that could arise during vacuum cleaner operation. These will have to be integrated
with common sense and the experience of the operator, both of which are crucial factors for
preventing accidents. Each section of this manual lists further specific safety warnings for
the various operations.
Maintenance jobs must always be performed with the power plug detached from the power
point.
The employer must inform and train the user according to the provisions of applicable laws.
Before using the machine, prepare and train yourself by reading this manual carefully. Use of
the machine by untrained and unauthorised persons is forbidden.
Do not use the vacuum on NON-CONDUCTIVE floors.
Do not manumit the vacuum/pressure relief valve.
All maintenance operations must be executed in non-classified atmosphere.
Do not vacuum incandescent or burning material.
The operator must always wear antistatic cloths and shoes.
The floor of the area to be vacuumed must be antistatic.
The opening of the dust collection container must be executed in non-classified atmosphere
area, after having disconnected and unplugged the machine and only after 10 minutes from
unplugging.

INFORMAZIONI GENERALI
Rev. 001
07/03/2023
-13 -/32
It is prohibited to vacuum toxic substances unless the machine is provided with the necessary
specific filters for the type of dust to be vacuumed. Such specific filters must be expressly
required by the Customer for supply.
Do not vacuum flammable or explosive substances (fuels, solvents etc.).
Do not vacuum corrosive substances unless the machine is equipped with suitable containers
(AISI 304 Stainless steel).
If the filters are correctly fitted, the machine will not release any collected substance into the
environment.
In case the machine is used to vacuum toxic-harmful substances, the emptying of the
collection container as well as the filter cleaning operations must be execute using the
appropriate safety devices required to protect the operator from the collected substances.
Do not lay any object or material on the horizontal guards.
The machine case containing mobile parts must not be removed by the operator.
Mind other people, especially children, when operating the vacuum.
Handle the machine carefully, specially on slopes or ramps.
Do not turnaround the machine on slopes.
Set on the wheel brake to ensure that the machine position is stable.
Cleaning, maintenance and part replacement operations must always be executed after
having switched off and unplugged the machine.
Repair operations must be executed by qualified personnel only.
Be careful not to damage or squash the supply cable (cord) when operating the machine.
Check the supply cable on regular basis. Do not use the machine If the cable is damaged.
In case of cable, tap or connector replacement, ensure protection against water and check
mechanical strength.
Do not drag the machine pulling the supply cable and the suction hose.
The final user must provide for the collected substances waste disposal in compliance with the
applicable laws and regulations in force.
Machine overhaul is recommended after 10 years of life. The overhaul should be performed
by ING.O.FIORENTINI S.p.A.. the manufacturer.

INFORMAZIONI GENERALI
Rev. 001
07/03/2023
-14 -/32
The machine is delivered to the final user with the following documentation: instructions
manual spare part list, declaration of conformity, warranty certificate, homologation
certificate, electrical and pneumatic technical files.
The manufacturer will not be liable for any damage which may occur in connection with the
use or service of vacuum supplied in case it is utilized with tools or accessories that have not
been provided by ING.O.FIORENTINI S.p.A.. Without prejudice for the above, it is
recommended to keep the machine construction complying with the safety standards
prescribed by the 2006/42/CE Machine Directive and Atex 2014/34/EU Directive.
Keep the vacuum clean and free of any contamination material such as dust, debris or oil.
Moreover, keep it away from tools or other objects which may affect the machine efficiency
and cause damage and/or injury.
Do not use flammable or toxic solvents, such as gasoline, benzene, ether and alcohol for
cleaning.
Avoid long-time exposure to solvents and inhalation of solvent vapours. Do not use solvents in
presence of heat or fire sources.
Never use the vacuum without filter.
Do not suck lighted cigarettes, cigarette stubs or incandescent materials. Do not collect
gasoline, fuel or other flammable liquids.
Ensure that all shields and protections are put in place and that all safety devices are available
and efficient.
Do not wear loose clothes or accessories such as ties, scarves or torn clothes which may be
caught or sucked by the vacuum.
Do not open the collection container when the vacuum is working.
The “Operating and maintenance manual” must always be readily available for consultation,
in order to be able to ascertain the correct working procedures in case of doubts. Should this
manual get lost or damaged, please ask ING.O.FIORENTINI S.p.A.. for another copy.
Structural damages, modifications, improper changes or repair may affect the vacuum safety
and therefore annul the herein certification. Any modification required should be authorized
and executed by ING.O.FIORENTINI S.p.A.. engineers only.
During maintenance operations it will be necessary to affix a warning sign on the vacuum with
the following indication: “MAINTENANCE, DO NOT START THE MACHINE”.
Do not get on the vacuum.
Do not touch wires, switches and switch-buttons with wet hands.

INFORMAZIONI GENERALI
Rev. 001
07/03/2023
-15 -/32
Before plugging the vacuum, ensure that power supply voltage and frequency meet the
specifications required and reported on the machine plate.
Connect the machine to an electrical system outlet with efficient earth.
In case it is necessary to use an extension, check that the extension is in perfect conditions, CE
marked and that the extension cable cross section area is suitable for the vacuum electrical
input.
To recover the vacuum original working conditions after maintenance, the operators must
check that the machine protections, particularly safety devices and guards, have been put
back in place ensuring safety working conditions.
The vacuum must be operated by adults only.
Before executing vacuuming operations, always set on the vacuum wheel brake provided to
ensure that the vacuum position is stable.
2.3 Safety plates and symbols
Plates are affixed to the vacuum cleaner showing safety symbols and/or messages.
Attention!
Make sure all the safety messages are legible.
Clean these with a cloth, soap and water. Do not use solvents, diesel fuel or petrol.
Replace the damaged plates with new ones supplied by DU-PUY.
If a plate is affixed to a replaced part, make sure a new plate is affixed to the new part.
Attention!
Read the operator's and maintenance manual carefully before using the cleaner or doing
any maintenance jobs.
IMPORTANT!
DO NOT BREATHE IN INFLAMMABLE AND/OR
EXPLOSIVE LIQUIDS OR POWDERS
ATTENZIONE! WARNING! ATTENTION ! ACHTUNG! ¡ATENCIÓN!
ATTENTIE
•SCUOTERE IL FILTRO SOLO A MACCHINA SPENTA
•ONLY SHAKE THE FILTER WHEN THE MACHINE IS TURNED OFF
•NE SECOUER LE FILTRE QU’APRES AVOIR ETEINT LA MACHINE
•RÜTTELN SIE DEN FILTER NUR BEI AUSGESCHALTETER MASCHINE
•SACUDIR EL FILTRO SÓLO CON LA MÁQUINA APAGADA
•FILTER SCHUDDEN BIJUITEESCHAKELDE MACHINE

INFORMAZIONI GENERALI
Rev. 001
07/03/2023
-16 -/32
Warning!
Risk of crushing upper limbs while fitting and locking the material container on the vacuum
cleaner.
Never place hands between the material container and vacuum cleaner while locking.
Do not place hands on sides of container near the guide pins while locking.
Perform the container locking operation by means of the levers located on the side, USING
BOTH HANDS!
2.4 Outstanding risks
Careful analysis of risks performed by the manufacturer and stored in the technical file has
made it possible to eliminate most of the risks associated with vacuum cleaner operation.
The manufacturer advises carefully following the instructions, procedures and advice
contained in this manual as well as applicable safety regulations, including the use of the
envisaged protection devices, both those integrated in the cleaner and individual.
Outstanding risks associated with the vacuum cleaner could be:
Electrical maintenance risks caused by the need to work under power.
Pursuant to Presidential Decree 81/08, only trained personnel should work on the machine
with the power supply connected and this must have double earth insulation.
Risk of improper use in the presence of explosive and flammable substances.
The vacuum cleaner must not be used in environments containing substances in the form of
liquids that could vaporise at room temperature and flammable dusts and gas
Risks of operation in humid environments.
Keep to the limits shown in this manual at chap. 1.6 Allowed environmental conditions.
Risk of erroneous interpretation of the safety pictograms.
Having identified the various outstanding risks, the manufacturer has affixed to the cleaner a
number of hazard labels in compliance with regulations relating to the graphic symbols to be
used. The user must immediately replace any safety plates that become illegible due to wear
or damage.
Attention!
Removing the safety plates on the vacuum cleaner is strictly forbidden. The manufacturer
declines all liability in relation to vacuum cleaner safety in the event of failure to comply
with the above indications.
Caution!
Do not vacuum sources of ignition

INFORMAZIONI GENERALI
Rev. 001
07/03/2023
-17 -/32
2.5 Applied directives
The following directives apply to the vacuum cleaner described in this manual:
•2006/42/CE Machine Directive
•2014/30/EU Direttiva compatibilità elettromagnetica
•2014/34/EU ATEX Directive
Specific symbol of compliance with ATEX DIRECTIVE 2014/34/EU
This plate is present when an antistatic filter of CATEGORY C (max efficiency 1 micron) is mounted
on the aspirator.
WARNING: this machine contains dust harmful to health.
The processes of waiting and emptying, including the removal of the
dust container, can be performed only by specialized person,
wearing appropriate personal protective equipment.
Do not use the vacuum cleaner without the filtration systems.
M
M
This plate is present when the antistatic filter of CATEGORY C and the absolute filter are mounted
on the aspirator (efficiency 99,995 %)
WARNING: this machine contains dust harmful to health.
The processes of waiting and emptying, including the removal of the
dust container, can be performed only by specialized person,
wearing appropriate personal protective equipment.
Do not use the vacuum cleaner without the filtration systems.
M
M

INFORMAZIONI GENERALI
Rev. 001
07/03/2023
-18 -/32
3.1 Handling
The machine is supplied in a strong cardboard box secured with straps.
Transport the package using a fork-lift truck of adequate lifting capacity and make sure it is
stable and that weight is properly distributed on the forks.
Before starting to move, make sure the transit area is free and that there are no moving
objects on the packaging.
During movement, keep the load low for greater stability and safety.
When starting up the vacuum cleaner, move this by means of the wheels supplied.
The appliance must never be moved using fork-lift trucks or other equipment that lifts it off
the floor.
If for any reason the need arises to lift and transport the vacuum cleaner, this operation
must be performed under the responsibility of the user. The user is therefore invited to
secure the load as he best thinks fit to ensure the operation is performed in total safety.
A (cm)
B (cm)
H (cm)
Weight
(package
included) Kg
FW2
75
70
183
90
A
B
H

INFORMAZIONI GENERALI
Rev. 001
07/03/2023
-19 -/32
3.2 Installation
Warning!
Before installing the vacuum cleaner, carefully make a sight check to pinpoint any damage
suffered during transport.
In the event of any component parts being damaged, do not proceed with installation. Notify
the manufacturer and reach an agreement on how to proceed.
The vacuum cleaner already features a suction filter.
Fit the accessory required for the type of vacuuming operation on the opposite end of the
hose.
Note: No standard accessories (reducers, hoses, nozzles) are included with the vacuum;
accessories must be specified and ordered separately.
Contact your dealer for information relating to the different types of optional accessories
available for this specific vacuum cleaner model.
Fit the supplied connector on the suction point.

MANUTENZIONE
Rev. 001
07/03/2023
20/32
Make sure the power supply corresponds to the voltage and frequency indicated on the
vacuum cleaner plate.
Verificare che la linea elettrica di alimentazione corrisponda al voltaggio ed alla frequenza
indicata sulla targa di marcatura dell’aspiratore e sul pannello comandi.
4.1 Description of controls
1) ON/OFF
4.2 Work cycle
Caution!
Operations permitted within Z22 class areas, with potentially explosive atmosphere.
Caution!
The operator using the vacuum must always wear anti-static cloths and antistatic shoes.
The working environment and the floor must comply with antistatic standards.
•Make sure the power plug is correctly fitted in the power socket.
•Make sure the grounding clamp are properly fitted.
•Make sure the flexible hose is properly fitted and locked in the vacuum pipe union.
•Make sure the power cable and any extension used are integral and in perfect
condition.
•Block the vacuum cleaner by means of the retainer provided.
1
Warning!
Before fitting the plug, make sure the power voltage corresponds to that on the CE marking plate
