Clipcomm CWP-100 User manual

0

1
1. CWP-100 OVERVIEW ................................................................................................................................................ 4
2. PRODUCT DESCRIPTION........................................................................................................................................ 5
3. HARDWARE OVERVIEW.......................................................................................................................................... 6
4. LCD ICON OVERVIEW.............................................................................................................................................. 8
5. INSTALLATION OVERVIEW..................................................................................................................................... 9
5.1. CWP-100 INSTALLATION........................................................................................................................................ 9
6. BASIC CONFIGURATION....................................................................................................................................... 10
6.1. WIRELESS LAN ACCESS POINT SCAN................................................................................................................. 10
6.2. SYSTEM SETTING .............................................................................................................................................. 11
6.2.1. Current Setting ............................................................................................................................................ 12
6.2.2. Static IP Setting ........................................................................................................................................... 12
6.2.3. Dynamic IP (DHCP) Setting ...................................................................................................................... 13
6.2.4. ADSL Setting ............................................................................................................................................... 13
6.3. VOIP SETTING ...................................................................................................................................................... 14
6.3.1. Server Setting.............................................................................................................................................. 14
6.3.2. Name Setting ............................................................................................................................................... 15
6.3.3. Codec Setting .............................................................................................................................................. 15
6.3.4. NAT Traversal .............................................................................................................................................. 15
7. BASIC SERVICES .................................................................................................................................................... 18
7.1. MAKING A PHONE CALL ........................................................................................................................................ 18
7.2. RECEIVING A PHONE CALL.................................................................................................................................... 18
7.3. EXTRA FUNCTIONS ON CALL ................................................................................................................................. 19
7.3.1. Phonebook ................................................................................................................................................... 19
7.3.2. Call history ................................................................................................................................................... 19
Table of Contents

2
7.3.3. Call hold........................................................................................................................................................ 19
7.3.4. Call mute ...................................................................................................................................................... 19
7.3.5. Call Transfer................................................................................................................................................. 19
7.3.6. Call Waiting.................................................................................................................................................. 20
8. SUPPLEMENTARY SERVICES.............................................................................................................................. 21
8.1. PHONEBOOK ......................................................................................................................................................... 21
8.1.1. Register ........................................................................................................................................................ 21
8.1.2. Search .......................................................................................................................................................... 22
8.1.3. Delete............................................................................................................................................................ 22
8.2. CALL HISTORY ...................................................................................................................................................... 23
8.2.1. Check Recent Dialed/Received/Missed Calls......................................................................................... 23
8.2.2. Delete Calls.................................................................................................................................................. 23
8.3. EXTRA SETTING .................................................................................................................................................... 23
8.3.1 Melody Setting.............................................................................................................................................. 24
8.3.2 Screen Message Setting............................................................................................................................. 24
8.3.3. Time Server Setting .................................................................................................................................... 24
8.3.4. Time Zone Setting....................................................................................................................................... 25
8.3.5. Alarm Setting ............................................................................................................................................... 25
8.3.6. Phone Lock Setting..................................................................................................................................... 25
8.3.7. Firmware Management .............................................................................................................................. 26
8.3.8. Call Forwarding ........................................................................................................................................... 26
8.3.9. Vibration Mode ............................................................................................................................................ 26
9. CONFIGURATION WITH INTERNAL WEB INTERFACE .................................................................................. 27
9.1. NETWORK CONFIGURATION.................................................................................................................................. 28
9.1.1. Network Mode Configuration..................................................................................................................... 28
9.1.2. Miscellaneous Network Configuration...................................................................................................... 28
9.2. VOIP CONFIGURATION ......................................................................................................................................... 29
9.3. SUPPLEMENTARY FUNCTION CONFIGURATION .................................................................................................... 30
9.3.1. Call Waiting.................................................................................................................................................. 30
9.3.2. Use External Voice Mail Server ................................................................................................................ 30
9.3.3. Incoming Call Processing Configuration.................................................................................................. 31
9.3.4. Outgoing Call Processing Configuration.................................................................................................. 32
9.4. NAT TRAVERSAL CONFIGURATION ....................................................................................................................... 34
10. FIRMWARE UPGRADE AND FACTORY RESET ............................................................................................. 36

3
10.1. FIRMWARE UPGRADE VIA DISPLAY MENU .......................................................................................................... 36
10.2. FIRMWARE UPGRADE VIA FTP ........................................................................................................................... 37
10.3. SYSTEM RESET BY FACTORY VALUE .................................................................................................................. 38
11. CHARACTER INPUT USING KEYPAD .............................................................................................................. 39
11.1. ENGLISH CHARACTER......................................................................................................................................... 39
11.2. SYMBOLIC CHARACTERS .................................................................................................................................... 39

4
1. CWP-100 Overview
 Conform to Wireless LAN standard 802.11b.
 Operate on wireless LAN AP (Access Point) with static IP, ADSL and dynamic IP(DHCP).
 Provide VoIP calls.
 Provide CID service.
 Provide NAT traversal function that enables external calls with private IP address behind NAT
network environment.
 Provide various ring melody.
 Provide phonebook and speed dial function.
 Support user-friendly menu system with ICON and LCD.
1. CWP-100 Overview

5
2. Product Description
Please check and make sure that you have the following package contents.
Item Quantity Description
CWP-100 Body 1 CWP-100 main body
Charger 1 CWP-100 proprietary charger
Battery 1 CWP-100 proprietary Battery
Power Adaptor
(DC 5V 2A) 1 Power supply device
User Manual 1 User guide that explains features, functions
and implementation examples
2. Product Description

6
3. Hardware Overview
3. Hardware Overview

7
Controls Description
Handset Send and receive the sound during a call.
LCD Display system status and user information.
LEFT SOFT
KEY Select the menu option at the down-left side of the LCD.
RIGHT SOFT
KEY Select the menu option at the down-right side of the LCD.
ENTER Activate the menu that the cursor point.
Confirm input of character string or numeric constants.
SEND Activate the call with the dialed number.
END
Return to the main menu.
Deactivate the call.
Press this button for few seconds to turn the CWP-100 on or off.
▲▼
Adjust the receiver volume during the call.
Adjust the ring melody volume on the melody setting menu.
Navigate the menu items when manipulating the menu.
Function
Button
CANCEL
Return to the previous menu.
Erase the previous character when editing the text.
Erase the phone number from the dialed/received calls list.
Erase the recorded message and move to the next recorded message.
numerical keypad Enter numbers and characters.
Select the menu directly with the numerical keypad

8

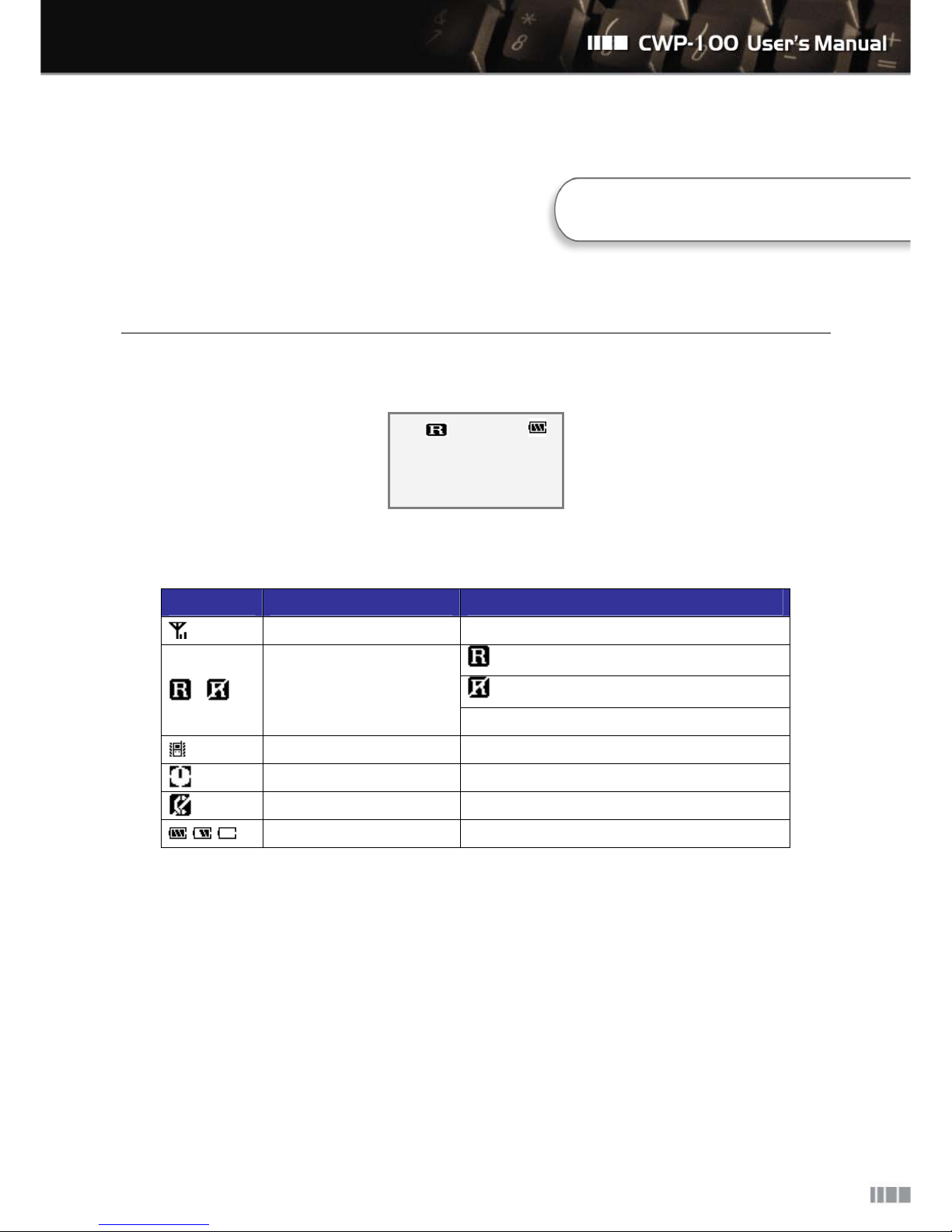

4. LCD Icon Overview
The descriptions of the icons displayed on CWP-100 LCD are as below.
•
CLIPCOMM CWP-100
12:00:49 AM
MENU
Please refer to the table below for the descriptions of each icon.
Icons Category Meaning
AP connection status Icon The signal strength received from the AP.
Success in registration.
Failure in registration
Proxy server register status
Icon
None : No registration
Vibration mode Icon Vibration mode is on.
Alarm Icon Alarm clock setup is on.
Mute Icon Reject all the incoming calls.
Battery Life Icon More bars indicate better isolation.
4. LCD Icon Overview

9
5. Installation Overview
Please check the parts of the CWP-100 and then follow the steps bellow to instal CWP-100 properly.
 Caution: Use only the power adaptor, charger and battery supplied by the provider. Using other
power adaptor, charger and battery may cause the CWP-100 to deteriorate the voice quality and
malfunction.
5.1. CWP-100 Installation
① Set the CWP-100 on the charger. (Figure “A”)
② Plug the power adaptor (5V) to the charger. (Figure “B”)
③ Connect the headset to the CWP-100 in order to use the wired headset. (Figure “C”)
④ Press END button for a few seconds to start CWP-100.
5. Installation Overview
