CLS REVO TRACK DIRECT DMX SERIES User manual

www.cls-led.com www.cls-led.com
CLS REVO TRACK DIRECT DMX SERIES
Manual PRELIMINARY
Ceiling 360º 360º 1,80 kg 50.000 h8º 12º 30º 61º 12 x 46º
100~240
VAC
Max.
20 Watt
3000K
AmberBlue RedGreen
6500K5000K4000K RGB-A
RGB-W
AWB 2700K-
5000K
DPC
1800K-
3000K
1800K-
4000K
Luxeon
C / TX
IP20 2700K
2
INDEX
Index 2
Safety information 2
Content 2
Technical 3
Specifications 3
CONTENT
SAFETY INFORMATION
Ambiance
Max. 40º
Block access
below the work
area when
maintaining
the unit
Use a source
of AC power
that complies to
local electrical
codes
Disconnect the
power supply
before installing
or maintaining
Don’t install in
a ammable
or explosive
area
Warning!
Some surfaces
can be hot
Do not stare
into the LED
Don’t modify
or install
genuine parts
on this product
Qualied
technician
Make sure all
connectors are
connected
properly
Installation Global adapter 4
Installation Eutrac adapter 5
Lens replacement 6
Lens index 7
Programming 7
Ceiling 360º 360º 1,80kg 50.000h8º 12º 30º 61º 12 x 46º
100~240
VAC
Max.
20Watt
3000K
AmberBlue RedGreen
6500K5000K4000K RGB-A
RGB-W
AWB2700K-
5000K
DPC
1800K-
3000K
1800K-
4000K
Luxeon
C/ TX
IP20 2700K
Factory settings table 7
Programming table 8
Accessories 9
List of symbols 10

www.cls-led.com www.cls-led.com
3 4
100 mm
175 mm
270º
186 mm
46 mm 46 mm
84 mm
110 mm
100 mm
EUTRAC
Eutrac adapter
100 mm
40 mm
100 mm
Tools T20
TECHNICAL
SPECIFICATIONS
LED: Luxeon C / TX
Single colours: Extra warm white 2700K, warm white 3000K,
neutral white 4000K, fresh white 5000K
cold white 6500K, amber, royal blue and red
Colour changing RGBA, RGBW & AWB
Tunable White: 2700K-5000K, 1800K-3000K & 1800K-4000K
Lenses: 8º, 12º, 30º, 61º and 12x46º
Power supply: 100 ~ 240 VAC
Power consumption: Max. 20 Watt
Housing: Anodised aluminum
Weight: 1,9 kg
IP value: IP20
Measurements: 175 x 116 x 100 mm (hxwxd)
Ambient temperature: -30º C till +40º C
3
1
# Y108511-B
# Y108511-G
# Y110935
# Y110938
5
4

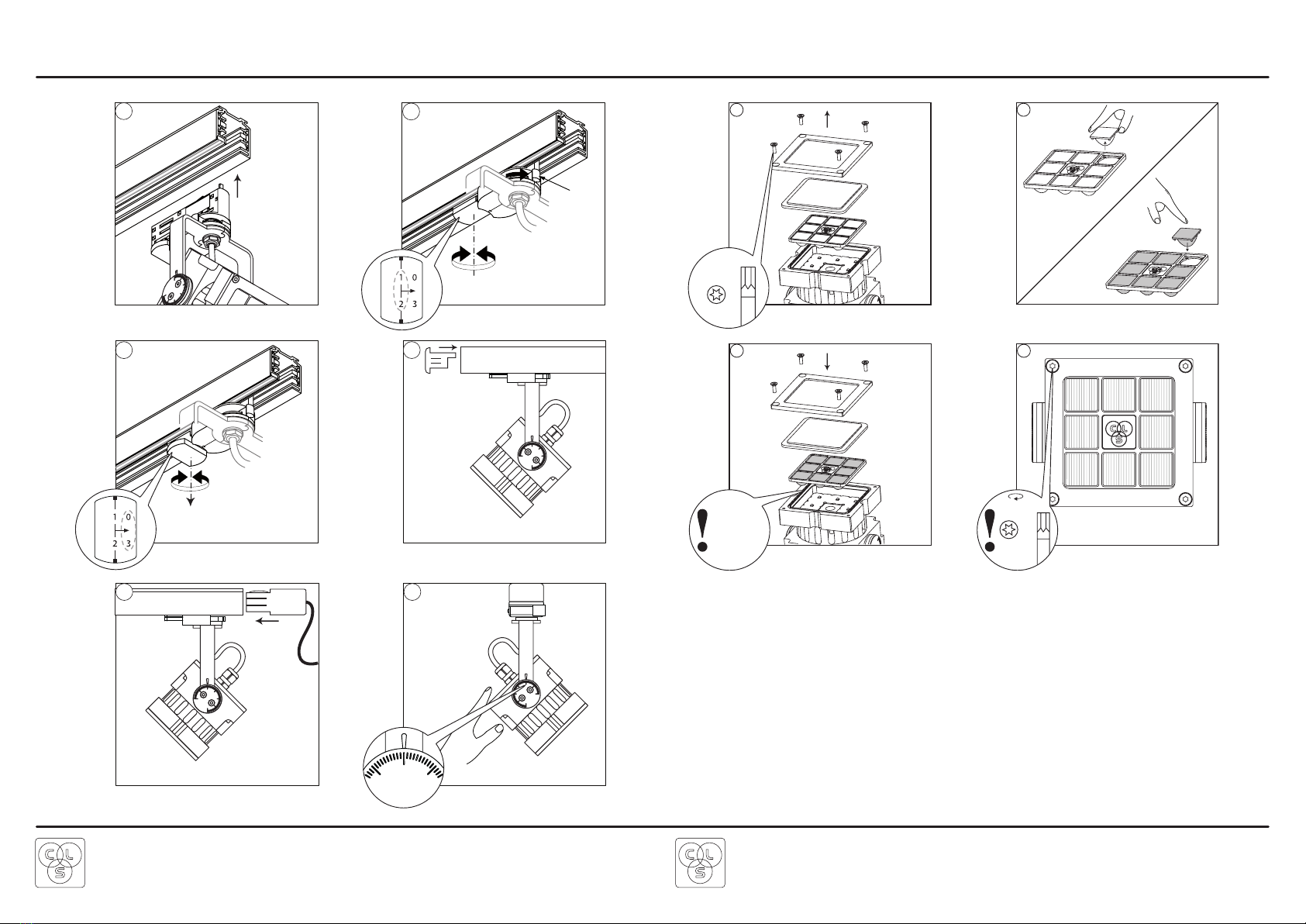

Set the adapter
to the desired phase
by turning the wheel
2
CLS Global
3-phase rail + data
Position
indicator
INSTALLATION
With Global adapter

www.cls-led.com www.cls-led.com
65
2a
2b
1
CLS Eutrac
3-phase rail
+ data
3
5
# Y108152
90°- 0 - 90°
B
A
90°- 0 - 90°
B
4
# Y108155
Position
indicator
INSTALLATION
With Eutrac adapter
LENS REPLACEMENT
2
4
Glass
Front plate
Lensholder
1
3
4x
Secure in
order
1
2
3
4
T20
Glass
Front plate
Lensholder
Make sure that
the items are clean
and the rubber
sealing is correctly
in place!
T20

www.cls-led.com www.cls-led.com
7 8
LENS INDEX
12
After 2 seconds
all LED’s will ash
3 times
conrming
storage*
3
Place magnet
on the
location mark.
All LEDs will
light up
* If all LEDs ash 10 times, something went wrong. Please try again. If the problem continues to occur, please contact your local sales distributor.
PROGRAMMING
FACTORY SETTING TABLE
15
234
Superspot 8º Medium Flood 30ºSpot 12º Wide Flood 61º Elliptical 12x46º

FACTORYSETTINGTABLE
Row#
Fixture
type
Address
Static
behavior
Softdim
Master
control
Output1
patch
Output2
patch
Output3
patch
Output4
patch
Static
output1
Static
output2
Static
output3
Static
output4
1 RGBW 1 LastDMXvalueOffOff1(R)2(G)3(B)4(W) 255255255255
2 RGBA 1 LastDMXvalueOffOff1(R)2(G)3(B)4(A)255255255255
3 AWB 1 LastDMXvalueOffOff3(B)2(W)1(A)2(W)255255255255
4 1800-3000K 1 LastDMXvalueOffOff1(18)2(30)1(18)2(30)255255255255
5
1800-4000K
1
LastDMXvalue
Off
Off
1(18)
2(40)
1(18)
2(40)
255
255
255
255
6 2700-5000K 1 LastDMXvalueOffOff1(27)2(50)1(27)2(50)255255255255

PROGRAMMING TABLE

PROGRAMMINGTABLE
DMX
Function
Data
Parameters
Description
CH1 Setaddress
001to255
0 0=nochangeUsethisDMXchanneltosetaddressfrom001to
255.TheconfiguredDMXaddressiscalled“n”
1…255
DMXaddress=1…255
CH2 Setaddress
256to508
0 nochangeUsethisDMXchanneltosetaddressfrom256to
508.TheconfiguredDMXaddressiscalled“n”
1…255DMXaddress=256…508
CH3 Static
behavior
0 nochange
IfnoDMXispresentthefixturewillrespondlike
setinthisfunction.
1
lastDMXvalue
2 outputoff
3 loadstaticvalues
CH4 Softdim
0 nochangeSoftdimwillinterpolatebetweentheDMX
values.Thisfunctionmakesthedimcurve
smoother
1 off
2 on
CH5 Master
control
0 nochange Ifmasterisfirstchannelisselectedthechannel
willbeDMXchannel“n”.Ifmasterislastchannel
isselectedthechannelwillbe“n+x”
(“x”iscalculatedintheoutputpatch).
1 nomasterused
2
masterisfirstchannel
3 masterislastchannel
CH6 Output1
patch
0 nochangeEachoutputchannelcanbepatchedtorespond
tothedesiredDMXchannel.Thisenablesthe
usertomixupthecoloursaccordingtothe
controllerthatisused.

Example:alloutputsarepatchedas1
AlloutputswillbecontrolledbyDMXchannel
“n”.IfmasterisusedtotalDMXchannelswillbe2
otherwiseituses1channel(“x”=1).

Example:output1&2arepatchedas1and3&4
arepatchedas2
Output1&2willbecontrolledbyDMXchannel
“n”.
Output3&4willbecontrolledbyDMXchannel
“n+1”.
IfmasterisusedtotalDMXchannelswillbe3
otherwiseituses2channels(“x”=2).


1 DMXchanneln
2
DMXchanneln+1
3
DMXchanneln+2
4 DMXchanneln+3
CH7Output2
patch
0
nochange
1 DMXchanneln
2 DMXchanneln+1
3 DMXchanneln+2
4
DMXchanneln+3
CH8 Output3
patch
0 nochange
1 DMXchanneln
2 DMXchanneln+1
3 DMXchanneln+2
4 DMXchanneln+3
CH9Output4
patch
0 nochange
1 DMXchanneln
2
DMXchanneln+1
3 DMXchanneln+2
4 DMXchanneln+3
CH10Staticoutput
1
0 nochangeEachoutputchannelcanbesettoanstatic
intensity.

IfnoDMXispresentandStaticbehaviorissetto
“loadstaticvalues”.Theoutputswillbesettothe
configuredintensityvalues.






1
outputoff
2…255intensity2…255
CH11Staticoutput
2
0 nochange
1
outputoff
2…255intensity2…255
CH12Staticoutput
3
0 nochange
1 outputoff
2…255intensity2…255
CH13Staticoutput
4
0 nochange
1 outputoff
2…255intensity2…255
CH14Loaddefault
settings
0 nochangeThisfunctionresetsallsettingstotheFactory
setting.CheckFactorysettingtable.
X LoadFactorysettings.Xisrow
numberfactorysettingtable.

All settings can be configured via DMX. Settings can be configured at once or separately. When one or a couple settings needs to be
changed just leave all other setting values zero. This keeps those settings unchanged. Please check the table for more information.
Always use a DMX controller with digital interface. If not available, you can purchase the CLS D-ta DMX addresser unit (#122200).
First make sure to set the DATA on the DMX controller. To program the setting into the LED fixture follow the next steps.

www.cls-led.com www.cls-led.com
8 5
ACCESSORIES
ACCESSORIES Global
Global - black
Y108501-B CLS Global 3-phase rail + data 1 meter black
Y108502-B CLS Global 3-phase rail + data 2 meter black
Y108503-B CLS Global 3-phase rail + data 3 meter black
Y108504-B CLS Global 3-phase rail + data 4 meter black
Y108511-B CLS Global 3-phase rail + data end feed right, black
Y108512-B CLS Global 3-phase rail + data end feed left, black
Y108513-B CLS Global 3-phase rail + data middle feed black
Y108515-B CLS Global 3-phase rail + data L-coupler inner black
Y108516-B CLS Global 3-phase rail + data L-coupler outer black
Y110938 CLS Global 3-phase rail + data end cap black
ACCESSORIES
Eutrac - black
Y108112 CLS Eutrac 3-phase rail + data 1 meter black
Y108122 CLS Eutrac 3-phase rail + data 2 meter black
Y108132 CLS Eutrac 3-phase rail + data 3 meter black
Y108142 CLS Eutrac 3-phase rail + data 4 meter black
Y108152 CLS Eutrac 3-phase rail + data end feed right, black
Y108155 CLS Eutrac 3-phase rail + data end feed left, black
Y108158 CLS Eutrac 3-phase rail + data middle feed black
Y108162 CLS Eutrac 3-phase rail + data end cap black
Y108175 CLS Eutrac 3-phase rail + data L-coupler inner black
Y108178 CLS Eutrac 3-phase rail + data flex coupler black
Y108199 CLS Eutrac 3-phase + data monopoint black
Eutrac - white
Y108133 CLS Eutrac 3-phase rail + data 3 meter white
Y108153 CLS Eutrac 3-phase rail + data end feed right, white
Y108163 CLS Eutrac 3-phase rail + data end cap white
122200 CLS D-Ta DMX tester/addresser unit
Y106015 CLS Magnet pin (10 pcs)
Global - grey
Y108501-G CLS Global 3-phase rail + data 1 meter grey
Y108502-G CLS Global 3-phase rail + data 2 meter grey
Y108503-G CLS Global 3-phase rail + data 3 meter grey
Y108504-G CLS Global 3-phase rail + data 4 meter grey
Y108511-G CLS Global 3-phase rail + data end feed right, grey
Y108512-G CLS Global 3-phase rail + data end feed left, grey
Y108513-G CLS Global 3-phase rail + data middle feed grey
Y108515-G CLS Global 3-phase rail + data L-coupler inner grey
Y108516-G CLS Global 3-phase rail + data L-coupler outer grey
Y110935 CLS Global 3-phase rail + data end cap grey
LIST OF SYMBOLS
Multiple connection
Daisychain connectivity
Installation depth
In centimeters
Swivel
Fixture is horizontally rotatable,
indicated in degrees
Swivel
Fixture is vertically rotatable,
indicated in degrees
Installation size
In centimeters
Application area
Indoor or outdoor
Application area
Floor, wall or ceiling
Protection class
One, two or three
Cable length
Maximum cable attached
to the fixture in centimeters
Lifespan
Of the light source in hours
Driver
Inclusive or exclusive
Internal or external
Pressure
Maximum pressure on
the fixture in kg/cm2
Weight
In grams/kilograms
Curve
Minimal bending curve
in centimeters
LED pitch
Pitch between the
LEDs in millimeters
Power supply
In VDC, VAC or milliAmpere
Power consumption
In VA or Watt
IP value
Ingress Protection classifies the
degrees of protection provided
against the intrusion of the product
Cutting length
Indicated by the
cutting marks
LEDs
Kind of LED used in the
fixture
Lenses
Availble lenses,
indicated in degrees
Plug & play
Easy connection using the
SmartConnect system
White colour temperature
In different Kelvin values;
Cold white, neutral white, warm
white or extra warm white
Colour
Available colours;
Amber, blue, red or green
Colour changing
RGB, RGB-W, RGB-A,
AWB or Tunable White
DMX input
Fixture works on DMX512
protocol
Magno dimming
Accurate dimming from
100 - 1% by using a magnet
Dynamic Control
Dynamic Power Control or
Dynamic Temperature Control
Combined product
Compose your own fixture
Warranty
3 or 5 years warranty on
the product
Energy label
Conformité Européenne
CE marking for free marketability
of industrial goods within the EU
DMX
512
r
h
ø w d
Dimmable
1-10 Volt, Phase, individual,
DMX dimmable or DALI
DRIVER
Included
DRIVER
External
Retail & Food LED modules
Clothing, furniture, kitchens,
jewellery, shoes, bread, meat,
fish & vegetables & fruit.
Lightsource
Equipped with a Citizen or a Xicato
LED module
Bluetooth controlled
By Casambi
2017 CLS-LED BV. All rights reserved. Information subject to change without notice, CLS-LED BV and all affiliated companies
disclaim liability for injury, damage direct or indirect loss, consequential or economic loss or any other loss occasioned by
the use of, inability to use or reliance on the information contained in this manual. No part of this manual may be reproduced,
in any form or by any means, without permission in writing from CLS-LED BV. Other legal information can be found in our
General conditions,found on the back of your CLS-LED BV invoice, inside the CLS catalogue or on our website
www.cls-led.com/General-Terms.pdf
