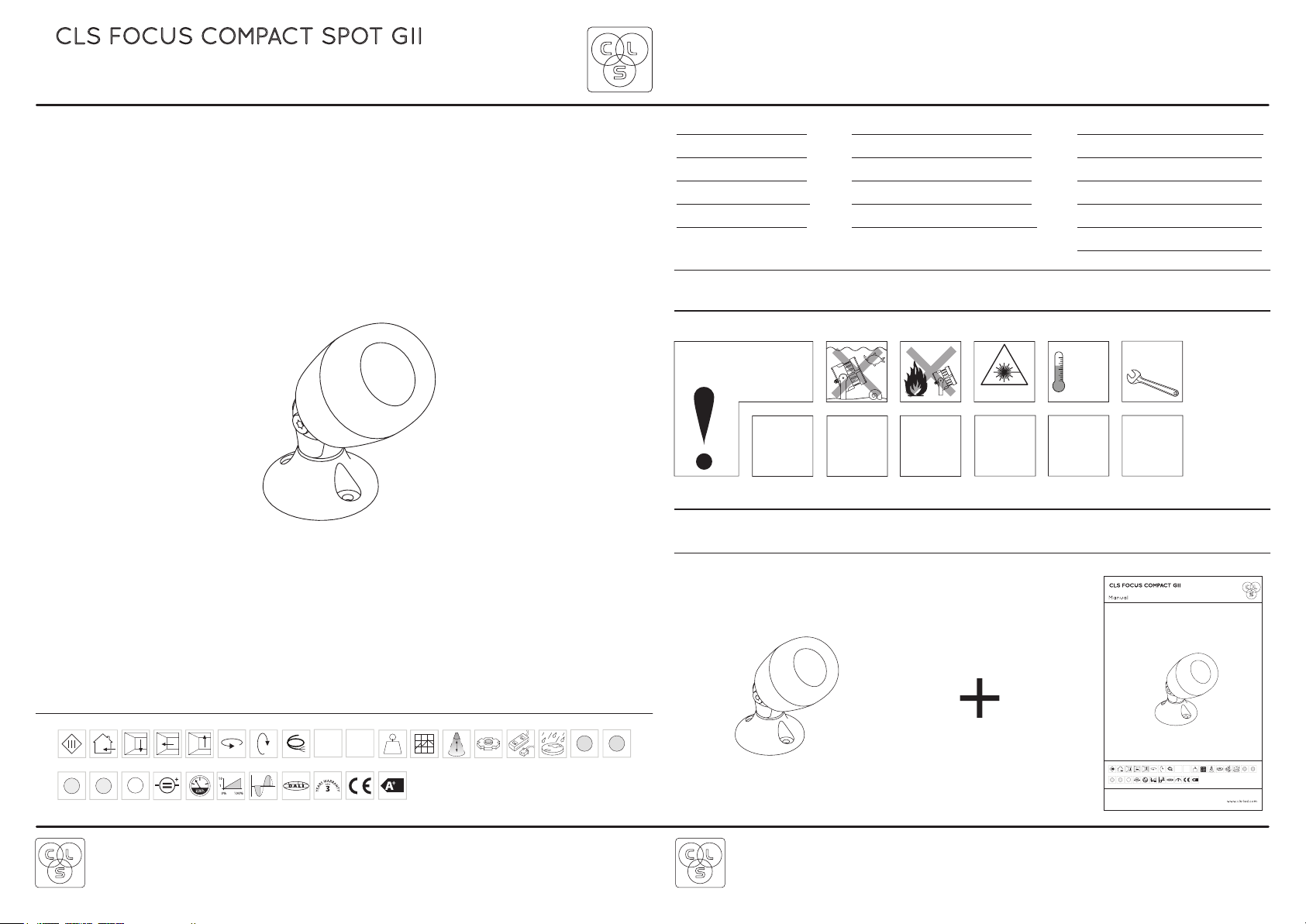

CLS FOCUS COMPACT SPOT GII User manual

www.cls-led.com www.cls-led.com
Manual Version 2.2 November 2017
Wall Ceiling 360ºFloor90º 150 cm 50.000 h135 gr 1 x Cree/
Luxeon
IP20
Max.
700mA
Max.
3 Watt
3000K
CRI>85
3000K
CRI>95
4000K
CRI>85
1-10 V
dimmable
Phase
dimmable
DALI
dimmable
2700K
CRI>85
2700K
CRI>95
DRIVER
EXCLUDED
DRIVER
EXTERNAL
13º - 65º
2
INDEX
CONTENT
SAFETY INFORMATION
Ambiance
Max. 40º
Block access
below the work
area when
maintaining
the unit
Use a source
of AC power
that complies to
local electrical
codes
Don’t install in
a ammable
or explosive
area
Warning!
Some surfaces
can be hot
Do not stare
into the LED
Don’t modify
or install
genuine parts
on this product
Qualied
technician
Make sure all
connectors are
connected
properly
Always switch o mains power of
the driver before connecting or
maintaining any xtures!
Wall Ceiling 360ºFloor90º 150cm 50.000h135gr 1 x Cree/
Luxeon
IP20
Max.
700mA
Max.
3Watt
3000K
CRI>85
3000K
CRI>95
4000K
CRI>85
1-10V
dimmable
Phase
dimmable
DALI
dimmable
2700K
CRI>85
2700K
CRI>95
DRIVER
EXCLUDED
DRIVER
EXTERNAL
13º- 65º
CLS FOCUS COMPACT SPOT GII
Index 2
Safety information 2
Content 2
Technical 3
Specifications 3
Installation 4
Focus extension pipe 5
Focus Tree 7
Wiring diagram Non dim drivers 9
Wiring diagram Mains dim drivers 11
Wiring diagram 1-10V dim drivers 12
Wiring diagram DALI dim drivers 14
Wiring diagram LDC-41 driver 15
Zoom function 16
Accessories 17
List of symbols 18

www.cls-led.com www.cls-led.com
3 4
Max. 85 mm
Min. 74 mm
Focus Compact White
Focus Compact Black
Max. 111 mm
Min. 102 mm
ø 36 mm
ø 36 mm
90º
135º
Ø36 mm
31 mm37 mm
Coupler 90º End piece 90º
24 mm
Ø36 mm
24 mm
Max. 85 mm
Min. 74 mm
Focus Compact White
Focus Compact Black
Max. 111 mm
Min. 102 mm
ø 36 mm
ø 36 mm
90º
135º
Ø36 mm
31 mm
37 mm
Coupler 90º
End piece 90º
24 mm
Ø36 mm
24 mm
Max. 85 mm
Min. 74 mm
Focus Compact White
Focus Compact Black
Max. 111 mm
Min. 102 mm
ø 36 mm
ø 36 mm
90º
135º
Ø36 mm
31 mm
37 mm
Coupler 90º
End piece 90º
24 mm
Ø36 mm
24 mm
Tools 1,5

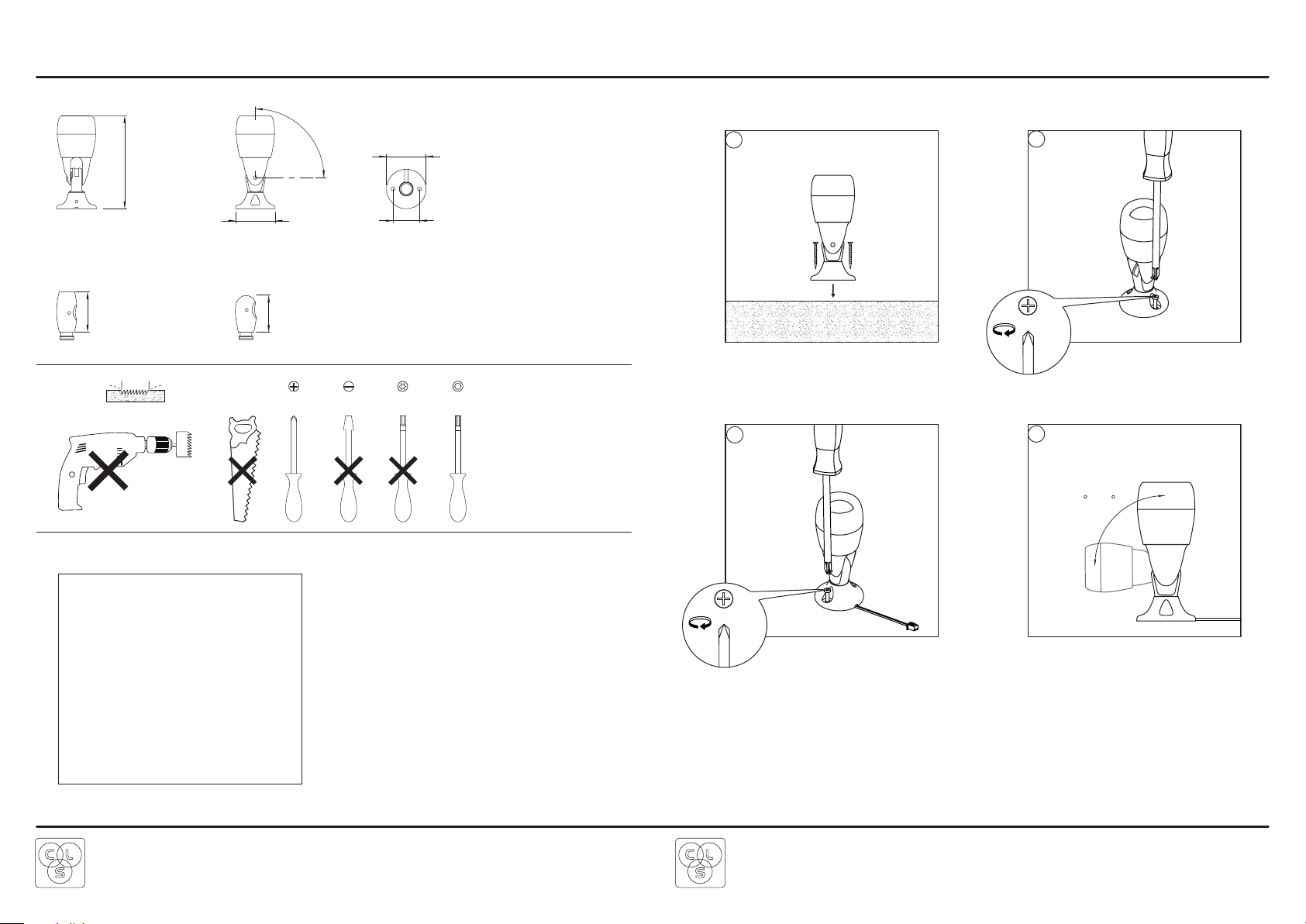

TECHNICAL
SPECIFICATIONS
LED: 1 x Luxeon / Cree
Available colours: CRI 85: 2700K, 3000K & 4000K
CRI 95: 2700K, 3000K
Beam angle: 13º to 65º
Power supply: Max. 700mA
Power consumption: Max. 3 Watt
Housing: Black Aluminum brushed
White coated
Weight: 135 gr
IP value: IP20
Cable length: 150 centimeter
Measurements: ø 36 x 85 mm (øxh)
Ambient temperature: -10º C till +40º C
12
34
0
- 90
INSTALLATION

www.cls-led.com www.cls-led.com
65
EXTENSION PIPE
12
34
5 6
78
Loosen
Max. 10 x extension pipe 10 cm on 1 Focus!
Max. 4 x extension pipe 30 cm on 1 Focus!
Secure
Set the Focus in
the desired
direction
12
34
5 6
78
Loosen
Max. 10 x extension pipe 10 cm on 1 Focus!
Max. 4 x extension pipe 30 cm on 1 Focus!
Secure
Set the Focus in
the desired
direction

www.cls-led.com www.cls-led.com
7 8
FOCUS TREE
12
34
5 6
78
Loosen
Max. 2 x couplers and 1 End piece on a Focus Tree!
Max. total length is 120 cm!
# Y106004-B CLS Focus end piece Black 90º
# Y106004-W CLS Focus end piece White 90º
# Y106005-B CLS Focus Coupler Black 90º
# Y106005-W CLS Focus Coupler White 90º
Secure
1
1
2
3
A
B
C2
3
Secure
1, 2 & 3
Treath the cables
trough the
extension pipe
by starting at A,
then B, and
final C
Set the Focus
Tree in the
desired direction
Secure
1, 2 & 3
12
34
5 6
78
Loosen
Max. 2 x couplers and 1 End piece on a Focus Tree!
Max. total length is 120 cm!
# Y106004-B CLS Focus end piece Black 90º
# Y106004-W CLS Focus end piece White 90º
# Y106005-B CLS Focus Coupler Black 90º
# Y106005-W CLS Focus Coupler White 90º
Secure
1
1
2
3
A
B
C2
3
Secure
1, 2 & 3
Treath the cables
trough the
extension pipe
by starting at A,
then B, and
final C
Set the Focus
Tree in the
desired direction
Secure
1, 2 & 3

www.cls-led.com www.cls-led.com
9 10

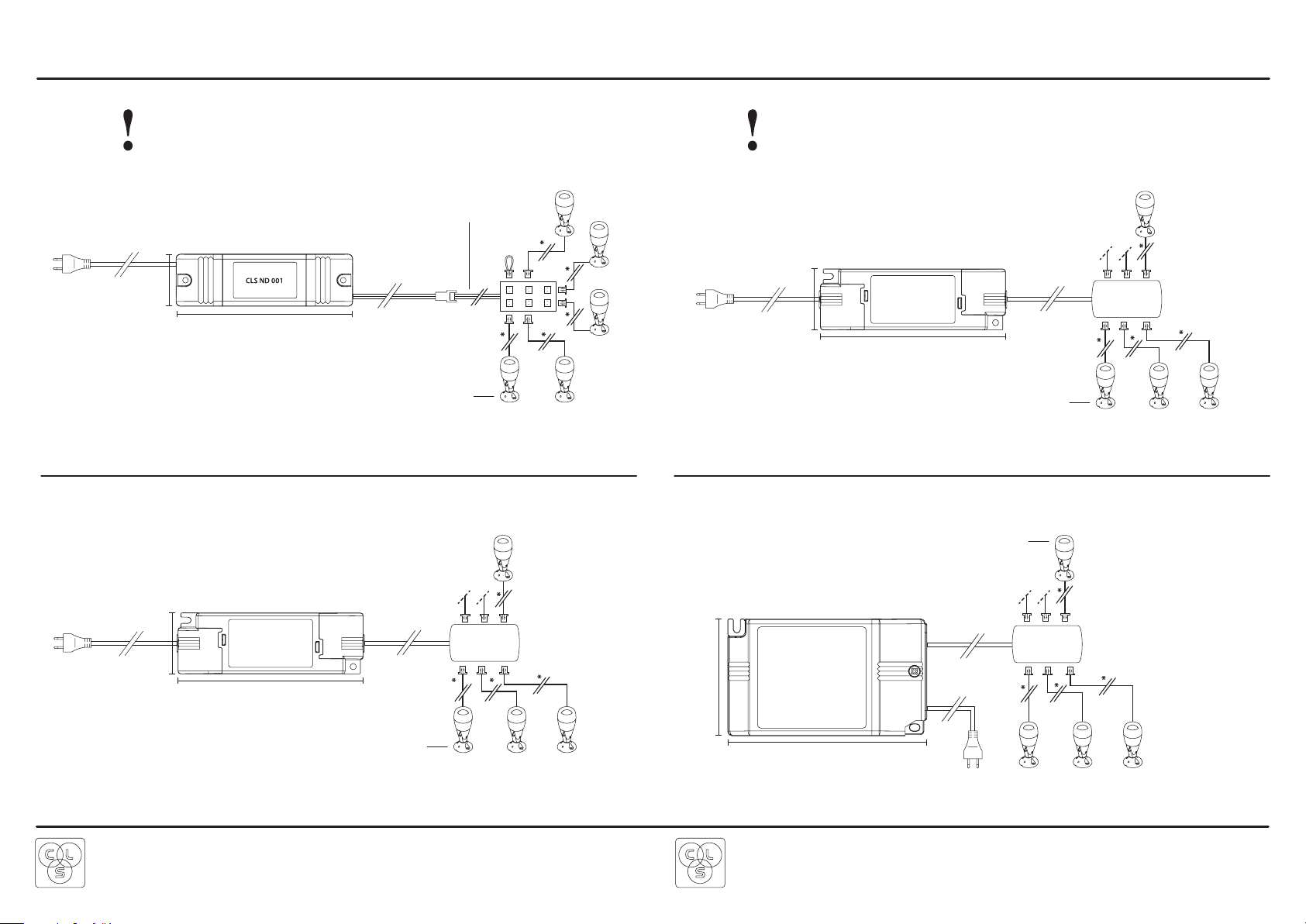

WIRING DIAGRAM NON DIM DRIVERS
CLS ND 001, non dimmable, 700mA driver
19 x 115 x 34 mm (hxwxd)
120 ~180 cm cable
* 150 cm cable
CLS SmartConnect
6-fold junction box
# 87129905
Installation wire 2 x 0.5 mm2
Driver till last Focus Compact GII total cable length is max. 10 m
120 ~ 180 cm cable
115 mm
34 mm
Always use 1 - 5 pcs of Focus Compact GII on the CLS ND 001
CLS Focus Compact Spot GII
# FC-X-X-XX-Z
CLS ND 004
* 150 cm cable
Installation wire 2 x 0.5 mm2
Driver till last Focus Compact GII total cable length is max.10 m
CLS ND 004, non dimmable, 250-1050mA driver
30 x 129,5 x 42 mm (hxwxd)
Always use 4 - 13 pcs of Focus Compact GII on the CLS ND 004
120 ~180 cm cable
120 ~ 180 cm cable
129,5 mm
42 mm
CLS Focus Compact Spot GII
# FC-X-X-XX-Z
Always switch off mains power of the driver before connecting any fixtures! Always switch off mains power of the driver before connecting any fixtures!
CLS ND 008
* 150 cm cable
Installation wire 2 x 0.5 mm2
Driver till last Focus Compact GII total cable length is max. 10 m
CLS ND 008, non dimmable, 500-1050mA driver
30 x 129,5 x 42 mm (hxwxd)
Always use 4 - 13 pcs of Focus Compact GII on the CLS ND 008
120 ~180 cm cable120 ~ 180 cm cable
129,5 mm
42 mm
CLS Focus Compact Spot GII
# FC-X-X-XX-Z
* 150 cm cable
Installation wire 2 x 0.5 mm2
Driver till last Focus Compact GII total cable length is max. 10 m
CLS ND 012, non dimmable, 350-1050mA driver
30 x 129 x 76 mm (hxwxd)
Always use 4 - 21 pcs of Focus Compact GII on the CLS ND 012
120 ~ 180 cm cable
120 ~ 180 cm cable
CLS ND 012
129 mm
76 mm
CLS Focus Compact Spot GII
# FC-X-X-XX-Z

www.cls-led.com www.cls-led.com
11 12

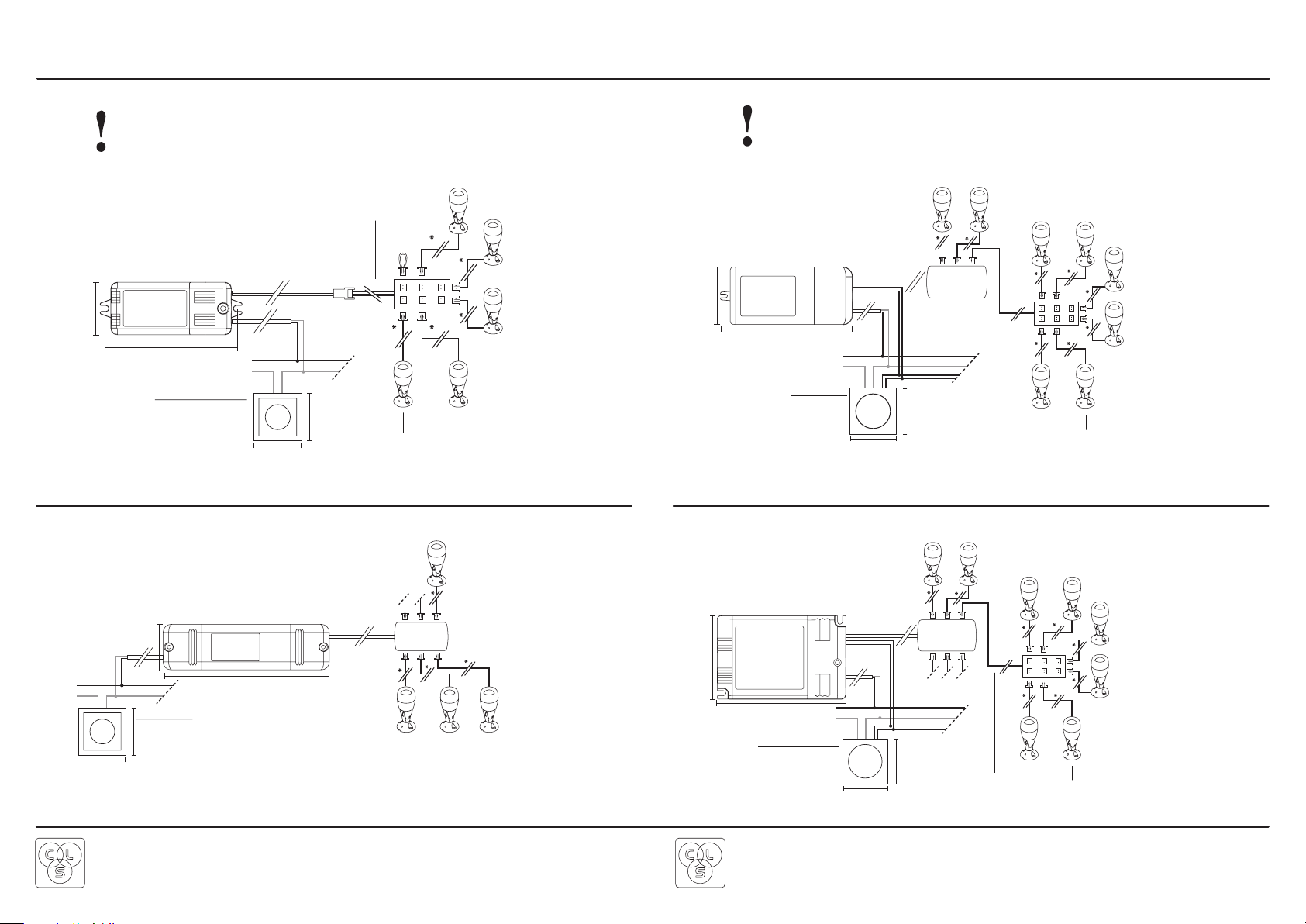

WIRING DIAGRAM MAINS DIM DRIVERS
* 150 cm cable
Installation wire 2 x 0.5 mm2
Driver till last Focus Compact GII total cable length is max. 10 m
CLS MD 001, mains dimmable, 700mA driver
21 x 94 x 38 mm (hxwxd)
Always use 3 - 4 pcs of Focus Compact GII on the CLS MD 001
CLS SmartConnect
6-fold junction box
# 87129905
CLS MD 001
120 ~180 cm cable
94 mm
38 mm
CLS Dimmer Jung phase cut
max. 270VA 230-240VAC
# 872019
80,5 mm (w)
80,5 mm (h)
L
N
Max. 12 pieces of MD 001 on
1 CLS dimmer Jung phase-cut
CLS Focus Compact Spot GII
# FC-X-X-XX-Z
* 150 cm cable
Installation wire 2 x 0.5 mm2
Driver till last Focus Compact GII total cable length is max. 10 m
CLS MD 004, mains dimmable, 250-700mA driver
34 x 166 x 46 mm (hxwxd)
Always use 1 - 14 pcs of Focus Compact GII on the CLS MD 004 120 ~180 cm cable
CLS Dimmer Jung phase cut
max. 270VA 230-240VAC
# 872019
80,5 mm (w)
80,5 mm (h)
L
N
Max. 12 pieces of MD 004 on
1 CLS dimmer Jung phase-cut
CLS MD 004
46 mm
166 mm
CLS Focus Compact Spot GII
# FC-X-X-XX-Z
Always switch off mains power of the driver before connecting any fixtures!
WIRING DIAGRAM 1-10V DIM DRIVERS
Installation wire 2 x 0.5 mm2
Driver till last Focus Compact GII
total cable length is max. 10 m
CLS VD 001, 1-10V dimmable, 350-900mA driver
22 x 100 x 52 mm (hxwxd)
CLS VD 001
0-10 V
80,5 mm (w)
80,5 mm (h)
CLS Dimmer electr. 1-10V
# 872010
L
N
120 ~180 cm cable
* 150 cm cable
CLS SmartConnect
6-fold junction box
# 87129905
Max. 12 pieces of VD 001 on
1 CLS Dimmer electr. 1-10V
Always use 1 - 8 pcs of Focus Compact GII on the CLS VD 001
52 mm
100 mm
CLS Focus Compact Spot GII
# FC-X-X-XX-Z
Installation wire 2 x 0.5 mm2
Driver till last Focus Compact GII
total cable length is max. 10 m
CLS VD 004, 1-10V dimmable, 350-900mA driver
21 x 103 x 67 mm (hxwxd)
0-10 V
80,5 mm (w)
80,5 mm (h)
CLS Dimmer electr. 1-10V
# 872010
L
N
120 ~180 cm cable
* 150 cm cable
CLS SmartConnect
6-fold junction box
# 87129905
Max. 12 pieces of VD 004 on
1 CLS Dimmer electr. 1-10V
Always use 1 - 14 pcs of Focus Compact GII on the CLS VD 004
CLS VD 004
67 mm
103 mm
CLS Focus Compact Spot GII
# FC-X-X-XX-Z
Always switch off mains power of the driver before connecting any fixtures!

www.cls-led.com www.cls-led.com
13 14
CLS VD 008, 1-10V dimmable, 250-700mA driver
22 x 124 x 79 mm (hxwxd)
120 ~180 cm cable
Max. 12 pieces of VD 008 on
1 CLS Dimmer electr. 1-10V
Always use 1 - 21 pcs of Focus Compact GII on the CLS VD 008
CLS VD 008
Installation wire 2 x 0.5 mm2
Driver till last Focus Compact GII
total cable length is max. 10 m
0-10 V
80,5 mm (w)
80,5 mm (h)
CLS Dimmer electr. 1-10V
# 872010
L
N
* 150 cm cable
CLS SmartConnect
6-fold junction box
# 87129905
79 mm
124 mm
CLS Focus Compact Spot GII
# FC-X-X-XX-Z
Always switch off mains power of the driver before connecting any fixtures!
WIRING DIAGRAM DALI DIM DRIVERS
Installation wire 2 x 0.5 mm2
Driver till last Focus Compact GII
total cable length is max. 10 m
CLS DD 001, DALI dimmable, 250-700mA driver
22 x 100 x 52 mm (hxwxd)
CLS DD 001
120 ~180 cm cable
120 ~180 cm cable
* 150 cm cable
Always use 1 - 8 pcs of Focus Compact GII on the CLS DD 001
DA1DA2
Controller
Supporting DALI
CLS Focus Compact Spot GII
# FC-X-X-XX-Z
CLS SmartConnect
6-fold junction box
# 87129905
52 mm
100 mm
Installation wire 2 x 0.5 mm2
Driver till last Focus Compact GII
total cable length is max. 10 m
CLS DD 004, DALI dimmable, 350-700mA driver
21 x 103 x 67 mm (hxwxd)
120 ~180 cm cable
* 150 cm cable
CLS SmartConnect
6-fold junction box
# 87129905
DA1DA2
Controller
Supporting DALI
CLS DD 004
Always use 1 - 14 pcs of Focus Compact GII on the CLS DD 004
67 mm
103 mm
CLS Focus Compact Spot GII
# FC-X-X-XX-Z
Always switch off mains power of the driver before connecting any fixtures!

www.cls-led.com www.cls-led.com
15 16

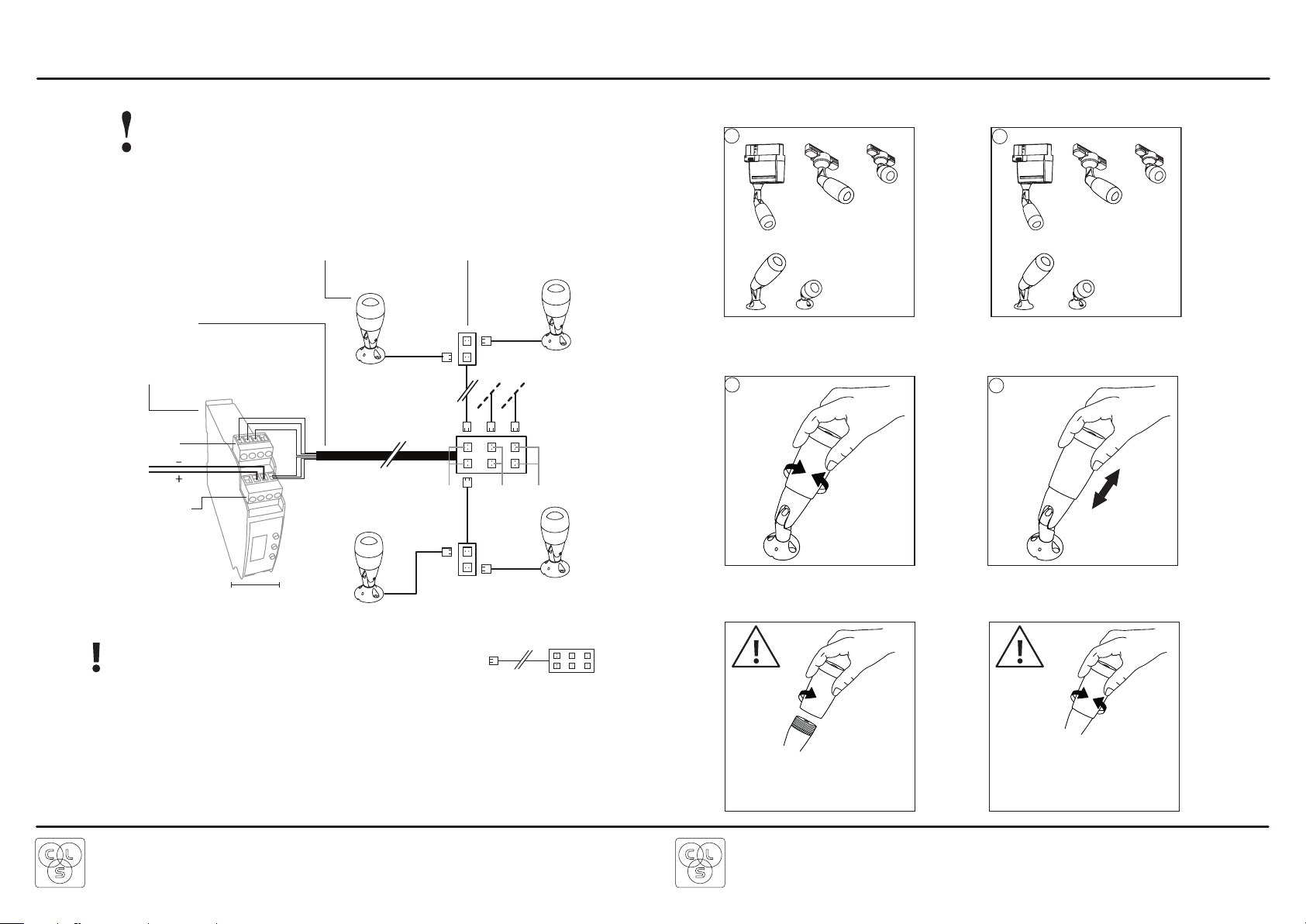

WIRING DIAGRAM LDC-41 DRIVER
24 / 48 VDC
CLS LDC-41 DMX LED dimmer
4 channels
# 113000
CLS LDC adaptercable LDC
to SmartConnect System
# 911367
Connector with the
yellow, black and white cable
Connector with the
red, green and blue cable
25 mm (w)
Installation wire 2 x 0.5 mm2
Driver till last Focus Compact GII
total cable length is max. 10 m
Make sure the LDC-41 is set to 700mA!
Channel 1Channel 2 Channel 3
CLS Focus Compact GII
# FC-X-X-XX-Z
CLS SmartConnect
2-fold junction box
# 87129900
CLS SmartConnect
6-fold junction box
# 87129905
24 VDC powersupply: Min. 2 and max. 6 pcs on each channel
48 VDC powersupply: Min. 7 and max. 12 pcs on each channel
Also select the correct BT powersupply according to the consumed power
Always switch off mains power of the driver before connecting any fixtures!
ZOOM FUNCTION
11
22
Twist system Pull & Push system
Applied on the black Focus Applied on the white Focus
When re-adjusting the beam angle, rst twist
the Focus to unlock the zoom function.
Then pull or push to the direction of the
desired beam angle.
While twisting counter clockwise, don’t twist to
far or else the front unit will come of.
When the beam does not get any smaller,
you have reached the beam angle of 13º.
65º
13º 13º
65º
2 x

www.cls-led.com www.cls-led.com
17 18
LIST OF SYMBOLS
Multiple connection
Daisychain connectivity
Installation depth
In centimeters
Swivel
Fixture is horizontally rotatable,
indicated in degrees
Swivel
Fixture is vertically rotatable,
indicated in degrees
Installation size
In centimeters
Application area
Indoor or outdoor
Application area
Floor, wall or ceiling
Protection class
One, two or three
Cable length
Maximum cable attached
to the fixture in centimeters
Lifespan
Of the light source in hours
Driver
Inclusive or exclusive
Internal or external
Pressure
Maximum pressure on
the fixture in kg/cm2
Weight
In grams/kilograms
Curve
Minimal bending curve
in centimeters
LED pitch
Pitch between the
LEDs in millimeters
Power supply
In VDC, VAC or milliAmpere
Power consumption
In VA or Watt
IP value
Ingress Protection classifies the
degrees of protection provided
against the intrusion of the product
Cutting length
Indicated by the
cutting marks
LEDs
Kind of LED used in the
fixture
Lenses
Availble lenses,
indicated in degrees
Plug & play
Easy connection using the
SmartConnect system
White colour temperature
In different Kelvin values;
Cold white, neutral white, warm
white or extra warm white
Colour
Available colours;
Amber, blue, red or green
Colour changing
RGB, RGB-W, RGB-A,
AWB or Tunable White
DMX input
Fixture works on DMX512
protocol
Magno dimming
Accurate dimming from
100 - 1% by using a magnet
Dynamic Control
Dynamic Power Control or
Dynamic Temperature Control
Combined product
Compose your own fixture
Warranty
3 or 5 years warranty on
the product
Energy label
Conformité Européenne
CE marking for free marketability
of industrial goods within the EU
DMX
512
r
h
ø w d
Dimmable
1-10 Volt, Phase, individual,
DMX dimmable or DALI
DRIVER
INCLUDED
DRIVER
EXTERNAL
Retail & Food LED modules
Clothing, furniture, kitchens,
jewellery, shoes, bread, meat,
fish & vegetables & fruit.
Lightsource
Equipped with a CLS, Citizen or a
Xicato LED module
Bluetooth controlled
By Casambi
CLS
DYNAMIC
COLOUR
COB
ACCESSORIES
2017 CLS-LED BV. All rights reserved. Information subject to change without notice, CLS-LED BV and all affiliated
companies disclaim liability for injury, damage direct or indirect loss, consequential or economic loss or any other loss
occasioned by the use of, inability to use or reliance on the information contained in this manual. No part of this manual may
be reproduced, in any form or by any means, without permission in writing from CLS-LED BV. Other legal information can
be found in our General conditions,found on the back of your CLS-LED BV invoice, inside the CLS catalogue or on our website
www.cls-led.com/General-Terms.pdf
ACCESSORIES
113000 CLS LDC-41 DMX LED dimmer 4 channels 0.35-1A per channel
87129900 CLS SmartConnect 2-fold junction box & shortcircuit connect.
87129905 CLS SmartConnect 6-fold junction box & shortcircuit connect.
87129915 CLS SmartConnect short circuit plugs (10pcs)
87129959 CLS SmartConnect extensioncable betw. 2 junction boxes 5mtr
872010 CLS Dimmer electr. 1-10V for MT35/MTD44 LED driver
872018 CLS MTD43 LED driver 4x700mA / 8x350mA 12VA mains dimmable
872019 CLS Dimmer Jung phase cut max. 270VA 230-240VAC
874001 CLS ND 001 non dim, 100 - 240 V, 700mA driver
874004 CLS ND 004 non dim, 198 - 264 V, 250-1050mA driver
874008 CLS ND 008 non dim, 198 - 264 V, 500-1050mA driver
874012 CLS ND 012 non dim, 198 - 264 V, 350-1050mA driver
874101 CLS MD 001 mains dim. 198-264V, 700mA driver
874104 CLS MD 004 mains dim. 198-264V, 250-700mA driver
874201 CLS VD 001, 1-10V dim, 99-264 V, 350-900mA driver
874204 CLS VD 004, 1-10V dim, 99-264 V, 350-900mA driver
874208 CLS VD 008, 1-10V dim, 99-264 V, 250-700mA driver
874301 CLS DD 001, DALI dim, 99-264 V, 250-700mA driver
874304 CLS DD 004, DALI dim, 99-264 V, 350-700mA driver
911367 CLS LDC adaptercable LDC to SmartConnect system
Y106000 CLS Focus extension pipe 10 cm black
Y106001 CLS Focus extension pipe 10 cm white
Y106002 CLS Focus extension pipe 30 cm black
Y106003 CLS Focus extension pipe 30 cm white
Y106004-B CLS Focus end piece black 90º
Y106004-W CLS Focus end piece white 90º
Y106005-B CLS Focus coupler black 90º
Y106005-W CLS Focus coupler white 90º
Y106010 CLS Focus snoot GI half cut black
Y106011 CLS Focus snoot half cut white
Y106012 CLS Focus snoot GII half cut black
Y106014 CLS Focus snoot GII black
