CLS REVO GALLERY User manual

www.cls-led.com www.cls-led.com
Ceiling 350º 270º 2,0 kg 50.000 h8º12º 30º 61º 80º 12 x 46º 8 x
Cree/luxeon
IP40
100~240
VAC
Max.
20 VA
Local
dim
3000K
2700K
AmberBlue RedGreen
6500K
5000K
4000K
DRIVER
INCLUDED
DRIVER
INTERNAL
2
CLS REVO GALLERY
Manual V3.3 - July 2018
INDEX
Index 2
Safety information 2
Content 2
Technical 3
Specifications 3
Adapter assembly 4
CONTENT
SAFETY INFORMATION
Ambiance
Max. 40º
Block access
below the work
area when
maintaining
the unit
Use a source
of AC power
that complies to
local electrical
codes
Disconnect the
power supply
before installing
or maintaining
Don’t install in
a flammable
or explosive
area
Warning!
Some surfaces
can be hot
Do not stare
into the LED
Don’t modify
or install
genuine parts
on this product
Qualified
technician
Make sure all
connectors are
connected
properly
Installation 5
Lens replacement 6
Accessories 7
Lens index 7
List of symbols 8
Ceiling 350º 270º 2,0kg 50.000h8º12º 30º 61º 80º 12x 46º 8x
Cree/luxeon
IP40
100~240
VAC
Max.
20VA
Local
dim
3000K
2700K
AmberBlue RedGreen
6500K
5000K
4000K
DRIVER
INCLUDED
DRIVER
INTERNAL

www.cls-led.com www.cls-led.com
3 4
100 mm
175 mm
61 mm
162 mm
100 mm
100 mm
40 mm
116 mm
100 mm
Tools 17 T20
TECHNICAL
SPECIFICATIONS
LED: 8 x Cree or Luxeon Rebel
Available colours: 2700K, 3000K, 4000K, 5000K, 6500K
amber, royal blue, green and red
Lenses: 8º, 12º, 30º, 61º, 80º & 12x46º
Power supply: 100 ~ 240 VAC
Power factor: > 0,90
Power consumption: Max. 20 VA
Housing: Anodised aluminum
Weight: 2,0 kg
IP value: IP40
Measurements: 175 x 116 x 100 mm (hxwxd)
Ambient temperature: -10º C till +40º C
ADAPTER ASSEMBLY
12
5
4
3
± 90º
Secure

www.cls-led.com www.cls-led.com
65
LENS REPLACEMENT
2
4
Glass
Front plate
Lensholder
1
3
4x
Secure in
order
1
2
3
4
T20
Glass
Front plate
Lensholder
Make sure that
the items are clean
and the rubber
sealing is correctly
in place!
T20
2018 CLS-LED BV. All rights reserved. Information subject to change without notice, CLS-LED BV and all aliated companies disclaim
liability for injury, damage direct or indirect loss, consequential or economic loss or any other loss occasioned by the use of, inability to
use or reliance on the information contained in this manual. No part of this manual may be reproduced, in any form or by any means,
without permission in writing from CLS-LED BV. Other legal information can be found in our General conditions, found on the back of
your CLS-LED BV invoice, inside the CLS catalogue or on our website www.cls-led.com/General-Terms.pdf
2
4
3
6
1
# Y110928
90º
# Y110945
# Y110935
Set the adapter
to the desired phase
by turning the wheel
5
Dimmable
Position
indicator
INSTALLATION

www.cls-led.com www.cls-led.com
7 8
ACCESSORIES
110855 CLS 3-phase multi adapter grey XTSA 68
Y110856 CLS 3-phase multi adapter grey GA 300-1 small
Y110865 CLS 3-phase multi adapter white XTSA 68
Y110866 CLS 3-phase multi adapter white GA 300-3 small
Y110875 CLS 3-phase multi adapter black XTSA 68
Y110876 CLS 3-phase multi adapter black GA 300-2 small
Y110880 CLS T-connector grey for 3-phaserail, ground left
Y110881 CLS T-connector black for 3-phaserail, ground left
Y110882 CLS T-connector white for 3-phaserail, ground left
Y110925 CLS 3-phase rail 1mtr aluminum XTS 4100
Y110926 CLS 3-phase rail 2 metre aluminum XTS 4200
Y110927 CLS 3-phase rail 2mtr black XTS 4200
Y110928 CLS 3-phase rail 3mtr aluminum XTS 4300
Y110929 CLS 3-phase rail 4mtr aluminum XTS 4100
Y110930 CLS 3-phase rail 3mtr white XTS 4300
Y110931 CLS 3-phase rail 3mtr black XTS 4300
Y110932 CLS 3-phase rail 4mtr black XTS 4400
Y110935 CLS end piece for 3-phase rail grey XTS 41
Y110938 CLS end piece for 3-phase rail black XTS 41
Y110939 CLS end piece for 3-phase rail white XTS 41-3
Y110945 CLS connection box for 3-phase rail, grey XTS 11
Y110946 CLS connection box for 3-phase rail, grey XTS 12
Y110950 CLS connection box for 3-phase rail black XTS 11
Y110954 CLS L-connector grey for 3-faserail, ground left
Y110955 CLS L-connector grey for 3-faserail, ground right
Y110960 CLS connect piece gray (connect rail-rail) XTS
Y110961 CLS connect piece white (connect rail-rail) XTS21
Y110962 CLS connect piece black (connect rail-rail) XTS
Y110965 CLS hanging bracke for 3-phase rail, grey SKB16
Y110966 CLS hanging set, grey SKB12 with 1.5 mtr steel
Y110970 CLS bending tool XTSV 12
Y110980 CLS round mountingdisk GA70 grey
Y110985 CLS round mountingdisk GA70 white
Y110990 CLS round mountingdisk GA70 black
ACCESSORIES

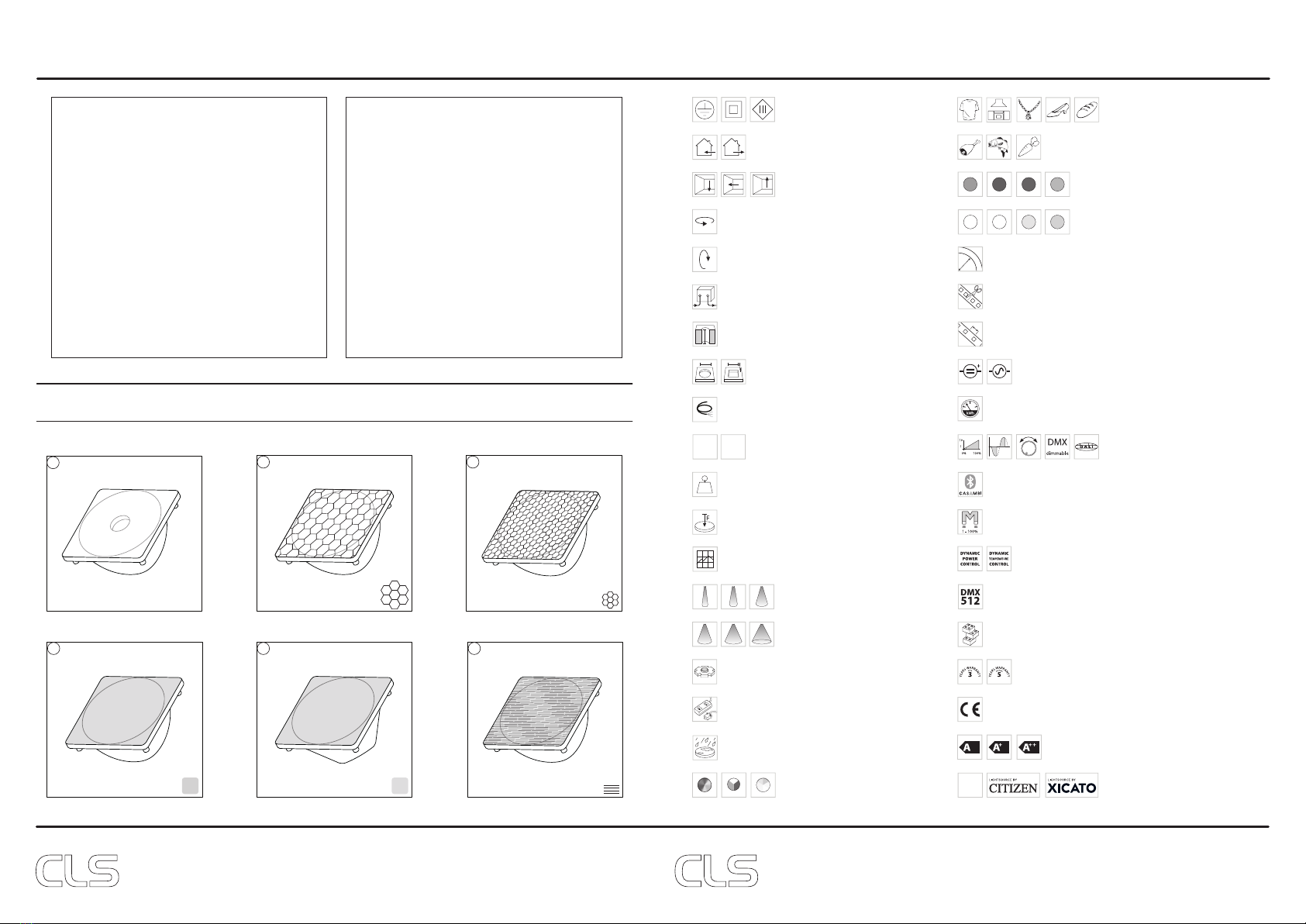

LENS INDEX
1
6
23
4
Superspot 8º Medium Flood 30º Spot 12º
Wide Flood 61º Elliptical 12x46º
5
Extra Wide Flood 80º
LIST OF SYMBOLS
Multiple connection
Daisychain connectivity
Installation depth
In centimeters
Swivel
Fixture is horizontally rotatable,
indicated in degrees
Swivel
Fixture is vertically rotatable,
indicated in degrees
Installation size
In centimeters
Application area
Indoor or outdoor
Application area
Floor, wall or ceiling
Protection class
One, two or three
Cable length
Maximum cable attached
to the fixture in centimeters
Lifespan
Of the light source in hours
Driver
Inclusive or exclusive
Internal or external
Pressure
Maximum pressure on the
fixture in kg/cm2
Weight
In grams/kilograms
Curve
Minimal bending curve
in centimeters
LED pitch
Pitch between the LEDs
in millimeters
Power supply
In VDC, VAC or milliAmpere
Power consumption
In VA or Watt
IP value
Ingress Protection classifies the
degrees of protection provided against
the intrusion of the product
Cutting length
Indicated by the cutting
marks
LEDs
Kind of LED used in the
fixture
Lenses
Availble lenses,
indicated in degrees
Plug & play
Easy connection using the
SmartConnect system
White colour temperature
In dierent Kelvin values;
Cold white, neutral white, warm
white or extra warm white
Colour
Available colours;
Amber, blue, red or green
Colour changing
RGB, RGB-W, RGB-A,
AWB or Tunable White
DMX input
Fixture works on DMX512
protocol
Magno dimming
Accurate dimming from
100 - 1% by using a magnet
Dynamic Control
Dynamic Power Control or
Dynamic Temperature Control
Combined product
Compose your own fixture
Warranty
3 or 5 years warranty on
the product
Energy label
Conformité Européenne
CE marking for free marketability
of industrial goods within the EU
r
h
ø w d
Dimmable
1-10 Volt, Phase, individual,
DMX dimmable or DALI
DRIVER
INCLUDED
DRIVER
EXTERNAL
Retail & Food LED modules
Clothing, furniture, kitchens, jewellery,
shoes, bread, meat, fish and
vegetables & fruit.
Lightsource
Equipped with a CLS, Citizen or a Xicato
LED module
Bluetooth controlled
By Casambi
CLS
DYNAMIC
COLOUR
COB
