FOREWORD
Thank you for choosing Club Car.You have chosen the finest utility vehicle on the market; the vehicle most
widely recognized as the industry leader in vehicle efficiency and long-lasting value. Please protect your
investment and ensure that your Carryall vehicle(s) provides years of reliable, superior performance by filling
out and returning your Warranty Registration Card (located between the last page and back cover of this
manual), and by reading and following the maintenance instructions in this manual.
Your comfort and safety are important to us as well, so we urge you to read and follow the step-by-step oper-
ating instructions and safety procedures in this manual.These instructions must be followed in order to avoid
the risk of severe personal injury. If you rent or loan your vehicle to others, we recommend that you ask them
to read this manual before they operate the vehicle.
Club Car products are backed by a customer support system designed to offer you fast, courteous service.In
the event that your Carryall vehicle needs repairs or service, we recommend that your local authorized Club
Car representative perform them. For the name and address of the Club Car representative nearest you, logon to
our web site at www.clubcar.com or call 1-800-ClubCar (258-2227). If you would prefer to write to us, direct your
letter to: Club Car, Attention: Marketing Services, P.O. Box 204658, Augusta, Georgia 30917-4658 USA.Your
local authorized Club Car representative can also provide technical advice, parts, and service manuals.
We hope you will consider this owner’s manual a permanent part of your Carryall vehicle.If you sell the vehi-
cle, please include the manual so that the next owner will have the important operating, safety, and mainte-
nance information it contains.

4 2001 Carryall Electric Vehicle Owner’s Manual
Safety signs like you see above may at first seem shocking, but their impact is mild
compared with the reality of severe personal injury.
Your safety and satisfaction are of the utmost importance to Club Car. That is why
before operating the vehicle, we urge you to review the information in this manual.
Understand and become familiar with the DANGER, WARNING and CAUTION state-
ments and procedures it contains, along with the safety decals that are affixed to
your vehicle.
Take time to understand the language of safety. It is a language that can save your life.
!WARNING
Rotating Parts
Practice Safety

2001 Carryall Electric Vehicle Owner’s Manual 5
TABLE OF CONTENTS
Safety Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
General Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Vehicle Feature Identification – Carryall 1 and Carryall 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Vehicle Feature Identification – Carryall 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
General Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Model Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Pre-Operation Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Controls and Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Driving Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Bed Latch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Prop Rod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Loading and Unloading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Towing with the Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Transporting on a Trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Daily Pre-Operation Safety Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Periodic Service Schedule. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Periodic Lubrication Schedule. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Vehicle Capacities. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Vehicle Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Battery Charger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Cleaning the Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Subsequent Owner Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Vehicle Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Safety Details
6 2001 Carryall Electric Vehicle Owner’s Manual
SAFETY DETAILS
It is important to note that some vital statements throughout this manual and on the decals affixed to the
vehicle are preceded by the words DANGER, WARNING, CAUTION, or NOTE. For your protection, we rec-
ommend that you take special notice of these safety procedures. Safety procedures are essential and must
be followed.
If any of the operation or warning decals on the vehicle become damaged, have been removed, or cannot be
easily read, they should be replaced immediately to avoid possible property damage, personal injury, or
death. Contact your Club Car distributor/dealer.
• THIS OWNER’S MANUAL SHOULD BE READ COMPLETELY BEFORE ATTEMPTING TO DRIVE
OR SERVICE THE VEHICLE. FAILURE TO FOLLOW THE INSTRUCTIONS IN THIS MANUAL
COULD RESULT IN PROPERTY DAMAGE, SEVERE PERSONAL INJURY, OR DEATH.
• A DANGER INDICATES AN IMMEDIATE HAZARD THAT WILL RESULT IN SEVERE
PERSONAL INJURY OR DEATH.
• A WARNING INDICATES AN IMMEDIATE HAZARD THAT COULD RESULT IN SEVERE
PERSONAL INJURY OR DEATH.
• A CAUTION INDICATES HAZARDS OR UNSAFE PRACTICES THAT COULD RESULT IN MINOR
PERSONAL INJURY OR PRODUCT OR PROPERTY DAMAGE.
• A NOTE PROVIDES KEY INFORMATION TO MAKE PROCEDURES MORE EASILY UNDERSTOOD.

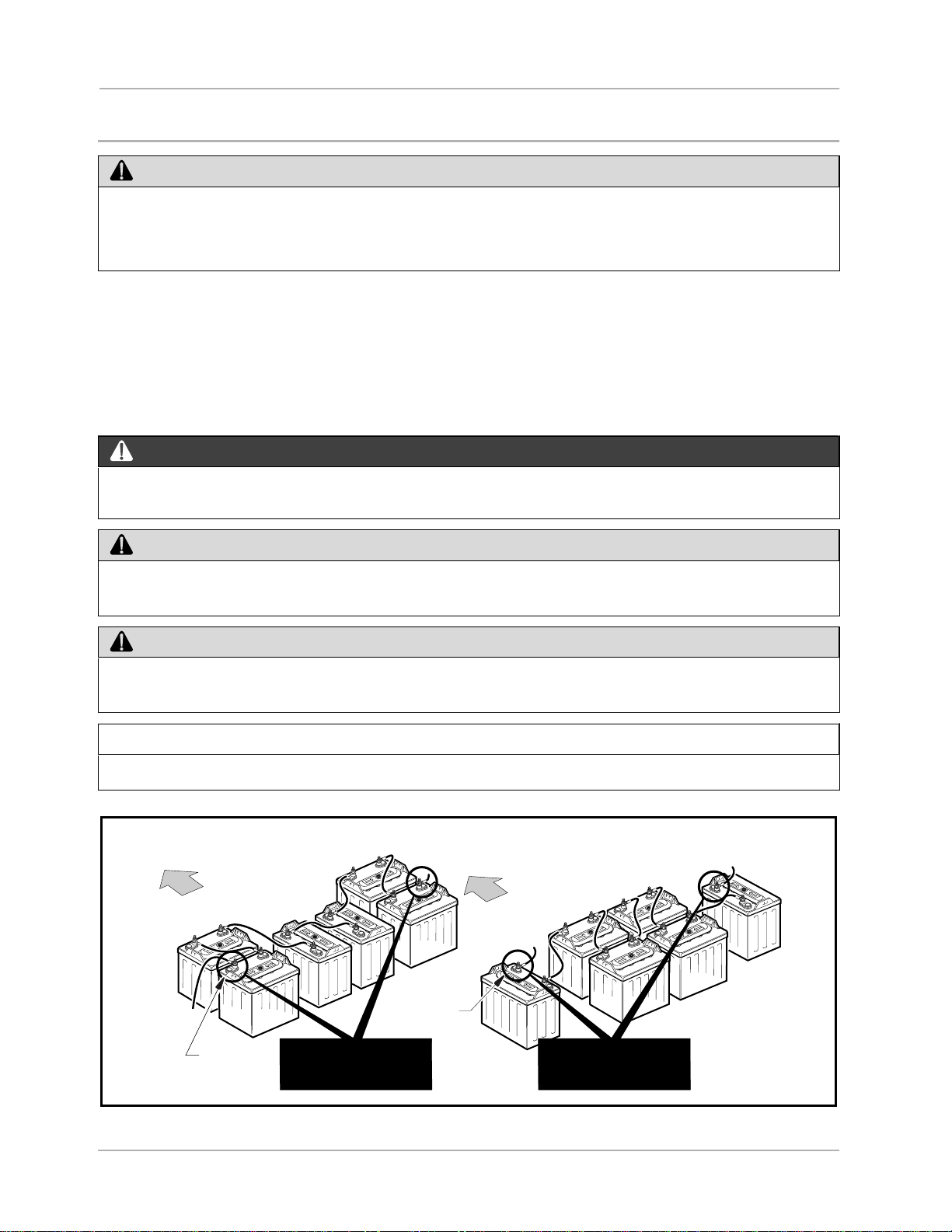

Figure 1 PowerDrive Battery Configuration
WARNING
DANGER
WARNING
CAUTION
NOTE
BATTERY BANK FOR
CARRYALL 1
1
2
3
4
6
5
BATTERY BANK FOR CARRYALL 2
AND CARRYALL 6
1
2
3
4
6
5
FRONT
OF VEHICLE
FRONT
OF VEHICLE
REMOVE
NEGATIVE
CABLE FIRST
REMOVE
NEGATIVE
CABLE FIRST
DISCONNECT
BATTERY CABLES HERE DISCONNECT BATTERY CABLES HERE

General Warnings
2001 Carryall Electric Vehicle Owner’s Manual 7
GENERALWARNINGS
The safety procedures listed must be followed whenever the vehicle is being operated, repaired, or serviced.
Other specific warnings appear throughout this manual and on the vehicle.
• BATTERY VAPORS – FLAMMABLE! EXPLOSIVE! DO NOT SMOKE. KEEP SPARKS AND
FLAMES AWAY FROM VEHICLE AND SERVICE AREA. SERVICE ONLY IN WELL-
VENTILATED AREAS.
• A UTILITY VEHICLE WILL NOT PROVIDE PROTECTION FROM LIGHTNING, FLYING
OBJECTS, OR OTHER STORM RELATED HAZARDS. IF CAUGHT IN A STORM WHILE
DRIVING A CARRYALL UTILITY VEHICLE, EXIT THE VEHICLE AND SEEK SHELTER IN
ACCORDANCE WITH APPLICABLE SAFETY GUIDELINES FOR YOUR LOCATION.
• NEVER LEAVE CHILDREN UNATTENDED IN VEHICLE.
• WHEN STOPPING AND LEAVING THE VEHICLE, ALWAYS:
- TURN THE KEY SWITCH TO OFF AND REMOVE THE KEY.
- PLACE THE FORWARD/REVERSE HANDLE IN NEUTRAL .
- ENGAGE THE PARK BRAKE.
• ONLY TRAINED TECHNICIANS SHOULD REPAIR OR SERVICE THE VEHICLE.ANYONE DOING
EVEN SIMPLE REPAIRS OR SERVICE SHOULD FOLLOW THE PROCEDURES EXACTLY AS
STATED IN THIS MANUAL, AND FOLLOW ALL DANGER , WARNING , AND CAUTION
PROCEDURES LISTED IN THIS MANUAL AS WELL AS THOSE AFFIXED TO THE VEHICLE.
• WEAR SAFETY GLASSES OR APPROVED EYE PROTECTION WHEN SERVICING THE VEHICLE.
WEAR A FULL FACE SHIELD AND RUBBER GLOVES WHEN WORKING WITH BATTERIES.
• USE INSULATED TOOLS WHEN WORKING AROUND BATTERIES OR ELECTRICAL CONNECTIONS.
• IMPROPER USE OF THE VEHICLE OR FAILURE TO PROPERLY MAINTAIN IT COULD RESULT
IN DECREASED VEHICLE PERFORMANCE OR SEVERE PERSONAL INJURY.
• FOLLOW ALL PROCEDURES LISTED IN THIS MANUAL FOR LOADING AND UNLOADING THE
VEHICLE. DO NOT EXCEED VEHICLE RATED WEIGHT CAPACITY.
• ANY MODIFICATION OR CHANGE TO THE VEHICLE THAT AFFECTS THE STABILITY OR
HANDLING OF THE VEHICLE, OR INCREASES MAXIMUM VEHICLE SPEED BEYOND FACTORY
SPECIFICATIONS COULD RESULT IN SEVERE PERSONAL INJURY OR DEATH.
• PRIOR TO SERVICING THE VEHICLE:
- CHOCK THE WHEELS.
- TURN THE KEY SWITCH TO OFF AND REMOVE THE KEY.
- PLACE THE FORWARD/REVERSE HANDLE IN NEUTRAL .
- DISCONNECT THE BATTERY CABLES, NEGATIVE (–) FIRST.
- TO AVOID UNINTENTIONALLY STARTING THE VEHICLE, DISCONNECT THE BATTERIES AS
SHOWN (FIGURE 1, PAGE 6) AND DISCHARGE THE CONTROLLER AS FOLLOWS:
- TURN THE KEY SWITCH TO ON AND PLACE THE FORWARD/REVERSE HANDLE IN THE
REVERSE POSITION.
- SLOWLY DEPRESS THE ACCELERATOR PEDAL AND KEEP IT DEPRESSED UNTIL THE
REVERSE WARNING BUZZER CAN NO LONGER BE HEARD. WHEN THE BUZZER STOPS
SOUNDING, THE CONTROLLER IS DISCHARGED.
DANGER
WARNING

Vehicle Feature Identification
8 2001 Carryall Electric Vehicle Owner’s Manual
CARRYALL 1 AND CARRYALL 2
• Before using vehicle, read operating instructions.
• Remain seated and hold on to seat handle while moving.
• Do not start vehicle until all occupants are seated.
•Two (2) persons per seat maximum.
• Operate from driver side only and not on public roads.
• Keep entire body inside vehicle while moving.
• Drive slowly in turns and straight up and down slopes.
• Do not leave children unattended on vehicle.
• Never operate under the influence of alcohol or drugs.
• Use brakes to reduce speed when coasting downhill.
• Never stand in front of or behind vehicle. CCI 1019606-01
WARNING
ROLLOVER OR FALLING OFF MAY CAUSE DEATH.
(FOR CARRYALL 2 ONLY)
•Vehicle rated capacity - 800 lbs. on level surface only.
Weight to include passengers, cargo bed load, and
gross trailer weight. See Owner's Manual.
•Maximum cargo load - 300 lbs. Weight to include cargo
bed load and gross trailer weight.
•Maximum trailer hitch tongue weight - 150 lbs.
•Cargo should be evenly spread over the floor of the
cargo bed as far forward as possible and secured.
•For vehicle stability, when fully loaded, drive slowly
and avoid stopping on or backing down steep hills.
•Avoid top heavy loads. See Owner's Manual.
•When driving on uneven terrain or down steep hills,
reduce speed and load.
VEHICLE
LOADING
ReadOwner's Manual
andwarnings ondash. CCI 1019601-01
•Vehicle rated capacity - 1200 lbs. on level surface only.
Weight to include passengers, cargo bed load, and
gross trailer weight. See Owner's Manual.
•Maximum cargo load - 800 lbs. Weight to include cargo
bed load and gross trailer weight.
•Maximum trailer hitch tongue weight - 150 lbs.
•Cargo should be evenly spread over the floor of the
cargo bed as far forward as possible and secured.
•For vehicle stability, when fully loaded, drive slowly
and avoid stopping on or backing down steep hills.
•Avoid top heavy loads. See Owner's Manual.
•When driving on uneven terrain or down steep hills,
reduce speed and load.
VEHICLE
LOADING
ReadOwner's Manual
andwarnings ondash. CCI 1019602-01
OPERATING INSTRUCTIONS
• Read Owner's Manual and safety warnings located on dash panel prior to driving.
• Study and understand controls.
• Make sure wheels are turned in desired direction.
• Turn key to “ON” position and be sure nothing is in your path.
• While vehicle is stopped, select direction by placing
shift lever or switch in desired position:
F – Forward N – Neutral R – Reverse (Buzzer will sound)
• Vehicle will start moving when accelerator pedal is depressed.
• Slowly depress accelerator pedal to increase speed. Park brake will
release when accelerator pedal is depressed.
• To stop, release accelerator pedal and depress brake pedal.
• After stopping, firmly depress park brake until it locks.
• Place forward and reverse switch in neutral position.
Turn key “OFF” and remove key when not in use.
CCI 1016216-01
WARNING
STAY CLEAR
CRUSH AREA
CCI 1016094-01
OFF ON
Riding in cargo bed
can cause severe injury
or death.
Do not ride in cargo bed.
WARNING
CCI 1015539-01
WARNING
L
A
T
C
H
0
P
E
N
Crush area.
Can cause severe injury.
Stay clear when closing bed.
CCI 1015437-01
DRIVER/PASSENGER
WARNING DECAL
BED LATCH
WARNING DECAL
VEHICLE LOADING DECAL
(FOR CARRYALL 1 ONLY)
CRUSH AREA
DECAL
BATTERY WARNING
LIGHT
KEY SWITCH
BED LOAD
WARNING DECAL
ACCELERATOR
PEDAL
BRAKE
PEDAL
PARK BRAKE
PEDAL
OPERATING INSTRUCTIONS
DECAL
SERIAL
NUMBER

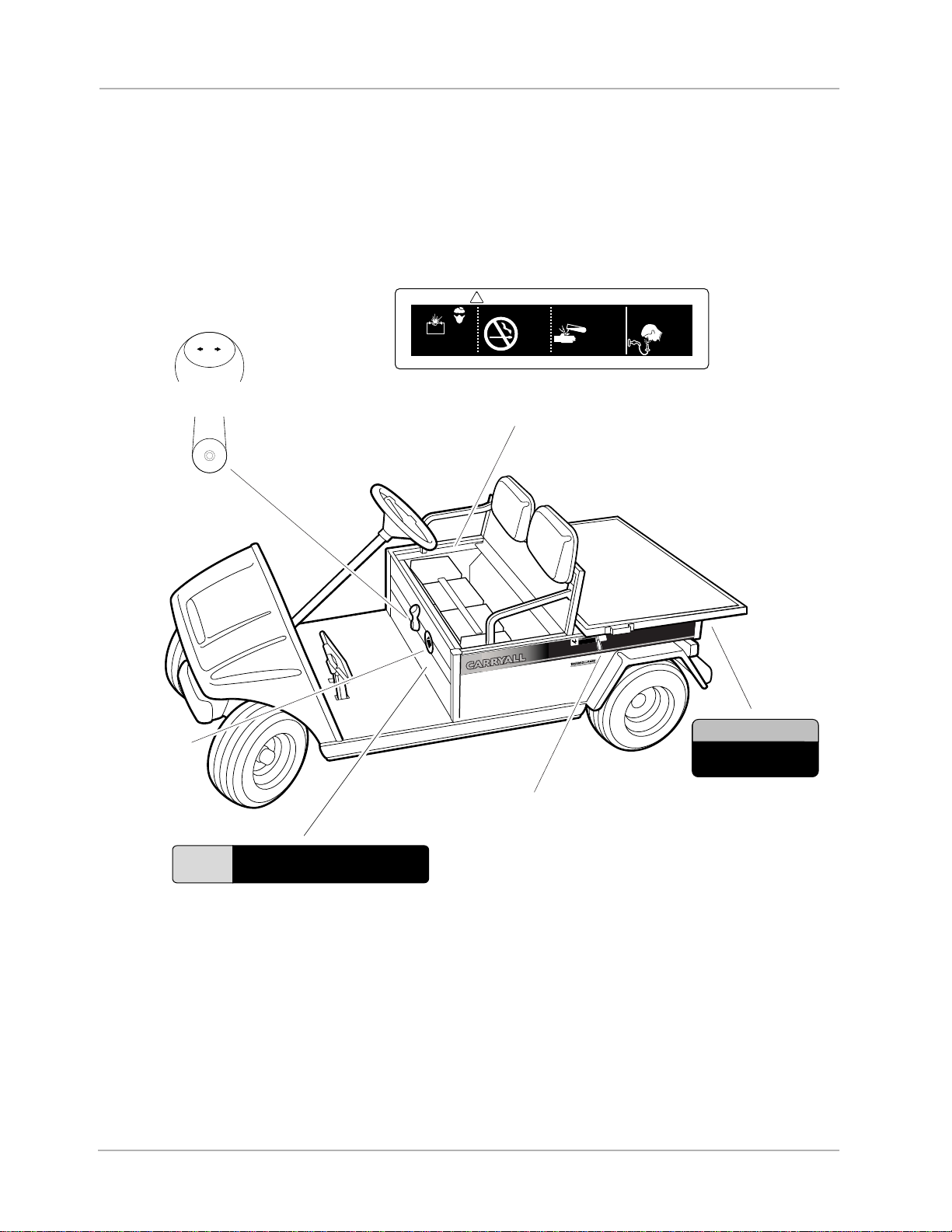

Vehicle Feature Identification
2001 Carryall Electric Vehicle Owner’s Manual 9
CARRYALL 1 AND CARRYALL 2
FNR
TRAILER HITCH DECAL
(CARRYALL 2 ONLY)
BED LATCH
BATTERY DANGER DECAL
(ON BODY UNDER SEAT)
FORWARD/REVERSE
HANDLE
CHARGER
RECEPTACLE
POTENTIOMETER DECAL
(ON WIPER SWITCH COVER INSIDE
BATTERY COMPARTMENT ON
CARRYALL 1 WIPER SWITCH
VEHICLES ONLY)
L
A
T
C
H
0
P
E
N
Crusharea.
Cancause severe injury.
Stayclear when closing bed.
NOTICE
CCI 1016109-01
• DO NOT OPERATE VEHICLE
WITHOUT COVER IN PLACE.
• DO NOT DIRECT WATER
STREAM AT THIS SWITCH.
MAXIMUM TONGUE
WEIGHT - 150 lbs.
CCI 1011553
NOTICE
DANGER / POISON
!
FLUSH EYES
IMMEDIATELY
WITH WATER
GET
MEDICAL
HELP
FAST
SULFURIC
ACID
CAN CAUSE
BLINDNESS OR
SEVERE BURNS
NO
• SPARKS
• FLAMES
• SMOKING
KEEP OUT OF THE REACH OF CHILDREN – DO NOT TIP – KEEP VENT CAPS TIGHT AND LEVEL
SHIELD
EYES
EXPLOSIVE
GASES
CAN CAUSE
BLINDNESS OR INJURY

Vehicle Feature Identification
10 2001 Carryall Electric Vehicle Owner’s Manual
CARRYALL 6
• Before using vehicle, read operating instructions.
• Remain seated and hold on to seat handle while moving.
• Do not start vehicle until all occupants are seated.
•Two (2) persons per seat maximum.
• Operate from driver side only and not on public roads.
• Keep entire body inside vehicle while moving.
• Drive slowly in turns and straight up and down slopes.
• Do not leave children unattended on vehicle.
• Never operate under the influence of alcohol or drugs.
• Use brakes to reduce speed when coasting downhill.
• Never stand in front of or behind vehicle. CCI 1019606-01
WARNING
ROLLOVER OR FALLING OFF MAY CAUSE DEATH.
WARNING
STAY CLEAR
CRUSH AREA
CCI 1016094-01
DANGER / POISON
FLUSH EYES
IMMEDIATELY
WITH WATER
GET
MEDICAL
HELP
FAST
SULFURIC
ACID
CAN CAUSE
BLINDNESS OR
SEVERE BURNS
NO
¥ SPARKS
¥ FLAMES
¥ SMOKING
KEEP OUT OF THE REACH OF CHILDREN — DO NOT TIP — KEEP VENT CAPS TIGHT AND LEVEL
SHIELD
EYES
EXPLOSIVE
GASES
CAN CAUSE
BLINDNESS OR INJURY
•Vehicle rated capacity - 1500 lbs. on level surface only.
Weight to include passengers, cargo bed load, and
gross trailer weight. See Owner's Manual.
•Maximum cargo load CARRYALL 6 or TURF 6 - 1000 lbs.,
TRANSPORTER - 300 lbs. Weight to include cargo bed load
and gross trailer weight.
•Maximum trailer hitch tongue weight - 150 lbs.
•Cargo should be evenly spread over the floor of the
cargo bed as far forward as possible and secured.
•For vehicle stability, when fully loaded, drive slowly
and avoid stopping on or backing down steep hills.
•Avoid top heavy loads. See Owner's Manual.
•When driving on uneven terrain or down steep hills,
reduce speed and load.
VEHICLE
LOADING
ReadOwner's Manual
andwarnings ondash. CCI 1019600-01
Riding in cargo bed
can cause severe injury
or death.
Do not ride in cargo bed.
WARNING
CCI 1015539-01
6
6
BED LOAD
WARNING DECAL
DRIVER/PASSENGER
WARNING DECAL
BATTERY
CONDITION
INDICATOR
SERIAL
NUMBER
BATTERYWARNING
LIGHT
CRUSH AREA
DECAL
PARK BRAKE
PEDAL
BRAKE
PEDAL ACCELERATOR
PEDAL BATTERY DANGER
DECAL
(ON FRAME)
VEHICLE LOADING DECAL

Vehicle Feature Identification
2001 Carryall Electric Vehicle Owner’s Manual 11
CARRYALL 6
FNR
FORWARD - REVERSE
LEVER
66
Do not operate vehicle without this cover properly installed.
See vehicle Maintenance and Service Manual before servicing.
NOTICE
CCI 1019315-01
NOTICE
DO NOT USE AS GROUND
CCI 1019646-01
OPERATING INSTRUCTIONS
• Read Owner's Manual and safety warnings located on dash panel prior to driving.
• Study and understand controls.
• Make sure wheels are turned in desired direction.
• Turn key to “ON” position and be sure nothing is in your path.
• While vehicle is stopped, select direction by placing
shift lever or switch in desired position:
F – Forward N – Neutral R – Reverse (Buzzer will sound)
• Vehicle will start moving when accelerator pedal is depressed.
• Slowly depress accelerator pedal to increase speed. Park brake will
release when accelerator pedal is depressed.
• To stop, release accelerator pedal and depress brake pedal.
• After stopping, firmly depress park brake until it locks.
• Place forward and reverse switch in neutral position.
Turn key “OFF” and remove key when not in use.
CCI 1016216-01
OFF ON
Bed can tip up unexpectedly.
Can cause severe injury.
Bed hold down bolts must
be fastened. CCI 1017078-01
WARNING
FORWARD/REVERSE
HANDLE
ELECTRICAL COMPONENT
MOUNTING PLATE NOTICE
(ON PLATE)
ONBOARD
CHARGER
AC CORD REEL
BED BOLT
WARNING LABEL
ELECTRICAL COMPONENT
COVER CAUTION
(ON COVER)
KEY SWITCH
OPERATING INSTRUCTIONS
DECAL
BED HOLD
DOWN BOLTS

General Information
12 2001 Carryall Electric Vehicle Owner’s Manual
GENERAL INFORMATION
There are three electric Carryall models: the Carryall 1, Carryall 2, and Carryall 6.Throughout this manual,
important features unique to each model are highlighted. We urge the owner/operator to read and under-
stand this manual, and to pay special attention to the features specific to their vehicle(s).
MODEL IDENTIFICATION
The serial number of the vehicle is printed on a bar code decal mounted on the frame directly above the accel-
erator pedal (Example: F0101-123456) (Figure 2, Page 12) .There is a second serial number decal mounted
on the front body frame behind the center dash panel.The center dash panel must be removed to access it.
PRE-OPERATION CHECKLIST
All Carryall vehicle(s) are thoroughly inspected and adjusted at the factory.However, upon arrival of your new
Carryall vehicle(s), you should become familiar with its controls and operation, and carefully inspect each
vehicle to be satisfied that it is in proper working condition before accepting delivery.
Use the following checklist as a guide to inspect your new vehicle.It may also be used in conjunction with the
Periodic Service Schedule (page 24). Any problems should be corrected only by a Club Car distributor/dealer
or a trained technician.
• General: All the parts should be in place and properly installed.Be sure all nuts, bolts, and screws are tight.
• Warning Decals: Check to ensure that all warning and operation decals are in place. See pages 8
through 11.
• Tires: Check for proper tire pressure. SeeTire Capacities, Page 27 .
• Batteries: Check electrolyte to ensure that it is at its proper level (Figure 16, Page 28) . Check battery
posts.Wires should be tight and free of corrosion. Charge batteries fully before first use of vehicle.
• Multi-Step Potentiometer (Carryall 1 electric vehicles equipped with a wiper switch style accelerator
switch): Be sure potentiometer cover is properly secured prior to operating the vehicle (Figure 11,Page 25) .
• ALWAYS HAVE THE VEHICLE SERIAL NUMBER AT HAND WHEN ORDERING PARTS OR
MAKING INQUIRIES. SEE FIGURE 2, PAGE 12 .
Figure 2 Serial Number
NOTE
Cl b
GO
GO
SERIAL NUMBER
F0101-123456
P O BOX 204658
AUGUSTA GA 30917
Club Car R
SERIAL NUMBER
DECAL

Controls and Indicators
2001 Carryall Electric Vehicle Owner’s Manual 13
PERFORMANCE INSPECTION
After you have familiarized yourself with the vehicle’s controls and have read and understood the driving
instructions, take the vehicle for a test drive. Use the following checklist as a guide to inspect your new vehi-
cle.Any problems should be corrected only by a Club Car distributor/dealer or a trained technician.
All vehicles
• Brakes: Be sure the brakes function properly. When brake pedal is fully depressed under moderate
pressure, it should not go more than halfway to the floor, and vehicle should come to a smooth, straight
stop. If the brake pedal goes more than halfway to the floor, or if the vehicle swerves or fails to stop
within the appropriate braking distance for your vehicle (see preceding sentence), have the brake sys-
tem checked and adjusted as required. Brake adjustment must be maintained so that the brake pedal
cannot be depressed to the floor under any circumstance.
• Park Brake: When latched, the park brake should lock the wheels and hold the vehicle stationary (on
incline of 20% or less). It should release when either the accelerator or brake pedal is depressed.
• Reverse Buzzer: The reverse buzzer will sound as a warning when the Forward/Reverse handle is in
REVERSE.
• Steering:The vehicle should be easy to steer and should not have any play in the steering wheel.
• Accelerator: With the key switch ON and the Forward/Reverse handle in the FORWARD position; as
the accelerator pedal is depressed, the motor should start and the vehicle should accelerate smoothly
to full speed. When the pedal is released it should return to the original position and the motor should
stop. All Club Car vehicles should run at reduced speed in reverse.
• General: Listen for any unusual noises such as squeaks or rattles. Check the vehicle ride and perfor-
mance.Have a Club Car distributor/dealer or a trained technician investigate anything unusual.
CONTROLS AND INDICATORS

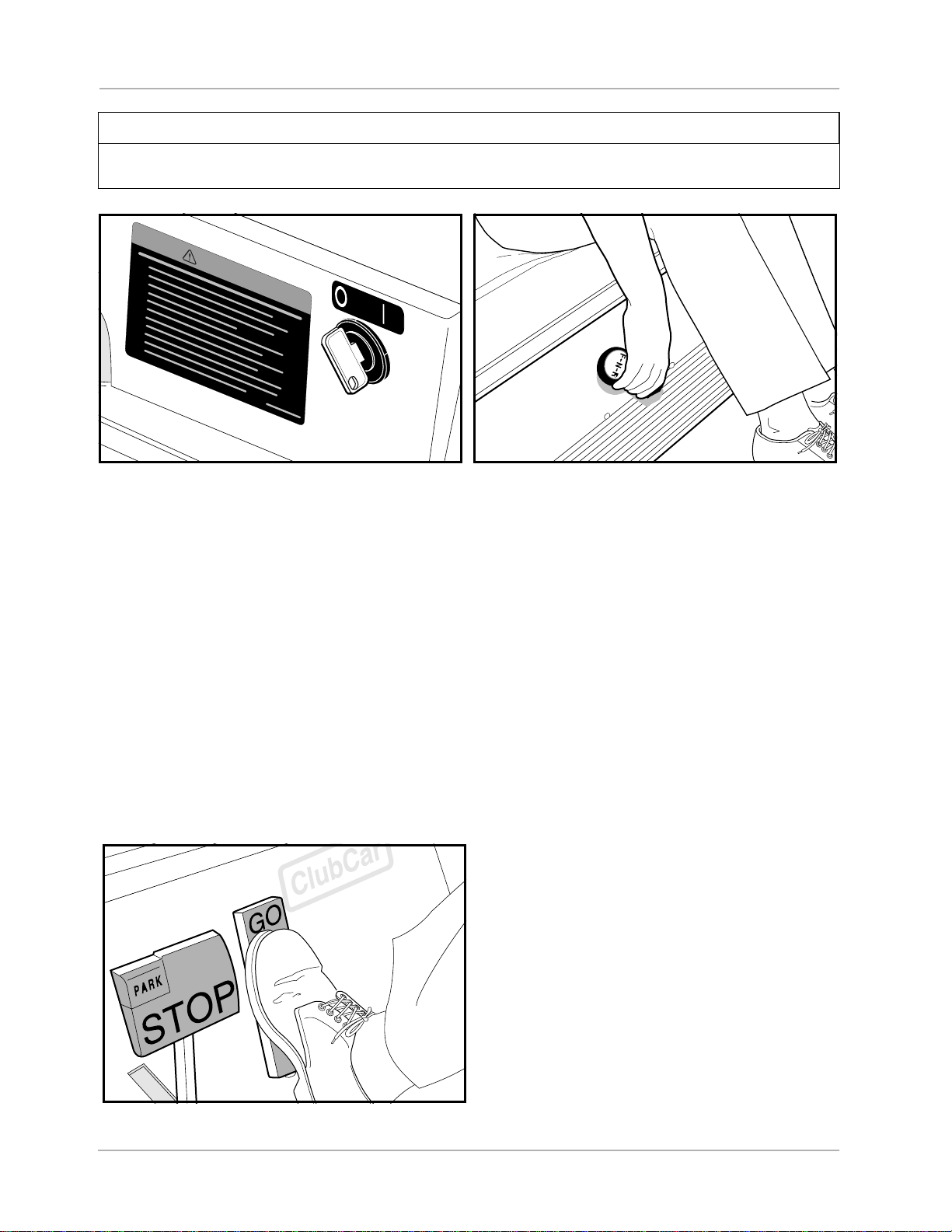

KEY SWITCH
The key switch is mounted on the dash to the right of the steering column (Figure 3, Page 14). It has two
positions, OFF and ON, which are clearly labeled.
•BE SURE THE PLASTIC HAS BEEN REMOVED FROM THE SEAT BOTTOM BEFORE
OPERATING THE VEHICLE. FAILURE TO DO SO MAY RESULT IN A FIRE, PROPERTY
DAMAGE, PERSONAL INJURY, OR DEATH.
•BEFORE ALLOWING THE VEHICLE TO BE DRIVEN, MAKE SURE THE DRIVER IS FAMILIAR
WITH ALL CONTROLS AND OPERATING PROCEDURES.
•DO NOT MODIFY OR CHANGE THE VEHICLE IN ANY WAY THAT MIGHT AFFECT ITS
STABILITY OR HANDLING, OR INCREASE MAXIMUM VEHICLE SPEED BEYOND FACTORY
SPECIFICATIONS.PROPERTY DAMAGE, PERSONAL INJURY, OR DEATH COULD RESULT.
•DO NOT SHIFT THE FORWARD/REVERSE HANDLE WHILE THE VEHICLE IS IN MOTION. TO
AVOID INJURY TO AN UNSUSPECTING PASSENGER OR DAMAGE TO THE VEHICLE, ALWAYS
BRING THE VEHICLE TO A FULL STOP BEFORE SHIFTING THE HANDLE.
•RELEASE THE ACCELERATOR PEDAL AND THEN DEPRESS THE BRAKE PEDAL FIRMLY UNTIL THE
VEHICLESTOPS.TO AVOID UNINTENTIONALLY STARTING OR ROLLING THE VEHICLE, SET THEPARK
BRAKE, TURN THE KEY SWITCH TO OFF, AND REMOVE THE KEY WHEN LEAVING THE VEHICLE.
•DO NOT EXCEED VEHICLE RATED WEIGHT CAPACITY.
WARNING
WARNING

Controls and Indicators
14 2001 Carryall Electric Vehicle Owner’s Manual
FORWARD/REVERSE CONTROL
The Forward/Reverse handle is located on the seat support panel, below and to the right of the driver’s right
knee (Figure 4, Page 14). The handle has three distinct positions: F(FORWARD), N(NEUTRAL), and R
(REVERSE). Rotate the handle towards the driver, F(FORWARD), to operate the vehicle in the forward
direction, or towards the passenger, R(REVERSE), to operate vehicle in reverse. When the handle is in the
straight up, or N(NEUTRAL) position, vehicle will not operate. Club Car vehicles operate at reduced speed in
reverse.The reverse buzzer will sound as a warning when the Forward/Reverse handle is in REVERSE.
ACCELERATOR PEDAL
The accelerator pedal is the pedal on the right, with the word GO molded into it (Figure 5, Page 14). The
operation of the accelerator pedal differs from that of an automobile.When the key switch is ON, and the For-
ward/Reverse handle is in either FORWARD or REVERSE, depressing the accelerator pedal will automati-
cally release the park brake and start the vehicle moving in the direction selected (forward or reverse).As the
accelerator pedal is depressed, speed will increase until full speed is reached. When the accelerator is
released, power will be cut off and the motor will stop running.
•THE KEY CAN BE REMOVED WHEN THE KEY SWITCH IS IN THE OFF POSITION ONLY.
Figure 3 Key Switch Figure 4 Forward/Reverse Handle
Figure 5 Accelerator and Brake Pedals
NOTE
OFF ON
• Before using vehicle, read operating instructions.
• Remain seated and hold on to seat handle while moving.
• Do not start vehicle until all occupants are seated.
•Two (2) persons per seat maximum.
• Operate from driver side only and not on public roads.
• Keep entire body inside vehicle while moving.
• Drive slowly in turns and straight up and down slopes.
• Do not leave children unattended on vehicle.
• Never operate under the influence of alcohol or drugs.
• Use brakes to reduce speed when coasting downhill.
• Never stand in front of or behind vehicle.
CCI 1019606-01
WARNING
ROLLOVER OR FALLING OFF MAY CAUSE DEATH.

Controls and Indicators
2001 Carryall Electric Vehicle Owner’s Manual 15
BRAKE PEDAL
The brake pedal is the large pedal on the left with the word STOP molded into it (Figure 5, Page 14).To slow
or stop the vehicle, depress the brake pedal with your right foot (Figure 6, Page 15).
PARK BRAKE PEDAL
The park brake pedal is the small raised portion in the upper left corner of the brake pedal. It has the word
PARK molded into it and the words PARK BRAKE marked on top of it (Figure 6, Page 15).To set the park
brake, depress the brake pedal firmly and tilt the park brake portion of the pedal forward with your foot
(Figure 7, Page 15). See following WARNING.
BATTERY WARNING LIGHT
PowerDrive System 48 vehicles feature a dash mounted warning light (above steering column) that, when
the vehicle is in operation, indicates low battery voltage, or, when the vehicle is being charged, indicates a
charging problem.The battery warning light is controlled by the PowerDrive onboard computer.
When the vehicle is in operation, the warning light will illuminate and remain illuminated if:
•Batteries voltage drops below 48 when there is no load on the batteries (the vehicle is stopped and
there are no accessories on).
•Batteries have discharged to less than 25% of rated capacity.
If the warning light illuminates when the vehicle is operating, there will be enough power remaining to drive
the vehicle for approximately 30 minutes. However, the vehicle should be charged at the first opportunity. If
the warning light illuminates and the vehicle is unable to operate for 30 minutes, have your Club Car distribu-
tor/dealer check the vehicle for a possible battery or electrical system problem.
When the batteries receive an incomplete charge because 1) the DC power cord is disconnected, 2) AC
power to the charger is interrupted, 3) automatic charger shut-off occurs after 16 hours of operation, or 4) the
charger malfunctions, the warning light will indicate as follows:
Figure 6 Brake Pedal Figure 7 Park Brake
•THE PARK BRAKE WILL RELEASE AUTOMATICALLY WHEN EITHER THE ACCELERATOR OR
BRAKE PEDAL IS DEPRESSED. THE PARK BRAKE HAS MULTIPLE LOCKING POSITIONS AND
SHOULD BE FIRMLY PRESSED AND LOCKED TO PREVENT THE VEHICLE FROM ROLLING.
WARNING

Driving Instructions
16 2001 Carryall Electric Vehicle Owner’s Manual
•The warning light will not come on if the charge is 90% or more complete.The onboard computer will
retain in memory the amount of charge needed to fully replenish the batteries and will complete the
charge during the next charge cycle.
•When the charger is unplugged, the warning light will illuminate and remain illuminated for 10 seconds
if the charge is less than 90% complete but the vehicle has enough power for approximately 30 minutes
of operation. This will alert the operator that the vehicle may be used, but that it must be charged to
completion as soon as possible.
•The warning light will repeatedly illuminate for 10 seconds, with 4 second intervals if the charger times
out at 16 hours and the batteries are not sufficiently charged. See PowerDrive Charger Owner’s Man-
ual. This indicates an abnormal charge cycle. The charger and batteries should be checked by your
Club Car distributor/dealer.
•The warning light will repeatedly illuminate for 10 seconds, with 4 second intervals during a charge
cycle (DC plug is still connected) if AC power to the charger is interrupted.The light will go out when AC
power is restored.
LED Light: In addition to the warning light, there is an infrared LED in the dash light assembly which trans-
mits an infrared signal from the onboard computer (OBC).This signal is received by the optional Communi-
cation Display Module which provides information on the condition of the vehicle and batteries.
DRIVING INSTRUCTIONS
•ONLY LICENSED DRIVERS SHOULD BE ALLOWED TO DRIVE THIS VEHICLE.
•BEFORE ALLOWING THE VEHICLE TO BE DRIVEN, MAKE SURE THE DRIVER IS FAMILIAR
WITH ALL CONTROLS AND OPERATING PROCEDURES.
•NO MORE THAN TWO PEOPLE SHOULD BE ON THE VEHICLE AT ONE TIME.
•DO NOT ALLOW RIDERS IN THE CARGO BED.
•THE VEHICLE IS NOT SPECIALLY EQUIPPED FOR HANDICAPPED PERSONS:
-BE SURE ALL PASSENGERS ARE CAPABLE OF SECURING THEMSELVES IN A MOVING
CARRYALL VEHICLE BEFORE ALLOWING THEM TO RIDE IN ONE.
-BE SURE ALL PERSONS CAN PROPERLY OPERATE THE VEHICLE PRIOR TO ALLOWING
THEM TO DRIVE THE VEHICLE.
•FOR NIGHT USE, THE VEHICLE MUST BE EQUIPPED WITH HEADLIGHTS, TAILLIGHTS, AND
REFLECTORS.
•STOP THE VEHICLE BEFORE SHIFTING THE FORWARD/REVERSE HANDLE. FAILURE TO DO
SO MAY RESULT IN INJURY TO INATTENTIVE PASSENGERS AND (OR) DAMAGE TO THE
VEHICLE.
•DO NOT LEAVE CHILDREN UNATTENDED ON VEHICLE.
•TO AVOID BEING STRUCK, DO NOT STAND IN FRONT OF OR BEHIND THE VEHICLE.
WHEN DRIVING THE VEHICLE:
•OPERATE THE VEHICLE FROM THE DRIVER SEAT ONLY.
•TO PREVENT FALLS FROM THE VEHICLE, REMAIN SEATED IN A MOVING VEHICLE AND HOLD
ON TO SEAT HANDLES OR HANDRAILS AT ALL TIMES.DRIVER SHOULD KEEP BOTH HANDS
ON THE STEERING WHEEL WHEN THE VEHICLE IS IN MOTION.
•TO PREVENT THE POSSIBILITY OF SERIOUS INJURY, KEEP ENTIRE BODY INSIDE THE VEHICLE.
•TO PREVENT OVERTURNING THE VEHICLE, DRIVE SLOWLY AROUND TURNS.
•TO PREVENT OVERTURNING THE VEHICLE, DRIVE SLOWLY STRAIGHT UP AND DOWN
SLOPES. AVOID DRIVING THE VEHICLE ON SLOPES EXCEEDING 20% INCLINE.
WARNING CONTINUED ON NEXT PAGE...
WARNING

Driving Instructions
2001 Carryall Electric Vehicle Owner’s Manual 17
No one should drive the vehicle without first being instructed in the proper operation and use of the vehicle’s
controls. An experienced operator should accompany each first-time driver on a test drive before allowing
them to operate the vehicle alone.
To ensure safe operation of the vehicle, follow exactly and in order, all of the following procedures. Read and
understand all instructions prior to driving the vehicle.
STARTING THE VEHICLE
1. Be sure load, if any, is secure.
2. Study and understand controls.
3. Be sure everyone is seated and holding onto seat handles or handrails. Driver should have both hands
on the steering wheel.
4. Read safety warnings located above pedals.
5. Make sure wheels are turned in desired direction.
6. Turn key to the ON position and be sure nothing is in your path.
7. Select direction by placing shift handle in desired position (F = forward or R = reverse). A buzzer will
sound as a warning when the Forward/Reverse handle is in REVERSE.
8. Slowly depress accelerator pedal.The park brake will release automatically and the vehicle will start to
move.As the accelerator pedal is depressed, speed will increase until full speed is reached.
STOPPINGTHEVEHICLE
•AVOID STOPPING A LOADED VEHICLE ON A HILL. IF A LOADED VEHICLE MUST BE STOPPED
ON A HILL, AVOID SUDDEN STARTS OR ROLLING BACKWARDS AND STOPPING SUDDENLY.
FAILURE TO HEED THIS WARNING COULD RESULT IN OVERTURNING THE VEHICLE.
•TO AVOID POSSIBLE INJURY TO INATTENTIVE PASSENGERS AND (OR) DAMAGE TO THE
VEHICLE, AVOID SUDDEN STARTS, SUDDEN STOPS, AND ABRUPT TURNS.
•TO AVOID THE POSSIBILITY OF LOSING CONTROL OF OR OVERTURNING THE VEHICLE,
REDUCE SPEED FOR ADVERSE DRIVING CONDITIONS SUCH AS WET GRASS OR ROUGH
TERRAIN.
•DO NOT USE THE VEHICLE ON PUBLIC ROADS. IT IS NEITHER DESIGNED NOR INTENDED
FOR STREET USE AND SHOULD NOT BE LICENSED FOR USE ON PUBLIC ROADS.
•THE VEHICLE SHOULD BE DRIVEN IN ONLY SPECIFIED AREAS BY TRAINED DRIVERS.
•DO NOT DRIVE WHILE UNDER THE INFLUENCE OF ALCOHOL, DRUGS, OR MEDICATIONS.
•USE BRAKES TO REDUCE SPEED WHEN COASTING DOWNHILL.
•OPERATOR MUST CONTROL VEHICLE SPEED WHEN GOING DOWNHILL.
•DRIVING THROUGH WATER MAY AFFECT THE BRAKES. AFTER DRIVING THROUGH WATER,
CHECK EFFECTIVENESS OF THE BRAKES BY GENTLY DEPRESSING THE BRAKE PEDAL. IF
THE VEHICLE DOES NOT SLOW DOWN AT THE NORMAL RATE, CONTINUE TO DEPRESS THE
BRAKE PEDAL UNTIL THE BRAKES DRY OUT AND NORMAL PERFORMANCE RETURNS.
WARNING
WARNING
WARNING

Bed Latch
18 2001 Carryall Electric Vehicle Owner’s Manual
To stop vehicle, release the accelerator pedal and depress the brake pedal until vehicle comes to a complete
stop.
PARKING AND LEAVINGTHEVEHICLE
1. After stopping vehicle, firmly depress park brake pedal until it locks.This will prevent vehicle from rolling.
2. Turn the key switch to OFF and place the shift handle in the NEUTRAL position.Remove the key when
the vehicle is not in use.
BED LATCH
The Carryall 1 and 2 are equipped with a bed latch on the driver side of the vehicle as standard equipment
(Figure 8, Page 18).To lift bed, pull latch handle toward back of the vehicle and lift the bed (Figure 9, Page 18).
To close the bed, lower it gently until the bed latch engages. DO NOT drop the bed.
PROP ROD
Read DANGER and WARNING on page 7.
The Carryall 2 is equipped with an automatically engaging prop rod and prop rod track on the driver side of
the rear body (Figure 10, Page 19). When pulling the bed latch handle and lifting the bed, the prop rod will
come to rest in one of the notches in the prop rod track.
•WHEN STOPPED ON A HILL, USE THE BRAKE PEDAL TO HOLD YOUR POSITION. DO NOT
USE THE ACCELERATOR PEDAL.
•KEEP HANDS AND FINGERS CLEAR OF CRUSH AREA BETWEEN THE BED AND THE SEAT
BACK SUPPORT.
•THE CARRYALL 2 IS EQUIPPED WITH AN AUTOMATICALLY ENGAGING PROP ROD, UNLESS
EQUIPPED WITH AN ELECTRIC BED LIFT OPTION (FIGURE 10, PAGE 19).

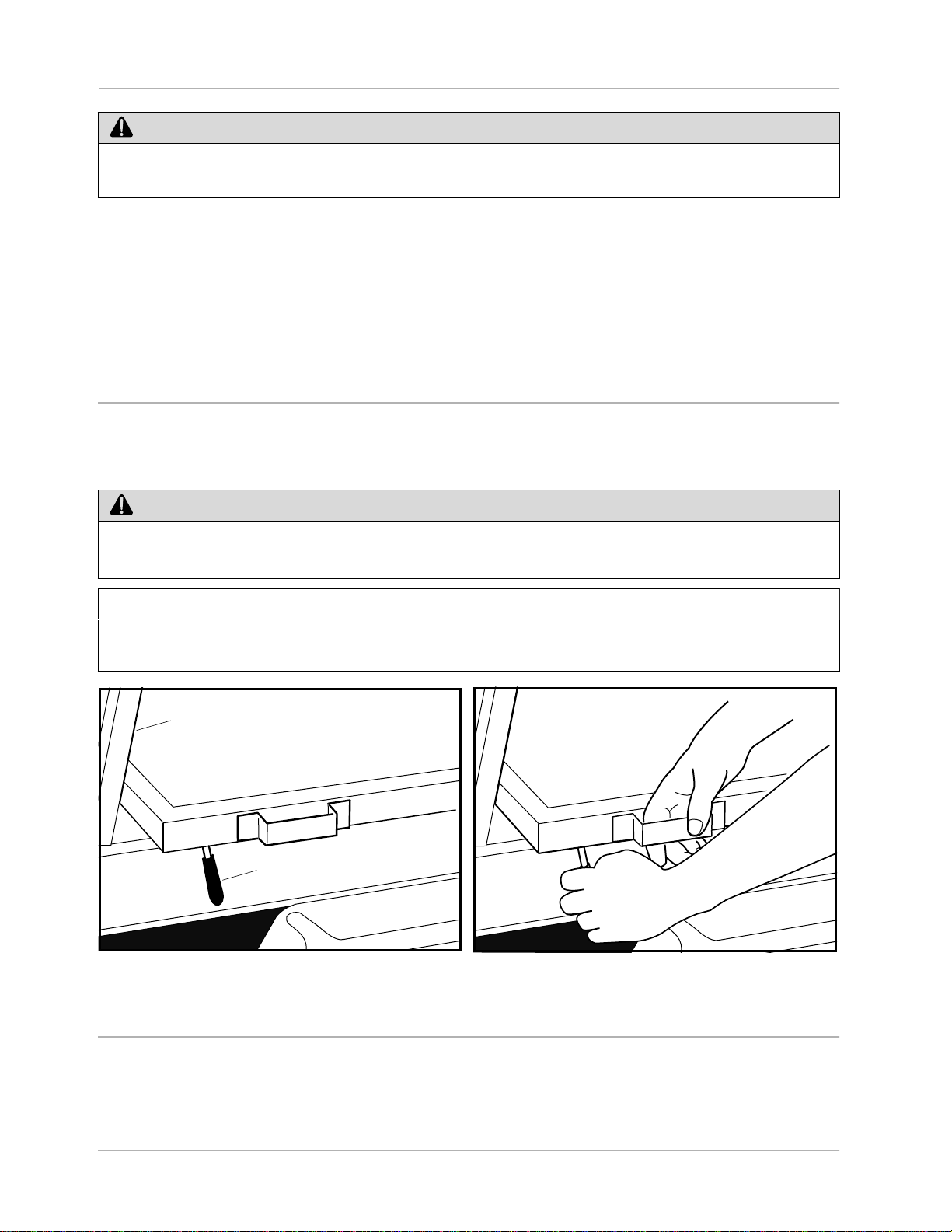

Figure 8 Bed Latch Figure 9 Lift Bed
CAUTION
WARNING
NOTE
SEAT BACK
BED LATCH
