Club Car XRT 950 4x2 User manual

XRT950GasolineVehicle
Owner’sManual
XRT9504x2,XRT9504x4,XRT950EX4x4
[Refertobackcoverforapplicablebuildcoderange]

NOTICE
Thismanualisvalidforvehiclesmanufacturedinthebuildcoderangeprovidedonthebackcoverofthismanual.Ifthe
vehiclebuildcodeisdifferentfromthatshownonthebackcoverofthismanual,pleasecontactyournearestdealerorgoto
www.clubcar.comtoretrievetheproperowner’smanualforthevehicle.SeealsoModelIdenticationinthismanual.
Warrantyinformationappearsattheendofthismanual.Nootherwarranties,expressorimplied,arecontainedherein.
Yourauthorizedrepresentativecheckedthevehiclebeforeitwasdeliveredtoyouandwillprovideyouacopyofthe
completedvehiclewarrantyregistrationform.
ClubCarisnotliableforerrorsinthismanualorforincidentalorconsequentialdamagesthatresultfromtheuseof
thematerialinthismanual.
Thismanualcontainsproprietaryinformationthatisprotectedbycopyright.Allrightsarereserved.Nopartofthismanual
maybephotocopied,reproduced,ortranslatedtoanotherlanguagewithoutthewrittenconsentofClubCar,LLC.
Theinformationcontainedinthisdocumentissubjecttochangewithoutnotice.
ClubCarreservestherighttomakedesignchangestovehicleswithoutobligationtomakethesechangesonunits
previouslysold.
ThesevehiclesdonotconformtoU.S.FederalMotorVehicleSafetyStandards(FMVSS)forautomobilesortoFMVSS500
forlow-speedvehicles,andarenotequippedforoperationonpublicstreets,roads,orhighways.
IfinEnglish,thismanualistheOriginalInstructionsprovidedbythemanufacturer.IfinanylanguageotherthanEnglish,
thismanualisatranslationoftheOriginalInstructions.
P .O.Box204658
Augusta,Georgia30917–4658USA
Telephone[phone]
ServicePartsFax706–855–7413
www.clubcar.com
Copyright©2012,2013ClubCar,LLC
ClubCar,Tranquility,andArmorFlex
areregisteredtrademarksofClubCar,LLC
ThismanualeffectiveJuly18,2012
XRT950GasolineVehicleOwner’sManualPage1

FOREWORD
ThankyouforchoosingClubCar,thenamemostwidelyrecognizedastheindustryleaderinvehicleefciencyand
long-lastingvalue.Youhavechosenthenestutilityvehicleonthemarket.Pleaseprotectyourinvestmentand
ensurethatyourClubCarvehicle(s)providesyearsofreliable,superiorperformancebyreadingandfollowingthe
maintenanceinstructionsinthismanual.
Yourcomfortandsafetyareimportanttous,soweurgeyoutoreadandfollowthestep-by-stepoperatinginstructions
andsafetyproceduresinthismanual.Theseinstructionsmustbefollowedinordertoavoidtheriskofseverepersonal
injury.Ifyourentorloanyourvehicletoothers,werecommendthatyouaskthemtoreadthismanualbeforethey
operatethevehicle.
ClubCarproductsarebackedbyacustomersupportsystemdesignedtoofferyoufast,courteousservice.Intheevent
thatyourClubCarvehicleneedsrepairsorservice,werecommendthatyourlocalauthorizedClubCarrepresentative
performthem.ForthenameandaddressoftheClubCarrepresentativenearestyou,logontoourwebsiteat
www.clubcar.comorcall1-800-ClubCar(258-2227).Ifyouwouldprefertowritetous,directyourletterto:ClubCar,
Attention:MarketingServices,P .O.Box204658,Augusta,Georgia30917-4658USA.YourlocalauthorizedClubCar
representativecanalsoprovidetechnicaladvice,parts,andservicemanuals.
Wehopeyouwillconsiderthisowner’smanualapermanentpartofyourClubCarvehicle.Ifyousellthevehicle,
pleaseincludethemanualsothatthenextownerwillhavetheimportantoperating,safety,andmaintenance
informationitcontains.
REGULARMAINTENANCEITEMSPERIODICMAINTENANCEITEMS
EngineOilFilter
CCP/N1016467
SparkPlugO.H.V.
EitherCCP/NAM1232301or101881101
EngineAirFilter
CCP/N1015426
SpringTune-UpKit
CCP/N101611003
EngineFuelFilter
CCP/N102003201
BatteryTerminalProtectorSpray
CCP/N1014305
DryMolyLube
CCP/N1012151
Page2XRT950GasolineVehicleOwner’sManual

TABLEOFCONTENTS
NotetotheOwner................................................................................................................................................5
SafetyDecalandFeatureIdentication..................................................................................................................5
PracticeSafety.....................................................................................................................................................8
Proposition65Warning–StateofCalifornia...........................................................................................................8
SafetyDetails.......................................................................................................................................................9
GeneralWarnings...............................................................................................................................................10
GeneralInformation............................................................................................................................................13
ModelIdentication.............................................................................................................................................14
ControlsandIndicators.......................................................................................................................................16
Roll-OverProtectiveStructureandSeatBelts.......................................................................................................21
SeatLatchandAdjustment.................................................................................................................................22
Pre-OperationandDailySafetyChecklist.............................................................................................................23
DrivingInstructions.............................................................................................................................................24
BedLatch..........................................................................................................................................................27
BedLockingPin.................................................................................................................................................28
RearShockAbsorbers........................................................................................................................................29
LoadingandUnloadingCargo.............................................................................................................................29
VehicleLoadCapacities......................................................................................................................................31
TowingwiththeVehicle.......................................................................................................................................32
TransportingonaTrailer.....................................................................................................................................32
Storage..............................................................................................................................................................33
Maintenance......................................................................................................................................................35
PeriodicServiceSchedule...................................................................................................................................37
PeriodicLubricationSchedule.............................................................................................................................39
BrakeFluidReservoir.........................................................................................................................................40
EngineOil..........................................................................................................................................................40
GearcaseLubrication..........................................................................................................................................45
AirIntakeSystem...............................................................................................................................................47
FuelingInstructions.............................................................................................................................................48
Battery...............................................................................................................................................................50
UsingABoosterBattery(JumpStarting)..............................................................................................................51
CleaningtheVehicle...........................................................................................................................................52
XRT950GasolineVehicleOwner’sManualPage3

Accessories........................................................................................................................................................53
SubsequentOwnerRegistration..........................................................................................................................54
VehicleSpecications.........................................................................................................................................54
Warranties..........................................................................................................................................................57
EmissionsControl...............................................................................................................................................61
Page4XRT950GasolineVehicleOwner’sManual

NotetotheOwner
NOTETOTHEOWNER
Thisutilityvehicle,withstandardequipmentandauthorizedattachments,isintendedforcommercialorresidential
property,farm,ranchorrecreationalapplications.Useonlyapprovedaccessoriesandattachmentsdesignedforyour
vehicle.ThisOperator’sManualdoesnotincludeinstructionsforattachments.Readthemanual(s)providedwith
theauthorizedattachmenttolearnsafemaintenanceandoperationofthevehicle.Makesurethevehicleissuitably
equippedforthetypeofworktobeperformed.Contactyourdealerifyouhaveanyquestionsconcerningtheuseof
accessoriesandattachmentsforthesevehicles.
DONOTusethisvehicleforanypurposeorinanymannerotherthanasdescribedinthemanual,decalsorother
productsafetyinformationprovidedwiththevehicle.Thesematerialsdenethevehicle’sintendeduse.Consultan
authorizeddealeronchanges,additionsormodicationsthatmayberequiredforthisvehicletocomplywithvarious
countryregulationsandsafetyrequirements.
CAUTION
•Thefuelsystemandengineonyourvehiclearedesignedandbuilttogovernmentemissions
standards.Tamperingbydealers,customers,operatorsandusersisstrictlyprohibitedbylaw.Failure
tocomplycouldresultingovernmentnes,reworkcharges,invalidwarranty,legalactionandpossible
conscationofthevehicleuntilreworktooriginalconditioniscompleted.Engineserviceand/or
repairsmustbedonebyacertiedtechnicianonly!
SAFETYDECALANDFEATUREIDENTIFICATION
Thefollowingpagescontainsafetydecalandfeatureidenticationinformation.Fordetailedinformationonspecic
features,readtheappropriatesectioninthismanual.
DECALINSPECTIONANDMAINTENANCE
Cleandecalsandkeeplegible.Donotusesolvents,gasoline,orotherharshchemicalstocleandecals.Ifanyofthe
operationorwarningdecalsonthevehiclebecomedamaged,havebeenremoved,orcannotbeeasilyread,they
shouldbereplacedimmediatelytoavoidpossiblepropertydamage,personalinjury,ordeath.Contactyourdealer.Ifa
decalisonapartthatisreplaced,ensurenewparthasappropriatedecal.
XRT950GasolineVehicleOwner’sManualPage5

SafetyDecalandFeatureIdentication
XRT950UTILITYVEHICLE
1298
• Do not modify or remove Roll-over Protective Structure (ROPS).
• Replace ROPS if damaged. Do not attempt repair.
• Use seat belts during operation. Do not jump from vehicle.
• Keep away from drop-offs, steep slopes, and unstable
surfaces.
CCI 102961201
WARNING
!
3
6
2
4
1
5
1101609401Decal,CrushAreaWarning(behindseat,near
cargobed,driverandpassengerside)6103619901Decal,CabCOWarning(withcabdoorkit accessory)
2102459401Decal,YoungDriverWarning(onROPS)
3102961201Decal,ROPSWarning(onROPS)
4103526501Decal,BedLatchOperation(onbedlatch)
5103532701Decal,DOT5BrakeFluid(insidefrontcargo
compartment)
Page6XRT950GasolineVehicleOwner’sManual

SafetyDecalandFeatureIdentication
XRT950UTILITYVEHICLE
2584
4
5
6
2
8
3
7
1
9
11011553Decal,TrailerHitchT ongueWeightNotice(on
trailer/receiverhitch)7103582401Decal,WinchSafetyWarning(withwinch option)
2102458901Decal,HotPartsWarning(onframe,driverside)8103878101Decal,GroundWarning(onvehicleframe,near
battery)
3102460201Decal,RotatingPartsWarning(onframe,driver
andpassengerside)9103878201Decal,EngineGovernorAdjustmentWarning
4103500701Decal,OperatingInstructions(oninstrument
panel)
5103526201Decal,VehicleLoadingInstructions(onseat
support)
6103579901Decal,FuelLoadingWarning(onfender,above
fuelcap)
XRT950GasolineVehicleOwner’sManualPage7

PracticeSafety
PRACTICESAFETY
399
Figure1PracticeSafety
Safetysignslikeyouseeabovemayatrstseemshocking,buttheirimpactismildcomparedwiththereality
ofseverepersonalinjury.
Yoursafetyandsatisfactionareoftheutmostimportancetous.Thatiswhybeforeoperatingthevehicle,weurge
youtoreviewtheinformationinthismanual.UnderstandandbecomefamiliarwiththeDANGER,WARNING,and
CAUTIONstatementsandproceduresitcontains,alongwiththesafetydecalsthatareafxedtoyourvehicle.
Priortooperatingthevehicle,alloperatorsshouldseeksafetytraining.
Taketimetounderstandthelanguageofsafety.Itisalanguagethatcansaveyourlife.
PROPOSITION65WARNING–STATEOFCALIFORNIA
WARNING
•Thisproductcontainsoremitschemicalsorsubstancesthathavebeendeterminedbythestateof
Californiatocausecancerandbirthdefectsorotherreproductiveharm.
CALIFORNIA
PROPOSITION65WARNING
Dieselandgasolineengineexhaust,andsomeofitsconstituents,areknowntotheStateofCaliforniatocause
cancer,birthdefects,andotherreproductiveharm.
Batterypost,terminalsandrelatedaccessoriescontainleadandleadcompounds.
Washhandsafterhandling.
Page8XRT950GasolineVehicleOwner’sManual

SafetyDetails
SAFETYDETAILS
WARNING
•Thisowner’smanualshouldbereadcompletelybeforeattemptingtodriveorservicethevehicle.
Failuretofollowtheinstructionsinthismanualcouldresultinpropertydamage,severepersonal
injury,ordeath.
PERSONALSAFETY
Itisimportanttonotethatsomevitalstatementsthroughoutthismanualandonthedecalsafxedtothevehicleare
precededbythewordsDANGER,WARNING,orCAUTION.Foryourprotection,werecommendthatyoutakespecial
noticeofthesesafetyprecautions.Safetyprecautionsareessentialandmustbefollowed.
Ifanyoftheoperationorwarningdecalsonthevehiclebecomedamaged,havebeenremoved,orcannotbeeasily
read,theyshouldbereplacedimmediatelytoavoidpossiblepropertydamage,personalinjury,ordeath.Contact
yourdealer.
DANGER
•ADANGERindicatesanimmediatehazardthatwillresultinseverepersonalinjuryordeath.The
colorassociatedwithDangerisRED.
WARNING
•AWARNINGindicatesanimmediatehazardthatcouldresultinseverepersonalinjuryordeath.
ThecolorassociatedwithWarningisORANGE.
CAUTION
•ACAUTIONwiththesafetyalertsymbolindicatesahazardorunsafepracticethatcouldresultin
minorpersonalinjury.ThecolorassociatedwithCautionisYELLOW.
MACHINESAFETY
CAUTION
•ACAUTIONwithoutthesafetyalertsymbolindicatesapotentiallyhazardoussituationthatcould
resultinpropertydamage.
ACAUTION,withoutthesafetyalertsymbol,isintendedformachineandpropertysafety.Itisusedthroughoutthis
manualfollowedbyspecicinstructionstopreventmachineorpropertydamage.FailuretofollowtheseCAUTION
messagescouldresultinmachineorpropertydamage.
INFORMATION
NOTE:Instructionsthatclarifysteps,procedures,orotherinformationinthismanual.
XRT950GasolineVehicleOwner’sManualPage9

GeneralWarnings
GENERALWARNINGS
Thefollowingsafetystatementsmustbeheededwheneverthevehicleisbeingoperated,repaired,orserviced.
SeeSafetyDecalandFeatureIdenticationonpage5.Otherspecicsafetystatementsappearthroughout
thismanualandonthevehicle.
DANGER

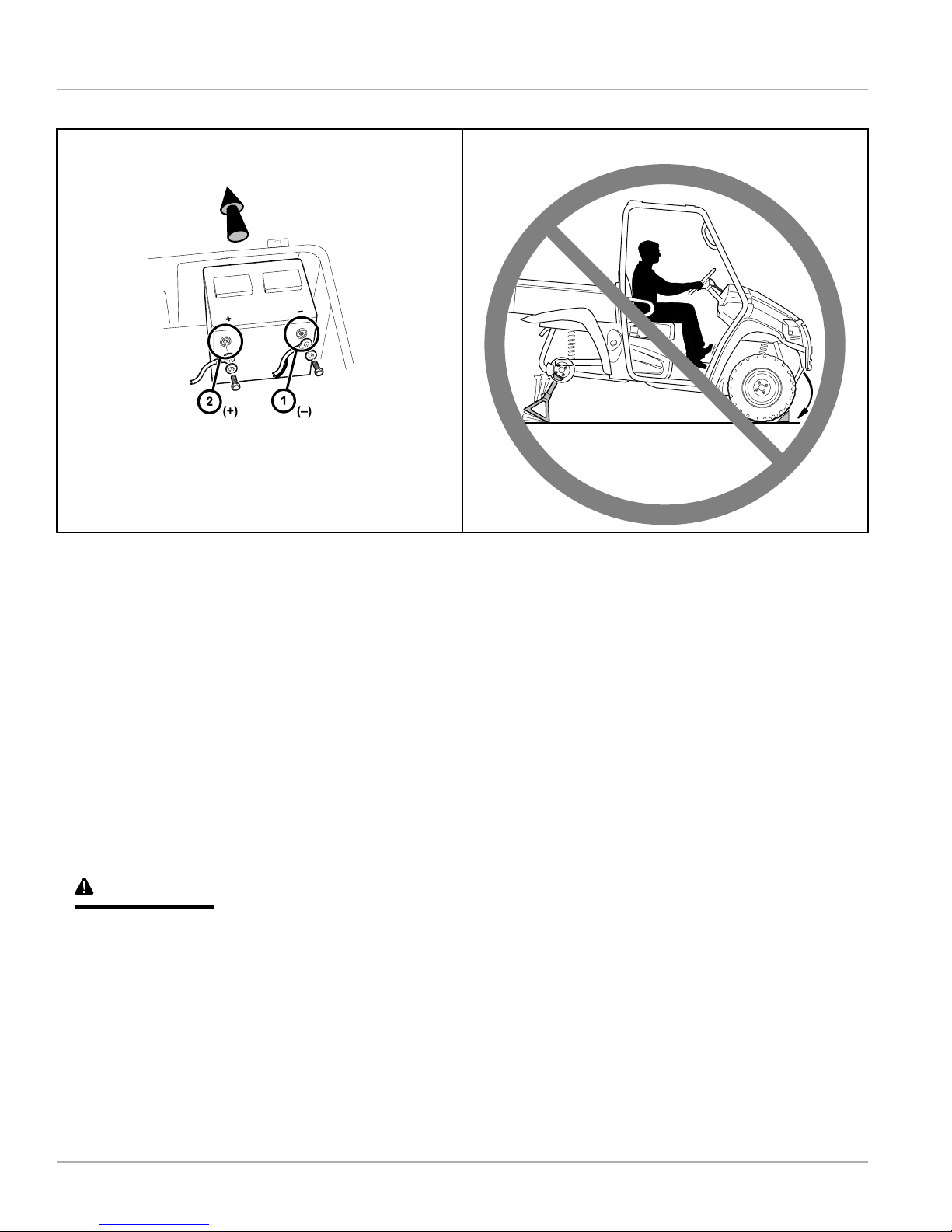

•Battery–Explosivegases!Donotsmoke.Keepsparksandamesawayfromthevehicleandservice
area.Ventilatewhenchargingoroperatingvehicleinanenclosedarea.Wearafullfaceshieldand
rubbergloveswhenworkingonornearbatteries.
•Gasoline–Flammable!Explosive!Donotsmoke.Keepsparksandamesawayfromthevehicleand
servicearea.Serviceonlyinawell-ventilatedarea.
•Donotoperateengineinanenclosedareawithoutproperventilation.Theengineproducescarbon
monoxide,whichisanodorless,deadlypoisonthatcanquicklyaccumulateinanenclosedcab.Do
notruntheengineinaparkedvehiclewithoutpropercabventilation.Movetofreshairifyoufeel
nausea,headache,dizziness,drowsinessorweakness.
•Thevehiclewillnotprovideprotectionfromlightning,yingobjects,orotherstorm-relatedhazards.
Ifcaughtinastormwhiledrivingthisvehicle,exitthevehicleandseekshelterinaccordancewith
applicablesafetyguidelinesforyourlocation.
•Donotweldtoawheelorrimuntilthetireiscompletelyremoved.Inatedtirescangenerateagas
mixturewiththeairthatcanbeignitedbyhightemperaturesfromweldingproceduresperformedon
thewheelorrim.Removingtheairorlooseningthetireontherim(breakingthebead)willNOT
eliminatethehazard.Thisconditioncanexistwhethertiresareinatedordeated.ThetireMUST
becompletelyremovedfromthewheelorrimpriortoweldingthewheelorrim.Failuretocomply
willresultindeathorseriousinjury.
WARNING
•Theengineproducescarbonmonoxide,whichisadeadly,odorless,colorlessgasthatcanquickly
accumulateinanenclosedcab.Donotruntheengineinaparkedvehiclewithoutpropercab
ventilation.Movetofreshairifyoufeelnausea,headache,dizziness,drowsiness,orweakness.
•Followtheproceduresexactlyasstatedinthismanual,andheedallDANGER,WARNING,and
CAUTIONstatementsinthismanualaswellasthoseonthevehicle.
•Thisvehicleisnotintendedtobeusedwhereriskoffallingobjectsexist.Ifyourvehiclewillbeusedin
suchanenvironment,contactyourlocaldealer.
•Donotleavechildrenunattendedonvehicle.
•Childrenrequiringachildsafetyseatmustnotrideonthevehicle.Complywithstateandlocallaws
pertainingtochildsafety.
•Thedriverandpassengermustberestrainedatalltimeswiththeseatbeltsprovidedtohelpprevent
injuryintheeventofsuddenbraking,collision,orroll-over.
•Nomorethantwopersonsperbenchseatatonetime.Donotallowpeopletorideinanypartofthe
vehiclethatisnotequippedwithaseatandaseatbelt.Donotallowapassengertoholdachildinhis
orherlapwhilethevehicleismoving.
•Priortoleavingthevehicleunattendedorservicingthevehicle,settheparkbrake,placethe
Forward/ReversehandleintheNEUTRALposition,turnthekeyswitchtotheOFFposition,andremove
thekey.Chockthewheelswhenservicingthevehicle.
•Improperuseofthevehicleorfailuretoproperlymaintainitcouldresultindecreasedvehicle
performance,severepersonalinjury,ordeath.
•Anymodicationorchangetothevehiclethataffectstheelectricalsystem,stabilityorhandling
ofthevehicle,orincreasesmaximumvehiclespeedbeyondfactoryspecications,couldresultin
severepersonalinjuryordeath.
WARNINGCONTINUEDONNEXTPAGE
Page10XRT950GasolineVehicleOwner’sManual

GeneralWarnings
WARNING
•Thediameterofalltiresonthevehiclemustbeequal;otherwisethefour-wheeldrivesystemwillnot
operateasintendedandcouldresultinseverepersonalinjuryordeath.Neverinstalltiresofdifferent
diametersonthevehicle.
•Checkthevehicleforproperlocationofallvehiclesafetyandoperationdecalsandmakesuretheyare
inplaceandareeasytoread.
•Forvehicleswithcargobeds,removeallcargo(includingaccessories)beforeraisingthebedor
servicingthevehicle.Ensurethatthesafetycatchissecurelyengagedwhilebedisraised.Donot
Donotclosebeduntilallpersonsareclearofcargobedarea.Keephandsclearofallcrushareas.
Donotdropcargobed;lowergentlyandkeepentirebodyclear.Failuretoheedthiswarningcould
resultinseverepersonalinjuryordeath.
•Onlytrainedtechniciansshouldserviceorrepairthevehicle.Anyonedoingevensimplerepairsor
serviceshouldhaveknowledgeandexperienceinelectricalandmechanicalrepair.Theappropriate
instructionsmustbeusedwhenperformingmaintenance,service,oraccessoryinstallation.
•Toavoidunintentionallystartingthevehicle,disconnectbatteryandsparkplugwires.See
DisconnectingtheBattery–GasolineVehicleonpage11.
•Frameground–Donotallowtoolsorothermetalobjectstocontactframewhendisconnectingbattery
cablesorotherelectricalwiring.Donotallowapositivewiretotouchthevehicleframe,engine,or
anyothermetalcomponent.
•Wearsafetyglassesorapprovedeyeprotectionwhenservicingthevehicle.Wearafullfaceshieldand
rubbergloveswhenworkingonornearbatteries.
•Donotwearlooseclothingorjewelrysuchasrings,watches,chains,etc.,whenservicingthevehicle.
•Useinsulatedtoolswhenworkingnearbatteriesorelectricalconnections.Useextremecautionto
avoidshortingofcomponentsorwiring.
•Whenservicingthevehiclewithpartofthevehicleonjackstands,donotoperatetheenginewiththe
Forward/ReversehandleineithertheFORWARDorREVERSEposition.Thefour-wheeldrivesystem
mayengageanywheel(s),frontorrear,dependingonthemodeselected(Figure3,Page12).
DISABLINGTHEVEHICLE
1.Settheparkbrake.
2.TurnthekeyswitchOFFandremovethekey.
3.PlacetheForward/ReversecontrolintheNEUTRALposition.
4.Inaddition,chockthewheelsifservicingorrepairingthevehicle.
DISCONNECTINGTHEBATTERY–GASOLINEVEHICLES
1.Disablethevehicle.SeeDisablingtheVehicleonpage11.
2.Disconnectthebatterycables,negative(–)cablerst,asshown(Figure2).
3.Disconnectthesparkplugwire(s)fromthesparkplug(s).
XRT950GasolineVehicleOwner’sManualPage11

GeneralWarnings
2
(+)
1
(–)
1.Removenegativebatterycable.
2.Removepositivebatterycable.
Connectbatterycablesinreverseorder.
821.eps
Figure2BatteryCableRemoval
795.eps
Figure34x4DriveWarning
CONNECTINGTHEBATTERY–GASOLINEVEHICLES
1.Connectthebatterycables,positive(+)cablerst.
2.Tightenbatteryterminalsto80in-lb(9N·m).
3.CoatterminalswithBatteryTerminalProtectorSpray(P/N1014305)tominimizecorrosion.
4.Connectthesparkplugwire(s)tothesparkplug(s).
RECYCLINGLEAD-ACIDBATTERIES
WARNING
•Lead-acidbatteriescontainlead(Pb),othermetals,acidsandothercompounds.Ifimproperlyhandled,
theycancontaminatebothwaterandsoil,causingenvironmentaldamageandpersonalinjury.
Lead-acidbatteriesareidentiedbythesymbolshownbelowandshouldbeproperlyrecycled(Figure4).Theycannot
bedisposedasmunicipalwasteandmustbecollectedseparately.Responsibilityforenvironmentalprotectionmustbe
shared,notonlybythemanufacturersofthebatteries,butbypeoplewhousethebatteriesaswell.Pleasecontact
yournearestdealerordistributorforinformationonhowtoproperlyrecycleyourbatteries.
Page12XRT950GasolineVehicleOwner’sManual

GeneralInformation
1403
Figure4DisposeofLead-acidBatteriesProperly
GENERALINFORMATION
Thismanualincludesoperatingprocedures,maintenance,andregularservicinginformationforallXRT9504x2,XRT
9504x4,andXRT950EX4x4vehicles.Alloperatingprocedures,maintenance,andregularservicingareidentical
unlessotherwisenoted.
1
4
32
Thetermsfront(1),left-hand(2),right-hand(3)andrear(4)areusedinthismanualtoindicatethesidesastheyareseenfromtheoperator’sseat.
1634
Figure5VehicleOrientation
XRT950GasolineVehicleOwner’sManualPage13

ModelIdentication
3
2
4
5
6
7
8
1
1.Hood2.ROPS3.FuelFillCap4.CargoBed5.BedLiftLatch–vehicleswithmanual(standard)bedliftonly6.EngineCompartment,Battery,
FuelT ank(underseatandcargobed)7.Seat8.BrakeFluidReservoir(underhood)
2598
Figure6VehicleComponents
MODELIDENTIFICATION
Theserialnumberofeachvehicleisprintedonadecalmountedeitherbelowthepassengersidecupholderorabove
theacceleratororbrakepedal(Figure7).SeefollowingNOTE.
NOTE:Havethevehicleserialnumberavailablewhenorderingpartsormakinginquiries.
A17-digitProductInformationNumber(PIN)isincludedonthisvehiclebelowthepassenger-sidedash
(Figure8).Thisnumbermaybeusedtoregisterthevehiclewhererequired.
BuildCode:Thebuildcodeisave-digitnumberthatappearsonthemanufacturer’svehicleserialnumberdecal
(Figure7).Thebuildcodeexiststoenabletheusertoidentifythecorrectoperator’smanualforavehicle.This
operator’smanualisvalidforthebuildcoderangeindicatedonthebackcoverofthisoperator’smanual.
IDENTIFICATIONNUMBERS
Writeyourvehiclemodelnumber,modelserialnumberandengineserialnumberonthelinesprovidedbelow.If
needed,givethesenumberstoyourdealerwhenyouneedpartsorinformationforyourvehicle.Makearecordof
thenumbers.KeeptherecordandyourManufacturer’sStatementofOrigininasafeplace.Ifthevehicleisstolen,
reportthenumberstoyourlocallawenforcementagency.
Page14XRT950GasolineVehicleOwner’sManual

ModelIdentication
VehicleModelandType(Figure7)
VehicleSerialNumber(Figure7)
YearofBuild(Figure7)
VehiclePINNumber(Figure8)
ROPSSerialNumber(Figure9)
EngineSerialNumber(Figure10)
TransaxleSerialNumber(Figure11)
1636
Figure7VehicleSerialNumberLocation
2575
Figure8VehiclePINNumberLocation
1637
Figure9ROPSSerialNumberLocation
1638
Figure10GasolineEngineSerialNumberLocation
XRT950GasolineVehicleOwner’sManualPage15

ControlsandIndicators
1639

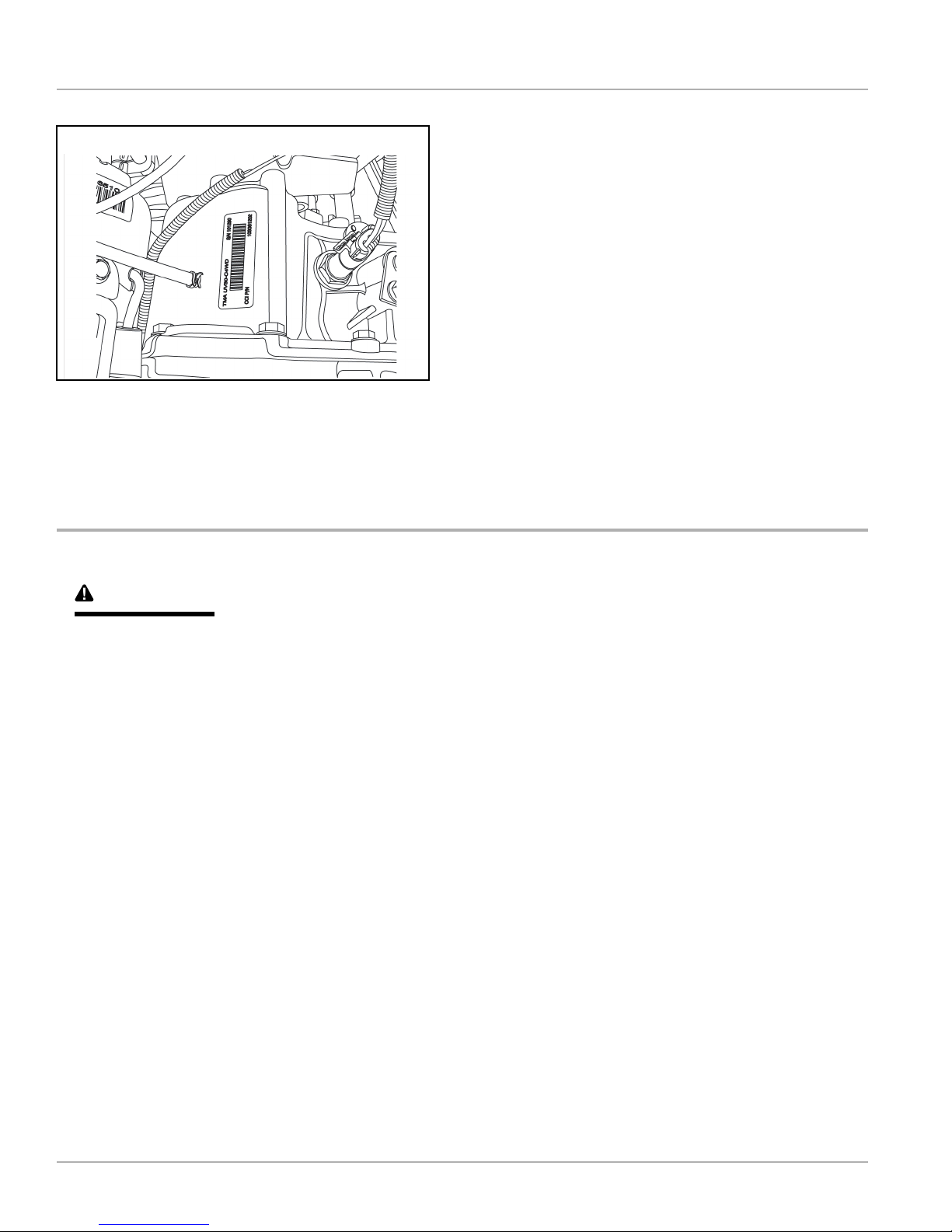

Figure11TransaxleSerialNumberLocation
CONTROLSANDINDICATORS
SeeGeneralWarningsonpage10.
WARNING
•Beforeallowinganyonetodrivethevehicle,makesurethedriverisfamiliarwithallcontrolsand
operatingprocedures.
•DonotshifttheForward/Reversehandlewhilethevehicleisinmotion.
•EnginemustbeatidlebeforeshiftingtheForward/Reversehandle.Failuretodosomayresultin
injurytoinattentivepassengersand(or)damagetothevehicle.
•Toavoidunintentionallystartingorrollingthevehicle,settheparkbrake,placetheForward/Reverse
handleintheNEUTRALposition,turnthekeyswitchtotheOFFposition,andremovethekeywhen
leavingthevehicle.
Page16XRT950GasolineVehicleOwner’sManual

ControlsandIndicators
8
10
7
13
3
11
12
C
A6
B
4
2
1
14
9
1.AcceleratorPedal6.Forward/ReverseHandle11.12-voltAccessoryOutlet
2.BrakePedal7.KeySwitch12.HeadlightSwitch
3.FrontDifferentialEngagementSwitch(If
Equipped)8.FuelGauge/HourMeter13.ElectricBedLiftSwitch(IfEquipped)
4.RearDifferentialLock9.LowOilWarningLight14.Choke
5.ParkBrakeHandle(notshown)10.ParkBrakeWarningLight
2574
Figure12InstrumentPanel
KEYSWITCH
Thekeyswitch(7)ismountedontheinstrumentpaneltotherightofthesteeringcolumn(Figure12).Ithasthree
positions:OFF,ON,andSTART .
Tostartthevehicle,placetheForward/ReversehandleintheNEUTRALpositionandturnthekeytotheSTART
position,andholditthereuntiltheenginestarts.Activatethechoke(14)asnecessary.Iftheenginedoesnotstartafter
10to15seconds,releasethekeyandrepeattheprocedure.Oncetheenginestarts,releasethekeyanditwillreturn
totheONposition.Theenginewillidleinneutral.TheenginewillcontinuetoidleuntilthekeyisturnedtotheOFF
position.SeefollowingWARNING,CAUTION,andNOTE.
XRT950GasolineVehicleOwner’sManualPage17

ControlsandIndicators
WARNING
•Movingparts!Keepclearoftheenginecompartmentwhiletheengineisrunning.
CAUTION
•DonotshifttheForward/Reversehandlewhiletheacceleratorpedalispressed.Shiftthehandleonly
whenthevehicleisatacompletestopandtheengineisatidle.Failuretoheedthiscautioncould
resultindamagetothetransmission.
NOTE:WhenthekeyisturnedtotheOFFposition,themainvehiclesystemsaredisabled.Thekeyswitchmaybe
usedasanemergencystop.
ThekeycanberemovedonlywhenthekeyswitchisintheOFFposition.
FORWARD/REVERSECONTROL
TheForward/Reversehandle(6)islocatedontherightsideoftheinstrumentpanel(Figure12).Thehandlehas
threedistinctpositions:FORWARD(A),NEUTRAL(B),andREVERSE(C).Pushthehandleuptooperatethevehicle
intheforwarddirection,orpullthehandledowntooperatethevehicleinreverse.Theenginecanbestartedonly
whenthehandleisintheNEUTRAL(middle)position.TheenginemustbeatidlebeforeshiftingtheForward/Reverse
handle.SeeprecedingWARNINGSandCAUTION.
Thisvehicleoperatesatareducedspeedinreverse.
ACCELERATORPEDAL
Theacceleratorpedal(1)isthepedalfarthesttotheright(Figure12).
WiththeenginerunningandtheForward/ReversehandleintheFORWARDorREVERSEposition,vehiclespeed
willincreaseastheacceleratorpedalispressed.Whentheacceleratorpedalisreleased,itwillreturntotheoriginal
positionandtheenginewillidle.SeeprecedingWARNINGSandCAUTION.
BRAKEPEDAL
Thebrakepedal(2)islocatedtotheimmediateleftoftheacceleratorpedal(Figure12).T osloworstopthevehicle,
pressthebrakepedal.
PARKBRAKEHANDLE
Theparkbrakehandle(5)islocatedbetweenthedriverandpassengerseats(Figure13).Toengagethepark
brake,rstapplypressuretothebrakepedal,thenpullupontheparkbrakehandleuntilhandlelatchesintoplace.
Todisengage,liftleverbeneathhandle,thenpushhandledown.Foradjustmentofparkbrake,seePerformance
Inspectiononpage23.SeefollowingWARNING.
WARNING
•Theparkbrakehasanover-centerlockingfeatureandshouldbermlylockedtopreventthevehicle
fromrolling.
Page18XRT950GasolineVehicleOwner’sManual
