CMD winflex DG User manual

MOUNTING
Preassembly inspection
Prior to assembly ensure all parts are clean and free from foreign material and damage. Check individual measurement of
relevant parts (e.g. hub, shaft fit / clearance etc) to maintain application requirement.
Fitting of hub on shaft
The seals must be assembled on the shaft prior to mounting of hubs.
Lightly smear the seals with grease and remove lube plugs from each half.
Keyed fit assembly : adjust key as necessary. Dependant upon type of adjustement and to facil tate fitting, we recommend
uniform heating of the hub to about 100°C to 120°C. Secure the seal.
Shrink fit on smooth shaft : with an interference of 1,2 to 1,6 ‰.
Degrease all contact surfaces and remove plugs from holes provided for hydraulic dismantling.
Heat preferably in a furnace to 250°C assuming an ambient temperature of 20°C.
ALIGNMENT
Will be obtained by moving one of the machines to be coupled.
Align shafts within the misalignment limits given in table below.
For gap and angular alignment use a feeler gauge inserted between hub faces at four points, 90° apart, as shown in view below.
For parallel alignment, use a straight edge, located over four external points on the hubs (as shown).
Note : - For more accurate alignment use a dial indicator.
- Each shaft must have its own thrust bearing, the coupling allowing for its free positioning.
ASSEMBLY
Before inserting grid, hand pack grooves and gap with lubricant (refer to tables overleaf for recommendations on type and
quantity of lubricant). Fit grid over hubs and starting at one end, work coils of grid between the teeth. Seat with a soft mallet. If
grids are supplied in more than one segment, install so that all cut ends extend in the same direction. Hand pack more
lubricant around the assemble cover : see instructions overleaf.
Installation limits
Parallel
Size Max Max Max Max
ln. mm. ln. mm. ln. mm.
2 .005 .12 .005 .12 .125 3
3 .005 .12 .005 .12 .125 3
4 .005 .12 .005 .12 .125 3
5 .005 .12 .005 .12 .125 3
6 .010 .25 .010 .25 .125 3
7 .010 .25 .010 .25 .125 3
8 .010 .25 .010 .25 .125 3
9 .012 .30 .012 .30 .125 3
10 .012 .30 .012 .30 .188 5
11 .012 .30 .012 .30 .188 5
12 .012 .30 .012 .30 .250 6
13 .012 .30 .012 .30 .250 6
14 .012 .30 .012 .30 .250 6
Angular Normal gap
± 10%
TYPE DG-H
with horizontally split cover
B 80.6401 EN
Octobre 2002
INSTALLATION
AND MAINTENANCE
INSTRUCTIONS
COUPLING
TAPERED GRID DESIGN
CARETAKEN DURING ASSEMBLY AND ALIGNINGTOGETHER WITH CORRECT LUBRICATION AND MAINTENANCE
WILL ENSURE SATISFACTORY LIFE FORTHE COUPLINGS
winflex®DG
1COVER
2HUB
3GRID
4SEAL
5FASTENERS
6LUBE PLUG
7GASKET
1
3
4
2
5
7
6
Parallel alignment Gap, and regular alignment

UNITÉ DE CAMBRAI 539, avenue du Cateau - 59400 Cambrai - FRANCE
Tél. : [phone] - Fax : + 33 (0) 3 27 78 36 99
Télex : ERCIMER 160 388 F
Octobre 2002 • CMD - RCS CAMBRAI B 775 708 225 00021

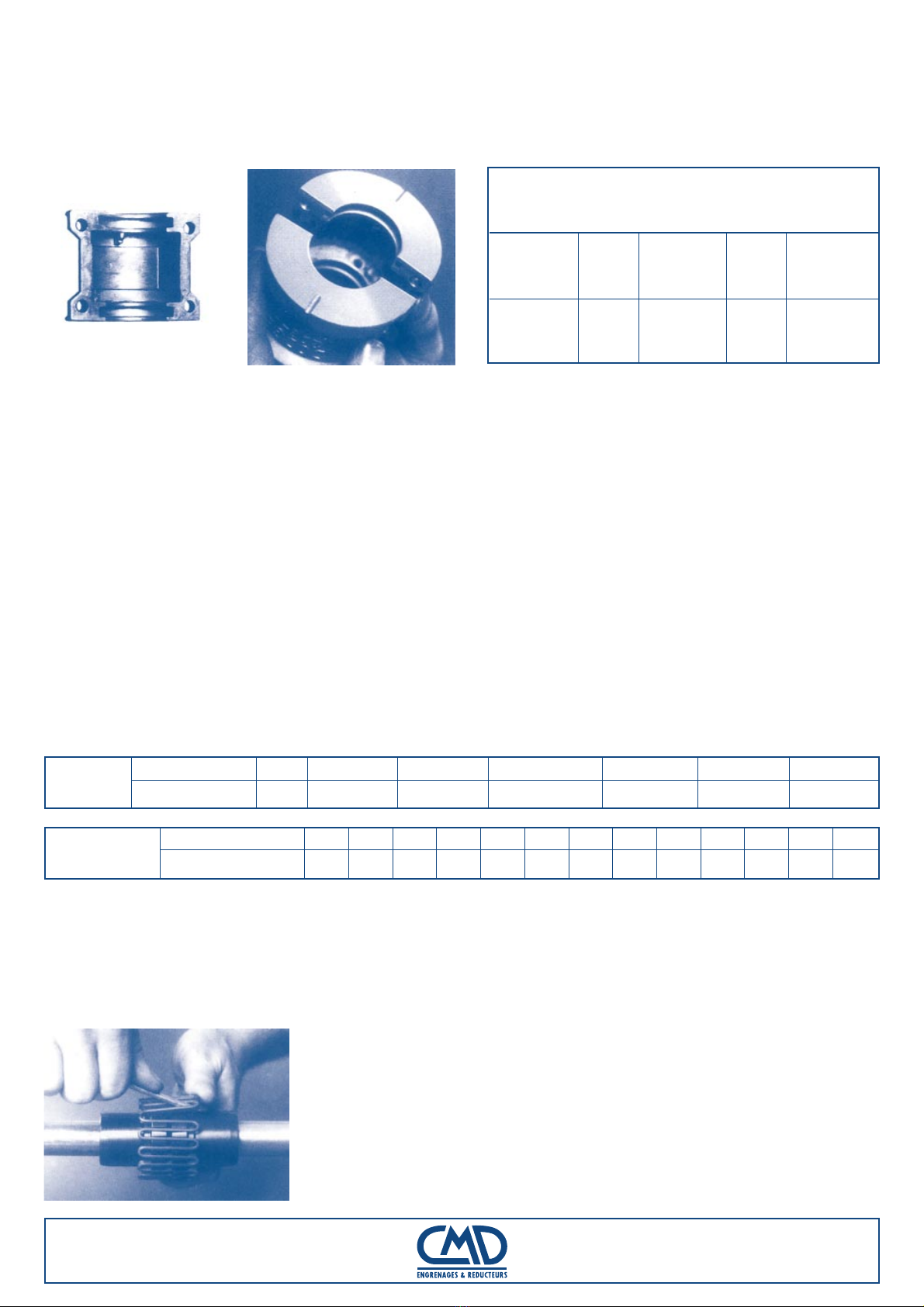

Position the two seals on the hub and align with the grooves in the half cover. Place gaskets on flanges of bottom half cover.
Assemble cover with match marks on same side. Install fasteners in covers halves with nut end of bolt nearest lube plug (in
this position, nuts are self retaining and do not require a wrench).Tighten per DG.H cover bolt tightening g torque, as shown in
table below (sizes 2-9 have nut locking flats in cover).
Note : coupling may be mounted on vertical or inclined shafts without modification, assemble half cover with anti-rotation lug
and match mark on the upper side (see views).
LUBRIFICATION
Insert lube connection. Pump in appropriate lubricant until it is forced out of the opposite lube hole.Then install lube plugs in
holes.
Note : ALL LUBE PLUGS MUST BE INSTALLED BEFORE OPERATING COUPLING.
Table below lists lubricants, from several manufacturers, which will operate satisfactorily under average industrial conditions
as long as the ambient temperature is within the limits of -18°C to -17°C.This table does not constitute a complete listing of
acceptable lubricants and it is not meant to prohibit the use of lubricants with equivalent properties. Lubricants required for
severe operating conditions should be referred to the factory or a lubrication manufacturer’s representative for
recommendations. Under average industrial conditions it is recommended that grid coupling lubricants meet the
specifications listed below.
Coupling lubricant recommendation
Dropping point : 149°C (300°F) or higher.
Concistency : NLGI N° 2 with worked penetration value in the range of 250 to 300.
Separation and resistance : low oil separation rate and high resistance to separation from centrifuging.
Liquid constituent : possess good lubricating properties... Equivalent to a high quality well refined petroleum oil.
Inactive : must not corrode steel or cause swelling or deterioration on neoprene.
Clean : free from foreign inclusions.
Maintenance
Maintenance is recommended every 6 months to insure long life. Dismantle coupling and visually inspect all parts. Replace
any worn parts. Hand pack coupling with lubricant.
Grid removal
When it is necessary to dismantle coupling, remove half covers. Beginning at a cut end of grid, carefully insert a screwdriver
into loop. Using the teeth for leverage, gradually pry the grid up, alternating sides while working around the coupling.
SIZE DG 2-3-4 5-6-7-8-9 10-11 12-13-14
Nm 12 23 30 73
COVER BOLDTIGHTENINGTORQUE Nm
ANTI-ROTATION LUG
LUG UP
COVER MATCH MARKS
GRID REMOVAL
MANUFACTURERS BP ELF-ANTAR ESSO KLUBER MOBIL SHELL TOTAL
LUBRICANTS LS EP2 EPEXELF2 BEACON EP2 COSTRAC AK 1502 MOBILUX EP2 CALITHIA EP2 MULTIS EP2
SUGGESTED
LUBRICANT
DG SIZE 2 3 4 5 6 7 8 9 10 11 12 13 14
KG 0,03 0,03 0,06 0,06 0,09 0,11 0,17 0,25 0,43 0,51 0,74 0,91 1,2
LUBRICATION
WEIGHT
