Dear customer,
Thank you for having purchased this product. It is a technologically advanced anti - theft device that complies with the performance
standards established by car manufacturers and with the relative European Union standards.
The manual is divided into 8 parts:
Page 15 INTRODUCTION
16 ADDITIONAL PROTECTIONS
17 BRIEF INSTRUCTIONS
19 BASIC FUNCTIONS
22 ALARM MEMORY
23 EMERGENCY
24 PERSONAL PIN CODE
25 MAINTENANCE AND TROUBLE SHOOTING
After the system was installed, you will have been given the radio controls and user manual, containing the declaration of conformity
for the product and the relative installation certificate.
We kindly ask you to read this manual to get full benefit the system.
We suggest you keep this manual with the registration documents of the vehicle. It will be easier for you to find the information
you require in the event of emergency.Your dealer will be pleased to clarify and queries you may have with the system or its
operation in the case you did not any suggestion in chapter 8 (page 25)
GB
BRIDGE 4100
06DE2142E.pmd 11/02/2008, 11.1514

15
1 - INTRODUCTION
The anti - intrusion alarm system is operated by a with a security code. This technology offers an extremely high level of protection
against any attempt to reproduce the code.
The radio control allows the system to be activated at a distance of 5 - 10 meters from the vehicle.
Other radio sources may cause interference which can reduce the effective range of the radio controls (e.g. amateur radio operators
using the same band).
If the system can not be set / unset using the radio control try again close to the vehicle.
If automatic window closing is connected we raccomended you to stay close to the vehicle while the windows are moving to ensure
safety and security.
Total protection of your vehicle is ensured by:
The system have a protected self - learning feature which allows you to add or replace radio controls. The procedure is
described in the fitting instructions.
MOD. HOTWIRE
PROTECTION VO UMETRIC
PROTECTION PERIMETRIC PROTECTION CAB E CUTTING
PROTECTION
  
 




8914KA
6914CA
3914KA
BRIDGE 4100 - Introduction
06DE2142E.pmd 11/02/2008, 11.1515

16
2 - ADDITIONAL PROTECTIONS
You can increase the protection level of the system with the
following additional sensors:
5452: Level monitor module
When the system is armed, this sensor will detect the vehicle
being jacked up to tow it away or steal the wheels.
5462: Hyperfrequency module
When the system is armed, hyperfrequency emissions from the
module hidden in the car will ensure volumetric protection of
the vehicle.
2980: Windows lift module
The electric windows of your car will raise automatically when
the system is armed. I t can be fitted to any car with electrical
windows.
OPTIONAL:
•EMERGENCY PANEL PLUS JACK KEY:
CODE AM0939EUSAA
In case of emergency, connect the key in the emergency panel
for 1 s.
•2771 DRIVER CARDS:
Used for recognition purposes in anti-robbery mode.
Additional protections -BRIDGE 4100
06DE2142E.pmd 11/02/2008, 11.1516

17
3 - BRIEF INSTRUCTIONS
3.1 - Arming
• Press button “A” of the radio control to
lock the doors (if the vehicle has central
locking).
• The turn indicators will flash twice.
• The buzzer will issue two beeps (if
activated).
• The protections activate after 23 s.
• The LED will come on with a fixed light
for 23 s then it will flash.
3.3 - Protection
When armed, the system will generate acoustic and visual alarm
lsting about 30 s when the bonnet, boot or one of the doors is
opened or there is an attempt to start the vehicle. System with
the volumetric sensor will generate the alarm in case of intrusion.
The system remains armed at the end of the cycle.
The turn indicators will also stop blinking but the alarm system
remains armed. Press button “B” on the radio control a second
time to completely disarm the system.
3.4 - Interrupting an alarm in progress
If the system generates an alarm, the siren can be deactivated
by pressing button “B” on the radio control once.
The turn indicators will also stop blinking but the alarm system
remains armed. Press button “B” on the radio control a second
time to completely disarm the system.
3.5 - Disarming
• Press button “B” on the radio control to disarm the system and
unlock the doors.
• The turn indicators will flash once.
• The buzzer will beep once (if activated).
• The protection deactivates immediately.
• The LED will turn off.
3.6 - Alarm memory
If an alarm has occurred in your absence the buzzer and the turn
indicators will give four signals instead of one (See chapter 5).
Button
A
Button
B
Arm

Disarm
Siren interrupt
Panic alarm

Ultrasonic volumetric sensor and
additional sensor exclusion (if
installed)

Car Finder
RADIO CONTROL FUNCTION



A
B
3.2 - Silent Arming
To silence the buzzer’s acoustic signal (when enabled) for a
short time, press key ‘A’ of the remote before turning the
instrument panel off. When the instrument panel is turned on
again (+15 ON), silencing is disabled and the buzzer will sound
again upon product triggering.
BRIDGE 4100 - Brief instructions
06DE2142E.pmd 11/02/2008, 11.1517

18
3.7 - Deactivating the volumetric ultrasonic sensor
The volumetric sensor can be deactivated
if you want to leave the windows open or if
someone remains in the passenger
compartment.
1) Arm the system pressing button “A” of
the radio control.
2) Press button “A” on the radio control
again within 23 s.
If hyperfrequency or level monitor sensors are fitted, it is possible
to deactivate them by pressing button “A” twice within 23 s.
To confirm that the signal has been received, the turn indicators
will flash twice and the buzzer will give an acoustic signal (if
activated). The sensor will now have been inhibited but all the
other protections will remain activated. The sensors will
automatically activate again the next time the system is armed.
3.8 - Car Finder
This function allows you to find your car in a car park, for example.
When the alarm is armed and the inhibition time has elapsed,
press key “A” on the radio control once and the system will
generate a visual alarm, activating the blinkers (and the buzzer,
if activated) for up to 3 s.
The Car Finder function can only be used when the alarm is
armed.
3.9 - Panic alarm
If the Car Finder function is not activated, an alarm cycle will be
generated (the siren will operate and the turn indicators will
flash) whenever you press button “A” on the radio control, after
23 s have elapsed since arming. If the Car Finder function is
activated, press key “A” on the radio control twice. Press button
“B” on the radio control to interrupt the panic alarm.
3.10 - Garage function
The “Garage” function allows the alarm system to be temporarily
cut out. It is especially useful when leaving a vehicle in a
parking facility where it is necessary to hand over the vehicle’s
keys. When this function is used it is possible to hand over the
keys without having to give the attendant the radiocontrol
device or PIN code as well. Its use is recommended to prevent
unauthorised use of the vehicle. Before handing over the
vehicle, proceed as follows:
• turn on the ignition and open the door on the driver’s side,
keeping the “A” key on the radiocontrol device pressed down
for at least 4 s. During this time the LED will stay on with a
steady light.
Confirmation that the function has been activated is given by
a flash of the direction arrows and a buzzer signal, both lasting
3 s. Each time the ignition is turned on the active status of the
garage function is confirmed by an acoustic signal from the
buzzer and a visual signal from the LED. The radiocontrol
device is operative for locking and unlocking the centralized
locks and activating and disactivating the engine lock but does
not arm the system. The function is disactivated in 3 different
ways:
• by pressing key “B” on the radiocontrol device for 4 s with the
ignition on;
• by pressing the button on the LED panel for 2 s;
• after the vehicle’s ignition has been switched on 10 times.
A
B
Brief instructions -BRIDGE 4100
06DE2142E.pmd 11/02/2008, 11.1518

19
4 - BASIC FUCTIONS
Foreword
As the functional characteristics of this system can be customized, the installer must mark the ones he has activated in this
manual. The standard factory set - up is shown by the dark squares.
4.1 - Controlled windows lift (confort)
Disabled
Enabled
Keep button “A” pressed, when arming the allarm. The windows
close in a “controlled mode”. The windows will stop closing if the
button is release.
4.2 - Window radio control activation
If the window radio control output function is activated (page 5
line 8). When this function is activated, the windows will rise with
a 1 s delay in relation to door locking.
4.3 - Autolock - Automatic door locking mode
Disabled
Enabled
Automatically locks the doors at a preset speed or 20 s after
turned on the ignition. In both cases, the doors are automatically
unlocked when the ignition is turned off.
4.4 - Automatic door locking mode selection
Automatically locks the doors, depending on the speed or time.
4.5 - Automatic alarm arming
Disabled
Enabled
The system will arm without locking the doors 2 min. after the
ignition is switched off and the last door closed. The system will
not arm if the ignition is switched on within the 2 min. period.
4.6 - Automatic immobilizer arming
Disabled
Enabled
The engine immobiliser will automatically activate 2 min. after
the ignition is switched off. The LED will flash. The engine will
be immobilised. To restore motor block of the system, press key
‘B’ of the remote.
4.7 - Immobilizer alarm
Disabled
Enabled
An alarm function can be added to the immobiliser automatic
arming. If enabled, an alarm is triggered 25 sec after the
instrument panel has been turned ON.
4.8 - Anti-distraction motor - block
Disabled
Enabled
After disarming with the radio control, there is a 40 s delay
within which the immobiliser rearms unless the ignition is
switched on.
Disabled
Enabled
Speed
Time
BRIDGE 4100 - Basic function
06DE2142E.pmd 11/02/2008, 11.1519

20
4.9 - Alarm rearm
Disabled
Enabled
After disarming with the radio control, there is a delay of 40 s
within which the system rearms unless the ignition is switched
on. The count is halted if a door or the boot are opened.
4.10 - Alarm auto re - arm with door locking
Disabled
Enabled
This function adds automatic door locking to the alarm auto re-
arm procedure.
4.11 - Doors / bonnet / boot open signal
Disabled
Enabled
When the system is armed, it will signal by buzzing and direction
indicator flashes (3 buzzer signals and 5 flashes) if a a door or
the bonnet or boot is open. If they are closed within 23 s, any
subsequently door / bonnet / boot opening will trigger these
signals. If the 23 s elapse without closing the door / bonnet /
boot, the system will not check their status again until another
closing / opening operation occurs that triggers an alarm.
4.12 - Blinker arming / disarming
Disabled
Enabled
Two flashes from the turn indicators indicate that the system is
armed, one flash that it is disarmed.
If the system is deactivated, the turn indicators will only flash
when an alarm cycle is triggered.
4.13 - Buzzer
Disabled
Enabled
Provides an acoustic signal in synchronism with the turn indicators
when the system is armed or disarmed.
4.14 - Buzzer during Car Finder procedure
Disabled
Enabled
Signals the car finder function in synchronism with the turn
indicators.
4.15 - Automatic anti - robbery protection
Disabled
Enabled
This mode requires a user recognition procedure whenever the
ignition is turned on and every time the door is opened while
the ignition is on. Activation of the anti - robbery mode is
signalled by a long flash of the LED.
User recognition can be performed by the following means:
• correct entry of the first two digits of the PIN code;
• contact of the Jack key for 1 s with the emergency panel (if
self - learned);
• reception of the Driver Card signal (if self - learned).
Recognition is confirmed by a long flash of the LED and enables
normal use of the vehicle. Recognition must occur within 60 s
after anti - robbery protection has been activated. If recognition
does not occur within the next 30 s, the radio controls are
disabled. If recognition does not occur within 60 s, 9 alarms
cycles lasting 30 s are generated, at the end of which the
system is armed without the engine lock (if the ignition is
switched off the alarm stops sounding the system remains armed
and the engine is immediately immobilised).
To disarm the system when in anti - robbery alarm state it is
necessary to key in the entire PIN Code.
4.16 - Voluntary anti - robbery protection
Disabled
Enabled
This mode allows the user to activate the function voluntarily
by pressing radio control key “B” with the ignition turned on.
Basic Function -BRIDGE 4100
06DE2142E.pmd 11/02/2008, 11.1520

21
Activation of the anti - robbery function is signalled by quick
flashing of the LED. Whenever a door is opened while the
ignition is on, this activates the anti - robbery mode and the
LED is turned off.
User recognition can be performed by the following means:
• correct entry of the first two digits of the PIN code;
• contact of the Jack key for 1 s with the emergency panel (if
self - learned);
• reception of the Driver Card signal (if self - learned).
Recognition is confirmed by a long flash of the LED and enables
normal use of the vehicle. Recognition must occur within 60 s
after anti - robbery protection has been activated. If recognition
does not occur within the next 30 s, the radio controls are
disabled. If recognition does not occur within 60 s, 9 alarms
cycles lasting 30 s are generated, at the end of which the
system is armed without the engine lock (if the ignition is
switched off the alarm stops sounding the system remains armed
and the engine is immediately immobilised).
To disarm the system when in anti - robbery alarm state it is
necessary to key in the entire PIN Code.
4.17 - Autohazard
Disabled
Enabled
If activated, the system turns on the four hazard lights if the
vehicle’s speed drops by 50% in one s.
4.18 - Speed Alert
Disabled
Enabled
If the function is activated, the buzzer will warn in the vehicle
exceeds the speed limit. To memorize the speed limit, press
button “A” on the radio control when the vehicle is being driven
at the limit speed. To deactivate the function, press button “B”
on the radio control when the vehicle is on the move.
It’s possible to active / deactive the function by extended pressure
of the control panel push button.
BRIDGE 4100 - Basic Function
06DE2142E.pmd 11/02/2008, 11.1521

22
ED
SIGNA A ARM DESCRIPTION
1 blink doors, boot have
been opened
ultrasonic volumetric
sensor triggered
3 blinks bonnet has been opened
4 blinks attemp to start
(ignition key/hotwire)
5 blinks
not used / Cobra Bus
speedometer
input/alarm
blinks
2 blinks
7 blinks
activation of speed alert
sensor input / additional
sensors
Alarm memory -BRIDGE 4100
5 - ALARM MEMORY
If an alarm has occurred the buzzer and the turn indicators will give four signals. The alarm status history is displayed the LED when
the system is disarmed, and will remain available until the system rearmed or the ignition will be switched ON.
The flashes from the LED show what caused the alarm.
06DE2142E.pmd 11/02/2008, 11.1522

23
6 - EMERGENCY OVERRIDE
To disarm the system without using the remote, proceed as follows:
press the push - button located on the emergency panel the number of times corresponding to the first digit of your PIN code.
At each button pressure corresponds an acoustic signal of the buzzer. A longer pressure is interpreted by the system as being
the end of the digit entry, signalled by a long flashing of the LED. Do the same for all of the other digits. Once all of the digits
have been entered, if the code is correct, the system is disarmed.
SIREN
ON
ALARM
DISARMED
PIN CODE
OK
Enter following
igit of your
PIN CODE
uick
flashing long
flashing
pause
Push for a number of times
correspondent to the digit of
your PIN code
EMERGENCY
BRIDGE 4100 - Emergency override
06DE2142E.pmd 11/02/2008, 11.1523

24
7 - PERSONAL PIN CODE
As the PIN code enables access to the system, it should not be
left in the unattended vehicle as it can be used to deactivate
the system or to add new radio controls without authorization.
To change your PIN code, follow this simple procedure:
1. Disarm the system using the radio control.
2. Turn the ignition key “on”.
3. Open a door and the bonnet and keep them open during
the programming phase.
4. Press key “A” on the radio control until the turn indicators
flash to indicate that you have accessed the programming
function.
5. Enter the old PIN code:
• Press the button on the emergency panel for the number of
times corresponding to the first digit of the new PIN code.
The LED will flash fast each time you press the button.
• A longer pause will be interpreted by the system as the
number having been fully entered and will be signalled by
a long flash from the LED and a beep from the buzzer.
Proceed in the same way for the other digits.
• Enter the old PIN code again.
6. Enter the new PIN code:
• Turn off the ignition once the fourth digit has been entered.
• Enter the PIN code again. If the system ascertains that the
entered code matches the programmed one, the code will
be memorized. This is signalled by a 3 s flash from the turn
indicators and the LED. Close the door to quit the procedure
at any time. The old PIN code will not be modified in this
case.
Personal pin code -BRIDGE 4100
06DE2142E.pmd 11/02/2008, 11.1524

25
8 - MAINTENANCE AND TROUBLE SHOOTING
8.1 - Radio control battery low
If the LED flashes for a brief time or in an irregular way when one
of the buttons is pressed, this means that the battery is low and
must be replaced.

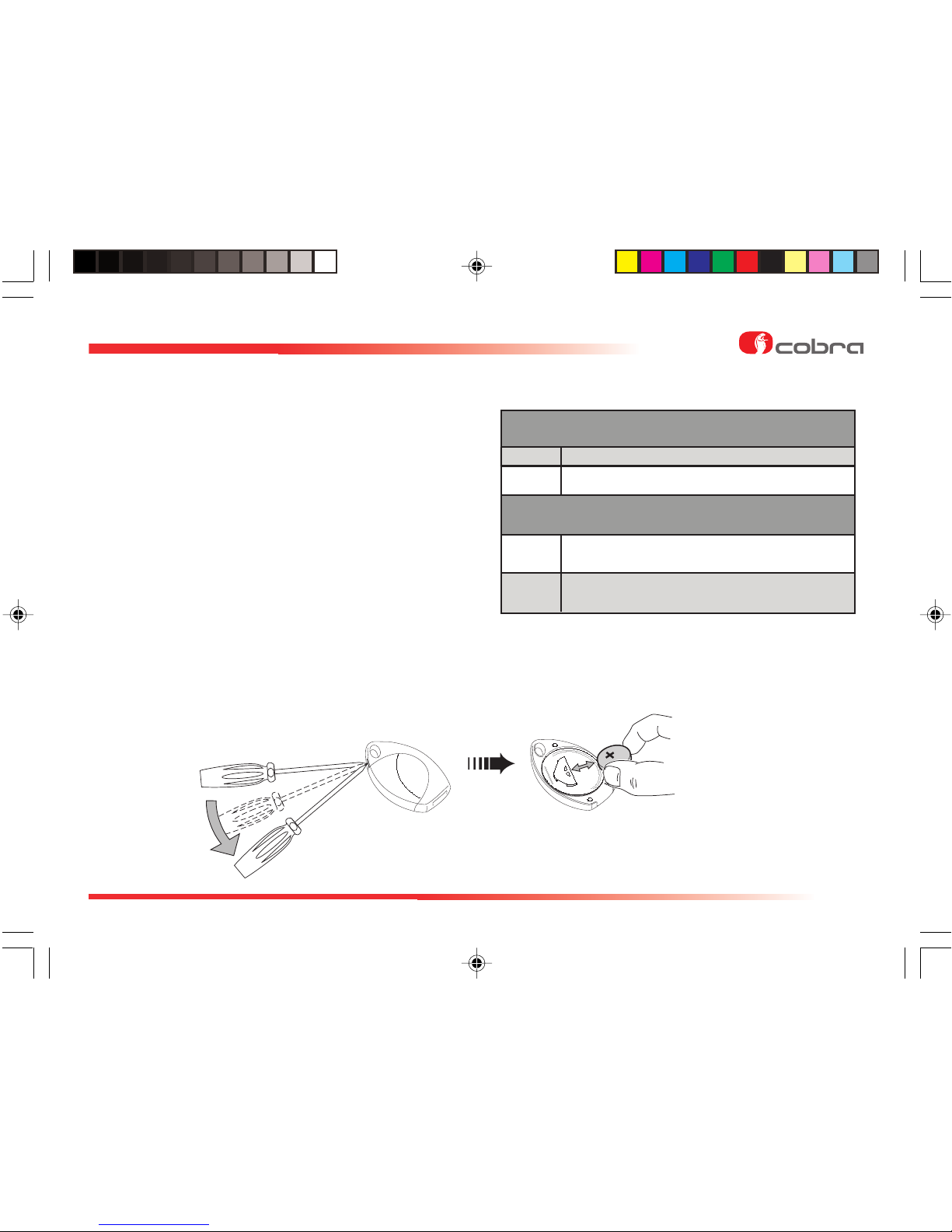

1. To change the battery, open the shell of the radio control by
levering in the zone shown in the figure.
2. Remove the battery as indicated.
3. Wait about 10 s.
4. Fit the new battery, taking care to only touch its sides with
the fingers. Comply with the polarity as shown in the figure.
5. Close the battery shell and press key “A” on the radio control,
make sure that the system responds. Conduct tests near to
the vehicle.
6. Dispose of the old battery in the relative containers provided
for this purpose.
7. If both the radio controls are lost, you will still be able to
disarm the system in an emergency.
Refer to the emergency override procedure (chapter 6).
8.2 - Trouble shoting
The radio control fails to arm/disarm the system
A Solution: The radio control battery may be flat (chapitre 8 page 25).
An alarm has triggered for no apparent reason
A Solution: If ultrasonic volumetric trigger is shown, check that windows,
sunroof and air vents are closed and that no moving objects
are in the vehicle.If the problem persist contact your dealer.
B Solution: If direct contact trigger (doors, boot and bonnet opening) is
shown, one of the switches re uires adjustement.Contact
your dealer.
B Solution: Follow the emergency procedure to disarm the system
(chapter 6 page 23) and then contact your dealer.
BRIDGE 4100 - Maintenance and trouble shooting
06DE2142E.pmd 11/02/2008, 11.1525
