Cocraft HR1200 User manual

ENGLISHSVENSKANORSKSUOMIDEUTSCH
Important!
Read the entire instruction manual
carefully and make sure that you fully
understand it before you use the
equipment. Keep the manual for future
reference.
Viktig information:
Läs hela bruksanvisningen noggrant och
försäkra dig om att du har förstått den
innan du använder utrustningen. Spara
bruksanvisningen för framtida bruk.
Viktig informasjon:
Les disse anvisningene nøye og forsikre
deg om at du forstår dem, før du tar
produktet i bruk. Ta vare på anvisningene
for seinere bruk.
Tärkeää tietoa:
Lue nämä ohjeet huolellisesti ja varmista
että olet ymmärtänyt ne, ennen kuin
alat käyttää laitetta. Säilytä ohjeet
myöhempää tarvetta varten.
Wichtiger Hinweis:
Vor Inbetriebnahme die komplette
Bedienungsanleitung sorgfältig
durchlesen und aufbewahren.
HR1200
FINE CUTTING DEPTH ADJUSTMENT
1200 W
18-3616 • 41-1233
ROUTER
HANDÖVERFRÄS HÅNDOVERFRES
KÄSIYLÄJYRSIN HANDOBERFRÄSE
Ver. 20180717
Original instructions
Bruksanvisning i original
Originalbruksanvisning
Alkuperäinen käyttöohje
Original Bedienungsanleitung
Art.no Model
18-3616 SDGJ-DMX-1-UK
41-1233 SDGJ-DMX-1

ENGLISH
3
Router
Art.no 18-3616 Model SDGJ-DMX-1-UK
41-1233 SDGJ-DMX-1
Please read theentire instruction manual before using theproduct and then save
it for future reference. We reserve theright for any errors in text or images and any
necessary changes made to technical data. In theevent of technical problems or
other queries, please contact our Customer Services (see address details on theback).
Safety
General Power Tool Safety Warnings
WARNING Read all safety warnings and all instructions. Failure to follow
thewarnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
Theterm ”power tool” in thewarnings refers to your mains-operated (corded) power
tool or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in thepresence
of flammable liquids, gases or dust. Power tools create sparks which may ignite
thedust or fumes.
c) Keep children and bystanders away while operating apower tool. Distractions
can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match theoutlet. Never modify theplug in any
way. Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with grounded surfaces, such as pipes, radiators, ranges
and refrigerators. There is anincreased risk of electric shock if your body is
earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering apower
tool will increase therisk of electric shock.
d) Do not abuse thecord. Never use thecord for carrying, pulling or unplugging
thepower tool. Keep cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase therisk of electric shock.
e) When operating apower tool outdoors, use anextension cord suitable for
outdoor use. Use of acord suitable for outdoor use reduces therisk of electric shock.
f) If operating apower tool in adamp location is unavoidable, use aresidual current
device (RCD) protected supply. Use of anRCD reduces therisk of electric shock.

ENGLISH
4
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating
apower tool. Do not use apower tool while you are tired or under
theinfluence of drugs, alcohol or medication. Amoment of inattention while
operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective
equipment such as dust mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure theswitch is in theoff-position before
connecting to power source and/or battery pack, picking up or carrying
thetool. Carrying power tools with your finger on theswitch or energising power
tools that have theswitch on invites accidents.
d) Remove any adjusting key or wrench before turning thepower tool on.
Awrench or akey left attached to arotating part of thepower tool may result in
personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables
better control of thepower tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing
and gloves away from moving parts. Loose clothes, jewellery or long hair can be
caught in moving parts.
g) If devices are provided for theconnection of dust extraction and collection
facilities, ensure these are connected and properly used. Use of dust
collection can reduce dust-related hazards.
4) Power tool use and care
a) Do not force thepower tool. Use thecorrect power tool for your application.
Thecorrect power tool will do thejob better and safer at therate for which it was
designed.
b) Do not use thepower tool if theswitch does not turn it on and off. Any power
tool that cannot be controlled with theswitch is dangerous and must be repaired.
c) Disconnect theplug from thepower source and/or thebattery pack from
thepower tool before making any adjustments, changing accessories, or
storing power tools. Such preventive safety measures reduce therisk of starting
thepower tool accidentally.
d) Store idle power tools out of thereach of children and do not allow persons
unfamiliar with thepower tool or these instructions to operate thepower tool.
Power tools are dangerous in thehands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect thepower tool’s
operation. If damaged, have thepower tool repaired before use.
Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are easier to control.

ENGLISH
5
g) Use thepower tool, accessories and tool bits etc. in accordance with these
instructions, taking into account theworking conditions and thework to be
performed. Use of thepower tool for operations different from those intended could
result in ahazardous situation.
5) Service
a) Repairs and service should only be performed by qualified persons, and only
with original spare parts. This guarantees thesafety of theelectrical hand tool.
Additional safety instructions for routers and trimmers
• Hold power tool by insulated gripping surfaces, because thecutter may
contact its own cord. Cutting a ”live” wire may make exposed metal parts of
thepower tool ”live” and shock theoperator.
• Use clamps or another practical way to secure and support theworkpiece
to astable platform. Holding thework by your hand or against thebody leaves it
unstable and may lead to loss of control.
• Warning! Milling can result in theformation of dusts hazardous to health (e.g.
arising from materials with paints containing lead, materials containing asbestos
or some wood types), which can pose arisk to theoperator or persons nearby.
Make sure that theworkplace is well ventilated. Always wear safety goggles, safety
gloves and respiratory protection. Attach adust extraction system.
• Thepermissible rotation speed of theattachment tools must be at least as
high as thehighest rotation speed indicated on thepower tool. Accessories
that run faster than thepermissible speed can be destroyed.
• Cutters and other accessories must be exactly matching thetool holder
(collet chuck) of your power tool. Attachment tools that are not exactly matching
thetool holder of thepower tool rotate unevenly, vibrate very strongly and can
ultimately lead to aloss of control.
• Ensure that thecutter is assembled correctly. Acutter that is not assembled
correctly can break during themilling or be ejected and present arisk of injury.
• Move thepower tool against theworkpiece only when it is turned on.
Otherwise, there is arisk of kickback if theattachment tools jam in theworkpiece.
• Do not put your hands in thecutting area and neither on thecutter. Hold
theadditional handle or themotor housing with your other hand. When
holding themilling cutter with both hands, they cannot be injured by thecutter.
• Never mill over metal objects, nails or screws. Themilling cutter can be
damaged and lead to increased vibrations.
• Use suitable detectors in order to find hidden supply lines or ask thelocal
utility company. Contact with electrical cables can lead to electric shock and fire,
contact with agas pipe can result in anexplosion. Damage to awater pipe can
lead to property damaged and electric shock.
• Do not use any blunt or damaged tools. Blunt or damaged tools can cause
uncontrollable situations.

ENGLISH
6
Read theentire instruction manual before use.
Always use ear protection. Always use protective glasses or avisor and
breathing protection.
Warning!
Unplug themains lead immediately if it has become damaged or has
fastened or become entangled in anything. Always unplug themains lead
before changing therouter bit or carrying out any maintenance, or service.
Protection class 2
• Hold thepower tool tightly with both hands while working and ensure
asecure footing. Thepower tool is guided more securely with both hands.
• Wait until thepower tool has stopped before placing it down. Theattachment
tools can jam and lead to aloss of control over thepower tool.
• Avoid contact with thetool or theworkpiece immediately after processing.
Theparts may be hot and cause burn injuries.
Vibration
• Themeasurement of thevibration emission level declared in this instruction manual
has been carried out in accordance with astandardised test method described in
EN60745 and can be used for comparing one power tool with another.
• Themeasurement method may also be used for apreliminary assessment of
vibration exposure.
• Thedeclared vibration emission level applies when thepower tool is used in
accordance with this instruction manual. If however, thepower tool is used for
other purposes and with other accessories or has not been properly maintained,
thevibration emission level could increase significantly over thetotal working period.
• For anexact assessment of thevibration exposure, thetimes when thetool is
switched off or running idle should also be taken into account. This significantly
reduces thevibration exposure over thetotal working period. Decideupon safety
measures to protect theoperator from theeffects of vibration during all types of use.
Product safety symbols

ENGLISH
7
1 2 3 4
5
6
7
8
9
10
11121314
15
16
17
18
19

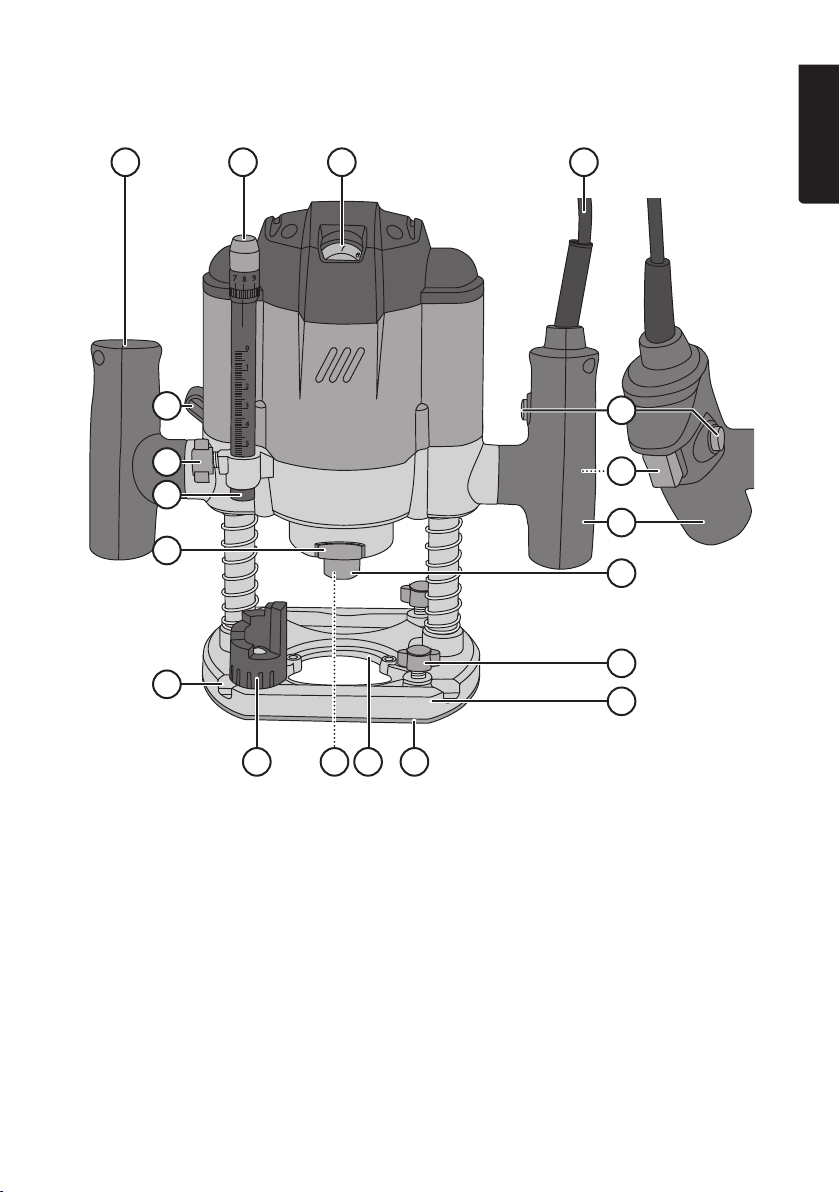

Product description
1. Left handle
2. Depth stop fine-adjustment knob
3. Rotation speed selection switch
4. Mains lead
5. Switch lock button
6. Power switch (on/off)
7. Right handle
8. Collet nut
9. Parallel guide locking knob
10. Base plate
11. Sliding plate
12. Fixing holes for dust extractor
13. Collet chuck 8mm
14. Step limit
15. Parallel guide rod track
16. Spindle lock
17. Depth stop
18. Depth stop locking knob
19. Height adjustment locking lever

ENGLISH
8
20 21 22 23 24 25 26
29 28 27
20. Dust extraction port adaptor
21. Screws for dust port adaptor and template guide
22. Collet chuck 6mm
23. Centring pin
24. Parallel guide
25. Template guide
26. Spanner
27. Allen key
28. Guide rods for parallel guide
29. Reducer for dust extraction adaptor

ENGLISH
9
16
8
26
24289
15

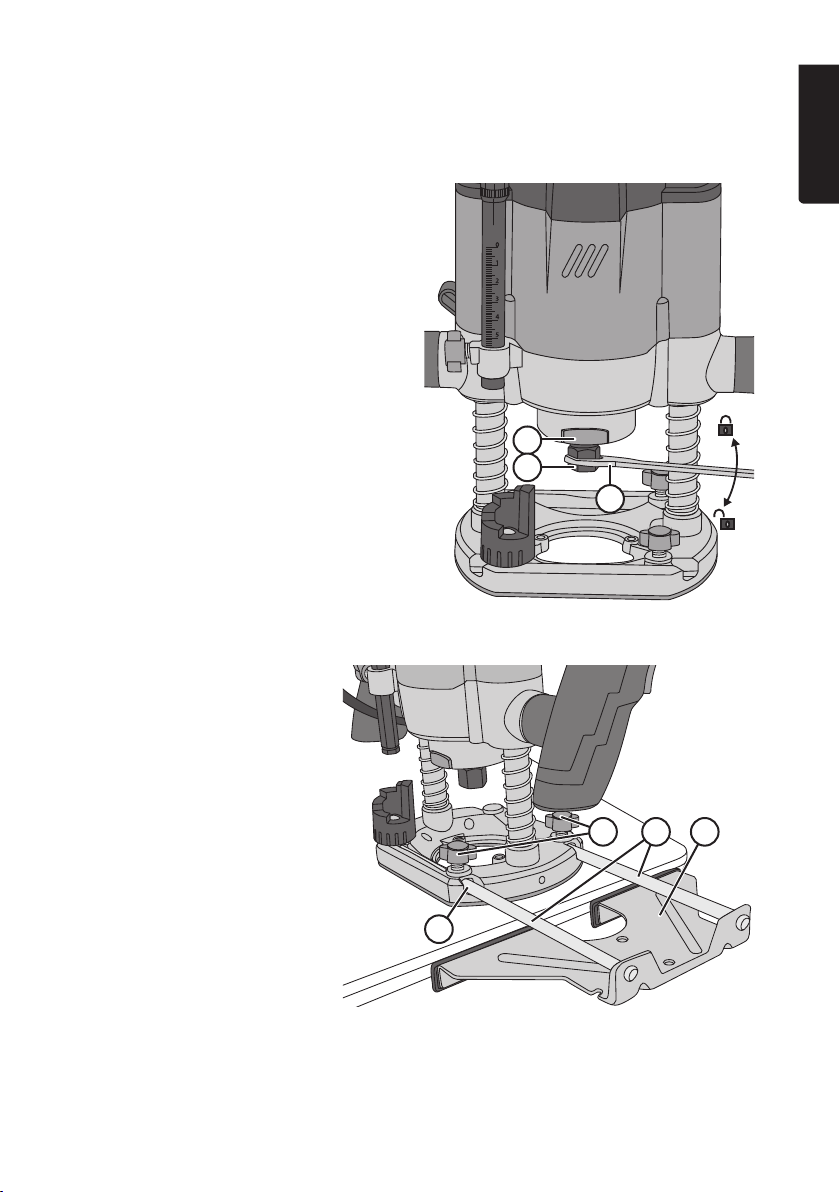

Operating instructions
Router cutting tting
Important!
• Unplug therouter before any service
or adjustment.
• Bear in mind that thecutter shank
diameter must be compatible with
both thecollet size and speed.
• Turn therouter upside down.
• Press in thespindle lock button (16).
• Undo thenut (8) using thespanner (26).
• Insert thecutter using
theappropriate collet, 6 or 8 mm.
• Tighten thecollet nut using thespanner.
Attaching and adjusting the parallel guide
• Secure thetwo guide
rods (28) to theparallel
guide (24) using thescrews.
• Undo thelocking knobs (9).
• Slide theparallel guide rods
through theholes (15).
• Adjust to asuitable setting.
• Tighten thelocking knobs .

ENGLISH
10
Fitting the centring pin for circle cutting
Therouter can be used to cut arcs and circles with thehelp of thecentring pin.
1. Drill ahole in thecentre of
thecircle that is to be cut out.
2. Turn theparallel guide upside
down and fasten thecentring pin
into one of theholes.
3. Set thecorrect radius for thecircle.
4. Tighten theguide rod locking knob.
5. Stick thepoint of thecentring pin
into thecentre hole of thecircle to
be cut.
6. With therouter switched off,
move therouter around thecircle
to check if it is theright size and
make any adjustments.
7. Cut thecircle in stages, lowering
therouter cutter about 2mm on
each circuit. Do not try to cut too
deeply in one go.
Fitting the template guide and dust extraction adaptor
Template guide Dust extraction port adaptor
Attach thetemplate guide using
theincluded screws.
Place thedust extraction port adaptor
onto thebase plate and fasten it with
thesupplied screws.
