Cole Parmer CB-200 Series User manual

Instruction Manual
6106334 Version 4.2
Cole-Parmer®
CB-200 Series
Block Cooling Unit

CONTENTS
PAGE
2
3
3
4
6
8
10
12
14
15
16
16
16
16
17
17
18
18
19
19
19
20
21
21
21
21
22
INTRODUCTION
BEFORE USE
Unpacking
SAFETY AND INSTALLATION
SÉCURITÉ ET CONSIGNES D'INSTALLATION
SICHERHEITS- UND INSTALLATIONSINFORMATIONEN
INFORMAZIONI SULLA SICUREZZA E
INFORMACIÓN DE SEGURIDAD E INSTALACIÓN
INSTALACIÓNl CONTACT INFORMATION
SPECIFICATION
OPERATION
Installation
Power up Screen

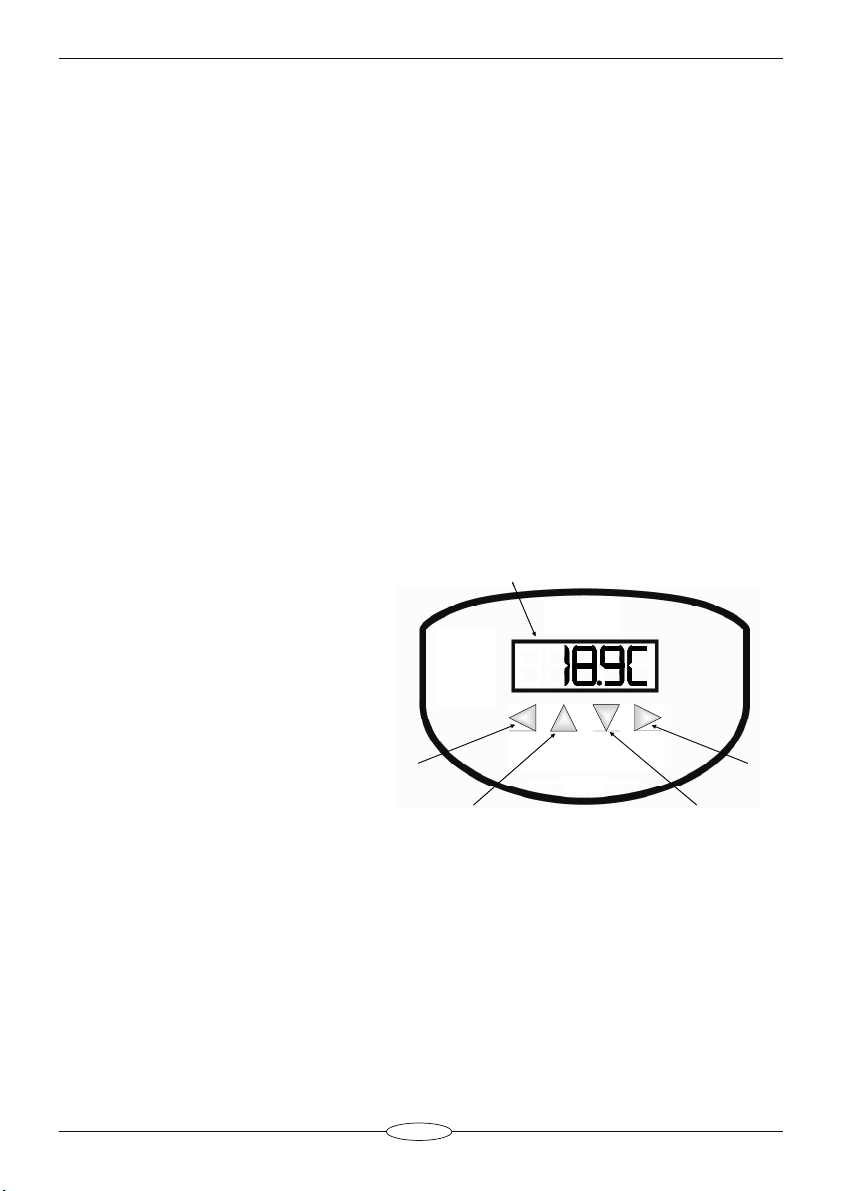

Front Panel Controls
Setting the Operating Temperature
Changing the Timer Mode
Setting the Count Down Time
Starting the Timer
Changing the Temperature Units
After Use
User Maintenance
FAQS
ADDITIONAL INFORMATION
Fault Finding
Fuses
Insulation Tests
ACCESSORIES
REPLACEMENT PARTS 23
2

INTRODUCTION
The CB-200D is a Peltier controlled cooling/warming device which is ideal for incubating sample tubes
at temperatures in the range of 0 to 40ºC. The unit has an integral count down/count up timer with
audible alarm to set and monitor reaction times.
The CB-200D can hold two interchangeable aluminium insert blocks or one 96-well plate block
for cooling a variety of tube formats. The blocks help to maintain a temperature stability of ±0.2ºC
for precise control of reaction temperature.
The unit is supplied with a dark plastic lid which maintains the cooled environment and helps to
protect light-sensitive reagents.
3

BEFORE USE
Before using the CB-200D please make sure you have read this manual carefully. If there is any doubt
relating to the proper use of this equipment, the staff at Antylia Scientific or your supplier will
be happy to assist you.
UNPACKING
When unpacking the unit please ensure that the following have been removed from the packaging:
•CB-200D
•Mains cables (UK, EU and US)
•Operator’s manual
Note: Block inserts should be ordered separately.
The user is advised to keep the original packaging in case the instrument ever needs to be returned for
service or repair. Antylia Scientific accepts no responsibility for damage incurred unless the unit is
correctly packed and transported in its original packaging.
4

SAFETY AND INSTALLATION
Please read all the information in this manual before using the CB-200D.
WARNING
Contact with low-temperature objects may cause cold burns. Users should be aware of the
following potential hazards:
•USE CARE AND WEAR PROTECTIVE GLOVES TO PROTECT HANDS
•DO NOT place any liquid directly into the instrument.
•DO NOT position the product so that it is difficult to access the ON/OFF switch or disconnect it
from the mains supply using the mains plug.
OPERATOR SAFETY
All operators of Cole-Parmer equipment must have available the relevant literature needed to
ensure their safety. It is important that only suitably trained personnel operate this equipment, in
accordance with the instructions contained in this manual and with general safety standards and
procedures. If the equipment is used in a manner not specified by Antylia Scientific the
protection provided by the equipment to the operator may be impaired.
All Cole-Parmer instruments are designed to conform to international safety requirements and are fi tted
with an over-temperature cut-out. If a safety problem should be encountered, switch off the unit at the
mains socket and remove the plug from the electricity supply.
If the equipment is not used in the manner described in this manual and with accessories other than
those recommended by Antylia Scientific Ltd, the protection provided may be impaired.
INSTALLATION
The instrument should be carried using both hands. Never move or carry the instrument when in use or
connected to the mains electricity supply.
1. All Cole-Parmer instruments are supplied with a power cable; this may be integral or plug-in.
2 . Before connecting the instrument to the mains electricity supply, check the voltage
against the rating plate (located on the back of the unit). Please note that the unit
must be earthed to ensure proper electrical safety. Connect the mains cable to
a suitable plug according to the table below.
3. UK ONLY: The fused plug supplied with the mains cable is fitted with a 10 amp fuse to
protect the instrument and the operator.
4. The units are rated to operate at 100-230V, 50/60Hz.
5. Place the unit on a suitable flat bench or in a fume cupboard if required, ensuring that the
air vents on the rear and underside are free from obstruction.
5
Connection 220/240V, 50/60Hz Supply 110V/120V Supply, 50/60Hz
Live Brown Black
Neutral Blue White
Earth Green/yellow Green

6. Plug the mains cable into the socket on the back of the instrument.
7. Switch on the instrument. Symbols on or near the power switch of the unit have the following
meanings:
I Mains Switch On
O Mains Switch Off
REPLACEMENT CABLE
Should the mains lead need replacement, a cable of 1mm2 of harmonized code H05VV-F connected to
an IEC320 plug should be used. IF IN DOUBT CONSULT A QUALIFIED ELECTRICIAN.
ENVIRONMENTAL CONDITIONS
The CB-200D is designed to operate under the following conditions:
•Indoor use
•Ambient temperature range +5ºC to +40ºC
•Altitude to 2000m
•Relative humidity not exceeding 80%
•Mains supply fluctuations not exceeding 10%
•Over voltage category II IEC 60364-4-443
•Pollution degree 2
Note: The control specifi cations are quoted at an ambient temperature of 20ºC. The specifi cation may
deteriorate outside an ambient temperature of between 10ºC and 30ºC.
The instrument has been tested for radio frequency interference and is certifi ed under EN61326.
6

7
SÉCURITÉ ET CONSIGNES D’INSTALLATION
Veuillez lire attentivement toutes les instructions de ce document avant d’utiliser le CB-200D.
AVERTISSEMENT
Le contact avec les objets à basse température peut causer les brûlures froides. Les utilisateurs
devraient se rendre compte des risques suivants:
•PROCEDER AVEC PRUDENCE ET PORTER DES GANTS POUR SE PROTEGER LES MAINS
•NE PAS verser de liquides directement dans l’appareil.
SÉCURITÉ DE L’OPÉRATEUR
Tous les utilisateurs de produits Cole-Parmer doivent avoir pris connaissance des
consignes et instructions nécessaires à la garantie de leur sécurité. Important: cet appareil doit
impérativement être manipulé par un personnel qualifié et être utilisé selon les instructions données
dans ce document, en accord avec les normes et procédures de sécurité générales. Dans le cas où cet
appareil ne serait pas utilisé selon les consignes précisées par Antylia Scientific, la protection pour
l’utilisateur ne serait alors plus garantie.
Tous les appareils Cole-Parmer sont conçus pour répondre aux normes de sécurité internationales
et sont dotés d’un coupe-circuit en cas de surchauffe. En cas de problème de sécurité, couper
l’alimentation électrique au niveau de la prise murale et enlevez la prise connectée à l’appareil.
INSTALLATION
Porter l’appareil à deux mains. Ne jamais déplacer ou transporter l’appareil lorsqu’il est en
fonctionnement ou branché à l’alimentation électrique.
3. ROYAUME-UNI SEULEMENT: La prise avec fusible intégré fournie avec le câble secteur est
munie d’un fusible 10 A destiné à protéger l’appareil et l’utilisateur.
4. Les unités sont évaluées pour fonctionner à 100-230V, 50/60Hz.
Connexion Alimentation 220/240V, 50/60Hz Alimentation 110V/120V, 50/60Hz
Phase Marron Noir
Neutre Bleu Blanc
Terre Vert/jaune Vert
1. Tous les appareils Cole-Parmer sont livrés avec un câble d’alimentation, qui peut être intégré à
l’appareil ou à raccorder.
2 . Avant de raccorder l’appareil à l’alimentation électrique sur secteur, vérifier la tension
requise indiquée sur la plaque d’identification (située au dos de l’appareil). Il est important
que l’appareil soit relié à la terre pour assurer la protection électrique requise. Brancher le
câble secteur sur une prise appropriée, voir tableau ci-après.

8
5. Placez l’unité sur un banc plat approprié ou dans un compartiment de vapeur s’il y a lieu, en
s’assurant que les évents sur l’arrière et le dessous sont exempts de l’obstruction.
6. Raccorder le câble d’alimentation à la prise située à l’arrière de l’appareil.
7. Allumer l’appareil. Les symboles situés sur ou à côté de l’interrupteur de l’appareil ont la
signification suivante :
I Interrupteur secteur en position Marche
O Interrupteur secteur en position Arrêt
CÂBLE DE RECHANGE
S’il s’avère nécessaire de remplacer le cordon d’alimentation, utiliser un câble de 1 mm² conforme
à la norme H05VV-F relié à une prise IEC320. EN CAS DE DOUTE, CONSULTER UN
ELECTRICIEN QUALIFIE.
CONDITIONS ENVIRONNEMENTALES
Le CB-200D est conçu pour fonctionner dans les conditions suivantes:
•Pour un usage intérieur seulement
•Température ambiante +5°C à +40°C
•Altitude inférieure à 2000m
•Humidité relative ne dépassant pas 80%
•Fluctuations de l’alimentation n’excédant pas 10% de la valeur nominale
•Catégorie II IEC 60364-4-443 de surtension
•Degré de pollution 2
Remarque: Les paramètres sont indiqués pour une température ambiante de 20°C. Ces
caractéristiques peuvent se détériorer en dehors d’une température ambiante de 10 à 30°C.
L’appareil a été testé en matière de radiofréquences et est certifi é selon la norme EN61326.

9
SICHERHEITS- UND INSTALLATIONSINFORMATIONEN
Lesen Sie diese Anleitung vor Verwendung des CB-200D bitte sorgfältig durch.
ACHTUNG
Kontakt mit niedrigtemperaturgegenständen kann kalte Brände verursachen. Benutzer sollten die
folgenden möglichen Gefahren berücksichtigen:
•UMSICHTIG VORGEHEN UND SCHUTZHANDSCHUHE TRAGEN
•Flüssigkeiten NICHT direkt auf das Gerät auftragen.
SICHERHEIT DES BEDIENPERSONALS
Alle Benutzer von Cole-Parmer Geräten müssen Zugang zu der entsprechenden Literatur haben,
um ihre Sicherheit zu gewähren. Es ist wichtig, daß diese Geräte nur von entsprechend geschultem
Personal betrieben werden, das die in dieser Gebrauchsanweisung enthaltenen Maßnahmen und
allgemeine Sicherheitsbestimmungen und - vorkehrungen beachtet. Wenn das Gerät anders eingesetzt
wird als vom Hersteller empfohlen, kann dies die persönliche Sicherheit des Anwenders beeinträchtigen.
Die Geräte von Cole-Parmer entsprechen den internationalen Sicherheitsbestimmungen und sind mit
einem automatischen Übertemperaturabschalter ausgestattet. Wenn ein Sicherheitsproblem auftreten
sollte, muß das Gerät ausgeschaltet und vom Stromnetz getrennt werden.
INBETRIEBNAHME
Das Gerät mit beiden Händen tragen. Das Gerät unter keinen Umständen transportieren, wenn es
in Betrieb ist, oder während das Gerät noch am Netz angeschlossen ist.
1. Alle Geräte von Cole-Parmer werden mit einem Netzkabel geliefert, das entweder eingesteckt
wird oder fest mit dem Gerät verbunden ist.
2. Vor dem Anschluss bitte kontrollieren, ob die Stromversorgung den Angaben auf dem
Typenschild (auf der Geräterückseite) entspricht. Um die elektrische Sicherheit zu
gewährleisten, muss dieses Gerät geerdet werden. Schließen Sie das Netzkabel
entsprechend der folgenden Tabelle an einen geeigneten Stecker an.
3. NUR FÜR GROSSBRITANNIEN: der mit dem Netzkabel gelieferte Sicherungsstecker enthält eine
10 Amp. Sicherung zum Schutz des Geräts und des Anwenders.
4. Die Maßeinheiten werden veranschlagen, um an 100-230V, 50/60Hz zu funktionieren.
Anschluss 220/240V, 50/60Hz 110V/120V, 50/60Hz
Phase Braun Schwarz
Neutral Blau Weiß
Erde Grün/Gelb Grün

5. Legen Sie die Maßeinheit auf eine verwendbare flache Bank oder in einen Dampfschrank wenn
erforderlich und garantieren, dass die Luftentlüftungsöffnungen auf der Rückseite und der
Unterseite vom Hindernis frei sind.
6. Stecken Sie das Netzkabel in die Buchse auf der Geräterückseite ein.
7. Schalten Sie das Gerät ein:
I Netzschalter Ein
O Netzschalter Aus
ERSATZKABEL
Bei einem eventuellen Austausch des Netzkabels wird ein Kabel vom Typ H05VV-F mit 1
mm2 Adernquerschnitt und Europastecker (IEC 320) benötigt. IM ZWEIFELSFALL EINEN
ELEKTRO-FACHMANN HINZUZIEHEN.
UMWELTBEDINGUNGEN
Der CB-200D ist für den Einsatz unter folgenden Bedingungen ausgelegt:
•Gebrauch in Innenräumen
•Umgebungstemperatur zwischen +5ºC an +40ºC
•Höhe: bis zu 2000 m
•Relative Feuchte nicht über 80%
•Netzspannungsschwankungen nicht über 10%
•Überspannungsklasse 2 IEC 60364-4-443
•Verschmutzungsgrad 2
Hinweis: Die Gerätespezifi kationen beziehen sich auf eine Umgebungstemperatur von 20ºC und
können sich außerhalb des Bereichs 10ºC bis 30ºC verschlechtern.
Das Gerät wurde auf HF-Störeinfl üsse geprüft und entspricht den EMV-Bedingungen nach EN61326.
10

INFORMAZIONI SULLA SICUREZZA E L’INSTALLAZIONE
Leggere attentamente il presente manuale prima di usare il CB-200D.
AVVERTENZA
Il contatto con gli oggetti a bassa temperatura può causare le ustioni fredde. Gli utenti dovrebbero
essere informati di seguenti rischi potenziali:
•PRESTARE ATTENZIONE ED INDOSSARE GUANTI PROTETTIVI PER LE MANI
•NON collocare alcun tipo di liquido direttamente nello strumento.
SICUREZZA DELL’OPERATORE
Il personale che utilizza l’apparecchiatura Cole-Parmer deve avere a disposizione la documentazione
necessaria al fine di assicurare la loro incolumità. È importante che solo personale adeguatamente
addestrato utilizzi questo apparecchio, in conformità alle istruzioni contenute in questo manuale e
nel rispetto delle normative e procedure generali di sicurezza. Se l’apparecchio è utilizzato in
modo non specificato da Antylia Scientific, la protezione fornita dall’apparecchiatura all’utilizzatore
potrebbe essere a rischio.
Tutte le unità Cole-Parmer sono state progettate in conformità ai requisiti internazionali di
sicurezza e sono equipaggiate con un interruttore anti surriscaldamento. Se si dovesse
verificare qualche problema di sicurezza, disconnettere l’apparecchio dalla rete.
INSTALLAZIONE
Occorre trasportare lo strumento usando entrambe le mani. Non spostare né trasportare lo
strumento quando è in funzione o collegato all’alimentazione elettrica di rete.
1. Tutti gli strumenti Cole-Parmer sono forniti con un cavo di alimentazione; può essere integrale o
plugin.
2. Prima di collegare lo strumento all’alimentazione elettrica di rete, controllare la tensione
confrontandola con la targhetta riportante i valori nominali (si trova sul retro dell’unità).
Notare che al fine di garantire la corretta sicurezza elettrica, occorre che l’unità
sia messa a terra. Collegare il cavo di rete ad una presa idonea secondo la
tabella riportata alla pagina successiva.
3. SOLO REGNO UNITO: la spina con fusibile fornita con il cavo di rete è dotata di un fusibile da
10 Amp per proteggere lo strumento e l’utente.
4. Le unità sono stimate funzionare a 100-230V, 50/60Hz.
11
Connessione 220/240V, Alimentazione 50/60Hz Alimentazione 110V/120V, 50/60Hz
Sotto tensione Marrone Nero
Neutro Blu Bianco
Terra Verde/giallo Verde

12
5. Disponga l’unità su un banco piano adatto o in un armadietto di vapore a richiesta, accertandosi
che i cunicoli di ventilazione sulla parte posteriore e sul lato siano esenti dall’ostruzione.
6. Inserire il cavo di rete nella presa che si trova sul retro dello strumento.
7. Accendere lo strumento:
I Interruttore di rete Acceso
OInterruttore di rete Spento
CAVO DI RICAMBIO
Qualora occorra sostituire il cavo di rete, si dovrà utilizzare un cavo di 1mm2codice armonizzato H05VV-F
collegato ad una spina IEC 320. IN CASO DI DUBBIO, RIVOLGERSI A UN ELETTRICISTA QUALIFICATO.
CONDIZIONI AMBIENTALI
Il CB-200D è stato progettato per funzionare nelle seguenti condizioni:
• uso interno
• range di temperatura ambiente da +5ºC a +40ºC
• altitudine massima 2000 m.
• umidità relativa non superiore all’80%
• oscillazione dell’alimentazione di rete non superiore al 10%
• categoria di sovratensione II IEC 60364-4-443
• grado di inquinamento 2
Nota: le specifi che di controllo sono indicate ad una temperatura ambiente di 20ºC. Le specifi che
potrebbero peggiorare fuori da una temperatura ambiente compresa tra 10ºC e 30ºC.
Lo strumento è stato collaudato per interferenze da radiofrequenze ed è certifi cato secondo la norma
EN61326.

INFORMACIÓN DE SEGURIDAD E INSTALACIÓN
Lea atentamente este manual antes de utilizar el CB-200D.
ADVERTENCIA
El contacto con los objetos a baja temperatura puede causar quemaduras frías. Los usuarios deben
ser conscientes de los peligros potenciales siguientes:
•TENGA CUIDADO Y LLEVE GUANTES DE PROTECCIÓN PARA PROTEGERSE LAS
MANOS
•NO coloque un líquido directamente en el instrumento.
SEGURIDAD DEL OPERARIO
Todos los usuarios de equipos Cole-Parmer deben disponer de la información necesaria para
asegurar su seguridad. De acuerdo con las instrucciones contenidas en este manual y con las normas y
procedimientos generales de seguridad, es muy importante que sólo personal debidamente
capacitado opere estos aparatos. De no ser así, la protección que el equipo le proporciona al usuario
puede verse reducida.
Todos los equipos Cole-Parmer han sido diseñados para cumplir con los requisitos internacionales de
seguridad y traen incorporados un sistema de desconexión en caso de sobre temperatura. En caso de
que surgiera un problema de seguridad, desconecte el equipo de la red.
INSTALACIÓN
El instrumento se debe transportar con las dos manos. No mueva ni lleve el instrumento cuando se utilice
oesté conectado al suministro eléctrico principal.
1. Todos los instrumentos Cole-Parmer se suministran con un cable de alimentación, que puede ser
integrado o ‘enchufable’.
2. Antes de conectar el instrumento al suministro eléctrico, compruebe que el voltaje
coincida con el indicado en la placa de régimen (situada en la parte trasera de la unidad).
El instrumento debe disponer de una toma de tierra para garantizar la seguridad
eléctrica adecuada. Conecte el cable de alimentación a un enchufe adecuado según la
siguiente tabla.
3. SÓLO PARA EL REINO UNIDO: El enchufe suministrado con el cable de alimentación incluye un
fusible de 10 amperios para ofrecer protección al instrumento y al usuario.
4. Las unidades se clasifican para funcionar en 100-230V, 50/60Hz.
5. Ponga la unidad en un banco plano conveniente o en un armario de humo si procede,
asegurándose de que las salidas de aire en la parte posterior y el superficie inferior están libres de
la obstrucción.
13
Conexión 220/240V, 50/60Hz 110V/120V, 50/60Hz
Con corriente Marrón Negro
Neutro Azul Blanco
Toma de tierra Verde/amarillo Verde

6. Conecte el cable de alimentación en el enchufe situado en la parte trasera del instrumento.
7. Encienda el instrumento:
IInterruptor de alimentación encendido
OInterruptor de alimentación apagado
CABLE DE REPUESTO
Si es necesario sustituir el cable de alimentación, se debe utilizar un cable de 1mm2 de código armonizado
H05VV, conectado a un enchufe IEC320. EN CASO DE DUDA, PÓNGASE EN CONTACTO CON UN
ELECTRICISTA.
CONDICIONES AMBIENTALES
El CB-200D está diseñado para utilizarse en las condiciones siguientes:
• Uso en interior
• Intervalo de temperatura ambiente +5ºC a +40ºC
• Altitud: hasta 2000 m
• Humedad relativa no superior al 80%
• Fluctuaciones del suministro eléctrico no superiores al 10%
• Categoría de sobrevoltaje II IEC 60364-4-443
• Nivel de contaminación 2
Nota: Las especificaciones de control corresponden a una temperatura ambiental de 20ºC. Las
especificaciones pueden empeorar si se utiliza el instrumento fuera del intervalo de temperatura
comprendido entre 10ºC y 30ºC.
Se han realizado pruebas para comprobar la interferencia de radiofrecuencia del instrumento, el cual
cumple la normativa EN61326.
14

SPECIFICATION
Temperature
Temperature range
Temperature accuracy
Temperature units
Cooling technology
Temperature display resolution
Temperature display
Timer
0.0 to 40.0°CI±1°C
°C or °F
Peltier
0.1°C
Orange LED, 5 digits
m/s, h/m, d/h up to 9 days
Dimensions
Height 225mm
Width 240mm
Length 190mm
Weight* 3.0kg
*Shipping weight excludes block inserts which must be ordered separately
Power
Power supply 100 to 230V, 50/60Hz, 75W
IÊ*i>ÃiÊÌiÊÌiÊ«À>ÀÞÊ`iÃ}ÊvÊcÊÃÊÌÊ>Ì>ÊL}V>ÊÃ>«iÃÊÃ>viÞÊLiÌÜiiÊ{cÊ>`ÊÎÇc°Ê
CB-200D ÜÊ>ViÛiÊ>ÞÊÌi«iÀ>ÌÕÀiÊÊÌÃÊÀ>}iÊÜÌÊÎäÊÕÌiÃÊÊ>Ê>LiÌÊÌi«iÀ>ÌÕÀiÊvÊÓäc°Ê
CB-200DÊÜÊ>ÃÊÀi>VÊäcÊÀÊ{äc]ÊLÕÌÊÌÃÊ>ÞÊÌ>iÊÃiÛiÀ>ÊÕÀðÊ,i>V}ÊäcÊV>ÊLiÊëii`i`Õ«ÊLÞÊ
«ÀiV}ÊÌiÊ>ÕÕÊLVÃÊLivÀiÊÕÃi°15
Fuse Glass 5x20mm, T5A, 250V

16
OPERATION
INSTALLATION
See also the sections on Safety and Installation.
1. Place the unit on a suitable flat bench or in a fume cupboard if required, ensuring that the air vents
on the rear and underside are free from obstruction.
2. Plug the mains cable into the socket on the back of the instrument.
3. Place the required block inserts inside the unit. Up to two standard block inserts or one 96-well
block insert can be used.
4. Connect to the mains electricity supply with the plug provided or one wired correctly for the supply.
Switch the power ON from the switch located next to the mains input lead. The front display will
then light up.
POWER UP SCREEN
When first switched on, the display will show the name of the product and then show the current
temperature of the unit. The unit will then proceed to heat or cool to the last set temperature.
FRONT PANEL CONTROLS
The front panel consists of four buttons for
setting the unit temperature and timer and a 5
digit LED display.
The SET Button
Use this button to view and set the temperature,
set the timer to count up or down, set the count
down time and set the temperature units.
The PLUS Button
Use this button to increase a temperature
or time value and to start the timer.
The MINUS Button
Use this button to decrease a temperature
or time value and to pause the timer.
The TIMER button
Use this to view the set count down time
and to start the timer.
PLUS Button MINUS Button
LED Display
+-
set timer
SET
Button
TIMER
Button
PLUS Button MINUS Button
LED Display
+-
set timer
SET
Button
TIMER
Button

17
SETTING THE OPERATING TEMPERATURE
1. To view the current set temperature,
press the SET button. The set
temperature will be displayed and is
indicated by the set point indicator in
the top left hand corner of the display.
2. To edit the set temperature, press and
hold the SET button until the set point
indicator moves one position to the
right. This is the edit position. Release
the SET button.
3. To increase the set temperature, whilst
the indicator is in the edit position,
press the PLUS button. Holding down
the PLUS button will cause the value to
increase rapidly. A single press of the
PLUS or MINUS buttons will increase or
decrease the set temperature by 0.1ºC.
4. To decrease the set temperature, whilst
the indicator is in the edit position,
press the MINUS button. Holding down
the MINUS button will cause the value
to decrease rapidly. A single press of the
PLUS or MINUS buttons will increase or
decrease the set temperature by 0.1ºC.
5. Once the set temperature has been
changed, the unit will heat or cool to
the new set temperature. A buzzer will
sound once a stable temperature has
been reached.
CHANGING THE TIMER MODE
The timer can be set to count up, count down
or be disabled.
6. To change the timer mode, press the
SET button twice, holding the button
down on the second press until the
indicator point appears.
7. Press the PLUS button to toggle
between dfor count down, ufor count
up and - - - - for timer disabled.
8. A few seconds after the buttons have
been released the unit will automatically
revert to the temperature display.
+-
set timer
Set Point Indicator
+-
set timer
+-
set timer
+-
set timer
+-
set timer
Set Point Indicator
+-
set timer
Edit Set Point Indicator
+-
set timer
+-
set timer
+-
set timer
+-
set timer
Edit Set Point Indicator
+-
set timer
Indicator point
+-
set timer
+-
set timer
Indicator point

18
SETTING THE COUNT DOWN TIME
The timer can be set to count down time in
minutes and seconds, hours and minutes or days
and hours up to a maximum of 9 days.
9. First set the timer to count down mode as
described in steps 6 to 8.
10. To set the count down time, press the SET
button 3 times, holding the button down
on the third press until the indicator point
appears next to the letter t.
11. To increase the count down time, press
the PLUS button. Holding down the PLUS
button will cause the value to increase
rapidly. A single press of the PLUS or
MINUS buttons will increase or decrease
the time by 1 unit (s, m, h or d).
12. To decrease the count down time, press
the MINUS button. Holding down the
MINUS button will cause the value to
decrease rapidly. A single press of the
PLUS or MINUS buttons will increase or
decrease the time by 1 unit (s, m, h or d).
STARTING THE TIMER
The timer is activated using the TIMER button.
The timer will not begin to count up or down
until a stable temperature has been reached.
13. To view the timer setting, press the TIMER
button. This will show whether the timer
is in count down mode (d), count up
mode (u) or disabled (- - - -). If the timer
is in count down mode, the set time will
also be shown. To change the count
down time, follow steps 9-12.
14. To activate the timer, press the TIMER
button twice, holding down on the
second press until the letter tappears.
15. To start the timer, press the PLUS button.
The letter twill flash while the timer is in
operation (either counting up or counting
down).
16. To pause the timer, press the MINUS
button.
+-
set timer
Indicator point
+-
set timer
+-
set timer
Indicator point
+-
set timer
+-
set timer
+-
set timer

19
17. To restart the timer after a pause, press
the PLUS button.
18. To stop the timer and reset, press the
TIMER button.
19. When the count down timer reaches
zero, a buzzer will sound and the timer
will begin to count up to indicate the
over-run time. To stop the buzzer, press
the TIMER button.
CHANGING THE TEMPERATURE UNITS
The temperature of the display can be shown
in either ºC or ºF.
20. To change the temperature units, press
the SET button 4 times, holding the
button down on the fourth press until
the indicator point appears next to the
letter U (units).
21. Press the PLUS button to toggle
between ºC and ºF.
22. A few seconds after the buttons have
been released the unit will automatically
display the current temperature in the
selected units.
AFTER USE
After cooling samples, the bucket and beads may be very cold. Allow to warm to ambient conditions
before lifting from the unit or wear protective gloves. Avoid handling cold objects with wet hands.
USER MAINTENANCE
Before cleaning the unit, disconnect it from the power supply. The outer case of the CB-200D may be
wiped clean with a damp cloth; ethanol, methanol or formaldehyde can also be used. No part of the
case or cover should be immersed in the solvents. Do not use aggressive solvents such as acetone
or abrasive cleaners. Allow the unit to dry before using.
Before using any cleaning or decontamination method except those recommended here, the responsible
person should check with Antylia Scientific that the proposed method will not damage the equipment.
+++ ---
ssseeettttttiiimmmeeerrr
IInnddiicatocator r ppoioinntt

20
FAQ'S
Q1 How can I cool the beads more quickly?
A1 If you intend to use the CB-200D to keep samples cool, then the block inserts can be
stored in a refrigerator and then inserted into the unit when required.
Q2 I have a Cole-Parmer Block Heater; can I use the block inserts I already use with this?
A2 Yes. The CB-200D will accept any two standard block inserts from the Block Heater range
or a single 96-well block insert.
If you require further technical or application assistance please contact Antylia Scientific at:
Antylia Scientific Ltd.
Service Department,
Beacon Road,
Stone,
Staffordshire,
ST15 0SA,
Email: [email protected]
Phone: [phone]
If you require further technical or application assistance please contact:
Email: [email protected]
Phone: [phone]
We are continually striving to improve our products and software. If you have any comments and
suggestions on how we can do things better please send them to us at: [email protected]
ADDITIONAL INFORMATION
Note that this equipment should only be dismantled by properly trained personnel. Removing
the outer cover exposes potentially lethal mains voltages. There are no user serviceable parts within this
equipment.
FAULT FINDING
Should you have any problems with your CB-200D which cannot be easily remedied, you
should contact your supplier and return the unit if necessary. Please include details of the fault
observed and remember to return the unit in its original packing. Antylia Scientific accepts no
responsibility for damage to units which are not properly packed for shipping: if in doubt, contact
your supplier, giving the full serial number of the unit.
