COMGROW COMGO Z1 User manual

User Manual V1.1
COMGO Z1 Laser Engraver
COMGO Z1 Laser Engraver
After Sales Service
Comgrow official will provide you with a one-year warranty service, if you
encounter any problems in the process of use, please contact Comgrow offi-
cial or visit Comgrow official website for more product information.
Comgrow Amazon after-sale service: [e-mail]
Comgorw Website after-sale service: [e-mail]

Catalogs
Introduction
Dear Customers,
Thank you for choosing the COMGO Z1 Laser Engraver!
The COMGO Z1 Laser Engraver is a desktop laser engraver. Before operating the COMGO Z1 Laser
Engraver, please read the manual carefully and follow the instructions for assembly and operation. If
this manual does not effectively solve your problem, please contact our support team.
Comgrow was founded in 2017 by people who have a serious passion for technology that helps you
make things.With this deep-rooted dedication, we wanted to make the digital manufacturing pro-
cess more accessible, giving educators, engineers, manufacturers, small businesses and tinkerers
the power to make anything.
Headquartered in Southern China,Shenzhen, Comgrows' dedicated staff is committed to providing
the kind of service that makes you go "wow."We offer the highest quality materials, machines, and
accessories - ranging from industrial-grade 3D printers to DIY laser cutters- all of which have been
tested and approved by our in-house experts.Our amazing gals and guys in customer service are
here Monday through Saturday to help with anything you may need, from finding the right material
to package your specific product, to discussing which printer is best for you.Bottom line is, we're here
to make 3D printing, laser cutting, and CNC milling magic happen.Contact us.
010101 Introduction
02 Cautions
03 Parameters
04 Machine Display
05 Part List
06 Frame Assembly
07 Board Module Diagram
08 Software Installation Guide
1.Laser GRBL Tutorial
2.Lightburn Tutorial
09 WIFI module installation
10 APP Usage Instruction
11 Engraving Parameters
12 Troubleshooting
01
02
03
04
05
06
15
16
17
21
29
30
37
39

0203Cautions
1. The COMGO Z1 Laser Engraver is for indoor use only and you must be 18 years of age or above
to operate this machine.
2. Please wear appropriate protective equipment when you are operating the equipment (e.g.
laser protection glasses, etc.)
3. Please place the machine in a horizontal position before use.
4. COMGO Z1 Laser Engraver provides switchable power supply 230V AC or 110V AC with 24V
output voltage, it is forbidden to use other power supplies or laser modules, which may lead to
machine failure or damage.
5. Do not disassemble the power supply or electrical parts. This will void the warranty.
6. Laser cutting different materials will produce different levels of smoke, please place the ma-
chine in a well-ventilated area and use it under supervision.
7. Please maintain the laser module regularly to ensure the life of the laser module.
Paramenters
Machine Size
Working Area
Frame Material
Stepper Motor
Laser module type
Wavelength
Compatible Software
Compatible System
Input Voltage
Laser Power
Focal Length
S-value Range
Connection Method
Engraving Accuracy
Machine Weight
575*575*205mm/22.64*22.64*8.07inch
400*400mm/15.75*15.75 inch
5.0 KG/11lbs
Aluminum
42mm*42mm*34mm
Diode lasers
445nm
LaserGRBL：Windows XP、Windows7、Windows8、Windows10
Lightburn：Windows、Mac OS and Linux
Laser GRBL、Lightburn
AC110V-230V
1.6W/5W/10W
1.6W:30-100mm 5W:23mm 10W:45mm
S0-S1000（0%-100%）USB
0.1mm
NOTE:the focal length is the distance from the lower face of the laser module profile to the engraving plane.

0405Machine Display General List
Lifting Slider
Stepper Motor
Profile CoverSwitchMotherboard
Support Feet
Y-axis Belt
Laser Module
X-axis Kit Support Feet Power Adapter
Laser Module
Profile
Image Name Qty
Safety Goggles
SD Card
USB Cable
M3X6 Screw
Belt
Image Name Qty
M5X8 Screw
Profile Cover
M5X25 Screw
M5 Square Nut
M5 T-Nut
Image Name Qty
Wire holder
Hexagonal wrench
Ties
Open-end wrench
1
4
2
1
1
14
4
4
4
4
1
2
4
2

0607Ready:
Aluminum Profiles(4Pcs)
M5X25 Screw(4Pcs)
Ready:
X-axis assembly
STEP1. Take out all four profiles and use four M5*25 screws for fixing
to complete the gantry installation.
STEP2.Takeout the X-axis assembly and embed it into the profile V-groove from
the rear in the Y-axis direction.
Frame Assembly Pt.1 Frame Assembly Pt.2
Note:the threaded holes are oriented outward.
Note:the threaded holes are
oriented outward.
Note the position of the limit switch!
This threaded hole is positioned
facing inward.
Tip: To watch the installation tutorial video, please visit SD Card.
The scale for this profile is on
the back.

0809Ready:
M5X8 Screw(2Pcs)
Ready:
Support Feet
(4Pcs)
X-axis assembly
STEP3.Use 2 M5*8 screws to fix the motherboard cover to the front
of the gantry.
STEP4.Take out the 4 support feet and install them using 8 M5*8
screws and 4 M5 T-nuts.
Frame Assembly Pt.3 Frame Assembly Pt.4
M5X8 Screw(8Pcs)
M5 T-Nut(4Pcs)

1011Ready:
M5X8 Screw(4Pcs)
Belt(2Pcs)
M5 Square Nut(4Pcs)
Ready:
Profile Cover(4Pcs)
STEP5.Take out 2 belts, put the belts through the two pulleys and the timing
pulley, and fix them with 2 M5*8 screws and M5 square nuts.
STEP6.Take out the 4 profile covers and install them on the profile end faces
at the front and rear ends of the gantry.
Frame Assembly Pt.5 Frame Assembly Pt.6
Diagram of belt installation

12 13Ready:
M3X8 Screw(3Pcs)
Belt(2Pcs)
Ready:
Wire holder
STEP8.Connect the cables of the laser module and the Y-axis limit switch, then
attach the fixing mount to the right front support feet and fix the cables.
STEP7.Take out the laser module, remove the focus slider, use 3 M3*6 screws
then fix the laser module to the focus slider and install the focus slider and
laser module along the original path.
Frame Assembly Pt.7 Frame Assembly Pt.8

14155W 10W
Board Module Diagram
X LimitY LimitWifi-LEDPower-LEDTF CardPower supplyX MotorY1 MotorY2 MotorLaser-PWMLaser-PowerWIFIUSB Port24Voutput
STEP9.Loosen the fixing screws on both sides of the laser module to focus the height of the laser
module. (5W laser module focal length is 23mm, 10W laser module focal length is 45mm)
Frame Assembly Pt.9
23mm
2mm
45mm
7mm -
+

COMGO Z1 Laser Engraver supports the most popular engraving software LaserGRBL.
LaserGRBL is an open source, easy to use and powerful software, but LaserGRBL only sup-
ports Windows (Win XP/Win 7/ Win 8/XP/ Win 10).
For Mac users, you can choose LightBurn, which is also an excellent engraving software, but
this costs $40 (with a free one-month trial for the first installation) and this software also
supports Windows systems.
The COMGO Z1 Laser Engraver receives mobile commands from the computer in real time,
and the engraver needs to stay connected to the computer and cannot close the engraving
software (LaserGRBL or LightBurn) during the engraving process. In addition, the configura-
tion of the computer can affect the speed and even the quality of the engraving. The
following will focus on the installation and use of LaserGRBL software. lightBurn will briefly
explain the installation and configuration process.
1617Tip:It is recommended that you adjust your computer's power settings to
"Never Sleep" mode.
Software Installation Guide
1.Laser Grbl Tutorial(Window)
1.Click "install" to install the software. Note: Computer
RAM needs to be 8GB or more.
2.Click“Tools-Install CH340 Driver”.
Software Installation Guide

18191.Laser Grbl Tutorial(Window)
Software Installation Guide
5.Select the engraving mode and click "Next".
(It is recommended that you select the horizontal
engraving mode).
6.Select carving parameters (M3 for constant power
carving,M4 for variable power).
1.Laser Grbl Tutorial(Window)
3.Link the USB cable and turn on the machine, then
click“Connect“.
4.Click "Open File" to select the engraving file.
Software Installation Guide

2021Software Installation Guide
2.LightBurn Tutorial(Window/Mac/Linux)
Software Installation Guide
7.Click "Boundary" to preview the engraving area and
adjust the position of the engraved object.
8.Click "Run Program" to start engraving.
1.Laser Grbl Tutorial(Window)
Tip: Installation on MAC requires adding trust, as follows.
1.Double-click the LightBurn.dmg file to mount the disk image.
2.Drag the LightBurn application into your applications folder.
3.Eject the LightBurn disk image, or drag it to the trash bin.
4.Open a Finder window.
5.Browse to the 'Applications' folder.
6.Hold the Control key and click the LightBurn icon, or right-click or / two-finger
tap the icon.
7.Choose 'Open' from the menu.
8.When MacOS asks if it should open the program, say yes, and it will be listed
as an exception in your launcher. From then on you can just launch the applica-
tion normally.

2223

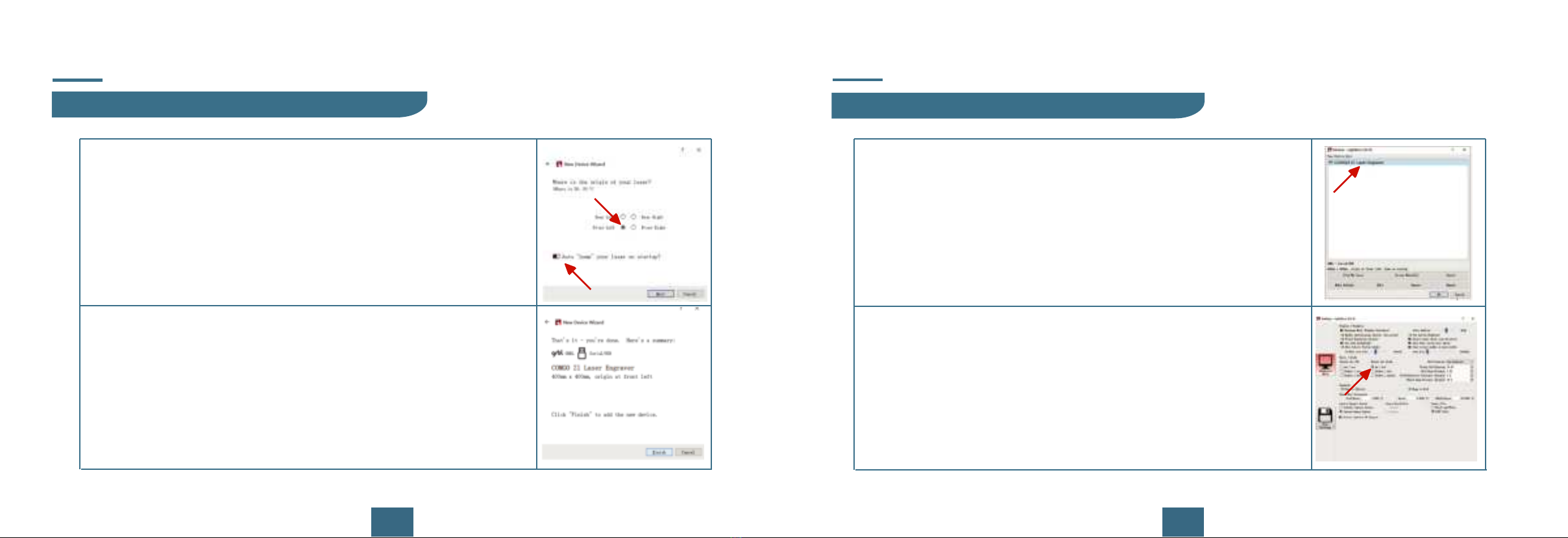

1.If you are using it for the first time, you need to perform
steps 1-10 to set up the operation.Open the SD card,
select "Driver Files", and install the driver according to
your computer system.
3.Select Serial/USB and press Next.
2.LightBurn Tutorial(Window/Mac/Linux)
4.Add device name and engraving range.
Name：COMGO Z1 Engraver
X Axis Length:400mm
Y Axis Length:400mm
2.Select "GRBL", then click"Next".
Software Installation Guide
2.LightBurn Tutorial(Window/Mac/Linux)
Software Installation Guide

2425
5.Select Front Left as your Origin X,Y and uncheck Auto
“Home”, then press Next.
6.Click Finish.
7.Select "COMGO Z1 Laser Engraver" and click "OK".
2.LightBurn Tutorial(Window/Mac/Linux) 2.LightBurn Tutorial(Window/Mac/Linux)
8.Click "Edit-Settings" in order to set the unit to
"mm/min".
Software Installation Guide
Software Installation Guide

2627
MachineWeight
9.Click "Edit-Device Settings" and change
"S-value-max" to "1000".
10.Select "Start From" as "Current Location" on the right,
and then adjust "Job Origin" to the bottom left corner.
11.Click "File-Import" to import the engraving file.
2.LightBurn Tutorial(Window/Mac/Linux) 2.LightBurn Tutorial(Window/Mac/Linux)
12.After importing the file, you can modify the
engraving size on the top of the interface.
Software Installation GuideSoftware Installation Guide

262928WIFI module installation
13.Double click the engraving parameters interface on
the right side to set the engraving parameters and
engraving mode.
14.Click "Frame" to preview the engraving range, and
click "Start" to start engraving after adjusting the
engraving position.
2.LightBurn Tutorial(Window/Mac/Linux)
1.Loosen the fixing screws and remove
the motherboard cover.
2.Take out the WIFI module and install it to the WIFI
interface on the motherboard.
3.Install the motherboard cover in the original way.
Software Installation Guide Tip: To watch the refresh firmware tutorial video, please visit
SD Card.

3031APP Usage Instruction
1.APP Installation
APP Usage Instruction
2.Connect the device
① Open the app, select "COMGO Z1 Engraver" and click on top right corner with a “Suspend” tag.Note: Please open the positioning function of your phone when you use it!
Android users can search for "Mini laser engraver" in Samsung App Market and Google Play or
directly scan the QR code below to download.
search for "Mini Laser Engraver" in App Store.
Android user
iPhone user
Tip: For a more detailed App tutorial, please visit SD Card.

3233APP Usage Instruction
2.Connect the device APP Usage Instruction
3.Adjust the focal length
② Click Available devices on the popup screen and select the Wi-Fi Settings Center; then, connect to
the network with the WIFI name prefix "COMGO Laser-Z1-xxxxx" and connect to it, then return to the
previous level.
③ Click on "Connection" to connect to the device.
Turn the knob screws on both sides of the laser slider to adjust the height of
the laser module so that the laser beam irradiates to the plane as a fine point.
Note:
1.6W laser module has a focal length of 30-100mm and needs to be focused by turning the lens
at this focal length.
The focal length of 5W laser module is 20mm.
The focal length of 10W laser module is 45mm.

3435APP Usage Instruction
4.Interface Introduction
APP Usage Instruction
5.Engraving
There are six engraving modules available in APP, namely: Photo album, Material library, White
board, Photograph, QR Code and Bar Code.
Photo album: you can access the photo album through this module and select the pictures in the
album for engraving
Material library: here will come with some random engraving and cutting images to choose from,
the material images will be updated from time to time.
White board: you can input text for engraving through this module, you can change the text size
and font.
Photograph: you can take pictures through the cell phone camera and then engrave them, note
that the pixel of the pictures taken will affect the quality of engraving.
QR Code: you can input text to generate QR code for engraving, and you can scan it for recogni-
tion after engraving.
Bar Code: can be engraved by entering the text to generate a bar code, which can be scanned and
identified after engraving.
The following is an example of the "Material library" carving operation.
①Click into "Material library". ②Select the engraving frame. ③Select the engraving material
and engraving mode and click
"Sent".

3637Engraving Parameters
APP Usage Instruction
5.Engraving
④ Select "Laser Power" and "Material"
according to the power of the machine,
then click "SAVE". ⑤Click "Preview" to preview the engraving
range, and click "Start" to start engraving
after the preview is completed.
:ODVHUPRGXOHHQJUDYLQJSDUDPHWHUV
0RGH 0DWHULDOV 3RZHU˄˅6SHHG˄PPPLQ˅127(
(QJUDYLQJ
:RRGERDUG  
%DPERR  
6ROLGZRRG  
/HDWKHU  
*ODVV   7HVXUIDFHQHHGVWREHSDLQWHGEODFNRUKHDWWUDQVIHUSDSHUDSSOLHG
*HUDPLF   7KHVXUIDFHQHHGVWREHKHDWWUDQVIHUSDSHUDSSOLHG
$FU\OLF   )RUWUDQVSDUHQWVXUIDFHQHHGWREHSDLQWHGEODFN
6WDLQOHVVVWHHO  
$QRGL]HGPHWDO  
)DEULF  
&XWWLQJ
PPWKLFNERDUG  
PPWKLFNERDUG  
PPWKLFNERDUG   &XWWLQJWKLFNERDUGVFDQUHGXFHWKHIRFDOOHQJWKDSSURSULDWHO\
&DUGERDUG  
/HDWKHU  
)DEULF  
