Commercial Electric C423100 User manual

THANK YOU
We appreciate the trust and condence you have placed in Commercial Electric through the purchase of this LED
strip kit. We strive to continually create quality products designed to enhance your home. Visit us online to see our
full line of products available for your home improvement needs. Thank you for choosing Commercial Electric!
USE AND CARE GUIDE
12 IN. MULTI-COLOR LED STRIP KIT (4-PACK)
R G B WW
Flash
Strobe
Fade
Smooth
OFF ON
+12V
R
G
B
W
+12V
R
G
B
W
+12V
R
G
B
W
+12V
R
G
B
W
+12V
R
G
B
W
+12V
R
G
B
W
+12V
R
G
B
W
+12V
R
G
B
W
Questions, problems, missing parts? Before returning to the store,
call Commercial Electric Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-877-527-0313
HOMEDEPOT.COM
Item #0000 000 000
Model # C423100

2
Table of Contents
Table of Contents .......................................................2
Safety Information.....................................................2
Warranty.....................................................................3
What is covered .....................................................3
What is not covered ...............................................3
Pre-Installation..........................................................3
Planning Installation ..............................................3
Installation.................................................................5
Operation..................................................................10
Care & Cleaning .......................................................11
Troubleshooting .......................................................11
FCC Statement .........................................................11
Safety Information
Always keep the user manual within reach while
installing this LED tape. Please read and understand
the user manual to ensure proper installation and use.
Always pay attention to the technical data shown on the
product. We reserve the right to make technical changes.
□Fitting and maintenance work may only be
carried out by a professional or an electrician in
accordance with local safety regulations.
□All electrical connections must have good contact
in order for this product to have a long, useful life.
□The LED chips of this LED tape cannot be replaced.
□This LED tape includes a linkable connector. Only
link a maximum of one LED tape. Do not link
multiple tapes together.
□Please only use the LED driver which has been
provided with this LED tape.
□Never use the unit in a room where there is a
danger of explosion or in the vicinity of ammable
liquids or gases.
□Do not bend, crush or pull the cable. Protect from
sharp edges, oil and heat.
□Do not touch the LED strip or electrical connector
directly with hands.
□For indoor use only.
□Ensure the connectors are securely fastened before
operating the tape.
□Electrical waste should not be disposed of with
household waste. Please recycle where facilities exist
CAUTION: Danger of eye damage. Never look directly at
the LED chips of this LED strip.
CAUTION: Do not submerge any part of this unit.
IMPORTANT: Main power voltage and fuse must meet
the technical data specications. Before starting work,
ensure that the main cable is not live. Switch off the fuse.
NOTICE: LED flexible tape lighting rating: 12V DC

3 HOMEDEPOT.com
Please contact 1-877-527-0313 for further assistance.
Warranty
THREE (3) YEAR WARRANTY
WHAT IS COVERED
The manufacturer warrants this xture to be free from defects in materials and workmanship for a period of three
(3) years from date of purchase. This warranty applies only to the original consumer purchaser and only to products
used in normal use and service. If this product is found to be defective, the manufacturer’s only obligation, and your
exclusive remedy, is the repair or replacement of the product at the manufacturer’s discretion, provided that the
product has not been damaged through misuse, abuse, accident, modications, alteration, neglect, or mishandling. This
warranty shall not apply to any product that is found to have been improperly installed, set-up, or used in any way not
in accordance with the instructions supplied with the product. This warranty shall not apply to a failure of the product
as a result of an accident, misuse, abuse, negligence, alteration, faulty installation, or any other failure not relating
to faulty material or workmanship. This warranty shall not apply to the nish on any portion of the product, such as
surface and/or weathering, as this is considered normal wear and tear.
WHAT IS NOT COVERED
The manufacturer does not warrant and specically disclaims any warranty, whether expressed or implied, of tness
for a particular purpose, other than the warranty contained herein. The manufacturer specically disclaims any liability
and shall not be liable for any consequential or incidental loss or damage, including but not limited to any labor/
expense costs involved in the replacement or repair of said product.
Contact the Customer Service Team at 1-877-527-0313 or visit www.HomeDepot.com.
Pre-Installation
PLANNING INSTALLATION
Read all instructions before installing.
To avoid damaging this product, place it on a soft, non-abrasive surface, such as carpet or cardboard.
NOTE: Personal injury and damage to the LED strip and/or mounting surface
may result if the LED strip is pulled from the surface. To reduce the likelihood
of injury or damage, mount only on a surface that is structurally sound.
TOOLS REQUIRED (NOT INCLUDED)
Phillips
screwdriver Pencil Brush Measuring tape
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
AA BB
Part Description Quantity
AA Screw 16
BB Clip (type MH1) 2

4

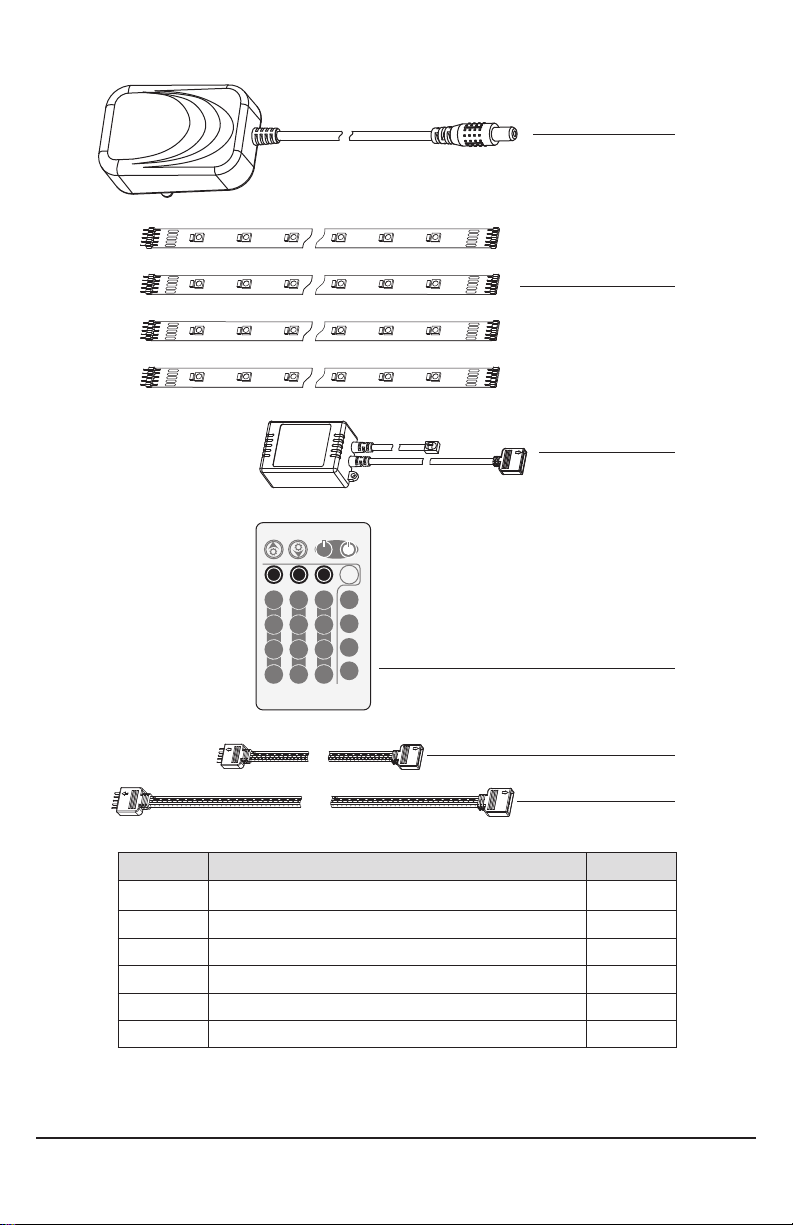

PACKAGE CONTENTS
+12V
R
G
B
W
+12V
R
G
B
W
+12V
R
G
B
W
+12V
R
G
B
W
+12V
R
G
B
W
+12V
R
G
B
W
+12V
R
G
B
W
+12V
R
G
B
W
R G B WW
Flash
Strobe
Fade
Smooth
OFF ON
C
B
A
D
E
F
Part Description Quantity
A Adapter 1
B 12 in. LED strip 4
C Infrared receiver (Assembled to the adapter (A)) 1
D Remote 1
E Connector wire 1
F Connector wire 2

5 HOMEDEPOT.com
Please contact 1-877-527-0313 for further assistance.
Installation
1 Installation considerations
□What is the best layout conguration for your installation?
□How will you run and conceal the wires to your LED tape lighting?
□Temporarily mounting the LED light strip using painter’s tape allows you to experiment with tape light
positioning before permanent installation.
IMPORTANT: Using painter’s tape or masking tape,
temporarily place the LED light strip into your desired
mounting position. Power on the LEDs to make sure you
are achieving the desired lighting effect before removing
the 3M paper backing for nal installation.

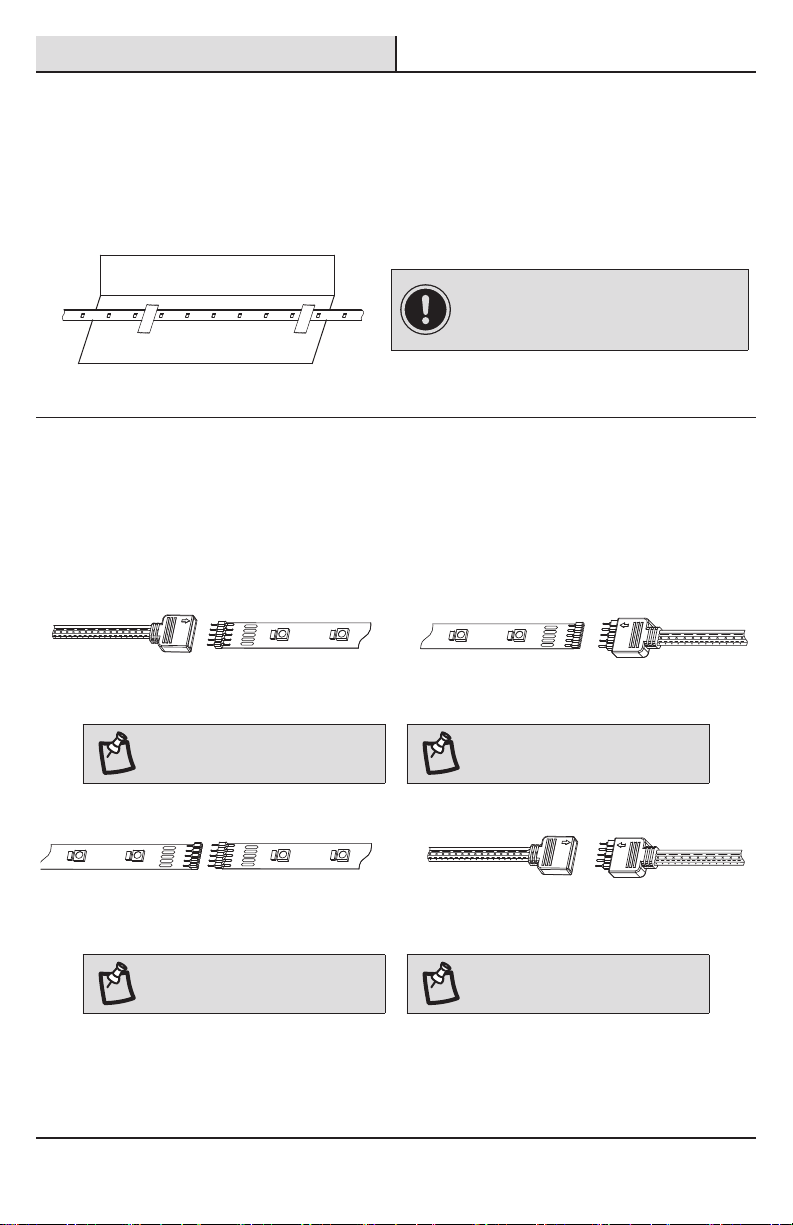

2 Connecting LED tape and adapter
□Use the following four ways to connect the LED tape and adapter according to installation requirements.
• Connect LED tape to connector
• Connect connector to LED tape
• Connect LED tape to LED tape
• Connect connector to connector
Connect connector to LED tape
Connect LED tape to connector
12V+
R
G
B
W
+12V
R
G
B
W
NOTE: Connect LED tape to connector by
aligning at the +12V on the LED tape and the
arrow on the connector.
NOTE: Connect connector to LED tape by
aligning at the arrow on the connector and the
+12V on the LED tape
Connect connector to connectorConnect LED tape to LED tape
12V+
R
G
B
W
+12V
R
G
B
W
NOTE: Connect LED tape to LED tape by
aligning at the +12V on the LED tape.
NOTE: Connect connector to connector by
aligning at the arrows on the connectors.

6
Installation (continued)

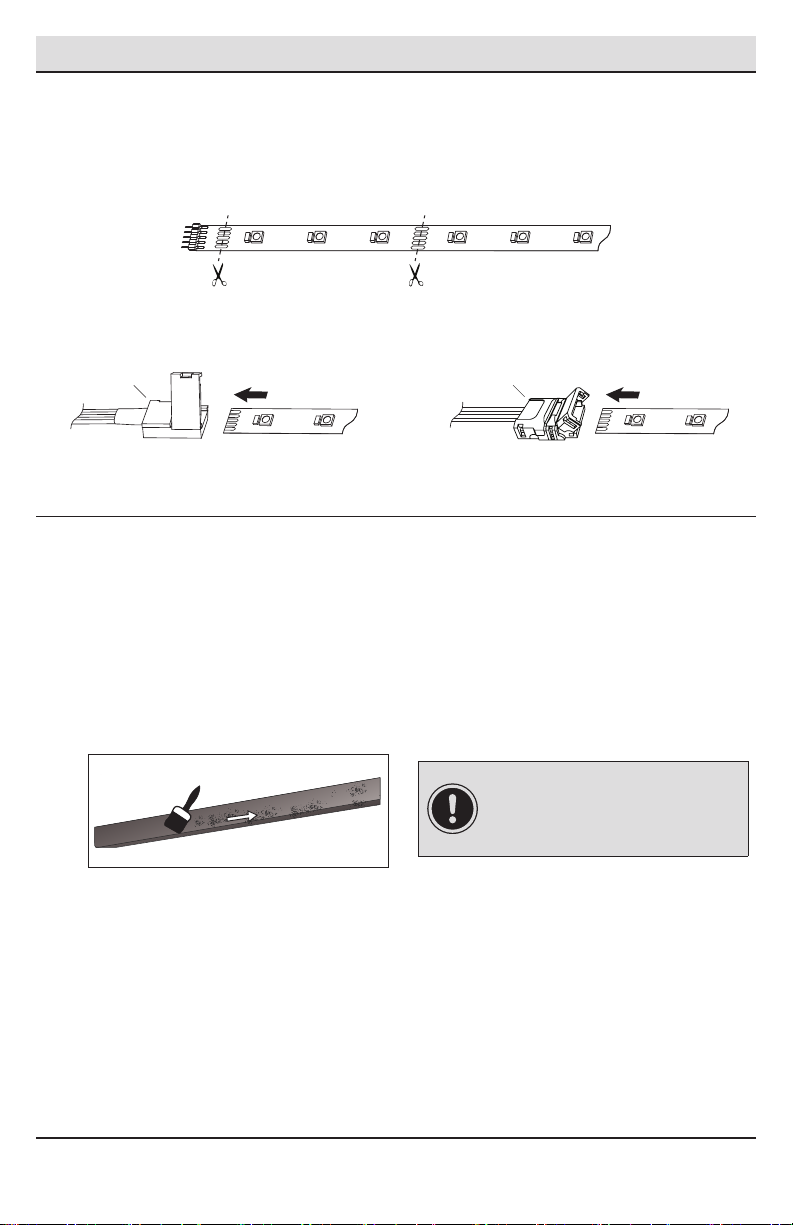

3 Cutting the LED strip (optional)
□By cutting the strip and exposing the copper pads, optional connector (C760011) or accessory (C760110)
pack can be used for a more custom installation.
Cut LED tape in center of copper pads
12V+
R
G
B
W
+12V
R
G
B
W
+12V
R
G
B
W
Connect connector to LED tape
Optional connector
(C760011)
Optional accessory
(C760110)
4 Preparing the assembly location
□Power the LED tape lighting and temporarily hold or tape into position with painter’s tape or masking
tape – do not remove the 3M paper backing.
□Adjust the lighting to various angles and positions to get the desired level of illumination and lighting
appearance. If the LEDs create undesirable light spots on walls, or reections, reposition the tape light
strip farther aways from surfaces or try a different mounting angle.
□Once you have determined your nal mounting position, clean the surface to ensure the 3M self-adhesive
backing will adhere properly.
IMPORTANT: Before removing the 3M paper
backing, it is important to test the LED strip in the
space you intend to light. Once the 3M paper backing
is removed and the lighting is fully installed, you
cannot reposition or move the LED tape light to
another location. The tape may not stick securely.

7 HOMEDEPOT.com
Please contact 1-877-527-0313 for further assistance.
Installation (continued)

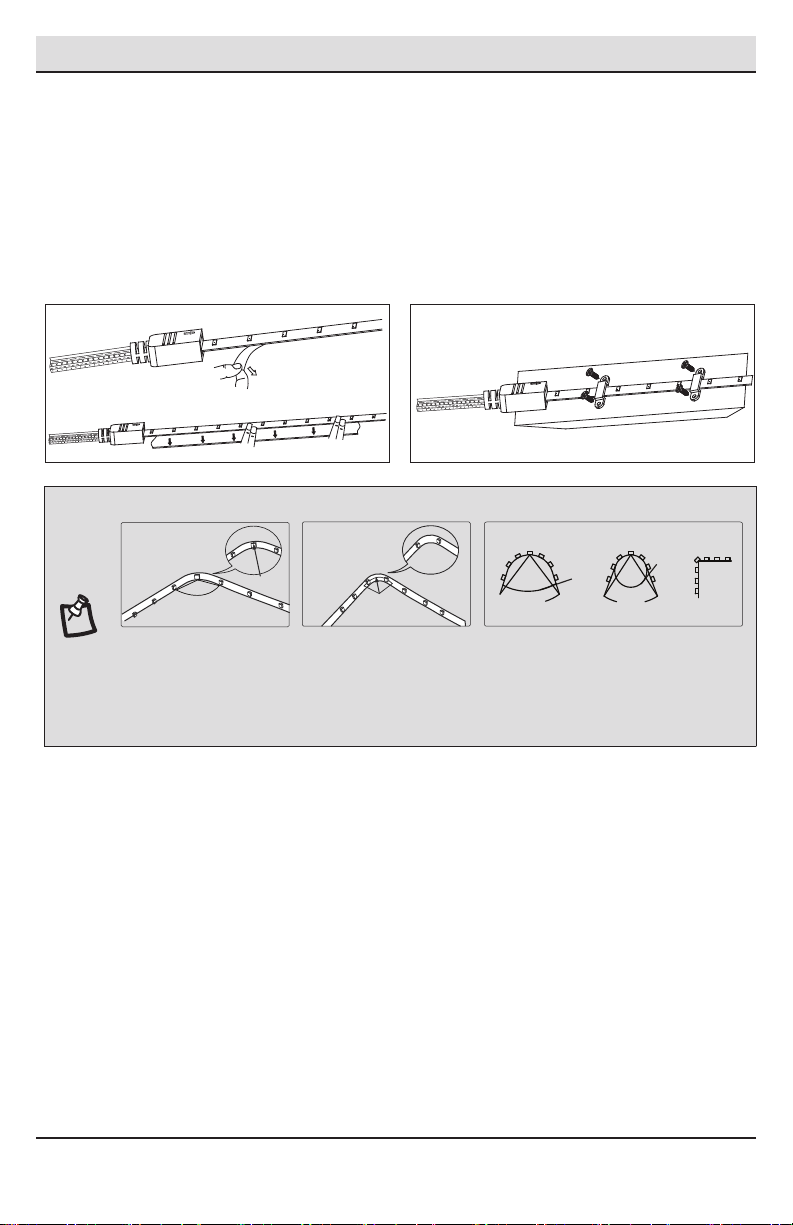

5 Installing the LED strip
□4A Tape method: Working from one end to the other, remove the 3M paper backing and press into place.
Press between the LEDs to help ensure secure contact with the mounting surface. Avoid pressing on the
individual LEDs as this could damage the LED solder connections.
□4B Clip and screw method: Place the LED strip in the desired position. Use the clips and screws to secure
the LED strip as shown. Clips should be placed in open areas of the strip. Do not cover the LED lights.
□Plug the adapter into the wall receptacle and then use the remote to turn the LEDs on.
4A 4B
NOTE:
a.
b. c.
LED Chip
Correct lncorrect lncorrect
Angle ≥ 90° Angle ≥ 60°
a≥60° a<60°
a. Use an angle greater or equal to 90 degrees when there is an LED chip on the corner while placing the strip in a concave position.
(Angle≥90°)
b. Use an angle greater or equal to 60 degrees when there is no LED chip on the corner while placing the strip in a concave position.
(Angle≥60°)
c. Use an angle greater or equal to 60 degrees when there is an LED chip on the corner while placing the strip in a convex position.
(Angle≥60°) In the convex position the angle should not reach 90 degrees. See above diagram.

8
Installation (continued)

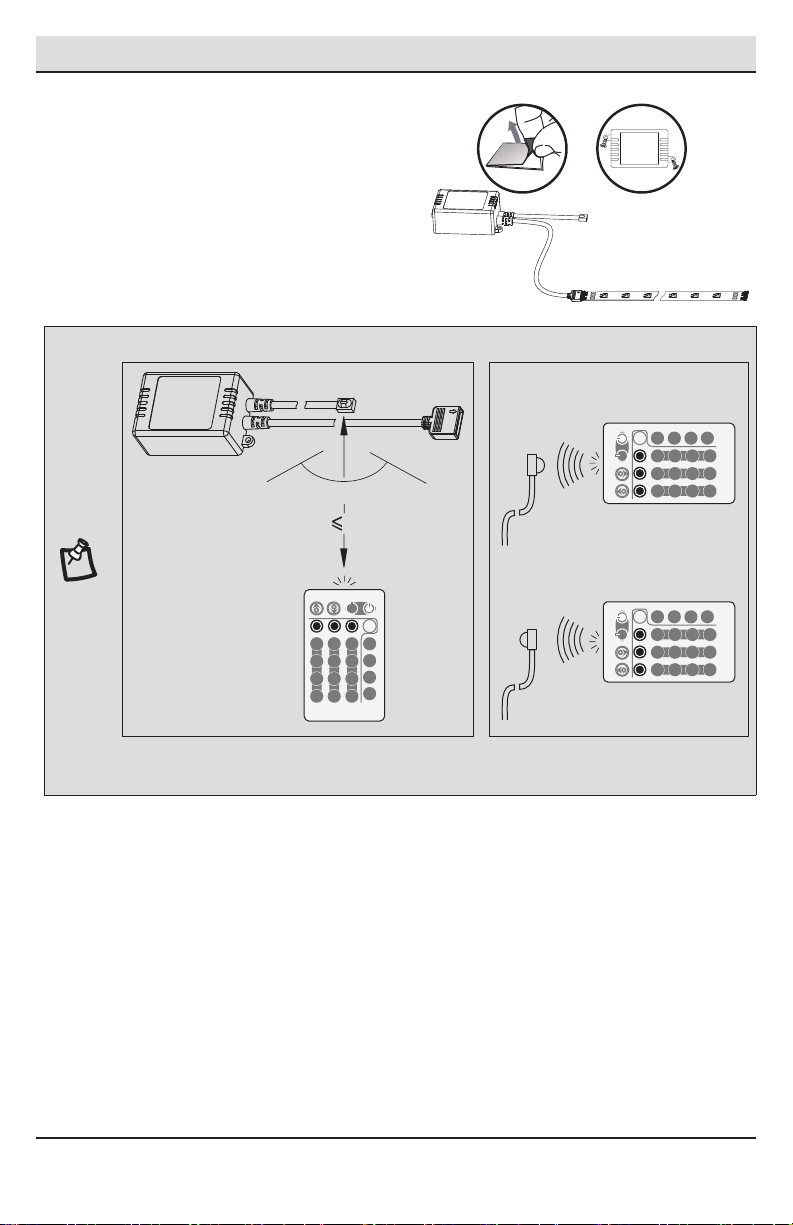

6 Installing the infrared receiver
□There are two options:
A. Remove the protective tape from the adhesive
back of infrared receiver, then place the infrared
receiver onto the position and press to insure
proper adhesion to the surface.
B. Use the two screws to install the infrared
receiver onto the position.
NOTE:
60°
3m 3m
5m
B
Correct
Incorrect
A
R G B WW
Flash
Strobe
Fade
Smooth
OFF ON
R G B WW
Flash
Strobe
Fade
Smooth
OFF ON
R G B WW
Flash
Strobe
Fade
Smooth
OFF ON
A. The sensor efciency distance is ≤5 meters and the sensor efciency angle is about 60°.
B. The infrared receiver must face transmitter to operate properly.
AB
+12V
R
G
B
W
+12V
R
G
B
W

9 HOMEDEPOT.com
Please contact 1-877-527-0313 for further assistance.
Installation (continued)

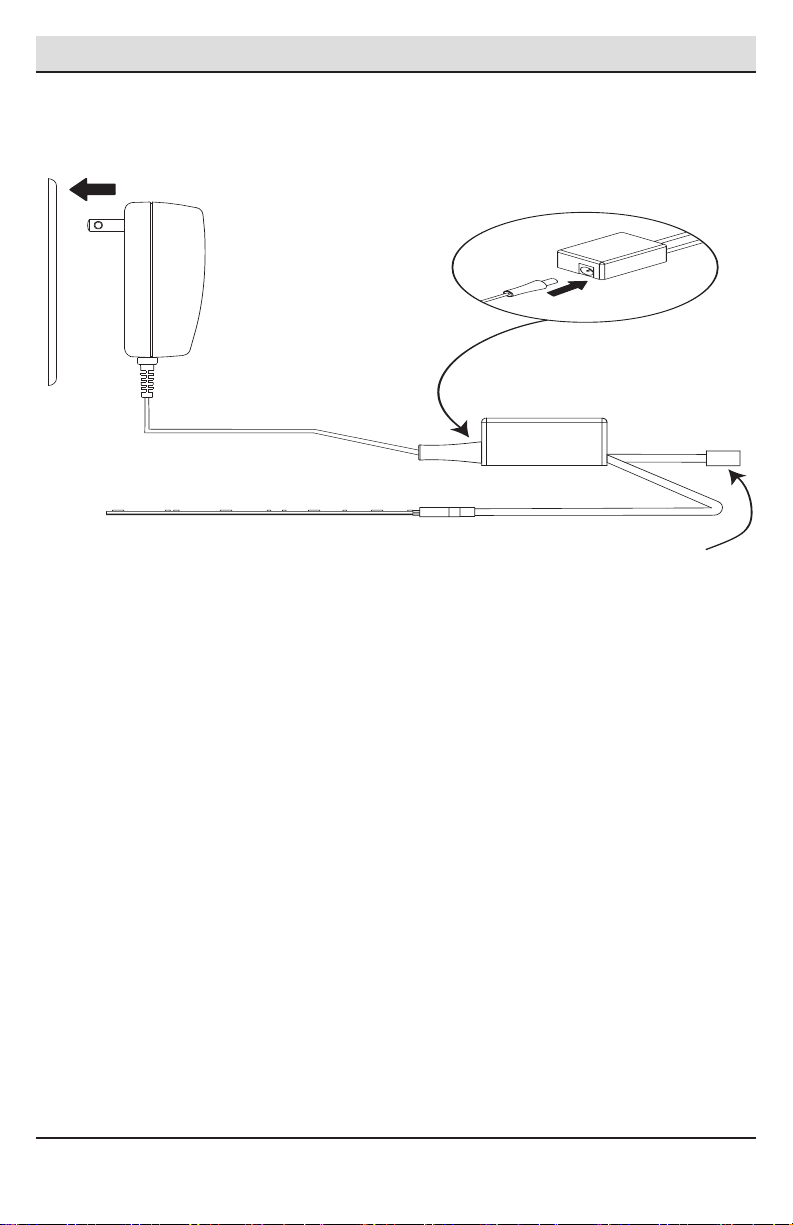

7 Connecting to the power supply
Adapter with plug Infrared receiver controller
LED strip light
Infrared receiver
Connect adapter to power outlet
Connect the adapter plug
to infrared receiver controller

10
Operation
1 Using the remote
□Direct the remote (D) towards the infrared receiver (C) to change RGBW colors of the strip.
A--- Use to increase or decrease color brightness
and to slow down or accelerate speed.
B--- ON/OFF switch.
C--- R,G,B,W:
Choose color: red, green, blue or warm white.
D--- Flash key: 7 color jump change.
E--- Strobe key: Strobe color effect.
F--- Fade key: 7 color fade change.
G--- Smooth key: 3 color jump change.
(NOTE: there are 10 light intensity options
and 10 speed setting options)
A B
R G B WW
Flash
Strobe
Fade
Smooth
OFF ON
E
C
D
F
G
NOTE: Sensor efciency distance ≤ 5 meters
2 Changing the battery
□To replace the battery, unscrew the small screw on the back side of the remote (D), and refer to the
diagram on the back side of the remote.
D
R G B WW
Flash
Strobe
Fade
Smooth
OFF ON
Open
Push
□Always purchase the correct size and grade of battery that is most suitable for the intended use.
□Clean the battery contacts and also those of the device prior to battery installation.
□Ensure the batteries are installed correctly with regard to polarity (+ and -).
□Remove batteries from the equipment when it is not being used for an extended period of time.
□Remove used batteries promptly.
WARNING: The remote contains a CR2025 DC 3V button battery. If swallowed, it could
cause severe injury or death within 2 hours. Seek medical attention immediately.

11 HOMEDEPOT.com
Please contact 1-877-527-0313 for further assistance.
Care and Cleaning
□To clean the xture, disconnect the power by unplugging the adapter. Use a dry or slightly dampened, clean
cloth to wipe the exterior surface of the xture.
□Do not use any cleaners with chemicals, harsh abrasives, or solvents. Use only a dry soft cloth to dust or wipe
carefully.
Troubleshooting
Problem Possible Cause Solution
The LED will not
light.
The LED is burned out. Discontinue use of the lamp.
The power is off. Ensure the power supply is turned on.
The power cord is not plugged in. Ensure the power cord is plugged into the outlet.
The connector has faulty
connections.
Check the connections of the connectors.
The circuit breaker is turned off. Ensure the circuit breaker is in the “ON” position.
The fuse blows or a
circuit breaker trips
when the light is
turned on.
A wire is exposed. □Discontinue use of the lamp.
□Unplug the unit from the wall.
□Contact a qualied electrician or call
the Customer Care Service Team at
1-877-527-0313, 8 a.m. - 7 p.m., EST,
Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday.
FCC Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
CAUTION: Any changes or modications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

Questions, problems, missing parts? Before returning to the store,
call Commercial Electric Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
1-877-527-0313
HOMEDEPOT.COM
Retain this manual for future use.
