CommScope HELIAX MFJS6UDHNA00 User manual

www.commscope.com Bulletin # 7850567 Rev. A
Technical Publication
1
Related Support and Learning Opportunities Offered by the CommScope Infrastructure Academy
The insights and expertise contained in this manual represent just one small part of CommScope's
global learning initiative. Few industries are evolving as quickly as wireless communications. Every
technological innovation impacts what happens in the field. Our customers look to the CommScope
Infrastructure Academy to make sure their technicians and installers are well trained, well-prepared,
and well-educated to take advantage of opportunities as they evolve. To access a course, go to
www.commscopetraining.com/coursecatalog.php, course #6107
Section 1: HELIAX®Modular Connect / Accessories ………….......................................………………….…02
Section 2: Product Ordering Tree ..............………………..…………………………………………………….…03
Section 3: Assembly Breakdown .........................................………...…………………………………..………06
Section 4: Hoisting Considerations .........................................…………………………………………..………09
Section 5: HELIAX SkyBlox™Connection ................................................…………………………..……...…11
Section 6: Breakout Procedure / DLC Connection Considerations ....…………………………..……...…12
Section 7: All-in-One Cleaner / Inspecting .....….......................................................…………………....…13
Section 8: Installation Check List .....................................................……………….......................….………14
Installation Guidelines – HELIAX® Modular Conguration

www.commscope.com Bulletin # 7850567 Rev. A
Technical Publication
2

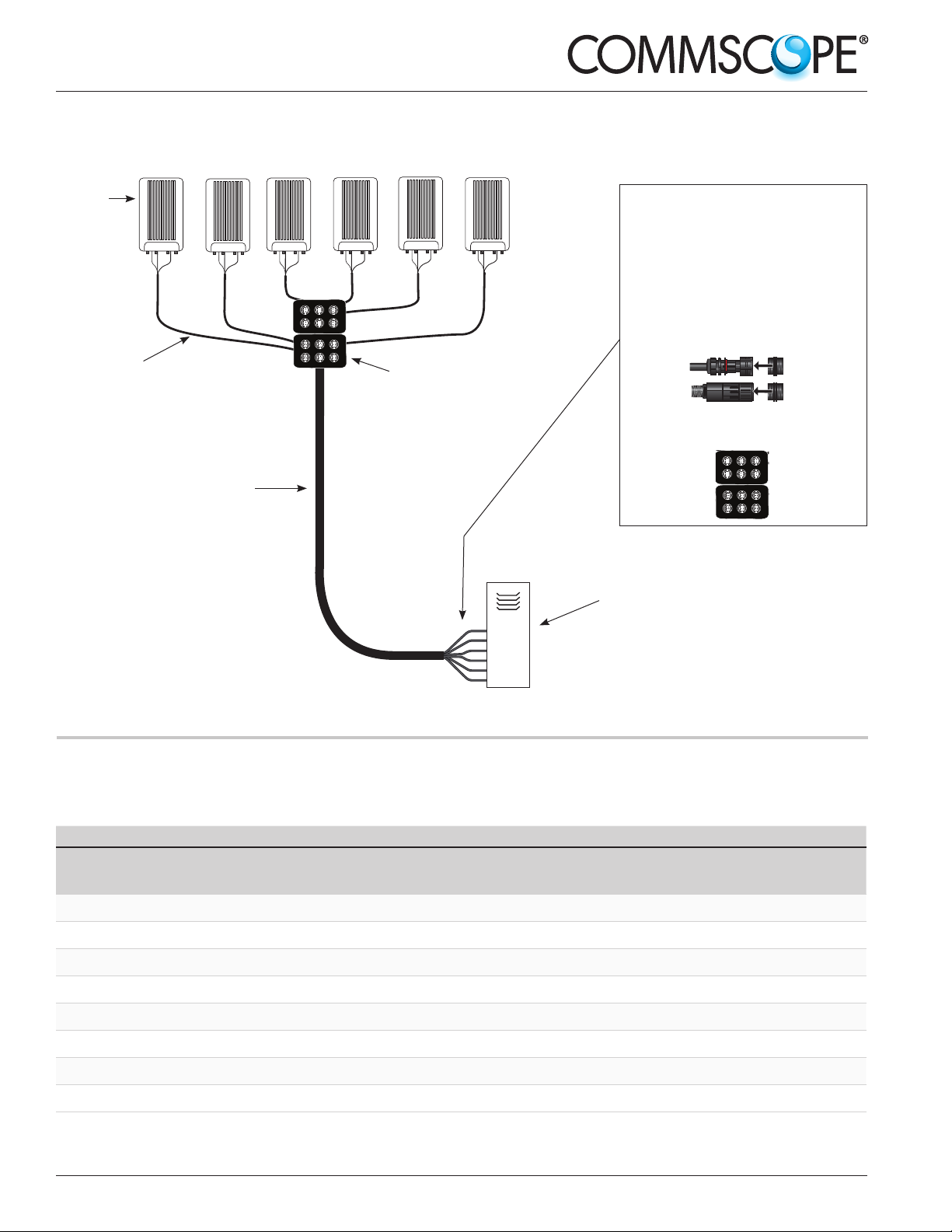

Section 1: 6 RRU Connection
HELIAX SkyBlox™
Junction Box (x2)
Hybrid trunk
cable
Fiber and power
jumpers
RRU's
DESCRIPTION ASSEMBLY PART NUMBER
MFT-series MFJ-series MPJ-series
Hoisting Grip 19256B-C N/A N/A
Hanger SSH-L SSH-47 SSH-M
Angle Adapter UA-3 UA-3 UA-3
3-way Standoff SA-38 SA-38 SA-38
Round member adapter, 2 to 3 inch 31670-2 31670-2 31670-2
Round member adapter, 3 to 4 inch 31670-3 31670-3 31670-3
Round member adapter, 4 to 5 inch 31670-4 31670-4 31670-4
DC connector cap N/A N/A 860665404
Accessories
Equipment
cabinet / shelter
The bottom breakout (End 2)
can be configured to connect
to the BBU equipment in 3
different scenarios
1. As shown, direct to equipment
2. Utilizing plug and play
adapters to discrete fiber and
power jumpers
3. Use additional SkyBlox before
the equipment

www.commscope.com Bulletin # 7850567 Rev. A
Technical Publication
3
Section 2: Product Ordering Tree's
Daisy Chain - Discrete Fiber Trunk (MFD)
Discrete Fiber Trunk (MFT)

www.commscope.com Bulletin # 7850567 Rev. A
Technical Publication
4
Section 2: Product Ordering Tree's (cont.)
Discrete Fiber Jumper (MFJ)
Discrete Power Trunk (MPT)

www.commscope.com Bulletin # 7850567 Rev. A
Technical Publication
5
Hybrid Trunk (MT)
Section 2: Product Ordering Tree's (cont.)
Discrete Power Jump (MPJ)

www.commscope.com Bulletin # 7850567 Rev. A
Technical Publication
6
DLC
connectors
End 1: SkyBlox End 2: BBU
Outdoor rated
Fiber connectors
PART NUMBER DESCRIPTION
MFT-S24-BA-AA-80M HELIAX Modular Discrete Fiber trunk, End 1: Four IP67 4 Fiber connectors for SkyBlox, End 2: Twenty
four bers (12 pairs) terminated DLC
Section 3: Assembly Breakdown: Jacket Material: Low Smoke Zero Halogen (LSZH) | PE
EN50575 CPR Cable EuroClass Fire Performance: Cca
Single mode (G657.A2) and Multimode (OM4)
Additional connector interfaces and weatherproofing available upon
request
Discrete Fiber Trunk
Hybrid Jumper (MJ)
Section 2: Product Ordering Tree's (cont.)

www.commscope.com Bulletin # 7850567 Rev. A
Technical Publication
7
PART NUMBER DESCRIPTION
MFJS4ABFNN03M HELIAX Modular Discrete Fiber Jumper , End 1: Two DLC connectors for RRU, End 2: one IP16 for
SkyBlox
End 1: RRU End 2: SkyBlox
PART NUMBER DESCRIPTION
MPJ8CABGNA10M HELIAX Modular Power Trunk, End 1: Eight conductor, 6 mm2, 4 Brown and 4 Blue, blunt-cut, End 2:
Four plug and play connectors for HELIAX SkyBlox
DLC
connectors
Outdoor rated
Fiber connectors
End 1: RRU End 2: SkyBlox
Blunt cut power
conductors
Outdoor rated
Power connectors
Discrete Power Trunk
Discrete Fiber Jumper
DLC
connectors
End 1: SkyBlox End 2: BBU
Outdoor rated
Fiber connectors
PART NUMBER DESCRIPTION
MFD-S24-BB-AA-80M HELIAX Modular Discrete Fiber trunk, End 1: Three IP67 4 Fiber connectors for SkyBlox, End 2: Three
IP67 4 Fiber connectors for SkyBlox or adapters to IP67 jumpers, (bers are A-A / B-B)
Daisy Chain - Discrete Fiber Trunk

www.commscope.com Bulletin # 7850567 Rev. A
Technical Publication
8
PART NUMBER DESCRIPTION
MTSC6BGB24BAAA10M HELIAX Modular Hybrid trunk, End 1: Three IP67 4 Fiber connectors, three plug and play connector
for SkyBlox, End 2: Twenty four bers (12 pairs) terminated DLC, six blunt-cut power connectors
End 1: SkyBlox End 2: BBU
DLC
connectors
End 1: RRU End 2: SkyBlox
Blunt cut power
conductors Outdoor rated
Fiber and Power
connectors
PART NUMBER DESCRIPTION
MPJ2CABGAA03M HELIAX Modular Power Jumper, End 1: Two conductor, 6 mm2, 1 Brown and 1 Blue, blunt-cut, End
2: one plug and play connector for SkyBlox
End 1 RRU End 2 SkyBlox
Blunt cut power
conductors
Outdoor rated
Power connectors
Discrete Power Jumper
Hybrid Trunk
Hybrid Jumper
DLC
connectors
Outdoor rated
Fiber and Power
connectors
Blunt cut power
conductors
PART NUMBER DESCRIPTION
MJSC2ABG4ABAAN-03M HELIAX Modular Hybrid trunk, End 1: Four bers (2 pairs) terminated DLC, One 2 conductor
power cord, End 2: One IP167 4 ber connector, one plug and play connector for SkyBlox

www.commscope.com Bulletin # 7850567 Rev. A
Technical Publication
9
Section 4: Hoisting Considerations
• In general this cable will handle similarly to coaxial cable, and similar installation techniques apply. All cables
are individually serialized, be sure to write down the cable serial number for future reference.
• Be sure that the breakout is not damaged by attachment of a hoisting grip or during the hoisting process.
• During hoisting ensure that there is a free path.
• Installation temperature range is -40 °C to +75 °C (-40 °F to +167 °F).
• CommScope Lace-Up Hoisting Grip required for installation.
• Hoisting Grip should be anchored to the support structure after the hangers are installed.
Hybrid Fiber Cables weigh more than traditional coaxial cables. Be sure to follow proper hoisting and
attachment procedures.
!
Keep breakout
protected
during hoisting.
* Be sure that the weight is on the
hoisting grip(s) and not the breakout
Use a Tie back rope at the base of the
breakout to secure to the hoisting line
Keep 304 mm (1 ft)
of cable below the
breakout straight during
hoisting and routing.

www.commscope.com Bulletin # 7850567 Rev. A
Technical Publication
10

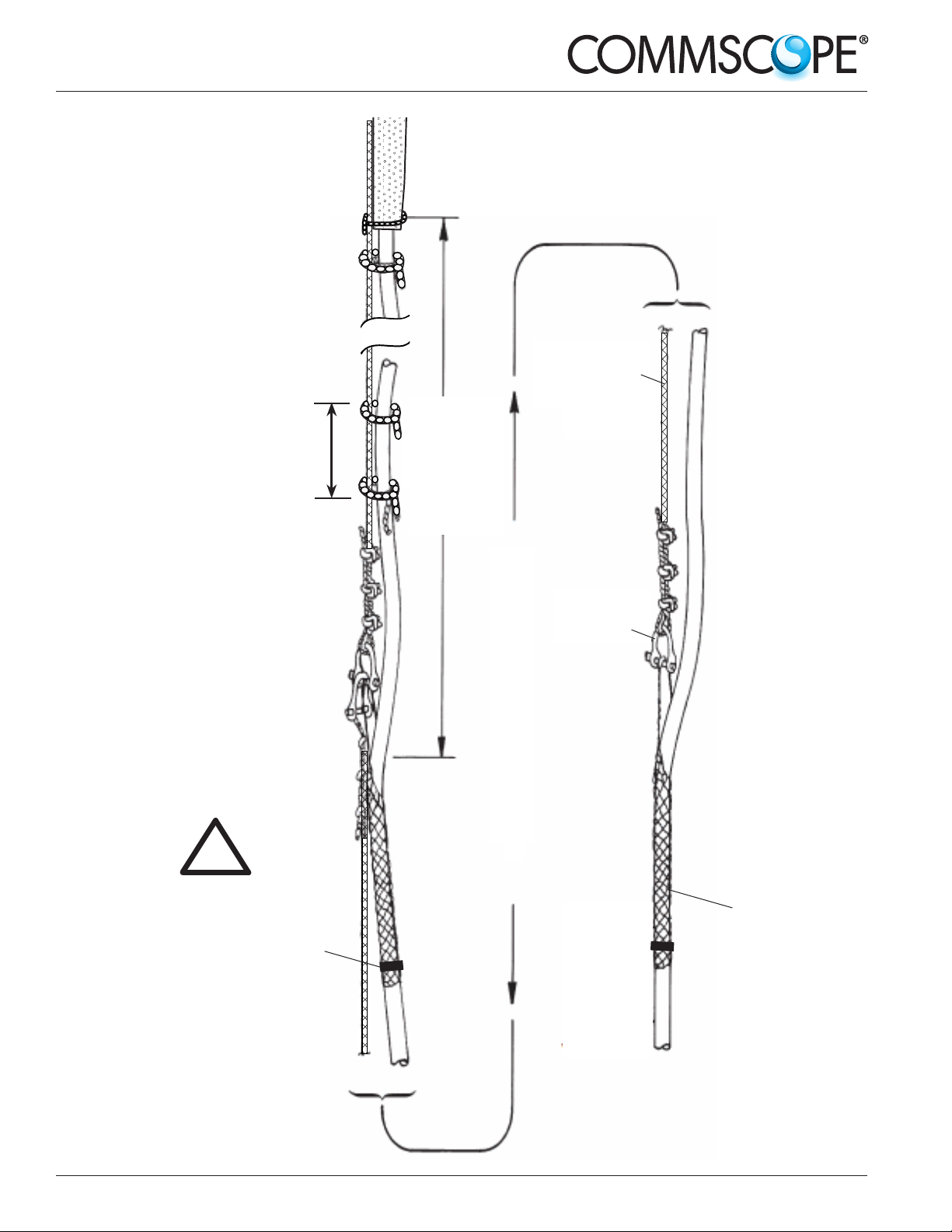

Required
Apply Tie Wrap to the
base of the hoisting
grip before applying
tension to the line.
!
Clevis
Steel cable
or rope
hoist line
Hoisting
grip
Typical
leader
5.3 m
(17 ft)
Maximum 60 m (200 ft)
between hoisting grips
Hoisting Considerations
Tie back ropes
1 m (3 ft)

www.commscope.com Bulletin # 7850567 Rev. A
Technical Publication
11
Section 5: HELIAX SkyBlox™ plug and play break-out system
After trunk cables are hoisted and attached to the structure open and remove dust caps, attach the required connectors to the
bottom/inside of the bulkhead. Adapters are keyed and have a 1/4 turn locking bayonet style connector (No torque required).
2 Conductor
Power
2, 4 or 6 ber
(6 ber shown)
Turn Power Counter-Clockwise to lock
Turn Fiber Clockwise to lock
Alignment keys are located
at the top of the adapters
Install jumpers with locking bayonet style connectors. To complete the installation install the cover by snapping into place.
Turn Power Counter-Clockwise to lock
Turn Fiber Clockwise to lock
It is possible to stack the SkyBlox on top of an existing one, new trunk cables should
be passed behind the existing bulkhead. The bulkhead can be removed by following
SkyBlox installation procedures. To keep system on-line do not disconnect existing
cables. A maximum of 4 assemblies should be stacked together
Jumpers removed for
illustrative purposes
If the installation requires stacking onto a previously installed SkyBlox assembly it is our
recommendation to stack from the bottom to avoid the need to remove existing jumper
assemblies. Follow SkyBlox installation bulletin to remove the bulkhead from the new
assembly. Position the bracket around the existing trunk cables, push up to snap second
bracket into previously installed assembly, complete mounting.
NOTE:
Part Number Description
SB-NA-0-GE-3 3 DC adapters
SB-NA-0-GE-4 4 DC adapters
SB-IP-3-NA-0 3 ber adapters
SB-IP-4-NA-0 4 ber adapters
SB-IP-3-GE-3 3 ber adapters - 3 DC adapters
SB-IP-4-GE-4 4 ber adapters - 4 DC adapters

www.commscope.com Bulletin # 7850567 Rev. A
Technical Publication
12
DLC Connectors and Adapter cleaning
Clean exposed connector ferrule by lightly moistening lint-free wipe with ber optic cleaning solution (or >91% isopro-
pyl alcohol), and by applying medium pressure, rst wipe against wet area and then onto dry area to clean potential
residue from end face. Clean connector ferrule inside adapter by inserting lightly moistened cleaning stick with ber
optic cleaning solution (or >91% isopropyl alcohol) inside the adapter until contact is made with connector on opposite
end. Rotate cleaning stick with medium pressure in one circular motion as it is pulled away from the adapter. Repeat
process using dry cleaning stick.
Caution: Signal strength will be affected if end and sides of ferrule are not thoroughly cleaned. Discard cleaning
sticks after each use. Do not turn cleaning sticks back and forth pressing against connector end face. This may cause
scratches if large contamination is present. Always inspect connector end face for contamination after each cleaning.
Clean adapter by inserting adapter cleaning stick (or fiber adapter sleeve brush) moistened with fiber optic cleaning
solution (or >91% isopropyl alcohol) inside the adapter and gently pull out with twisting motion. Repeat process with a
dry cleaning stick.
Caution: Do not try to clean adapter with a standard pipe cleaner. The sleeve inner diameter of DLC adapters is too
small. Do not try to clean the adapter with cleaning stick if a connector is mounted in one side. Discard cleaning sticks
after each use.
Clean Tip of Ferrule
Clean Sides of Ferrule
Adapter Brush

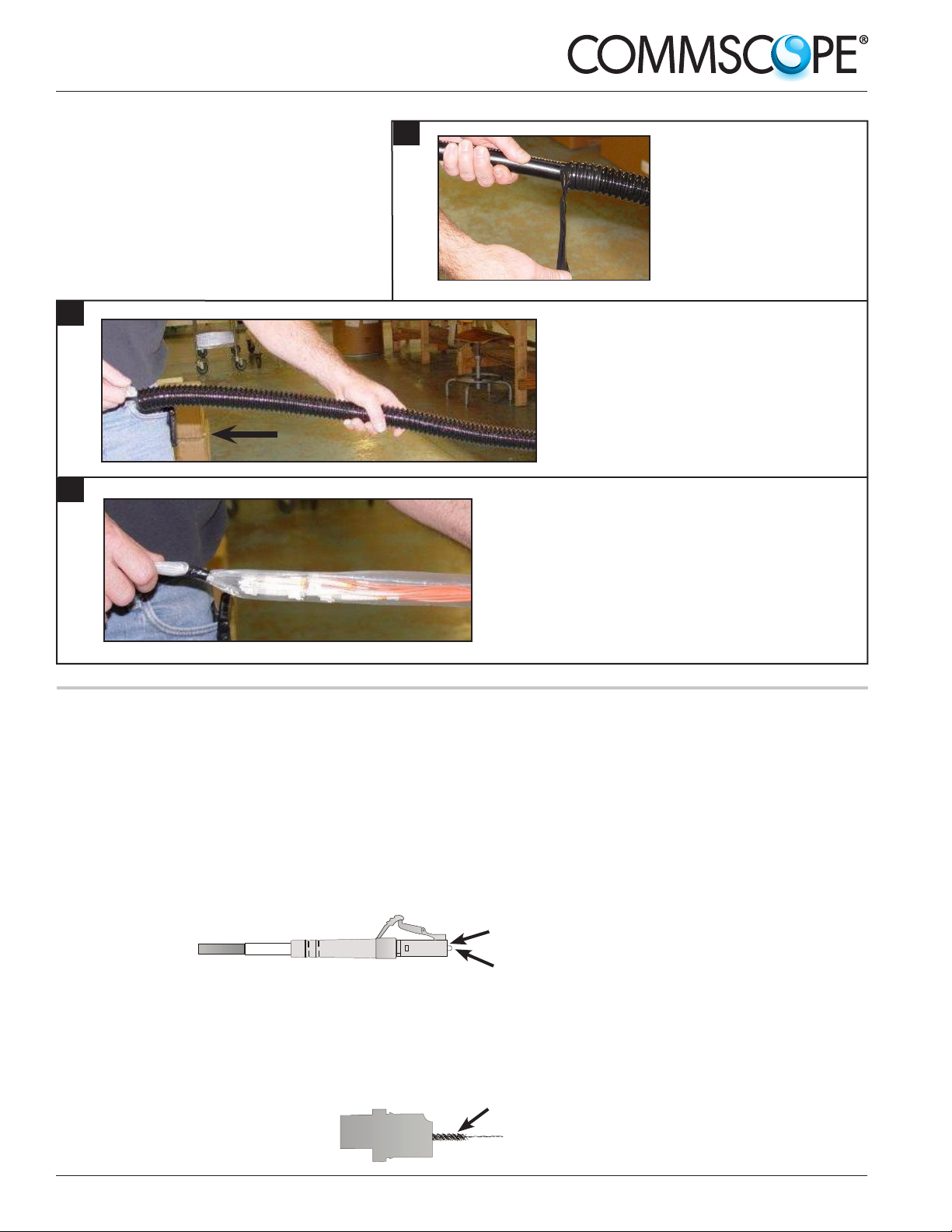

Section 6: Breakout Procedure
Remove electrical tape
from the trunk cable and
corrugated protection
tube
While holding the protection tube straight
pull the tube away from cable.
After you have pulled the ber and power
conductors into the OVP box remove electrical
tape from the trunk cable and remove clear tube
for access to all optical connectors.
After the trunk cable has been installed and
you are ready to make the nal connection
to the BBU follow these steps for the removal
of ber protection tube.
1
2
3

www.commscope.com Bulletin # 7850567 Rev. A
Technical Publication
13
Device designed for cleaning the ferrule end faces of LC connectors
Open guide cap, insert LC connector into guide, push the outer shell to start cleaning the LC connector interface, a
"click" sound indicates end of a cleaning process, repeat, close cap immediately after use.
Caution: Be careful not to slant LC connector while inserting into the Guide cap. Do not overly exert force during
insertion as this may cause damage to both the connector and the cleaner.
Section 7: All in one cleaner
Guide
LC Connector
Push Cleaner X2
Cap
Part Number: FCCT - L
There are 3 basic principles that are critical to achieving an efficient fiber optic connection:
1. Perfect Core Alignment
2. Physical Contact
3. Pristine Connector Interface
Today’s connector design and production techniques have eliminated most of the challenges to achieving
core alignment and physical contact. What remains challenging is maintaining a pristine end-face. As a result,
CONTAMINATION is the #1 reason for troubleshooting optical networks.
Implementing the process of cleaning and inspecting before mating can reduce the time spent troubleshooting,
optimize signal performance and prevent damage.
Inspecting
Is It
Clean?
No Connect
Yes
Inspect
Clean
Clean
Abrasive particles (i.e. rock dust) can
cause permanent damage to the
interface. If interface is scratched it cannot
be repaired, it would need to be replaced.
!
Scan to
view video

www.commscope.com Bulletin # 7850567 Rev. A
Technical Publication
14
Jumpers are properly support to prevent strain on fiber during severe weather
Bend radius minimums haven't been exceeded
CommScope approved installation accessories are used
Maximum hanger spacing of 0.9 m (3 ft) - 1.2 m (4 ft) is maintained
Visually inspected end face for residual dirt and damage
Avoid migration of contaminations from one connector to another
Check continuity by using LED or laser light source from one end face and look for light from other end to
identify any broken fiber (Do not look directly at cable with laser source)
Fiber Connections are engaged and the sectors are consistent with requirements
Verify dust caps on any unused Pendant interfaces have not come loose. Retighten if required.
Cable serial number has been documented in the closeout paperwork and a copy has been left on-site
Section 8: Installation Check List
© 2022 CommScope
Notice: CommScope disclaims any liability or responsibility for the results of improper or unsafe installation, inspection, maintenance, or removal practices.
Aviso: CommScope no acepta ninguna obligación ni responsabilidad como resultado de prácticas incorrectas o peligrosas de instalación, inspección, mantenimiento o retiro.
Avis : CommScope décline toute responsabilité pour les conséquences de procédures d’installation, d’inspection, d’entretien ou de retrait incorrectes ou dangereuses.
Hinweis: CommScope lehnt jede Haftung oder Verantwortung für Schäden ab, die aufgrund unsachgemäßer Installation, Überprüfung, Wartung oder Demontage auftreten.
Atenção: A CommScope abdica do direito de toda responsabilidade pelos resultados de práticas inadequadas e sem segurança de instalação, inspeção, manutenção ou remoção.
Avvertenza: CommScope declina eventuali responsabilità derivanti dell’esecuzione di procedure di installazione, ispezione, manutenzione e smontaggio improprie o poco sicure.
CommScope
1100 CommScope Place SE P.O. Box 339, Hickory, NC 28603-0339
[phone] [phone]
www.commscope.com
Technical Support
[phone], Option 3 (Toll Free US and Canada)
[phone]
https://www.commscope.com/wisupport (open a ticket)
