CommScope HELIAX FiberFeed HFA208 Series Instruction sheet

www.commscope.com/andrew • 1-800-255-1479 Bulletin # 7695778 Rev. E 1
Technical Publication
Related Support and Learning Opportunities Offered by the CommScope Infrastructure Academy
The insights and expertise contained in this manual represent just one small part of CommScope
global learning initiative. Few industries are evolving as quickly as wireless communications. Every
technological innovation impacts what happens in the field. Our customers look to the CommScope
Infrastructure Academy to make sure their technicians and installers are well trained, well-prepared,
and well-educated to take advantage of opportunities as they evolve.
Field Engineering Services (FES)
Support services, such as our Field Engineering Services (FES) Group gives customers access to
technical support where and when it is needed the most — in the field. The FES team is staffed
by an expert team of technicians who, in turn, are supported by some of the brightest and most
experienced product line managers. With all of this knowledge and support the FES offers our
customers access to hands-on, specialized training classes.
Section 1: General Specifications .....................................................……………………………………..………02
Section 2: Breakout Procedure / DLC Connection Considerations .....……………………………………....04
Section 3: Cleaning / Inspecting ....……………………..…………………………………………………………....05
Section 4: Excess Cable Handling .......................................................……………….……………………..……06
Section 5: Hanger / Jacketing Removal / Grounding .............................................................………………..07
Section 6: Protecting Spare Fibers / Installation Check List ........................................……………….......…....08
Customer Service Center
United States and Mexico 1-800-255-1479 or 1-888-235-5732
International: [phone]
Installation Guidelines – HELIAX®FiberFeed®Rooftop Solution
Fiber/Copper Hybrid Cables: HFA208 │HFA210 │HFA406

www.commscope.com/andrew • 1-800-255-1479 Bulletin # 7695778 Rev. E 2
Technical Publication
General Specifications
Cable Type
Center Conductor Gauge
Conductors, quantity
Total Fiber Quantity
Armor Type
Fiber Type
Dimensions
Cable Weight
Diameter Over Jacket
Breakout Length, Fiber, end 1
Breakout Length, Power, end 1
Breakout Length, Fiber, end 2
Breakout Length, Power, end 2
Physical Specifications
Minimum Bend Radius, loaded
Minimum Bend Radius, unloaded
Tensile Load, long term, maximum
Tensile Load, short term, maximum
HFA208-6MT2-XXX
8 AWG
2
6
Corrugated aluminum
Multimode
.43 kg/m | .29 lb/ft
20.0 mm | 0.79 in
1000 mm | 39.37 in
1000 mm | 39.37 in
1000 mm | 39.37 in
1000 mm | 39.37 in
399.0 mm | 15.7 in
200.0 mm | 7.9 in
534 N | 120 lbf
1780 N | 400 lbf
HFA208-6MT3-XXX
8 AWG
2
6
Corrugated aluminum
Multimode
.43 kg/m | .29 lb/ft
20.0 mm | 0.79 in
1000 mm | 39.37 in
1000 mm | 39.37 in
1000 mm | 39.37 in
1000 mm | 39.37 in
399.0 mm | 15.7 in
200.0 mm | 7.9 in
534 N | 120 lbf
1780 N | 400 lbf
General Specifications
Cable Type
Center Conductor Gauge
Conductors, quantity
Total Fiber Quantity
Armor Type
Fiber Type
Dimensions
Cable Weight
Diameter Over Jacket
Breakout Length, Fiber, end 1
Breakout Length, Power, end 1
Breakout Length, Fiber, end 2
Breakout Length, Power, end 2
Physical Specifications
Minimum Bend Radius, loaded
Minimum Bend Radius, unloaded
Tensile Load, long term, maximum
Tensile Load, short term, maximum
HFA208-6MC1-XXX
8 AWG
2
6
Corrugated aluminum
Multimode
.43 kg/m | .29 lb/ft
20.0 mm | 0.79 in
1000 mm | 39.37 in
1000 mm | 39.37 in
1000 mm | 39.37 in
1000 mm | 39.37 in
399.0 mm | 15.7 in
200.0 mm | 7.9 in
534 N | 120 lbf
1780 N | 400 lbf
HFA208-6SC2-XXX
8 AWG
2
6
Corrugated aluminum
Single mode
.43 kg/m | .29 lb/ft
20.0 mm | 0.79 in
1000 mm | 39.37 in
1000 mm | 39.37 in
1000 mm | 39.37 in
1000 mm | 39.37 in
399.0 mm | 15.7 in
200.0 mm | 7.9 in
534 N | 120 lbf
1780 N | 400 lbf
HFA208-8SC2-XXX
8 AWG
2
8
Corrugated aluminum
Single mode
.43 kg/m | .29 lb/ft
20.0 mm | 0.79 in
1000 mm | 39.37 in
1000 mm | 39.37 in
1000 mm | 39.37 in
2000 mm | 78.74 in
399.0 mm | 15.7 in
200.0 mm | 7.9 in
534 N | 120 lbf
1780 N | 400 lbf
HFA210-6SC2-XXX
10 AWG
2
6
Corrugated aluminum
Single mode
.30 kg/m | .20 lb/ft
16.69 mm | 0.66 in
1000 mm | 39.37 in
1000 mm | 39.37 in
2000 mm | 78.74 in
2000 mm | 78.74 in
334.0 mm | 13.1 in
200.0 mm | 7.9 in
810 N | 180 lbf
2700 N | 600 lbf

www.commscope.com/andrew • 1-800-255-1479 Bulletin # 7695778 Rev. E 3
Technical Publication
General Specifications
Cable Type
Center Conductor Gauge
Conductors, quantity
Total Fiber Quantity
Armor Type
Fiber Type
Dimensions
Cable Weight
Diameter Over Jacket
Breakout Length, Fiber, end 1
Breakout Length, Power, end 1
Breakout Length, Fiber, end 2
Breakout Length, Power, end 2
Physical Specifications
Minimum Bend Radius, loaded
Minimum Bend Radius, unloaded
Tensile Load, long term, maximum
Tensile Load, short term, maximum
HFA406-8MT1-XXX
6 AWG
4
8
Corrugated aluminum
Multimode
.80 kg/m | .54 lb/ft
22.6 mm | 0.89 in
1000 mm | 39.37 in
1000 mm | 39.37 in
1000 mm | 39.37 in
1000 mm | 39.37 in
451.0 mm | 17.8 in
226.0 mm | 8.9 in
1070 N | 240 lbf
3560 N | 800 lbf
HFA406-8MT2-XXX
6 AWG
4
8
Corrugated aluminum
Multimode
.80 kg/m | .54 lb/ft
22.6 mm | 0.89 in
2000 mm | 78 in
2000 mm | 78 in
5000 mm | 196.85 in
5000 mm | 196.85 in
451.0 mm | 17.8 in
226.0 mm | 8.9 in
1070 N | 240 lbf
3560 N | 800 lbf
HFA406-8MT3-XXX
6 AWG
4
8
Corrugated aluminum
Multimode
.80 kg/m | .54 lb/ft
22.6 mm | 0.89 in
2000 mm | 78 in
2000 mm | 78 in
5000 mm | 196.85 in
5000 mm | 196.85 in
451.0 mm | 17.8 in
226.0 mm | 8.9 in
1070 N | 240 lbf
3560 N | 800 lbf

www.commscope.com/andrew • 1-800-255-1479 Bulletin # 7695778 Rev. E 4
Technical Publication

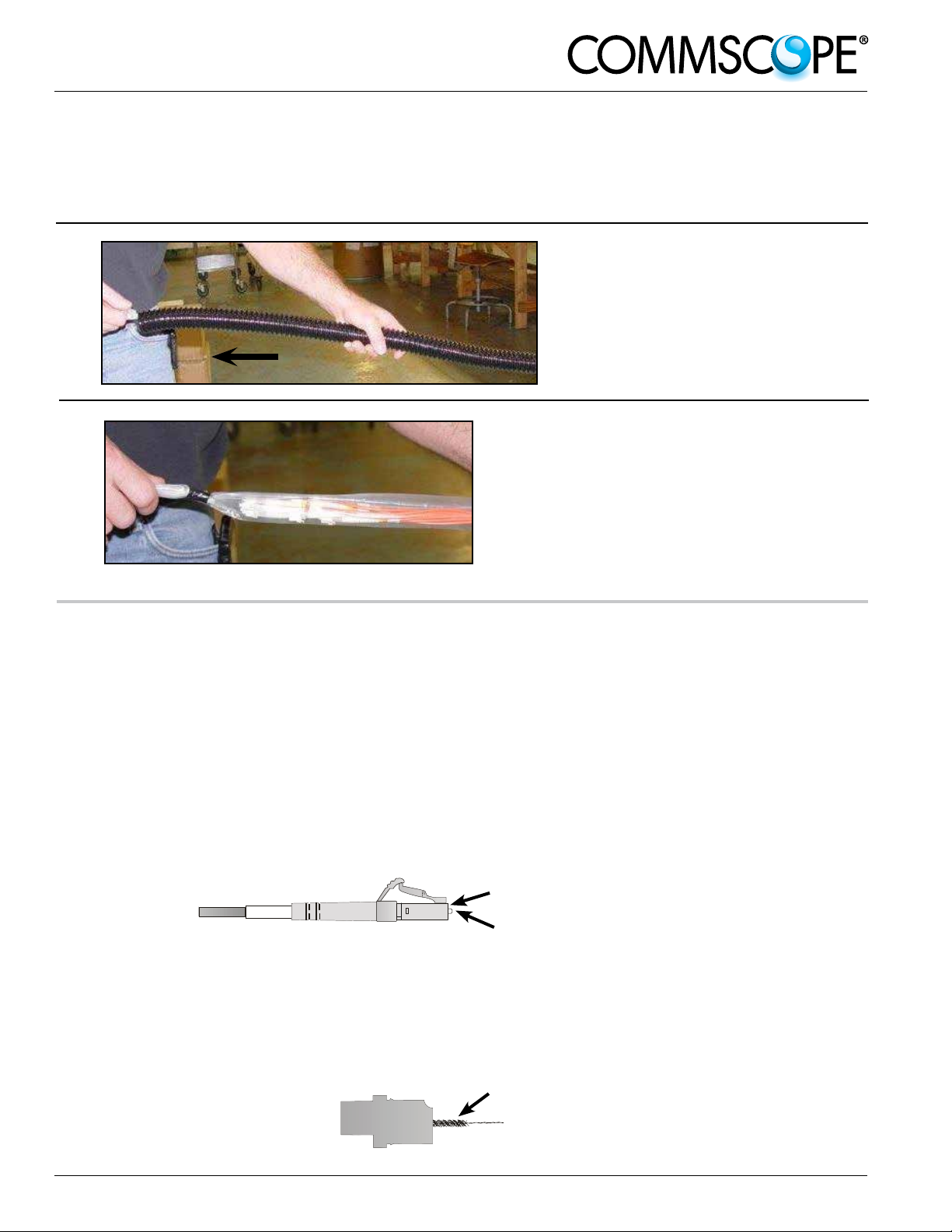

LC Connectors and Adapter cleaning
Clean exposed connector ferrule by lightly moistening lint-free wipe with ber optic cleaning solution (or >91%
isopropyl alcohol), and by applying medium pressure, rst wipe against wet area and then onto dry area to clean
potential residue from end face. Clean connector ferrule inside adapter by inserting lightly moistened cleaning stick
with ber optic cleaning solution (or >91% isopropyl alcohol) inside the adapter until contact is made with connector on
opposite end. Rotate cleaning stick with medium pressure in one circular motion as it is pulled away from the adapter.
Repeat process using dry cleaning stick.
Caution: Signal strength will be affected if end and sides of ferrule are not thoroughly cleaned. Discard cleaning
sticks after each use. Do not turn cleaning sticks back and forth pressing against connector end face. This may cause
scratches if large contamination is present. Always inspect connector end face for contamination after each cleaning.
Clean adapter by inserting adapter cleaning stick (or fiber adapter sleeve brush) moistened with fiber optic cleaning
solution (or >91% isopropyl alcohol) inside the adapter and gently pull out with twisting motion. Repeat process with a
dry cleaning stick.
Caution: Do not try to clean adapter with a standard pipe cleaner. The sleeve inner diameter of LC adapters is too
small. Do not try to clean the adapter with cleaning stick if a connector is mounted in one side. Discard cleaning sticks
after each use.
Clean Tip of Ferrule
Clean Sides of Ferrule
Adapter Brush
Breakout Procedure
1
2
Remove electrical tape from the trunk
cable and corrugated protection tube.
While holding the protection tube straight
pull the tube away from cable.
After you have pulled the ber and power
conductors into the OVP box remove electrical
tape from the trunk cable and remove clear tube
for access to all optical connectors.
After the trunk cable has been installed and you are ready to make the nal connection follow these steps for the
removal of ber protection tube.

www.commscope.com/andrew • 1-800-255-1479 Bulletin # 7695778 Rev. E 5
Technical Publication
Device designed for cleaning the ferrule end faces of LC connectors
Open guide cap, insert LC connector into guide, push the outer shell to start cleaning the LC connector interface, a
"click" sound indicates end of a cleaning process, repeat, close cap immediately after use.
Caution: Be careful not to slant LC connector while inserting into the Guide cap. Do not overly exert force during
insertion as this may cause damage to both the connector and the cleaner.
All in one cleaner
Guide
LC Connector
Push Cleaner X2
Cap
Part Number: FCCT - L
There are 3 basic principles that are critical to achieving an efficient fiber optic connection:
1. Perfect Core Alignment
2. Physical Contact
3. Pristine Connector Interface
Today’s connector design and production techniques have eliminated most of the challenges to achieving
core alignment and physical contact. What remains challenging is maintaining a pristine end-face. As a result,
CONTAMINATION is the #1 reason for troubleshooting optical networks.
Implementing the process of cleaning and inspecting before mating can reduce the time spent troubleshooting,
optimize signal performance and prevent damage.
Inspecting
Is It
Clean?
No Connect
Yes
Inspect
Clean
Clean
Abrasive particles (i.e. rock dust) can
cause permanent damage to the
interface. If interface is scratched it cannot
be repaired, it would need to be replaced.
!

www.commscope.com/andrew • 1-800-255-1479 Bulletin # 7695778 Rev. E 6
Technical Publication
Excess Cable Management
If length of cable installed needs to be adjusted you can split the cable at the BBU end using the process below and
then coiling the excess fiber subunits in a storage box. Fiber management trays are available to manage any excess
fiber length in the breakouts at the BBU.
1. Mark cutback length 2. Notch armor using flush cutter in-line with Kevlar
strings
3. Place rip cord in notches 4. Pull rip cord parallel to cable (while supporting
breakout)
5. Stop at length marker 6. Separate armor
7. Cut armor using side cutter 8. Remove water blocking tape
9. Remove excess rip cord 10. Apply electrical tape to protect breakout
Excess Fiber
storage Box
Part Number:
FE-14126-E
Fiber management
tray, Part Number:
Fe-14192-IR
NOTE:
Remember to slide
identifier labels
down the power
conductors before
trimming the cable
to it’s final length
Scan to
view video
Cable Splitter tool
Part Number:
FA-RCRT-PD

www.commscope.com/andrew • 1-800-255-1479 Bulletin # 7695778 Rev. E 7
Technical Publication
Jacketing Removal Procedure for Grounding Kit Installation
• 1 Hanger required every 1 m (3 ft) of vertical cable
FA-1923-STH Style Hangers for HFT208 and HFT406 series cables
Ground kits required at the top and bottom before entering the equipment / shelter / cabinet
Ground Kit UG12158-15B4-T is a universal solution for all HFF trunk cables.
Only use Tin Plated grounding kits
1. Score the jacketing 360º
2. Measure 51 mm (2 in) and repeat
3. Identify where the aluminum shielding overlaps, this will feel like a flat spot in the cable
4. Remove a section of jacketing between score marks
5. Lift edge of jacketing
6. Grab lifted edge of jacketing with a pair of pliers and roll on the cable
7. Remove excess adhesive with a piece of emery cloth

www.commscope.com/andrew • 1-800-255-1479 Bulletin # 7695778 Rev. E 8
Technical Publication
© 2015 CommScope
Notice: CommScope disclaims any liability or responsibility for the results of improper or unsafe installation, inspection, maintenance, or removal practices.
Aviso: CommScope no acepta ninguna obligación ni responsabilidad como resultado de prácticas incorrectas o peligrosas de instalación, inspección, mantenimiento o retiro.
Avis : CommScope décline toute responsabilité pour les conséquences de procédures d’installation, d’inspection, d’entretien ou de retrait incorrectes ou dangereuses.
Hinweis: CommScope lehnt jede Haftung oder Verantwortung für Schäden ab, die aufgrund unsachgemäßer Installation, Überprüfung, Wartung oder Demontage auftreten.
Atenção: A CommScope abdica do direito de toda responsabilidade pelos resultados de práticas inadequadas e sem segurança de instalação, inspeção, manutenção ou remoção.
Avvertenza: CommScope declina eventuali responsabilità derivanti dell’esecuzione di procedure di installazione, ispezione, manutenzione e smontaggio improprie o poco sicure.
CommScope
1100 CommScope Place SE P.O. Box 339, Hickory, NC 28603-0339
[phone] [phone]
www.commscope.com/andrew
Customer Service 24 hours
North America: [phone] (toll free)
Any country: [phone]
email: [email protected]
Jumpers are properly supported to prevent strain on fiber during severe weather
Bend radius minimums haven't been exceeded
CommScope FiberFeed®approved installation accessories are used
Maximum hanger spacing of 0.9 m (3 ft) - 1.2 m (4 ft) is maintained
Visually inspected end face for residual dirt and damage
Avoid migration of contaminations from one connector to another
Check continuity by using LED or laser light source from one end face and look for light from other end to
identify any broken fiber (Do not look directly at cable with laser source)
Fiber Connections are engaged and the sectors are consistent with requirements
Cable serial number has been documented in the closeout paperwork and a copy has been left on-site
Installation Check List
Protecting Spare Fibers
UP
Slide the protection sleeve back over
the dark fiber ends to protect them.
Place tape over fiber tails and
protective sleeve end to hold in
place. Support protection sleeve
using tie wraps.
12
