Conair DeDuster C-50 User manual

Corporate Office: 724.584.5500 Instant Access 24/7 (Parts and Service): 800.458.1960 Parts and Service: 814.437.6861
www.conairgroup.comUSER GUIDE
UGC059-0119
DeDuster®
Model C-50

Corporate Office: 724.584.5500 Instant Access 24/7 (Parts and Service): 800.458.1960 Parts and Service: 814.437.6861
It’s a good idea to record the model and serial number(s) of your equipment and the date you
received it in the User Guide. Our service department uses this information, along with the
manual number, to provide help for the specific equipment you installed.
Please keep this User Guide and all manuals, engineering prints and parts lists together for
documentation of your equipment.
Date:
Manual Number: UGC059-0119
Serial Number(s):
Model Number(s)
DISCLAIMER:Conair shall not be liable for errors contained in this User Guide or for incidental, consequential
damages in connection with the furnishing, performance or use of this information. Conair makes no warranty
of any kind with regard to this information, including, but not limited to the implied warranties of
merchantability and fitness for a particular purpose.
Copyright 2019 l Conair l All rights reserved
Please record your equipment’s
model and serial number(s) and
the date you received it in the
spaces provided.

Contents
3
Table of Contents
1About This Manual ................................................................................................. 5
2Safety....................................................................................................................... 6
2.1 Classification of the Warning Notices........................................................................................ 6
2.2 Safety Notices ............................................................................................................................... 7
2.2.1 General Principles ................................................................................................................... 7
2.2.2Organizational Measures ........................................................................................................ 7
2.2.3 Personnel Selection and Qualifications................................................................................... 8
2.2.4 Notices of Particular Types of Danger .................................................................................... 8
3Product Description ............................................................................................... 9
3.1 General .......................................................................................................................................... 9
3.2 Correct Use ................................................................................................................................... 9
3.3 Setup............................................................................................................................................ 10
3.3.1 C-50 DeDuster®..................................................................................................................... 11
3.3.2 Fresh Air Inlet Filter ............................................................................................................... 13
3.3.3 Dust Collector Assembly ....................................................................................................... 14
3.4 How It Works ............................................................................................................................... 15
3.5 Technical Data ............................................................................................................................ 17
3.6 Scope of Supply.......................................................................................................................... 17
4Transportation and Storage................................................................................. 18
5Installation............................................................................................................. 19
5.1 Site Conditions ........................................................................................................................... 19
5.2 Installing the C-50 DeDuster® ................................................................................................... 19
6Operation............................................................................................................... 21
6.1 Preparing for Operation ............................................................................................................. 21
6.2 Basic Setup ................................................................................................................................. 21
6.2.1 Level Sensor Setup ............................................................................................................... 21
6.2.2Integrated Product Feeder Setup .......................................................................................... 23
25
6.3 Switching ON .............................................................................................................................. 26
6.3.1 Setting Product Flow ............................................................................................................. 26
6.3.2 Setting the Air Flow ............................................................................................................... 27
6.3.3 Optimizing Cleaning Performance......................................................................................... 27
6.4 Switching OFF............................................................................................................................. 27
7Maintenance and Repairs .................................................................................... 28
7.1Safety Notices ............................................................................................................................. 28
7.2 Maintenance Plan ....................................................................................................................... 28
7.2.1 Emptying the Dust Container ................................................................................................ 29
7.2.2 Cleaning the C-50 DeDuster®............................................................................................... 29
7.2.3 Visual Inspection ................................................................................................................... 30
7.2.4 Cleaning the Ionizing Zone.................................................................................................... 30
7.2.5 Replacing the Fresh Inlet Air Filter ........................................................................................ 30

Contents
4
7.2.6 Cleaning the Outlet Air Filter ................................................................................................. 30
7.3 Repairs......................................................................................................................................... 31
8Dismantling/Disposal ........................................................................................... 32
9Troubleshooting ................................................................................................... 33
10 Spare Parts............................................................................................................ 34
Appendix...................................................................................................................... 37
List of Figures

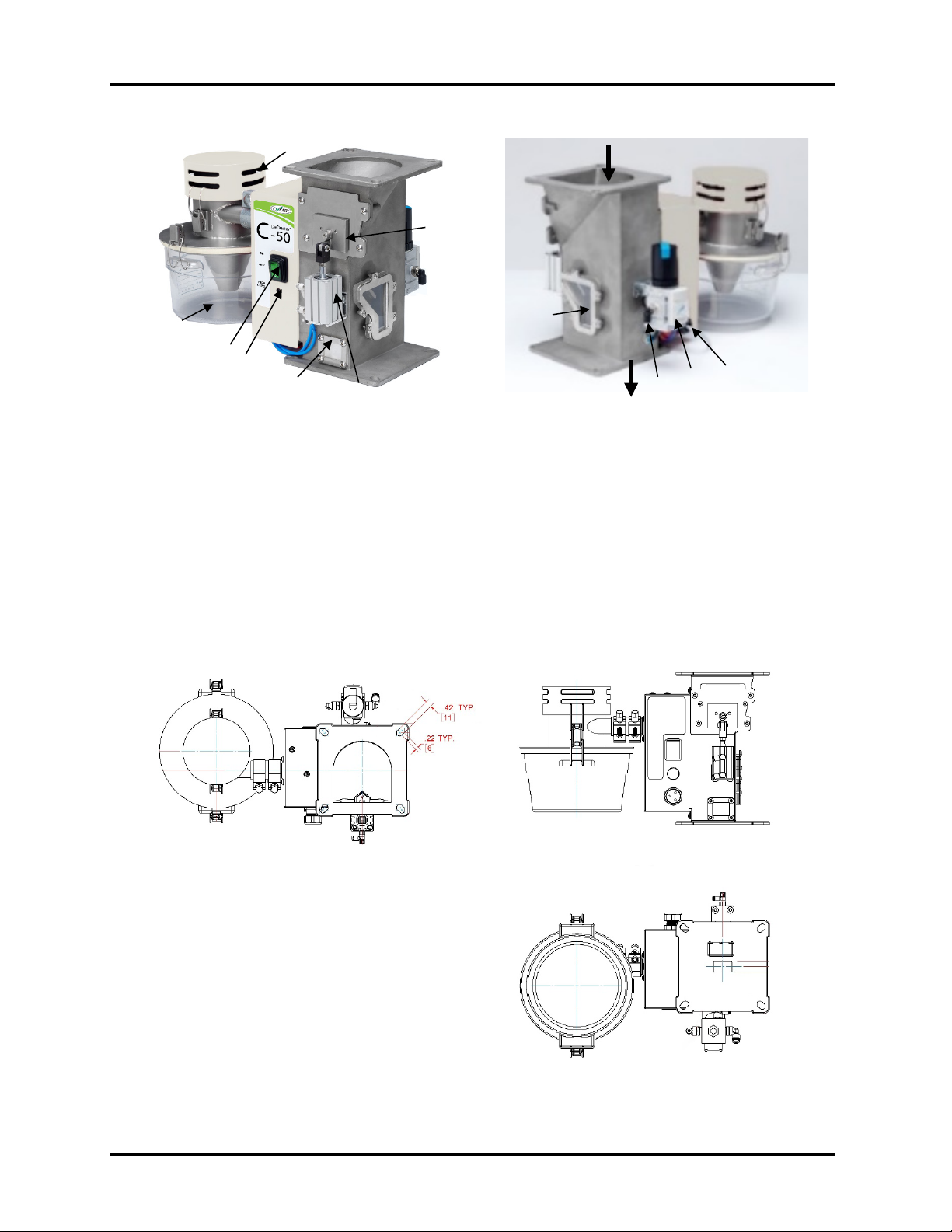

Figure 1: Setup............................................................................................................................................ 10
Figure 2: C-50 DeDuster®........................................................................................................................... 12
Figure 3: Fresh Air Inlet Assembly.............................................................................................................. 13
Figure 4: Dust Collector Assembly.............................................................................................................. 14

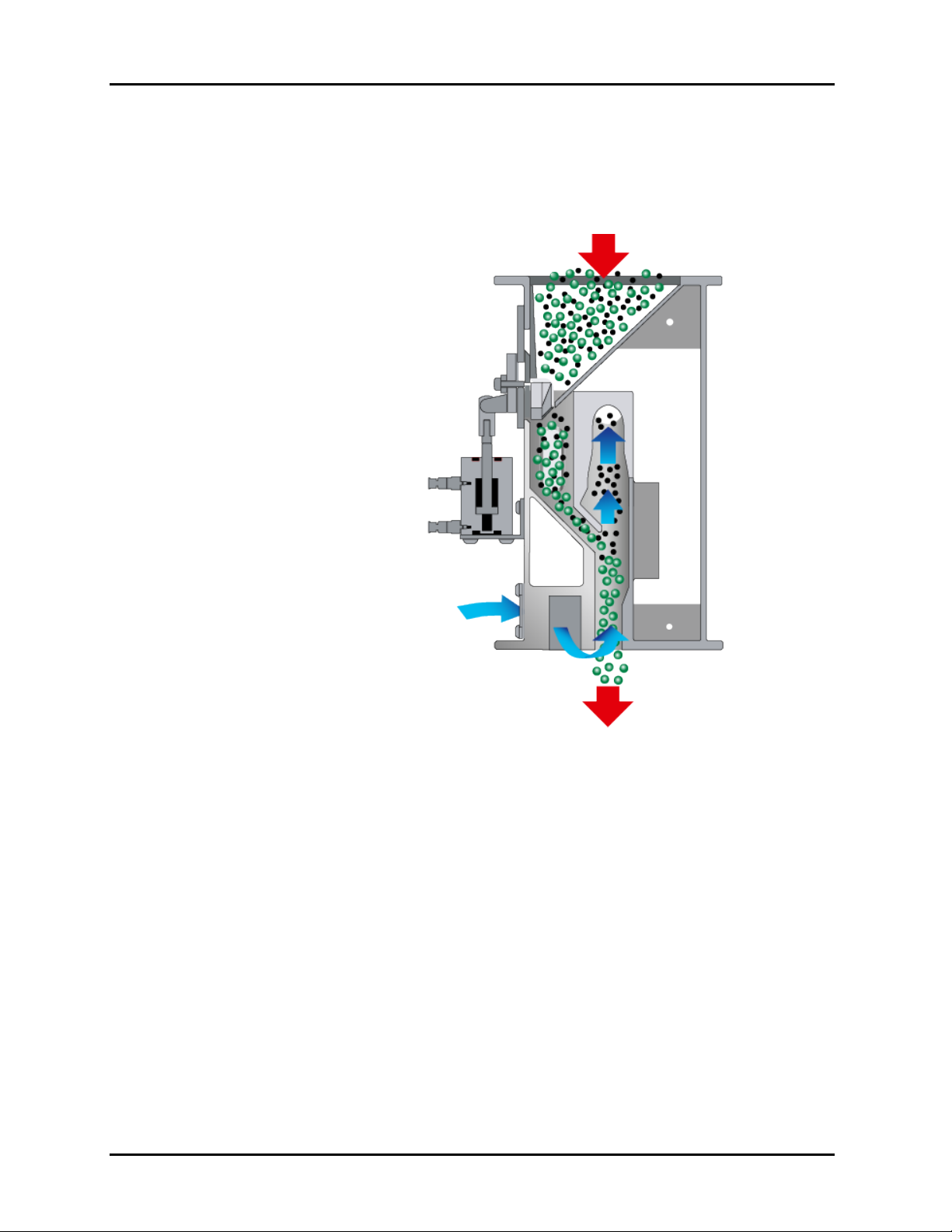

Figure 5: C-50 DeDuster® Operation ......................................................................................................... 15
Figure 6: Operation Diagram....................................................................................................................... 16

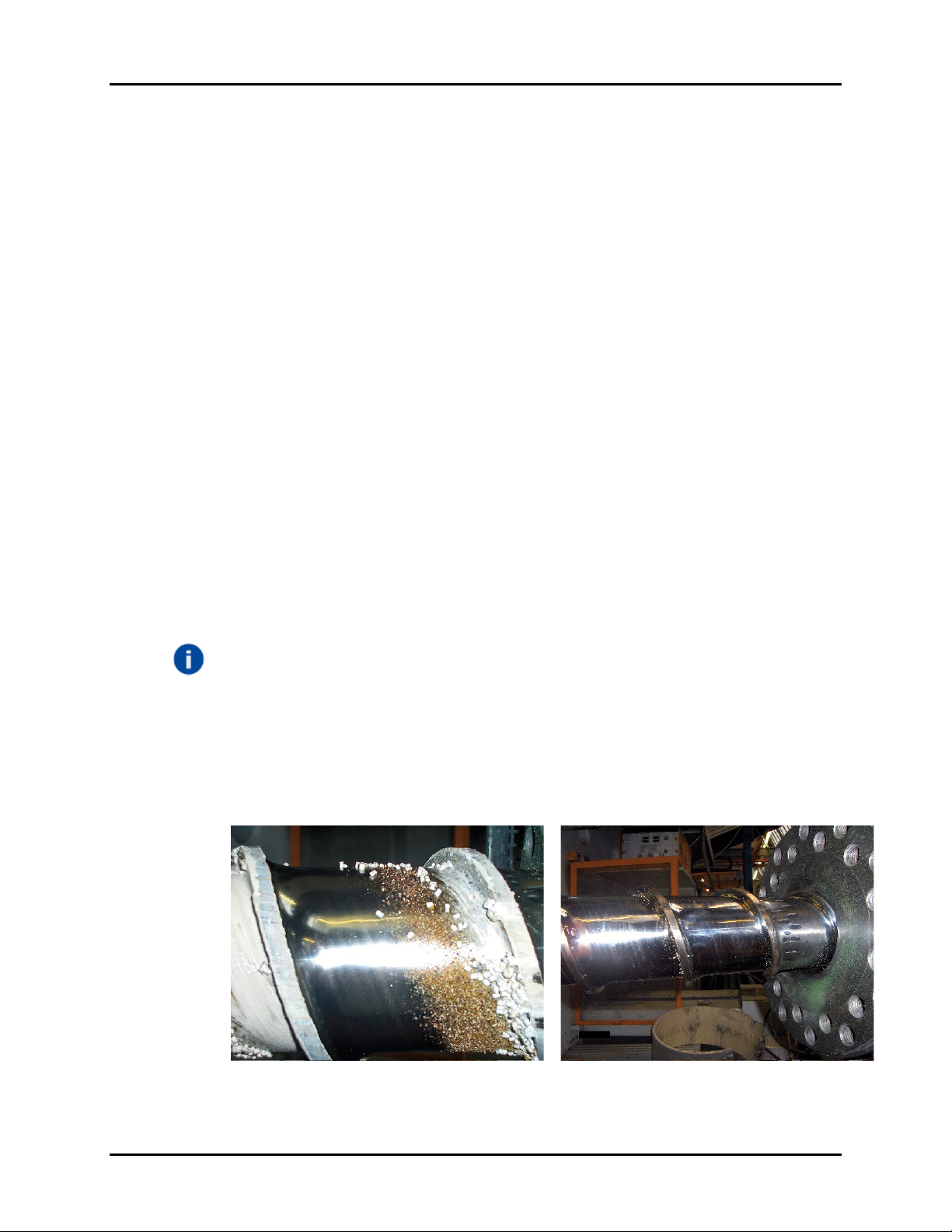

Figure 7: Feed Screw Before and After ...................................................................................................... 19
Figure 8: Level Sensor Adjustment............................................................................................................. 21
Figure 9: Flow Adjustment .......................................................................................................................... 23
Figure 10: Electrical Control........................................................................................................................ 26
Figure 11: Dust Collector Assembly............................................................................................................ 29
Figure 12: Cleaning Filter Elements............................................................................................................ 30
List of Tables
Table 1: Capacity (Metric) ........................................................................................................................... 25
Table 2: Capacity (Imperial) ........................................................................................................................ 25
Table 3: Maintenance Plan ......................................................................................................................... 28
Table 4: Troubleshooting ............................................................................................................................ 33
Table 5: List of Spare Parts......................................................................................................................... 34

1 About this Manual
5
1 About This Manual
This operating manual contains information and processes for the entire
operating cycle of the dedusting unit. It is intended for use by trained
operators.
The following main points are described:
•Safety
•How it works
•Installation
•Operation
•Maintenance and repairs
•Dismantling
•Troubleshooting
•Spare parts
Order-specific data, exact dimensions and product specifications are listed
in the enclosed documents (see Appendix).
This operating manual must be available at the place of use at all times.
For your own safety and to prevent injuries, it is mandatory to read this
operating manual thoroughly and to observe it at all times, paying
particular attention to the safety instructions.
The operator must supplement this operating manual with the existing
national regulations (e.g. accident prevention, environmental protection
and disposal).
Reviewing and following this operating manual is a prerequisite for fault-
free operation and the recognition of any warranty claims. This operating
manual was compiled in order to provide personnel with the information
that is required for the installation, operation and maintenance.
Any person involved in installation, operation, maintenance and
troubleshooting must have read and understood this operating manual.
Maintenance and repair work that exceeds the scope of what is described
here must be done by the manufacturer.
Reference documents and drawings are included in the Appendix.

2 Safety
6
2 Safety
2.1 Classification of the Warning Notices
This operating manual contains various symbols. The symbols point out
possible hazards and protective measures or assist in orientation.
Warning Symbols The warning symbols are divided up into the categories Danger, Warning,
Caution and Attention.
It is particularly important to obey these safety notices in order to avoid
death, injury or property damage.
DANGER
Identifies an
immediate danger
. Death or serious injury will result if no
appropriate precautionary measures are taken.
WARNING
Identifies a
potentially dangerous situation
. Death or serious injury can
result i
f no appropriate precautionary measures are taken.
CAUTION
Identifies a
potentially dangerous situation
. Injury can result if no appropriate
precautionary measures are taken.
ATTENTION
Identifies a
potentially dangerous situation. Propert
y damage can result if
no appropriate precautionary measures are taken.
Special Hazards The warning symbol is replaced by a special symbol where electrical
hazards exist.
DANGER
Identifies a danger from
electrical voltage.
Notice Symbols The notice symbols draw your attention to important information or assists
in orientation.
INFORMATION
Identifies
important information
about the product or the described action
steps to which particular attention must be paid.

SEQUENTIAL STEP
Identifies a sequence of operations that must be observed in order to
guarantee that procedures run smoothly.

2 Safety
7
2.2 Safety Notices
2.2.1 General Principles
•This unit is constructed in accordance with the state-of-the-art
technologies and science, and in line with the recognized safety
regulations. Nevertheless, risks to the life and safety of the operator
or third parties can arise during use and damage to the unit or other
property can occur.
•To ensure safe operation, read the operating manual and pay careful
attention to the safety instructions and danger notices!
•Use the unit only in the correct manner.
•Only operate the unit when it is in a technically faultless state.
•Faults that can impair safety must be remedied immediately.
2.2.2 Organizational Measures
Operator Instructions Always keep this operating manual available at the place where the unit is
in use and make sure that it is complete and legible.
•In addition to the operating manual, point out and observe the statutory
and other binding accident prevention and accident protection
regulations that generally apply. The rules and regulations should
cover:
– Safety at work
– Accident protection
– Handling hazardous materials
– Handling food or pharmaceutical products
– First aid
– Environmental protection
– Disposal
– Hygiene
•Supplement the operating manual with special operational
requirements relating to work organization, work procedures and
personnel used. Special operational requirements include supervision
and reporting requirements.
•All persons tasked with work on the unit must have read and
understood this operating manual before commencing work.
•Only operate unit in safe and functional state!
•Be sure that personnel are working with safety in mind and in
accordance with the operating manual.
•Provide personal protective equipment as required.
•No modifications, attachments or conversions may be made to the unit
without the manufacturer's written permission! Otherwise, the
warranty and the operating permit for the unit will be rendered void.
•Use only spare parts that conform to the technical requirements
specified by the manufacturer.
•Observe recommended intervals for repeat checks/inspections.

2 Safety
8
Operator Instructions Before carrying out any work on the unit, read this operating manual.
•Work safely.
•Wear personal protective equipment when operating equipment.
•Observe all safety and warning notices.
•In the event of any changes to the unit or any dangerous operating
conditions, shut down the unit immediately and report the fault to the
responsible department or person.
2.2.3 Personnel Selection and Qualifications
•The unit may only be worked on by persons specifically trained to do so.
•Designate specific personnel to be responsible for assembly,
disassembly, maintenance, repair and troubleshooting. Have the unit
assembled, maintained and repaired only by personnel who have
been trained and authorized by the manufacturer.
2.2.4 Notices of Particular Types of Danger
Electrical Energy Electrical regulations state that only a skilled electrician or a trained person
under the supervision of a skilled electrician may work on electrical
equipment.
•Inspect the unit’s electrical equipment regularly. Faults such as loose
connections or damaged cables must be remedied immediately.
•When performing any work on the unit, de-energize and lock out the
unit to prevent it from being accidentally switched back on.

3 Product Description
9
3 Product Description
3.1 General
Designation C-50 DeDuster®
Identification Name plates are attached in clearly visible locations on the unit.
Purpose This dedusting unit is suitable for cleaning granular products within the
scope of the customer dependent product specification. Cleaning may be
a prerequisite for processing.
The C-50 DeDuster®can be installed on the following equipment types:
•Injection molding machines
•Dryers
•Extruders
Characteristics of the dedusting unit:
•High throughput of approximately 45 lb/h (20 kg/h)
•Low overall height of 10.25 in (260 mm)
•Ability to remove dust and angel hair (streamers)
•Low energy consumption
•Easy to operate
The product specifications and the project-related configuration
information are defined in the enclosed technical P&ID layout and
assembly drawing.
3.2 Correct Use
This dedusting unit:
•is only for cleaning bulk materials in accordance with the enclosed
product specifications.
•may only be operated within the product specifications.
•may only be used under conditions that are within the specifications
and by trained persons following applicable safety and injury
prevention regulations.
Correct use also includes obeying all notices in this operating manual,
maintaining the specified ambient conditions and operating in
accordance with the maintenance and servicing instructions.
Incorrect Use Any deviation from the specified operating conditions is incorrect.
The operator is solely responsible for all injuries and material damage
resulting from incorrect use.

3 Product Description
10
3.3 Setup
The illustration below shows the standard setup of the C-50 DeDuster®
system. The actual setup will vary based on installation setup.
Figure 1: Setup
1. C-50 DeDuster®
2. Dust Container
3. Flapper-type Vacuum Loader (optional)
4. Inlet Hopper
5. Sight Glass
6. Level Sensor (Connected to C-50)
DANGER
Plastic pellets should never be allowed to accumula
te inside the DeDuster®. The C-
50
DeDuster® includes a
Level S
ensor that stops the product flow into the DeDuster®.
The
Level Sensor must be connected to a Sight Glass below the C-50
. When material is
detected by the
Level Sensor, C-50 DeDuster® switches off for set time and pneum
atic
cylinder brings flow cone to zero position and stops the flow of material.
4
1
3
2
5
6

3 Product Description
11
3.3.1 C-50 DeDuster®
The C-50 DeDuster® is comprised of multiple components as listed in
Figure 2. The Integrated Product Feeder assembly controls the product
throughput into the C-50 DeDuster®. The Dust Collector assembly
collects the removed dust and releases clean air to the atmosphere (as
described in 3.3.3). The Pressure Regulator controls the air flow through
the vacuum generator and ionizer assembly (as described in 3.3.4).
The Integrated Product Feeder Assembly consists of:
•A Drive Block that connects the actuator to the Flow Cone that
regulates solids flow into the DeDuster®.
•A Pneumatic Cylinder which controls the movement of the Drive
Block.
•Air Flow Controls on the Pneumatic Cylinder that control the upward
and the downward movement of the Flow Cone.
oThe TOP air flow control valve determines the total upward
travel of the flow cone.
oThe BOTTOM air flow control valve determines the total
downward travel of the Flow Cone while feeding.
•An integrated Solenoid Valve and Timer controls the oscillation of the
Flow Cone which in turn controls the material flow rate into the C-50
DeDuster®. These are not adjustable.
•The movement of the Flow Cone determines the product throughput.
•The product flow is stopped when the Flow Cone is held at the bottom
position by the pneumatic actuator.
•The frequency of the Flow Cone oscillation is not changed. The
material flow rate through the C-50 DeDuster® is changed by
adjusting the TOP air flow control valve.
The C-50 DeDuster® separates unwanted dust from granular products.
In general, the cleaning performance of the C-50 DeDuster® is influenced
by:
•Material Flow Rate
oIncreased rate: lower cleaning efficiency
oDecreased rate: higher cleaning efficiency.
•Air Flow Through Compressed Air Pressure Regulator
oMore air will increase cleaning performance but also increase
the amount of good material carried over to the dust collector.
oLess air will minimize carry over but decrease cleaning
performance too.
oFind an optimum air pressure setting to achieve optimum
cleaning performance and acceptable carryover.
Please see section 6.2.2 for a detailed description of the Integrated
Product Feeder Setup.
Contact the Conair if you have any questions.
Contact Conair
Parts and Service
Call 800 458 1960 or
From outside the US
call 814-437-6861

3 Product Description
12
Figure 2: C-50 DeDuster®
1. Drive Block For Flow Cone
2. Outlet Filter Cover
3. Dust Container
4. Power Switch
5. High Level Indicator
6. Fresh Air Inlet w/ Filter
7. Pneumatic Cylinder
8. Dusty Product Inlet
9. Window
10. Clean Product Outlet
11. Air Supply Connection
12. Pressure Regulator & Gauge
13. Level Sensor Connection
3
1
4
7
12
5
13
10
11
8
6
9
2

3 Product Description
13
3.3.2 Fresh Air Inlet Filter
The Fresh Air Inlet Filter cleans the ambient air that is drawn into the
C-50 DeDuster®.
See the Spare Parts List in Section 10 for replacement part numbers.

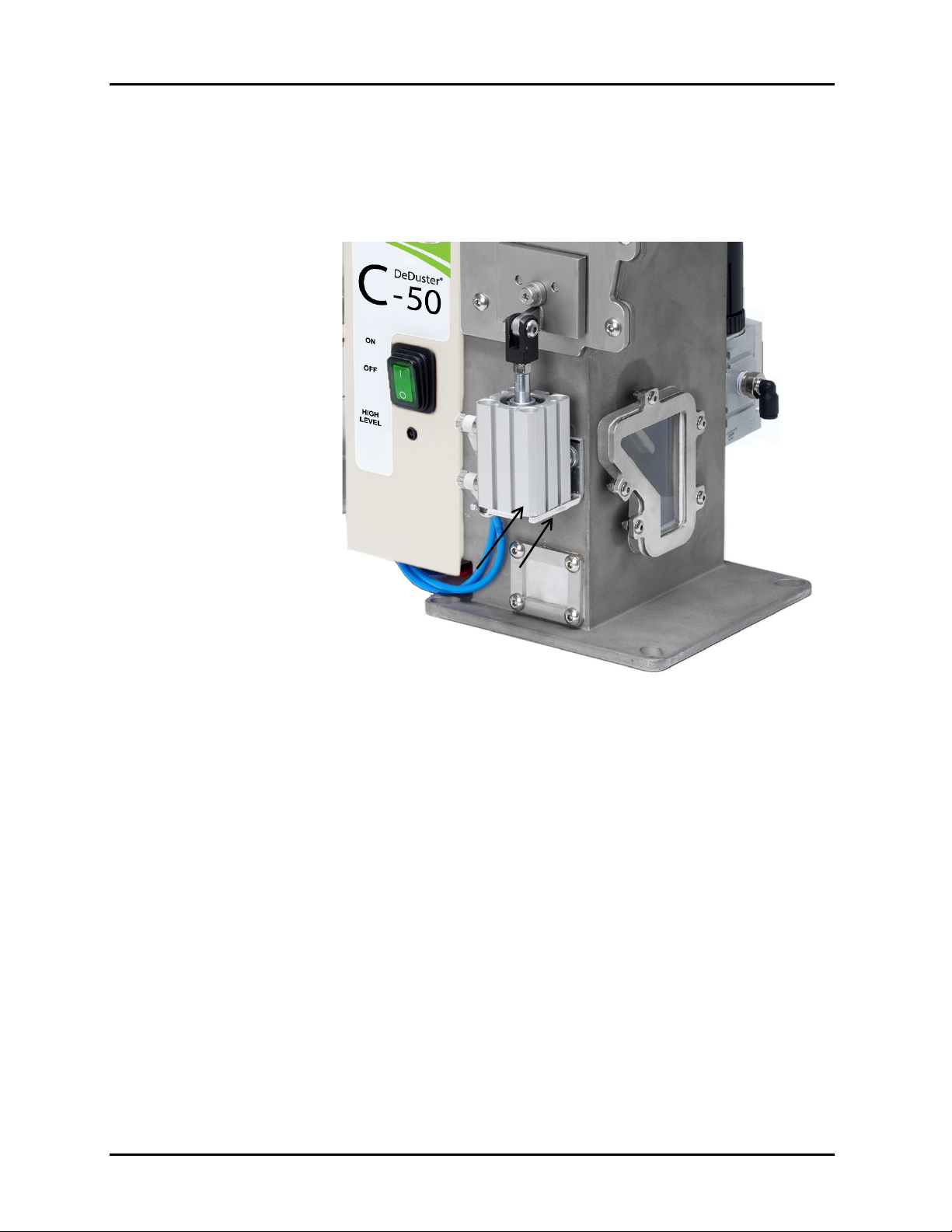

Figure 3: Fresh Air Inlet Assembly
1. Filter Cover
2. Filter (5µm)
1
2

3 Product Description
14
3.3.3 Dust Collector Assembly
The Dust Collector Assembly separates and collects the dust that was
removed from the product by the C-50 DeDuster®. Centrifugal force
separates the dust from the exhaust air in the Cyclone and the dust is
collected in the Dust Container below. The air is then ejected from the
unit through the Outlet Air Filter. The Outlet Air Filter is protected by the
Outlet Air Filter Cover.
See the Spare Parts List in Section 10 for replacement part numbers.
Figure 4: Dust Collector Assembly
1. Cyclone
2. Outlet Air Filter Cover
3. Outlet Air Filter
4. Dust Container
1
2
3
4

3 Product Description
15
3.4 How It Works
Product is gravity fed through the C-50 DeDuster®. Cleaning air is pulled
through the DeDuster® from the bottom by the integrated compressed air
operated vacuum generator. Unwanted dust is separated from the
product and collected in the Dust Container.
Figure 5: C-50 DeDuster® Operation
1. Controlled Feed Zone: A pneumatically driven flow cone maintains a
steady feed rate of the pellets into the C-50 DeDuster®.
2. Ionizing Zone: Compressed air uniformly distributes negative ions from
the Ion Generator to neutralize the static charge that holds dust on the
surface of the pellets.
3. Venturi Zone: A compressed air operated vacuum generator creates the
counter flow air stream that separates streamers and dust from the falling
pellets.
4. Air Inlet: If the outlet of the DeDuster® is closed off to the atmosphere,
then an air inlet on the side of the DeDuster® allows the vacuum
generator to pull in filtered air from the atmosphere.
5. Dust Collector: Unwanted dust and streamers are sent to the attached
mini dust collector. Filtered air is released to the atmosphere.

3 Product Description
16

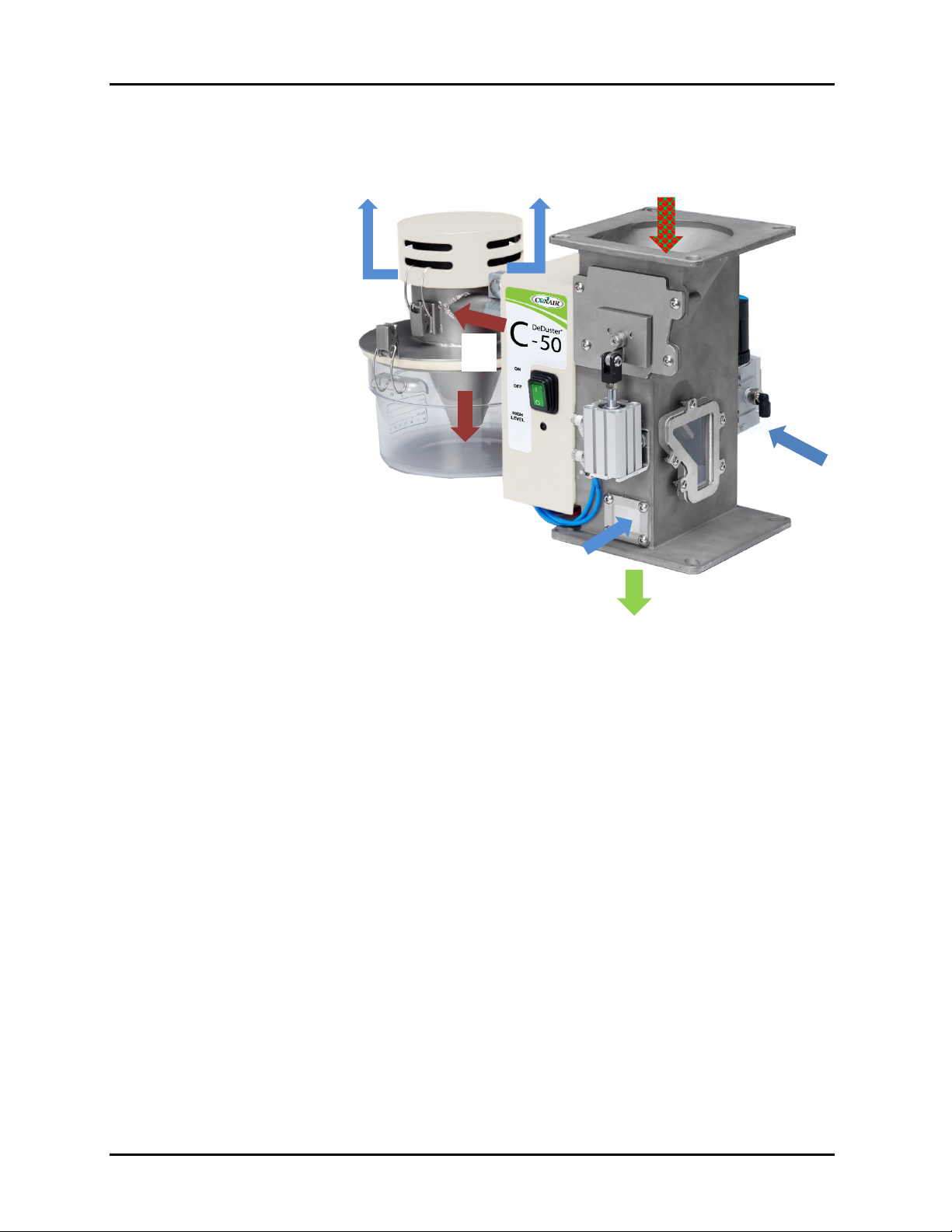

Figure 6: Operation Diagram
1. Untreated Product In
2. Cleaned Product Out
3. Compressed Air Supply
4. Fresh Air Inlet (Filtered)
5. Dirty Air, Dust and Streamers
6. Dust and Streamers
7. Outlet Air (Filtered)
3
4
2
5
6
1
7
7

3 Product Description
17
Cleaning Process After falling through the Integrated Product Feeder,dusty product passes
by an Ion Generator that disrupts the electrostatic charge between the
product and the dust.
The dusty product then enters the Venturi Zone where the cleaning air
separates dust particles and angel hair from the product. The counter
flow air speed in the Venturi Zone is controlled using the Air Pressure
Regulator.
Clean product exits the C-50 DeDuster®downward. The level of product
in the hopper below the C-50 DeDuster®is maintained using the
integrated Level Sensor installed on the Sight Glass below the
DeDuster®
Material is typically fed to the C-50 DeDuster® Inlet Hopper by a separate
Flapper-type Vacuum Loader.
Dust Separation The exhaust air from the C-50 DeDuster®is directed to the Cyclone
Assembly where the dust is separated from the air stream and collected
into the Dust Container. The air then passes through the Outlet Air Filter
and is released to the atmosphere.
See the Spare Parts List in Section 10 for replacement part numbers.
Compressed Air
Supply The compressed air supply must be filtered, dried and de-oiled before
entering the C-50 DeDuster®.
3.5 Technical Data
Detailed dimensions, electrical information and compressed air
requirements are presented in the Technical Drawing in the Appendix.
3.6 Scope of Supply
The C-50 DeDuster®is supplied as individual subassemblies that must
be assembled by the end user. Confirm that all parts are included in the
package immediately upon receipt.
The scope of supply contains:
•C-50 DeDuster®
•Level Sensor
•Power Cord
•Dust Collection Assembly
The parts supplied for your order can vary. Check your packing list to confirm all
of the correct parts were supplied.

4 Transportation and Storage
18
4 Transportation and Storage
Transportation
CAUTION
Transportation may only be carried out by qualified persons and in
accordance with the safety instru
ctions and the local regulations.
Some of the parts of the dedusting unit
may be
heavy. Use suitable lifting
gear when necessary.
ATTENTION
Lift the
DeDuster®only by the housing. Do not lift the unit using
the dust
collector housing.
•Disassemble the C-50 DeDuster®into subassemblies prior to transport.
•Carefully pack the components so that they are protected against
impact.
Storage
•Clean the C-50 DeDuster®assembly before storing.
•Close off all openings in the equipment with suitable protective
covers before storing.
•Store the C-50 DeDuster®assembly in a dry, dust-free location and
add desiccants if necessary.

5 Installation
19
5 Installation
Upon Receipt
of Goods When received, inspect the C-50 DeDuster® package for damage caused
during transportation. Immediately report damage to the transport
company and to the supplier.
Unpack and inspect all parts for damage and completeness.
If the equipment is damaged, inform the transport company and the
supplier immediately.
If items listed on the packing list are missing, inform the supplier
immediately.
5.1 Site Conditions
•The C-50 DeDuster® is intended only for upright installation.
•The C-50 DeDuster® must be mounted on a sturdy and level
surface.
•Ensure that no strong vacuum or pressure from other parts of the
system exists at the C-50 DeDuster® product discharge.
•The C-50 DeDuster® is intended only for indoor use with protection
from dust and moisture.
•The temperature of the material being processed through the C-50
DeDuster® must not exceed 82 °C (180 °F).
•The temperature of air drawn from the product outlet must not
exceed 82 °C (180 °F). Subtract 1° from this temperature limit for
every 1° above an ambient temperature of 27 °C (80 °F).
Contact Conair. for process temperature greater than 82 °C (180 °F).
5.2 Installing the C-50 DeDuster®
The C-50 DeDuster® removes dust and streamers from plastic pellets
before they are fed into an extruder or injection molding machine. For best
results, the extruder or injection molding machine should be cleaned
before installing the C-50 DeDuster® so all contaminants downstream of
the DeDuster® are removed.
Feed screw crusted with contaminants. Clean feed screw
Figure 7: Feed Screw Before and After
Contact Conair
Parts and Service
Call 800 458 1960 or
From outside the US
call 814-437-6861

5 Installation
20
Assembling the
C-50 DeDuster®
The individual components of the DeDuster® are supplied disassembled.
•Remove the parts of the C-50 DeDuster® from the packing material.
•Mount the DeDuster® on the stand or equipment where the assembly
will be used (Section 5.1 Site Conditions). Make sure an appropriate
gasket is installed between the C-50 product outlet flange and the
equipment that it is installed on to minimize heat conduction from below.
•Attach the Dust Collector assembly to the DeDuster® using the supplied
coupling. Carefully position the Dust Collector assembly so the Outlet Filter
mount surface is parallel to the DeDuster® mount flanges.
•Attach a suitable air hose from the Compressed Air Supply to the
Compressed Air Regulator & Gauge assembly on the C-50 DeDuster®.
Refer to the technical drawing in the Appendix for the correct size air supply
hose.
•Install the supplied Level Switch on a Sight Glass below the C-50 and
connect the wire from the Level Switch to the C-50.
•Confirm that the Power Switch is in the OFF position (“0”). Connect
the Power Cord to the DeDuster® and to an appropriate power
receptacle. Refer to the technical drawing in the Appendix for the
power requirements.
•Turn the Power Switch on the DeDuster® to the ON position (“1”) to
confirm that the Flow cone Product Feeder moves upwards. Note that
there will be an approximately 10 second delay before the Product
Feeder starts to operate and that the Product Feeder will not operate
and remain in the closed position if the Level Sensor is not connected
or if the sensor is detecting material.
•Confirm that the Dust Collector Assembly and Compressed Air
Connections are secure.
DANGER
Plastic pellets should never be allowed to accumulate inside the DeDuster®.
The C-
50
DeDuster® includes a level sensor that stops the product flow into the DeDuster®. The level
sensor must be connected to a sight glass below the
C-50. When material is dete
cted by the
level sensor,
C-50
DeDuster® switches off and pneumatic cylinder brings flow cone to zero
position and stops the flow of material.
