Conair S Series User manual

USER GUIDE
UGG050-0517
S Series Granulators
www.conairgroup.com
Corporate Office: +1.724.584.5500 l Instant Access 24/7 (Parts and Service): 800.458.1960 l Parts and Service: +1.814.437.6861

Please record your equipment’s
model and serial number(s) and
the date you received it in the
spaces provided.
It’s a good idea to record the model and serial number(s) of your equipment
and the date you received it in the User Guide. Our service department uses
this information, along with the manual number, to provide help for the specic
equipment you installed.
Please keep this User Guide and all manuals, engineering prints and parts lists
together for documentation of your equipment.
Date:
Manual Number: UGG050-0517
Serial Number(s):
Model Number(s):
DISCLAIMER: Conair shall not be liable for errors contained in this User Guide or for
incidental, consequential damages in connection with the furnishing, performance
or use of this information. Conair makes no warranty of any kind with regard to this
information, including, but not limited to the implied warranties of merchantability and
fitness for a particular purpose.
Copyright 2017 l Conair l All rights reserved

3UGG050-0517S Series
INTRODUCTION
Introduction
Note! All users must study the instruction manual before installing, operating or maintaining the machine.
This instruction manual contains instructions how to install, operate and maintain the standard versions of the Conair
S Series granulators, Model number S97, S910, S914 and S918.
The performance of your supplied machine may vary from the standard machines described in this instruction manual.
In event of any questions, please contact Conair at 1-800-458-1960.
INTRODUCTION

4UGG050-0517S Series
INTRODUCTION
CONTENT
2. DESCRIPTION
Safety equipment...................................................... 2:11
General rules, Safety equipment..................... 2:11
Funnel, Hopper ................................................ 2:12
Flap(s) .............................................................. 2:12
Granule bin ...................................................... 2:13
Protective covers.............................................. 2:13
Key to the electrical cabinet ............................ 2:13
Safety switch.................................................... 2:14
Star knob.......................................................... 2:14
Main switch ..................................................... 2:15
Emergency stop(s) ........................................... 2:15
Electrical cabinet, Operating panel.................. 2:15
Advanced, Status messages ..................................... 2:16
General rules,
“Level 0” and “Level 1” messages ................. 2:16
“Level 0” messages.......................................... 2:17
“Level 1” messages.......................................... 2:18
Advanced, Fault messages....................................... 2:20
IMD-system .............................................................. 2:22
General rules, IMD-system.............................. 2:22
Basic ................................................................ 2:22
Extended .......................................................... 2:22
Advanced ......................................................... 2:22
Overload protection, Motor .................................... 2:23
General rules, Overload protection................. 2:23
Basic ................................................................ 2:23
Extended .......................................................... 2:23
Advanced ......................................................... 2:23
Level switch, Granule bin........................................ 2:24
General rules, Level switch ............................ 2:24
Level switch, Capacitive type.......................... 2:24
Level switch, Paddle type ................................ 2:24
ABS-system............................................................... 2:25
General rules, ABS-system.............................. 2:25
Automatic ABS, Rotor..................................... 2:26
Timed ABS, Rotor ........................................... 2:27
Automatic ABS, Masher-system..................... 2:28
Timed ABS, Masher-system ............................ 2:29
Program 1, Masher-system .............................. 2:29
Program 2, Masher-system ............................. 2:30
1. SAFETY RULES
General rules, Safety.................................................. 1:1
Symbols on the machine.................................... 1:1
Symbols in the instruction manual .................... 1:1
Safety rules, During installing ........................... 1:2
Risk of machinery damage ................................ 1:2
Safety rules, During start and operation ............ 1:3
Safety rules, During service............................... 1:4
2. DESCRIPTION
Technical specifications ............................................. 2:1
General data, Conair S Series: ........................... 2:1
Personnel responsible for the machine’s service and
safety ........................................................................... 2:1

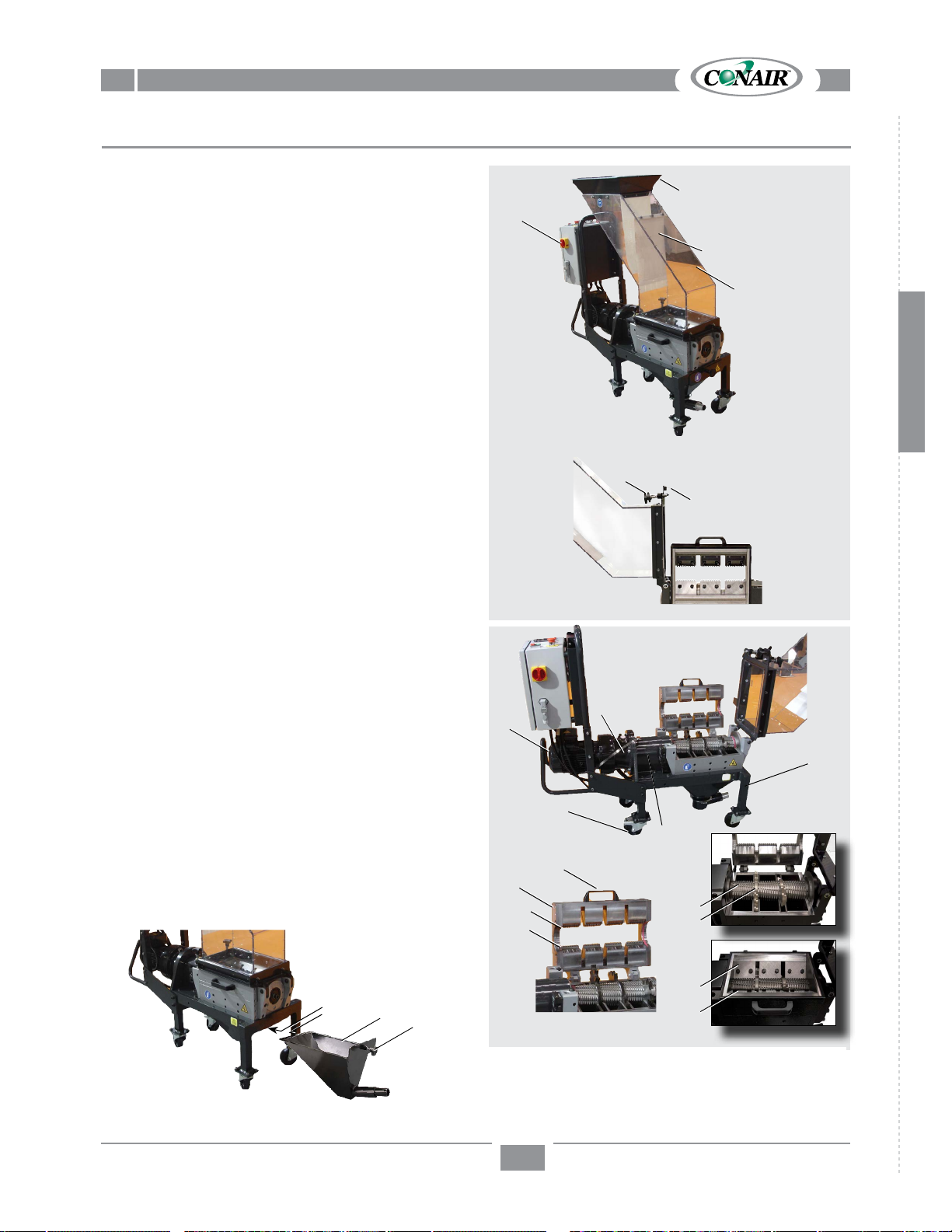

Overview, S Series...................................................... 2:2
Layout ......................................................................... 2:3
S97-918 Motor 0,75-2,2 kW.............................. 2:3
Function ...................................................................... 2:4
Conair S Series .................................................. 2:5
Function ...................................................................... 2:6
Suffix 1, 2, 3 and 4............................................. 2:6
Additional suffix -AV ........................................ 2:6
Cutter housing............................................................ 2:7
Sealings........................................................................ 2:7

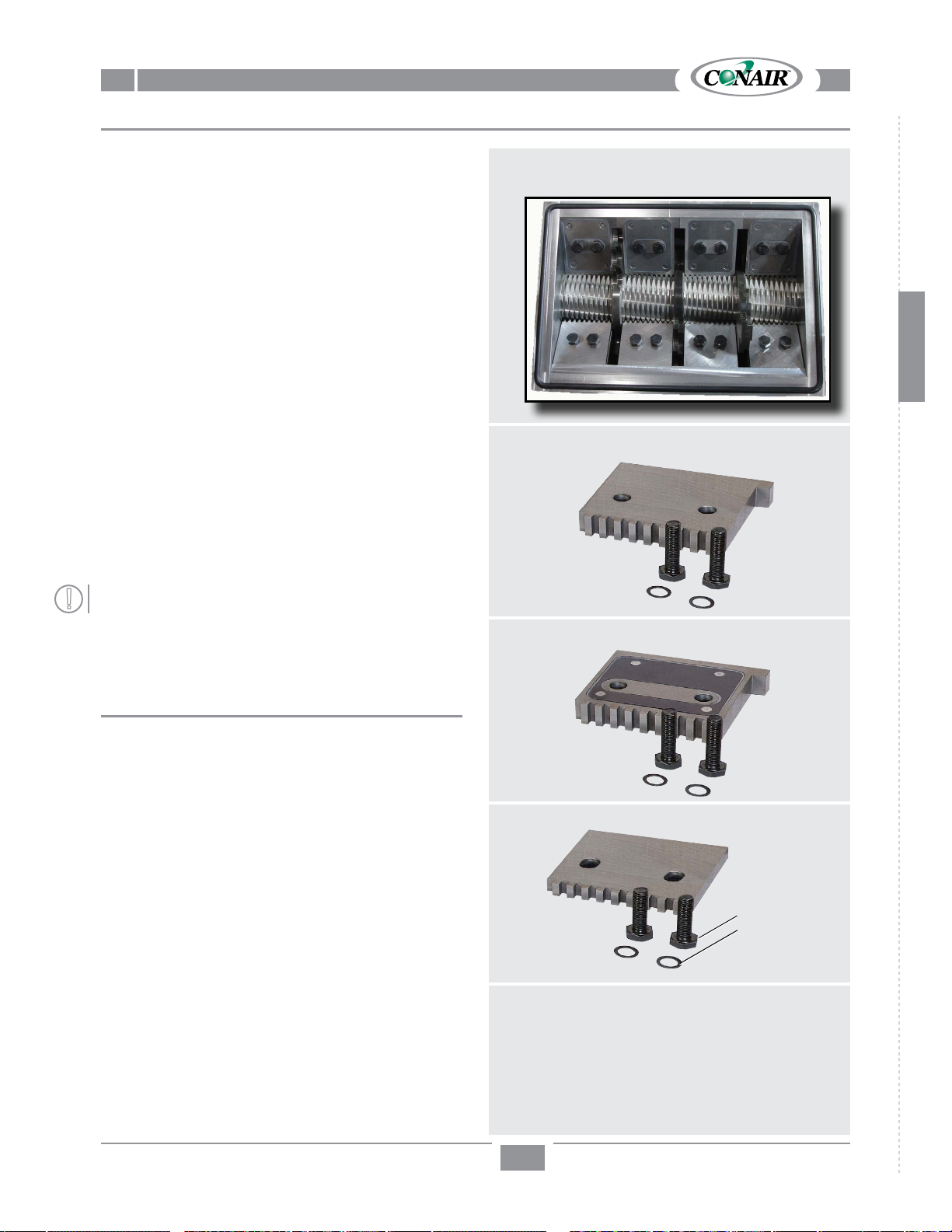

Fixed knives ................................................................ 2:8
Scrapers ...................................................................... 2:8

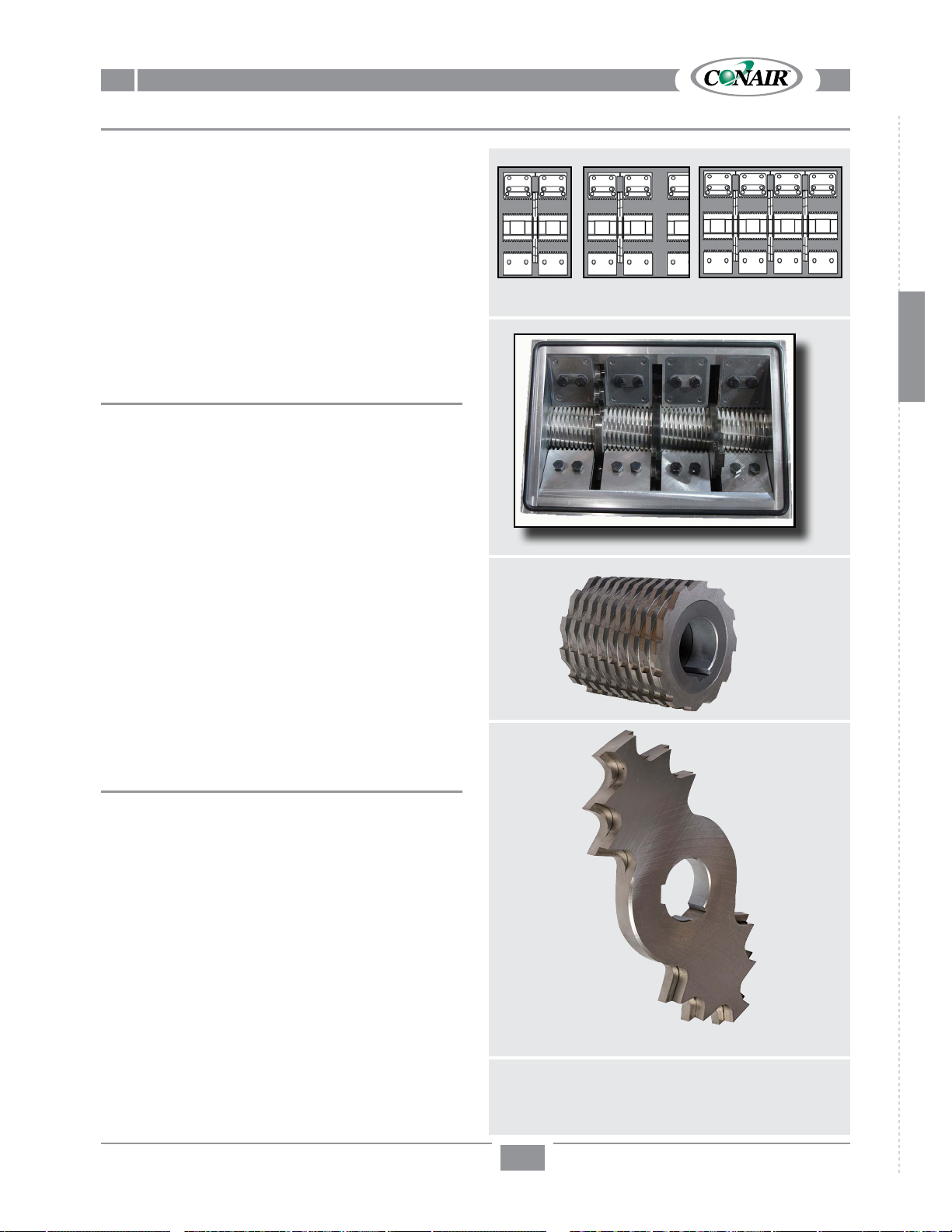

Rotor ........................................................................... 2:9
Rotating knife segments ............................................ 2:9
Rotating feed hook(s)................................................. 2:9
Masher-system.......................................................... 2:10

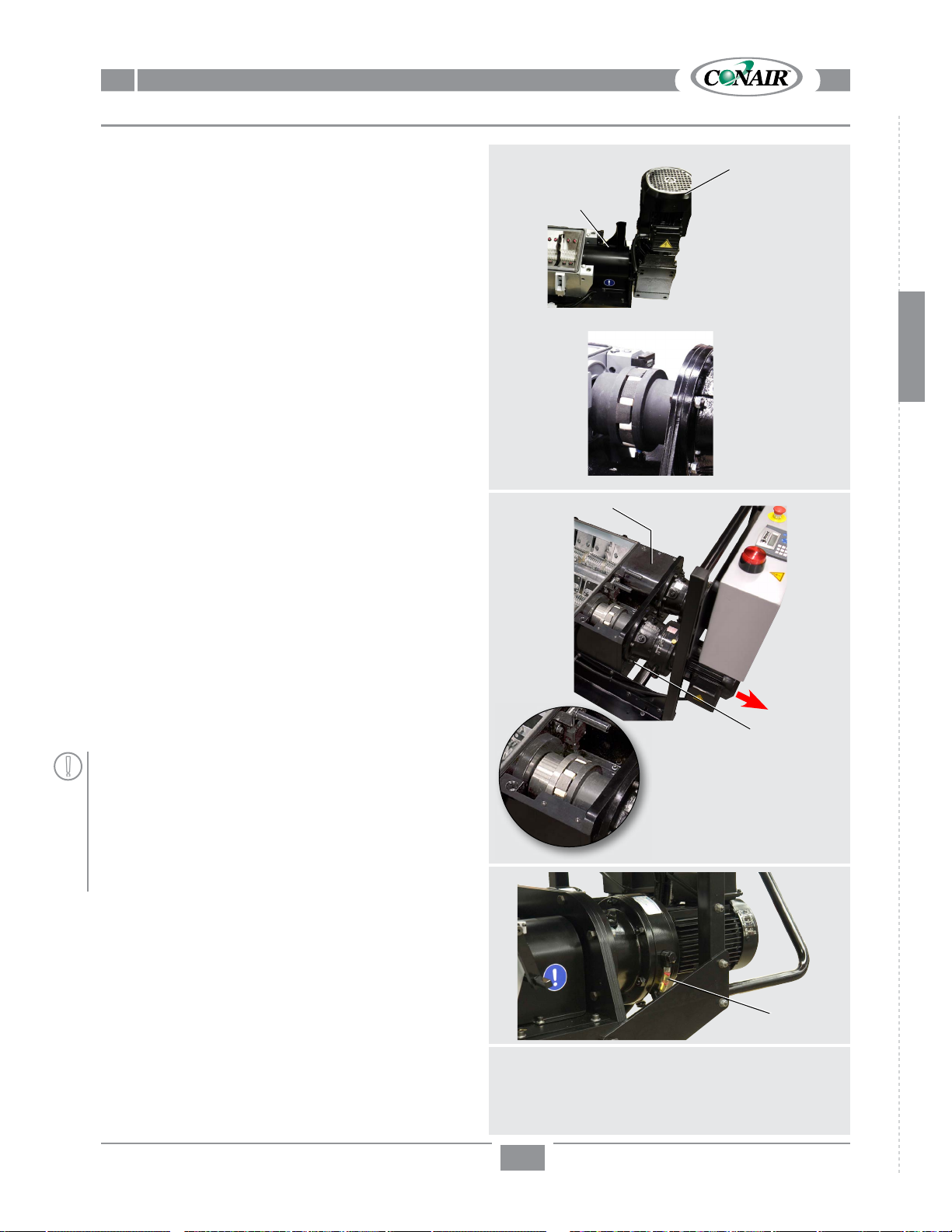

Transmission............................................................. 2:10
Gear motor ....................................................... 2:10
Coupling .......................................................... 2:10
Bearings ........................................................... 2:10

5UGG050-0517S Series
INTRODUCTION
CONTENT
3. TRANSPORT / LIFT
Transport / Lift........................................................... 3:1
General rules, Transport / Lift .......................... 3:1
Transport ............................................................ 3:1
Lift the granulator .............................................. 3:1
4. INSTALLING
Actions before first start............................................ 4:1
General rules, Installing..................................... 4:1
Reception inspection.......................................... 4:1
Put the machine in its working place................ 4:1
Remove the rust preventer ................................. 4:1
Check the knife clearance.................................. 4:2
Technical specifications .................................... 4:2
Electrical connection.................................................. 4:3
General rules, Electrical connection .................. 4:3
Emergency stop ................................................. 4:3
Connect the granulator to the mains .................. 4:3
Checks immediately after first start......................... 4:4
Checks 40 hours after first start ............................... 4:5
Installing complete..................................................... 4:5
5. START / STOP
Start the granulator ................................................... 5:1
Stop the granulator.................................................... 5:1
Manual reversal of the rotors and/or the Masher-
system .......................................................................... 5:2
6. OPEN / CLOSE
Open the granulator................................................... 6:1
General rules, Open the granulator.................... 6:1
Open the transmission........................................ 6:1
Open the hopper................................................. 6:2
Open the cutter housing ..................................... 6:2
Open the granule bin.......................................... 6:3
Close the granulator................................................... 6:3
General rules, Close the granulator .................. 6:3
Close the granule bin ......................................... 6:3
Close the cutter housing..................................... 6:4
Close the hopper ................................................ 6:4
Close the transmission ....................................... 6:5
7. SERVICE
General rules, Service................................................ 7:1
Check the emergency stop(s)..................................... 7:1
Check the flap(s) ........................................................ 7:1
Service schedule ................................................ 7:1
Check the safety equipment ...................................... 7:2
Check the electrical components .............................. 7:3
Store the granulator................................................... 7:3
Adjust the IMD-System............................................. 7:4
General rules, Adjust the IMD-System............. 7:4
Basic, Extended, Advanced .............................. 7:4
Adjust the ABS-System.............................................. 7:5
Select ABS mode, Advanced ............................. 7:5
Start “Level 1” ................................................... 7:5
Adjust the timing relay, Advanced.................... 7:6
Adjust the ABS settings, Advanced .................. 7:6
Adjust the level switch ............................................... 7:7
Adjust the pause-pulse relay, Airveyor .................... 7:8
Check the transmission.............................................. 7:9
Clean the granulator................................................ 7:10
Thorough inspection ................................................ 7:11
Reset “Maintenance request” ......................... 7:11
Knives........................................................................ 7:12
General rules, Knives....................................... 7:12
Remove the rotating knife segments and the rotating
feed hook(s) .................................................... 7:13
Install the rotating knife segments and the rotating
feed hook(s) .................................................... 7:14
Remove the fixed knives and the scrapers...... 7:15
Install the fixed knives and the scrapers ......... 7:15
General rules, Grind the knives ...................... 7:16
Grind the rotating knife segments................... 7:16
Grind the fixed knives .................................... 7:17
Grind the scrapers ........................................... 7:17
Fault tracing ............................................................. 7:18

6UGG050-0517S Series
INTRODUCTION
CONTENT
8. SERVICE REPORT
Service actions, Once every day................................ 8:1
Service actions, Once every week ............................. 8:2
Service actions, Once every month........................... 8:3
Service actions, Once every 6th month .................... 8:3
Other remarks ............................................................ 8:4
9. SPARE PARTS
General rules, Spare parts ........................................ 9:1
Overview ........................................................... 9:1
Designations in the spare part catalogue ......... 9:1
Hopper ....................................................................... 9:2
Masher ....................................................................... 9:9
Cutter housing ........................................................ 9:21
Rotor ........................................................................ 9:25
Knives ...................................................................... 9:26
Granule bin ............................................................. 9:29
Transmission ........................................................... 9:31
Body ........................................................................ 9:34
Safety ....................................................................... 9:36

1:1
SAFETY
UGG050-0517S Series
1. SAFETY RULES
General rules, Safety
Conair designs granulators, shredders, guillotines and accessory equipment for processing injection moulded, blow
moulded or extruded plastics. The machines are designed and adapted to the type of plastic residue that the customer
has specified before order.
The machines are manufactured in accordance to the state of the art and legal safety regulations, guidelines and stand-
ards, which demand a very low safety risk. However, if the machines are incorrectly operated, unexpected dangers can
arise. Therefore, it is very important that all instructions are carefully observed and attended to. All users must study the
instruction manual before installing, operating or maintaining the machine. In event of any questions, please contact
Conair service at 1-800-458-1960.
Danger! DO NOT feed the machine with explosive material or material contaminated with explosive or
easily ignited substances. It is not permissible to feed the machine with wood products, household or
garden waste, pharmaceutical products or substances which present a health danger, unless a written
approval has been obtained from Conair. If any materials are processed that are not contractually agreed
upon, Conair is absolved of any liability and guarantee for safety and functioning of the machine.
Danger! No modifications or alterations to Conair’s products are permitted unless written approval has
been obtained from Conair. This is to prevent injury, to maintain the warranty, and to guarantee that
Conair can fully assume product liability. If any modifications are made, Conair is absolved of any liability
and guarantee for safety and functioning of the machine.
Symbols on the machine
Danger! Risk of cutting or pinch injuries! This symbol is placed anywhere there is a risk of cutting or pinch
injuries.
Danger! Dangerous voltage! This symbol is placed on electrical cabinet hatches and on any junction boxes.
Request! All users must study the instruction manual before installing, operating or maintaining the machine.
Symbols in the instruction manual
Danger! Personal injury! This symbol is used to indicate risk of personal injury. The symbol inside the triangle
may have different appearances, depending on the type of danger.
Danger! Machinery damage! This symbol is used to indicate risk of machinery damage.
Information! This symbol is used to highlight useful information.

1:2
SAFETY
UGG050-0517S Series
1. SAFETY RULES
Safety rules, during installation
• The machine must be installed by authorized, trained personnel.
• The instruction manual must be carefully observed to avoid personal injury and machinery damage.
• The machine must be installed and connected to other equipment so that the entire installation complies with the
stipulations of the Machinery Directive 2006/42/EC.
Risk of machinery damage
• If incorrect material is fed into the machine.
• If the plastic damper between the transmission couplings is worn.
• If the knives’ tightening screws are tightened with incorrect tightening torque.
• If the knife clearance is wrong.
• If the knives are worn.
• If the scrapers are worn.
• If the instructions in the instruction manual are not followed accurately.

1:3
SAFETY
UGG050-0517S Series
1. SAFETY RULES
Safety rules, During start and operation
• The instruction manual must be carefully observed to avoid personal injury and machinery damage.
• National environmental and employee safety regulations must be followed.
• The machine must be installed in accordance with this instruction manual.
• All covers must be installed.
• All hatches to electrical cabinet, transmission and pneumatics (if supplied) must be closed and locked.
The key must be kept by the personnel responsible for the machine’s service and safety.
• The granule bin must be closed.
• The hopper must be closed.
• The funnel must be installed.
• All safety switches must be installed.
• All star knobs must be screwed in until they stop moving.
• All outer safety equipment such as protective screens, bars, covers, plates, nets etc must be installed.
• Body with casters: The casters must be locked.
• Be very careful. The machine contains knives. Risk of cutting or pinch injuries!
• Never place any part of your body into any opening. Risk of cutting or pinch injuries!
• Use ear defenders. Risk of loud, damaging noise!
• Use protective goggles. Risk of granulate splashing!
• Do not tread on the machine.

1:4
SAFETY
UGG050-0517S Series
1. SAFETY RULES
Safety rules, During service
• The instruction manual must be carefully observed to avoid personal injury and machinery damage.
• National environmental and employee safety regulations must be followed.
• First aid and eye shower must be within reach.
• Daily service and daily checks may be done by the operator. All other service and inspections must be done by author-
ized, trained personnel.
• Always work alone when service actions is performed.
• Use protective goggles and gloves.
• The machine must be stopped.
• The machine must be disconnected from the mains before electrical repairs or electrical installing is began.
• Granulator with electrical cabinet “Basic”: The machine’s emergency stop must be locked with a padlock. Never
insert any part of your body into any opening, unless the emergency stop is locked with a padlock.
• Granulator with electrical cabinet “Extended” or “Advanced”: The machine’s main switch must be locked in position
“0”. Never insert any part of your body into any opening, unless the main switch is locked in position “0”.
• Be very careful – When opening and closing the machine. Risk of cutting or pinch injuries! When the cutter housing’s
upper frame is opened, it must be manually locked by a piece of wood.
• Be very careful – When the machine is opened the knives are accessible. The knives are sharp, and they may cause
personal injuries even when they are not rotating. Risk of cutting or pinch injuries!
• Be very careful – When pulling the rotor or the rotor pulley manually. Risk of cutting or pinch injuries!
• Be very careful – When cleaning. Granulate and plastic residue can make the floor slippery.
• Be very careful – When working on high level. Only use specially installed and fastened steps, stairs and platforms. It
is not permissible to remove any outer safety equipment such as protective screens, bars, nets etc.
• After service / check is done all covers must be reinstalled. All hatches to electrical cabinet, transmission and pneu-
matics (if supplied) must be closed and locked. The key must be kept by the personnel responsible for the machine’s
service and safety.

2:1 UGG050-0517S Series
DESCRIPTION
2. DESCRIPTION
Technical specifications
General data, Supplied machine:
Fill in correct information, so that the data corresponds with the machine sign on your supplied machine:
Machine type: ........................................................................................................................................................................
Serial number:...................................................................... Manufacturing year: ......................................................
Motor: ........... V ............ Hz ............ kW Electrical circuit diagram: .....................................................
General data, Conair S Series:
Mark the correct alternatives, so that the data corresponds with your supplied machine:
Model number: S97 S910 S914 S918
Additional suffix: ................................................................................................................................................... - AV
Motor power: ..................................................................................................... 0.75 kW 1.5 kW 2.2 kW
Rotor speed:........................................................................................................................................................... 25 rpm
Width, Cutter housing:........................... 228x172 mm (S97) 228x265 mm (S910) 228x359 mm (S914)
228x453 mm (S918)
Weight*: ............................................. 210 kg (S97, 0.75 kW) 220 kg (S97, 1.5 kW) 230 kg (S97, 2.2 kW)
...................................................... 220 kg (S910, 0.75 kW) 240 kg (S910, 1.5 kW) 260 kg (S910, 2.2 kW)
330 kg (S914, 1.5 kW) 330 kg (S914, 2.2 kW)
370 kg (S918, 1.5 kW) 390 kg (S918, 2.2 kW) 750 kg (S918-Twin, 2.2 kW)
*The weight varies dependent on; hopper size, type of cutter housing, type of rotor, motor size, enclosure etc.
Sound level, Idle operation*: ........................................................................................................................ <80 dBA
*The specified sound level is dependent on granulator size, capacity, temperature etc.
Fixed knives: ................................................................................ 2 pcs (S97) 3 pcs (S910) 4 pcs (S914)
5 pcs (S918)
Scrapers: ........................................................................................ 2 pcs (S97) 3 pcs (S910) 4 pcs (S914)
5 pcs (S918)
Rotating knife segments: .............................................................. 2 pcs (S97) 3 pcs (S910) 4 pcs (S914)
5 pcs (S918)
Rotating feed hook: ................................................. 1 pcs (S97) 2 pcs (S910) 3 pcs (S914) 4 pcs (S918)
Masher: ....................................................................................................................................................... 2 pcs (S918)
Options: .................................... IMD-system Level switch, Paddle type Level switch, Capacitive type
Masher ABS-system Hours counter Airveyor
Personnel responsible for the machine’s service and safety
Name:........................................................................................ Phone:............................................................................
Name:........................................................................................ Phone:............................................................................

2:2 UGG050-0517S Series
(5)
(6)
(11)
(10)
(12)
(13)
(1)
(2)
(3)
(4)
(7)
(14)
(15)
(16)
(17)
(9)
(10)
(11)
(8)
(19)
(20)
(21)
(18)
DESCRIPTIONDESCRIPTION
Overview, S Series
2. DESCRIPTION
The performance of your supplied machine may vary
from the standard machines described in this instruction
manual. In event of any questions, please contact
Conair’s Service line at 1-800-458-1960.
Funnel ........................................................................... (1)
Flap(s) ........................................................................... (2)
Hopper........................................................................... (3)
Electrical cabinet “Basic” ............................................. (4)
Star knob, Hopper ......................................................... (5)
Switch key, Hopper....................................................... (6)
Safety switch, Hopper................................................... (7)
Upper frame, Cutter housing......................................... (8)
Handle, Cutter housing’s upper frame .......................... (9)
Fixed knives................................................................ (10)
Scrapers....................................................................... (11)
Rotating feed hook...................................................... (12)
Rotating knives ........................................................... (13)
Gear motor .................................................................. (14)
Transmission cover ..................................................... (15)
Body............................................................................ (16)
Casters ........................................................................ (17)
Star knob, Granule bin ................................................ (18)
Granule bin.................................................................. (19)
Switch key, Granule bin.............................................. (20)
Safety switch, Granule bin.......................................... (21)

2:3 UGG050-0517S Series
DESCRIPTION
2. DESCRIPTION

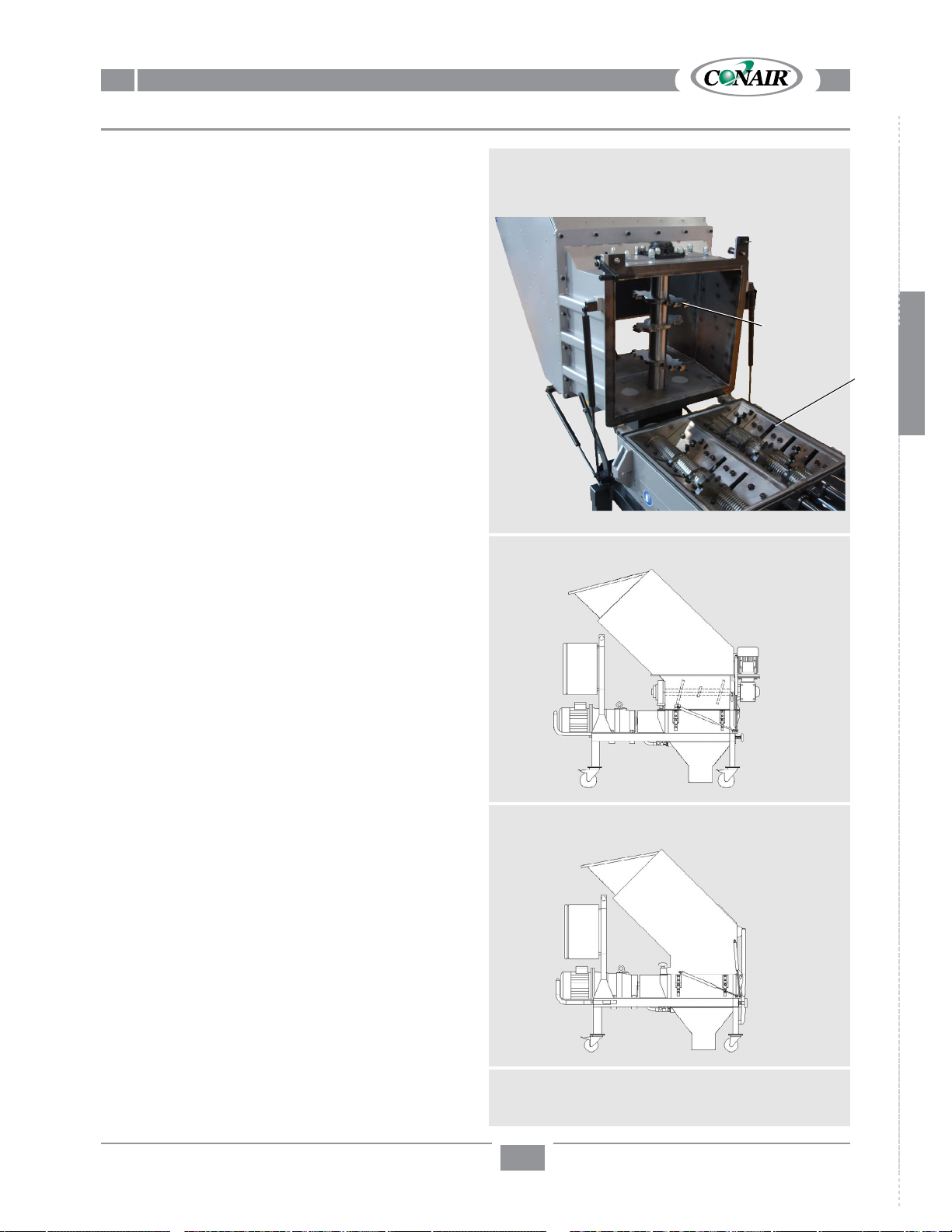

Layout

2:4 UGG050-0517S Series
(D)
(E)
(F)
(G)
S910
S914
(C)
(A)
(B)
(C)
(H)
DESCRIPTION

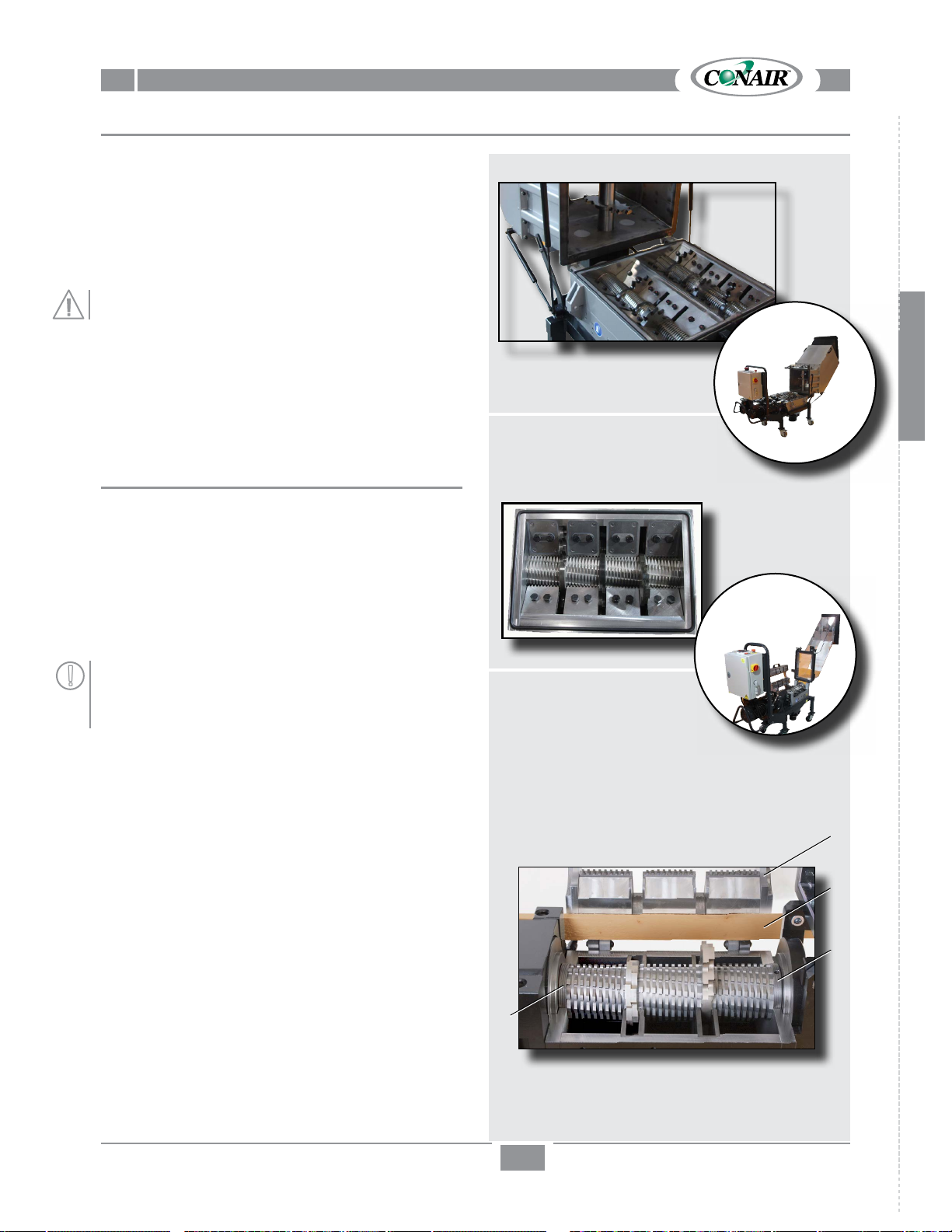

Conair S Series
Conair S Series granulators are low speed granulators,
designed to granulate, injection moulded or blow
moulded plastic residue, directly adjacent to an injection
moulding or a blow moulding machine.
The function of the granulator can be described as
follows:
1. The plastic residue, which must be free from metal
and contamination, is fed into the granulator’s funnel.
2. The plastic residue falls through the hopper and down
into the cutter housing.
Information! The granulator can be provided with an
Masher-system. The Masher-system is pushing the
plastic residue down to the cutter housing.
3. The cutter housing contains fixed knives and a rotor.
Rotating knife segments are mounted on the rotor. The
rotor is also provided with one or several rotating feed
hooks. The plastic residue is caught by the rotating
feed hook(s) and granulated (cut up) between the
rotating knife segments on the rotor and the fixed
knives in the cutter housing. The cutter housing is also
provided with scrapers. The scrapers prevent finished
granulate from rejecting. Rotating knife segments,
rotating feed hooks, fixed knives and scrapers must be
reversed, grinded or replaced as necessary.
Important! The granulator must never be used with
blunt knives. Blunt knives cause abnormal wear and
damages the granulator.
4. The size of the granulate (the cut up plastic residue) is
determined by the comb size of the knives and the
scrapers. The knives and scrapers can easily be
changed to give the required granulate size.
5. The granulate passes through the cutter housing down
to the granule bin, which collects the finished granu-
late.
6. The granule bin can be emptied manually or by means
of an airveyor.
2. DESCRIPTION
Function
(A) = Funnel
(B) = Hopper
(C) = Cutter housing
(D) = Rotating knife segments
(E) = Rotating feed hook
(F) = Fixed knives
(G) = Scrapers
(H) = Granule bin

2:5 UGG050-0517S Series
S97 S910 S914
S918-Twin
S918
DESCRIPTION
2. DESCRIPTION
Suffix 1, 2, 3 and 4
The suffix 1, 2, 3 and 4 refers to the numbers of rotating
feed hooks in the cutter housing.
Additional suffix -AV
A granulator with additional suffix -AV is provided with
an airveyor. The airveyor empties the granule bin with a
pulse of compressed air. The compressed air pulse is
controlled by a pause-pulse relay. The pause-pulse relay
is adjustable. The pause-pulse relay must be adjusted to
correspond to the delivered granulator’s size, screen hole
dimension and volume of plastic material that are to be
granulated.
>Page 7:10 “Adjust the pause-pulse relay, Airveyor”.
Function

2:6 UGG050-0517S Series
(A)
S914
S918-Twin
(B)
(C)
(E)
(D)
(E)
DESCRIPTION
The cutter housing is designed and adapted to the type of
plastic residue that the customer has specified before
order. >Page 9:21-9:24 “Cutter housing”.
The cutter housing’s upper frame can be opened to
facilitate cleaning and maintenance.
>Page 6:2 “Open the cutter housing”.
Note! When the cutter housing’s upper frame is opened, it
must be manually locked by a piece of wood.
A granulator with additional suffix “Twin” is provided
with a doubled cutter housing.
>Page 2:8 “Additional suffix Twin”.
Sealings
There is one sealing in each short block of the cutter
housing. The left sealing is a left-hand threaded and the
right sealing is right-hand threaded. The reversed thread
deflects fed material and prevent it from penetrating the
bearings.
The sealings must be regularly checked and replaced as
necessary. >Page 9:25 “Rotor”.
Note! The left and the right sealing must not be mixed up.
If the left and the right sealing are mixed up, the granula-
tor might get seriously damaged during operation, due to
the material leaking into the bearings.
Cutter housing
2. DESCRIPTION
(A) = Cutter housing, S918-Twin
(B) = Cutter housing, S914
(C) = Cutter housing’s upper frame
(D) = Piece of wood
(E) = Sealing

2:7 UGG050-0517S Series
(B)
(C)
(D)
(E)
(F)
(A)
DESCRIPTION
The fixed knives are installed in the cutter housing. The
cutter housing can be provided with 2, 3, 4, 5 or 9 fixed
knives, depending on the type of the cutter housing.
>Page 2:9 “Cutter housing”.
>Page 2:8 “Suffix 1, 2, 3 and 4”.
The fixed knives are fixed with washers and tightening
screws. >Page 7:15 “Install the fixed knives and the
scrapers”.
The fixed knives are available in two different comb
sizes. The comb size of the knives and the comb size of
the scrapers affects the quality of the finished granulate.
>Page 9:26-9:28 “Fixed knives”.
The fixed knives are reversible. This means that the fixed
knife has two cutting edges and can be reversed once
before grinding or discarding is necessary. The granulator
must never be used with blunt knives. Blunt knives cause
abnormal wear and damages the granulator.
>Page 7:17 “Grind the fixed knives”.
The fixed knives can be provided with IMD technology.
>Page 2:25 “IMD-system”.
Note! Fixed knives with IMD technology are reversible,
but not grindable.
Scrapers
The scrapers are installed in the cutter housing on the
opposite side of the fixed knives. The scrapers prevent
finished granulate from rejecting. The scrapers are fixed
with washers and tightening screws. >Page 7:15 “Install
the fixed knives and the scrapers”.
The scrapers are available in two different comb sizes.
The comb size of the knives and the comb size of the
scrapers affects the quality of the finished granulate.
>Page 9:26-9:28 “Scrapers”.
The scrapers are reversible. This means that the scrapers
can be reversed once before grinding or discarding is
necessary. >Page 7:17 “Grind the scrapers”.
Fixed knives
2. DESCRIPTION
(A) = Cutter housing
(B) = Fixed knife
(C) = Fixed knives with IMD technology
(D) = Scraper
(E) = Tightening screw
(F) = Washer

2:8 UGG050-0517S Series
S97 S910 S914
(B)
(C)
(A)
DESCRIPTION
The rotor is designed and adapted to the type of plastic
residue that the customer has specified before order.
>Page 9:25 “Rotor”.
The Rotor(s) can be controlled by means of an “ABS-
system”.
>Page 2:28 “General rules, ABS-system”.
>Page 2:29 “Automatic ABS, Rotor”.
>Page 2:30 “Timed ABS, Rotor”.
Rotating knife segments
Rotating knife segments are mounted on the rotor. The
rotor can be provided with 2, 3, 4, 5 or 9 segments of
rotating knife segments, depending on type of cutter
housing.
>Page 2:9 “Cutter housing”.
The rotating knife segments must be replaced or grinded
as necessary. The granulator must never be used with
blunt knives. Blunt knives cause abnormal wear and
damages the granulator.
> Page 9:26-9:28 “Rotating knife”.
> Page 7:14 “Install the rotating knife segments and the
rotating feed hook(s)”.
> Page 7:16 “Grind the rotating knife segments”.
Rotating feed hook(s)
The rotor is provided with one or several rotating feed
hooks. The rotating feed hook(s) is/are mounted between
the rotating knife segments. The rotor can be provided
with 1, 2, 3, 4 or 7 rotating feed hooks depending of type
of cutter housing.
>Page 2:9 “Cutter housing”.
The rotating feed hook(s) is/are reversible. This means
that the rotating feed hook(s) can be reversed once before
discarding is/are necessary.
> Page 9:26-9:28 “Rotating feed hook(s)”.
> Page 7:14 “Install the rotating knife segments and the
rotating feed hook(s)”.
Rotor
2. DESCRIPTION
(A) = Cutter housing
(B) = Rotating knife segment
(C) = Rotating feed hook

2:9 UGG050-0517S Series
(A)
(B)
DESCRIPTION
Masher-system
2. DESCRIPTION
(A) = Masher-system
(B) = Cutter housing
S918
With Masher-system
S918
Without Masher-system
S918
With Masher-system
The granulator can be provided with an Masher-system.
Note! Masher-system is only optional in model S918.
The Masher-system, which is installed inside the hopper,
pushes the plastic residue down to the cutter housing.
When granulating bulky plastic residue a Masher-system
increases the efficiency considerably.
The Masher-system is controlled by means of an “ABS-
system”.
>Page 2:28 “General rules, ABS-system”.
>Page 2:31 “Automatic ABS, Masher-system”.
>Page 2:32 “Timed ABS, Masher-system”.

2:10 UGG050-0517S Series
(D)
(B)
(C)
(E)
(A)
(B)
(D)
DESCRIPTION
Gear motor
The granulator is driven by an electrical gear motor.
Optional motor power: 0.75 kW, 1.5 kW or 2.2 kW.
Motor power and motor frequency are specified on the
motor’s machine plate.
The gear motor is filled with oil. In normal operation, the
oil does not need to be refilled / changed. If refilling /
changing of oil should be necessary, use the type of oil
specified on the gear motor’s type plate.
The oil level in the gear motor must be checked regularly.
>Page 7:9 “Check the transmission”.
>Page 9:31-9:33 “Transmission”.
Coupling
The coupling inside the transmission is provided with a
plastic damper. The plastic damper must be regularly
checked and replaced as necessary.
>Page 7:9 ”Check the transmission”.
>Page 9:25 “Rotor”.
Bearings
All bearings in the granulator are lubricated for life and
must not be re-greased. >Page 9:25 “Rotor”.
Note! If material get into the bearing housing, the
material might melt and cause serious or irreparable
damage to the bearings. There is one sealing in each short
block of the cutter housing. The left sealing is a left-hand
threaded and the right sealing is right-hand threaded. The
reversed thread deflects fed material and prevent it from
penetrating the bearings. The sealings must be regularly
checked and replaced as necessary. >Page 2:9 “Sealings”.
Transmission
2. DESCRIPTION
(A) = Gear motor
(B) = Transmission cover
(C) = Tightening screws
(D) = Plastic damper, Transmission
(E) = Oil level device (S918-Twin)
