VXH5AHDL QUICK START GUIDE
VXH5AHDL-4
VXH5AHDL-8
VXH5AHDL-16
DIGITAL VIDEO RECORDER
QUICK START GUIDE
Technical Documents

VXH5AHDL QUICK START GUIDE
1WHAT’S IN THE BOX?
Packaging Contents
Digital Video Recorder x1 Quick Start Guide x1 DC12V Power Adapter x1
AC Power Cord x1 (8/16CH) 5-Pin Terminal Block x2 USB Mouse x1
Remote Control x1 HDD Mounting Screws x5 (x10) HDD Mounting Gaskets x5 (x10)
Remote Control Batteries x2 Cable Clamp x1 Cable Clamp Screws x2
2INSTALLATION

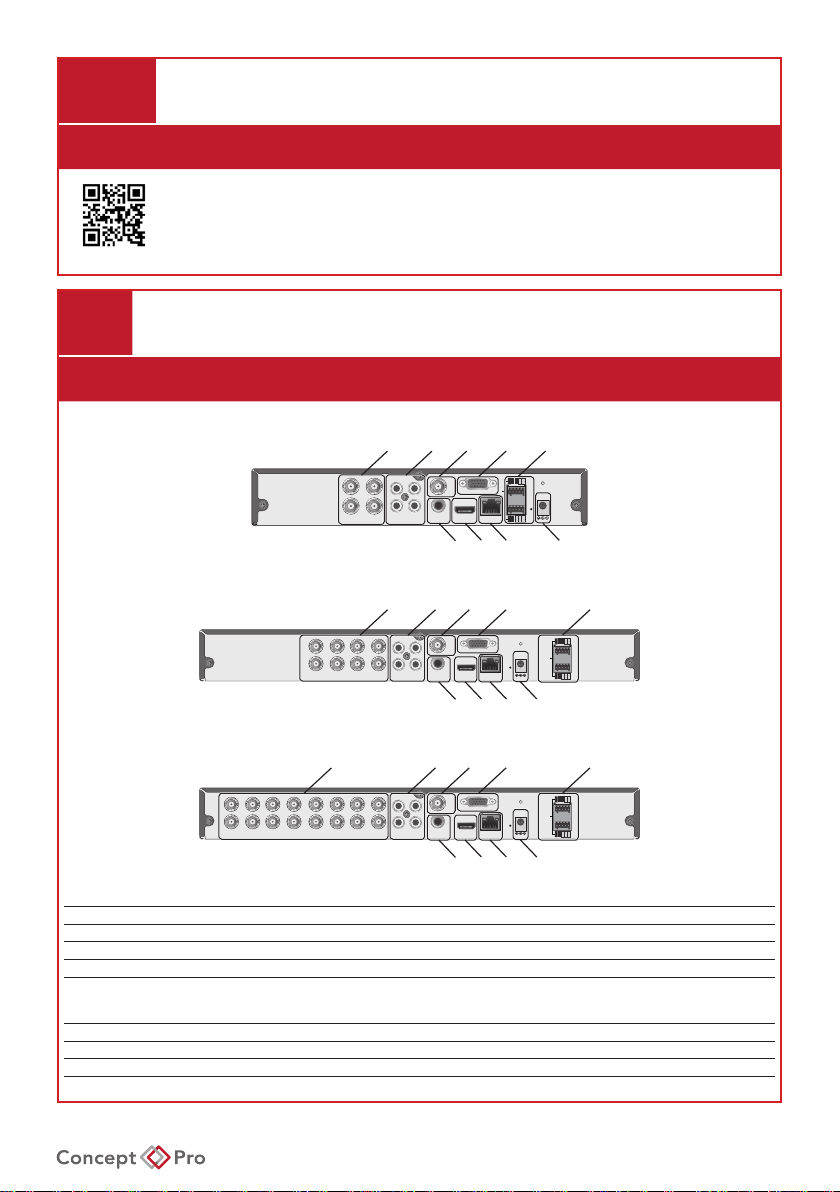

Back Panel
VXH5AHDL-4
ETHERNET
HD MONITOR
VGA
IN1
IN3
GND
D+
D-
RS485
IN2
IN4
NO
COM
NC
RELAY
ALARM IN
DC 12V
SPOT
OUT
1
2
3 1 3
2 4
4
VIDEO IN AUDIO IN AUDIO OUT
1 2 4 53
6 7 8 9
VXH5AHDL-8
ETHERNET
VGA
HD MONITOR
DC 12V
IN1
N/A
GND
D+
D-
RS485
IN2
N/A
NO
COM
NC
RELAY
ALARM IN
SPOT
OUT
AUDIO OUT
1
2
31 3
2 4
4
5
6
7
8
VIDEO IN AUDIO IN
1 2 4 53
6 7 8 9
VXH5AHDL-16
ETHERNET
VGA
HD MONITOR
DC 12V
IN1
N/A
GND
D+
D-
RS485
IN2
N/A
NO
COM
NC
RELAY
ALARM IN
SPOT
OUT
AUDIO OUT
9
10
11 1 3
2 4
12
13
14
15
16
1
2
3
4
5
6
7
8
VIDEO IN AUDIO IN
1 2 4 53
6 7 8 9
No. Name Description
1 VIDEO IN BNC analogue video input terminals for analogue cameras.
2 AUDIO IN RCA audio inputs for audio devices such as microphones.
3 SPOT OUT BNC analogue spot display output.
4 VGA VGA display output for connection to a main display monitor (Max. 1920x1080 resolution).
5
RS-485
RELAY:
ALARM IN:
Serial interface port for connecting PTZ camera or keyboard.
Alarm relay output terminal (N/O, N/C, COM).
Alarm input terminals (IN1, IN2, GND).
6 AUDIO OUT RCA audio output for audio device such as speakers.
7 HD MONITOR HDMI display output for connection to a main display monitor (Max. 1920x1080 resolution).
8 ETHERNET RJ45 network port for connection to the Internet, router, or hub.
9 DC12V DC12V power input port for use with included power adapter.
Technical Documents

VXH5AHDL QUICK START GUIDE
2INSTALLATION
DC 12V
Power
C
amera
Sensor
Alarm
IP Router
or HUB Control
Devices
VGA
MONITOR
SPOT
MONITOR
Speaker
MIC
HD
MONITOR
•Cablequalityanddistancemaydirectlyaectvideoquality.Consultanauthorisedinstaller.
*Approximate distances calculated using HD MasterBaluns. Actual transmission range will vary
depending on type and quality of cable and baluns.
5MP 2MP 720P
COAX (RG59) UP TO 500M UP TO 500M UP TO 500M
CAT5e UP TO 200M UP TO 305M UP TO 350M
CAT6 UP TO 200M UP TO 305M UP TO 350M
Front Panel
No. Name Description
1IR REMOTE CONTROL
RECEIVER Receives the control signal from included remote control.
2 USB For connecting USB devices such as a mouse or storage device.
3 STATUS LED Displays the status of Power, Recording, Network, and Alarm.

VXH5AHDL QUICK START GUIDE
3GETTING STARTED

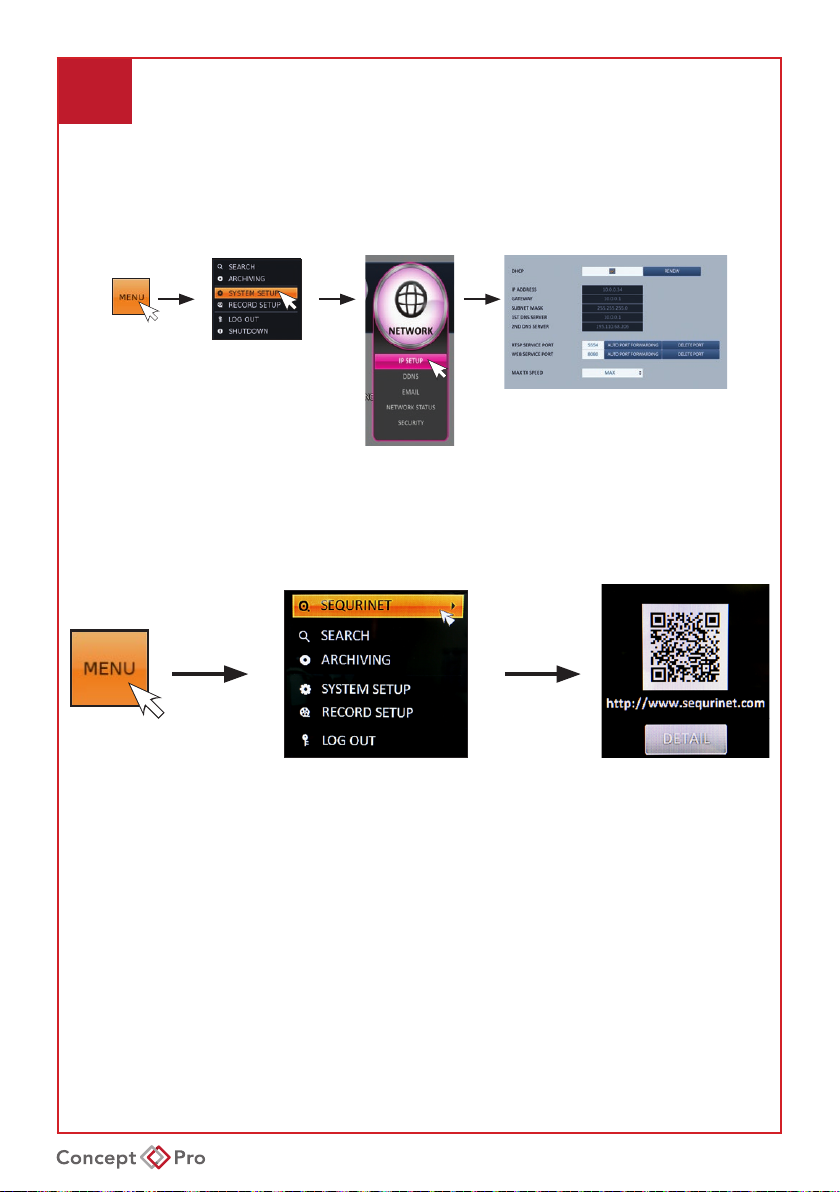

Network Setup Wizard
TheNetworkSetupWizardwillhelpcongureimportantnetworksettingswhenthedevice
isrstbootedup.
Log in
1. The log-in screen will appear after the system boots up.
2. Select a user ID and enter the corresponding password.
The default user ID is “ADMIN” and the default password is “1234”.
3. Click <OK>.
For security purposes, please change the password to a more complex, secure password after logging
inthersttimefrom<MENU> - <SYSTEM SETUP> - <USER> - <USER MANAGEMENT>

VXH5AHDL QUICK START GUIDE
3GETTING STARTED
Status Bar: The status bar can be used in addition to the included remote control to
access key features.
Icon Description Icon Description
[MENU] Select system setup, record
setup, search, and archiving
menus.
[ZOOM] Move to the Digital Zoom screen.
[ID] Displays the currently logged
in user ID.
[LOG] Lists recent recording events.
[UI MODE] Click to always pin the status
bar and timeline or disable to
only show these by hovering
the mouse.
[AUDIO] Select an audio input to play.
[PANIC] Begins panic recording for all
channels.
[SPLIT] Select a split-screen view. [ALARM] Blinks when an event occurs. Click
to display a real-time overview of any
events.
[SEQ] Select an alternative split-
screen view or toggle a display
sequence.
[NET] Click to check the device network
connection status and review a list of
currently connected users.
[OSD] Display or hide the OSD menu. [DISK] Click to display updated hard disk
information. If the disks are set to
Overwrite, OW will display.
[PTZ] Move to the PTZ Control screen. [DATE] Displays the current time and date.
Quick Menu Timeline
Item Description Item Description
CHANNEL
NO.
Displays the number of the
current channel.
Timeline Date Displays the date of the current
timeline.Clicktoselectadierent
date.
PLAYBACK Begin playing back the
recorded video of the selected
channelfromthespecied
time.
Zoom In/Out Expand or collapse the timeline.
ZOOM Open the digital zoom window
for the selected channel.
Timeline Navigation Move to the previous or next point of
time in the timeline. You may also use
the mouse scroll wheel to navigate.
SNAPSHOT Capture a .jpeg snapshot
of the current live video and
reserve to the hard disk or
export to a USB device.
Timeline Bar • Visually represents recorded video
data. The colour shown represents
a recording type:
• Green: Continuous Recording
• Blue: Motion Recording
• Red: Alarm Recording
• Yellow: Panic Recording
CAM
CHANGE
Assign the selected screen to
another channel.
Double-click
anywhere on the
timeline to begin
playback from that
point. Drag and
drop an area on the
timeline to archive the
data or perform an
event search for the
speciedtimeperiod.
CALIBRATION Calibrate the selected camera
image to remove any black bars.

VXH5AHDL QUICK START GUIDE
4AUTOMATIC RECORDING PROFILES
1. Press [MENU] on the remote control and use the direction buttons to select
<RECORD SETUP>, then press [ENTER].
Alternatively, select <MENU> - <RECORD SETUP> from the status bar.
2. Set <RECORD SETUP MODE> to <AUTO CONFIGURATION> and select a desired
recordingprole:
• CONTINUOUS RECORD: Always record video.
• LONG DURATION BUT LOW QUALITY: Record video at a low quality, resulting in a longer recording time.
• HIGH QUALITY BUT SHORT DURATION: Record video at a high quality, but resulting in a shorter recording time.
• MOTION RECORD: Only record video when motion is detected.
• ALARM RECORD: Only record video when an alarm event occurs.
• MOTION/ALARM RECORD: Only record video when motion or alarm events occur.
• INTENSIVE MOTION RECORD: Record continuously at low quality and switch to high quality
when motion events occur.
• INTENSIVE ALARM RECORD: Record continuously at low quality and switch to high quality
when alarm events occur.
• INTENSIVE MOTION/ALARM RECORD: Record continuously at low quality and switch to
high quality when motion or alarm events occur.
3. Click <APPLY>.
Additionally, <MANUAL CONFIGURATION> may be selected for a customised
recordingproleandschedule.

VXH5AHDL QUICK START GUIDE
5SEARCHING RECORDED VIDEO
1.From the <SEARCH> menu, select <TIME SEARCH>.
2.Specify the date and time from the calendar.
3.Identify the type of recording data by the colour in the bar.
• Light Green: Pre-Recording
• Green: Continuous Recording
• Blue: Motion Recording
• Red: Alarm Recording
• Yellow: Panic Recording
4.Click to move to a desired start time in the time bar or use the buttons on the bottom
of the status bar to search.
5.Select an item and click <PLAYBACK>.Other search options include Thumbnail
Search, Event Search, and Text-in Search.

VXH5AHDL QUICK START GUIDE
6ACTIVATING VIDEO ANALYTICS
Some Concept Pro cameras come equipped with video analytics functionality, including
line crossing, area entrance/exit, loitering, stopped, and object removed detection, that
can be used from the Concept Pro suite of recorders. To use video analytics, you must
rstensurethelicenseisrecognisedbytherecorder.Todothis,rstconnectthecamera
to the Concept Pro recorder over the network. Then, through the recorder user interface,
navigate to <MENU> - <SYSTEM SETUP> - <SYSTEM> - <LICENSE>. Click <ADD
AUTOMATICALLY> if the recorder is connected to the network to automatically add the
license for all valid connected cameras.
Alternatively, the individual camera license can be found by logging into the camera
web interface, navigating to <SETUP> - <SYSTEM> - <LICENSE>. The license
should be listed in this menu. The license can then be manually added to the recorder
<LICENSE> menu should the automatic option not properly update.
Once the license is applied, simply navigate to the <CAMERA> - <VA SETUP> menu to
setup video analytics. Select the desired channel and turn ACTIVATION to ON.
Click START WIZARDandfollowtheinstructionstocongureanewVArule,calibrate
theaccuracyofthecamera,andcongurerelatedsettings.Alternatively,clickADD in
theruletabtomanuallyconguresettings.ClicktheSCHEDULE tab to customize the
VA schedule.
Note: Performing CALIBRATION is recommended to increase the video analytics accuracy.

VXH5AHDL QUICK START GUIDE
7ARCHIVING RECORDED VIDEOS
1.Click <MENU> and select <ARCHIVING>. This can be selected from either the Live
or Playback screens. From <ARCHIVING>, select <NEW ARCHIVING>.
2.Select a date for the archive from the calendar to the left. Any dates containing
recordeddatawillbecolouredboxes.FIRST:Automaticallyselecttherstdatewith
recorded video. LAST: Automatically select the last date with recorded video.
Check the <START> & <END> times. Drag the timeline to specify the start and end times.
3.Check the appropriate boxes for desired <CHANNEL>, <LOG>, <CODEC>, and
<PLAYER> to be included in the archive.
4.Click <QUERY>. The results will be listed in the <ARCHIVING INFO> window.
• The maximum backup capacity for one time is 20GB. If the archiving request exceeds
20GB,theendtimewillbeautomaticallyadjustedsotheleisunder20GB.

VXH5AHDL QUICK START GUIDE
7ARCHIVING RECORDED VIDEOS
5.To export to an external USB storage device, connect the device to the DVR and click
<EXPORT>.
6.To reserve the data, click <RESERVE>. Enter a <TAG NAME> and click <OK>. Click
<RESERVE> to save the archive to the internal hard disk.
• Reserved data will not be erased by the DVR, even if it is set to overwrite mode.
This is useful for safely backing up data when an external USB storage device is
not currently available. Note that reserving data necessarily reduces the remaining
recording capacity of the DVR. After exporting the reserved data to an external
device, deleting the reserved item from the internal disk to free up more recording
space is recommended.
7.To exit the <ARCHIVING> menu, click <CLOSE>
8ACCESSING FROM THE WEB
1.Note the device IP address and HTTP port number from the Network Status menu.
From a PC connected to the network, open Internet Explorer and enter the device
address in the address bar. Internet Explorer is recommended for the best web
access experience, however other web browsers such as Firefox and Chrome are
supported with reduced functionality.
2.When prompted, install the required ActiveX controls.
3.Log-in using the recorder user credentials.
4.ViewLiveVideo,SearchandPlaybackrecordedvideo,Archivevideo,andcongure
recorder options from the respective tabs.

VXH5AHDL QUICK START GUIDE
9ACCESSING FROM THE VIEWER APP
Concept Pro Viewer
From an iOS App Store or Android Play Store, search for
the free “Concept Pro Viewer” app. Install and open the
application. Add the device via QR Code, DDNS Details,
or IP Address.
SEQURINET REGISTER / LOGIN
You will need to register your details with Sequrinet to set up any recording devices.
You can login or set up your Securinet account with the Concept Pro App.
Complete the elds
and click Sign up.
Click OK.
Tap Touch here
to login Sequirnet
Already registered?
Complete your details and
press log in. Proceed to step 3.
Click Sign up to register for a
Sequirinet account.
APP SETUP
Open the app and
select the “+” icon
(this opens up the
setup page for the
connection).
Press the QR code
icon on the screen and
this opens the phone’s
scanner.

VXH5AHDL QUICK START GUIDE
9ACCESSING FROM THE VIEWER APP
Connect to router or switch with router attached via a network patch cable.
Navigate to the network menu in the recorder and either select DHCP or alternatively
statically assign a valid IP address for your local network.
Apply all settings and select Close
DVR SETUP
Select Menu at the bottom left hand corner of the screen and select Sequrinet at the
top of the list. A QR code will appear.
Going back to your App on your smart phone, tap on the QR code icon and point the
phone at the QR code on the DVR. The phone will scan the code and the Mac code will
populate the address section on the phone.
Tap on the DVR/NVR Nickname section and add a unique name for the connection
(You can enter anything here)
Tap on the DVR/NVR ID section and enter the username in here (Please enter ADMIN)
Tap on the DVR/NVR Password section and enter the default password or any
password you have programmed on the DVR
Tap Done then Save.
Your connection will now be saved and ready for selection

VXH5AHDL QUICK START GUIDE
NOTES

VXH5AHDL QUICK START GUIDE
NOTES

VXH5AHDL QUICK START GUIDE
NOTES

VXH5AHDE QUICK START GUIDE
S1483AU01_Rev01
This manual suits for next models
2
Table of contents
Other Concept Pro DVR manuals

Concept Pro
Concept Pro VXH5AHDE-8 User manual

Concept Pro
Concept Pro VXH264-4 User manual

Concept Pro
Concept Pro VXH264D-16 User manual

Concept Pro
Concept Pro VXM4-RT16 User manual

Concept Pro
Concept Pro HD-iP LITE VHDIPL-32-4 User manual

Concept Pro
Concept Pro H.264 User manual

Concept Pro
Concept Pro VXM4-16 User manual

Concept Pro
Concept Pro VXH960-4 User manual

Concept Pro
Concept Pro VXM4-4 User manual

Concept Pro
Concept Pro VXH5AHD-4 User manual
