Co.Table
Assembly Instructions

1
Assembly Instructions
Co.Table
2 person assembly is required to build any Co.Table configuration.
2,600mm diner table assembly
For 3,990mm diner table assembly, please proceed to page 8.
Components
• 2,600mm metal underframe
• 2,600mm utility rail
• 4x diner table legs
• 2x end laminate table tops (these could be
D-end, square ends or poseur attachment
ends depending on product order)
• 2x utility rail end caps
• 2x utility rail end cap brackets
• 2x large utility rail brackets
• 2x small utility rail brackets
• 2x under panels
• 2x under panel brackets
If your Co.Table includes a poseur table, proceed
to steps 1-11 on page 14 once completing
this section.
Fixing kit
Your 2,600mm Co.Table fixing kit will consist of
the following:
• M6 x 16 furniture bolt
• Wooden biscuit
• Double pins
• Cam covers
• M8 x 50 socket head
• M8 x 30 washer
• M4 square nut
• M4 x 12 button head
• 10x 5/8 self tap
• 12x 1” Pozi selftap CSK screws
• M6 x 8 button head
1 2
3
Building the frame and adding legs
1. Unwrap 2,600mm metal underframe and place in space close to where the table will situate.
There are corners of the metal underframe removed to allow for table legs to be attached
2. Screws to connect legs to metal underframe can be found already attached to the legs. Note
that all legs will allow for power to run down
3. Remove screws from leg, face leg up to outside corner of the metal underframe and reattach
the screws by threading through the inside of the frame and back into the leg. Initially screw
loosely. Note: It may be easier to connect legs with frame on its back and wooden legs in the air

2
Assembly Instructions
Co.Table

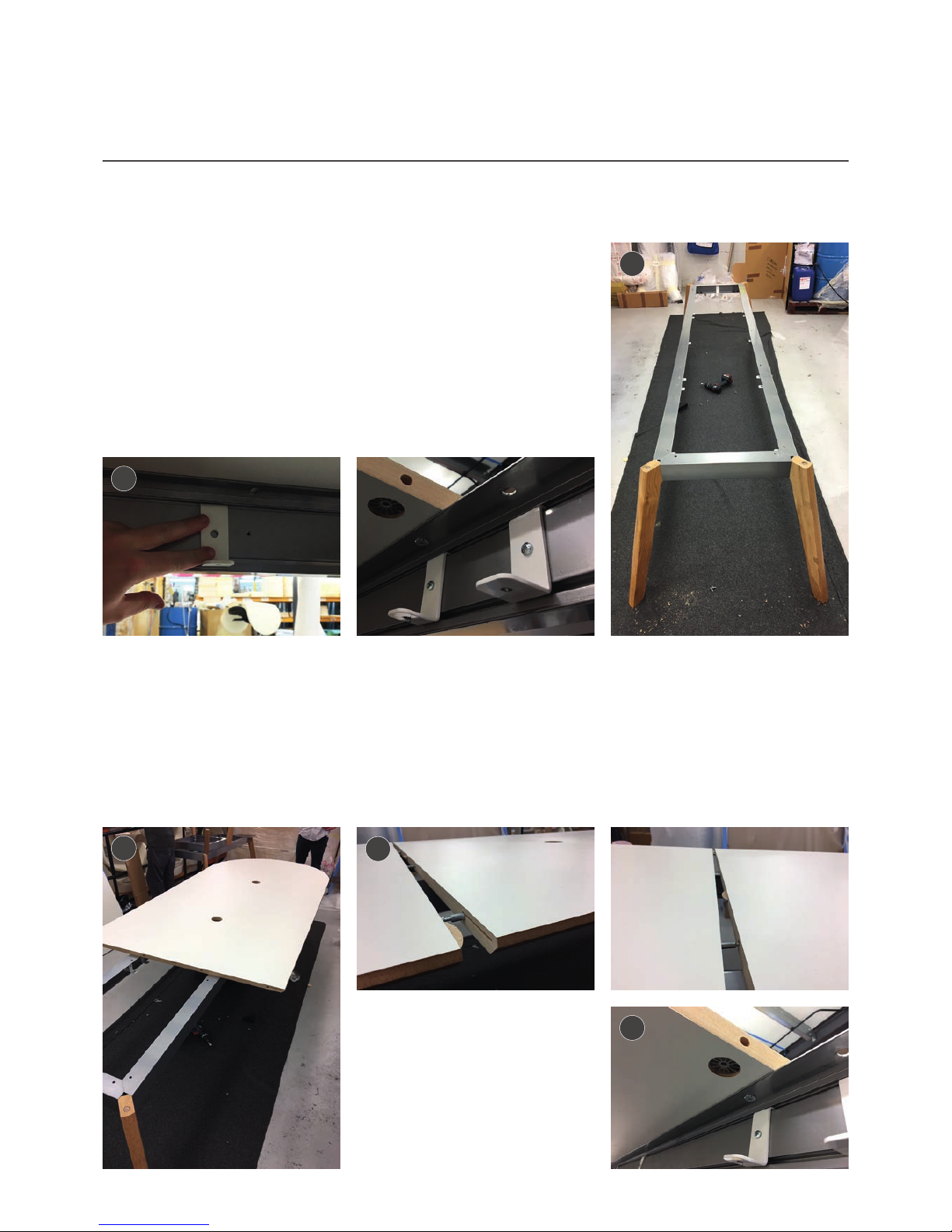

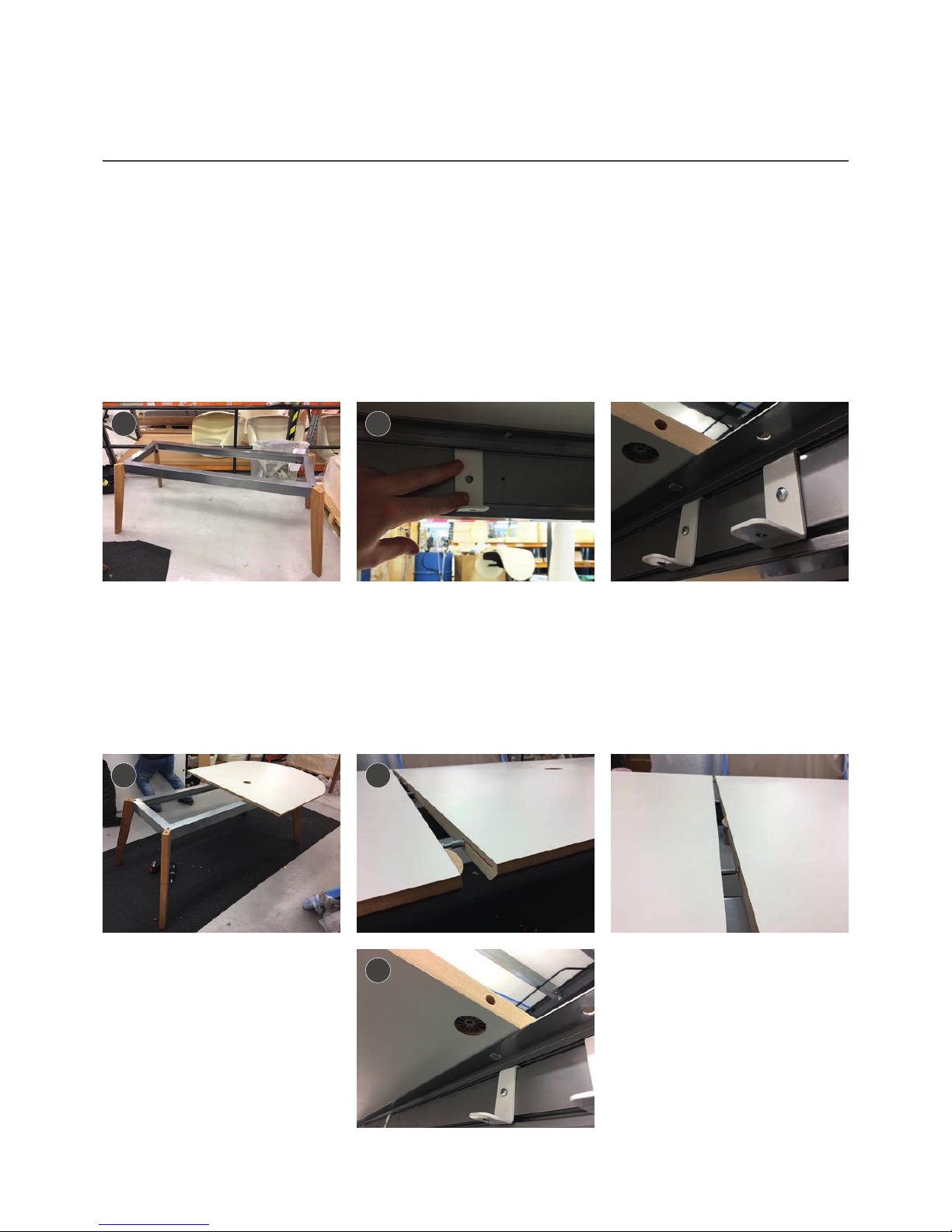

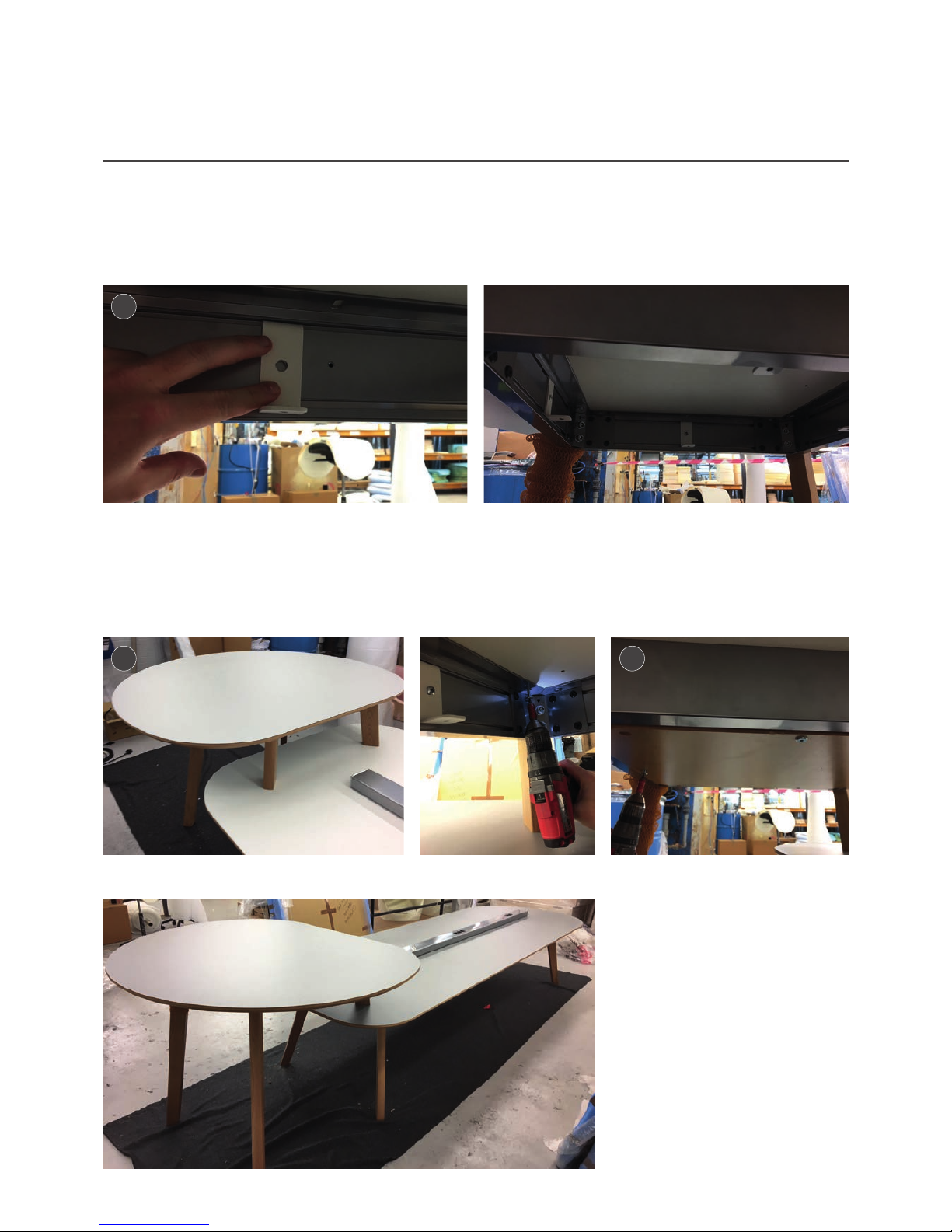

4. Repeat step 3 four times until all legs are loosely attached. Once all legs are in place, tightly
secure to complete the frame and legs assembly
Adding under panel brackets
This can also be done after the attachment of the laminate table tops, but we advise that these
are completed when the laminate table tops are off for ease of build.
For the 2,600mm underframe, there will be 10 brackets to connect. 4 along each side and 1 along
each short side.
5. These under panel clips are attached to the inside of the metal underframe. Place the bracket
hole over the pre-cut holes in the under frame. Secure brackets with 10x 5/8 self tap
Adding the laminate table tops
Your 2,600mm underframe frame will have 12 holes cut into the top of the under frame, to allow for the
laminate table tops to be attached. These will be located in the corners and centrally on the long sides.
6. Firstly, position loosely the laminate tops on top of the built structure
7. Once both table tops are in place, insert 3x wooden biscuits and 4x double pins into the holes
provided along the facing edges of one of the tables. Face the adjacent table so that these line
up and push together evenly from both sides of the table
8. On the underside of the
laminate table tops, there
will be 4x cams already
inserted. Tighten securely
with an allen key to bring the
table tops together
4 5
6 7
8

3

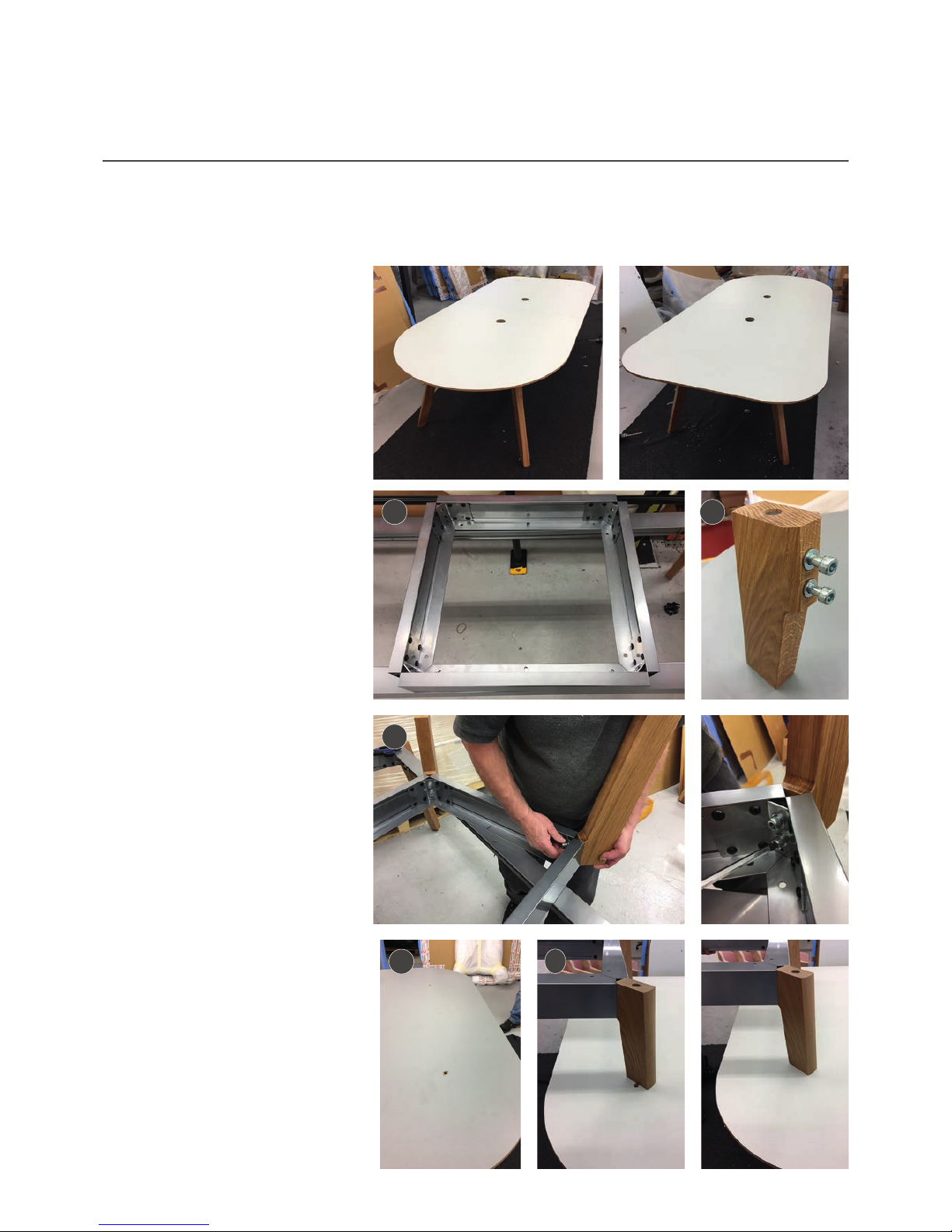

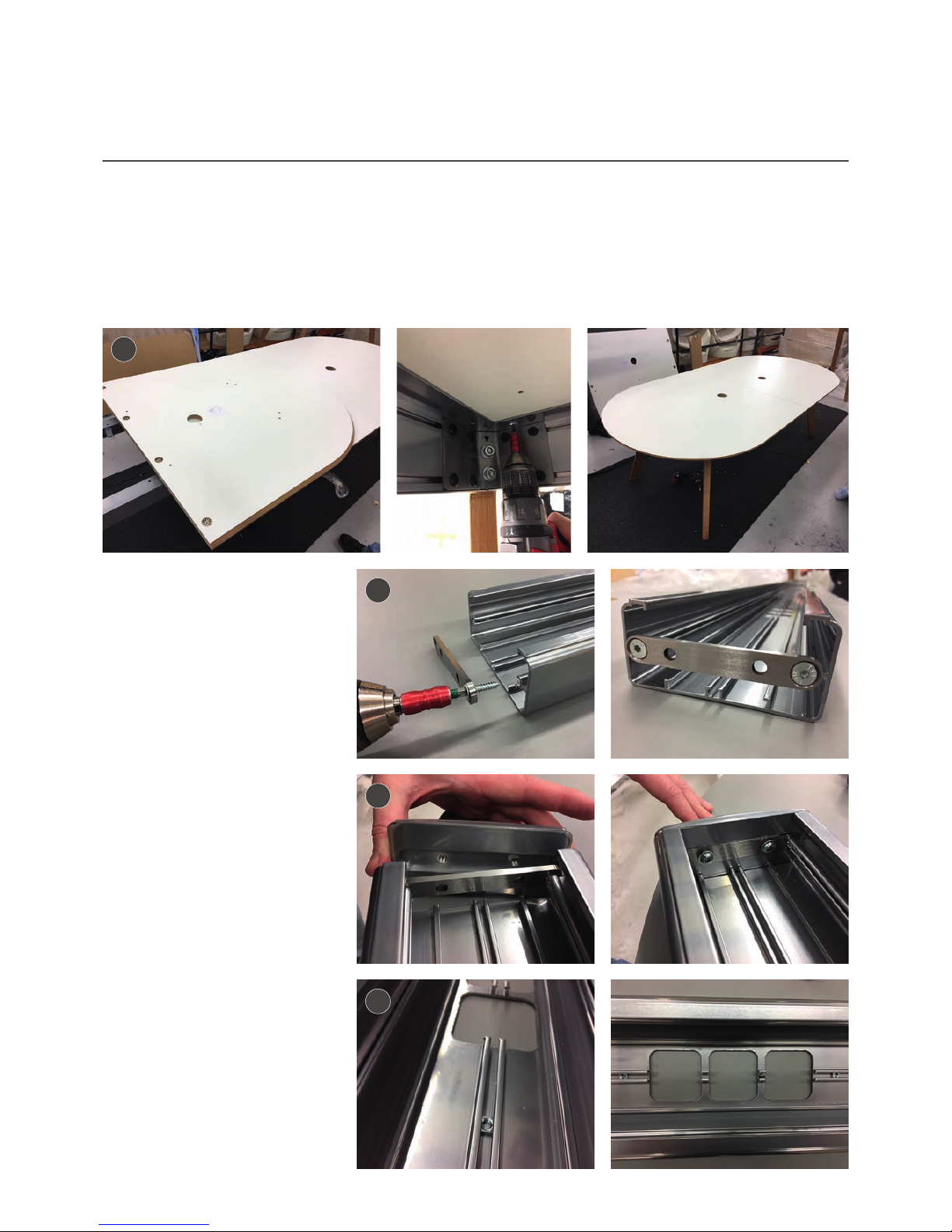

9. Once laminate table tops have been securely connected together, they can then be connected to the
table. Image below shows the corner positions on the underside of the table top. Position table holes
over holes on the top of under frame. Using M6x 16 furniture bolts, secure the table to the frame
Once this has been complete, the laminate table tops are now secured to the frame and structure.
Note: Assembly instructions show D-end laminate table tops. Assembly would be the same for
square end laminate tops also.
Adding the utility rail
and power
Utility rail will always need
attaching but power
instructions in step 13 and
any reference onwards would
only be applicable if power
has been specified on
Co.Table order.
Your 2,600mm table will come
with utility rail with 2 power cut
outs, 3 power holes per cut out.
10. Preparation is needed on
utility rail before connecting
to table. Screw utility rail end
cap bracket to either end of
the utility rail using 2x 12 x 1”
pozi self-tap CSK screws
11. Face both utility rail end
caps over the utility rail end
cap brackets and secure in
with M6 x 8 button head
12. Slide 2x small square M4
square nuts into the track of
the utility rail. This allows for
the power to be connected
to the rail. Ensure that there
is an M4 square nut on either
side of the 3 power cut outs
9
10
11
12
Assembly Instructions
Co.Table

4

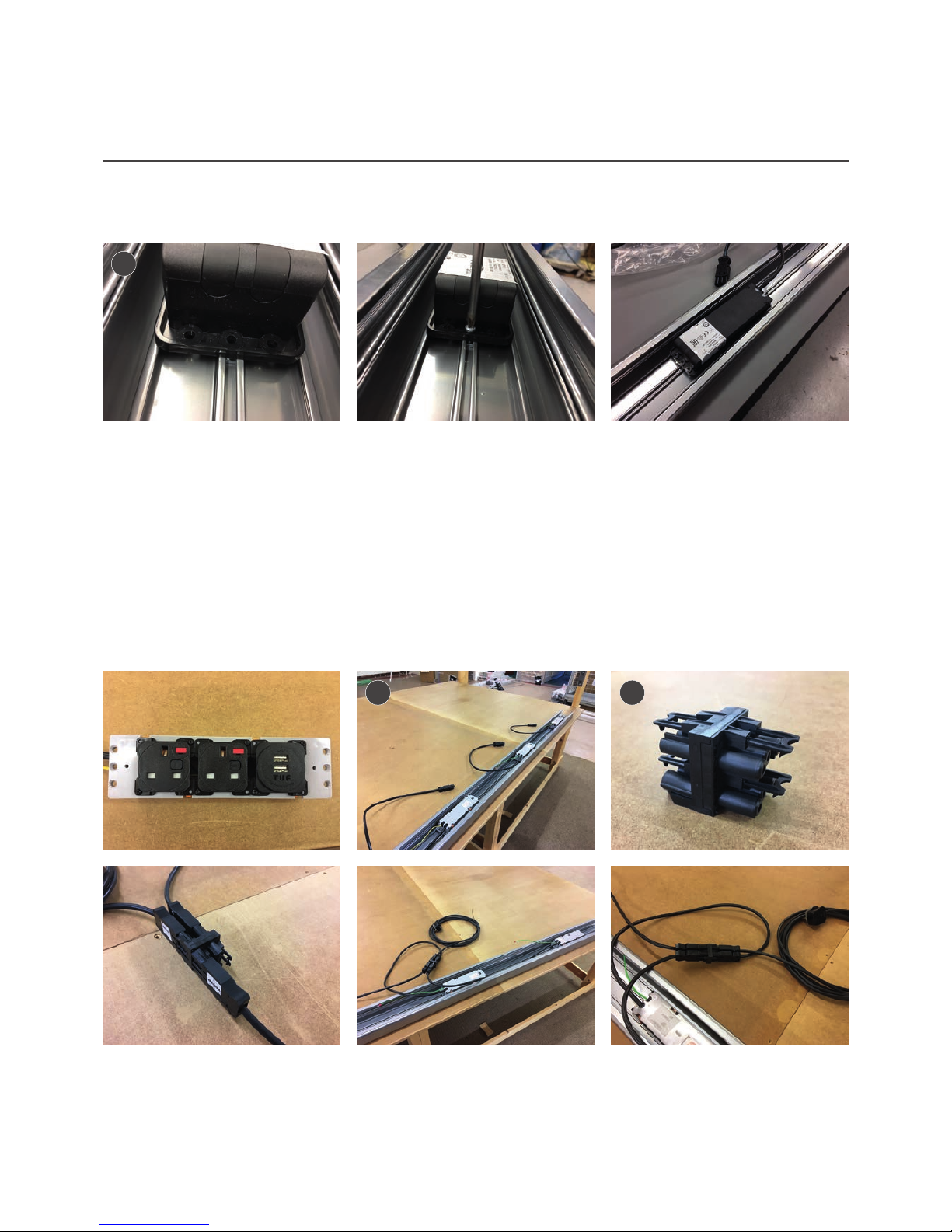

13. Position power brackets over the top of the M4 square nuts and screw in place with 2x M4 x 12
button heads. Repeat for all power brackets
13
Connecting the power cables
Note: Step 13 refers to standard Connection Co.Table power bracket consisting of 2 power pockets
and 1 dual USB power socket. Assembly instructions refer to this power only. A maximum of 6 power
sockets to be connected per distributor. Our standard power fits with this safety requirements. If
your power brackets differ then please contact our customer services.

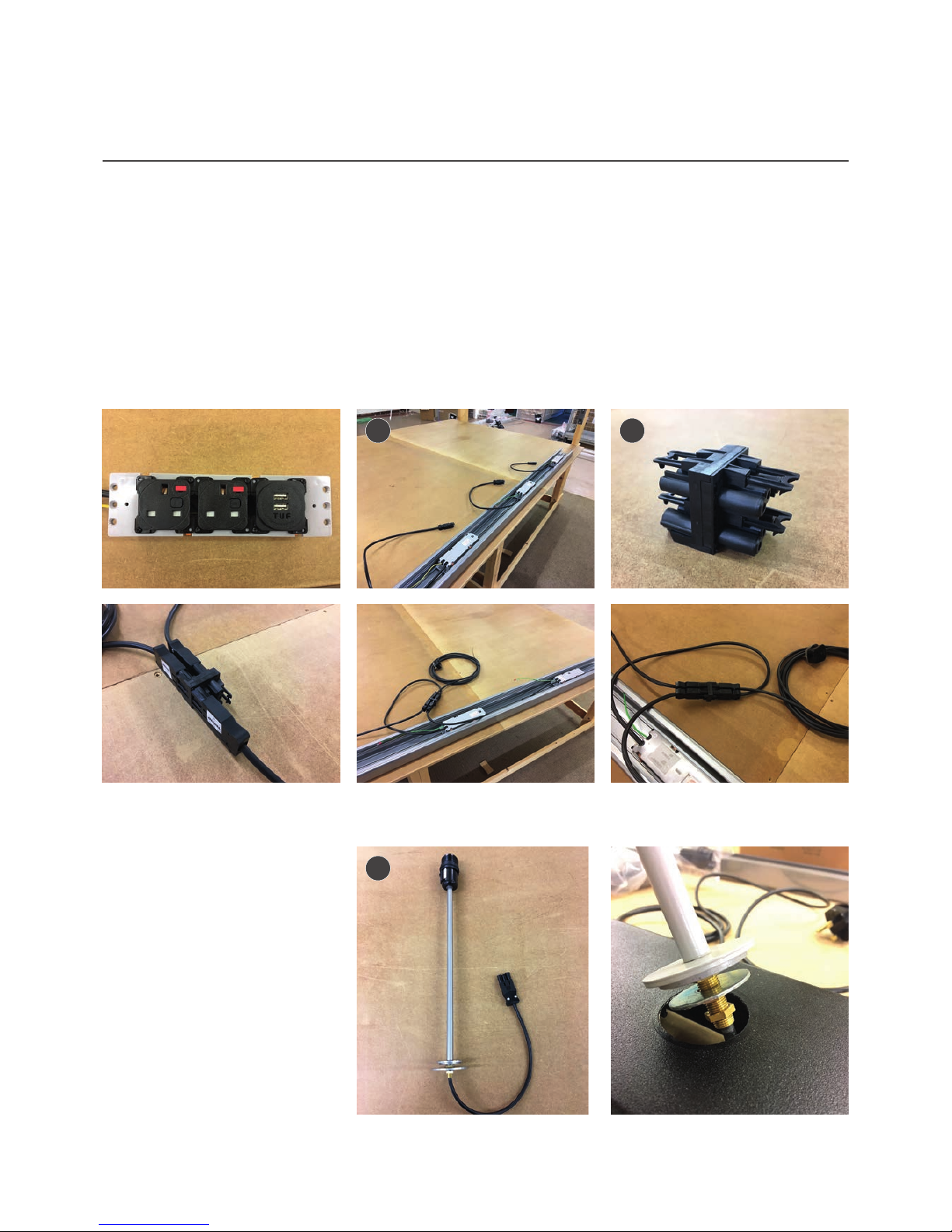

14. Once all power brackets are in place (image shows power in 3,990mm table, for 2,600mm
there will only be two power brackets) then they all need to be connected via a distributor block
to run wires down leg and out of Co.Table.
15. Connect the two leads from the power sockets into the distributor, leaving space for one more
lead (image shows cables from 3,990mm table connected). Lead from 5m extension cable will
be connected into distributor. Power cable set up is now complete.
If your Co.Table has been specified with lamps you will additionally receive lamp stems, distributor
blocks, 2.0m cable and 5.0m cables with original components.
14 15
Assembly Instructions
Co.Table

5

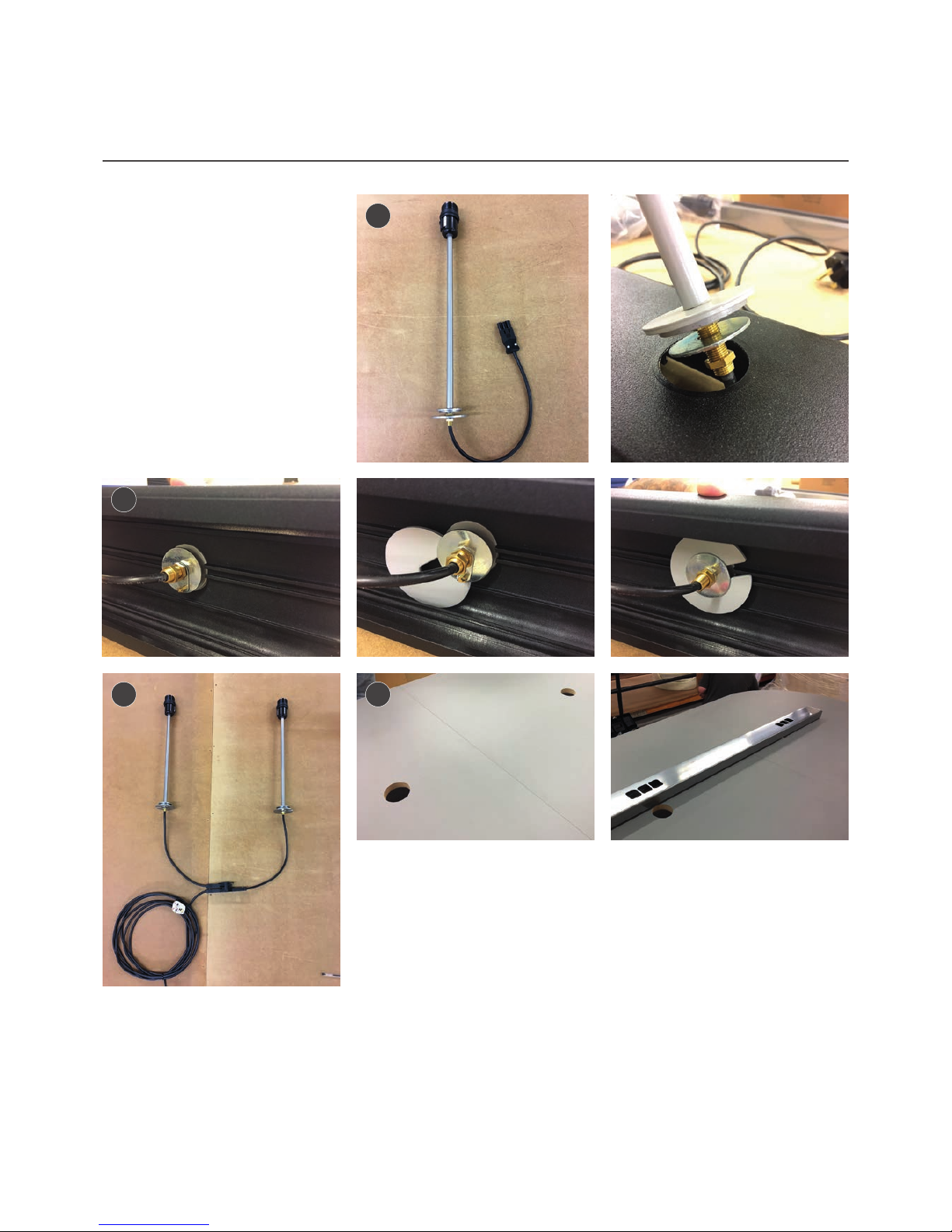

16. Co.Table lamp will come with
large metal plate at the
bottom of the stem, which
needs to be removed to
allow for insertion into utility
rail. Lamp will only have
short power lead
17. Once lamp has been
inserted into utility rail
and cable thread through,
reattach metal plate by
sliding in place. Tighten nut to
secure the lamp in place. This
will need repeating for each
18. Multiple Co.Table lamps will need to be connected to a
distributor block to allow for cables to run out of table. A
2.0m extension cable will be provided to connect Co.Table
lamp cable to distributor block. Once both are connected to
a distributor block, a 5m extension cable will be connected to
allow cable to run out of table
Please note that light bulbs will not be included.
19. Each laminate table top will come with a hole cut out as
standard. These allow for power to run from the utility rail
through the table. Position the utility rail onto the table, with
the power brackets central over these holes
16
17
1918
Assembly Instructions
Co.Table

6
Note: Following imagery shows utility rail brackets attached without power. This is for ease of
imagery. Please connect brackets once power has been connected to utility rail.

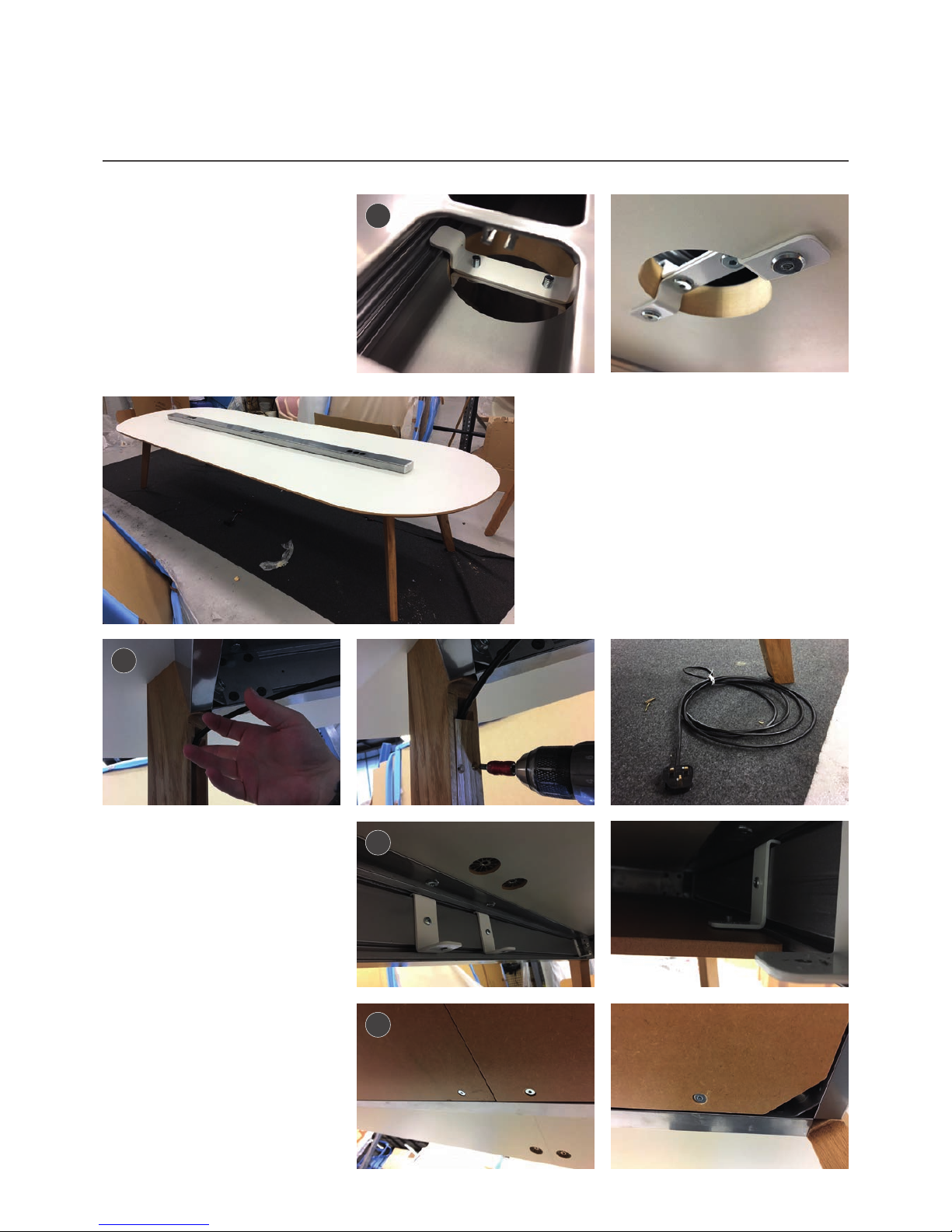

20. Two sizes of utility brackets will be used. The small utility rail bracket with only 2 cut outs will
be used within the utility rail. The larger utility rail bracket will be used on the underside of the
table tops
21. Position the small utility rail bracket over the cut out in the table tops, with the ends sitting on
top of the utility rail. Make sure that power cut outs and power brackets in utility rail are central
22. Position the larger utility
rail bracket on underside
of table facing the small
utility rail bracket. Connect
larger utility rail bracket
to small utility rail bracket
and to underside of the
table tops, using M6 x 16
furniture bolts. Complete
on all table top cut outs to
secure utility rail
Utility rail is now secure to
table tops.
20 21
22
Assembly Instructions
Co.Table

7

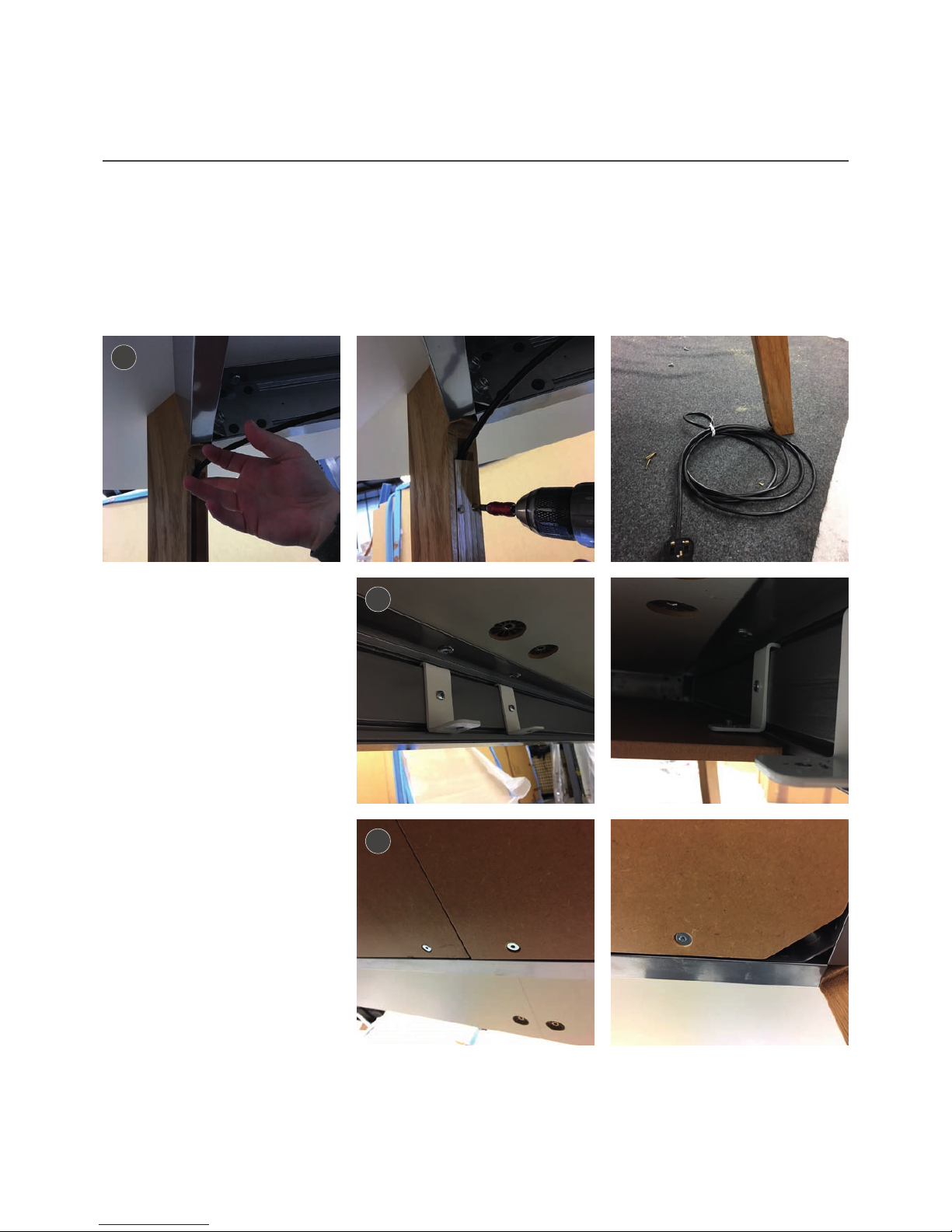

23. Ensure leg cut out covers have been removed. Feed power cables through hole in table tops
and run along to selected leg. All legs can cater for power. Once cable has been fed down leg,
reattach leg cut out cover
Adding the under panels
The under panels will hide the leads and power underneath the table. For the 2,600mm table you
will need 2x under panels.
24. Face under panel to
under panel brackets and
secure loosely with M6 x 16
furniture bolts
25. Once all panels are in
position, secure tightly all
M6 x 16 furniture bolts in
place. Note that end panels
will have corners cut out
Your Co.Table is now complete.
Please proceed to page 14 if
poseur table needs adding.
23
24
25
Assembly Instructions
Co.Table

8
2 person assembly is required to build any Co.Table configuration.
3,990mm diner table assembly
For 2,600mm diner table assembly, please proceed to page 1.
Components
• 3,990mm metal underframe
• 4x diner table legs
• 2x end laminate table tops (these could
be D-end or square ends depending on
product order)
• 1x central laminate table top
• 2x utility rail end caps
• 2x utility rail end cap brackets
• 3x large utility rail brackets
• 3x small utility rail brackets
• 3x under panels
• 16x under panel brackets
If your Co.Table includes a poseur table, proceed
to steps 1-11 on page 14 once completing
this section.
Fixing Kit
Your 3,990mm Co.Table fixing kit will consist of
the following:
• M6 x 16 furniture bolt
• Wooden biscuit
• Double pins
• Cam covers
• M8 x 50 socket head
• M8 x 30 washer
• M4 square nut
• M4 x 12 button head
• 10x 5/8 self tap
• 12 x 1” Pozi selftap CSK screws
• M6 x 8 button head

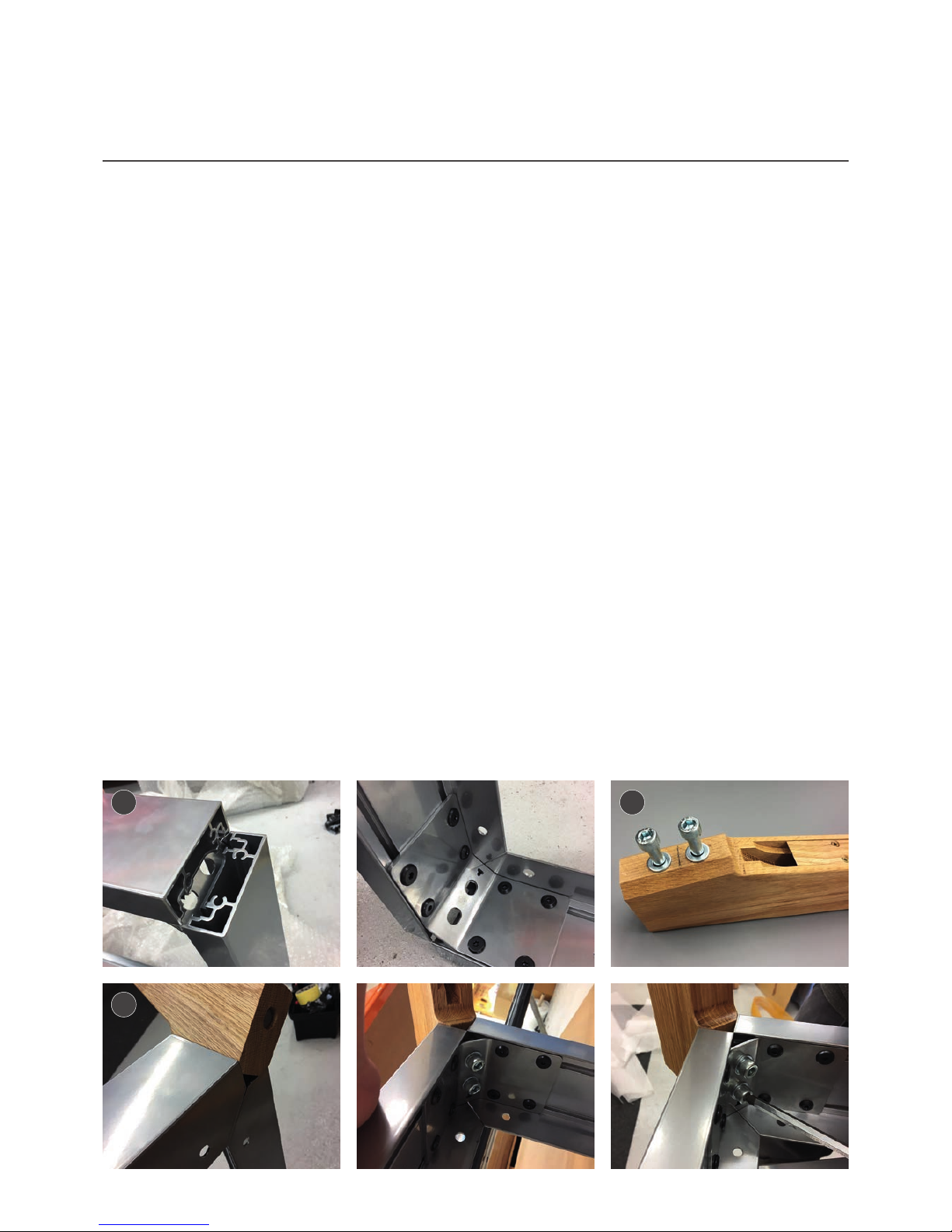

Building the frame and adding legs
1. Unwrap 3,990mm metal underframe and place in space close to where the table will situate.
There are corners of the metal underframe removed to allow for table legs to be attached
2. Screws to connect legs to metal underframe can be found already attached to the legs. Note
that all legs will allow for power to run down
3. Remove screws from leg, face leg up to outside corner of the metal underframe and reattach
the screws by threading through the inside of the frame and back into the leg. Initially screw
loosely. Note: It may be easier to connect legs with frame on its back and wooden legs in the air
1 2
3
Assembly Instructions
Co.Table

9
4. Repeat step 3 four times until all legs are loosely attached. Once all legs are in place, tightly
secure to complete the frame and legs assembly
Adding under panel brackets
This can also be done after the attachment of the laminate table
tops, but we advise that these are completed when the laminate
table tops are off for ease of build.
For the 3,990mm underframe, there will be 18 brackets to
connect. 7 along each long side and 2 along each short side.
5. These under panel clips are attached to the inside of the
metal underframe. Place the bracket hole over the pre-cut
holes in the under frame. Secure brackets in place with 12 x 1”
pozi self-tap CSK screws
Adding the laminate table tops
Your 3,990mm underframe frame will have 18 holes cut into the top of the under frame, to allow for the
laminate table tops to be attached. These will be located in the corners and centrally on the long sides.
6. Firstly, position loosely the laminate tops on top of the built structure, starting with the central
laminate top and one of the ends sections
7. Once these table tops are in place, insert 3x wooden biscuits and 4x double pins into the holes
provided along the facing edges of one of the tables. Face the adjacent table so that these line
up and push together evenly from both sides of the table
8. On the underside of the
laminate table tops, there
will be 4x cams already
inserted. Tighten securely
with an allen key to bring
the table tops together
5
67
8
4
Assembly Instructions
Co.Table

10
9. Repeat stage 8 to attach the second
end laminate table top. Once laminate
table tops have been securely
connected together, they can then be
connected to the table. Image right
shows the corner positions on the
underside of the table top. Position
table holes over holes on the top of
under frame. Secure the table to the
frame using M6 x 16 furniture bolts
Once this has been complete, the
laminate table tops are now secured to
the frame and structure.
Adding the utility rail
and power
Utility rail will always need
attaching but power
instructions in step 13 and
any reference onwards would
only be applicable if power
has been specified on
Co.Table order.
Your 3,990mm table will come
with utility rail with 3 power cut
outs, 3 power holes per cut out.
10. Preparation is needed on
utility rail before connecting
to table. Screw utility rail end
cap bracket to either end of
the utility rail using 2x 12 x 1”
pozi self-tap CSK screws
11. Face both utility rail end caps
over the utility rail end cap
brackets and secure in place
with M6 x 8 button heads
12. Slide 2x M4 square nuts into
the track of the utility rail.
This allows for the power
to be connected to the rail.
Ensure that there is an M4
square nut on either side of
the 3 power cut outs
13. Position power brackets
over the top of the M4
square nuts and screw
in place with 2x M4 x 12
button heads. Repeat for all
power brackets
9
10
11
12
13
Assembly Instructions
Co.Table

11
Connecting the power cables
Note: Step 13 refers to standard Connection Co.Table power bracket consisting of 2 power pockets
and 1 dual USB power socket. Assembly instructions refer to this power only. A maximum of 6 power
sockets to be connected per distributor. Our standard power fits with this safety requirements. If
your power brackets differ then please contact our customer services.
14. Once all power brackets are in place then they all need to be connected via a distributor block
to run wires down leg and out of Co.Table
15. Connect the three leads from the power sockets into the distributor, leaving space for one more
lead. Lead from 5m extension cable will be connected into distributor. Power cable set up is
now complete
If your Co.Table has been specified with lamps you will additionally receive lamp stems, distributor
blocks, 2.0m cable and 5.0m cables with original components.
14 15
16. Co.Table lamp will come with
large metal plate at the
bottom of the stem, which
needs to be removed to
allow for insertion into utility
rail. Lamp will only have
short power lead
16
Assembly Instructions
Co.Table

12
17
17. Once lamp has been inserted into utility rail and cable thread through, reattach metal plate by
sliding in place. Tighten nut to secure the lamp in place. This will need repeating for each
18. Multiple Co.Table Lamps will need to be connected to a distributor block to allow for cables to
run out of table. A 2.0m extension cable will be provided to connect Co.Table lamp cable to
distributor block. Once both are connected to a distributor block, a 5.0m extension cable will be
connected to allow cable to run out of table.
18
Please note that light bulbs will not be included.
19. Each laminate table top will come with a hole cut out as
standard. These allow for power to run from the power rail
through the table. Position the utility rail onto the table, with
the power brackets central over these holes
1419
Note: Following imagery shows utility rail brackets attached without power. This is for ease of
imagery. Please connect brackets once power has been connected to utility rail.
20. Two sizes of utility brackets will be used. The Small utility rail bracket with only 2 cut outs will be used
within the utility rail. The larger utility rail bracket will be used on the underside of the table tops
21. Position the small utility rail bracket over the cut out in the table tops, with the ends sitting on
top of the utility rail. Make sure that power cut outs and power brackets in utility rail are central
20 21
Assembly Instructions
Co.Table

13
22. Position the larger utility rail
bracket on underside of
table facing the small utility
rail bracket. Connect larger
utility rail bracket to small
utility rail bracket and to
underside of the table tops
using M6 x 16 furniture bolts.
Complete on all table top
cut outs to secure utility rail
22
Utility rail is now secure to table tops.
23.Ensure leg cut out covers have been
removed. Feed power cables through
hole in table tops and run along to
selected leg. All legs can cater for
power. Once cable has been fed down
leg, reattach leg cut out cover
Adding the under panels
The under panels will hide the leads and
power underneath the table. For the
3,990mm table you’ll need 3x under panels.
23
24. Face under panel to
under panel brackets and
secure loosely with M6 x 16
furniture bolts
25. Once all panels are in
position, secure tightly M6
x 16 furniture bolts in place.
Note that end panels will
have corners cut out
Your Co.Table is now complete.
Please proceed to page 14 if
poseur table needs adding.
24
25
Assembly Instructions
Co.Table

14

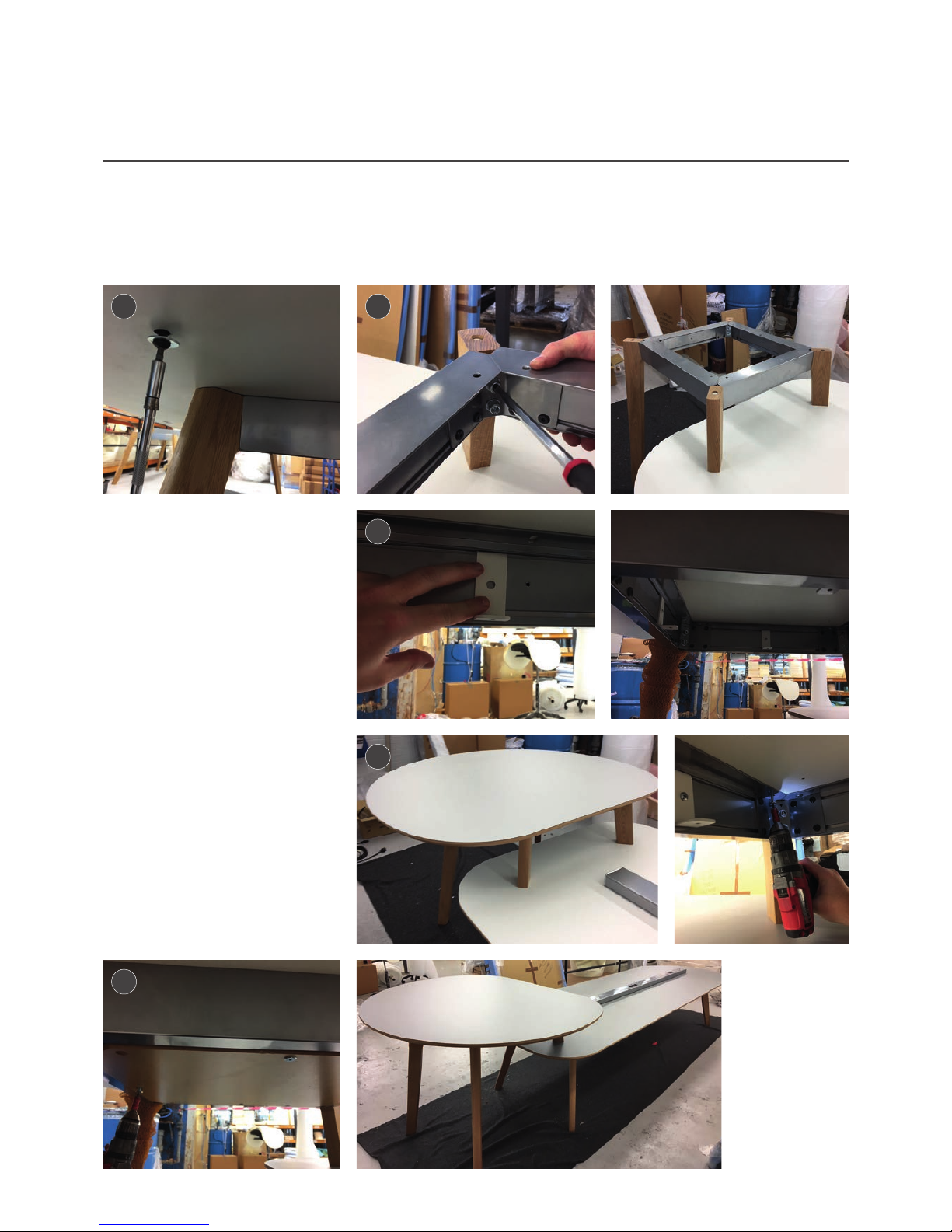

Adding the poseur end
This is additional to the previous diner table assembly instructions. Ensure diner table build is
complete before starting poseur table build. Components below will be included in original delivery.
Components
• Square poseur metal underframe
• 2x poseur short legs
• 2x poseur long legs
• Laminated poseur table top
• 1x under panel
• 4x under panel brackets
Building the frame and
adding legs
1. Corners of the poseur metal
underframe are removed
to allow for table legs to be
attached
2. Screws to connect both sets
of legs to metal underframe
can be found already
attached to both large and
short legs
3. Remove screws from leg,
face leg up to outside corner
of the metal underframe
and reattach the screws by
threading through the inside
of the frame and back into the
leg. Initially screw loosely Note:
It may be easier to connect
legs with frame on its back and
wooden legs in the air
4. Repeat step 3 four times until
all legs are loosely attached.
Ensure that short legs are
both on one side and large
legs are both on one side.
Keep the legs loosely screwed
together until attached to
diner table
Connecting frame to table
5. Square end of diner table will
have pre-cut holes underneath
the table but not showing
through table top. These will
need to be drilled through
carefully, so holes now come
through table
6. Position the shorter legs
attached to poseur table
frame on top of diner table
and position over the top of
through holes
1
3
2
56
Assembly Instructions
Co.Table

15
7. Screw M8 x 50 bolt and washer through underside of table of diner table tops and into the
short legs of the poseur table. Loosely screw to start
8. Now that the poseur table is attached to diner table, tightly secure all leg and table screws to
secure the structure
7 8
Adding under panel brackets
9. Under panel clips are
attached to the inside of the
metal under frame. Place
the bracket hole the holes
cut into the under frame.
Securely screw brackets in
place with 10x 5/8 self-taps.
Complete in all 4 positions
Attaching table top
10. Position laminated table top
loosely above the poseur
table under frame. Line up
holes on underside of table
top with those cut into under
frame. Secure tightly with
M6 x 16 furniture bolts
Adding the under panels
11. Screw square under panel
in place with 4x M6 x 16
furniture bolts to complete
the poseur end
9
10
11 Your Co.Table
with poseur
end is now
complete.
Assembly Instructions
Co.Table

16
Adding under panel brackets
9. Under panel clips are attached to the inside of the metal under frame. Place the bracket hole
the holes cut into the under frame. Securely screw brackets in place with 10x 5/8 self-taps.
Complete in all 4 positions
Attaching table top
10. Position laminated table top loosely above the poseur table under frame. Line up holes on
underside of table top with those cut into under frame. Secure tightly with M6 x 16 furniture bolts
Adding the under panels
11. Screw square under panel in place with 4x M6 x 16 furniture bolts to complete the poseur end
9
10 11
Your Co.Table with poseur end is now complete.
Assembly Instructions
Co.Table

17
Assembly Instructions
Notes

18
Assembly Instructions
Notes

© Connection Seating Limited 2018. All rights reserved.
London Showroom
31 Great Sutton Street,
Clerkenwell,
London,
EC1V 0NA
Tel: [phone]
www.connection.uk.com
Head Office & Showroom
Dogley Mills,
Penistone Road,
Huddersfield,
West Yorkshire,
HD8 0LE
Tel: [phone]
[email protected]
Manchester Showroom
The Old Law Library,
Kennedy Street,
Manchester,
M2 4BY
