Control Bionics Neuronode Trilogy User manual

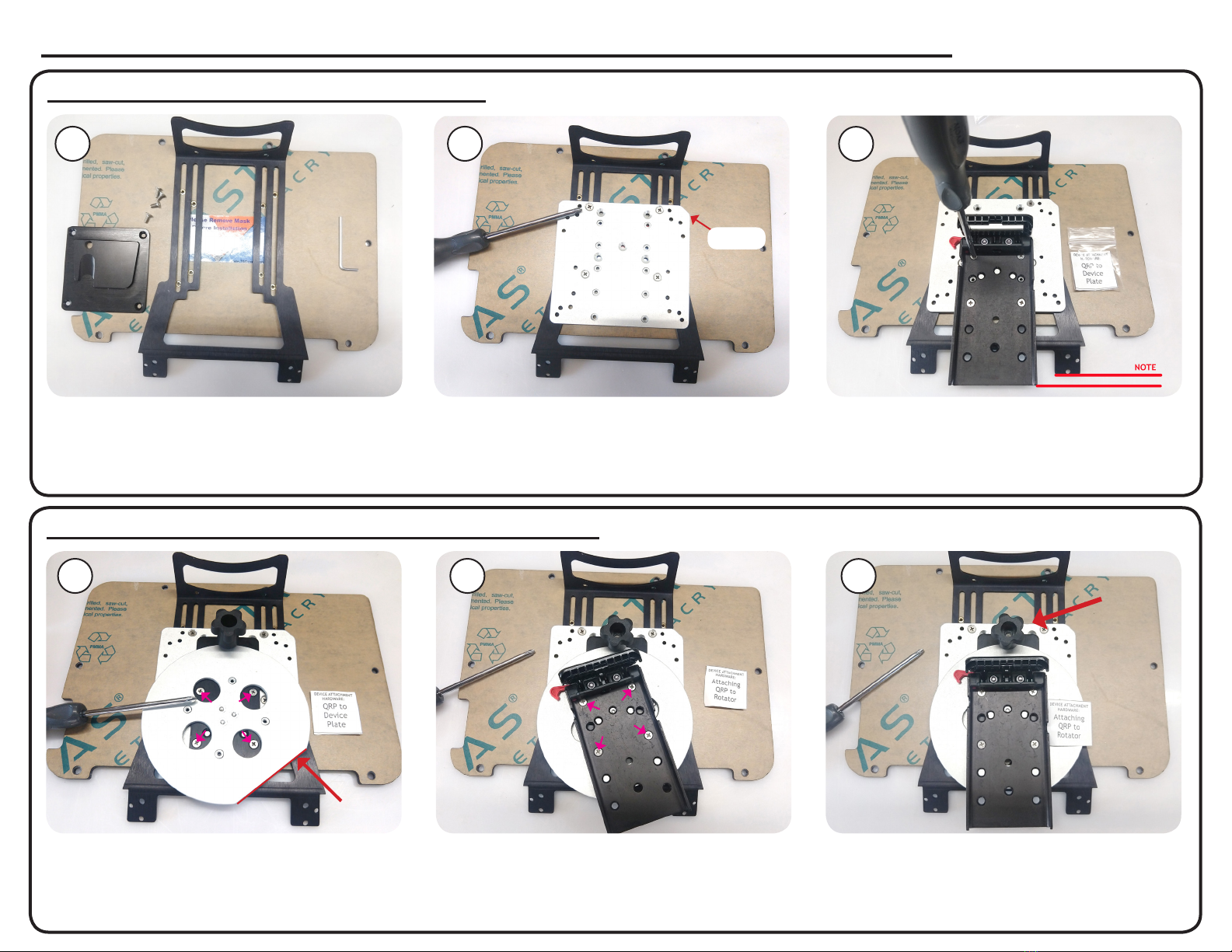

Instructions for attaching to Control Bionics Neuronode Trilogy
Remove black plate from back.
Keep eyegaze bracket in place.
Attach Multi Plate with four M4-10
screws included with the Multi plate.
NOTE location of angled corner on top right
Attach QRP to Multi Plate using four
8-32 x 1/4” screws (QRP to Device Plate)
NOTE Location of QRP in relation to bottom
of eyegaze bracket.
Attaching the QRP (quick connect plate)
Spin the rotator to access the attachment
holes. Use the four 8-32 x 1/4” screws to
attach the DP-UR to the Multi plate.
NOTE location of at edge of rotator.
Attach QRP to Rotator using 8-32 x 1/8”
screw (Attaching QRP to Rotator).
NOTE has to be 1/8” screws or rotator
will not spin.
Loosen knob on the rotator to spin
in either direction. Tighten knob when
device in at the desired “tilt”
Attaching the QRP and a Universal Rotator (DP-UR)
Page 1
1 2 3
1 2 3
NOTE
QRP
Multi Plate
Rotator
QRP
QRP
at edge
Rotator
Knob

Instructions for attaching to Control Bionics Neuronode Trilogy (cont.)
Attach the Multi Plate and the Universal
Rotator (DP-UR) as shown in the previous
instructions.
Open up the Stand90 and place it over
the Universal Rotator as shown. Attach
the Stand 90 to the Rotator with four 8-32 x
1/4” (QRP to Device Plate).
Fold the Stand90 closed. Place four
spacers over four threaded holes in
Stand 90. Spacers are in the bag
labeled (Stand90 to QRP).
Attaching the Universal Rotator (DP-UR), the Stand+90, and the Quick Connect Plate (QRP)
Place Quick Release Plate over four
spacers and use the four (Stand90 to
QRP) screws to attach the QRP to the
Stand90.
NOTE gap between the Stand90 and
the Quick Release Plate (QRP).
1 2 3
4
3
Page 2
Adjust angle on
Stand90 here!
hint: use a dab of stick glue to hold the spacers in place

Attaching the Universal Rotator (DP-UR), the Stand+90, and the Quick Connect Plate (QRP)
Page 3
Instructions for attaching to Control Bionics Neuronode Trilogy (cont.)
Attach the Quick Connect Plate (QCP)
to the Multi Plate using four 8-32 x 1/4”
screws (QRP to Device Plate).
Easy Mover Dual Arm with a Quick
Connect Receiver (QCR) attached to the
Quick Connect Plate (QCP).
Attaching the the Quick Connect Plate (QCP) to the Multi Plate
Attach Multi Plate with four M4-10
screws included with the Multi plate.
NOTE location of angled corner on top right.
Quick Connect Plate (QCP) is used with the Quick Connect Receiver (QCR)
Quick Connect
Receiver (QCR)
Quick Connect
Plate (QCP)
1 2 3
