burmeier Dali User manual

Dali
REF: 221234 2022-01-07 | Version 05 | 272846
Instruction Manual
Part A: General Information
Part B: Operator and Technical Personnel
Part C: Care staff and residents

Part A: General Information

[1] Foot end chassis [2] Safety side release buttons (4x)
[3] Lower leg rest [4] Thigh rest
[5] Handset [6] Triangular grab handle
[7] Backrest [8] Patient lifting pole
[9] Head end chassis [10] Mattress retainers (4x)
[11] Guide rails (4x) [12] Lifting pole sleeves (2x)
[13] Castors (4x) [14] Control unit (concealed in the pic-
ture)
[15] Drive motors for backrest and
thigh rest (concealed in picture)
[16] Safety side bars
[17] Mattress base frame [18] Brake pedal

1
2
3
3.1
3.2
4
4.1
4.2
4.3
4.3.1
4.3.2
4.3.3
4.4
4.5
4.5.1
4.5.2
4.5.3
4.5.4
4.5.5
4.5.6
4.5.7
4.5.8
4.5.9
4.5.10
4.5.11
Contents
Part A: General Information
Address, information for customers, market note...................................................... 1
Foreword......................................................................................................................... 2
Conventions of this Instruction Manual....................................................................... 3
Safety Information............................................................................................................................ 3
Icon Information............................................................................................................................... 4
Product Description....................................................................................................... 5
Use for the intended purpose..........................................................................................................5
Contraindications............................................................................................................................. 6
Components of the Bed................................................................................................................... 7
Mattress Base Frame...........................................................................................................7
Safety Side (Click-In)............................................................................................................7
Electrical adjustment system................................................................................................7
Mattress base sizes..........................................................................................................................8
Technical Data...................................................................................................................................9

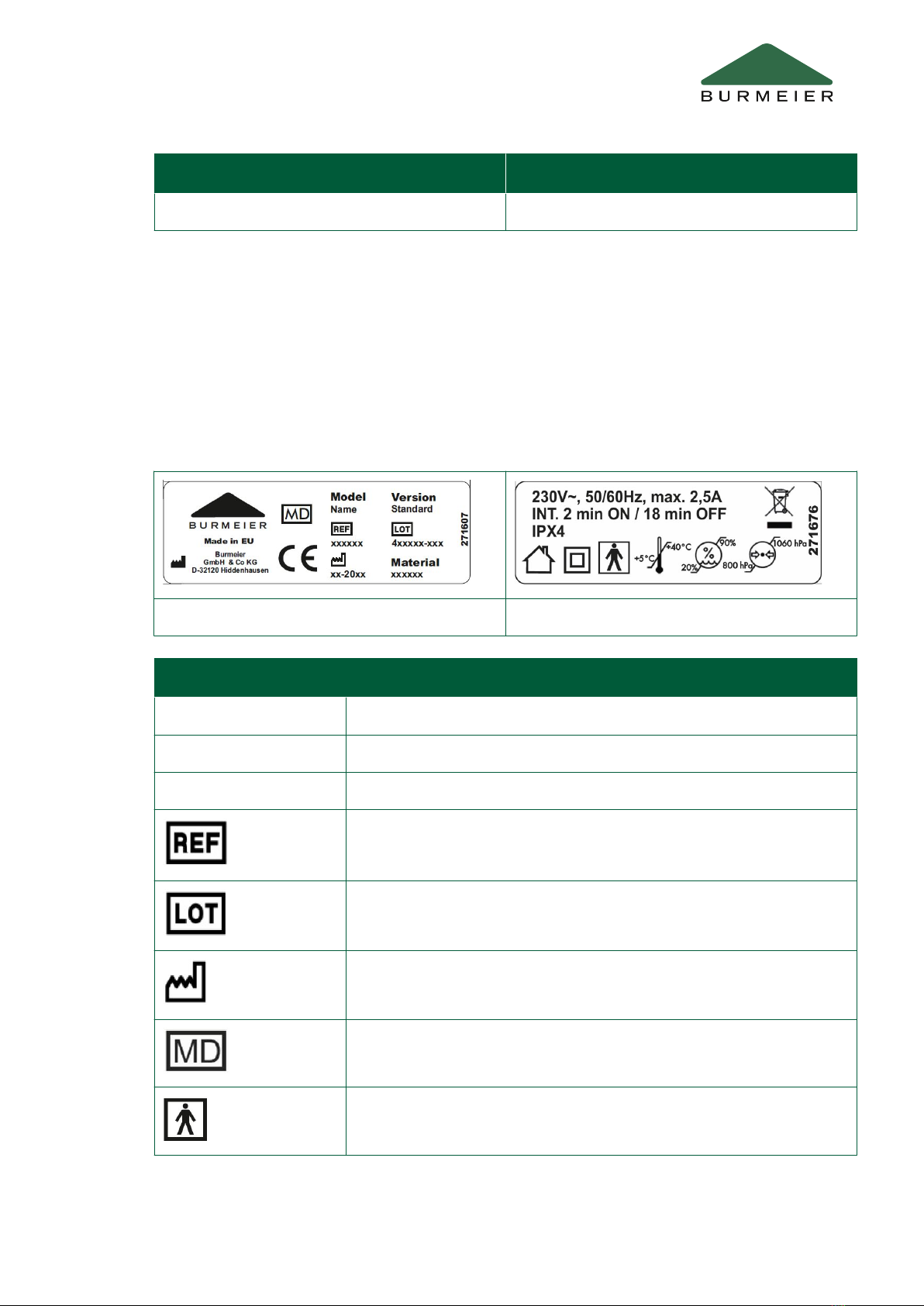

Type plate.............................................................................................................................9

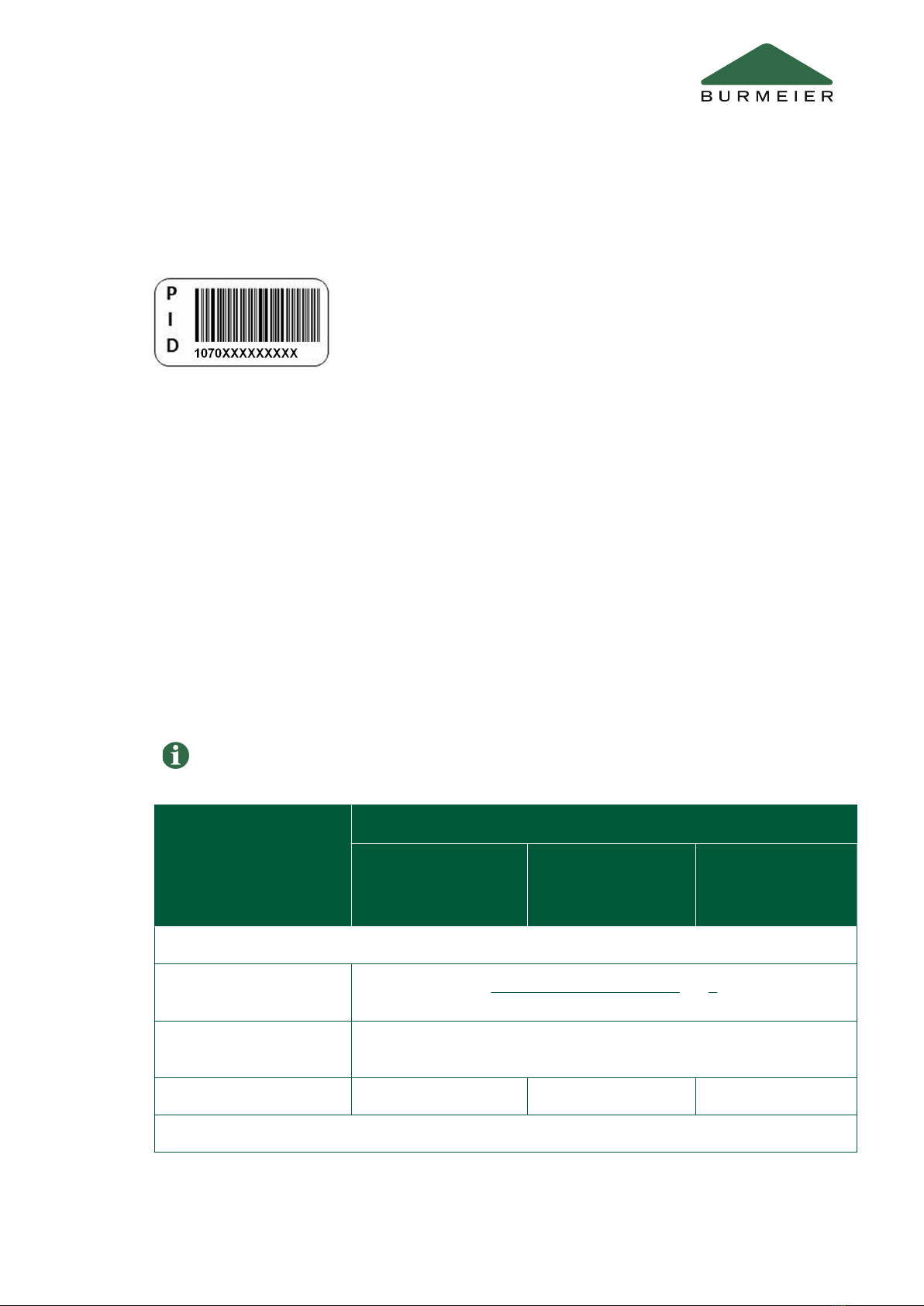

PID Number........................................................................................................................11
Materials Used....................................................................................................................11
Dimensions and weights.....................................................................................................11
Adjustment ranges............................................................................................................. 12
Ambient conditions.............................................................................................................12
Classification...................................................................................................................... 13
Electrical data: Dali standard, low-entry.............................................................................14
Electrical data: Dali econ, low-econ, low-entry-econ..........................................................16
Electrical data: Dali wash................................................................................................... 18
Information on electromagnetic compatibility (EMC)..........................................................20
I

II

1 Address, information for custom-
ers, market note
Manufacturer
Burmeier GmbH & Co. KG
(A Stiegelmeyer-Group company)
Industriestraße 53 / 32120 Hiddenhausen / Germany
Tel.:[phone] - 0
Fax:[phone] - 090
Email:[e-mail]
Internet:www.burmeier.com
Service centre
To order replacement parts in Germany and for any servicing requirements or other ques-
tions, please contact our service centre:
Burmeier GmbH & Co. KG
(A Stiegelmeyer-Group company)
Industriestraße 53 / 32120 Hiddenhausen / Germany
Tel.:[phone] - 0
Fax:[phone] - 090
Email:[e-mail]
Internet:www.burmeier.com
Market Information
Customers outside Germany can contact our distribution companies in their particular coun-
try if they have any questions. Contact details can be found on our website.
This product is not licenced for use on the North American market. This applies particularly to
the United States of America. The distribution and use of the care bed in these markets, in-
cluding through third parties, is prohibited by the manufacturer.
Part A: General Information 1

2 Foreword
Dear Customer,
Burmeier has built this bed to give you the best possible help with the challenges of care in
the home. We passionately pursue the goal of developing products that are durable and of a
high-quality. Our products should make residents feel as safe and comfortable as possible
during their stay in bed and also lighten the workload of care staff and caring relatives. For
this reason, the electrical safety and all functions are tested prior to delivery. Each bed leaves
our factory in perfect condition.
Correct operation and care are necessary to keep the bed in excellent condition during long-
term use. Please therefore read and observe these instructions carefully. They will help you
to put the bed into service for the first time and to use it on a daily basis. This instruction
manual contains all the information you will need to make it as easy and safe as possible to
control and handle this bed, both for you as the operator and for your users. This instruction
manual is a practical reference book and should be kept close to hand at all times.
The medical retail trade that delivered this bed is also there to assist you with any questions
you may have concerning servicing and repairs during the product’s lifetime of use.
This bed is designed to give the person in need of care and all users a safe and practical
piece of equipment that provides decisive support with the ever-increasing requirements of
care-giving.
Thank you for the confidence you have place in us and our products.
Burmeier GmbH & Co. KG
www.burmeier.com
2 Part A: General Information

3 Conventions of this Instruction
Manual
3.1 Safety Information
WARNING
CAUTION
ATTENTION
At the time of delivery, the Dali care bed represents state-of-the-art technology and has been
tested by an independent testing institute.
Only use the Dali care bed if it is in perfect working order.
Explanation of the Safety Symbols Used
In this instruction manual, safety information is displayed in the following way:
WARNING
•WARNING indicates a potentially hazardous situation that, if not avoided, could result in
death or serious injury.
CAUTION
•CAUTION indicates a potentially hazardous situation that, if not avoided, could result in
minor or moderate injury.
ATTENTION
•NOTICE indicates a harmful situation that could result in damage to the product or some-
thing around it.
Part A: General Information 3

3.2 Icon Information
General information, tips and helpful courses of action.
The safety symbols used are not a substitute for the written safety information. It is important
therefore to read the safety information and follow the instructions exactly!
General information and cross-references will be displayed in the following way:
Cross-reference or active link: Indicates the chapter name and page number of the instruc-
tion manual where you will find what you are looking for. Example: Part B: Safety Informa-
tion »3
Conventions of this Instruction Manual
4 Part A: General Information

4 Product Description
4.1 Use for the intended purpose
•The Dali care bed, hereafter referred to as the bed, is a comfortable solution for posi-
tioning and facilitating the care of frail persons in need of care in homes for the elderly
or nursing homes. Furthermore, it was developed as a supporting solution for home
care, for infirm, disabled or frail persons. It it designed to support this care.
•The use of the Dali care bed in hospitals is only permitted in rooms designed for medi-
cal treatment of the application group 0.
•Further details on permissible environments for use can be found in the chapter Part A:
Ambient conditions »12. Further information on possible electromagnetic influences
can be found in the chapter Part A: Information on electromagnetic compatibility
(EMC) »20
•This bed must only be used as a single bed.
•This bed may be intended for care under the supervision of a doctor and be used for
diagnosis, treatment or observation of the resident. It is therefore equipped with a lock-
ing function of the electrical adjustment devices.
•This bed has no special connectors for potential equalisation. Please pay attention to
this before connecting additional mains-operated (medical) electrical equipment.
If necessary, further advice on additional protective measures can be found:
⁃In the instruction manuals of these additional mains-operated electrical devices
(e.g. compressed air positioning systems, infusion pumps, enteral feeding devi-
ces, etc.)
⁃In the current edition of the DIN EN 60601-1 standard (Safety of Medical Electri-
cal Systems)
⁃In the current issue of the VDE 0107 standard (High-voltage Installations in Hos-
pitals)
•This bed may be operated without restriction with a permanent maximum load of 185
kg (resident and accessories) (exception Dali low-entry and low-entry-econ with a max-
imum of 175 kg).
•The permitted weight of the resident depends on the total weight of accessories attach-
ed at any time (e.g. respirators, infusions,…)
Part A: General Information 5

→
→
4.2 Contraindications
→
→
→
Weight of accessories
(incl. mattress)
Maximum permitted weight of resident
Dali (standard, low-econ, econ,
wash)
Dali low-entry, Dali
low-entry-econ
10 kg 175 kg 165 kg
20 kg 165 kg 155 kg
•Please refer to the safety information provided in the chapter Part B: Safety Informa-
tion »3, especially in the case of residents in poor clinical condition.
•This bed may be operated only by persons who have received instruction in its safe op-
eration.
•This bed is suitable for multiple use. When re-using the bed, pay attention to the neces-
sary requirements:
See chapter Part B: Cleaning and Disinfection »26
See chapter Part B: Maintenance »31
•The bed may be moved within the room even when the resident is lying in bed. First of
all, adjust the mattress base to a flat home position at its lowest level.
•This bed may only be used under the operating conditions described in this instruction
manual. Its use for any other type of application is deemed to be contrary to the inten-
ded purpose.
•This bed must not be modified without authorisation by the manufacturer.
This bed is only suitable for residents who do not fall below the following minimum body size/
weight:
Height: 146 cm
Weight: 40 kg
Body mass index "BMI": 17
BMI calculation:
BMI = weight of resident (kg)/height of resident (m)2
Example a:
41 kg/(1.5 m x 1.5 m) = 18.2 = OK!
Example b:
35 kg/(1.5 m x 1.5 m) = 15.6 = Not OK!
Product Description
6 Part A: General Information

CAUTION
4.3 Components of the Bed
4.3.1 Mattress Base Frame
4.3.2 Safety Side (Click-In)
4.3.3 Electrical adjustment system
Risk of injury
Failure to heed this warning may result in physical injury to the resident due to entrapment
or crushing of limbs.
•Owing to the smaller limbs of residents with a body height/weight that is less than this,
there is an increased risk of entrapment between the open spaces of the safety sides
when safety side systems are used.
The bed is delivered unassembled and mounted on a storage aid. It can also be transported
easily within blocks of flats. It comprises two chassis (a head and footboard); a mattress
base frame divided in the centre; four safety side bars and a lifting pole with a grab handle.
The bed stands on four steerable castors which are all fitted with a locking brake.
The mattress base frame is divided into four sections with a backrest, a fixed middle section,
a thigh rest and a lower leg rest. The backrest and thigh rest can all be adjusted with the aid
of electric motors. The mattress base height can be adjusted horizontally to a high position or
to a reverse-Trendelenburg position. All adjustments are activated with a handset.
The bed has click-in safety side bars on both sides of the bed that are raised to present a
barrier, or lowered, if they are not required. Safety sides protect the resident from accidental-
ly falling out of bed. The click-in safety side excels through its easy installation and user-
friendly operation. It is available in a wood or metal design depending on the characteristics
of the bed.
The bed’s electrical adjustment system is first-error-secure, flame-resistant (V0) and consists
of:
•An "external" switch mode power supply.
Product Description
Part A: General Information 7

4.4 Mattress base sizes
This instruction manual may describe functions or features that your model of bed does
not have.
The switch mode power supply consists of: Voltage transformer and low-voltage con-
nection cable and can be used as instruments to separate the bed from the power sup-
ply system.
The voltage transformer generates a protective low voltage that is safe for both the res-
ident and care staff.
The switch mode power supply provides all drives (motors) with protective low voltage
using a connection cable. The socket available is protected against the ingress of wa-
ter.
•A central control unit. All drive motors and the handset (Bluetooth handset) are cou-
pled/connected to the central control unit;
•A Bluetooth handset with a sturdy hook (connected to the control unit via a Bluetooth
interface), for Dali Standard and Dali wash.
The user can lock the adjustment options on the handset if the poor clinical condition of
the resident necessitates this.
•A cabled handset with a sturdy hook, for Dali Standard and Dali low entry
The user can lock the adjustment options on the handset if the poor clinical condition of
the resident necessitates this.
•Two drive motors for horizontal height adjustment.
•A drive motor for the thigh rest.
•A drive motor for the backrest.
And for Dali econ and low-econ, low-entry-econ:
•A central control unit. All drive motors and the cabled handset are connected to the
central control unit;
•A mains cable: a spiral cable with EPR sheathing and country-specific plug. These
plugs can be used as instruments to separate the bed from the power supply system.
The mains cable is interchangeable by maintenance personnel.
•A cabled handset with sturdy hook connected to the control unit via plug connection.
The user can lock the adjustment options on the handset if the poor clinical condition of
the resident necessitates this.
•Two drive motors for horizontal height adjustment.
•A drive motor for the thigh rest.
•A drive motor for the backrest.
The Dali care bed can be ordered in the following sizes.
Product Description
8 Part A: General Information

4.5 Technical Data
4.5.1 Type plate
Mattress base dimensions (WxL) External dimensions (WxL)
90 x 200 cm (wooden or metal mattress base) 102 x 218 cm
You can find the type plate on the bed frame at the head end. The type plate contains the
following information:
Type plate, example Type plate (electrical data), example
Explanation of the graphical symbols used:
Model Bed model
Material Material variant (if applicable)
Version Variant (if applicable)
Item number (Kmat)
Order number
Date of manufacture (week/year)
The article is a medical device
Device with type BF applied part in accordance with IEC 601-1 (special
protection against electric shock)
Product Description
Part A: General Information 9

Explanation of the graphical symbols used:
Protection Class II device, shock-proof
Only for use in enclosed spaces – do not use outdoors
Dispose of electrical components in accordance with the WEEE Direc-
tive. Do not dispose of as household waste!
Attention! Follow the operating instructions
Total weight of the bed
Protection of electrical equipment from water splashing from any direc-
tion
Conformity mark according to Medical Devices REGULATION (EU)
2017/745 (MDR)
Safe working load
Permissible weight of patient
Minimum resident measurements/weight: Height: 146 cm, weight: 40
kg; body mass index “BMI”: 17
Only use mattresses that are approved by the manufacturer.
Lock the handset if the resident could be at risk due to inadvertent mo-
torised adjustments.
Product Description
10 Part A: General Information

4.5.2 PID Number
4.5.3 Materials Used
4.5.4 Dimensions and weights
All the indicated dimensions and weights in this manual are approximate.
Relevant order information is summarised for the manufacturer under the PID number. Have
the PID number ready any time you contact your specialist dealer. You can find the PID no.
on the bed frame at the head end.
Part A: Image1:
PID Number
The bed is made predominantly of steel sections coated with a polyester powder finish or a
metal alloy of zinc or chromium. The safety side bars and mattress base are made of wood
or metal depending on the bed model. The chassis are made of steel profiles with wooden
panels. All surfaces are sealed.
The surfaces indicated are safe for contact with the skin.
Bed model
standard/econ wash low-entry, low-
entry-econ/low-
econ
Assembled bed with safety sides:
Mattress base dimen-
sions
Part A: Mattress base sizes »8
Total weight, depending
on model
92 to 97 kg
Safe working load 185 kg 185 kg 175 kg
Disassembled bed:
Product Description
Part A: General Information 11

4.5.5 Adjustment ranges
4.5.6 Ambient conditions
Bed model
standard/econ wash low-entry, low-
entry-econ/low-
econ
Chassis with motors 34 kg
Wooden mattress base
frame with motors
37 kg - 37 kg
Metal mattress base
frame with motors
41 kg
4 wooden safety side
bars
13 kg
4 metal safety side bars 17.5 kg
Patient lifting pole 5 kg
Storage aid 3 kg
Bed model
standard, econ,
wash
low-econ low-entry, low-en-
try-econ
Height adjustment of
mattress base
Approx. 40 – 80 cm Approx. 32 – 72 cm Approx. 23 – 63 cm
Adjusting the backrest Approx. 0° – 70°
Adjusting the leg rest Approx. 0° – 35°
Noise level during adjustments max. 48 dB(A)
The ambient conditions stated below must be maintained:
For storage/transport:
Product Description
12 Part A: General Information

4.5.7 Classification
Storage temperature min. -10°C, max.+50°C
Relative humidity
(not condensed)
Min. 20 %, max. 80 %
Air pressure (at altitude ≤ 3000
m)
Min. 700 hPa, max. 1060 hPa
In operation:
Ambient temperature min. + 5°C max. + 40°C
Relative humidity
(not condensed)
Min. 20 %, max. 80 %
Air pressure (at altitude ≤ 3000
m)
Min. 700 hPa, max. 1060 hPa
•This bed fulfils all the requirements of the Medical Device Regulation (EU) 2017/745
(MDR)
•This bed is classified as a Class I active medical product with type BF application parts
•EMDN code: V08060101 ; HOSPITAL/HOME CARE ELECTRIC MEDICAL BEDS
•For use in the following application environments in accordance with IEC 60601-2-52:
3: Long-term care in a medical facility in which medical supervision is required and
monitoring is provided if required. A medical electrical device used in medical
Product Description
Part A: General Information 13

4.5.8 Electrical data: Dali standard, low-entry
procedures can be provided to help maintain or improve the condition of the resi-
dent. (e.g. retirement and nursing homes, rehabilitation facilities and geriatric in-
stitutions)
4: Care in the home. A medical electrical device is used to alleviate or compensate
for injuries, disabilities or illnesses.
Control unit
Type: CBSTI01-V2 Type: CBSTI01-V3
Compatible with: Bluetooth and cabled handset Cabled handset
Operating voltage Through SMPS 12-type external power supply unit
Output current 8 A
Duty cycle Intermittent duty: 2 min ON / 18 min OFF
Protection category IPX6
Classification Protection class 2
Radio transmitter characteristics (applies to control unit CBSTI01-V2 and Bluetooth
handset HBSTI)
Frequency band of transmission 2,400 MHz - 2,485 MHz
Type BLUETOOTH Low Energy BLE 4.2
Modulation GFSK
Maximum effective radiated power (ERP) 10 dBm
Switch mode power supply
Type SMPS12
Input voltage 230 VAC (-15% / +10%)
Standby current consumption < 0.5W
Current input 1.8 A max.
Output voltage 32 VDC
Product Description
14 Part A: General Information
