Cooke & Lewis WD140CL User manual

60CM WARMING DRAWER
WD140CL - Version: 01
GB IE Warmer drawer - Barcode: 5052931258802
WARNING: Read the instructions before using the appliance.
WD140CL-C&L-A5-GB-IM-08.indd 1 11/4/13 3:02 PM

2WD140CL Warmer drawer

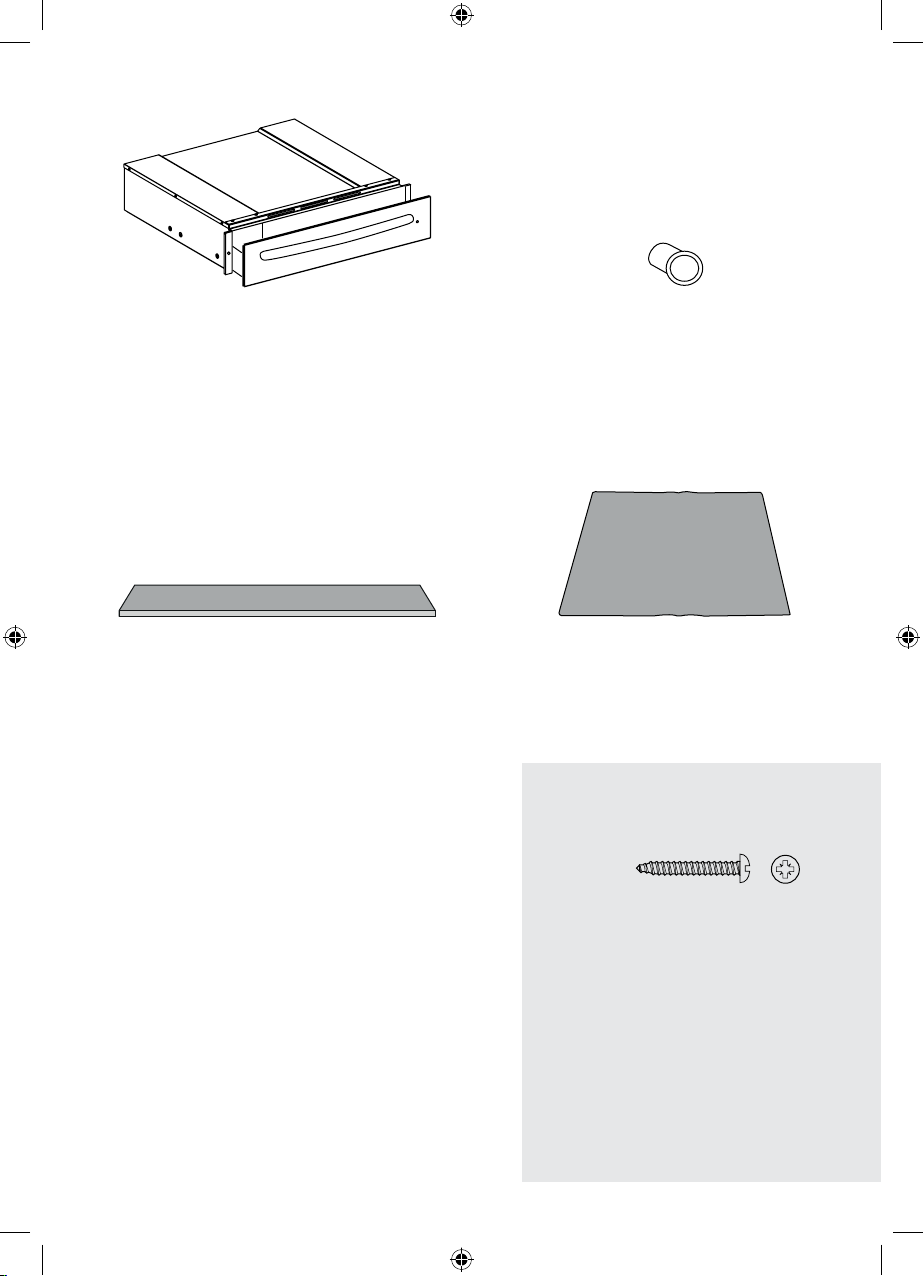

[01] x 1 [02] x 2
[03] x 3 [04] x 1
1 : 1
[05] x 2 (Ø4mm x 25mm)
WD140CL-C&L-A5-GB-IM-08.indd 2 11/4/13 3:02 PM

3
GB
IE
Let's
get started...
These instructions are for your safety. Please read through them
thoroughly before use and retain them for future reference.
Getting started…
Your product 03
Before you start 04
Safety 06
In more detail…
Operation 11
Care and maintenance 14
Troubleshooting 14
Recycling and disposal 16
Technical and legal information 16
Guarantee 17
CE Declaration of conformity 19
Appendix...
20
Installation
WD140CL-C&L-A5-GB-IM-08.indd 3 11/4/13 3:02 PM

4
Getting started...
GB
IE
WD140CL Warmer drawer
GB
IE

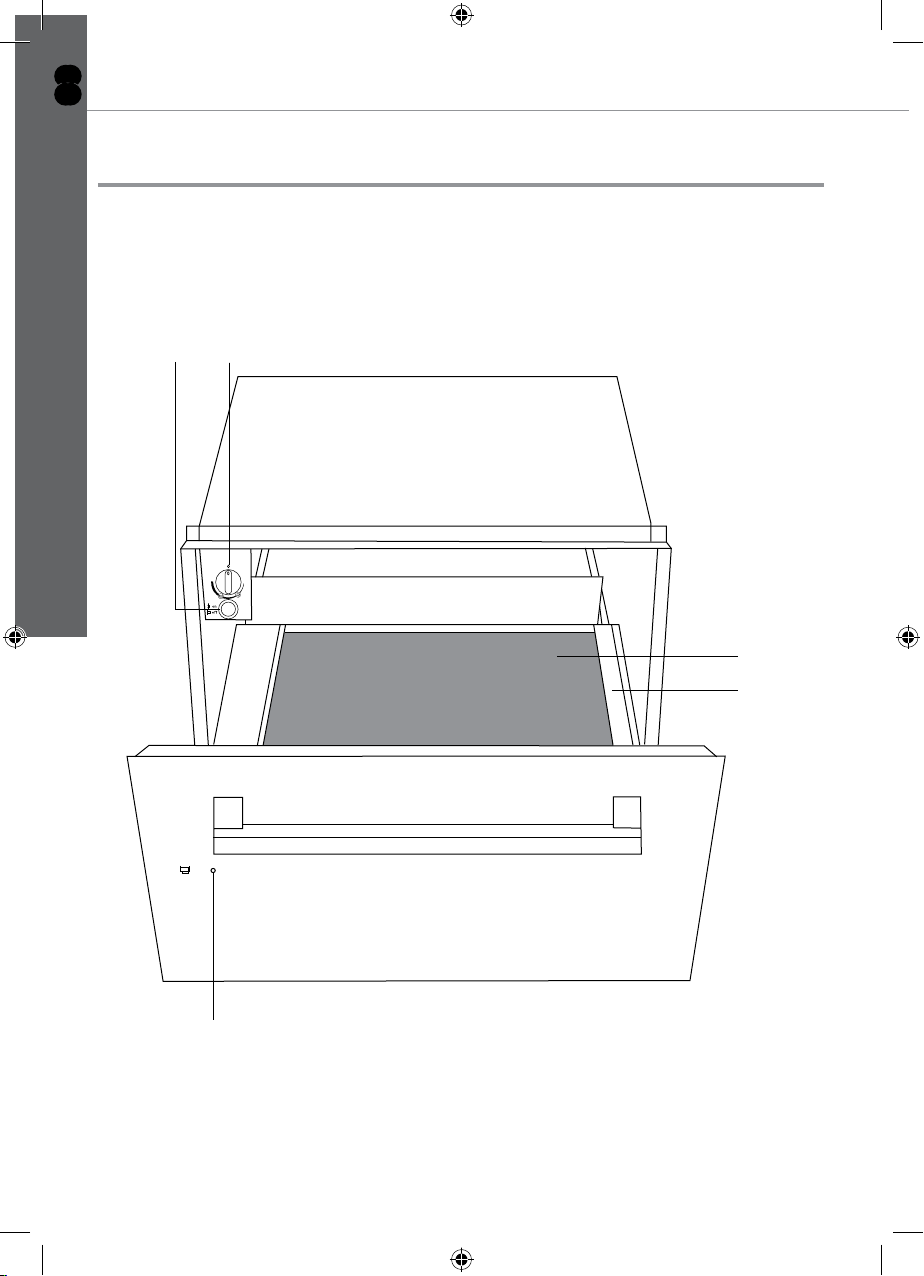

Your product
01. ON/OFF switch (neon indicator)
02. Temperature control
03. Warming drawer
04. Anti-slip mat
05. Operation indicator
[01] [02]
[03]
[05]
[04]
Your product
WD140CL-C&L-A5-GB-IM-08.indd 4 11/4/13 3:02 PM

5
Getting started...
WD140CL Warmer drawer GB
IE
Your product
Installation guide
located at the end of
the guidebook
Things to check before you start
To avoid the risks that are always present when you use an electrical
appliance it is important that this appliance is installed correctly and that
you read the safety instructions carefully to avoid misuse and hazards.
Please keep this instruction booklet for future reference and pass it on to
any future owners. After unpacking the appliance please check that it is
not damaged. If in doubt, do not use the appliance but contact Customer
Services on 0844 800 1128 (UK), 0144 75261 (Ireland).
Check the package and make sure you have all of the parts listed.
Decide on the appropriate location for your product.
If this product contains glass please take care when tting or handling to
prevent personal injury or damage to the product.
The specications plate is available on this appliance. This plate displays
all the necessary identication information for ordering replacement parts.
If you sell the appliance, give it away, or leave it behind when you move
house, make sure you also pass on this manual so that the new owner
can become familiar with the appliance and its safety warnings.
Intended use
The warmer drawer is intended exclusively for heating crockery.
It uses a hot air warming system. A fan distributes heat given off by a heater
element evenly throughout the drawer. The circulating air ensures that
crockery is heated evenly and quickly.
A protective grille protects you from touching either the fan or the heating
elements.
Keep these instructions in a safe place for reference, and pass them on to
any future user.
You will need
WD140CL-C&L-A5-GB-IM-08.indd 5 11/4/13 3:02 PM

6
Getting started...
GB
IE
WD140CL Warmer drawer
Safety
These instructions are for your safety. Please
read through them thoroughly prior to
installation and retain them for future reference.
• All installation work must be carried
out by a competent person or qualied
electrician.
• This appliance must be installed correctly
by a suitably qualied person, strictly
following the manufacturer’s instructions.
This appliance complies with all current
European safety legislation, however, the
Manufacturer must emphasise that this
compliance does not prevent the surfaces of
the appliance from heating up during use and
remaining hot during its operation.
Do not allow the electric cables to touch the
hot parts of the appliance.
Make sure that the power cord is not caught
under or in the appliance and avoid damage to
the power cable.
Do not remove the plug in the presence of
ammable gas.
WD140CL-C&L-A5-GB-IM-08.indd 6 11/4/13 3:02 PM

7
Getting started...
WD140CL Warmer drawer GB
IE
Safety
Do not install the appliance outdoors in a
damp place or in an area which may be prone
to water leaks such as under or near a sink
unit. In the event of a water leak allow the
machine to dry naturally.
Please dispose of the packing material
carefully.
Do not use ammable sprays in close vicinity
to the appliance.
This appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they
have been given supervision or instruction
concerning use of the appliance in a safe way
and understand the hazards involved. Children
shall not play with the appliance.
Cleaning and user maintenance shall not be
made by children without supervision.
Regularly check the power plug and power cord
for damage. If the supply cord is damaged,
it must be replaced by the manufacturer, its
service agent or similarly qualied persons in
order to avoid a danger or injury.
A steam cleaner is not to be used.
WD140CL-C&L-A5-GB-IM-08.indd 7 11/4/13 3:02 PM

8
Getting started...
GB
IE
WD140CL Warmer drawer
Safety
The appliance is not intended to be operated
by means of external timer or separated
remote-control system.
The appliance is for domestic use only.
The Manufacturer declines all liability for
personal or material damage as a result of
misuse or incorrect installation of this appliance.
Danger of burns! During use the appliance
becomes hot. Care should be taken to avoid
touching the base of the drawer.
Warning! Accessible parts may become hot
during use. Children should be kept away.
Warning! Ensure that the appliance is
switched off before replacing the lamp to avoid
the possibility of electric shock.
The drawer must be installed in accordance
with installation instructions and all dimensions
must be followed.
Before connecting the appliance to the power
supply, check that the power supply voltage
and current rating corresponds with the power
supply details shown on the appliance rating
label.
WD140CL-C&L-A5-GB-IM-08.indd 8 11/4/13 3:02 PM

9
Getting started...
WD140CL Warmer drawer GB
IE
Safety
Never use a damaged appliance! Disconnect
the appliance from the electrical outlet and
contact your retailer if it is damaged.
Danger of electric shock! Do not attempt
to repair the appliance yourself. In case of
malfunction, repairs are to be conducted by
qualied personnel only.
To avoid damaging the cord, do not squeeze,
bend or chafe it on sharp edges. Keep it away
from hot surfaces and open ames as well.
Lay out the cord in such a way that no
unintentional pulling or tripping over it is
possible.
Keep the appliance and its cord out of reach
of children.
If an extension cord is used, its capacity needs
to be suitable for the power consumed by the
appliance.
Do not operate the appliance with wet hands
or while standing on a wet oor. Do not touch
the power plug with wet hands.
WD140CL-C&L-A5-GB-IM-08.indd 9 11/4/13 3:02 PM

10
Getting started...
GB
IE
WD140CL Warmer drawer
Safety
Connect the power plug to an easily
reachable electrical outlet so that in case of an
emergency the appliance can be unplugged
immediately. Pull the power plug out of the
electrical outlet to completely switch off
the appliance. Use the power plug as the
disconnection device.
Disconnect the power plug from the electrical
outlet when not in use and before cleaning.
Always turn the appliance off before
disconnecting the power plug.
This appliance is classied as protection
class 1 and must be connected to a protective
ground (Earth).
Means for full disconnection must be
incorporated in the xed wiring in accordance
with the wiring rules. To achieve this install an
appropriate circuit breaker (CB) and residual
current device (RCD). It should be installed in
an easily reachable place so that in case of
emergency the appliance can be disconnected
from power immediately.
The xed wiring must be protected against
heat surfaces.
Do not hang an objects to the handle of
the drawer.
WD140CL-C&L-A5-GB-IM-08.indd 10 11/4/13 3:02 PM

11
In more detail...
GB
IE
WD140CL Warmer drawer Operation
Introduction
Note:
• Do not use the appliance to re-heat, cook or keep food and
drink warm. Condensation from the food or drink could lead to
corrosion in the appliance.
• Always use heat-resistant gloves to remove heated crockery
from the drawer.
• The load bearing capacity of the appliance, irrespective of its
height, is 20kg maximum.
Controls
The controls consist of a temperature dial and an ON/OFF switch. These are only
visible when the drawer is open. When the drawer is closed, you can tell when the
appliance is switched on because the ON/OFF switch illuminates through the hole
in the front of the drawer.
WD140CL-C&L-A5-GB-IM-08.indd 11 11/4/13 3:02 PM

12
In more detail...
WD140CL Warmer drawer
GB
IE
Operation
Using the drawer
• Place dishes inside the drawer.
• Select the temperature required.
• Switch on the appliance ( ). The neon indicator lights up.
• Close the drawer gently: if you use too much force, it can spring open again.
• Switch the appliance off ( ) before removing the warmed dishes.
Selecting a temperature
• The temperature dial allows you to select any temperature between
approx. 30°C and 80°C.
Note!
The temperature dial must only be turned in a clockwise direction
as far as it will go and then back again. Do not turn it too far as this
would damage it.
• When the selected temperature is reached, the heating element switches
itself off.
• When the temperature falls below that selected, the heating element
switches on again automatically.
• The temperature scale around the dial is shown in symbols rather than in °C.
The symbols represent the most suitable temperature for the type of dishes
depicted:
approx. 40°C - For cups or glasses. Drinks poured into warmed cup do
not cool down so quickly, the cup will not get too hot to handle.
approx. 60°C - For serving dishes and plates. Food stays warmer for
longer if served in pre-heated dishes. The dishes will not get too hot to
handle.
Heating up times
Various factors will affect the heating up times:
• The material and thickness of the dishes
• The quantity
• How the dishes are arranged
• The temperature setting
It is therefore not possible to state precise times. However, the following
information can be used as a guide:
WD140CL-C&L-A5-GB-IM-08.indd 12 11/4/13 3:02 PM

13
In more detail...
GB
IE
WD140CL Warmer drawer Operation
Heating up times
Temperature setting is approx. 60°C. Evenly heated dishes will take about:
30 - 35 minutes for 6 place setting.
40 - 45 minutes for 12 place setting.
As you use the plate warmer, you will get to know which setting suits your own
needs best.
Capacity
The quantity that can be loaded will depend to a great extent on the type and
size of your own dishes.
Note!
The maximum load bearing capacity of the drawer is 20kg.
The following layouts are suggestion only.
Layout 1 Or individually
# Item Diameter (mm) # Item Diameter (mm)
6 Dinner plates 280 20 Dinner plates 280
6 Soup bowls 100 36 Soup bowls 220
1 Serving bowl 220 30 Soup bowls 100
1 Serving bowl 190 10 Pizza plates 360
1 Serving bowl 170 80 Espresso
cups
Or layout 2 40 Cappuccino
cups
10 Dinner plates 280 30 Punch
glasses
10 Soup bowls 220
Or layout 3
18 Soup bowls 220
2 Soup terrines 210x180
WD140CL-C&L-A5-GB-IM-08.indd 13 11/4/13 3:02 PM

14
In more detail...
WD140CL Warmer drawer
GB
IE
Care and maintenance
Troubleshooting
Appliance front, control panel and interior
• All surfaces and controls should be cleaned using warm water with a little
washing up liquid applied with a soft sponge or cloth.
• Wipe the surfaces dry using a soft cloth.
Note!
Allow the appliance to cool down to a safe temperature before cleaning.
• Avoid knocking the glass front with dishes when loading the drawer as the
glass is tough but not unbreakable.
• Avoid rubbing the glass surface with any abrasive cleaner or pad as it can
cause scratching.
• If the glass front becomes damaged switch off the appliance at the mains to
avoid electric shock.
Troubleshooting
Note!
Installation work and repairs to electrical components of this appliance
must only be carried out by a suitably qualied and competent person
in accordance with local and national safety regulations. Repairs
and other work by unqualied persons could be dangerous. The
manufacturer cannot be held liable for unauthorised work.
What to do if...
...the dishes are not warm enough.
Check whether,
- The appliance has been switched on.
- The correct temperature setting has been selected.
- Any ventilation openings have been blocked by large plates or bowls.
- The dishes have been allowed to heat up for a sufciently long time.
Various factors will affect how long the dishes will take to heat up, for example:
- The mzaterial and thickness of the dishes
- The quantity
- How the dishes are arranged
- The temperature setting
WD140CL-C&L-A5-GB-IM-08.indd 14 11/4/13 3:02 PM

15
In more detail...
GB
IE
WD140CL Warmer drawer Troubleshooting
Troubleshooting
• The times quoted are only guidelines. As you use the warming drawer you
will get to know which setting suits your own needs best.
• If any of the following problems occur, the advice of a qualied electrician or
Customer Services must be sought.
... the crockery does not heat up.
Check whether,
- You can hear the noise from the fan or not.
- If you can hear the noise from the fan, there could be a problem with the
heater element. Call Customer Services.
- If you cannot hear the noise from the fan, there could be a problem with the fan
or the mains fuse has blown. Check the mains fuse and if this does not
solve the problem call Customer Services.
...the crockery is too hot.
- There could be faulty on temperature control. Check the temperature control
is set to the right level and if still faulty call Customer Services.
...the ON/OFF switch does not light up when the appliance is switched on.
- There could be defective on the indicator light of the switch. Check the
mains fuse and if this does not solve the problem call Customer Services.
Note!
If the supply cord is damaged, it must be replaced by a special cord or
assembly available from the manufacturer or its service agent.
WD140CL-C&L-A5-GB-IM-08.indd 15 11/4/13 3:02 PM

16
In more detail...
WD140CL Warmer drawer
GB
IE
Recycling and disposal
Technical and legal information
Recycling and disposal
Environmental protection
Waste electrical products should not be disposed of with household waste.
Please recycle where facilities exist. Check with your Local Authority or retailer for
recycling advice.
The symbol on the product or its packaging indicates that this
product cannot be treated as normal household waste. This
product must be handed over to an electric and electronic
equipment collection point for recycling.
On ensuring that this product is disposed of correctly, you will help to avoid
possible negative consequences for the environment and public health, which
could occur if this product is not handled correctly. To receive more detailed
information about recycling this product, contact your local government, domestic
waste disposal services or the outlet where the product was bought.
Technical and legal information
Technical information:
Power supply : 220-240V~, 50/60Hz
Power consumption : 390-470W
Measurements:
Max. load of dishes : 20kg
External dimensions (WxHxD) : 594 x 577 x 141mm
Net weight : 17kg
Legal information
The Manufacturer declines all liability for damage caused to persons and objects
due to incorrect or improper installation of the appliance.
WD140CL-C&L-A5-GB-IM-08.indd 16 11/4/13 3:02 PM

17
In more detail...
GB
IE
WD140CL Warmer drawer Guarantee
Guarantee
This appliance is covered by a full manufacturer’s 2 year parts and 2 year labour
guarantee and covers all parts and labour costs associated with the repair of the
appliance in a domestic environment. We will repair any defect that arises due to
faulty materials or workmanship and use genuine manufacturers parts.
All claims must be supported with the original receipt or other reasonable proof of
purchase.
If, during the guarantee period, the appliance becomes irreparable as agreed
by the engineer approved by GAA then we reserve the right, at our discretion, to
exchange the defective product with a replacement appliance at GAA’s sole cost.
If the same product is no longer available an alternative will be offered with the
same functions as the faulty item.
After an appliance has been repaired or replaced any remaining balance of the
GAA guarantee will be valid and any further call outs during this prescribed period
will be covered by GAA on the replacement appliance.
Should any person other than an authorized engineer modify or attempt to repair
the appliance then the warranty will be invalid.
The guarantee applies to the UK mainland, Scotland, Ireland, ROI and France but
is not transferable between EU countries.
This guarantee is non-transferable to any other person or product.
The guarantee is covered by UK law and is in addition to and does not diminish
your legal rights.
Extended parts only warranty
As testimony to our commitment to you as a valued customer of Cooke & Lewis,
we will offer you an additional 3 years parts warranty absolutely free.
If during the extended parts warranty period the appliance fails and it is considered
uneconomical to repair our Customer Service Department will offer you the
opportunity to purchase the same or equivalent model at a discounted price.
All parts supplied free of charge under the extended warranty must be tted by
our approved engineers and will be subject to a call out charge to t the part.
WD140CL-C&L-A5-GB-IM-08.indd 17 11/4/13 3:02 PM

18
In more detail...
WD140CL Warmer drawer
GB
IE
Guarantee
Guarantee
Exclusions to the guarantee
This guarantee does NOT cover:
Appliances that have been damaged or neglected as a result of failure to
store, assemble, install, use or care of the products in accordance with the
manufacturer’s instructions - GAA will not accept responsibility under this
guarantee if a product is damaged or becomes defective due to, misuse, neglect,
wilful or accidental damage or act of god.
Normal wear and tear.
Consumable items such as carbon lters and bulbs.
Claims arising from non-domestic use or commercial environment.
Any gas appliance not tted by a gas safe qualied installer.
If no fault is found then GAA reserves the right to charge for the call out at the
going rate.
In the course of the service work carried out it may be necessary to remove the
built in appliance from its tted position. If the appliance is glued, grouted or
tiled in such a manner that it cannot be removed, it is the responsibility of the
customer/installer to remove and reinstall the appliance to facilitate the repair.
This Guarantee does not affect your statutory rights.
The guarantee is offered by GAA Ltd, 1301-1303 Lu Plaza,
2 Wing Yip St, Kwun Tong, Kowloon, Hong Kong.
Customer Service
To arrange an in guarantee service call, please contact customer services on the
following numbers.
UK & Northern Ireland Republic of Ireland (Eire)
Phone: [phone] Phone: [phone]
Email: [email protected]
Web: www.myspareparts.co.uk
WD140CL-C&L-A5-GB-IM-08.indd 18 11/4/13 3:02 PM

19
In more detail...
GB
IE
WD140CL Warmer drawer CE Declaration of Conformity
CE Declaration of Conformity
Warmer drawer
David Sala
Technical Manager
WD140CL
APPLIED INTERNATIONAL TECHNICAL
STANDARDS AND SPECIFICATIONS: ISO9001.2008
PLACE: Torelló
MACHINE APPLICATION:
TYPE:
EC DIRECTIVES APPLIED:
APPLIED HARMONIZED
STANDARDS:
We hereby certify that the mentioned accessory complies with the essential requirements of the
European Directives applicable, including their modifications and the corresponding transpositions
from the national law.
EN 60335-2-25/A2:2006
EN 60335-2-6/A2:2008
EN 60335-1/A13:2008
EN 62233:2008
Comply with the European Directives 2006/95/CE: LVD and
the 2004/108/CE: EMC
MANUFACTURER: CATA
ADDRESS:
C/ Ter nº 2, Torelló 08570 - Barcelona (Spain)
This appliance respects laws of the suppression of radio-interference. The
Manufacturer has a policy of continuous product improvement, it reserves
he right to adapt and carry out any modication considered necessary without
prior warning.
B&Q plc,
Chandlers Ford, Hants,
SO53 3LE United Kingdom
www.diy.com
WD140CL-C&L-A5-GB-IM-08.indd 19 11/4/13 3:02 PM

20
In more detail...
WD140CL Warmer drawer
GB
IE
Installation
Possible installation examples
7
mm
6
mm
14mm1
548
mm
537
mm
595
mm
128mm
23
mm
WD140CL-C&L-A5-GB-IM-08.indd 20 11/4/13 3:02 PM
