Accord Series
T5/T8 Enhanced Lighting System

1
1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Introduction
3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Visual Perception
5. . . . . . . . . . . . . . . . . . . . . . . . . . . Product Comparison
7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Energy Savings
9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Latest Additions
11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Specifications
13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ordering

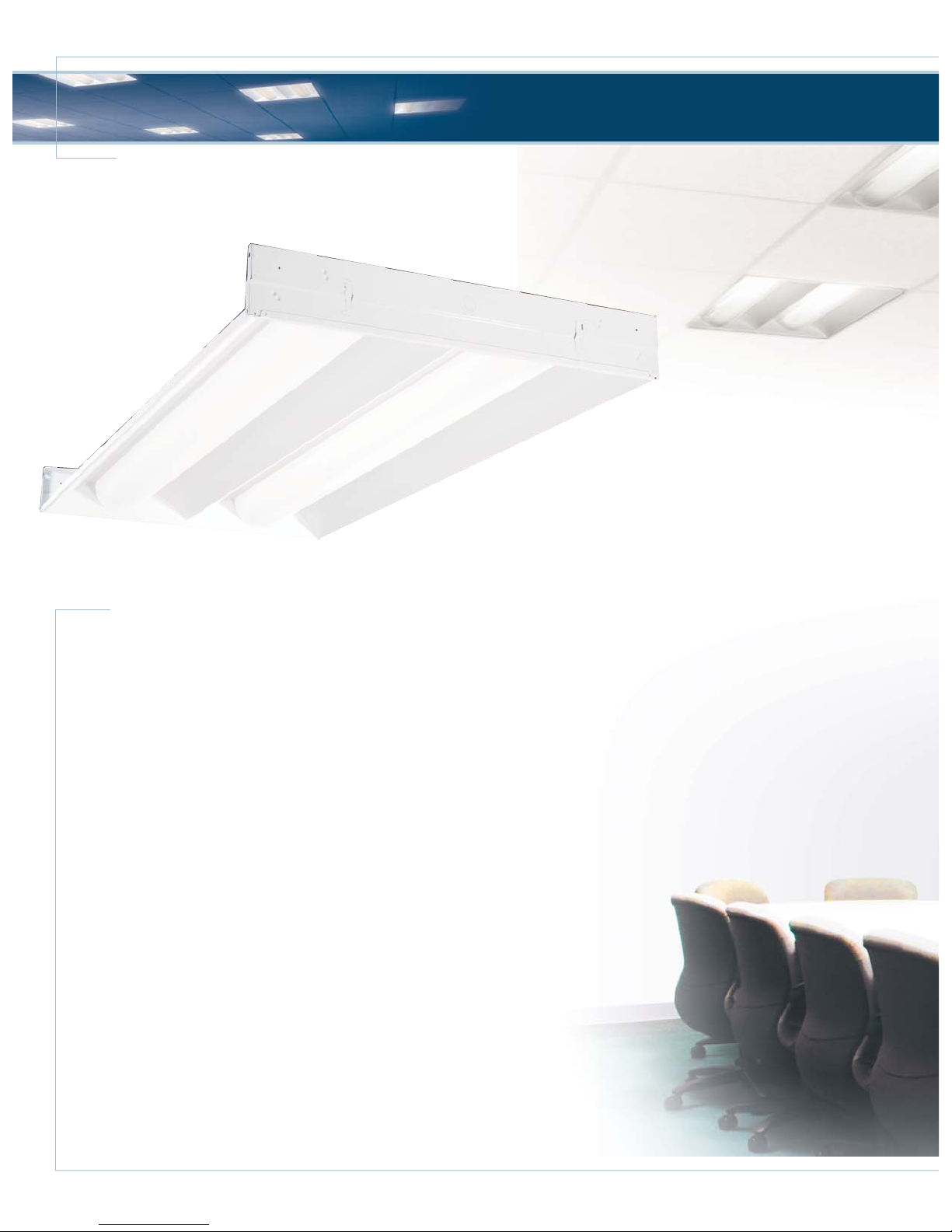

The standard for recessed lighting – Cooper Lighting’s accordTM is the energy efficient T5 or T8 solution to
better lighting. The accordTM redefines lighting by improving on aesthetics, comfort and energy savings.
The accordTM enhances lighting in both the vertical and horizontal zones, eliminating surface shadows
commonly found in traditional lighting sources. The accordTM produces a "softer" vertical light making it
the ideal lighting solution for schools, hospitals, retail and offices.
Introduction
Improve your lighting

2
Improve visual perception
•The accordTM evenly distributes light, making the space more pleasing to the eye.
•Dark spots (cave effect) associated with parabolics are eliminated.
Attractive design
•Smooth, curved surfaces are attractive but subtle.
•Soft white frosted acrylic lens fills the space with even illumination.
•High reflectance matte white finish blends into the ceiling for a discreet
but efficient fixture.
Enhanced space
•By evenly distributing the light through the space and eliminating the “dark spots”,
accordTM will make a room feel soft, comfortable and inviting.
Save money
•The accordTM is an extremely efficient luminaire that reduces energy consumption
by up to 40% (when compared to a standard 18 cell, 3 lamp, T8 parabolic),
while providing the right amount of “softer” light.

Parabolics are designed to direct light into the cut-off zone,
while restricting light into the shielded or glare zone. In other
words, parabolics deliver light to the work plane and suppress
high-angle brightness.
Due to the high-angle cutoffs as shown in Figure 1., parabolics
can create areas where light is concentrated and areas where
there is no light. These areas of minimum light are referred to
as “dark spots”.
lighting before accord
To eliminate the “dark spots” and sharp cutoffs created by
parabolics, Cooper Lighting designed accordTM. The accordTM
provides a feeling of spaciousness and does not substantially
increase glare, as shown in Figure 2.
The accordTM provides the following advantages:
• Improved visual perception
• Enhanced space
• Attractive contemporary design
• Significant energy savings
lighting with accord
3
Visual Perception

SHIELDED
ZONE
CUT-OFF
ZONE
85˚
75˚
65˚
55˚

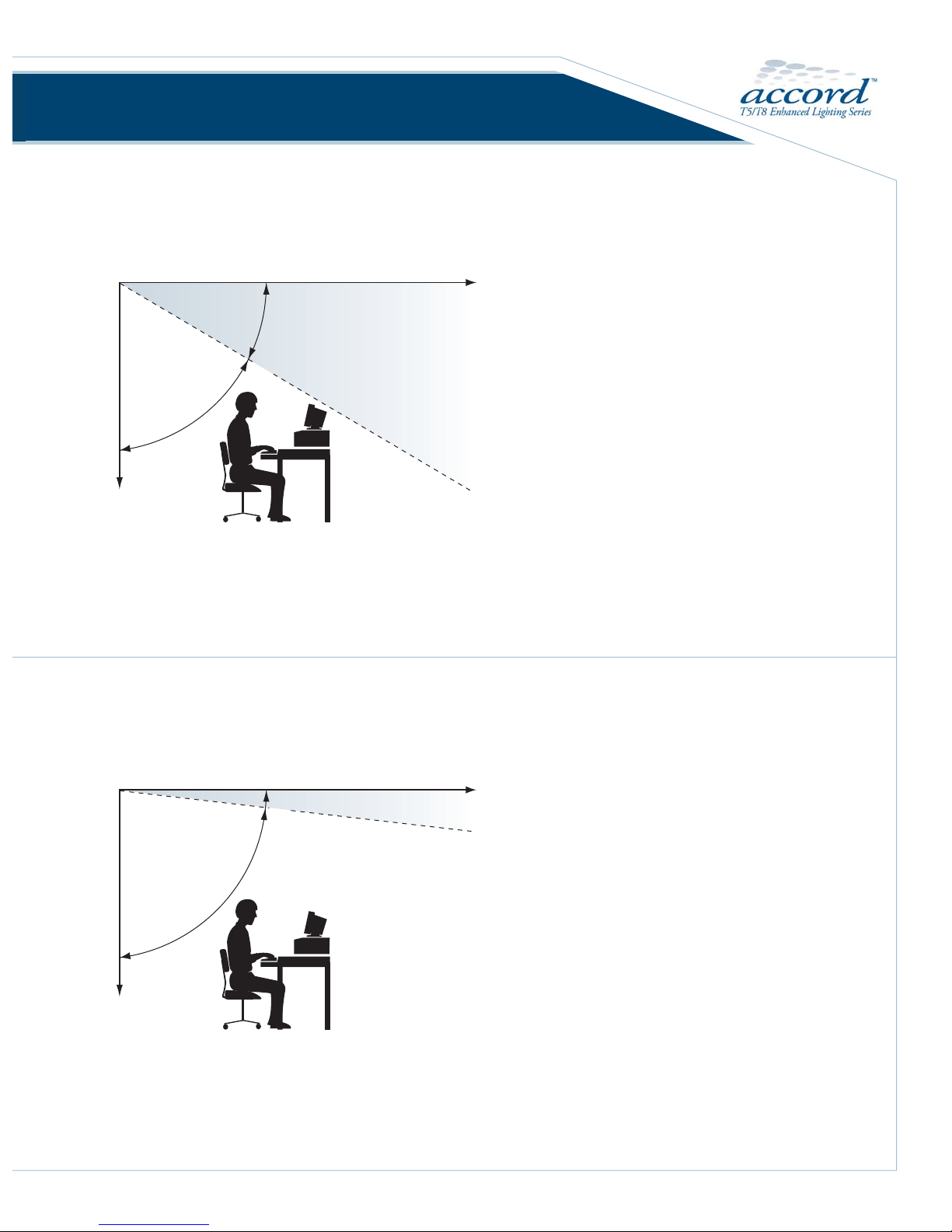

Figure 1. Parabolic Light Distribution
MINIMIZED SHIELDED ZONE
ENHANCED
CUT-OFF
ZONE
85˚
75˚
65˚
55˚
Figure 2. accordTM Light Distribution
Attractive contemporary design
• Smooth, curved surfaces are attractive but subtle.
• Soft white frosted acrylic lens fills the space with
even illumination.
• Matte white finish blends into the ceiling for a
discreet look.
Significant energy savings
The accordTM not only improves lighting, but benefits the
environment as well, by providing up to 40% energy
savings compared to a standard 18 cell, 3 lamp parabolic.
The accordTM also assists in meeting energy regulations
such as California’s Title 24 and ASHRAE 90.1.
Improved visual perception
By reducing the “dark spots” and evenly distributing
light, accordTM makes it softer on the eyes.
Enhanced space
By evenly distributing the light through the space and
eliminating the “dark spots”, accordTM will make a room
feel soft, comfortable and inviting.
4

accordTM
2 Lamp, T5
accordTM
(2) 28W T5 lamps, 18 fixtures
step-dim electronic ballast (.95 ballast factor)
63 watts per fixture
Watts/Sq.ft. Horizontal
Footcandles
Vertical
Footcandles
0.76
41
25
IES*
accordTM maximizes savings
Choose either T5 or T8 technology to best meet your lighting needs. With a multitude of lamp and ballast combinations, the
accordTM can deliver the perfect amount of light with a maximum energy savings. New high-efficiency ballast drive T8 lamps with
less energy than standard T8 ballast yet producing equal or more lumens. Compared to standard 3 lamp, 18 cell parabolics,
the accordTM utilizing high lumen lamps and high efficiency ballasts saves up to 40% on energy costs.
Parabolic
3 Lamp, 18 Cell
Typical 18-cell parabolic
(3) 32W T8 lamps, 18 fixtures
2 circuit electronic ballast (.87 ballast factor)
88 watts per fixture
Watts/Sq.ft. Horizontal
Footcandles
Vertical
Footcandles
1.06
53
21
IES*
*IES recommends 30–35 footcandles in
open office environments.
5
Product Comparison
50%
40%
30%
20%
10%
0
up to
36%
savings
T5 lamp &
T5 ballast
up to
36%
savings
up to
40%
savings
T8 lamp &
T8 ballast
Super T8 lamp &
LBF ballast
Based on:
Room Size: 50' x 30'
Ceiling Height: 10'
Work Plane: 2.5'
Reflectances: 80/50/20

Troffer
4 Lamp
Typical 4 lamp troffer
(4) 32W T8 lamps, 12 fixtures
electronic ballast (.87 ballast factor)
122 watts per fixture
Watts/Sq.ft. Horizontal
Footcandles
Vertical
Footcandles
0.98
50
23
IES*
accordTM
2 Lamp, T8
accordTM
(2) 32W T8 lamps, 12 fixtures
electronic ballast (1.20 ballast factor)
77 watts per fixture
Watts/Sq.ft. Horizontal
Footcandles
Vertical
Footcandles
0.62
41
24
IES*
6
*IES recommends 30–35 footcandles in
open office environments.
Based on:
Room Size: 50' x 30'
Ceiling Height: 10'
Work Plane: 2.5'
Reflectances: 80/50/20

Appearance and performance make accordTM the lighting choice.
Energy savings makes accordTM a sound financial decision.
The accordTM family of products saves up to 40% energy costs
when compared to a standard 3 lamp,18 cell parabolic. The dimming
feature reduces energy consumption by another 50%.
The accordTM meets and exceeds ASHRAE 90.1 2001 standards
by approximately 40%. This provides office space a tax benefit of
approximately $0.60/sq. ft.
Save energy costs
The accordTM is an ideal substitute for 3 lamp T8 systems, 4 lamp
T8 systems and inefficient 4 lamp T12 systems. The accordTM is
the solution in new construction or remodel applications. The
accordTM evenly distributes light making the space more pleasing
to the eye, provides light levels that are in accordance with IES
recommendations, and reduces energy costs. The accord’sTM step
dimming option reduces energy consumption by an additional
50% when activated. The following example illustrates
accord’sTM benefits:
accordTM= energy savings
$30,000
$25,000
$20,000
$15,000
$10,000
$5,000
$0
$0.06 $0.08 $0.10 $0.12 $0.14
($/KWh)
$18,705
$16,030
$13,359
$10,687
$8,015
Figure 3. accordTM Annual Energy Savings vs. 4LT T8 Troffer
Systems @ 12 hrs. of Operation Per Day, 365 Days Per Year,
No. of Fixtures: 500
$14,000
$12,000
$10,000
$8,000
$6,000
$4,000
$2,000
$0
$10,115
$8,670
$7,225
$5,780
$4,335
$0.06 $0.08 $0.10 $0.12 $0.14
($/KWh)
Figure 4. accordTM Annual Energy Savings vs. 3LT T8 Parabolic
@ 12 hrs. of Operation Per Day, 365 Days Per Year, No. of
Fixtures: 500
2AC-232-HB81H/L8835HL (3100 Lumens Lamp X 1.17 BF)
2AC-228T5 (2600 Lumens Lamp X 0.95 BF)
7
Energy Savings

COST PER kWh
Hours of Operation $0.06 $0.08 $0.10 $0.12 $0.14
Per Day Per Year 4L T8 3L T8 4L T8 3L T8 4L T8 3L T8 4L T8 3L T8 4L T8 3L T8
12 hrs. 4,380 $16.03 $7.88 $21.37 $10.51 $26.72 $13.14 $32.06 $15.76 $37.41 $18.36
18 hrs. 6,570 $24.04 $11.82 $32.06 $15.76 $40.07 $19.71 $48.09 $23.65 $56.10 $27.59
24 hrs. 8,760 $32.06 $15.77 $42.74 $21.02 $53.43 $26.28 $64.12 $31.53 $74.81 $36.79
Spacing: 10' x 10'
Maintained Average Illuminance: 49 fc
Based on: Room Size: 60' x 80'
Ceiling Height: 10'
Work Plane: 2.5'
Reflectances: 80/50/20
2 lamp 32 Watt T8 accordTM Energy Cost Savings vs. 4 lamp and 3 lamp T8 systems
The following example illustrates accord’sTM energy cost savings:
8

•3-13/16" low
profile housing
Surface Mount available
Low profile and quality performance – the surface accordTM is an energy efficient alternative to traditional surface mount fixtures.
Designed for areas without a grid-ceiling type system, the accord’sTM low profile is an ideal retro-fit solution.
Sleek yet durable – constructed and formed from heavy gauge C.R.S.
then painted after fabrication with a
matte white polyester powder
enamel finish.
Concealed Air Return
•Available in Recessed, 2' x 2' and 2' x 4'
Enhanced air return system incorporates semi-concealed
air vents which provide air flow without altering the
aesthetics of the fixture.
9
Latest Additions
•Smooth frosted
acrylic diffuser
•Tool-less access
to ballast from
room side
•High reflectance
baked matte
white reflector
•Available in 2' x 2' and
2' x 4' housings (T5 only)

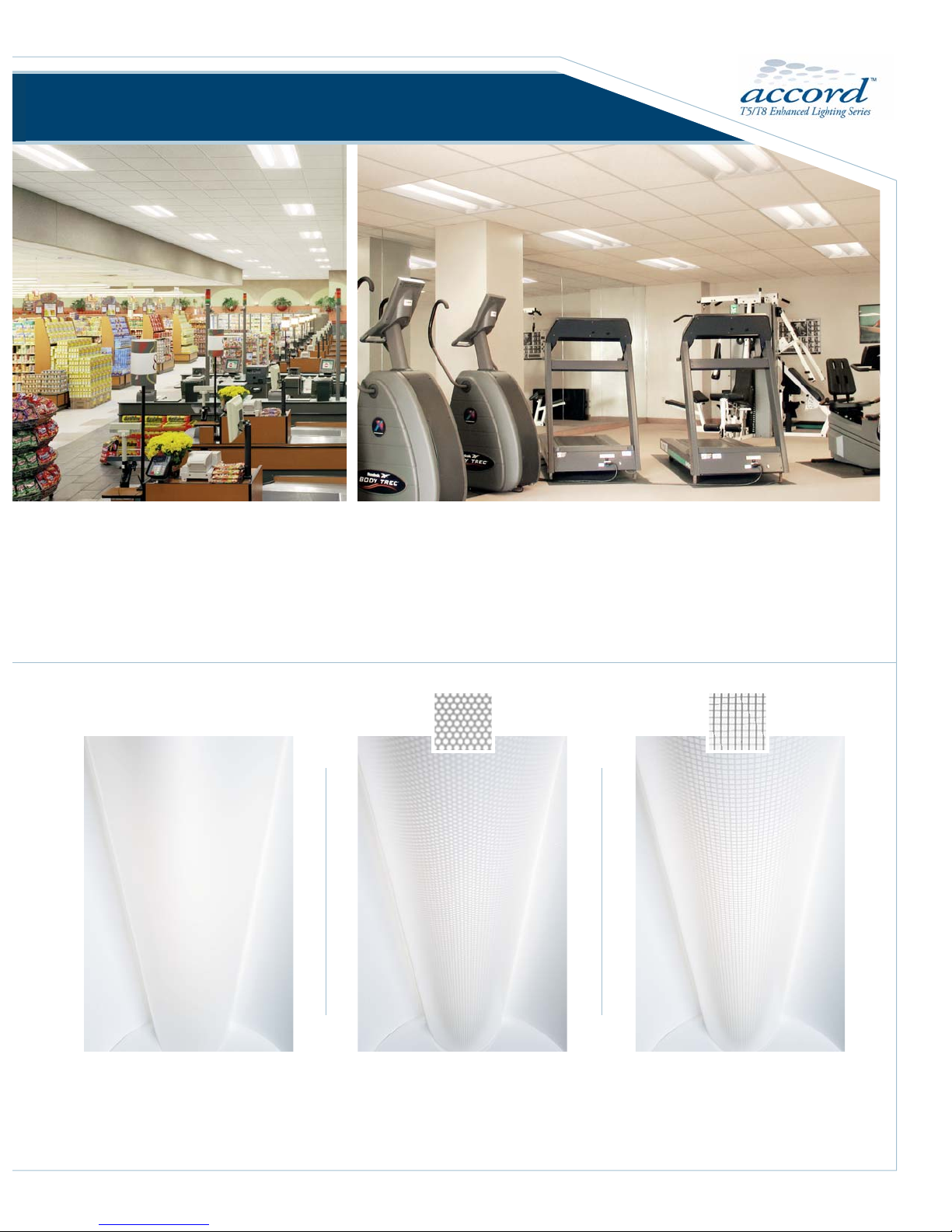

Diffuser Options
Square Perf Design (SQP)
Smooth acrylic diffuser with
square perforated insert
(2' x 2', 2' x 4' only)
Round Perf Design (RPD)
Smooth acrylic diffuser with
round perforated insert
(2' x 2', 2' x 4' only)
Smooth Design
(standard)
Aesthetically Improved Design
Precision engineered, accord’sTM smooth frosted acrylic diffuser provides higher optical efficiencies and visual comfort without the
need of a diffusing film that can get lost or discolor over time. The smooth frosted diffuser provides improved lumen output while
reducing the “shadowing effect” caused by ribbed diffusers.
10

accordTM - 1' x 4', T5 accordTM - 1' x 4', T8
Candlepower
Angle Along II 45° Across ⊥
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
AC-128T5
Electronic Ballast
(1) F28T5/835 Lamp
2600 Lumens
Spacing criterion:
(II) 1.2 x mounting height,
(⊥) 1.4 x mounting height
Efficiency 87.4%
Test Report: 241P113
Input Watts: 34
LER=FL64 LPW
Yearly Cost of 1000
lumens, 3000 hrs at .08
KHW = $3.88
738 738 738
734 736 736
723 730 732
705 718 725
679 701 715
647 679 702
609 654 685
565 623 663
517 588 635
465 548 601
411 502 559
354 452 511
295 396 443
236 334 334
175 248 221
115 154 133
60 75 63
18 15 11
0 1 1
3-5/8"
[93mm]
11-3/4" [299mm]
Luminance Data
Average Average Average
Angle 0-Deg 45-Deg 90-Deg
in Deg cd/sm cd/sm cd/sm
45 1768 2084 2285
55 1659 2119 2395
65 1501 2125 2125
75 1195 1600 1382
85 555 463 339
Zonal Lumen Summary
Zone Lumens %Lamp %Fixture
0-30
0-40
0-60
0-90
0-180
585 22.5 25.8
973 37.4 42.8
1788 68.8 78.7
2271 87.4 100.0
2271 87.4 100.0
Candlepower
Angle Along II 45° Across ⊥
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
AC-132
Electronic Ballast
(1) F32T8/835 Lamp
2850 Lumens
Spacing criterion:
(II) 1.2 x mounting height,
(⊥) 1.4 x mounting height
Efficiency 89.8%
Test Report: AC-132.IES
Input Watts: 30
LER=FL75 LPW
Yearly Cost of 1000
lumens, 3000 hrs at .08
KHW = $5.01
798 798 798
794 796 797
783 789 795
764 777 790
738 760 783
705 739 771
665 713 755
620 682 735
570 647 708
516 606 675
458 560 634
398 507 584
337 448 517
273 383 403
207 296 276
142 192 171
81 102 89
31 31 22
0 0 0
3-5/8"
[93mm]
11-3/4" [299mm]
Luminance Data
Average Average Average
Angle 0-Deg 45-Deg 90-Deg
in Deg cd/sm cd/sm cd/sm
45 1963 2305 2568
55 1867 2378 2739
65 1738 2438 2565
75 1476 1996 1777
85 957 957 679
Zonal Lumen Summary
Zone Lumens %Lamp %Fixture
0-30
0-40
0-60
0-90
0-180
636 22.3 24.9
1062 37.3 41.5
1974 69.2 77.1
2559 89.8 100.0
2559 89.8 100.0
accordTM - 2' x 4', T5
Candlepower
Angle Along II 45° Across ⊥
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
2AC-228T5-UNV-EB81
Electronic Ballast
(2) F28T5/835 Lamps
2600 Lumens
Spacing criterion:
(II) 1.3 x mounting height,
(⊥) 1.5 x mounting height
Efficiency 87.9%
Test Report:
2AC-228T5-UNV-EBT1.IES
Input Watts: 58
LER=FL75 LPW
Yearly Cost of 1000
lumens, 3000 hrs at .08
KHW = $2.99
1407 1407 1407
1399 1404 1410
1381 1390 1399
1351 1367 1382
1308 1334 1358
1253 1292 1326
1188 1241 1287
1113 1182 1242
1029 1115 1189
938 1042 1129
840 961 1061
735 874 983
625 779 880
509 676 736
389 547 565
267 392 393
153 240 235
60 100 98
0 0 0
Luminance Data
Average Average Average
Angle 0-Deg 45-Deg 90-Deg
in Deg cd/sm cd/sm cd/sm
45 1768 2084 2285
55 1659 2119 2395
65 1501 2125 2125
75 1195 1600 1382
85 555 463 339
Zonal Lumen Summary
Zone Lumens %Lamp %Fixture
0-30
0-40
0-60
0-90
0-180
585 22.5 25.8
973 37.4 42.8
1788 68.8 78.7
2271 87.4 100.0
2271 87.4 100.0
accordTM - 2' x 4', T8
Candlepower
Angle Along II 45° Across ⊥
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
2AC-232-UNV-EB81
Electronic Ballast
(2) F32T8/835 Lamps
3100 Lumens
Spacing criterion:
(II) 1.3 x mounting height,
(⊥) 1.5 x mounting height
Efficiency 84.9%
Test Report:
2AC-232-UNV-EB81.IES
Input Watts: 58
LER=FL80 LPW
Yearly Cost of 1000
lumens, 3000 hrs at .08
KHW = $2.90
1613 1613 1613
1605 1610 1616
1585 1594 1604
1550 1568 1585
1501 1530 1557
1439 1482 1520
1365 1424 1476
1279 1357 1424
1183 1281 1365
1079 1197 1297
966 1106 1220
847 1006 1133
722 898 1021
589 782 856
452 634 663
315 456 465
187 280 277
81 118 113
0 0 0
Luminance Data
Average Average Average
Angle 0-Deg 45-Deg 90-Deg
in Deg cd/sm cd/sm cd/sm
45 2186 2425 2628
55 2115 2513 2830
65 1996 2651 2902
75 1743 2524 2574
85 1331 1939 1857
Zonal Lumen Summary
Zone Lumens %Lamp %Fixture
0-30
0-40
0-60
0-90
0-180
1279 20.6 24.3
2127 34.3 40.4
3942 63.6 74.9
5266 84.9 100.0
5266 84.9 100.0
23-3/4" [603mm]
3-1/4"
[83mm]
11-3/4" [298mm]
23-3/4" [603mm]
3-1/4"
[83mm]
11-3/4" [298mm]
11
Specifications

accordTM - 2' x 2', T5 accordTM - 2' x 2', T8
Candlepower
Angle Along II 45° Across ⊥
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
2AC-214T5
Electronic Ballast
(2) F14T5/835 Lamps
1350 Lumens
Spacing criterion:
(II) 1.2 x mounting height,
(⊥) 1.4 x mounting height
Efficiency 89.4%
Test Report: 2AC-214T5.IES
Input Watts: 30
LER=FL77 LPW
Yearly Cost of 1000
lumens, 3000 hrs at .08
KHW = $2.65
755 755 755
752 753 755
741 747 752
723 736 746
698 719 736
667 698 722
630 671 704
587 641 682
539 606 656
487 566 624
432 521 587
374 471 544
314 417 486
253 358 389
191 281 274
131 189 175
76 105 97
31 37 35
0 0 0
23-3/4" [603mm]
3-1/4"
[83mm]
11-3/4" [298mm]
Luminance Data
Average Average Average
Angle 0-Deg 45-Deg 90-Deg
in Deg cd/sm cd/sm cd/sm
45 1872 2176 2399
55 1772 2232 2578
65 1627 2303 2502
75 1376 1985 1838
85 967 1154 1092
Zonal Lumen Summary
Zone Lumens %Lamp %Fixture
0-30
0-40
0-60
0-90
0-180
601 22.3 24.9
1001 37.1 41.4
1851 68.6 76.7
2414 89.4 100.0
2414 89.4 100.0
Candlepower
Angle Along II 45° Across ⊥
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
2AC-217
Electronic Ballast
(2) F17T8/TL841 Lamps
1400 Lumens
Spacing criterion:
(II) 1.2 x mounting height,
(⊥) 1.4 x mounting height
Efficiency 84.3%
Test Report: 2AC-217.IES
Input Watts: 30
LER=FL69 LPW
Yearly Cost of 1000
lumens, 3000 hrs at .08
KHW = $3.47
737 737 737
735 735 737
724 729 735
707 719 729
682 703 720
652 683 707
616 658 690
574 628 669
527 594 643
476 555 613
422 511 576
366 462 533
308 408 475
248 349 380
188 274 266
129 181 169
76 99 92
32 34 33
0 0 0
23-3/4" [603mm]
3-1/4"
[83mm]
11-3/4" [298mm]
Luminance Data
Average Average Average
Angle 0-Deg 45-Deg 90-Deg
in Deg cd/sm cd/sm cd/sm
45 1830 2134 2357
55 1735 2190 2526
65 1595 2245 2444
75 1355 1901 1775
85 998 1060 1029
Zonal Lumen Summary
Zone Lumens %Lamp %Fixture
0-30
0-40
0-60
0-90
0-180
588 21.0 24.9
979 35.0 41.5
1813 64.7 76.8
2360 84.3 100.0
2360 84.3 100.0
accordTM surface - 2' x 2', T5
Candlepower
Angle Along II 45° Across ⊥
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
2ACS-214T5
Electronic Ballast
(2) F14T5/835 Lamps
1350 Lumens
Spacing criterion:
(II) 1.2 x mounting height,
(⊥) 1.4 x mounting height
Efficiency 89.4%
Test Report:
2AC-214T5.IES
Input Watts: 30
LER=FL77 LPW
Yearly Cost of 1000
lumens, 3000 hrs at .08
KHW = $2.65
755 755 755
752 753 755
741 747 752
723 736 746
698 719 736
667 698 722
630 671 704
587 641 682
539 606 656
487 566 624
432 521 587
374 471 544
314 417 486
253 358 389
191 281 274
131 189 175
76 105 97
31 37 35
0 0 0
Luminance Data
Average Average Average
Angle 0-Deg 45-Deg 90-Deg
in Deg cd/sm cd/sm cd/sm
45 1872 2176 2399
55 1772 2232 2578
65 1627 2303 2502
75 1376 1985 1838
85 967 1154 1092
Zonal Lumen Summary
Zone Lumens %Lamp %Fixture
0-30
0-40
0-60
0-90
0-180
601 22.3 24.9
1001 37.1 41.4
1851 68.6 76.7
2414 89.4 100.0
2414 89.4 100.0
accordTM surface - 2' x 4', T5
Candlepower
Angle Along II 45° Across ⊥
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
2ACS-228T5-UNV-EB81
Electronic Ballast
(2) F28T5/835 Lamps
2600 Lumens
Spacing criterion:
(II) 1.3 x mounting height,
(⊥) 1.5 x mounting height
Efficiency 87.9%
Test Report:
2AC-228T5-UNV-EBT1.IES
Input Watts: 58
LER=FL75 LPW
Yearly Cost of 1000
lumens, 3000 hrs at .08
KHW = $2.99
1407 1407 1407
1399 1404 1410
1381 1390 1399
1351 1367 1382
1308 1334 1358
1253 1292 1326
1188 1241 1287
1113 1182 1242
1029 1115 1189
938 1042 1129
840 961 1061
735 874 983
625 779 880
509 676 736
389 547 565
267 392 393
153 240 235
60 100 98
0 0 0
Luminance Data
Average Average Average
Angle 0-Deg 45-Deg 90-Deg
in Deg cd/sm cd/sm cd/sm
45 1768 2084 2285
55 1659 2119 2395
65 1501 2125 2125
75 1195 1600 1382
85 555 463 339
Zonal Lumen Summary
Zone Lumens %Lamp %Fixture
0-30
0-40
0-60
0-90
0-180
585 22.5 25.8
973 37.4 42.8
1788 68.8 78.7
2271 87.4 100.0
2271 87.4 100.0
23-15/16" [607mm]
3-13/16"
[97mm]
11-3/4" [298mm]
23-15/16" [607mm]
3-13/16"
[97mm]
11-3/4" [298mm]
12

T5 Ordering Information SAMPLE NUMBER: 2AC-228T5-UNV-L5841-EBT1NDIM-U
Number of Lamps
(Not included)
1=1 Lamp
(1' x 4' only)
2=2 Lamp
(2' x 2', 2' x 4' only)
Wattage (Length)
28T5=28WT5 (48")
54T5=54WT5HO (48")
14T5=14WT5 (24")
24T5=24WT5HO (24")
BX40=40W Compact
Fluorescent (24")
Voltage (1)
UNV=Universal Voltage
120-277
Options
GL=Single Element Fuse
GM=Double Element Fuse
Flex=Flex installed
EL=Emergency Installed
Packaging
U=Unit Pack
PALC=Job Pack,
in carton
Shielding
Blank=Frosted Acrylic
(standard)
SQP=Lens with Square
Pattern Insert(4)
RDP=Lens with Round
Pattern Insert(4)
Ballast Type
EB5 =T5 Biax Electronic Instant Start.
Total Harmonic Distortion < 20%
EBT =T5 Linear Electronic
Program Rapid Start
Total Harmonic
Distortion < 10%
No. of Ballast
1 or 2
Ballast Factor/Type
(For 14W T5 and 28W T5 Lamp Only)
N=Normal Light Output .95 BF(2)
H=High Light Output 1.15 BF (2)
NDIM=Normal .95-1.0 BF Step Dimming(3)
HDIM=High 1.15 BF Step Dimming(3)
NOTES: (1) Products also available in non-US voltages and frequencies for international markets. (2) .95 and 1.15 ballast factor available for 14WT5 and 28WT5 lamps only.
(3) Step Dimming Ballast available for 14WT5 and 28WT5 lamps only. (4) 2' x 2' and 2' x 4' only. For complete product data, reference the Fluorescent Specification
binder. Specifications & dimensions subject to change without notice. Consult your Cooper Lighting Representative for availability and ordering information.
No. of Ballast
1 or 2
The ballast plays an important role in the accordTM
fixture. It contributes to the high efficiency and
lumens/watt. The ballast is offered in an optional step
dimming (bi-level) output version.
The accordTM uses energy efficient
T5 or T8 lamp technology from
all major lamp manufacturers.
Sizes Ballast Lamps
The accordTM is available
in 1' x 4', 2' x 2' and
2' x 4' sizes.
Lamps
L5835=T5 Lamp,
3500K
L5841=T5 Lamp,
4100K
L5835HL=T5
Lamp, 28W,
3500K, 2770
Lumens
L5841HL=T5
Lamp, 28W,
4100K, 2770
Lumens
13
Ordering
T8 Ordering Information SAMPLE NUMBER: 2AC-232-UNV-L8841HL-HB81H-U
Voltage (1)
UNV=Universal
Voltage 120-277
Options
GL=Single Element Fuse
GM=Double Element Fuse
Flex=Flex installed
EL=Emergency Installed
Packaging
U=Unit Pack
PALC=Job Pack,
in carton
Shielding
Blank=Frosted
Acrylic
SQP=Lens with
Square Pattern
Insert(2)
RDP=Lens with
Round Pattern
Insert(2)
NOTES: (1) Products also available in non-US voltages and frequencies for international markets. (2) 2' x 2' and 2' x 4' only.
For complete product data, reference the Fluorescent Specification binder. Specifications & dimensions subject to change
without notice. Consult your Cooper Lighting Representative for availability and ordering information.
Lamps
L8835=T8 Lamp,
17W and 32W,
3500K
L8841=T8 Lamp,
17W and 32W,
4100K
L8835HL=T8 Lamp,
32W, 3500K, 3100
Lumens
L8841HL=T8 Lamp,
32W, 4100K, 3100
Lumens
Ballast Type
EB8 =T8 Electronic Instant Start.
Total Harmonic Distortion < 10%
EB8 /PLUS= T8 Electronic Instant Start.
High Ballast Factor >1.13.Total
Harmonic Distortion < 20%
ER8 =T8 Electronic Program Start.
Total Harmonic Distortion < 10%
HPT8 Ballast
Ballast
HB8 L=T8 Electronic Instant Start. Low Ballast Factor .77
HB8 =T8 Electronic Instant Start. Ballast Factor .88
HB8 N=T8 Electronic Instant Start. Normal Ballast Factor 1.0
HB8 H=T8 Electronic Instant Start. High Ballast Factor 1.15-1.2
HR DIM=T8 Electronic Program Start Step Dimming. Ballast Factor .88
HR8 L=T8 Electronic Program Start. Low Ballast Factor .77
HR8 =T8 Electronic Program Start. Ballast Factor .88
HR8 H=T8 Electronic Program Start. High Ballast Factor 1.15-1.2
No. of Ballast
1 or 2
No. of
Ballast
1 or 2
No. of Ballast
1 or 2
Series
AC=Accord Series
Width
2=2' Width
Blank=1' Width
Rating
Blank=
Standard
NY=NewYork
Rated
ATW-SW4=
Chicago
Rated
Ty p e
A=Air (Recessed 2' x 2', 2' x 4' only)
S=Surface (2' x 2', 2' x 4' only)
Number of Lamps
(Not included)
1=1 Lamp
(1' x 4' only)
2=2 Lamp
(2' x 2', 2' x 4' only)
Wattage (Length)
32=32WT8 (48")
17=17W T8 (24")
BX40=40W Compact
Fluorescent (24")
Series
AC=Accord Series
Width
2=2' Width
Blank=1' Width
Rating
Blank=
Standard
NY=NewYork
Rated
ATW-SW4=
Chicago
Rated
Ty p e
A=Air (Recessed 2' x 2', 2' x 4' only)

• The accordTM can provide up to 40% energy savings
when compared to a 3 lamp, 18 cell, T8 parabolic.
• The accordTM also exceeds mandated energy regulations
such as California’s Title 24 and ASHRAE 90.1 2001.
• Step dimming can increase energy savings by as
much as 50%.
Simple Maintenance Energy Savings
• The ballast is accessible from below through the removable
ballast cover. (no tools are required)
• For drywall ceilings, standard framing kit is available.
(shipped separately for field installation).
• Lamp maintenance is as simple as removing the refractors.
• The accord ’s shallow depth (3-1/4") and structural integrity
makes for a quick and easy installation.
14

Printed in USAADF080670
Cooper Industries, Ltd.
600 Travis, Ste. 5800
Houston, TX 77002-1001
P: 713-209-8400
www.cooperindustries.com
Cooper Lighting and Metalux logos are valuable trademarks of Cooper Industries in the United States and other countries.
You are not permitted to use the Cooper Trademarks without the prior written consent of Cooper Industries.
Cooper Lighting
Customer First Center
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
F: 770-486-4801
www.cooperlighting.com
International Sales, USA
Cooper Lighting
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
F: 770-486-4801
Canada
Cooper Lighting
5925 McLaughlin Road
Mississauga, Ontario L5R 1B8
P: 905-507-4000
F: 905-568-7049
The Cooper Lighting Family
Halo
Metalux
Lumark
Sure-Lites
Neo-Ray
Corelite
Portfolio
Iris
Shaper
io
Lumière
Invue
McGraw-Edison
Streetworks
Fail-Safe
MWS
DLS
RSA
Ametrix
Domestic Facilities
Cranbury, New Jersey
Elk Grove Village, Illinois
Irving, Texas
Ontario, California
Peachtree City, Georgia
Canadian Facility
Calgary, Alberta T2E 7V9
