Cooper Lighting Shaper 422 User manual

PENDANTS
961
COOPER LIGHTING
SHAPER™
MATERIAL
Solid brass or aluminum
housing and clear sanded
decorative trim. Matte
acrylic 4" Dia. luminous
cylinder. Supplied with a
single stem with a
standard overall hang
height 24" (OA), minimum
18" (OA).
BALLAST
Integral electronic HPF,
multi-volt 120/277V (347V
Canada), thermally
protected with end-of-life
circuitry to accommodate
the specified lamp
wattage.
LAMP/SOCKET
One (1) 18W (G24q-2), or
26W (G24q-3) 4-pin quad
CFL lamp or one (1) 40W
A-19 lamp. CFL socket
injection molded plastic.
INC socket fired ceramic
rated for 660W-250V.
Lamps furnished by
others.
INSTALLATION
Supplied with either a
circle strap mounting
canopy or bar strap that
mounts to a 4" J-box or
plaster ring. Integral
safety cable provided.
FINISH AND OPTIONS
See page 1020 for finish
details and options.

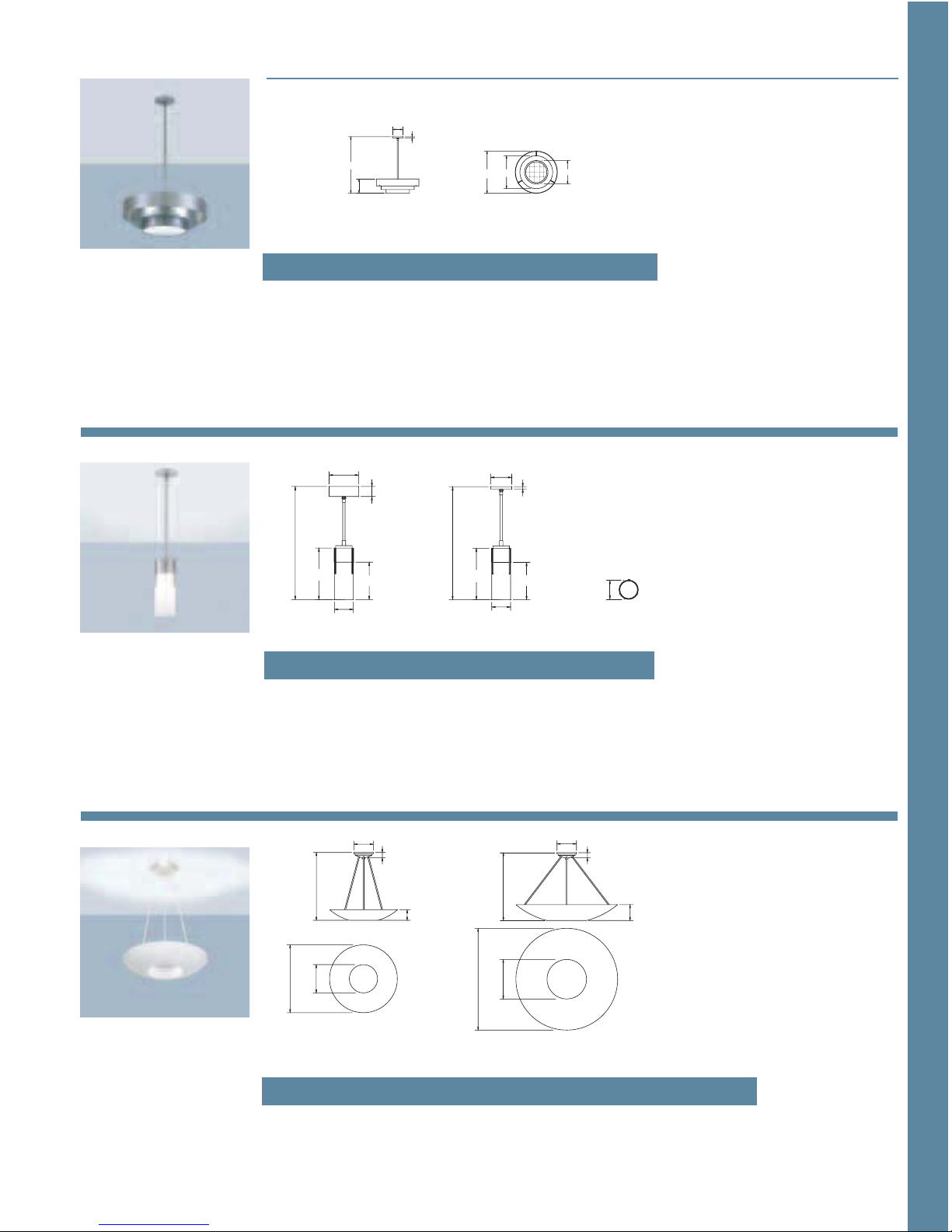

422 Luminous Cylinder Pendant
features Three Accent Trim Bars.
422 SERIES
4" ø
24"
INC
4" ø
10-15/16" 7-15/16"
4-1/2" ø
1/2"
24"
CFL
4" ø
10-15/16" 7-15/16"
6-1/4" ø
2-1/8"
MATERIAL
Solid aluminum matierals.
White 1/2" x 1/2" cube cell
louver. Optional Matte
White Acrylic Lense (AL).
Single stem is standard
suspension. Minimum 18”
(OA).
Notes:
1. Available with CFL only.
2. Consult the factory for available options.
3. Supplied by others.
4. For Stem mounting only. Specify up to 45°.
BALLAST
Integral electronic HPF,
multi-volt 120/277V (347V
Canada), thermally
protected with end-of-life
circuitry to accommodate
the specified lamp
wattage.
LAMP/SOCKET
Four (4) 26W, 32W
(GX24q-3) or 42W
(GX24q-4) 4-pin triple CFL
lamps or three (3) 150W
A-21 lamps. CFL socket
injection molded plastic.
INC socket fired ceramic
rated for 660W-250V.
Lamps furnished by
others.
INSTALLATION
Supplied with a bar strap
that mounts to a 4" J-box
or plaster ring. Integral
safety cable provided.
FINISH AND OPTIONS
See page 1020 for finish
details and options.
420 Art Deco Ringed Baffle Pendant.
420 SERIES
6"
24"
4-1/2" ø
1/2"
10" ø14" ø
18" ø
420 STANDARD
Sample Number: 420-CFL/4/26-347V-SAL-__
Series
420=Art Deco
Ringed Baffle
Lamp
CFL/4/26
CFL/4/32
CFL/4/42
INC/3/150
Voltage
120V
277V1
347V1
Finish
NA (standard),
CC, MW, PCP,
SAL, SCP
Options
AL
DL
DM2
REM3
SCA4
SJCAC
SJWAC
SSS2B
SSS3B
SSS4B
MATERIAL
Painted and plated cold
rolled steel with acrylic
baffle rings. Tri-pod is
standard suspension for
6 lamp versions. Quad-
pod suspension is
standard for 8 lamp
versions.
Notes:
1. Available in 24".
2. Available in 36".
3. 24" only.
4. Consult the factory for available options.
5. Supplied by others.
6. Specify up to 45°.
BALLAST
Integral electronic HPF,
multi-volt 120/277V (347V
Canada), thermally
protected with end-of-life
circuitry to accommodate
the specified lamp
wattage.
LAMP/SOCKET
24": Six (6) 26W or 32W
(GX24q-3) 4-pin triple CFL
lamps or six (6) 75W A-19
lamps.
36": Eight (8) 32W (GX24q-
3) or 42W (GX24q-4) 4-pin
triple CFL lamps or six (6)
100W A-19 lamps. CFL
socket injection molded
plastic. INC socket fired
ceramic rated for 660W-
250V. Lamps furnished by
others.
INSTALLATION
Supplied with a bar strap
that mounts to a 4" J-box
or plaster ring. Integral
safety cable provided.
FINISH AND OPTIONS
See page 1020 for finish
details and options.
429 Solid Direct/Indirect Bowl with an
illuminated baffle available in two
diameters with multiple mounting
options.
429 SERIES
24"
5-5/8"
1-3/4"
6-7/8" ø
36" ø 14" ø
24"
24" STANDARD
36" STANDARD
3-3/4"
6-7/8" ø
1-3/4"
24" ø 10" ø
Sample Number: 429-24-CFL/6/26-347V-OBRS-__
Series
429=Solid Baffle w/
Illuminated Baffle
Size
24"
36"
Lamp
CFL/6/261
CFL/6/321
CFL/8/322
CFL/8/422
INC/6/751
INC/6/1002
Voltage
120V
277V
347V
Finish
MW (standard),
CC, OBRS, PB3,
PC3, PCP, SAL,
SB, SC, SCL,
SCP
Options
CSS2B
CSS3B
CSS4B
SJCAC
SJWAC
Notes:
1. Available with CFL only.
2. Consult the factory for available options.
3. Supplied by others.
4. Specify up to 45°.
Sample Number: 422-CFL/1/18-347V-OBRS-__
Series
422 =Luminous
Cylinder w/
Trim Bars
CFL/1/18
CFL/1/26
INC/1/40
Voltage
120V
277V1
347V1
Finish
NA (standard),
CC, MW,
OBRS, PB, PC,
PCP, PN, SAL,
SB, SC, SCL,
SCP, SN, SNL
Options
CSJ
WSJ
DL
DM2
REM3
SCA4
FC
Suspension
Height
24"
Or Specify
Suspension
Height
24"
Or Specify
DL
DM4
REM5
SCA6
Suspension
Height
24"
Or Specify
Lamp
