MA6=6" Adjustable
Housing
MA6CP*=6"
Chicago Plenum
Adjustable
Reflector AccessoriesBallast FinishHousing
6470=Polymer
Trim Ring
6471=Self
Flanged
Voltage
1E=120V electronic
2E=277V electronic
Ll=Specular Clear
H=Haze
S=Straw
WH=Wheat
WMH=Warm Haze
B=Black
W=Gloss White
BB=Black Baffle
WB=White Baffle
Metal Trim Rings
TRM6P=White
TRM6MB=Black
Rimless Trim Rings
TRR6
Field-Installable Fuse Kits
FK3=3 Amp (300V Max)
FK5=5 Amp (300V Max)
FK10=10 Amp (125V Max)
Bar Hangers/Mounting Bars
HB26=26” long bar hangers
HB50=50” long bar hangers
RMB22=22” Long Wood Joist
mounting bars
Color Filters and Lenses
L211=Medium Pink
L212=Warm Red
L214=Ultraviolet
L220=Daylight Blue
L221=Medium Blue
L231=Medium Amber
L241=Medium Green
39AR=39W CDM-R111
For white painted
flange on self flanged
reflectors add WF to
reflector finish.
*Chicago Plenum
(supplied with
gasketed wiring
enclosure to comply
with Chicago electrical
code for air return
plenums)
SPECIFICATION FEATURESDESCRIPTION
TYPE: CATALOG#:
MA6AR
39WCDM-R111
Electronic Metal Halide
6" ADJUSTABLE
COOPER LIGHTING ADP041442
ENERGY DATA
39W MH
Input Watts: 120V-43W, 277V-43W
Max Current: 120V 0.36A, 277V-0.16A
Power Factor:>99%
T.H.D.:<5%
Min Starting Temperature: 5°F (-30°C)
Sound Rating:A
A low brightness 6" aperture
adjustable accent fixture for metal
halide CDM-R111 lamps (39W
max) with FadeBlock™. The
CDM-R111 ceramic metal halide
lamp with intergral spun
aluminum reflector provides
smooth precise beam control.
Optics allow the lamp axis to
pivot about the center of the
aperture at the ceiling line,
allowing maximum light output
with no flashback. 20° truncated
cone allows full range and
flexibility of aiming.
SPECIFICATION FEATURES
A…Reflector
Spun 0.040" aluminum. Available
in low iridescent clear, haze, warm
haze, straw, wheat and specular
black Alzak® finishes or painted
white. Torsion springs pull trim
tight to ceiling. Reflector is keyed
to prevent improper orientation
relative to lamp.
B…Trim Ring
High impact polymer with satin
white finish or self flanged
reflector. Metal trim ring and
rimless trim ring accessories
available. (See Options and
Accessories)
C…Aiming Mechanism
Stable lamp aiming and locking
mechanism allows smooth 365°
rotation and 35° elevation
adjustment. Lamp aiming scale
enables consistent setting across
multiple fixtures. Lens clips
included with housing allow use
of two lenses.
D…Housing
One piece die cast 1 1/2" (38mm)
deep collar. Housing is painted
optical matte black to eliminate
stray light. Housing is top
accessible.
E…Universal Mounting Bracket
Accepts 1/2" EMT, C channel, T
bar fasteners, and bar hangers
(See Accessories). Provides 5"
total vertical adjustment.
F…Conduit Fittings
Die-cast screw tight connectors.
G…Junction Box
Galvanized with (6) 1/2" and (2)
3/4" KOs. Listed for (12) #12 AWG
90°C conductors.
H…Socket
4kV pulse rated GX8.5 socket.
I…Ballast
Thermally protected, Class A
electronic ballast provides full
light output and rated lamp life.
Provides noise free operation and
starting. Offers excellent line
voltage regulation (+/- 0.5%
output variation with +/- 10%
changes in line voltage) resulting
in increased color stability and
flicker free operation. Extended
brown-out survival eliminates
most lamp drop-outs caused by
short term sags of input voltage.
Ballast is warrantied against
defects in material and
workmanship for three years from
the date of shipment.
J…Insulation Detector
Self-resetting insulation detector
opens circuit if insulation is
improperly installed.
Labels
U.L. listed and cUL listed, damp
location, IBEW union made.
Options and Accessories
TRM = Metal Trim Rings to
replace polymer trim ring
TRR = Rimless Trim Rings for
minimal flange appearance
in plaster ceilings
L200 = Color filters and lenses
NOTES: Accessories should be ordered separately. For additional
options please consult your Cooper Lighting Representative.
Alzak is a registered trademark of Aluminum Company of America.
I
D
E
A
C
H
F
J
G
B

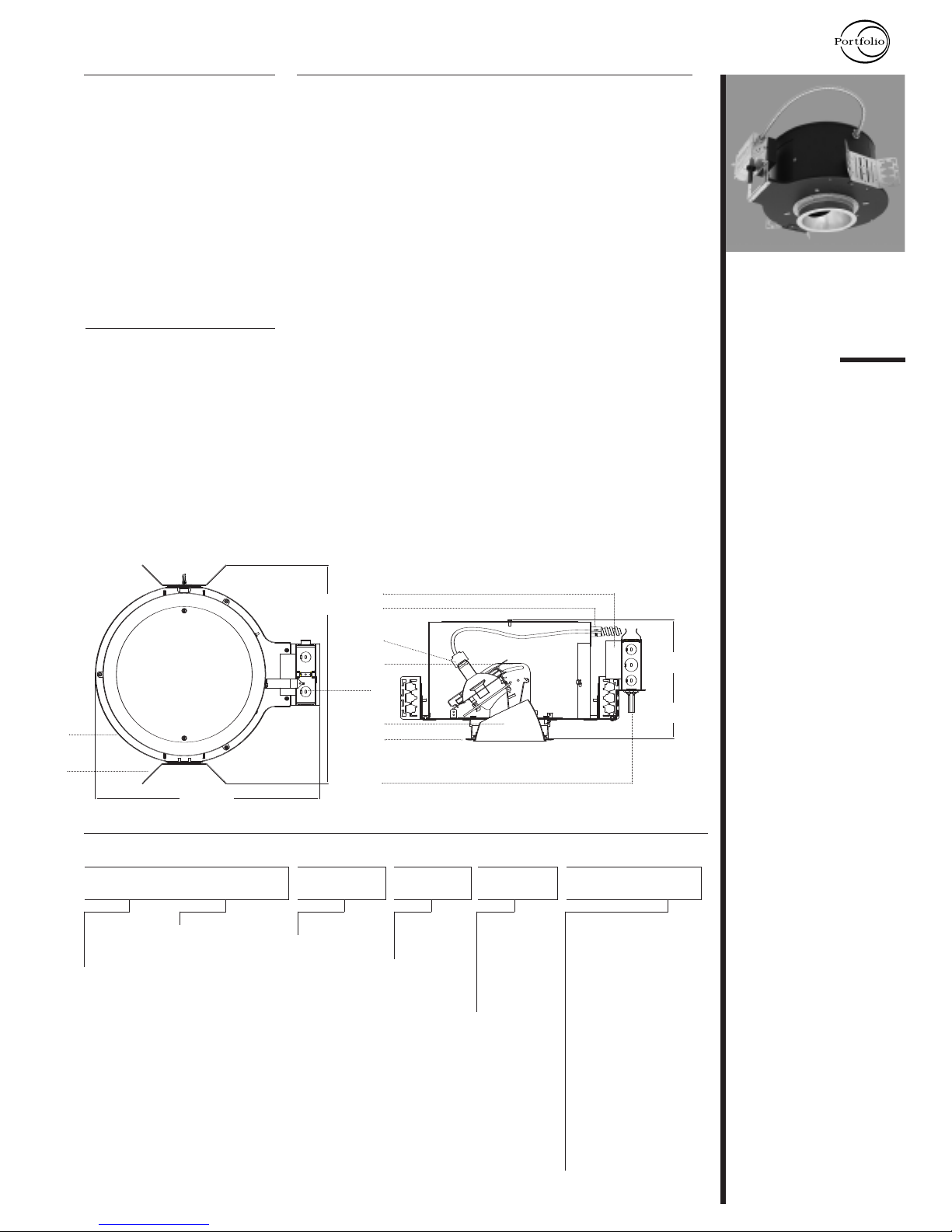

18-19/32"
[472mm]
18-1/8"
[461mm]
9-27/32"
[250mm]
CP 9-27/32"
[250mm]
Aperture: 5-11/16" [144mm]
Cutout: 6-3/8" [162mm]
OD: 7" [178mm]
ORDERING INFORMATION
SAMPLE NUMBER: MA639AR1E 6470
