The figure below shows the location of the warning labels and communication stickers placed on the equipment as part of the manufacturing process. It is critical that owners maintain the integrity and placement of these stickers.
If you find any stickers missing or damaged the replacement numbers are shown on the support site and below. For complete images of all labels and stickers, please refer to the online Owner’s Manual.
SCAN FOR COMPLETE
LEVERAGE DEADLIFT SHRUG
OWNER’S MANUAL
QR.COREHANDF.COM/OMLVGDLS
Fig. 1 Sticker Locations
Fig. 2 Loading Weight Plate
Serial Label
12-5610
12-1026
731-0517
731-2755731-7322
731-0512
OWNER'S
INSTRUCTIONS
NP-L3006 Leverage Deadlift Shrug
Unit Weight Width Length Height Max User Weight
219 lbs
99 kg
61 in
154 cm
71 in
181 cm
46 in
117 cm
350 lbs
160 kg
Complete Label List
12-1026 DECAL, KEEP HANDS AWAY
12-5610 Nautilus Transfer Decal - Large SILVER
731-0512 STICKER,WARNING,PINCH
731-0517 STICKER, WARNING, BOLT DOWN
731-2755 LEVERAGE LOGO
731-7322 STICKER,NAUTILUS,70MM

© 2020 CORE HEALTH & FITNESS LLC
All rights reserved. Star Trac, the Star Trac logo and StairMaster are registered
trademarks of Core Health & Fitness, LLC. Schwinn and Nautilus are registered
trademarks of Nautilus Inc. used under license to Core Health & Fitness LLC. Throwdown
is a registered trademark of Throwdown Industries, LLC.
PART NUMBER 620-8844, REV A
For Technical Support, Service, Parts Orders or any Customer Service needs, please contact us
direct by phone, email, or through our 24 hour support site:
GLOBAL SUPPORT CENTER
4400 NE 77th Avenue, Suite 300 Vancouver, WA 98662
Tel: [phone] • [phone] • [email protected]
Warranty information: https://corehandf.com/warranty
To request access scan or visit:
CONNECT.COREHANDF.COM
• General Inquiries
• Warranty Registration
• Preventative Maintenance
• Service Requests
• Parts Orders
• Automated partner payment
• Product technical library
• Transparency on service performance
• 24-Hour Automated Assistant
• Live Chat
OFFERS 24-HOUR SELF SERVICE ACCESS TO:
Core Connect is your portal to all things service! Whether you need
to order parts or register your warranty, Core Connect is the most
effective way to get what you need fast and keep your facility
operating smoothly.
CORE CONNECT
Working on this product will require basic and/or sometimes specialty tools based on the type of
service that will be performed at any time. To assist, we recommend having the tools listed available
when performing maintenance.
Tool
Metric Allen Key Set Screwdriver Set, Phillips
Metric Open-Ended Wrench Set Screwdriver Set, Flat
Large Adjustable Crescent Wrench Torque Wrench
Metric Socket Set
MAINTAIN ALL EQUIPMENT: Preventative maintenance is the key to smooth operating equipment as
well as keeping the product in safe operating condition. Failure to conduct preventative maintenance
by the owner may cause the product to operate in an unsafe manner. Equipment needs to be
inspected and maintained at regular intervals per the preventative maintenance schedule below. For
complete details, please see the online manual.
Maintenance Schedule
Daily Weekly Monthly Bi-Annually
Inspect
Fasteners X
Handgrips X
Labels X
Main Frame X
Cleaning
Main Frame X
Before using this product, it is essential to read the ENTIRE Owner’s Manual
and ALL installation instructions. The Owner’s Manual describes equipment
assembly and instructs members on how to use correctly and safely.
Read all warnings posted on the machine.
Health related injuries may result from incorrect or excessive use of exercise
equipment. Core Health & Fitness strongly recommends you to encourage your
members to discuss their health program or fitness regimen with a health care
professional, especially if you or they have not exercised for several years, are
over 35, or have known health conditions.
WARNING!
WARNING: to reduce the risk of serious injury to
persons using this equipment, read and follow all of these
warnings:
24 in (0.6 m)

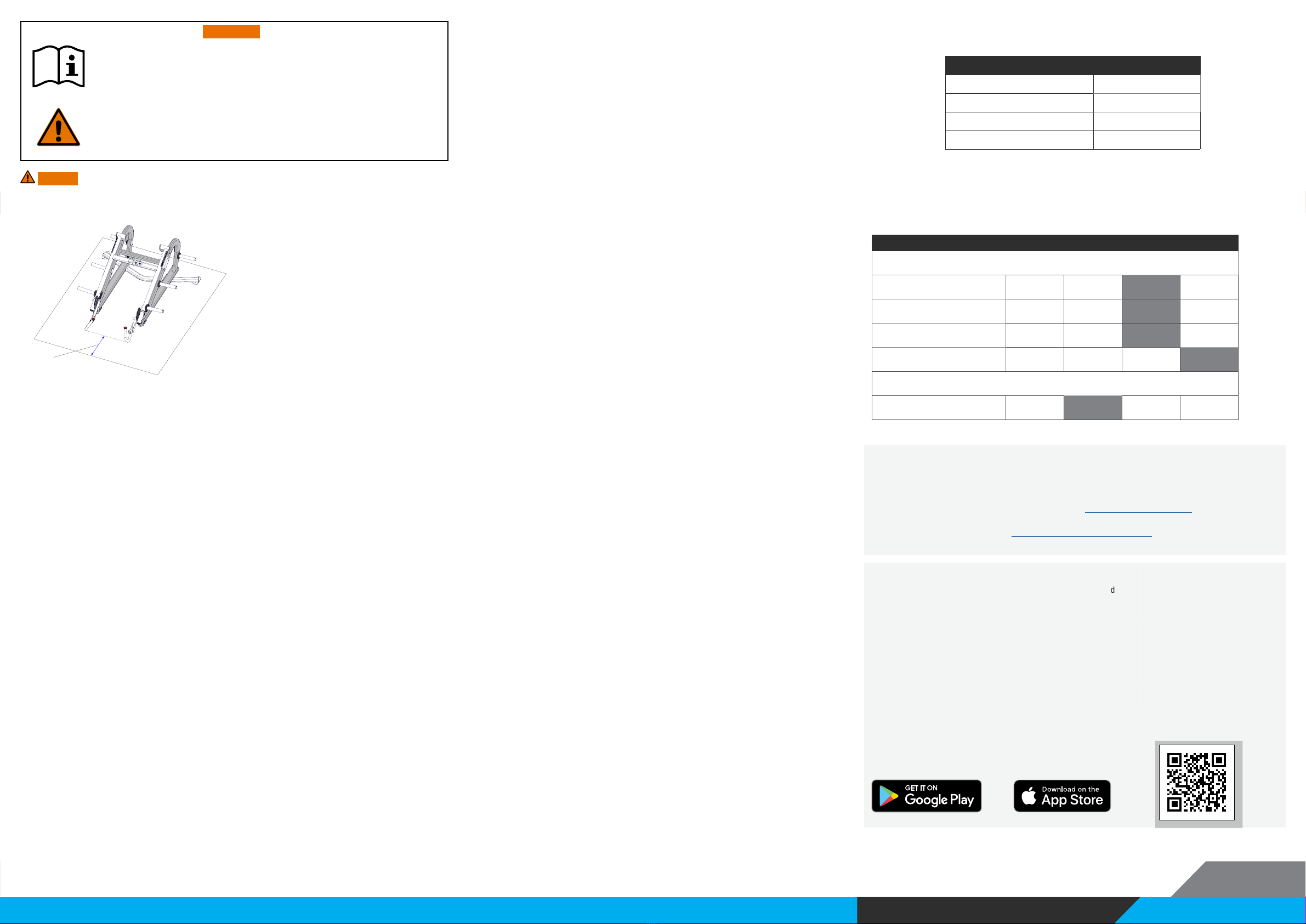

Fig. 3 Required Clearance
1. Assemble and operate the unit on a solid level
surface. Position the machine with a minimum of
24 inches (0.6 meters) of clearance on one side
to allow for ease of mounting and dismounting.
Leave a minimum of 19.7 inches (0.5 meters)
between two adjacent units. These dimensions
are the recommended minimum distances.
The actual area for access and passage shall be
the responsibility of the facility and should take
into account this training envelope, Americans
with Disabilities Act Accessibility Guidelines
(ADAAG) requirements and any required local
codes or regulations (www.access-board.gov/
ada).
2. This equipment is designed for use in a
commercial gymnasium or health club. To
ensure the proper use of the equipment in a
safe manner, all users of the equipment should
read this manual before using the machine. This
machine should be made a part of your club
training program in order that the equipment
is used by your members in a safe manner as
intended. In addition to instructing the club
members in the proper use of the equipment,
the club member should obtain a complete
physical examination form their health care
provider before beginning any exercise program.
3. The safety and integrity of this machine can only
be maintained when the equipment is regularly
examined for damage and wear and repaired.
It is the sole responsibility of the owner of this
equipment to ensure that regular maintenance
is performed. Worn or damaged parts must be
replaced immediately or the equipment removed
from service until the repair is made.
4. Do not exceed the maximum allowable weight
limit of:
• 350 lbs. (160 kg.)
5. Use only replacement components supplied by
Nautilus®. Substitutes are forbidden and will
void all warranties.
6. This machine is not intended to be used by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless given instruction and under
the personal supervision concerning use of the
machine by a person responsible for their safety.
7. Keep children away.
8. Cables pose an extreme liability if used when
frayed. Always replace any cable at first sign of
wear. Routinely inspect all cable couplers that
join movement arms to the cables and replace
at the first sign of wear. (Consult Nautilus® if
uncertain or if you have questions regarding
wear).
9. Ensure weight selection switches are fully
engaged. Partial insertion can cause weights to
fall unexpectedly. Never pin the weight stack in
an elevated position. Never attempt to “switch
off” a cartridge if any weights are suspended.
Never attempt to release jammed weights or
parts.
10. Never use dumbbells or other means to
incrementally increase the weight resistance.
Use only those means provided by Nautilus.
11. Ensure all adjustment and locking features are
properly secured before using the equipment.
12. When adjusting any seat, knee stabilization
pad, range of motion limiter, foothold pad or
any other type of adjuster, make certain that the
adjusting pin is fully engaged in the hole to avoid
injury. If any of the adjustment devices are left
projecting, they could interfere with the user’s
movement.
13. Use only Olympic style weight plates (2.0” Bore)
for training weight. Do not use dumbbells or
any means other than those stated to increase
weight resistance.
14. Load plates evenly and carefully to avoid tipping
equipment and possible crushing injuries.
DO NOT exceed 270 lbs. (122.5 kgs)
per side of loaded weight.
15. Only add weight plates up to the load limits
of the unit. Make sure all weight plates are
completely placed on the weight rod.
16. Never exceed the load rating for any plate
loaded station, body weight station, bench or
other free weight device, including specific
weight rod and band peg limits.
17. Always utilize weight plate retention devices
such as clamps or pins.
Core Connect is accessible through our app on mobile devices
18. Wear proper exercise clothing and athletic
shoes during a workout. Avoid wearing loose
clothing. Tie back long hair and keep towels
away from the moving parts. Face forward
at all times and never attempt to turn around
while the machine is moving.
19. Do not over exert yourself during exercise.
Stop exercising if you feel pain or tightness
in your chest, become short of breath or
feel faint. If you feel pain or experience any
abnormal symptoms, stop exercising and
consult your health care provider.
20. It is the purchaser’s sole responsibility
to properly instruct its end users and
supervising personnel as to the proper
operating procedures of all Nautilus
equipment.
SAVE THESE INSTRUCTIONS
