COVANA legendX User manual

LEGENDX COVER page -1
COVANA
SPA COVER MANUFACTURER
OWNER'S MANUAL
MANUAL NO. 243462
243462 OWNER'S MANUAL REVISION 2

page-2LEGENDX COVER
LEGENDX COVER
MANUAL NO. 243462
First edition 11-11-2021
REVISION DESCRIPTION DATE
0 OWNER'S MANUAL NEW RELEASE 11-11-2021
1 J-Roller article code updated 11-23-2021
2 Warranty update 11-25-2021
243462 OWNER'S MANUAL REVISION 2

LEGENDX COVER page-3
INTRODUCTION 5
CONGRATULATIONS FOR THE PURCHASE OF YOUR NEW COVANA COVER 5
IMPORTANT INFORMATION 6
SAFETY 6
DRUGS AND ALCOHOL 6
IMPORTANT SAFETY INSTRUCTIONS 6
RISK OF ELECTROCUTION 8
ELECTRICAL WARNING 9
MODIFICATIONS TO THE COVER 9

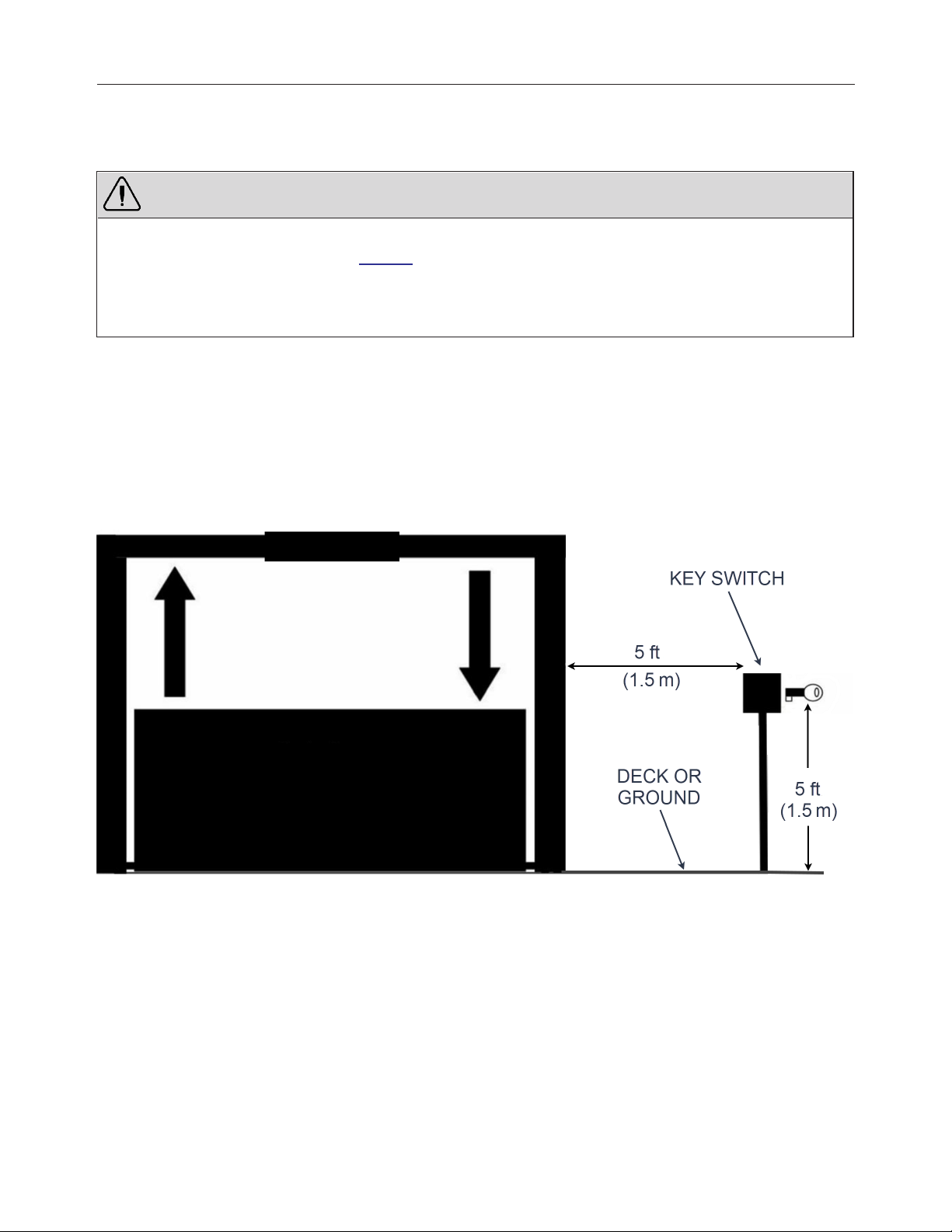

POSITION OF THE KEY SWITCH 10

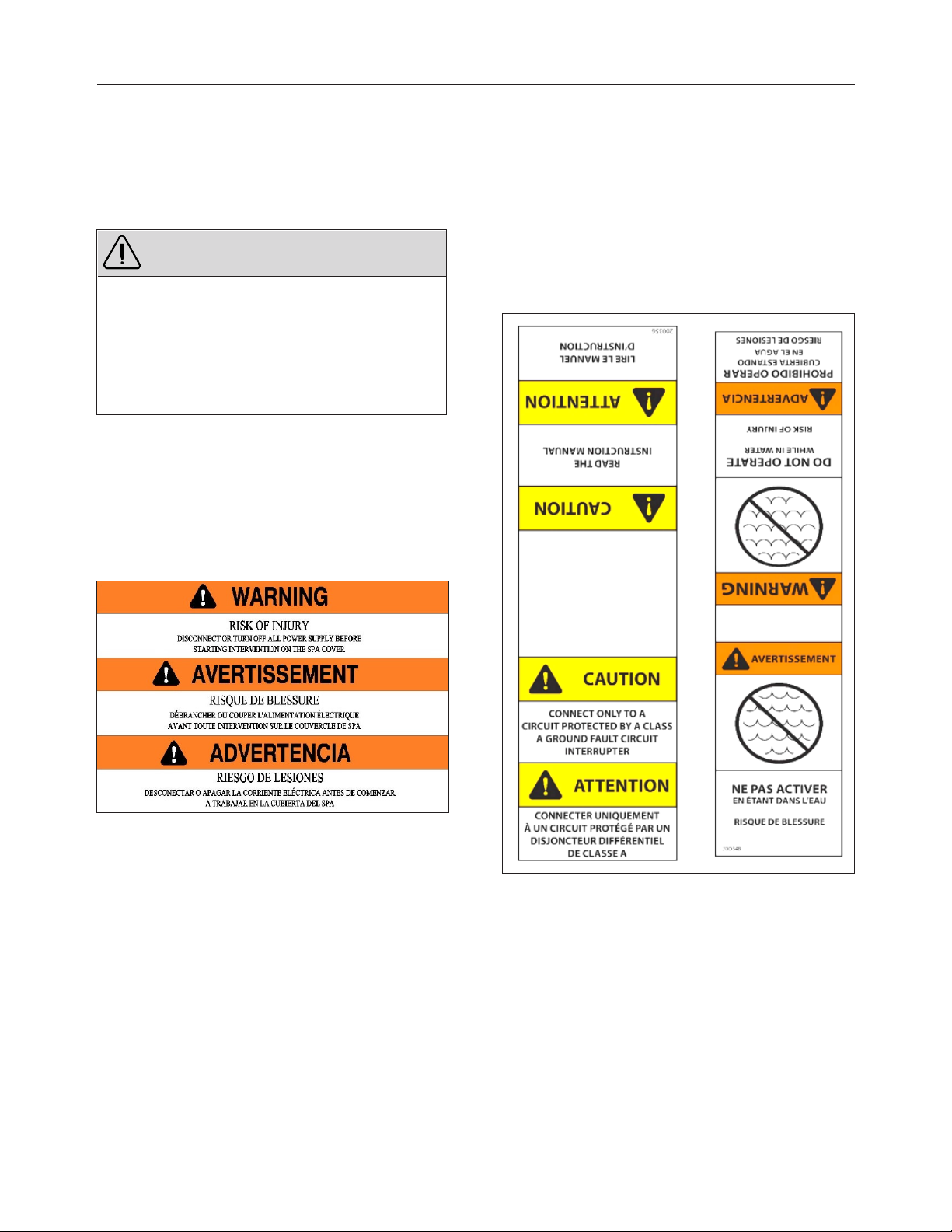

LABELING 11
RISK OF ELECTROCUTION 11
INFORMATION ON THE ELECTRICAL CABLES 11
KEY SWITCH OPERATION DIAGRAM 12
TECHNICAL SPECIFICATIONS 12
NO STEP LABEL 12
AVOID DROWNING LABEL 13
DO NOT STEP ON THE COVER LABEL 13
MAINTENANCE INFORMATION LABEL 13
CENTER LABEL 13
TOP LABEL 13

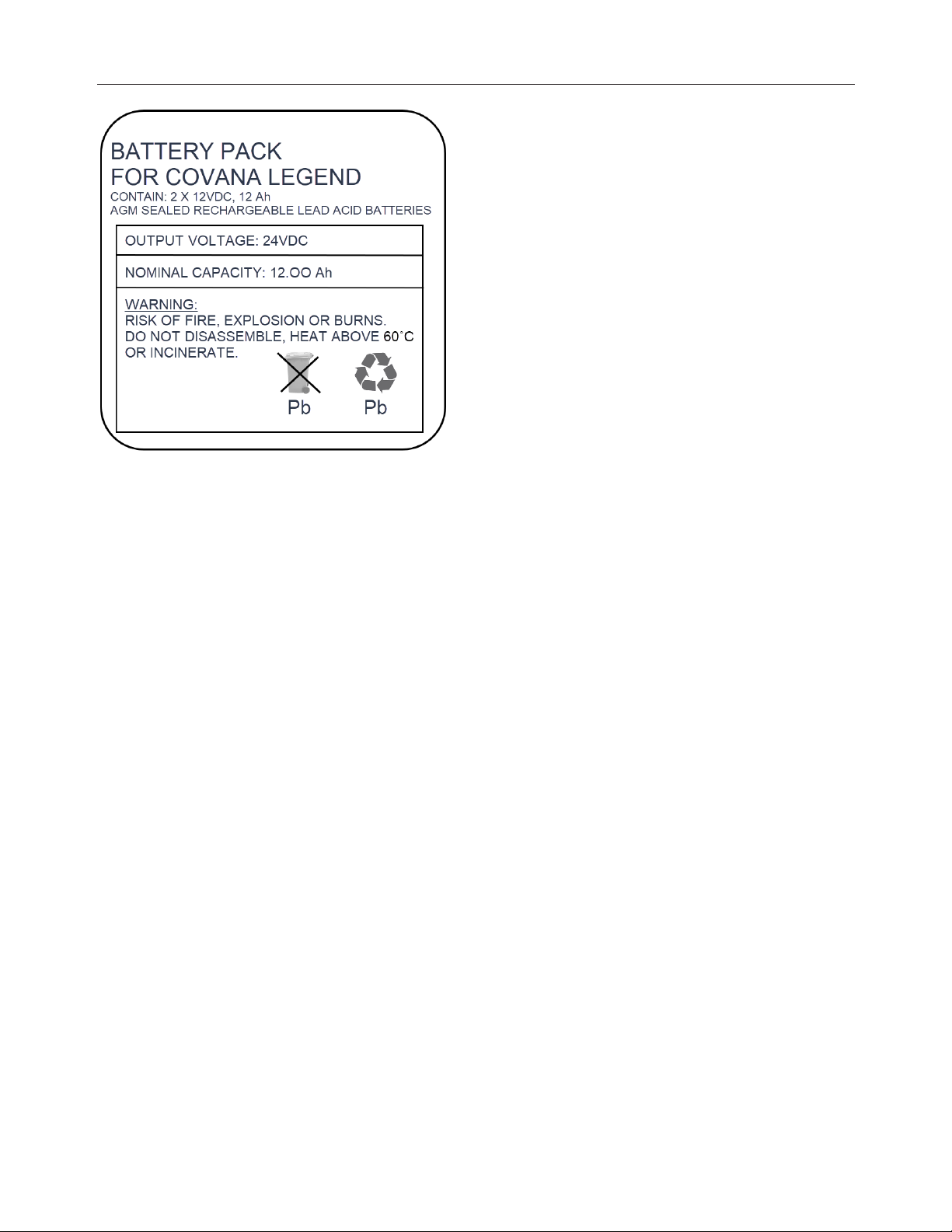

BATTERY SPECIFICATION LABEL 13

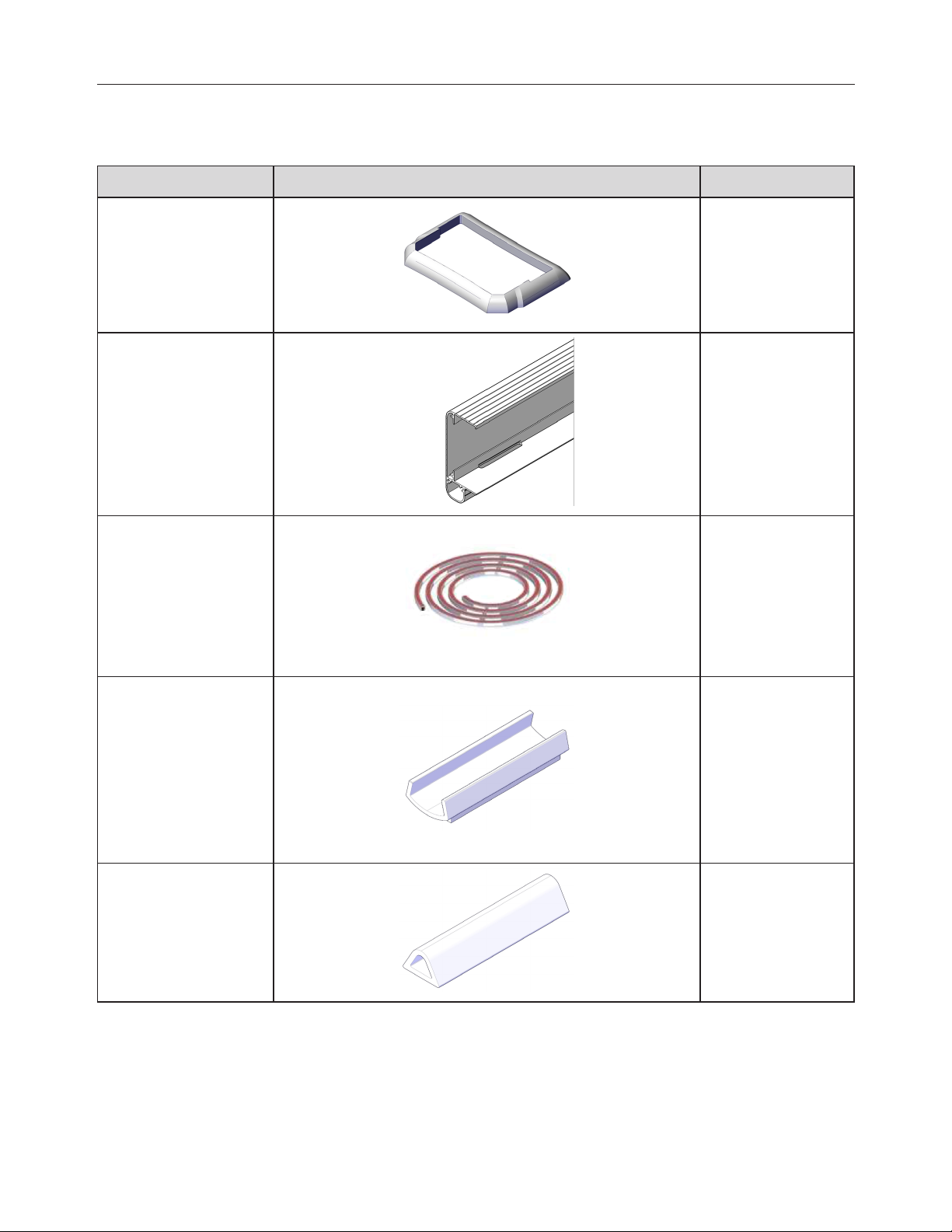

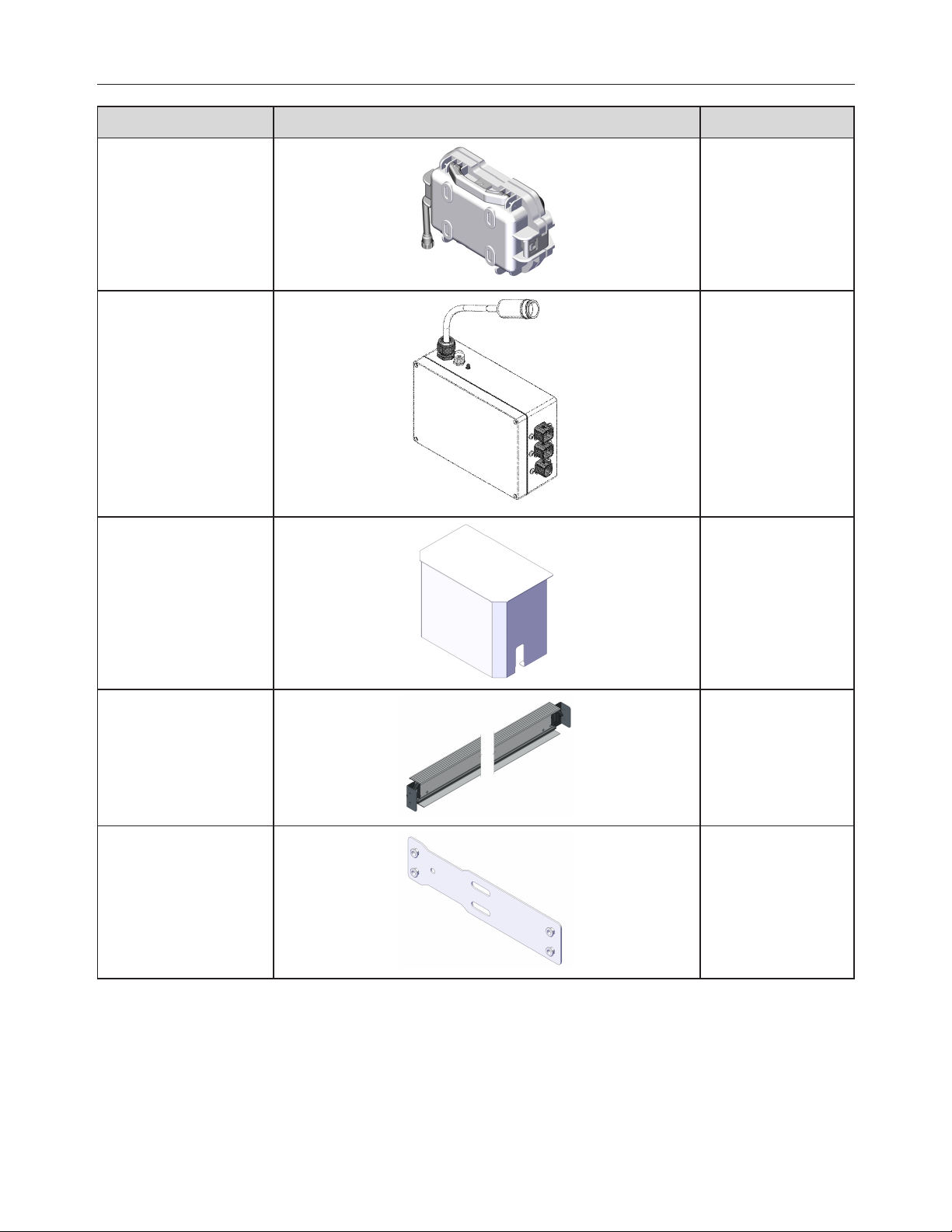

GLOSSARY 15
INSTALLATION PROCEDURE 21
TOOLS REQUIRED 21
PREPARATION FOR THE INSTALLATION 21
DELIVERY 22
UNPACKING PROCEDURE 23
HARDWARE IDENTIFICATION TABLE - BAGS 27
ASSEMBLY PREPARATION 30
MOUNT BRACKET INSTALLATION 47
ELECTRICAL CONNECTIONS 56
ELECTRICAL WARNING 57
TESTING THE COVER 60
WIPER INSTALLATION 61
SEAL INSTALLATION 62
UPPER LIMIT RESET OF THE COVER 65
INSTALLATION CHECKLIST (CUSTOMER COPY) 66
INSTALLATION CHECKLIST (INSTALLER COPY) 67
243462 OWNER'S MANUAL REVISION 2

page-4LEGENDX COVER
OPERATE THE COVER 69
RAISING/LOWERING THE COVER WITH THE KEY SWITCH 69
USING THE ESCAPE HATCH 69
BATTERY CHARGING 70
ELECTRICAL DIAGRAMS 70
WIRING DIAGRAM (NORTH AMERICA) – 60 HZ, 120 VAC CONTROL BOX 71
MAINTENANCE 73
WINTERIZING 73
WASHING THE COVER 73
POST GREASING 74
PERIODIC MAINTENANCE TABLE 76
TECHNICAL SPECIFICATIONS 77
COVER SIDE VIEW 77
FRAME DIMENSIONS AND FOOT PRINT (CONCRETE PAD RECOMMENDED) 78
CONCRETE PAD OPTIONS 79
ELECTRICAL SPECIFICATIONS (AC OPERATED MODEL) 81
ELECTRICAL SPECIFICATIONS (BATTERY OPERATED MODEL) 81
OPERATION LIMITATIONS 81
GENERAL SPECIFICATIONS 82
TROUBLESHOOTING 83
COVANA LIMITED WARRANTY 85
WARRANTY COVERAGE 85
LIMITATIONS 87
EXCLUSIONS 87
DISCLAIMER AND LEGAL RIGHTS 87
243462 OWNER'S MANUAL REVISION 2

LEGENDX COVER page-5
INTRODUCTION
As part of its ongoing commitment to improve the quality, reliability, durability and safety of its products, Covana is
proud to present this edition of the cover Owner's Manual.
The various sections that make up this manual will provide you with the most recent information allowing you to
understand the operation of the cover, its installation and its maintenance in order to obtain complete satisfaction
and to ensure maximum safety and comfort for users.
CONGRATULATIONS FOR THE PURCHASE OF YOUR NEW COVANA COVER
Thank you for choosing our product. The Covana cover you have chosen is the result of excellent engineering,
attention to detail and a great deal of pride. With proper care and attention, your cover will last many years and offer
great performance.
Although our products are built to last, we strongly recommend that you register your cover at the time of purchase
to ensure an adequate follow-up process.
In fact, registering the cover allows us to quickly reach you in the unlikely event a safety notice has to be issued.
Your product and safety are a top priority for us at Covana.
You will need your original sales receipt as proof of purchase to obtain warranty service and the work must be
performed by a certified technician. If your cover is ever to malfunction, your product registration will allow us to
access necessary information in a timely manner.
Experience the benefits of registering your cover at https://www.covana.com/warranty.html.
Please take a few minutes to read all the instructions before you use your new cover. This owner's manual
indicates how your cover works, how to install it and how to care for it, so you will get the most from your cover for
many years.
For service and advice, do not hesitate to call your local authorized Covana dealer.

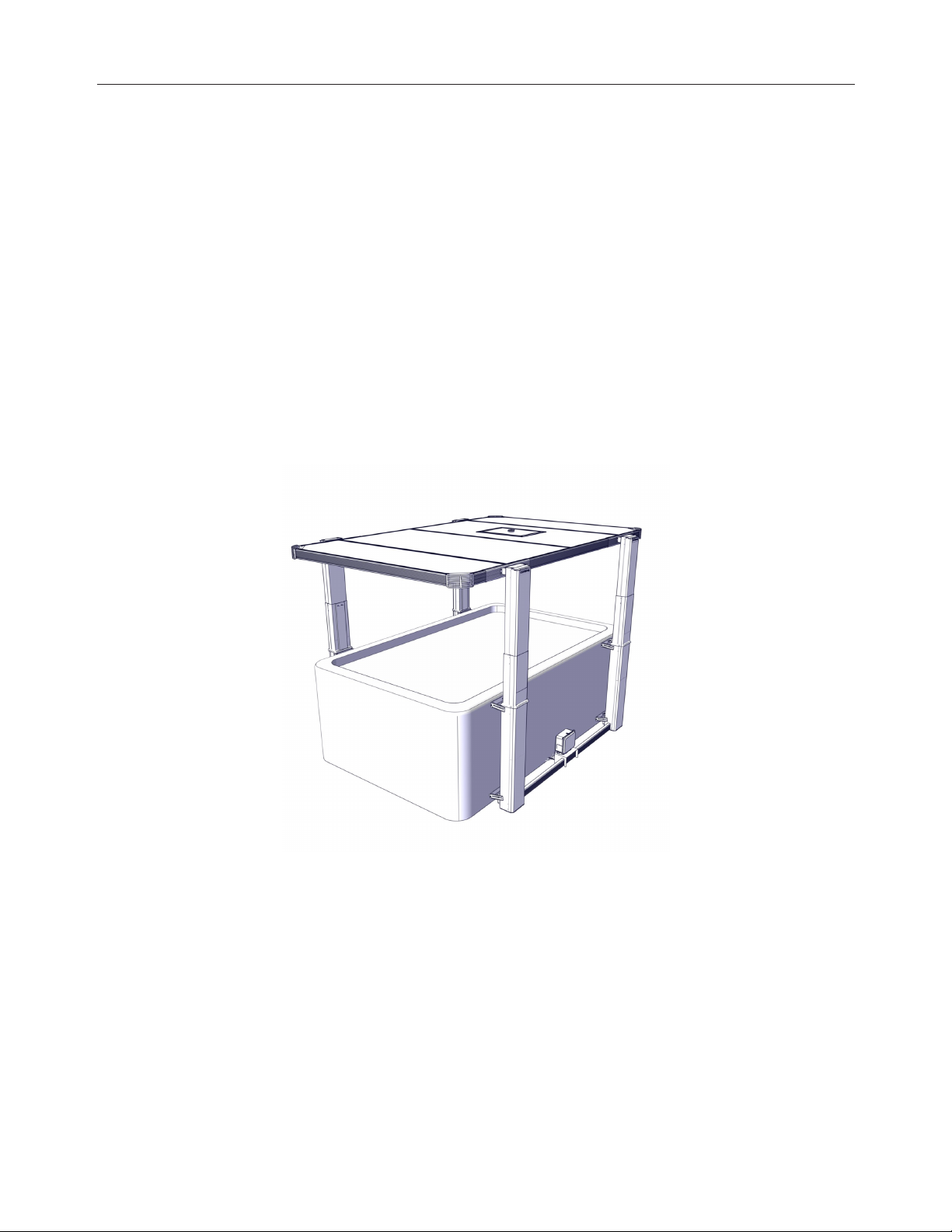

FIGURE 1: LEGEND COVER MODEL
243462 OWNER'S MANUAL REVISION 2

page-6LEGENDX COVER
IMPORTANT INFORMATION
Danger, Warning, Caution and Note are used
throughout this manual to emphasize important
points when necessary:
DANGER
Directs the user's attention to unsafe practices
which could result in serious personal injury or
death.
WARNING
Directs the user’s attention to unsafe practices
which could result in serious personal injury or
severe damage to the cover.
CAUTION
Directs the user’s attention to unsafe practices
where personal injury is not likely but damage to
cover components could occur.
NOTE
Indicates supplementary information essential to
the proper operation of the cover or proper
installation or proper maintenance.
The lifespan of your new cover depends on the kind
of attention it receives. Pay close attention to the
WARNINGS, CAUTIONS, and NOTES.
Read the various notices and instructions attached
to the equipment.
Keep this manual in a safe location.
NOTE
Illustrations in this manual are used for reference
only and may differ from the actual cover;
however, key components addressed in the
manual are represented as accurately as possible.
Before reproducing or copying this manual, in whole
or in part, written consent must be obtained from
Covana. Covana reserves the right to make changes
without notice and without incurring any obligation.
SAFETY
The cover was designed, tested and certified to be
installed over a residential spa under important
installation instructions issued by Covana. Any other
type of usage will void the warranty and product
certification.
The extra load maximum weight provided in the
TECHNICAL SPECIFICATIONS section of this
manual is a provision for environmental outcomes,
such as a small amount of leftover snow or damp
leaves that temporarily accumulate on the cover and
evenly distributed on the surface of the cover.
The cover was not designed to support any
additional load or people walking or standing on its
lid. Failure to observe this instruction will void the
cover warranty and nullify its certification.
The power safety cover meets ASTM F1346- 91
requirements.
DRUGS AND ALCOHOL
DANGER
The use of drugs or alcohol while operating the
cover is strictly prohibited. The impairment of
judgment, vision or hearing might affect the safety
of other people or result in death.
IMPORTANT
SAFETY
INSTRUCTIONS
WARNING
KEEP THESE INSTRUCTIONS IN A SAFE
LOCATION.
REVIEW THESE INSTRUCTIONS
REGULARLY.
NOTE
READ AND FOLLOW ALL INSTRUCTIONS.
243462 OWNER'S MANUAL REVISION 2

LEGENDX COVER page-7
DANGER
lTo reduce the risk of injury, do not allow children
under the age of 18 to use this product unless
they are supervised at all times.
lFailure to follow all the instructions may result in
injury or even death.
lDo not climb or walk on the cover at any time.
lDo not allow children to have access to the
cover operation without supervision.
lNever operate the cover until all people and
objects are out of the spa.
lDo not operate the cover in extreme wind. See
section Technical specifications for the wind
limitations.
lThe cover must be completely visible when
operating the key switch.
WARNING
lBe sure to keep the key switch and key out of
the reach of children under the age of 18.
lDo not put any type of fabric or plastic sheet,
such as a tarpaulin or canvas, on the cover. This
may overheat the cover and result in the
deformation or delamination of the cover panels.
lInspect the cover periodically. It should raise
smoothly and evenly. Contact your Covana
dealer if any unusual mechanical sound is heard
during cover operations.
DOS
lRemove the key from the key switch after
operating the cover. Store the key in a secure
location when not in use. Users must bring the
key in the spa with them to prevent the
unauthorized operation of the cover.
lNever leave the key into the key switch.
lCheck the cover frequently for any sign of
deterioration.
lHave any repairs, adjustments or mechanical
work performed by a certified Covana dealer as
soon as possible when you notice any
malfunction.
lCompletely lower the cover when it is not in use
or if the spa is not being monitored.
lThe cover should only be operated by an adult.
lThis product can be operated by an 8-year-old or
older child and persons with reduced physical,
sensory or mental capabilities or lack of
experience and knowledge ONLY if they are
supervised by an adult or have received
instructions regarding safe use of the cover.
lChildren must not play with the product.
Cleaning and user maintenance must not be
performed by children without supervision.
243462 OWNER'S MANUAL REVISION 2

page-8LEGENDX COVER
DON'TS
lDo not operate the unit before all mechanical
and electrical connections are completely
installed.
lDo not operate the cover while somebody is in
the spa.
lDo not climb, walk, sit or stand on the cover at
any time.
lDo not keep the cover open for more than 12
hours. This may cause permanent deformations
to the cover.
lDo not converge or directly reflect sunlight on
the cover. This could cause permanent damage.
lDo not wash the cover with harsh chemicals or
cleaners.
lDo not use a pressure washer to clean any
component of the cover. This could result in
premature wear or damage.
lDo not use an extension cord to supply electrical
power to the cover. The extension cord may not
be properly grounded, and the connection is an
electrical shock hazard. An extension cord may
cause a voltage drop, which may cause the
motor to overheat.
CAUTION
lBe sure to follow all instructions in this manual
and use only accessories and tools approved by
Covana.
lDo not rotate or slide the cover using its edges.
This may damage the edge components.
lAfter removing a component, always keep it in a
safe location on a clean and level surface to
ensure proper functionality.
CAUTION
lThis product mainly contains steel, plastic,
fiberglass, foam, copper and die-cast aluminum.
Please recycle properly according to the local
rules.
CAUTION
lAll four posts of the cover must be properly
anchored to the spa frame using the tub
mounting brackets and arms.
lFor the battery- operated option or the
emergency backup option, both are powered by
a rechargeable sealed lead acid battery. Please
recycle properly.
RISK OF ELECTROCUTION
CAUTION
All electrical work should be done by a certified
electrician, otherwise the certification and warranty
will be void. Furthermore, any modifications to the
electrical components will also void the warranty.
DANGER
Failure to comply with these instructions may
result in death by electrocution or serious injury
243462 OWNER'S MANUAL REVISION 2

LEGENDX COVER page-9
DANGER
lDisconnect or turn off and secure all power
supplies before starting any intervention on the
cover.
lA circuit breaker needs to be incorporated into
the fixed wiring at the time of installation. This
circuit breaker must be accessible to the user or
service technician to turn the power off for future
maintenance or repair.
lOnly a certified electrical contractor may
perform any electrical maintenance on the
cover. The wiring must comply with all
applicable local electrical regulations.
lThe control box must be connected to a circuit
that is protected by a dedicated ground fault
circuit interrupter (GFCI) that complies with all
applicable local electrical codes and regulations.
lInstall the cover in such a way that drainage
directs water away from the electrical and the
mechanical components at the base.
lDo not connect any auxiliary components to the
electrical system of the cover unless they have
been approved by Covana.
lReplace electrical components with original
components provided or approved by Covana.
Ask your dealer for replacement parts.
lTo reduce the risk of electrical shock, replace a
damaged electrical cord immediately. Failure to
do so may result in death or serious personal
injury due to electrocution.
lDo not bury the electrical wires into the ground
unless using a direct-burial underground cable.
Not respecting this precaution may result in
death, or serious personal injury due to
electrocution.
ELECTRICAL WARNING
WARNING
lTo reduce the risk of electrical shocks, the
green-colored terminal (or the terminal marked
“g,” “gr,” “ground,” “grounding” or with a
symbol) that is located inside the supply
terminal box or compartment must be connected
to the grounding connection provided in the
electric supply service panel with a continuous
copper wire equivalent in size to the circuit
conductors supplying the equipment.
lOne bonding lug is installed on one non-motor
jack. To reduce the risk of electric shock,
connect the cover bonding lug to the local
common bonding grid in the area. Use terminals
with an insulated or bare copper conductor no
smaller than No. 6 AWG (4.11 mm).
lAll field- installed metal components, such as
rails, ladders, drains or other similar hardware,
within 10 ft (3 m) of the spa must be bonded to
the equipment grounding bus with copper
conductors not smaller than No. 6 AWG (4.11
mm / 13.30mm2). (NEC art. 680).
MODIFICATIONS TO THE COVER
WARNING
lAny modifications to the cover, such as
mechanical, electrical or aesthetic, may cause
the cover to operate in an unwanted or
dangerous way. Furthermore, these
modifications are not permitted and might void
the warranty and certification.
lThe cover has been designed, tested and
certified for the only purpose of covering and
securing a spa. Any installation that differs
partly or entirely from this purpose will void the
warranty and certification.
243462 OWNER'S MANUAL REVISION 2

page-10 LEGENDX COVER
POSITION OF THE KEY SWITCH
WARNING
lThe key switch must be permanently installed and located 5 ft (1.5 m) away from the spa and 5 ft (1.5 m)
above the deck or ground level, see Figure 2.
lMake sure the user has a clear view of the cover when operating it.
lFurthermore, the key switch must be located in an area where no water downpour or debris might fall on it.
FIGURE 2: POSITION OF THE KEY SWITCH
243462 OWNER'S MANUAL REVISION 2

LEGENDX COVER page-11
LABELING
This section shows the location of all safety labels.
They are positioned on various components for your
safety.
WARNING
Removing any labels on the cover will void product
certification.
All labels should always remain visible.
It is the owner’s responsibility to ensure that these
labels are always visible and should never be
removed.
RISK OF ELECTROCUTION
(For AC-operated models only)
This label warns you about the risk of electrocution.
It is located on the AC control box
FIGURE 3: RISK OF ELECTROCUTION
INFORMATION ON THE ELECTRICAL
CABLES
These labels inform the user about the danger of
electrocution with the presence of water near the
electrical wiring.
The labels are located on the power cable near the
key switch.
FIGURE 4: DANGER WITH WATER
243462 OWNER'S MANUAL REVISION 2

page-12 LEGENDX COVER
KEY SWITCH OPERATION DIAGRAM
This label shows you how to turn the key into the key
switch to lift up or lower the cover.
The label is located on the key switch.
FIGURE 5: KEY SWITCH OPERATION DIAGRAM
TECHNICAL SPECIFICATIONS
This label shows the important technical
specifications. It is located on the control box of the
AC-operated model.
NOTE
This label also shows the serial number of the
cover.
FIGURE 6: FOR BATTERY OPERATED MODEL ONLY
FIGURE 7: FOR AC OPERATED NORTH AMERICAN
MODEL ONLY
NO STEP LABEL
This label is a reminder not to step on this area of the
unit.
The label is located on the top of the control box of
the AC-operated model.
243462 OWNER'S MANUAL REVISION 2

LEGENDX COVER page-13
FIGURE 8: NO STEP LABEL
AVOID DROWNING LABEL
This label warns you about the risk of drowning. The
label is located inside the cover.
FIGURE 9: AVOID DROWNING LABEL
DO NOT STEP ON THE COVER LABEL
This label is a reminder not to step on the cover. The
labels are located on the end of the C-channels of the
cover.
FIGURE 10: DO NOT STEP ON THE COVER LABEL
MAINTENANCE INFORMATION LABEL
This label displays the web site where you can get
more information on maintenance procedures. It is
located on one of the C-channels.
FIGURE 11: MAINTENANCE INFORMATION LABEL
CENTER LABEL
This label is located on the 94.6" (240 cm) long C-
channel (remove after installation).
Additional labels are also provided to facilitate the
installation of the escape hatch panel.
FIGURE 12: CENTER LABEL
TOP LABEL
This label is located on the I-Beams and the escape
hatch opening.
FIGURE 13: TOP LABEL
BATTERY SPECIFICATION LABEL
This label is located on the battery pack casing.
243462 OWNER'S MANUAL REVISION 2

page-14 LEGENDX COVER
FIGURE 14: BATTERY SPECIFICATION LABEL
243462 OWNER'S MANUAL REVISION 2

LEGENDX COVER page-15
GLOSSARY
PART IMAGE FUNCTION
Sleeve all-weather seal
This all-weather seal
protects sleeves from
damage due to
weather.
C-channel
The C-channel is the
outer frame of the
cover panels.
Contour seal
The contour seal
ensures even contact
between the cover
and the spa,
preventing the entry
of contaminants into
the spa or the loss of
heat from the spa.
Contour seal installation
clip
Contour seal
installation clips are
temporary parts used
to facilitate the
installation of the seal
The clips are used
during the installation
process to ensure the
seal is installed
properly.
Contour seal connector
The seal connector is
used to link both ends
of the contour seal.
243462 OWNER'S MANUAL REVISION 2

page-16 LEGENDX COVER

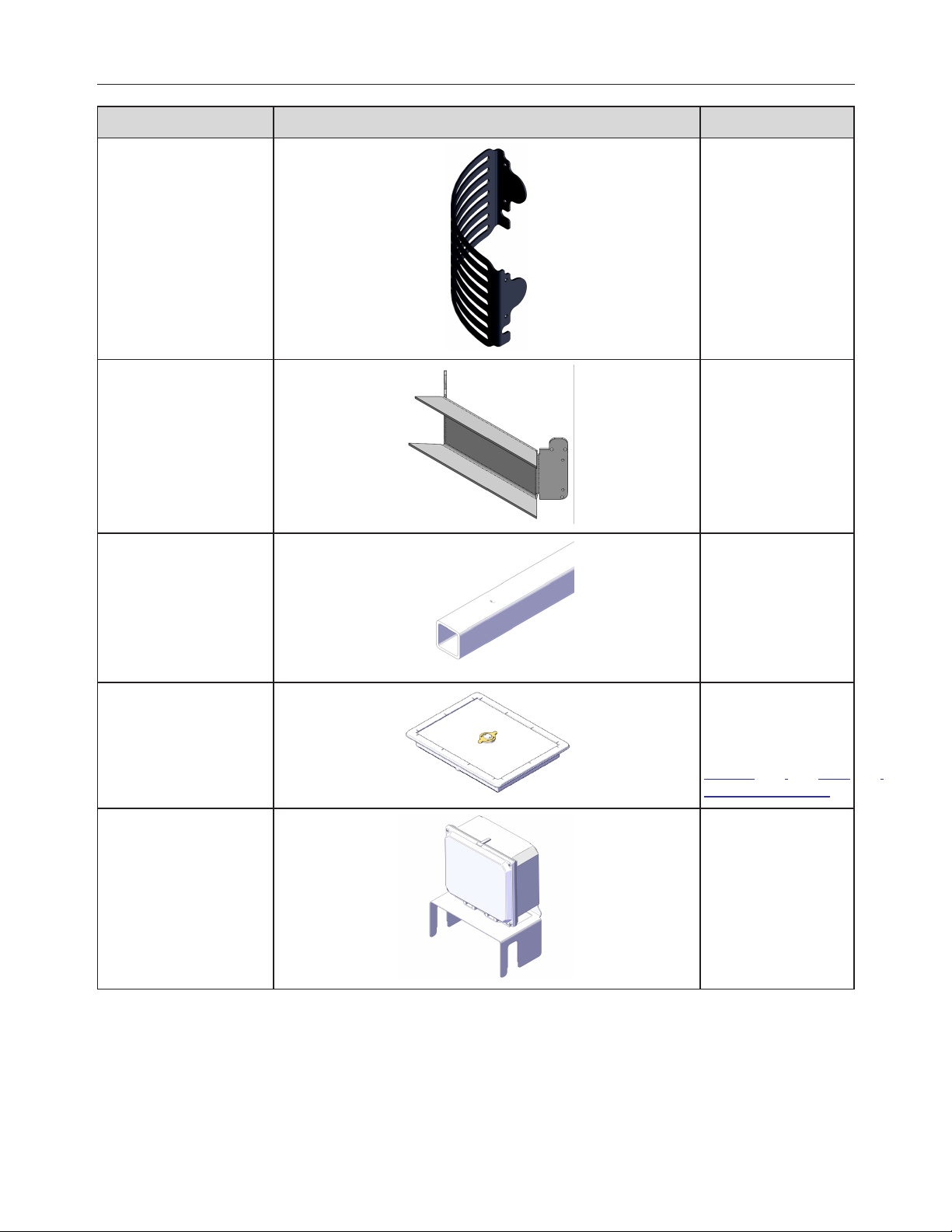

PART IMAGE FUNCTION
Outside corner
The outside corner is
an aesthetic
aluminum grid fixed to
the corner bracket.
Outside corner bracket
The outside corner
brackets link the C-
channels on the side
to the ones in front
and back.
Drive shaft
The drive shaft
transmits the power
between the jack
assemblies.
Escape hatch
The escape hatch is a
removable panel and
part of the cover.
Refer to section
USING THE
ESCAPE HATCH .
AC control box
(AC-operated model
only)
The AC control box
powers and controls
the lifting mechanism
of the cover.
243462 OWNER'S MANUAL REVISION 2

LEGENDX COVER page-17
PART IMAGE FUNCTION
Battery pack
(Battery-operated model
and battery backup only)
The battery pack is a
sealed case where
the two 12 V batteries
are located.
Control box
(for battery-operated
model only)
The control box
manages the
movement of the unit.
Control box housing
(for battery-operated
model only)
The control box
housing contains the
control box and the
battery pack of the
cover.
I-beam
The I-beams are the
aluminum extrusions
installed between the
cover panels.
I to C connection plate
(long)
The long I to C
connection plate
makes the link
between the I-beam,
the C- channels, and
the sleeves.
243462 OWNER'S MANUAL REVISION 2

page-18 LEGENDX COVER

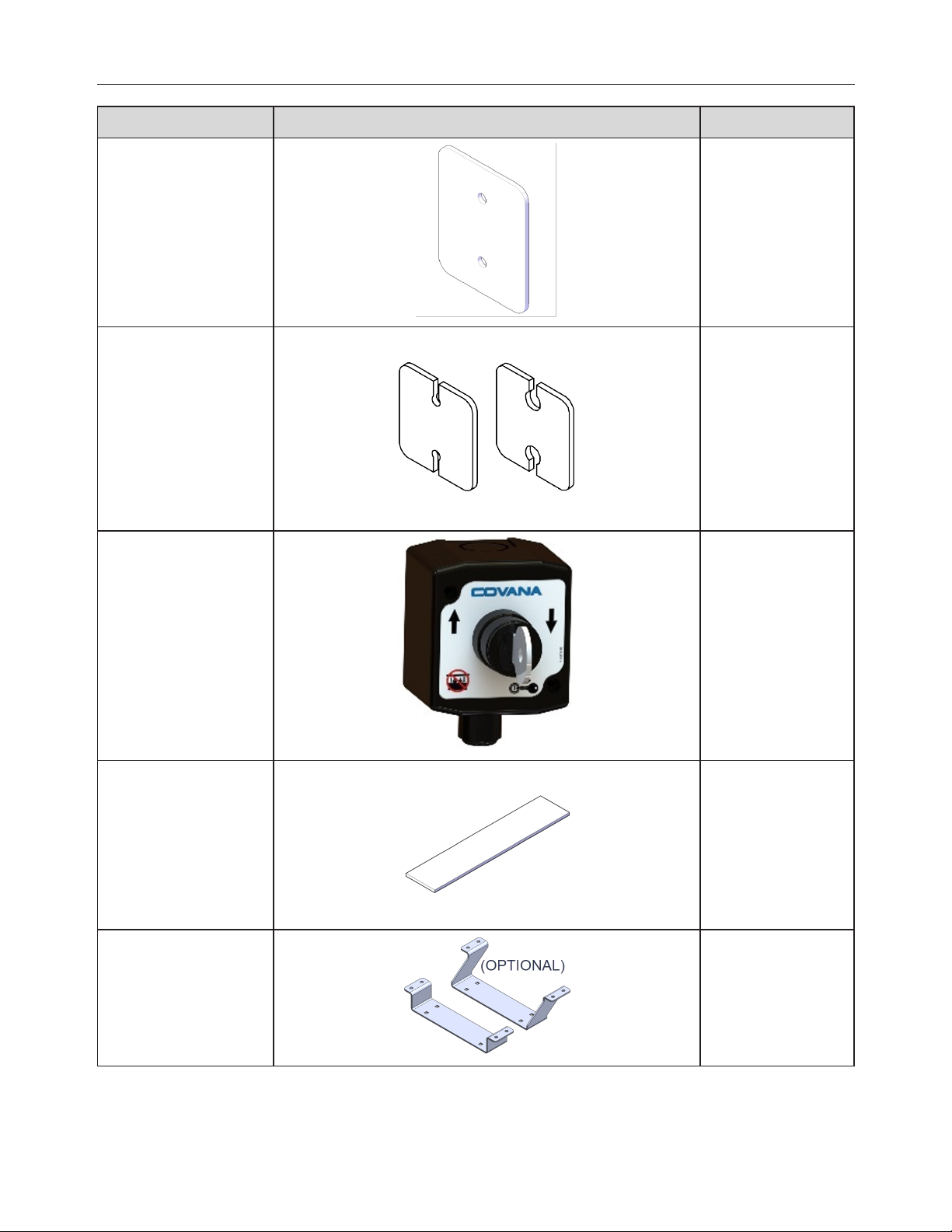

PART IMAGE FUNCTION
I to C connection plate
(short)
The short I to C
connection plate is
installed between the
I- beams and C-
channels.
I to C spacer
The I to C spacer
creates the
necessary space
between the I to C
connection plate,
thus allowing the I-
Beam to easily slide
into the C-Channel. It
prevents the over
tightening of the I to C
connection plates.
Key switch
The key switch is
used to operate the
cover.
Foam spacer
The foam spacer are
used for the
installation process to
protect the spa from
direct contact with
the cover. They are
removed after
installation of the
contour seal.
Post mount bracket or
Dual side bracket
(optional)
Post mount bracket
links the sleeves and
posts to the cover.
Dual side bracket is
used for higher or
lower spa.
243462 OWNER'S MANUAL REVISION 2
