English
A Tour of Your Player
Scroller
Liquid Crystal
Display (LCD)
Microphone
Side view
Earphone
jack
USB connector
Front view
Battery module
Volume
Increase
button
Volume
Decrease
button
USB Flash
Drive
Play/Pause button
MuVo V200 QSB.fm Page 3 Tuesday, July 27, 2004 11:48 AM

4
Using the Scroller
Scroll Select
The Scroller is one of the most important features of your player. In this document, we will
use the term, “Scroll Select”, to mean that you should use the Scroller to scroll through
options, and then select the option by pressing the Scroller.
Button What It Does Usage Tips
Play/Pause • Turns the player on and off.
• Activates the LCD
backlight.
• Starts, pauses or continues
playback.
• To turn on your player, press and hold until the
MuVo V200 logo appears on the screen.
• To turn off your player, press and hold until the
Power off message appears.
• When your player is locked, press to turn on
the LCD backlight.
Volume Increase • Increases the volume. • Press and hold to increase the volume quickly.
The Scroller
(side view) Use the Scroller to scroll through options Press the Scroller to select an option
MuVo V200 QSB.fm Page 4 Tuesday, July 27, 2004 11:48 AM

5
Volume Decrease • Decreases the volume. • Press and hold to decrease the volume quickly.
Scroller • Goes to the previous or
next track.
• Moves ahead or moves
back within a track.
• Scrolls through menu
options.
• Selects menu options.
• During playback, turn the Scroller to go to the
previous or next track.
• During playback, turn and hold the Scroller to
move ahead or move back within a track.
• Turn the Scroller to scroll through menu
options and press the Scroller to select them.
This action is also referred to as "Scroll
Select".
Button What It Does Usage Tips
MuVo V200 QSB.fm Page 5 Tuesday, July 27, 2004 11:48 AM

6
Getting Started
1
1Inserting the Battery
Insert the supplied battery into your player as shown below.
MuVo V200 QSB.fm Page 6 Tuesday, July 27, 2004 11:48 AM

7
22
Setting Up Your Computer
1. Ensure that your player is NOTconnected to your computer.
2. Insertthe CreativeMuVo V200 CD into your CD-ROM/DVD-ROM drive.Your CD
should start automatically.If it does not, followthe steps below:
i. Start Windows Explorer.
ii. On the left pane, click the My Computer icon.
iii. Right-click the CD-ROM/DVD-ROM drive icon, and then click AutoPlay.
3. Click the MuVo V200 Software option to select it.
4. Click the OK button.
5. Follow the instructions on the screen. Creative MediaSource™ and Windows 98 SE
drivers (only if applicable) will be installed on your computer.
6. If prompted, restart your computer.
7. Connect your player to your computer as shown below.
• Windows 98 SE users must install the drivers to transfer tracks or files to the player.
• To set up your player, Windows 2000 and Windows XP users must log in as the computer
administrator. For more information, refer to your operating system’s online Help.
USB port
MuVo V200 QSB.fm Page 7 Tuesday, July 27, 2004 11:48 AM

8
3
3Transferring Audio and Data
If you wish to download additional audio tracks to your player, you can either download
audio tracks from Internet music sites (see "Downloading from the Internet" in your User’s
Guide) or rip them from your audio CDs to create digital files on your computer. For more
information, see "Ripping Audios CDs" in your User’s Guide.
Music files can be encoded into the supported formats (MP3 or WMA file formats), then
transferred to your player with Creative MediaSource Organizer.
Data files can also be transferred to and stored in your player, for example, you can transfer
a large data file from one computer to another.
To transfer audio and data with Creative MediaSource
1. Connect your player’s USB Flash Drive to your computer’s USB port.
2. Launch Creative MediaSource on your computer.
3. On the left pane, locate and select the files you want to transfer to your player. Using
the standard drag-and-drop method, transfer the files to your player.
For information about transferring DRM-protected WMA files, see "Usage" in your
User’s Guide.
4. After the transfer is complete, make sure you stop your player properly before
disconnecting it from your computer. For more details, see “Stopping Your Player
Properly” on page 9.
Do not disconnect your player while file transfer is in progress.
MuVo V200 QSB.fm Page 8 Tuesday, July 27, 2004 11:48 AM

9
4
4Stopping Your Player Properly
Before disconnecting your player from your computer, use the Windows Eject or Safely
Remove Hardware icon on the Taskbar to safely disconnect your player. If not, your
player may not be able to function normally. Follow these steps below to safely disconnect
your player:
To stop your player in Windows XP, Windows 2000 or Windows Me
Click the Safely Remove Hardware icon on the Taskbar, click Safely remove USB
Mass Storage Device, and disconnect your player when you are prompted to do so.
To stop your player in Windows 98 SE
In Windows Explorer, right-click the Removable Disk icon, click the Eject option, and
disconnect your player when you are prompted to do so.
Make sure that the icon below appears on the LCD screen for at least five seconds before
disconnecting your player.
MuVo V200 QSB.fm Page 9 Tuesday, July 27, 2004 11:48 AM

10
Some Basic Functions
Playing Audio Tracks
To add audio tracks to your player, see “Transferring Audio and Data” on page 8.
To play audio tracks
Press the Play/Pause button until the MuVo V200 logo appears on the screen,
and audio tracks stored in your player are automatically played back.
To stop a track
Press the Play/Pause button to pause the track. Turn the Scroller towards the left
to resume playback at the beginning of the track or turn the Scroller towards the right to
resume playback at the beginning of the next track. The Stop icon appears on the
screen.
Recording Audio
1. Press the Scroller.
2. Scroll Select the Microphone icon (Figure 1).
The recording bar appears on the screen.
3. Press the Play/Pause button to start the recording.
4. Press the Play/Pause button again to end the recording. A name is
automatically assigned to your recording and it is saved in your player. The naming
convention used is: VOC [Current File Number].
Figure 1
MuVo V200 QSB.fm Page 10 Tuesday, July 27, 2004 11:48 AM

11
Listening to FM Radio
To changethe FM region
Perform these steps when scanning for stations for the first time.
1. Press the Scroller.
2. Scroll Select the Settings icon (Figure 2). A list appears.
3. Select the FM Region icon (Figure 3). A list appears.
4. Select the region that you are in.
To perform an autoscan and autosave
1. Connect your earphones to the earphone jack.
2. Scroll Select the FM Radio icon (Figure 4).
A radio frequency appears on the LCD screen.
3. Press the Scroller.
4. Scroll Select the Autoscan icon (Figure 5). The player scans
and stores channels it detects. At the end of the autoscan, it
automatically saves all channels and plays the first channel.
To select a channel
1. Scroll Select the FM Radio icon (Figure 4).
A radio frequency appears on the LCD screen.
2. Turn the Scroller to select the preset channel you want.

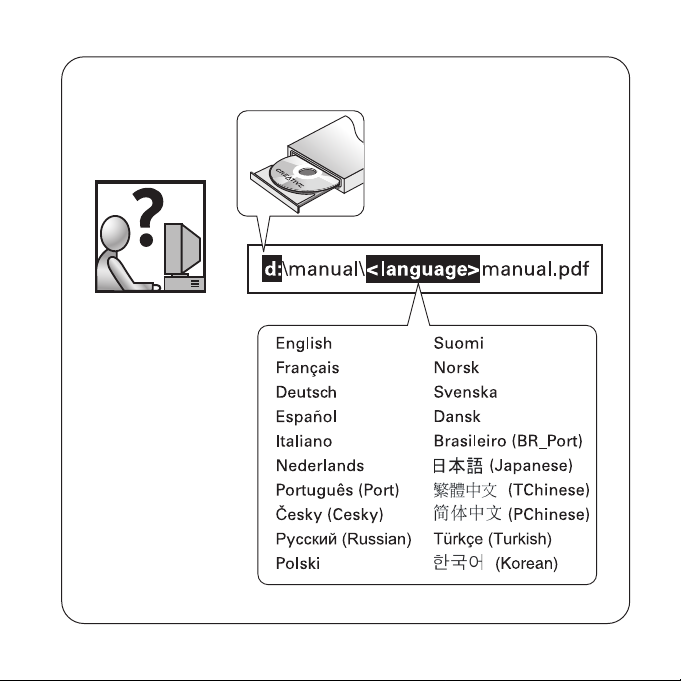

For more information, read the User’s Guide on the Installation CD.
Go to d:\manual\<language>\manual.pdf (replace d:\ with the drive letter of your CD-ROM/
DVD-ROM drive, and <language> for the language the document is in)
Figure 2
Figure 3
Figure 4
Figure 5
MuVo V200 QSB.fm Page 11 Tuesday, July 27, 2004 11:48 AM

12
Frequently Asked Questions
Where can I get official information on my player?
Visit www.creative.com for updates and downloads relating to all MuVo products,
Creative’s MP3 players and accessories.
I have to change the battery quite often. Is there anything I can do to make it
last longer?
Some operations consume more battery power:
• a long backlight timeout setting. A shorter timeout conserves battery power.
• a high contrast setting. Position the player so that you can read the display without using
a high contrast setting.
• too much moving ahead or moving back within a track.
• turning the player on/off too many times.
• use of passive speakers or high-powered headphones.
•playback of WMA files.
After playing a sequence of tracks, the player skips a track.
The player will only play valid formats (MP3, WMA or WAV recordings). Other types of
files will be skipped.
Files/tracks are corrupted when transferred to the player.
Transfer may have been interrupted. Before disconnecting your player from your computer,
make sure that you stop your player properly first. See “Stopping Your Player Properly” on
page 9.
The player turns off immediately after it is turned on.
Do one or more of the following:
• format your player. For more information, refer to "Formatting Your Player" in your
User’s Guide.
• use a fresh battery if the battery used is depleted.
MuVo V200 QSB.fm Page 12 Tuesday, July 27, 2004 11:48 AM

13
Can I use the player for portable data storage?
Yes, you can.
Can I transfer DRM-protected WMA files to my player?
Yes. To transfer DRM-protected WMA files to your player, you can use Creative
MediaSource.
Does my player support FAT 32 formatting?
No. You must select select the FAT or FAT 16 option in the Format F:\ dialog box
before formatting the player.
MuVo V200 QSB.fm Page 13 Tuesday, July 27, 2004 11:48 AM

14
More Information
Register your product!
Enjoy a host of benefits by registering your product during installation, or at
www.creative.com/register. Benefits include:
• Service and product support from Creative
• Exclusive updates on promotions and events.
Customer Support Services and Warranty
You can find Customer Support Services, Warranty and other information in the
Installation CD.
(replace d:\ with the drive letter of your CD-ROM/DVD-ROM drive, <region> with the region that you
are in, and <language> with the language that your document is in)
Customer Support Services d:\support\<language>\support.pdf
Warranty d:\warranty\<region>\<language>\warranty.pdf
Please keep your Proof of Purchase for the duration of the warranty
period.
User’s Guide d:\manual\<language>\manual.pdf
Creative Knowledge Base
Resolve and troubleshoot technical queries at Creative's 24-hour self-help
Knowledge Base. Go to www.creative.com and select your region.
Copyright © 2004 Creative Technology Ltd. All rights reserved. The Creative logo, MuVo logo and Creative MediaSource
are trademarks or registered trademarks of Creative Technology Ltd. in the United States and/or other countries. Microso
ft,
Windows and the Windows logo are registered trademarks of Microsoft Corporation. All other products are trademark
s
or registered trademarks of their respective owners and are hereby recognized as such. All specifications are subject t
o
change without prior notice. Actual contents may differ slightly from those pictured.
MuVo V200 QSB.fm Page 14 Tuesday, July 27, 2004 11:48 AM

15
Safety Advice
As with any digital media-based storage device, data should be backed up regularly. We
strongly recommend that you observe the usage precautions laid out in this booklet, and
also back up the data in your player regularly. In no event will Creative be liable for any
indirect, incidental, special or consequential damages to any persons caused by Creative's
negligence, or for any lost profits, lost savings, loss of use, lost revenues or lost data
arising from or relating to this device, even if Creative has been advised of the possibility
of such damages. In no event will Creative’s liability or damages to you or any other
person ever exceed the amount paid by you for the device, regardless of the form of the
claim. Some countries/states do not allow the limitation or exclusion of liability for
incidental or consequential damages, so the above limitation or exclusion may not apply
to you.
MuVo V200 QSB.fm Page 15 Tuesday, July 27, 2004 11:48 AM

16
󲃵󰫼
播放机介绍
󱑏󳓣
󱌧󰯫󰮳󱺯󰇄

󴐛󳹃
侧视图
󲖨󰲯󰥇󰃉
󰤚
前视图
󱪪󱇕󰾖
󳵨󳝄
󰡾󳨣
󰆄󳵨󳝄
󰡾󳨣
󳭟󰃍
󰨢󰪳  󰯷󰡾󳨣


17
使用滚轮
滚动选择
󱑏󳓣󰮤󰨢󰪳󰲯󰱵󳝂󲻶󱯹󱟮󰖜󰲡󳅩󰮃󰫼󰷘󰅻󱪝󰲤󳅢 󱑏󳕾󰡞
󰘝󰐉󳅚󱪝󱑏󳓣󱑏󱋄󲼽󳕾󳷮󰡾󰃸󳕾󰄏󳅚󳕾󳷮
按钮 功能 使用须知
󰨢󰪳  󰯷 •󰟈󰑵󰞋󳭢󰨢󰪳󰲯
•󱪝󲙁󱛜󰮃
•󰑵󰯷󰞋󲑜󲑢󰨢󰪳
•󲻶󰑵󰨢󰪳󰲯󰡾󳅚󰡾󳨣󱱩󰇄󰏊
󱤥󱤥MuVo V200 󰵼󰕌
•󲻶󳭢󰨢󰪳󰲯󰡾󰏫󰡾󳅚󰡾󳨣󱱩
󱤥电源关闭󰗤
•󳰄󳐠󳩶󰄏󰡾󱂖󰟈󰑵󲙁󰯤

󳵨󳝄 •󳵨󳝄 •󰡾󳔺󳖔󳵨󳝄
󳵨󳝄󰆄 •󳯂󳵨󳝄 •󰡾󳔺󳖔󳯂󳵨󳝄
󱑏󳓣 󳳗
󲼻
󱪝󱑏󳓣󱋄󲼽󳕾󳷮 󰡾󱑏󳓣󳕾󰄏󳷮
󱱣


18
󱑏󳓣 •󲝨󰞋󰱧󱱣
•󳼋󰱧󱱣󳍨󳌸
•󲥑󱯹󳕾󳷮󱑏
•󳕾󰡞󲥑󳕾󳷮
•󰨢󰪳󰭫󰡝󱑏󳓣󲝨󰞋󰱧󱱣
•󰨢󰪳󰭫󰡝󰏫󰡾󱑏󳓣󰱧󱱣󰕠
󳕐󰞋󳕵
•󰡝󱑏󳓣󳕾󰡞󲥑󳕾󳷮󰡾󱑏󳓣󳕾
󰄏󱃙󰩂󰆦󰮤 󱑏󳕾󰡞
按钮 功能 使用须知

