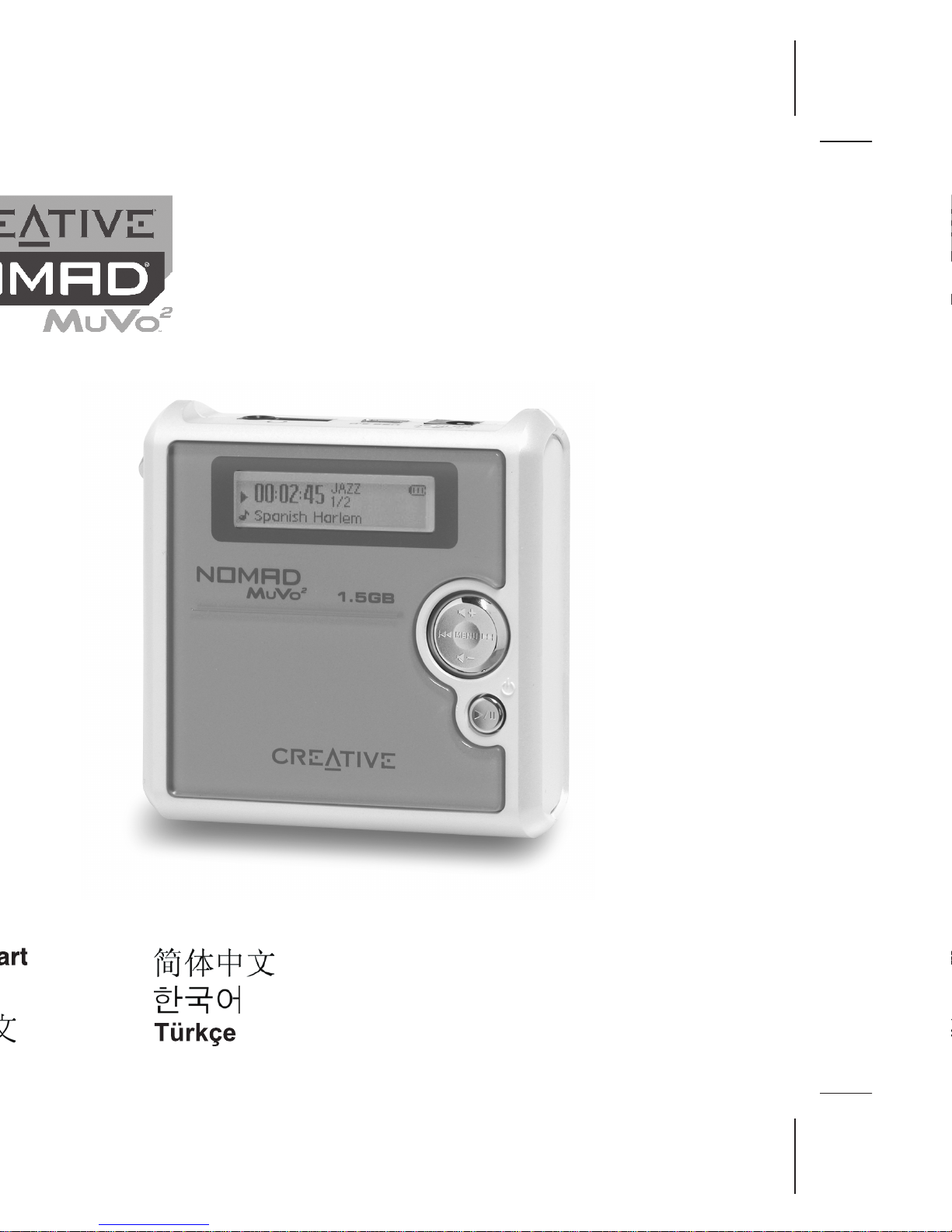

Creative NOMAD Muvo User manual

1
Your Player At A Glance
Press and hold to turn your player on and off.
Press once to start playing tracks, and press again to pause playback.
MENU Press to display Menu options on the LCD. Press again to select a Menu option.
Press to skip to the next track, and press and hold to skip ahead within a track. Press
to skip to the previous track, and press and hold to skip back within a track.
Press and to browse Menu options on the LCD.
Press to increase or to decrease the volume.
Connects to a power outlet using the supplied power adapter.
Connects to your computer’s USB port using the supplied USB cable.
Connects to headphones, or the Creative FM Wired Remote (available separately).
LCD
Press and hold this
button to turn your
player on and off.
Your player may take a while to
start up, depending on the number
of files you have loaded. If the
screen appears to have stopped
responding, wait for at least 30
seconds before you attempt to
restart your player.
EN
New_English_Omicron_13pg.fm Page 1 Tuesday, March 23, 2004 6:47 PM

2
Getting Started
Install Software
1. Insert the Installation CD into your CD-ROM/DVD-ROM drive.
2. The disc supports Windows Autoplay mode and starts running automatically. If not, click
Start →Run. In the Open box, type d:\ctrun\ctrun.exe (replace d:\ with the drive letter
of your CD-ROM/DVD-ROM drive), and then click the OK button.
3. Follow the instructions on the screen to complete the installation.
Creative MediaSource™ and Windows 98 SE drivers (only if applicable) will be installed on
your computer.
4. When prompted, restart your computer.
Step 1
Do not connect your player to your computer before
installing the software.
New_English_Omicron_13pg.fm Page 2 Tuesday, March 23, 2004 6:47 PM

3
Charge the Battery
1. Insert the supplied battery into your player.
2. Connect your player to a power outlet using the supplied power adapter.
will appear on your player’s LCD.
3. Charge the battery until appears on your player’s LCD. Charging your battery for the
first time will take about 3 hours.
Step 2
Do not charge your player’s battery via the USB port
until after you have installed the software.
New_English_Omicron_13pg.fm Page 3 Tuesday, March 23, 2004 6:47 PM

4
For owners of the 1.5/4.0GB Creative NOMAD MuVo² player
To charge the battery via the USB port, follow these steps:
1. Connect your player to your computer's USB port using the supplied USB cable.
2. In Windows Explorer, right-click the Removable Disk icon and click Eject to start
charging the battery. appears on your player's LCD.
3. When appears on your player's LCD, your player is fully charged.
4. Safely disconnect your player from your computer (see “Disconnecting your player
properly” on page 7).
If you have transferred or deleted files prior to charging your player's battery, you
must disconnect your player properly (see “Disconnecting your player properly” on
page 7) and then charge your player's battery by following steps 2 to 4 below.
• Ignore these steps if your are charging the player's battery via the supplied power adapte
r.
• You can disconnect your player from your computer even if the battery is not fully
charged.
• During USB charging, your player will not respond to any file transfer commands until you
disconnect and then reconnect the player.
• Before starting any extensive file transfer activity, be sure that your player is powered via
the power adapter.
New_English_Omicron_13pg.fm Page 4 Tuesday, March 23, 2004 6:47 PM

5
Transfer Songs
1. Connect your player to your computer’s USB port using the supplied USB cable.
2. Launch Windows Explorer on your computer. Your player is recognized as a Removable
Disk in Windows Explorer.
3. Transfer MP3, WAV or WMA files to your player using a drag-and-drop operation.
4. After the transfer is complete, make sure you stop your player before disconnecting it from
your computer. See “Disconnecting your player properly” on page 7.
Step 3
DO NOT disconnect player
while file transfer is in progress.
New_English_Omicron_13pg.fm Page 5 Tuesday, March 23, 2004 6:47 PM

6
Creative MediaSource
For more advanced song management tasks, such as creating and managing playlists, you can use
Creative MediaSource Organizer. Creative MediaSource Player/Organizer is your digital music
center for playing, creating, organizing and transferring digital music. To launch Creative
MediaSource Player/Organizer, double-click the Creative MediaSource Player/Organizer
icon on your desktop
.
Play Songs
1. Press and hold until your player turns on.
2. Press to start playing the songs that you transferred to your player.
3. Press to increase or to decrease the volume.
4. After you have finished using your player, press and hold until your player turns off.
Warning! To prevent data loss, your player must be
disconnected in a proper manner. See “Disconnecting
your player properly” on page 7.
Step 4
You can play all music from the player's root folder.
1. Press MENU.
2. Press to browse to the Folder (Root) option, and press .
If you cannot locate the Folder (Root) option in the main menu:
1. Press MENU.
2. Press to browse to the Browser option.
3. Press MENU to select this option.
4. Browse to the Folder (Root) option, and press .
New_English_Omicron_13pg.fm Page 6 Tuesday, March 23, 2004 6:47 PM

7
Usage Precautions
Disconnecting your player properly
Before disconnecting your player from your computer, use the Windows Eject or Safely
Remove Hardware icon on the Taskbar to safely disconnect your player. If not, your player
may not be able to function normally. Follow these steps below to safely disconnect your player:
Windows 98 SE
1. Wait at least 10 seconds after all file transfers
are completed.
2. In Windows Explorer, right-click the
Removable Disk icon and click Eject.
3. Unplug your player after 10 seconds.
Windows 2000, Windows Me and
Windows XP
1. Left-click the Safely Remove Hardware icon on the Taskbar and click Safely
remove USB Mass Storage Device as shown.
2. Unplug your player when you are prompted to do so.
This prompt appears on the Taskbar in Windows XP. On other operating systems, a message
box appears on the desktop instead.
New_English_Omicron_13pg.fm Page 7 Tuesday, March 23, 2004 6:47 PM

8
What to do if your player was disconnected improperly
If your player was disconnected improperly, one of two possible error messages may appear on
your player's screen:
In this case, to recover files on your player, do the following:
1. Reconnect your player to your computer
2. In Windows Explorer, right-click the Removable Disk icon and select the Properties
option.
3. Click the Tools tab, and then click the Check Now button. A dialog box appears.
4. Be sure that the Automatically fix file system errors option is selected. All other
options should not be selected.
5. Click the Start button.
When error checking is complete, safely unplug your player from your computer. See
“Disconnecting your player properly” on page 7.
Scenario A
In Windows XP, you will see an icon with the name of your player, instead of a Removable
Disk icon.
New_English_Omicron_13pg.fm Page 8 Tuesday, March 23, 2004 6:47 PM

9
In this case, to recover files on your player, do the following:
1. Press MENU.
The following screen appears on your player:
2. Press to browse to the Run PC ScanDisk option.
3. Press MENU to select this option.
4. Connect your player to your computer, via the USB cable.
5. In Windows Explorer, right-click the Removable Disk icon and select the Properties
option.
6. Click the Tools tab, and then click the Check Now button.
7. Be sure that the Automatically fix file system errors option is selected. All other
options should not be selected.
8. Click the Start button.
9. When error checking is complete, safely unplug your player from your computer. See
“Disconnecting your player properly” on page 7.
Scenario B
In Windows XP, you will see an icon with the name of your player, instead of a
Removable Disk icon.
If you continue to experience problems with your player, you may need to select the
Format all option to clean your player's storage memory. Doing so will erase all the files
on your player.
New_English_Omicron_13pg.fm Page 9 Tuesday, March 23, 2004 6:47 PM

10
What to do if your player stops functioning normally
Your player may stop functioning normally if any or all of the following occurs:
• Your computer stops responding during file transfers.
• There is a power outage during file transfers.
• Your player was unplugged, or files were being deleted during file transfers.
When this happens, you can try to recover your player using the unique Recovery Mode:
1. Press and hold until your player turns off. If you are unable to turn off your player,
proceed to the next step.
2. Disconnect all cables from your player and remove the player's battery.
3. Re-insert the battery and turn your player on to see if it starts functioning normally. If it
does not, remove the battery again and proceed to the next step.
4. Press and hold MENU. While holding down MENU, re-insert the battery, or connect your
player to a power outlet using the supplied power adapter.
5. Release MENU when the Recovery Mode screen appears as shown. If the Recovery
Mode message does not appear, repeat steps 2 and 3.
6. Press and to browse and select the recovery actions.
New_English_Omicron_13pg.fm Page 10 Tuesday, March 23, 2004 6:47 PM

11
Some Basic Functions
Playing a song
1. Press MENU.
2. Press or to browse to the Music option.
3. Press MENU to select this option.
4. Browse to a song that you want to play and press .
Playing an album
1. Press MENU.
2. Press or to browse to the Folder (Root)
or Browser option.
3. Press MENU to select this option.
4. Browse to the Folder option, and press MENU to
browse for tracks organized according to folder names.
5. Browse to an album that you want to play and press .
Playing a playlist
1. Press MENU.
2. Press or to browse to the Playlist option.
3. Press MENU to browse for tracks organized according to file names.
4. Browse to a playlist that you want to play and press .
Your player displays Title
ID3 tag information. When
this information is not
available, filenames are
displayed instead.
The availability and location
of options may vary,
depending on the version o
f
your player’s firmware.
If you cannot locate the Playlist option in the main menu, it may be located in
the Browser menu. To access the Browser menu, browse to the Browser
option and press MENU.
New_English_Omicron_13pg.fm Page 11 Tuesday, March 23, 2004 6:47 PM

12
Locking your player
1. Press MENU.
2. Press or to browse to the Lock option.
3. Press MENU to select this option.
will appear at the top right corner of the LCD.
4. To unlock your player, press MENU, browse to the Unlock option, and press MENU.
For more details on using your player, read the User’s Guide in the
Installation CD. Go to d:\manual\english\manual.pdf
(replace d:\ with the drive letter of your CD-ROM/DVD-ROM drive)
Aswithanydigitalmedia-basedstoragedevice,datashouldbebackedupregularly.Westrongly
recommend that you observe the usage precautions laid out in this booklet, and also back
upthedatainyourplayerregularly.InnoeventwillCreativebeliableforanyindirect,incidental,
special or consequential damages to any persons caused by Creative's negligence, or for any
lost profits, lost savings, loss of use, lost revenues or lost data arising from or relating to this
device, even if Creative has been advised of the possibility of such damages. In no event will
Creative’s liability or damages to you or any other person ever exceed the amount paid by
you for the device, regardless of the form of the claim. Some countries/states do not allow
the limitation or exclusion of liability for incidental or consequential damages, so the above
limitation or exclusion may not apply to you.
WARNING: Handling the cord(s) on this product may expose you to lead, a
chemical known to the State of California to cause cancer and birth defects or
other reproductive harm. Wash hands after handling.
New_English_Omicron_13pg.fm Page 12 Tuesday, March 23, 2004 6:47 PM

13
More Information
Creative Knowledgebase
Resolve and troubleshoot technical queries at Creative's 24-hour self-help Knowledgebase. Go
to http://www.creative.com and select your region.
Register Your Product!
Enjoy a host of benefits by registering your product during installation, or at
http://www.creative.com/register. Benefits include:
• Service and product support from Creative
• Exclusive updates on promotions and events.
Technical Support and Warranty
Technical Support information can be found on the Installation CD. Go to d:/support/
<language>/support.pdf
Warranty information can be found on the Installation CD as well. Go to d:/warranty/
<region>/<language>/warranty.pdf
(replace d:\ with the drive letter of your CD-ROM/DVD-ROM drive, <region> with the region
that you are in, and <language> with the language that your document is in)
Please keep your Proof of Purchase for the duration of the warranty period.
Copyright©2003-2004CreativeTechnologyLtd.Allrightsreserved.TheCreativelogoandMuVoareregistere
d
trademarks, and Creative MediaSource is a trademark of Creative Technology Ltd. in the United States and
/
or other countries. NOMAD is a registered trademark of Aonix and is used by Creative Technology Ltd. and
/
oritsaffiliatesunderlicense.Microsoft,WindowsandtheWindowslogoareregisteredtrademarksofMicroso
ft
Corporation. All other products are trademarks or registered trademarks of their respective owners and ar
e
hereby recognized as such. All specifications are subject to change without prior notice. Actual contents ma
y
differ slightly from those pictured.
New_English_Omicron_13pg.fm Page 13 Tuesday, March 23, 2004 6:47 PM

14
ฦㇱߩฬ⒓߅ࠃ߮ᯏ⢻
᛼ߒ⛯ߌࠆߎߣߦࠃࠅޔࡊ࡟࡯ࡗ࡯ߩ㔚Ḯࠍࠝࡦ /ࠝࡈߦߒ߹ߔޕ
ౣ↢߇஗ᱛߐࠇߚ⁁ᘒߢ৻ᐲ᛼ߔߣౣ↢߇㐿ᆎߐࠇޔ߽߁৻ᐲ᛼ߔߣ৻ᤨ஗ᱛߒ
߹ߔޕ
MENU ৻ᐲ᛼ߔߣޔᶧ᥏↹㕙ߦࡔ࠾ࡘ࡯߇⴫␜ߐࠇ߹ߔޕࡔ࠾ࡘ࡯ߩછᗧߩ㗄⋡ࠍㆬࠎ
ߛ⁁ᘒߢౣᐲ᛼ߔߎߣߦࠃࠅޔㆬᛯߒߚ㗄⋡ࠍ᳿ቯߒ߹ߔޕ
ࠍ᛼ߔߣޔᰴߩ࠻࡜࠶ࠢߦ㘧߮߹ߔޕ࠻࡜࠶ࠢౣ↢ߦ᛼ߒ⛯ߌࠆߣޔౣ↢
ߒߡ޿ࠆ࠻࡜࠶ࠢࠍᣧㅍࠅࠨ࡯࠴ߒ߹ߔޕ ࠍ᛼ߔߣޔ೨ߩ࠻࡜࠶ࠢߦ㘧߮߹
ߔޕ࠻࡜࠶ࠢౣ↢ߦ᛼ߒ⛯ߌࠆߣޔౣ↢ߒߡ޿ࠆ࠻࡜࠶ࠢࠍᏎ߈ᚯߒࠨ࡯࠴ߒ
߹ߔޕ
ࡔ࠾ࡘ࡯ࠍ㐿޿ߡ޿ࠆ⁁ᘒߢ ߣ ࠍ᛼ߒߡޔฦ㗄⋡ߩ㑆ࠍ⒖േߒ߹ߔޕ
ࠍ᛼ߔߣࡏ࡝ࡘ࡯ࡓ࡟ࡌ࡞߇߇ࠅޔ ࠍ᛼ߔߣࡏ࡝ࡘ࡯ࡓ࡟ࡌ࡞߇߇
ࠅ߹ߔޕ
ઃዻߩ AC ࠕ࠳ࡊ࠲࡯ࠍ⚻↱ߒߡޔࠦࡦ࠮ࡦ࠻ߣធ⛯ߒ߹ߔޕ
ઃዻߩ USB ࠤ࡯ࡉ࡞ࠍ૶ߞߡޔࠦࡦࡇࡘ࡯࠲࡯ߩ USB ࡐ࡯࠻ߦធ⛯ߒ߹ߔޕ
ࡋ࠶࠼ࡈࠜࡦޔ߹ߚߪࠝࡊ࡚ࠪࡦߩ FM ࡢࠗࡗ࡯࠼࡝ࡕࠦࡦࠍធ⛯ߒ߹ߔޕ
ᶧ᥏↹㕙
ߎߩࡏ࠲ࡦࠍ᛼ߒ⛯
ߌߡޔࡊ࡟࡯ࡗ࡯ߩ
㔚Ḯࠍࠝࡦ /ࠝࡈߦ
ߒ߹ߔޕ
ࡊ࡟࡯ࡗ࡯ߦ෼㍳ߐࠇߡ޿ࠆ࠻
࡜࠶ࠢߩ㊂߇ᄙߊߥࠆߦߟࠇޔ㔚
Ḯࠍᛩ౉ߒߡ߆ࠄࡊ࡟࡯ࡗ࡯߇⿠
േߔࠆ߹ߢߩᤨ㑆߇⧯ᐓ㐳ߊߥࠅ
߹ߔޕ㔚Ḯࠍ౉ࠇߚߦ߽㑐ࠊࠄߕ
ࡊ࡟࡯ࡗ࡯߇ᔕ╵ߒߥ޿႐วߪޔ
30 ⑽એᓙߞߚᓟߦࡊ࡟࡯ࡗ࡯ߩ
㔚Ḯࠍಾࠅޔౣᐲ㔚Ḯࠍᛩ౉ߒߡ
ߐ޿ޕ
ᣣᧄ⺆
1OKETQPHOࡍ࡯ࠫ㧞㧜㧜㧠ᐕ㧝᦬㧞㧥ᣣޓᧁᦐᣣޓඦᓟ㧞ᤨ㧡㧜ಽ

15
ߏ૶↪ߩ೨ߦ
ࡃ࠶࠹࡝࡯ߩల㔚
1. ઃዻߩࡃ࠶࠹࡝࡯ࠍߩ࿑ߩᚻ㗅ߦߒߚ߇ߞߡޔࡊ࡟࡯ࡗ࡯ߦขࠅઃߌ߹ߔޕ
2. ઃዻߩ AC ࠕ࠳ࡊ࠲࡯ࠍ⚻↱ߒߡޔࡊ࡟࡯ࡗ࡯ࠍࠦࡦ࠮ࡦ࠻ߦធ⛯ߒ߹ߔޕల㔚߇㐿ᆎߐࠇࠆ
ߣޔ ߇ᶧ᥏↹㕙ߦ⴫␜ߐࠇ߹ߔޕ
3. ೋ߼ߡࡃ࠶࠹࡝࡯ࠍల㔚ߔࠆ㓙ߪޔᔅߕࡃ࠶࠹࡝࡯ࠍቢోߦల㔚ߒߡߐ޿ޕቢోߦల㔚ߐࠇ
ߥ޿ౝߦల㔚ࠍᱛ߼ࠆߣޔࡃ࠶࠹࡝࡯ߩᦨᄢኈ㊂߇󰶌ࠆ႐ว߇޽ࠅ߹ߔޕቢోߦల㔚ߐࠇߚߩ
ࠍ⏕⹺ߔࠆߦߪޔࡊ࡟࡯ࡗ࡯ߩ㔚Ḯࠍ౉ࠇߚ߹߹ల㔚ߒߡ޿ࠆ႐วߪ ߇ᶧ᥏↹㕙ߦ⴫␜ߐ
ࠇࠆ߹ߢޔ㔚Ḯࠍಾߞߡల㔚ࠍߒߡ޿ࠆ႐วߪ ߇ᶖ߃ࠆ߹ߢࡃ࠶࠹࡝࡯ࠍల㔚ߒߡߐ޿ޕ
ࠬ࠹࠶ࡊ1
1OKETQPHOࡍ࡯ࠫ㧞㧜㧜㧠ᐕ㧝᦬㧞㧥ᣣޓᧁᦐᣣޓඦᓟ㧞ᤨ㧡㧜ಽ

16
Creative NOMAD MuVo² 1.5 / 4.0GB ࠍ߅૶޿ߩᣇ߳
USB ࠗࡦ࠲࡯ࡈࠚ࡯ࠬ߆ࠄࡃ࠶࠹࡝࡯ߩల㔚ࠍⴕ߁ߦߪޔએߩᚻ㗅ߦᓥߞߡߐ޿㧦
1. ઃዻߩ USB ࠤ࡯ࡉ࡞ࠍ૶ߞߡޔࡊ࡟࡯ࡗ࡯ࠍࠦࡦࡇࡘ࡯࠲࡯ߩ USB ࡐ࡯࠻ߦធ⛯ߒ߹ߔޕ
2. Windows ࠛࠢࠬࡊࡠ࡯࡜ߢ [ ࡝ࡓ࡯ࡃࡉ࡞࠺ࠖࠬࠢ ]ࠕࠗࠦࡦࠍฝࠢ࡝࠶ࠢߒߡࡔ࠾ࡘ࡯ࠍ
⴫␜ߐߖޔ[ ขࠅ಴ߒ ]ࠍㆬᛯߒߡߐ޿ޕ ߇ࡊ࡟࡯ࡗ࡯ߩᶧ᥏↹㕙ߦ⴫␜ߐࠇ߹ߔޕ
3. ᶧ᥏↹㕙߆ࠄࠕࠗࠦࡦ߇ᶖ߃ߚࠄޔࡃ࠶࠹࡝࡯ߩల㔚ߪቢߢߔޕ
4. ᱜߒ޿ᣇᴺߢࡊ࡟࡯ࡗ࡯ࠍࠦࡦࡇࡘ࡯࠲࡯߆ࠄขࠅᄖߒߡߐ޿㧔59 ࡍ࡯ࠫߩޟࡊ࡟࡯ࡗ࡯ࠍ
ᱜߒߊขࠅᄖߔޠࠍෳᾖߒߡߐ޿㧕ޕ
࠰ࡈ࠻࠙ࠚࠕߩࠗࡦࠬ࠻࡯࡞
1. ࠗࡦࠬ࠻࡯࡞ CD ࠍCD-ROM/DVD-ROM ࠼࡜ࠗࡉߦᝌ౉ߒ߹ߔޕ
2. ࠺ࠖࠬࠢߪ Windows ߩࠝ࡯࠻࡜ࡦߦኻᔕߒߡ޿ࠆߚ߼ޔࠗࡦࠬ࠻࡯࡜߇⥄േ⊛ߦ⿠േߒ߹ߔޕ
⥄േ⊛ߦ⿠േߒߥ޿႐วߪޔWindows ߩ[ ࠬ࠲࡯࠻ ]ޓࡏ࠲ࡦࠍࠢ࡝࠶ࠢߒޔ[ࡈࠔࠗ࡞ฬࠍᜰ
ቯߒߡታⴕ ]ࠍࠢ࡝࠶ࠢߒ߹ߔޕ[ ࡈࠔࠗ࡞ฬࠍᜰቯߒߡታⴕ ]࠳ࠗࠕࡠࠣࡏ࠶ࠢࠬߢ
ޟd:¥ctrun¥ctrun.exeޠߣ౉ജߒ߹ߔ㧔ޟd:¥ޠߪ CD-ROM/DVD-ROM ࠼࡜ࠗࡉࠍ⴫ߔᢥሼߢߔ 㧕ޕ
౉ജ߇ቢߒߚࠄޔ[OK] ࡏ࠲ࡦࠍࠢ࡝࠶ࠢߒ߹ߔޕ
3. ↹㕙ߩᜰ␜ߦᓥߞߡࠗࡦࠬ࠻࡯࡞ࠍ⛯ⴕߒ߹ߔޕCreative MediaSource™ޔ߅ࠃ߮ Windows 98
SE ࠼࡜ࠗࡃ㧔⹥ᒰߔࠆ႐วߩߺ㧕߇ࠦࡦࡇࡘ࡯࠲࡯ߦࠗࡦࠬ࠻࡯࡞ߐࠇ߹ߔޕ
4. ࠗࡦࠬ࠻࡯࡞߇ቢߒޔࠦࡦࡇࡘ࡯࠲࡯ࠍౣ⿠േߔࠆࠃ߁ߦᜰ␜ߐࠇߚ႐วߪޔ[ߪ޿ޔߚߛ
ߜߦࠦࡦࡇࡘ࡯࠲࡯ࠍౣ⿠േߒ߹ߔޕ]ࠍㆬᛯߒ߹ߔޕ
ࡃ࠶࠹࡝࡯ߩల㔚ࠍ㐿ᆎߔࠆ೨ߦޔࡊ࡟࡯ࡗ࡯ߦࡈࠔࠗ࡞ࠍォㅍߒߚࠅޔࡊ࡟࡯ࡗ࡯ߦ෼㍳ߐࠇߡ
޿ࠆࡈࠔࠗ࡞ࠍࠦࡦࡇࡘ࡯࠲࡯߆ࠄ೥㒰ߒߚࠅߒߚ႐วޔ৻ᐲࡊ࡟࡯ࡗ࡯ࠍࠦࡦࡇࡘ࡯࠲࡯߆ࠄ
ᱜߒ޿ᣇᴺߢขࠅᄖߒ㧔59 ࡍ࡯ࠫߩޟࡊ࡟࡯ࡗ࡯ࠍᱜߒߊขࠅᄖߔޠߩᚻ㗅ߦᓥߞߡޔࡊ࡟࡯ࡗ࡯
ࠍᦨೋߦ஗ᱛߒߡߐ޿㧕ޔ޽ߣߪᚻ㗅 2㨪4ߦᓥߞߡࡃ࠶࠹࡝࡯ࠍల㔚ߒߡߐ޿ޕ
•ઃዻߩ AC ࠕ࠳ࡊ࠲࡯߆ࠄࡃ࠶࠹࡝࡯ߩల㔚ࠍⴕ߁㓙ߪޔᧄ㗄⋡ߩᚻ㗅ߦᓥ߁ᔅⷐߪ޽ࠅ߹ߖࠎޕ
•ቢోߦࡃ࠶࠹࡝࡯ߩల㔚߇ቢߒߡ޿ߥ޿႐วߢ߽ޔࡊ࡟࡯ࡗ࡯ࠍࠦࡦࡇࡘ࡯࠲࡯߆ࠄขࠅᄖߔ
ߎߣߪߢ߈߹ߔޕ
•USBࠗࡦ࠲࡯ࡈࠚ࡯ࠬ⚻↱ߢߩࡃ࠶࠹࡝࡯ల㔚ߪޔࡊ࡟࡯ࡗ࡯ߩᠲ૞ޔ෸߮ࡊ࡟࡯ࡗ࡯ߦኻ
ߔࠆ৻ಾߩࡈࠔࠗ࡞ォㅍ߇ⴕ߃ߥߊߥࠅ߹ߔޕ
•ᄙᢙߩࡈࠔࠗ࡞߿㖸ᭉࠍࡊ࡟࡯ࡗ࡯ߦォㅍߔࠆ೨ߦޔࡊ࡟࡯ࡗ࡯ߩࡃ࠶࠹࡝࡯ߦలಽ㔚ജ߇ᱷߞ
ߡ޿ࠆ߆ߤ߁߆ࠍ⏕⹺ߒ߹ߒࠂ߁ޕ
ࠬ࠹࠶ࡊ 2
1OKETQPHOࡍ࡯ࠫ㧞㧜㧜㧠ᐕ㧝᦬㧞㧥ᣣޓᧁᦐᣣޓඦᓟ㧞ᤨ㧡㧜ಽ

17
࠻࡜࠶ࠢߩォㅍ
1. ઃዻߩ USB ࠤ࡯ࡉ࡞ࠍ૶ߞߡޔࡊ࡟࡯ࡗ࡯ࠍࠦࡦࡇࡘ࡯࠲࡯ߩ USB ࡐ࡯࠻ߦធ⛯ߒ߹ߔޕ
2. Windows ࠛࠢࠬࡊࡠ࡯࡜ࠍ⿠േߒ߹ߔޕࡊ࡟࡯ࡗ࡯ߪޔWindows ࠛࠢࠬࡊࡠ࡯࡜ߢ࡝ࡓ࡯ࡃࡉ
࡞ ࠺ࠖࠬࠢߣߒߡ⹺⼂ߐࠇ߹ߔޕ
3. MP3ޔWAVޔ߹ߚߪ WMA ࡈࠔࠗ࡞ࠍ࠼࡜࠶ࠣࠕࡦ࠼࠼ࡠ࠶ࡊߒߡޔࡊ࡟࡯ࡗ࡯ߦォㅍߒ߹ߔޕ
4. ォㅍ߇ቢߒߚࠄޔࡊ࡟࡯ࡗ࡯ࠍࠦࡦࡇࡘ࡯࠲࡯߆ࠄขࠅᄖߔ೨ߦޔࡊ࡟࡯ࡗ࡯߇஗ᱛߐࠇߚ
߆ߤ߁߆ࠍᔅߕ⏕⹺ߒߡߐ޿ޕ
ࠬ࠹࠶ࡊ 3
ᵈᗧ㧍ޓ࠺࡯࠲ߩ⎕៊╬ߩ໧㗴ࠍㆱߌࠆߚ߼ߦߪޔࠦࡦࡇࡘ࡯࠲࡯߆ࠄࡊ࡟࡯ࡗ࡯ࠍ
ขࠅᄖߔ೨ߦޔࡊ࡟࡯ࡗ࡯ࠍᱜߒ޿ᚻ㗅ߢ஗ᱛߔࠆᔅⷐ߇޽ࠅ߹ߔޕ
⹦⚦ߪ 59 ࡍ࡯ࠫߩޟࡊ࡟࡯ࡗ࡯ࠍᱜߒߊขࠅᄖߔޠࠍෳᾖߒߡߐ޿ޕ
1OKETQPHOࡍ࡯ࠫ㧞㧜㧜㧠ᐕ㧝᦬㧞㧥ᣣޓᧁᦐᣣޓඦᓟ㧞ᤨ㧡㧜ಽ

18
Creative MediaSource
Creative MediaSource ࠍ૶߃߫ޔ㖸ᭉ CD ߆ࠄ MP3ޔWAVEޔWMA ࡈࠔࠗ࡞ߩ૞ᚑޔࡊ࡟ࠗ࡝ࠬ࠻ߩ
૞ᚑ߿ ID3 ࠲ࠣߩ౉ജߣ޿ߞߚ৻ㅪߩಣℂࠍోߡⴕ߁ߎߣ߇ߢ߈߹ߔޕ߹ߚޔ⪺૞ᮭ଻⼔㧔DRM㧕㧕ߩ
ઃ޿ߚ WMA ࡈࠔࠗ࡞ࠍࡊ࡟࡯ࡗ࡯ߢౣ↢ߔࠆߦߪޔࡈࠔࠗ࡞ࠍ Creative MediaSource ࠍ↪޿ߡォㅍ
ߔࠆᔅⷐ߇޽ࠅ߹ߔޕCreative MediaSource ࡊ࡟࡯ࡗ࡯ / ࠝ࡯ࠟ࠽ࠗࠩࠍ⿠േߔࠆߦߪޔ࠺ࠬࠢ࠻࠶ࡊ
ߩ [Creative MediaSource ࡊ࡟ࠗࡗ࡯ /ࠝ࡯ࠟ࠽ࠗࠩ ]ࠕࠗࠦࡦ ࠍ࠳ࡉ࡞ࠢ࡝࠶ࠢߒ߹ߔޕ.
࠻࡜࠶ࠢߩౣ↢
1. ࡊ࡟࡯ࡗ࡯ߩ㔚Ḯ߇౉ࠆ߹ߢ ࠍ᛼ߒ⛯ߌ߹ߔޕ
2. ࠍ᛼ߒޔࡊ࡟࡯ࡗ࡯ߦォㅍߒߚ࠻࡜࠶ࠢߩౣ↢ࠍ㐿ᆎߒ߹ߔޕ
3. ࠍ᛼ߒߡࡏ࡝ࡘ࡯ࡓࠍߍޔ ࠍ᛼ߒߡࡏ࡝ࡘ࡯ࡓࠍߍ߹ߔޕ
4. ࡊ࡟࡯ࡗ࡯ࠍ⚳ߔࠆ႐วߪޔࡊ࡟࡯ࡗ࡯ߩ㔚Ḯ߇ಾࠇࠆ߹ߢࠍ ᛼ߒ⛯ߌ߹ߔޕ
࠺࡯࠲ߩォㅍߦߪࡊ࡟࡯ࡗ࡯ࠍࠦࡦ
ࡇࡘ࡯࠲࡯߆ࠄ᳿ߒߡขࠅᄖߐߥ޿ߢ
ߐ޿ޕ
ࠬ࠹࠶ࡊ 4
ࡊ࡟࡯ࡗ࡯ߩ࡞࡯࠻࠺ࠖ࡟ࠢ࠻࡝ߦ෼㍳ߐࠇߡ޿ࠆ࠻࡜࠶ࠢࠍౣ↢ߔࠆߦߪ㧦
1. [MENU] ࡏ࠲ࡦࠍ᛼ߒ߹ߔޕ
2. ࠍ᛼ߒߡ [ࡈࠜ࡞࠳㧔࡞࡯࠻㧕]ࠍࡂࠗ࡜ࠗ࠻ߒޔ ࠍ᛼ߒ߹ߔޕ
[ࡈࠜ࡞࠳㧔࡞࡯࠻㧕]߇ࡔ࠾ࡘ࡯ߢ⷗ߟ߆ࠄߥ޿႐วߪ㧦
1. [MENU] ࡏ࠲ࡦࠍ᛼ߒ߹ߔޕ
2. ࠍ᛼ߒߡޔ[ෳᾖ ]ࠍㆬᛯߒ߹ߔޕ
3. ౣᐲ [MENU] ࡏ࠲ࡦࠍ᛼ߒߡޔ᳿ቯߒ߹ߔޕ
4. [ ࡈࠜ࡞࠳㧔࡞࡯࠻㧕]ࠍㆬᛯߒޔ ࠍ᛼ߒ߹ߔޕ
1OKETQPHOࡍ࡯ࠫ㧞㧜㧜㧠ᐕ㧝᦬㧞㧥ᣣޓᧁᦐᣣޓඦᓟ㧞ᤨ㧡㧜ಽ
