Creative ZEN User manual

i
English....................................................................1
简体中文 ...............................................................17
繁體中文 ...............................................................33
日本語...................................................................49
한국어...................................................................65
Türkçe...................................................................81
Contents.fm Page i Monday, January 31, 2005 12:16 PM

ii
Contents.fm Page ii Monday, January 31, 2005 12:16 PM

Getting Started 1 English
Getting Started
Congratulations on your purchase of Zen! Follow the next few steps to set up the software
and your player to enjoy a new level in portable digital entertainment.
Killer_new.fm Page 1 Wednesday, January 26, 2005 5:18 PM

2 Charge the battery
Step 1: Charge the battery
1Connect the power adapter to your player, and then connect the power adapter to a power
outlet. If necessary, turn on the power outlet.
When the battery is charging, the battery charging icon flashes on the LCD.
2Disconnect your player from the power adapter when the battery is fully charged and you
see on your player’s LCD. Fully charging your player takes approximately three hours.
NOTE The power outlet shown may differ, depending on the country you are in.
Killer_new.fm Page 2 Wednesday, January 26, 2005 5:18 PM

Play music 3
Step 2: Play music
1Slide the Power switch towards the power icon and hold it there until the LCD lights
up.
2When you turn on Zen for the first time, the menu is in English. To change the language:
i. Press the Menu/Back button. The main menu appears.
ii. Use the Vertical Touch Pad to select System Language, and then select the
language that you want. For tips on using the Vertical Touch Pad, see “Using the
Vertical Touch Pad” on page 9, or refer to the User’s Guide on the Installation and
Applications CD.
USB
Killer_new.fm Page 3 Wednesday, January 26, 2005 5:18 PM

4 Play music
3Congratulations! You can now use your player.
Zen is preloaded with some music to get you started immediately. Connect the earphones
and press the Play/Pause button to start listening.
To start listening to your own music on Zen, proceed to the next step.
TIP During playback, move your thumb up and down the Vertical Touch Pad to adjust the
volume.
Killer_new.fm Page 4 Wednesday, January 26, 2005 5:18 PM

Play music 5
Step 3: Set up the software
1Turn on your computer.
If you have Microsoft®Windows®XP or Windows 2000, remember to log on as an
administrator before setting up the software. For more information, refer to your
operating system’s online Help.
2Insert the Installation and Applications CD into your CD-ROM/DVD-ROM drive.
Your CD should start automatically. If it does not, follow the steps below:
i. Start Windows Explorer.
ii. On the left pane, click the My Computer icon.
iii. Right-click the CD-ROM/DVD-ROM drive icon, and then click Autoplay.
3Follow the instructions on the screen.
4If prompted, restart your computer.
WARNING DO NOT connect your player to your computer before setting up the software.
Killer_new.fm Page 5 Tuesday, February 1, 2005 3:58 PM

6 Transfer music
Step 4: Transfer music

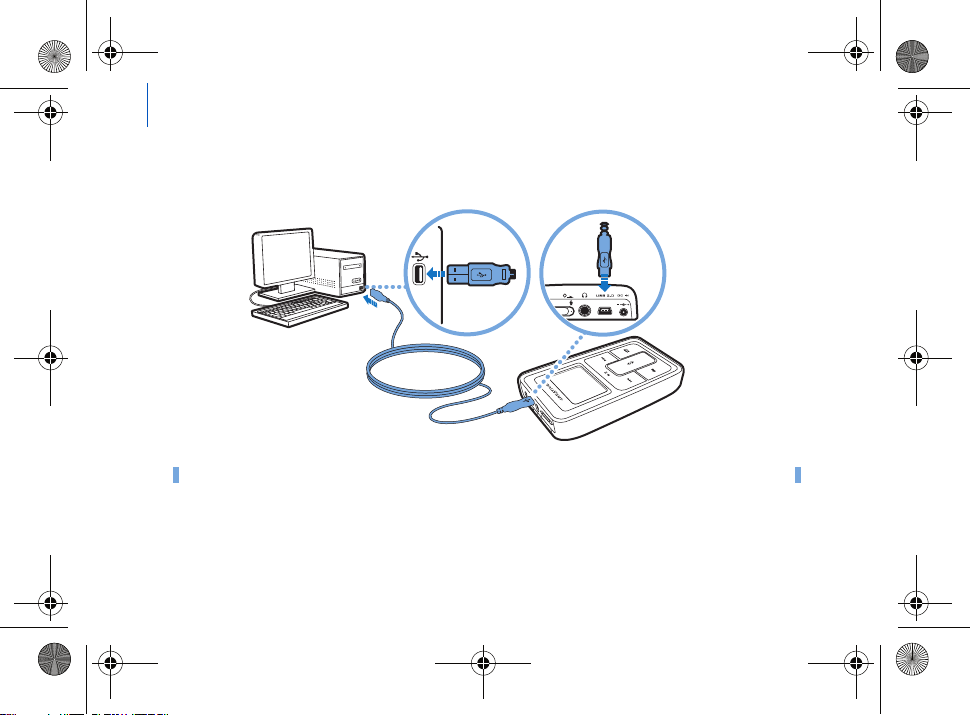

1Connect your player to your computer’s USB port with the supplied USB cable.
TIP Your computer’s USB port may be located on the front, rear or side panels.
Killer_new.fm Page 6 Wednesday, January 26, 2005 5:18 PM

Transfer music 7
2When your computer detects your player, Creative MediaSource™ or Windows Media
Player starts automatically. Transfer your music tracks (MP3 or WMA files) to Zen with
either one of these applications.
TIP ■For tips on downloading music tracks from the Internet, refer to the User’s Guide
on your Installation and Applications CD:
d:\manual\<language>\manual.pdf (replace d:\ with the drive letter of your
CD-ROM/DVD-ROM drive and <language> with the language that your document
is in)
■You can find information on ripping and transferring music in Creative
MediaSource’s online Help.
Killer_new.fm Page 7 Wednesday, January 26, 2005 5:18 PM

8 Transfer music
3When you have finished transferring music tracks, disconnect Zen.
DO NOT disconnect your player if you see the first picture below on the LCD. Track or data
file transfer is in progress and disconnecting your player may damage the content being
transferred.
Wait until you see the second picture below before disconnecting your player.
Docked
Docked
Killer_new.fm Page 8 Wednesday, January 26, 2005 5:18 PM

Using the Vertical Touch Pad 9
Using the Vertical Touch Pad

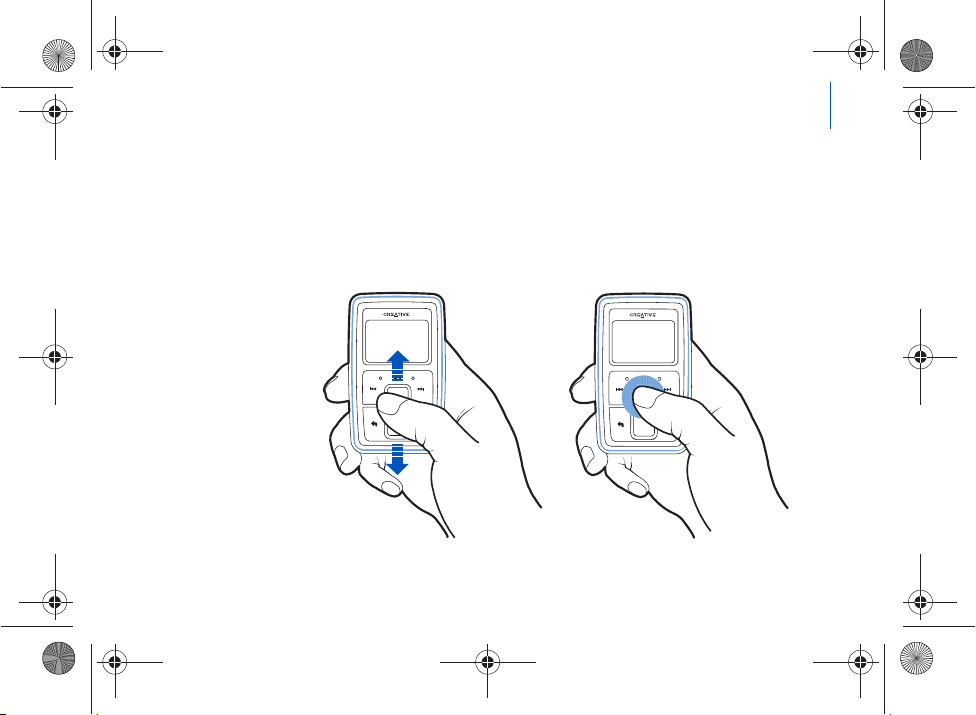

■Move your thumb up and down the Vertical Touch Pad to scroll through menu
items.
To rapidly scroll though menu items, hold down the top or bottom portion of the
Vertical Touch Pad with your thumb.
To select a menu item, firmly tap the Vertical Touch Pad.
Killer_new.fm Page 9 Wednesday, January 26, 2005 5:18 PM

10 Using the Vertical Touch Pad
■To adjust the sensitivity of the Vertical Touch Pad, press the Menu/Back
button, and select System
Player Settings Touch Pad Sensitivity. Sensitivity
can be set to low, medium or high.
■To turn the Vertical Touch Pad's clicking sound on and off, press the Menu/Back
button, and select System Player Settings Touch Pad Clicker.
■Slide the Power switch towards the Lock icon to disable Zen's Vertical Touch
Pad and buttons. This is useful when you do not want to activate controls
accidentally when your player is in your pocket or bag.
USB
Killer_new.fm Page 10 Wednesday, January 26, 2005 5:18 PM

Storing and Transferring Data Files 11
Storing and Transferring Data Files
Using Zen Media Explorer
Use Zen Media Explorer if you need to transfer data files between Zen and your computer.
Zen Media Explorer offers you the ease of managing your player’s data files (as well as
music tracks), in a Windows Explorer environment. Zen Media Explorer is automatically
installed when you set up the Zen software on your computer. For more information, refer
to Zen Media Explorer's online Help.
Using Removable Disk mode
If you are using a shared computer in school or at the office, and installing Zen Media
Explorer is not possible, you can still transfer data files. Just enable Zen's Removable
Disk mode. Read on for tips on using Removable Disk mode. For detailed information,
refer to the User's Guide in the Installation and Applications CD.
I do not need to transfer data files using Removable Disk mode. Do I still need to select
hard disk space settings for Removable Disk mode?
No, you should only enable Removable Disk mode and select its settings if you need to
use it.
Killer_new.fm Page 11 Wednesday, January 26, 2005 5:18 PM

12 Storing and Transferring Data Files
How do I enable Removable Disk mode?
Press the Menu/Back button, and select Extras Removable Disk.
When you enable Removable Disk mode for the first time, you will be prompted to select
the amount of hard disk space you want to use for this mode. It may take up to a couple of
minutes for Zen to set up the Removable Disk hard disk space.
Make sure the Removable Disk mode icon appears on Zen's LCD before you connect your
player to your computer.
Can I change the Removable Disk hard disk space settings later?
Yes, you may change the allocated hard disk space at any time. However, do note that the
space allocated for Removable Disk mode cannot be smaller than the space used by your
existing files.
To delete all the data files in the Removable Disk hard disk space, press the Options
button while in Removable Disk mode and select Format. Use Windows Explorer if you
want to delete individual data files stored in Removable Disk mode.
Killer_new.fm Page 12 Wednesday, January 26, 2005 5:18 PM

Storing and Transferring Data Files 13
When Zen is in Removable Disk mode, can I use Zen Media Explorer to transfer files?
No, files transferred using Removable Disk mode are stored separately from files
transferred using Zen Media Explorer. In fact, when Zen is in Removable Disk mode, you
will not see your player in Zen Media Explorer.
To transfer files using Zen Media Explorer, exit from Removable Disk mode by clicking the
root folder of Zen Media Explorer. To access the files stored in Removable Disk mode
again, enable Removable Disk mode and then reconnect Zen to your computer.
Killer_new.fm Page 13 Wednesday, January 26, 2005 5:18 PM

14 Safety Advice
Safety Advice
Refer to the following information to use your player safely, and to reduce the chance of
electric shock, short-circuiting, damage, fire, hearing impairment or other hazards.
■Do not dismantle or attempt to repair your player, battery or power adapter.
■Refer all servicing to Creative or authorized repair agents.
■Do not expose your player or battery to temperatures outside the range of 0°C to
45°C (32°F to 113°F).
■Do not pierce, crush or set fire to your player or battery.
■Keep your player or battery away from strongly magnetic objects.
■Do not subject your player to excessive force or impact.
■Do not expose your player or battery to water or moisture.
If your player is moisture-resistant (see product packaging for details), take care
not to immerse your player in water or expose it to rain.
■Do not listen to audio at high volume for prolonged periods of time.
■Do not attempt to remove the embedded battery. The player must be disposed of
according to local environmental regulations. To replace the battery, return your
player to your regional support office. For product service information, go to
www.creative.com.
NOTE Improper handling may void the warranty for your player. For more information, read
the Warranty available with your product.
Killer_new.fm Page 14 Wednesday, January 26, 2005 5:18 PM

Safety Advice 15
More Information
Creative Knowledge Base
Resolve and troubleshoot technical queries at Creative's 24-hour self-help Knowledge
Base. Go to www.creative.com and select your region.
Register your product!
Enjoy a host of benefits by registering your product during installation, or at
www.creative.com. Benefits include:
■Service and product support from Creative
■Exclusive updates on promotions and events.
Please note that your warranty rights are not dependent on product registration.
Killer_new.fm Page 15 Wednesday, January 26, 2005 5:18 PM

16 Safety Advice
Customer Support Services and Warranty
You can find Customer Support Services, Warranty and other information in the
Installation and Applications CD.
(replace d:\ with the drive letter of your CD-ROM/DVD-ROM drive, <region> with the
region that you are in, and <language> with the language that your document is in)
Customer Support Services d:\support\<region>\<language>\support.chm
Warranty d:\warranty\<region>\<language>\warranty.pdf
Please keep your Proof of Purchase for the duration of the warranty period.
User’s Guide d:\manual\<language>\manual.pdf
Copyright © 2005 Creative Technology Ltd. All rights reserved. The Creative logo is a trademark of Creative Technology
Ltd. in the United States and/or other countries. Microsoft, Windows and the Windows logo are registered trademarks of
Microsoft Corporation. All other products are trademarks or registered trademarks of their respective owners and are
hereby recognized as such. All specifications are subject to change without prior notice. Actual contents may differ slightly
from those pictured.
Killer_new.fm Page 16 Wednesday, January 26, 2005 5:18 PM

使用入门 17 简体中文
使用入门
感谢您购买 Zen！请执行以下几个步骤安装软件，设置播放机，享受移动数字娱乐的新境
界。
Killer_new.fm Page 17 Tuesday, February 1, 2005 2:48 PM

18 为电池充电
1将电源变压器连接至播放机，然后将电源变压器连接至电源插座。 如果需要，打开电源插
座的开关。
电池充电时，电池充电图标 在 LCD 上闪烁。
2电池完全充电后断开播放机与电源变压器的连接，您将在播放机的 LCD 上看到 。 为
注意 所示电源插座依据您所在国家的不同可能存在差异。
Killer_new.fm Page 18 Tuesday, February 1, 2005 2:48 PM
播放机完全充电大约需要 3 小时。
步骤 1: 为电池充电
