Cres Cor H138NPS-CLC Series Manual

LITTLE CAESARS HOT-N-READY
OPERATING and MAINTENANCE INSTRUCTIONS
Model: H138NPS-CLC Pass-Thru Hot Cabinet Series
5925 Heisley Road • Mentor, OH 44060-1833
Pass-Thru
Holding Cabinet FL-2254LC
Rev. 7 (7/07) Page 1 of 4
Call Toll-free: 877-CRES COR (273-7267) • Fax: [phone] • www.crescor.com
ELECTRICAL SPECIFICATIONS:
Model No. Volts Watts Amps Hertz Phase NEMA
H138NPS-CLC Series 120 1920 16 60 1 5-20P
H138NPS-CLC 240 Series 240 2000 8.3 60 1 6-15P
H138NPS-CLC Series

5925 Heisley Road • Mentor, OH 44060-1833
Call Toll-free: 877-CRES COR (273-7267) • Fax: [phone] • www.crescor.com
LITTLE CAESARS HOT-N-READY
OPERATING and MAINTENANCE INSTRUCTIONS
Model: H138NPS-CLC Pass-Thru Hot Cabinet Series
Pass-Thru
Holding Cabinet FL-2254LC
Rev. 7 (7/07) Page 2 of 4
HOW TO START UNIT:
Push POWER switch to ON. The yellow light will
turn on.
Turn thermostat knob to desired setting.
Preheat cabinet for 30-45 minutes.
Put food into cabinet and close door.
Typical temperature settings:
No. 5-1/2 setting = approx. 160°F/71°C
No. 8 setting = approx. 185°F/85°C
NOTE: Proper food holding temperature is
140°F/60°C or higher.
1.
2.
3.
4.
TO TURN OFF UNIT:
Push the POWER switch to OFF.
The yellow light will go out.
HOW TO INSTALL UNIT:
Place cabinet on level floor.
Plug cord into proper wall outlet.
1.
2.
Yellow Light
Power Switch
Thermostat Thermometer
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REPAIR SHOULD BE DONE BYAUTHORIZED SERVICE
PERSONNEL ONLY
RISK OF FIRE OR ELECTRIC SHOCK
DO NOT OPEN
WARNING

LITTLE CAESARS HOT-N-READY
OPERATING and MAINTENANCE INSTRUCTIONS
Model: H138NPS-CLC Pass-Thru Hot Cabinet Series
5925 Heisley Road • Mentor, OH 44060-1833
Pass-Thru
Holding Cabinet FL-2254LC
Rev. 7 (7/07) Page 3 of 4
Call Toll-free: 877-CRES COR (273-7267) • Fax: [phone] • www.crescor.com
TROUBLE-SHOOTING CHART:
FAILURE: POSSIBLE CAUSE:
1. Yellow light on switch does NOT light. 1a. Circuit breaker/fuse to wall outlet is blown
1b. Cord is unplugged from wall outlet.
1c. Switch is “OFF.”
2. Unit does not heat. 2a. Thermostat set too low or is “OFF.”
2b. Switch is “OFF.”
3. Unit gets too hot or won’t shut off. 3a. Defective electrical parts. UNPLUG UNIT
FROM WALL OUTLET:
4. Blower does not work or makes noise. 4a. Defective blower
If cause is none of the above, refer to our list of Authorized Service Centers, FL-1400
Cleaning Notes:
Wipe up spills as soon as possible.
Clean cabinet regularly to avoid heavy dirt build-up.
Make a test spot with cleaner.
Follow manufacturer’s directions on cleaner.
Do not mix cleaners.
Avoid drips and splashes.
1.
2.
3.
4.
5.
6.
BEFORE Cleaning the Cabinet:
Allow cabinet to cool.
Do NOT use abrasives or harsh chemicals.
1.
2.
HOW TO CLEAN UNIT:
SOIL CLEANER METHOD
DIRT
Mild detergent* and hot water, or mild
abrasive cleaner.
1. Use soft, damp cloth.
2. Rinse with hot water
3. Wipe dry.
Steam (no strong alkaline additive). 1. Rinse after steam cleaning.
2. Wipe dry.
FINGERPRINTS,
GREASE and OIL
Chemical oven cleaner. Follow oven cleaner manufacturer’s
directions
Mild abrasive cleaner; oily or waxy
cleaner. Apply with a soft, clean cloth.
WATER SPOTS Mild abrasive cleaner. 1. Apply with damp cloth.
2. Rinse and dry.
*Mild detergents include soaps and non-abrasive cleaners.
WARNING

5925 Heisley Road • Mentor, OH 44060-1833
Call Toll-free: 877-CRES COR (273-7267) • Fax: [phone] • www.crescor.com
LITTLE CAESARS HOT-N-READY
OPERATING and MAINTENANCE INSTRUCTIONS
Model: H138NPS-CLC Pass-Thru Hot Cabinet Series
Pass-Thru
Holding Cabinet FL-2254LC
Rev. 7 (7/07) Page 4 of 4
G
W
TERMINAL BLOCK
POWER
SWITCH
5-20P
120V; 20A
FAN
BM
A
6-15P PLUG
240V, 15A
1
2
2
13
34
4
56
HIGH LIMIT
10 9 8
54
t°
67
15
16
15
16 4 520
HEATER AIR
FANBM
HIGH LIMIT
21
7
8
2324
G
TEMPERATURE CONTROL BOARD
SENSOR
G
208/240V. UNITS - ATTACH WIRE #15 TO
TERMINAL #10 OF TEMP. CONT. BOARD.
TERMINAL #9 OF TEMP. CONT. BOARD.
120V. UNITS - ATTACH WIRE #15 TO
WIRE NUT UNUSED LEAD.
NOTES:
= PROTECTIVE SLEEVE
BM = BLOWER MOTOR
FAN = VENT FAN
A = AMBER (YELLOW) LIGHT
HOT UNIT REPLACEMENT PARTS: CABINET REPLACEMENT PARTS:
DESCRIPTION 120 VOLT 240 VOLT DESCRIPTION CMP NO.
Power Unit 0675-048LC 0675-057LC Door, Full 1221-540
Heater, Air 0811-074 0811-074-1 Door, Full, Window 1221-550
High Limit 0848-060 0848-060 Door, Half, Window 1221-535-01
Thermometer 5238-030 5238-030 Door, Half 1221-534
Thermostat, Air 0848-008-ACK 0848-008-ACK Door Gasket, Full 0861-246
Power Cord 0810-065-12-K 0810-039-07-K Door Gasket, Half 0861-245
Power Switch 0808-116 0808-116 Door Hinge (Full Door) 0519-089
Power Light 0766-094 0766-095 Door Hinge (Half Door) 0519-087-K
Vent Fan 0769-165 0769-174 Door Latch 1006-120-01
Blower 0769-180-K 0769-182-K Caster 0569-306
Caster with Brake 0569-306-B
Angle Slide Set 0621-281-K
Post, Angle Slide 0696-228
Blower Guard 1170-211

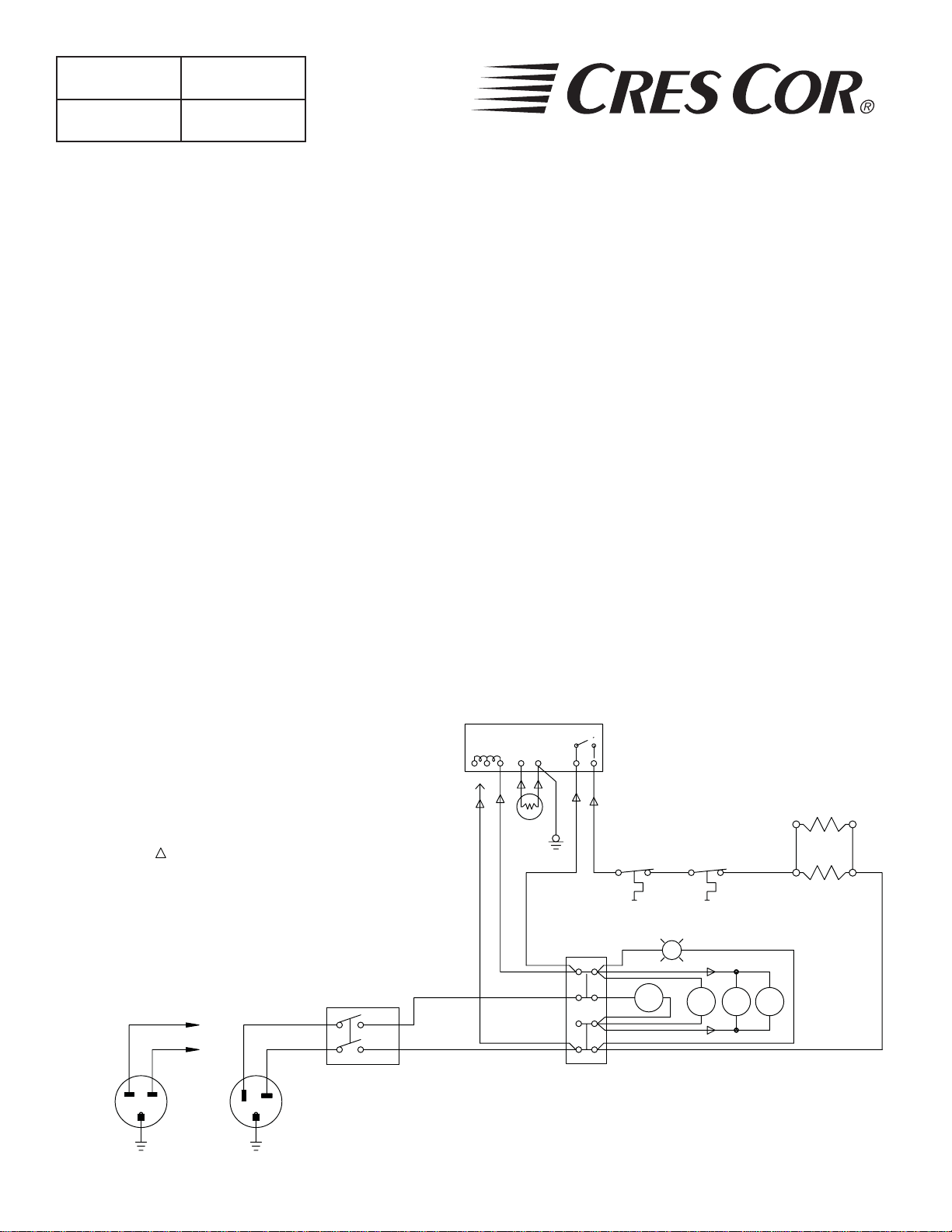

WIRING DIAGRAM
Full-Height Pass-Thru Units
