Introduction
Features and Functions
The Crestron Bi-Directional Professional Audio Distribution Processor,
CNX-BIPAD8, is a second-generation product in Crestron’s audio distribution
product line. The unit is an 8-channel preamplifier that has all of the capabilities of
the CNX-PAD8A product plus the ability to route balanced line audio to and from
remote locations utilizing low cost CAT5 cables and Crestron’s CNXRMCLV,
C2N-DAP8RC, or C2N-DAP8 room boxes. The Cresnet system supplies power to
the unit.
Functional Summary
The CNX-BIPAD8 controls the selection of up to 24 stereo audio sources, and then
distributes the audio to up to eight room amplifiers or Crestron room control boxes.
The unit’s sixteen stereo head end audio inputs are RCA type connectors with loop
through. These inputs plus the eight additional CAT5 stereo inputs pass through a
stereo 24x8 cross-point switch. Each output of the cross-point switch goes to a
differential driver to the CAT5 connectors. The same cross-point outputs also go to
the CNX-BIPAD8 preamplifiers and mute relays before they go to the RCA output
connectors. The cross point switch makes it possible to route any of the 24 audio
• 16 line level/unbalanced stereo source inputs (L/R audio) plus
loop-through
• 8 CAT5 bi-directional inputs and outputs for professional-grade
balanced audio to/from remote locations, using CNXRMCLV or
C2N-DAP8/C2N-DAP8RC local room boxes
• 8 RCA outputs with built-in volume/tone preamplifiers and mute
relays
• Built-in 24x8 stereo crosspoint switch
• Input level compensation adjustments
• Daisy-chaining for distribution up to 32 Rooms

Professional Audio Distribution Processor Crestron CNX-BIPAD8
2 •Professional Audio Distribution Processor: CNX-BIPAD8 Operations Guide - DOC. 8160A

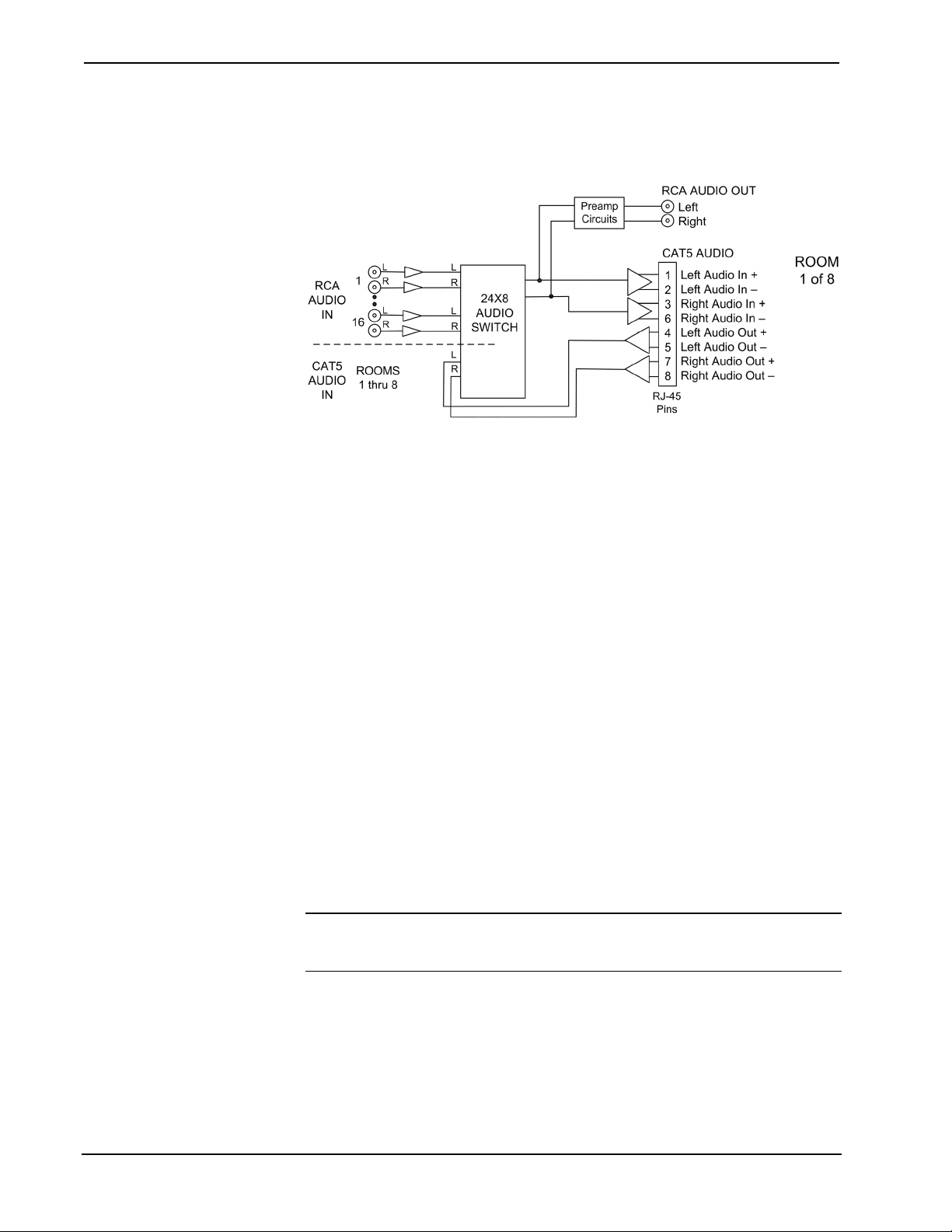

inputs to any of the eight outputs. The following simplified diagram illustrates the
internal signal routing.
Simplified Audio Signal Routing

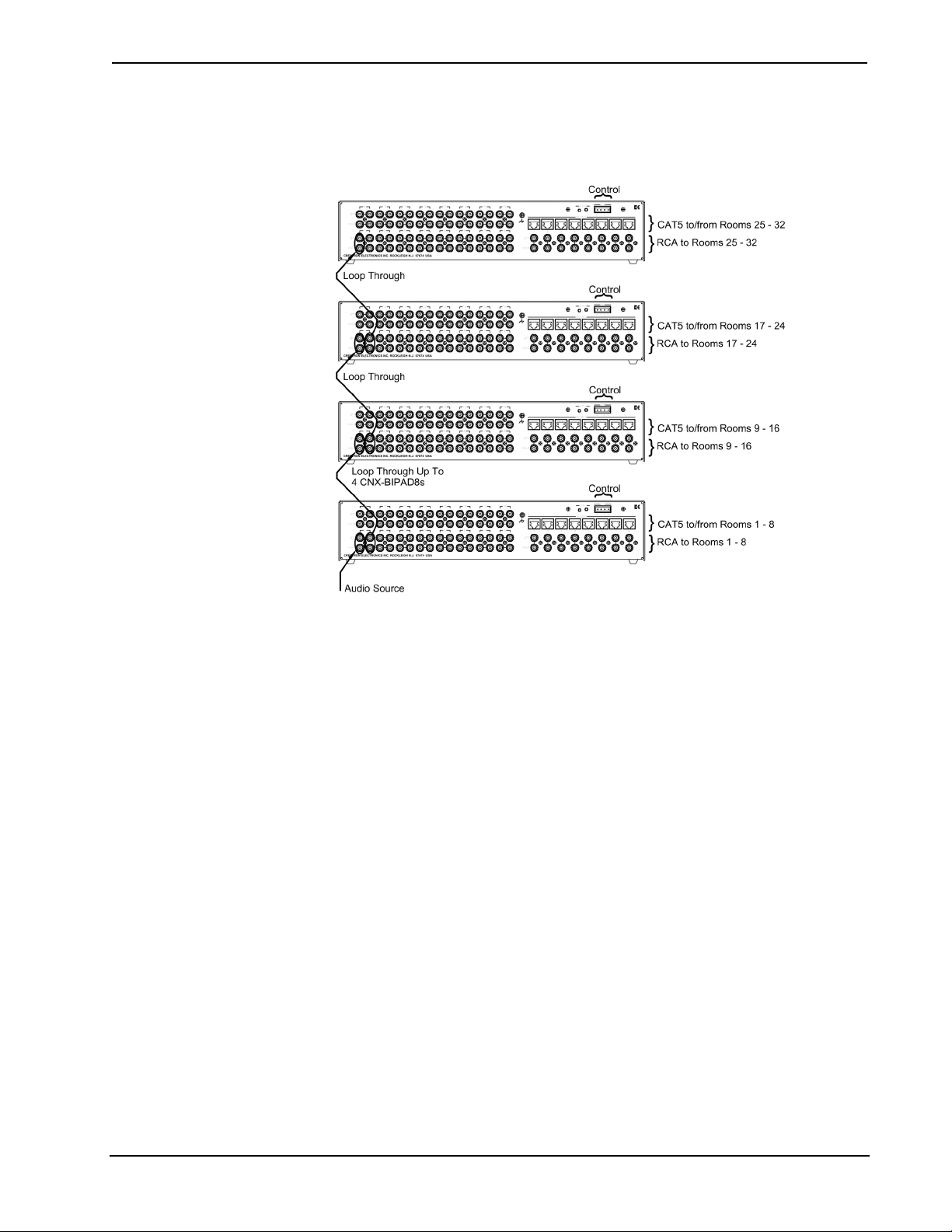

Up to four units can be daisy-chained via the RCA loop-through connectors to
extend distribution to up to 32 rooms.
The CNX-BIPAD8 preamplifier circuits provide the following controls for each of
the eight RCA outputs:
• Loudness — Activates the loudness function, commonly found on stereo
amplifiers, to boost low- and high-frequency signals at low volume settings
to compensate for natural hearing limitations at lower volume levels.
• Volume — Sets minimum and maximum volume levels and controls the
relative audio level within that range.
• Balance, Bass, and Treble — Specifies levels for these settings relative to a
50% neutral or balanced signal.
• Mono — Changes the audio setting from stereo to mono (monaural) mode.
• Compensation — Source gain compensation that normalizes input levels
from different sources; for example, setting the volume range of a VCR
equal to that of a CD player.
• Mute — Electronically attenuates signal.
• On/Off — Activates electronic relays that cut sound to a room.
Optional source and numeric keypads or any other Crestron network panel or
touchpanel may be added to the individual rooms to interface with the CNX-
BIPAD8. For more information regarding such devices, refer to the Downloads |
Product Manuals section of the Crestron website (www.crestron.com).
NOTE: Unit does not ship with default parameters for adjustable values (bass,
treble, or compensation). These values must be set in the program for the unit to
operate correctly.

Crestron CNX-BIPAD8 Professional Audio Distribution Processor
Operations Guide – DOC. 8160A Professional Audio Distribution Processor: CNX-BIPAD8 •3
Specifications
Specifications for the CNX-BIPAD8 are listed in the following table.
CNX-BIPAD8 Specifications
SPECIFICATION DETAILS
Power Requirements 20 Watts (0.83 Amp @ 24 VDC)
Default NET ID 44
Control System Update Files 1, 2, 3
2-Series Control System Update
File
CNMSX-AV/Pro Update File
CNRACKX/-DP Update File
ST-CP Update File
CEN/CN-TVAV Update File
Version 2.004.CUZ or later
Version 5.12.63X.UPZ or later
Version 5.12.63W.UPZ or later
Version 4.02.4S.UPZ or later
Version 5.12.63V.UPZ or later
CNX-BIPAD8 Firmware Bipad-22.upg
RCA input ports (labeled 1 – 16) RCA jacks – Sixteen sets of four: two for left and right
audio; two for stereo loop-through.
RCA output ports (labeled ROOMS) RCA jacks – Eight pairs for left and right preamplified (line
level) audio for corresponding room power amplifiers.
CAT5 I/O ports (labeled ROOMS) RJ-45 Jacks – Eight shielded jacks for balanced line
audio to/from remote locations; one CAT5 stereo input
and output per connector.
Tone specifications (per channel) Flatness (8 to 60 KHz flat mode) ±0.2 dB
Bass gain range (100 Hz) ±12 dB
Bass step size (100 Hz) 2 dB
Treble gain range (10 KHz) ±12 dB
Treble step size (10 KHz) 2 dB
Preamp specifications (per channel) Input impedance 47K Ohms
Total harmonic distortion (THD) <0.02%
S/N ratio >100 dB
Maximum input level (flat mode) 3.2 Vrms
Maximum output level 2.5 Vrms
Channel separation >90 dB
Gain range (excluding mute) -80 dB to +20 dB
Volume steps 100 (1 dB/step)
Mute > 120 dB (relay)
100 dB (electronic mute)
Rack space required 2U high, 1U wide
Environmental temperature 41° to 122°F (5° to 50°C)
Humidity 10% to 90% RH (non-condensing)
Dimensions Height: 3.47 in (8.81 cm)
Width: 17.10 in (43.43 cm)
Depth: 8.44 in (21.44 cm)
Weight 6.2 lb (2.8 kg)
1. The latest versions can be obtained from the Downloads | Software Updates section of the Crestron
website (www.crestron.com). Refer to NOTE on the next page.
2. Crestron 2-Series control systems include the AV2, CP2, CP2E, MP2, MP2E, PAC2, PRO2, and
RACK2.
3. CNX update files are required for either CNMSX-AV/Pro or CNRACKX/-DP. Filenames for CNX
update files have a UPZ extension and are in one EXE or zipped UPZ file. To avoid program problems,
make certain you are using the update file with the correct suffix letter (e.g., S, V, W, X).

Professional Audio Distribution Processor Crestron CNX-BIPAD8
4 •Professional Audio Distribution Processor: CNX-BIPAD8 Operations Guide - DOC. 8160A
NOTE: Outputs from the RCA and RJ-45 CAT5 connectors (ROOMS 1-8) are the
same signals. The RCA outputs first pass through preamplifier and tone/volume
control circuits; the balanced outputs from the CAT5 connectors are unprocessed.
NOTE: Crestron software and any files on the website are for Authorized Crestron
dealers and Crestron Authorized Independent Programmers (CAIP) only. New users
may be required to register to obtain access to certain areas of the site (including the
FTP site).
Physical Description
The CNX-BIPAD8 is housed in a black enclosure with labeling on the front and rear
panels. Ten LEDs on the front panel indicate the unit’s current status. All
connections are made to the back of the unit. Refer to the following illustrations of
the front and rear panels and the physical views on the next page.
Two mounting ears are provided for rack mounting, and four square rubber feet are
supplied for stability and to prevent slippage in tabletop placement or stacking
configurations.
CNX-BIPAD8 Front Panel
CNX-BIPAD8 Rear Panel

Crestron CNX-BIPAD8 Professional Audio Distribution Processor
Operations Guide – DOC. 8160A Professional Audio Distribution Processor: CNX-BIPAD8 •5

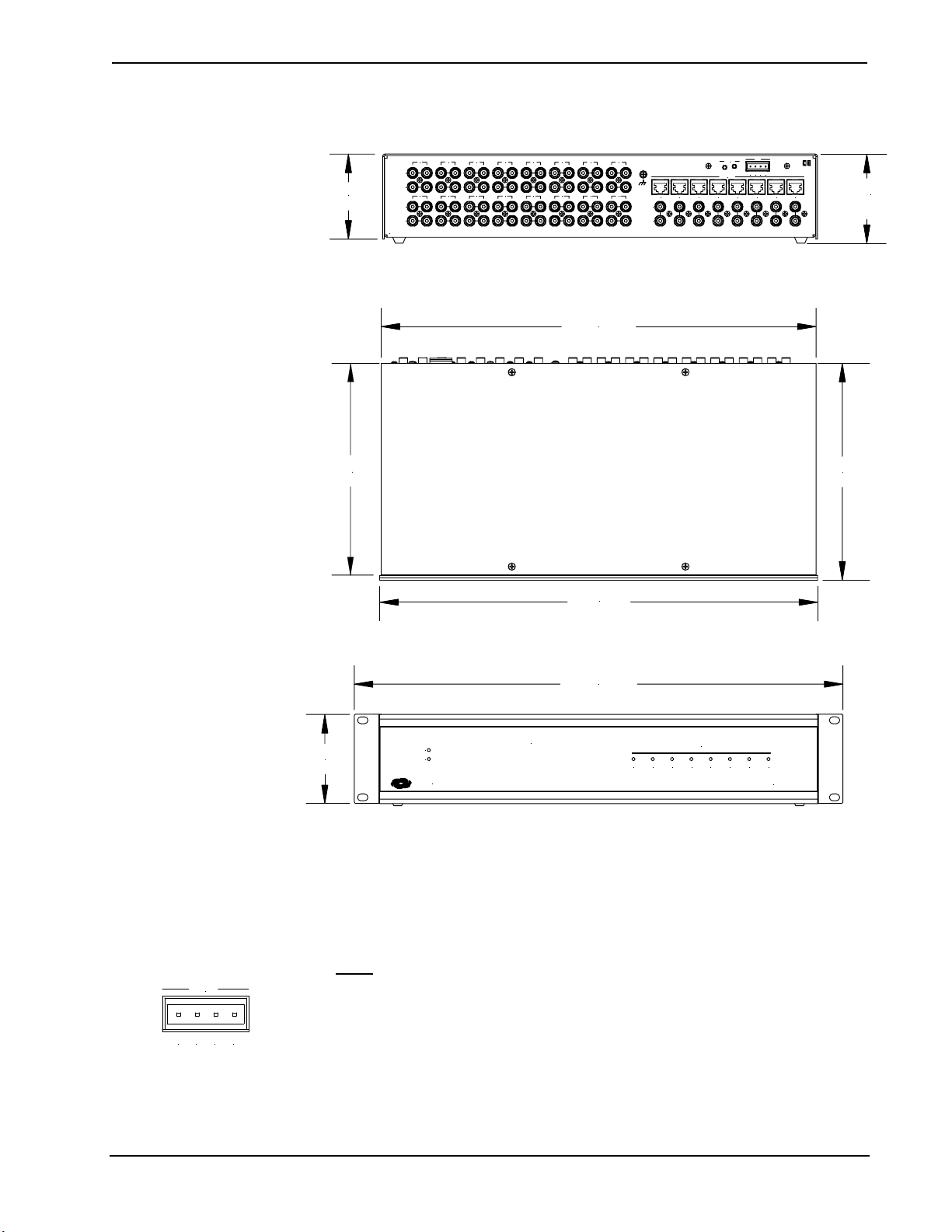

CNX-BIPAD8 Physical Views
3.310 in
(8.407 cm)
3.480 in (8.84 cm)
with Optional
Feet Mounted
3.469 in
(8.811 cm)
19.000 in
(48.26 cm)
17.100 in
(43.43 cm)
8.440 in
(21.437 cm)
16.910 in
(42.951 cm)
ROOMS
42 53 8761
NET
POWER
P R O F E S S I O N A L A U D I O D I S T R I B U T I O N P R O C E S S O R
CRESTRON
CNX-BIPAD8
8.250 in
(20.955 cm)
RIGHT
LEFT
1234567
RIGHT
LEFT
910 1311 12 14 15
5
8
RIGHT
LEFT
1 2 3 4 6 7 8
ROOMS
16
SETUP
24 Y Z G
NET
CRESTRON ELECTRONICS INC. ROCKLEIGH N.J. 07674 USA
CNX-BIPAD8 Ports
All connections to the CNX-BIPAD8 are made through the ports on the rear panel.
Refer to the illustrations and descriptions, which follow.
NET
The 4-pin network connector is used to connect the CNX-BIPAD8 to the Cresnet
system. Data and power for the CNX-BIPAD8 is provided via the connection. Refer
to “Network Wiring” on page 7.
24 Y Z G
NET

Professional Audio Distribution Processor Crestron CNX-BIPAD8
6 •Professional Audio Distribution Processor: CNX-BIPAD8 Operations Guide - DOC. 8160A
ROOMS
The eight, shielded RJ-45 connectors provide for balanced line audio to/from remote
locations in the facility; one CAT5 stereo input and output per connector. Signal
connections for the jacks are given in the following table.
Pin # Signal
1 Audio In L +
2 Audio In L -
3 Audio In R +
4 Audio Out L -
5 Audio Out L +
6 Audio In R -
7 Audio Out R +
8 Audio Out R -
NOTE: For additional information on audio/video connections over CAT5, refer to
the latest version of the Crestron CAT5 Wiring Reference Guide (Doc. 6137) which
is available from the Downloads | Product Manuals section of the Crestron website
(www.crestron.com).
The eight pairs of RCA jacks output pre-amplified (line-level) and volume/tone
processed audio to corresponding room power amplifiers. Each room output contains
left and right audio channels. (These are the same signals as the unprocessed outputs
from the CAT5 connectors.)
1 – 16 (Source Connectors)
The sixteen sets of four RCA jacks connect independent audio sources to the CNX-
BIPAD8. Of each set, two of the connectors are used for left and right audio
channels; the other two are parallel stereo loop-throughs.
(Chassis Ground)
Use this chassis screw to connect the audio source(s) common ground(s) to the
CNX-BIPAD8.
Indicators
Ten LED indicators on the front panel indicate the unit’s current status.
CNX-BIPAD8 Indicators
ROOMS
42 53 8761
NET
PWR
P R O F E S S I O N A L A U D I O D I S T R I B U T I O N P R O C E S S O R
CRESTRON
CNX-BIPAD8
PWR (Power)
This LED illuminates when 24 volts DC is supplied to the CNX-PAD8.
JACK, REAR VIEW
(TAB POSITION DOWN)
Pin 1

Crestron CNX-BIPAD8 Professional Audio Distribution Processor
Operations Guide – DOC. 8160A Professional Audio Distribution Processor: CNX-BIPAD8 •7
NET
This LED illuminates when communication between the control system and the
CNX-BIPAD8 is established (the unit is polled on the network). Illumination
indicates that the SIMPL Windows program currently loaded has a network device
defined at the same NET ID as the CNX-BIPAD8. The LED flashes when
communication with the processor occurs.
ROOMS 1 – 8
These eight red LEDs illuminate when the corresponding room is enabled to receive
audio from the CNX-BIPAD8.
SETUP
This LED is the lone indicator on the back panel. The purpose of the LED is
intended for future use and was not defined at the time of printing.
Pushbutton
There is one pushbutton on the CNX-BIPAD8 rear panel. The SETUP pushbutton is
for future use and was not defined at the time of printing.
Industry Compliance
As of the date of manufacture, the CNX-BIPAD8 has been tested and found to
comply with specifications for CE marking and standards per EMC and
Radiocommunications Compliance Labelling (N11785)
NOTE: This device complies with part 15 of the FCC rules. Operation is subject to
the following two conditions: (1) these devices may not cause harmful interference,
and (2) these devices must accept any interference received, including interference
that may cause undesired operation.
Setup
Network Wiring
CAUTION: Use only Crestron power supplies for Crestron equipment. Failure to do
so could cause equipment damage or void the Crestron warranty.
NOTE: When installing network wiring, refer to the latest revision of the wiring
diagram(s) appropriate for your specific system configuration, available from the
Downloads | Product Manuals | Software and Wiring Diagrams section of the
Crestron website (www.crestron.com).
When calculating the wire gauge for a particular network run, the length of the run
and the power factor of each network unit to be connected must be taken into
consideration. If network units are to be daisy-chained on the run, the power factor
of each network unit to be daisy-chained must be added together to determine the

Professional Audio Distribution Processor Crestron CNX-BIPAD8
8 •Professional Audio Distribution Processor: CNX-BIPAD8 Operations Guide - DOC. 8160A
power factor of the entire chain. The length of the run in feet and the power factor of
the run should be used in the following resistance equation to calculate the value on
the right side of the equation.
Resistance Equation
R = Resistance (refer to table below).
L = Length of run (or chain) in feet.
PF = Power factor of entire run (or chain).
R < L x PF
40,000 Where:
The required wire gauge should be chosen such that the resistance value is less than
the value calculated in the resistance equation. Refer to the table after this paragraph.
Wire Gauge Values
RESISTANCE (R) WIRE GAUGE
416
618
10 20
15 22
13 Doubled CAT5
8.7 Tripled CAT5
NOTE: All network wiring must consist of two twisted-pairs. One twisted pair is
the +24V conductor and the GND conductor and the other twisted pair is the Y
conductor and the Z conductor.
NOTE: When daisy chaining network units, always twist the ends of the incoming
wire and outgoing wire that share a pin on the network connector. After twisting the
ends, tin the twisted connection with solder. Apply solder only to the ends of the
twisted wires. Avoid tinning too far up or the tinned end becomes brittle and breaks.
After tinning the twisted ends, insert the tinned connection into the network
connector and tighten the retaining screw. Repeat the procedure for the other three
network conductors.
Identity Code
Every equipment and user interface within the Cresnet system requires a unique
identity code (NET ID). These codes are two-digit hexadecimal numbers from 03 to
FE. The NET ID of the unit must match the NET ID specified in the SIMPL
Windows program. Refer to “Setting the Net ID in Device Settings” on page 16 for
details of the SIMPL Windows procedure. The NET ID of each CNX-BIPAD8 has
been factory set to 44. The NET IDs of multiple CNX-BIPAD8s in the same system
must be unique and changed from a personal computer (PC) via the Crestron
Viewport, which is available through VisionTools®Pro-e (VT Pro-e) or SIMPL
Windows, or as a standalone utility.
NOTE: For detailed information on establishing communication between the PC
and Control System, refer to “Communication Settings” on page 19. If
communication cannot be established, refer to the “Troubleshooting
Communications” section in the respective Operations Guide for the control system.
NOTE: VT Pro-e is a Windows compatible software package for creating Crestron
touchpanel screen designs.

Crestron CNX-BIPAD8 Professional Audio Distribution Processor
Operations Guide – DOC. 8160A Professional Audio Distribution Processor: CNX-BIPAD8 •9
The method for changing the unit's NET ID is identical regardless of the software
chosen. Complete the following steps to change the NET ID.
1. Attach a CNX-BIPAD8 to the control system (verify that the software
is running).
2. From the SIMPL Windows or VT Pro-e menu, select Tools | Viewport
to open the Crestron Viewport.
3. From the Viewport menu, select Diagnostics | Establish
Communications to verify communications.
4. From the Viewport menu, select Functions | Set Network ID. The
software checks the baud rate and then opens the "Set Network ID"
window.
5. In the "Set Network ID" window, select the CNX-BIPAD8 from the
Current Network Devices text window.
6. From the Choose the new network ID for the selected device (Hex): text
box, select the new NET ID for the CNX-BIPAD8.
7. Click Set ID to initiate the change. This will display the "ID command
has been sent" window.
8. In the "Command Complete" window, click OK.
9. In the Current Network Devices text window, verify the new NET ID
code.
10. In the "Set Network ID" window, click Close.
NOTE: The new NET ID code may also be verified by selecting Diagnostic |
Report Network Devices in the Viewport.
11. Repeat this procedure for each CNX-BIPAD8 to be added to the
network.
Rack Mounting
WARNING: To prevent bodily injury when mounting or servicing this unit in a
rack, take special precautions to ensure that the system remains stable. The following
guidelines are provided to ensure user safety.
• When mounting this unit in a partially filled rack, load the rack from
the bottom to the top with the heaviest component at the bottom.
• If the rack is provided with stabilizing devices, install the stabilizers
before mounting or servicing the units in the rack.
NOTE: If rack mounting is not required, rubber feet are provided for tabletop
placement or stacking. Apply the feet near the corner edges on the underside of the
unit. Refer to “Stacking” for details.
NOTE: Reliable grounding of rack-mounted equipment should be maintained.
Particular attention should be given to supply connections other than direct
connections to the branch circuit (e.g., use of power strips).
Two "ears" are provided with the CNX-BIPAD8 so that the unit can be rack
mounted. These ears must be installed prior to mounting. Complete the procedure

Professional Audio Distribution Processor Crestron CNX-BIPAD8
10 •Professional Audio Distribution Processor: CNX-BIPAD8 Operations Guide - DOC. 8160A
below to attach ears to the CNX-BIPAD8. The only tool required for this procedure
is a #2 Phillips screwdriver.
1. There are 16 screws that secure the CNX-BIPAD8 top cover. Remove
the three screws closest to the front panel from one side of the unit.
2. Position a rack ear so that its drilled holes align with the holes vacated
by the screws in step 1.
3. Secure the ear to the CNX-BIPAD8 with the three screws from step 1,
as shown below.

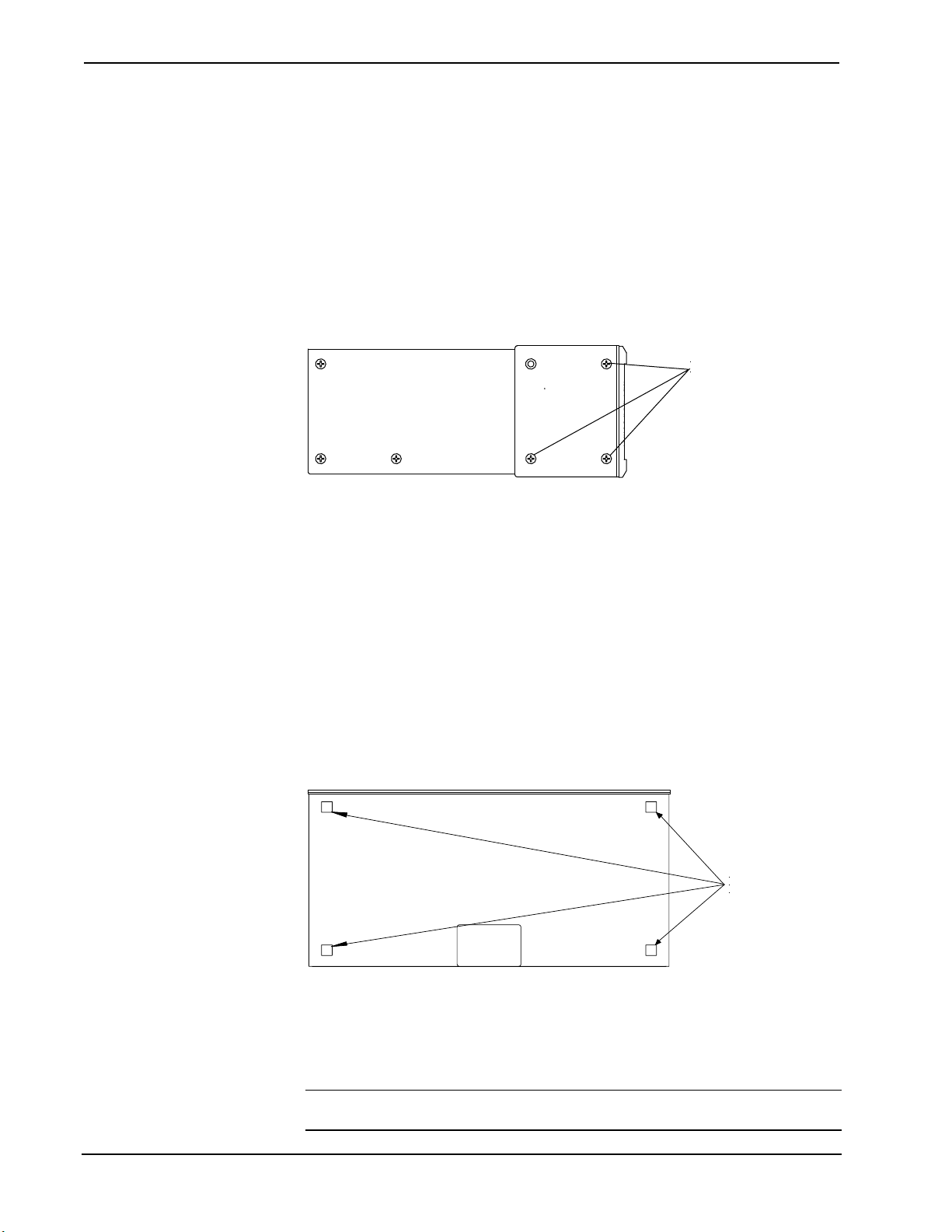

Ear Attachment for Rack Mounting (Side View of Unit)
FASTEN WITH THREE
TOP COVER SCREWS
4. Tighten screws to finger-tight, then, using a #2 Phillips screwdriver,
tighten an additional 1/8-turn.
5. Repeat procedure (steps 1 and 2) to attach ear to the other side.
6. If the rear panel of the CNX-BIPAD8 is accessible when mounted in
the rack, install the CNX-BIPAD8. If the rear panel is NOT accessible,
perform the hookup procedure before rack installation.
Stacking
Four "feet" are provided with the CNX-BIPAD8 so that if the unit is not rack
mounted, the rubber feet can provide stability when the unit is placed on a flat
surface or stacked. These feet should be attached prior to the hookup procedure.
Refer to the illustration below for placement of the feet.
Feet Location (Bottom View of Unit)
ATTACH FEET
NEAR CORNERS
OF THE UNIT
Hardware Hookup
Refer to the hookup diagram after this paragraph. Other than making the power
connection last, complete the connections in any order.
NOTE: Refer to “Network Wiring” on page 7 when making connections to the port
labeled NET.

Crestron CNX-BIPAD8 Professional Audio Distribution Processor
Operations Guide – DOC. 8160A Professional Audio Distribution Processor: CNX-BIPAD8 •11
Hookup Connections for the CNX-BIPAD8
RIGHT
LEFT
1234567
RIGHT
LEFT
910 1311 12 14 15
5
8
RIGHT
LEFT
1 2 3 4 6 7 8
ROOMS
16
SETUP
24 Y Z G
NET
CRESTRON ELECTRONICS INC. ROCKLEIGH N.J. 07 674 USA
FROM
AUDIO
SOURCE
AUDIO SOURCE
LOOP-THROUGH
(DAISY-CHAIN TO
ADDITIONAL
BIPAD8 UNITS)
TO AUDIO
SOURCE(S)
GND(S)
CONTROL
SYSTEM
AUDIO TO
ROOM / ZONE
AMPLIFIER
CAT5 REMOTE
INPUTS /
OUTPUTS

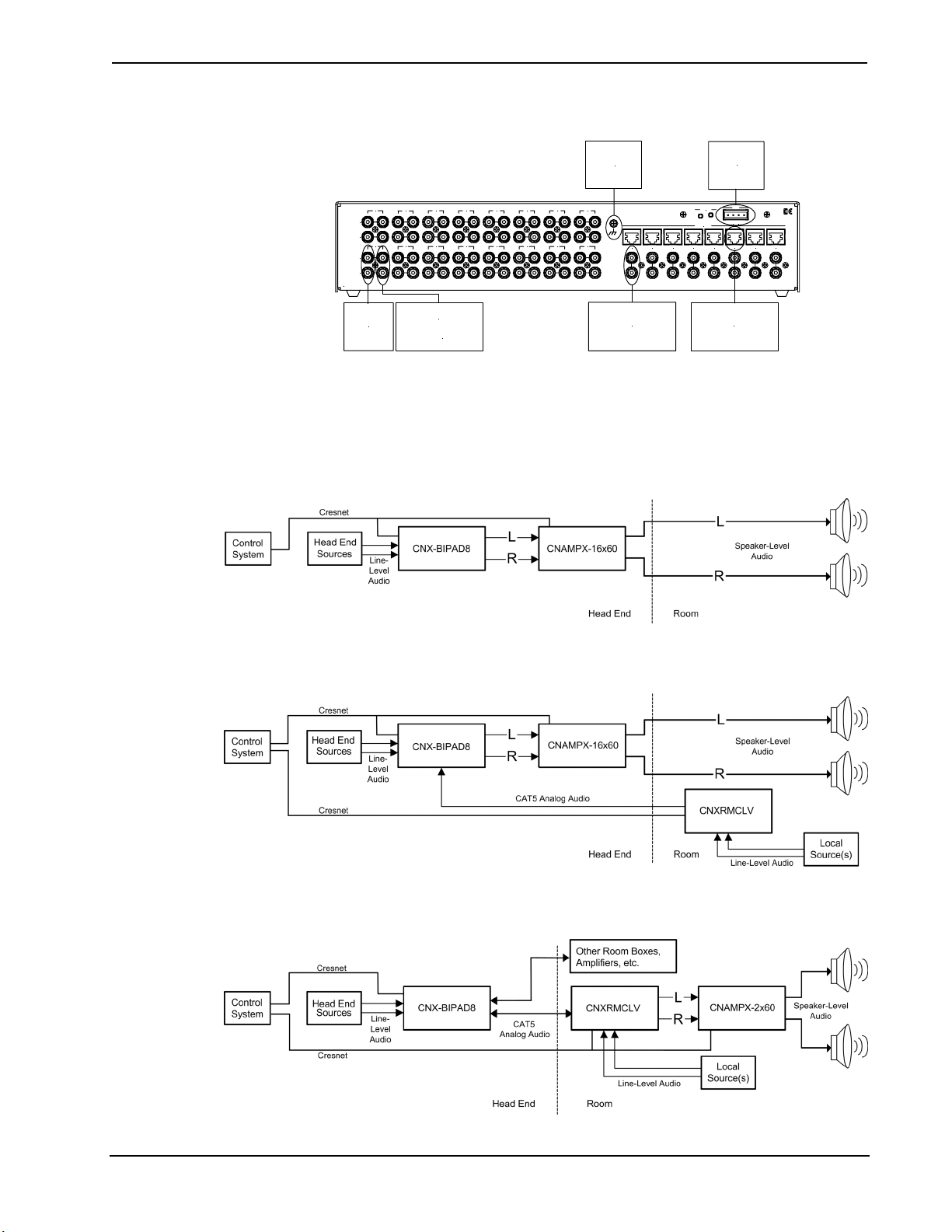

Typical Room Configurations
The following figures show typical room/head end audio configurations using the
CNX-BIPAD8.
Head End Amplification with Speaker-Level Distribution
Head End Amplification with Speaker-Level Distribution and CAT5 Audio Return
Bi-Directional CAT5 Audio Distribution with In-Room Amplification

Professional Audio Distribution Processor Crestron CNX-BIPAD8
12 •Professional Audio Distribution Processor: CNX-BIPAD8 Operations Guide - DOC. 8160A
Bi-Directional CAT5 Audio Distribution with Integrated Display Device Sound System
Bi-Directional CAT5 Audio/Video Distribution with In-Room Third-Party Surround Sound System
Bi-Directional CAT5 Audio and Digital Audio Distribution with In-Room Crestron Controller,
Digital Audio Surround Sound Processor, and Surround Sound Amplifier
Signal Distribution to More than Eight Rooms
Each CNX-BIPAD8 is capable of distributing audio to eight rooms, maximum. It is
possible to expand distribution to more rooms if additional CNX-BIPAD8s are
introduced to the system. Crestron recommends a maximum of four CNX-BIPAD8s
per system. Therefore, audio can be distributed to a maximum of 32 rooms.
NOTE: Connecting more than four CNX-BIPAD8s via loop-through may result in
diminished audio quality and signal degradation.
The sixteen sets of four RCA jacks connect independent audio sources to the
CNX-BIPAD8. Of each set, two of the connectors are used for left and right audio
channels; the other two are parallel stereo loop-throughs. The loop-through jacks can

Crestron CNX-BIPAD8 Professional Audio Distribution Processor
Operations Guide – DOC. 8160A Professional Audio Distribution Processor: CNX-BIPAD8 •13
be used for daisy-chaining additional CNX-BIPAD8s, as shown in the following
figure.
Expanded Audio Distribution
Expanded Distribution of Local Audio Sources
Using the unbalanced (RCA) loop-through I/O connections between the
CNX-BIPAD8s, you can ensure that the head end source inputs on the first
CNX-BIPAD8 can be distributed to the rooms connected to the balanced audio
CAT5 I/Os on other CNX-BIPAD8s.
However, if you wish to distribute local room source audio from rooms connected to
the first CNX-BIPAD8 to rooms connected to a second CNX-BIPAD8, you need to
use the CNX-PBAR4 as shown in the diagram on the next page. The CNX-PBAR4
allows you to maintain the balanced CAT5 I/O connection to/from rooms 1-4 on the
first CNX-BIPAD8, then, via it’s internal balanced to unbalanced audio converter, to
loop through the return audio coming back from the rooms to the RCA unbalanced
inputs on the second CNX-BIPAD8. As shown in the diagram, the CNX-PBAR4
will enable Rooms 9-12 to listen to audio being routed from rooms 1-4.

Professional Audio Distribution Processor Crestron CNX-BIPAD8
14 •Professional Audio Distribution Processor: CNX-BIPAD8 Operations Guide - DOC. 8160A
Expanded Distribution of Local Audio Sources
CNX-PBAR4
CAT5
CAT5
CAT5
CAT5
Room 1
Room 2
Room 4
HEAD END
CNX-BIPAD8
Bi-Directional
Balanced
Audio/CAT5
Bi-Directional
Balanced Audio
CAT5
Head End
Sources
Out
Out
I/O
In
In
ROOM CONTROLLERS
Un-Balanced
Audio
(12 Stereo RCA)
Loop
Through
CNX-BIPAD8
Bi-Directional
Balanced Audio
CAT5
Out
Out
I/O
In
In
Loop
Through
To Next
CNX-BIPAD8
Un-Balanced
Audio
(12 Stereo RCA)
Un-Balanced
Audio
(12 Stereo RCA)
Un-Balanced
Audio
(4 Stereo RCA)
Loop
Through
Room 9
Room 10
Room 11
Room 12
Room 8
(x8)
(8 Total)
16 Stereo/Audio
Inputs Total
Local
Sound
System
Unbalanced
Audio
CNXRMCLV
Unbalanced
Audio
Local Video
Source I/O
In
Local
Sound
System
Unbalanced
Audio
CNXRMCLV
Unbalanced
Audio
Local Video
Source I/O
In
Local
Sound
System
Unbalanced
Audio
CNXRMCLV
Unbalanced
Audio
Local Video
Source I/O
In
Local
Sound
System
Unbalanced
Audio
CNXRMCLV
Unbalanced
Audio
Local Video
Source I/O
In
Local
Sound
System
Unbalanced
Audio
CNXRMCLV
Unbalanced
Audio
Local Video
Source I/O
In
Room 3
Local
Sound
System
Unbalanced
Audio
Unbalanced
Audio
Local Video
Source I/O
In
C2NDAP8RC
Local
Sound
System
Unbalanced
Audio
CNXRMCLV
Unbalanced
Audio
Local Video
Source I/O
In
Local
Sound
System
Unbalanced
Audio
CNXRMCLV
Unbalanced
Audio
Local Video
Source I/O
In Local
Sound
System
Unbalanced
Audio
CNXRMCLV
Unbalanced
Audio
Local Video
Source I/O
In
CAT5
DVD

Crestron CNX-BIPAD8 Professional Audio Distribution Processor
Operations Guide – DOC. 8160A Professional Audio Distribution Processor: CNX-BIPAD8 •15
Programming Software
Have a comment about
Crestron software?
Direct software related suggestions
and/or complaints to Crestron via
email ([email protected]).
Do not forward any queries to this
address. Instead refer to “Further
Inquiries” on page 25 for assistance.
Earliest Version Software Requirements for the PC
NOTE: Crestron recommends that you use the latest software to take advantage of
the most recently released features. The latest software is available from the
Downloads | Software Updates section of the Crestron website (www.crestron.com).
The following are the earliest useable software version requirements for the PC:
• SIMPL Windows version 1.61.12 or later with library update file 132 or
later (requires SIMPL+ Cross Compiler version 1.1).
• Crestron Database version 15.6.8 or later. Required by SIMPL Windows.
Programming with SIMPL Windows
NOTE: The following assumes that the reader has knowledge of SIMPL Windows.
If not, refer to the extensive help information provided with the software.
NOTE: The following are acceptable file extensions for programs that include a
CNX-BIPAD8, developed for specific control system types:
.smw projectname.smw (source file)
.spz projectname.spz (compiled file for 2-series)
.bin projectname.bin (compiled file for CNX generation)
.csz projectname.csz (compiled file for CNX generation with SIMPL+)
.ush projectname.ush (compiled file for CNX generation with SIMPL+
header file)
.usp projectname.usp (source code module for SIMPL+)
NOTE: In the following description, the PRO2 control system is used.
SIMPL Windows is Crestron's software for programming Crestron control systems.
It provides a well-designed graphical environment with a number of workspaces
(i.e., windows) in which a programmer can select, configure, program, test, and
monitor a Crestron control system. SIMPL Windows offers drag and drop
functionality in a familiar Windows®environment.
This section describes a sample SIMPL Windows program that includes a
CNX-BIPAD8.
Configuration Manager is where programmers “build” a Crestron control system by
selecting hardware from the Device Library. In Configuration Manager, drag the
PRO2 from the Control Systems folder of the Device Library and drop it in the upper
pane of the System Views. The PRO2 with its associated communication ports is
displayed in the System Views upper pane.
PRO2 System View
The System Views lower pane displays the PRO2 system tree (refer to the following
graphic). This tree can be expanded to display and configure the communications
ports.

Professional Audio Distribution Processor Crestron CNX-BIPAD8
16 •Professional Audio Distribution Processor: CNX-BIPAD8 Operations Guide - DOC. 8160A

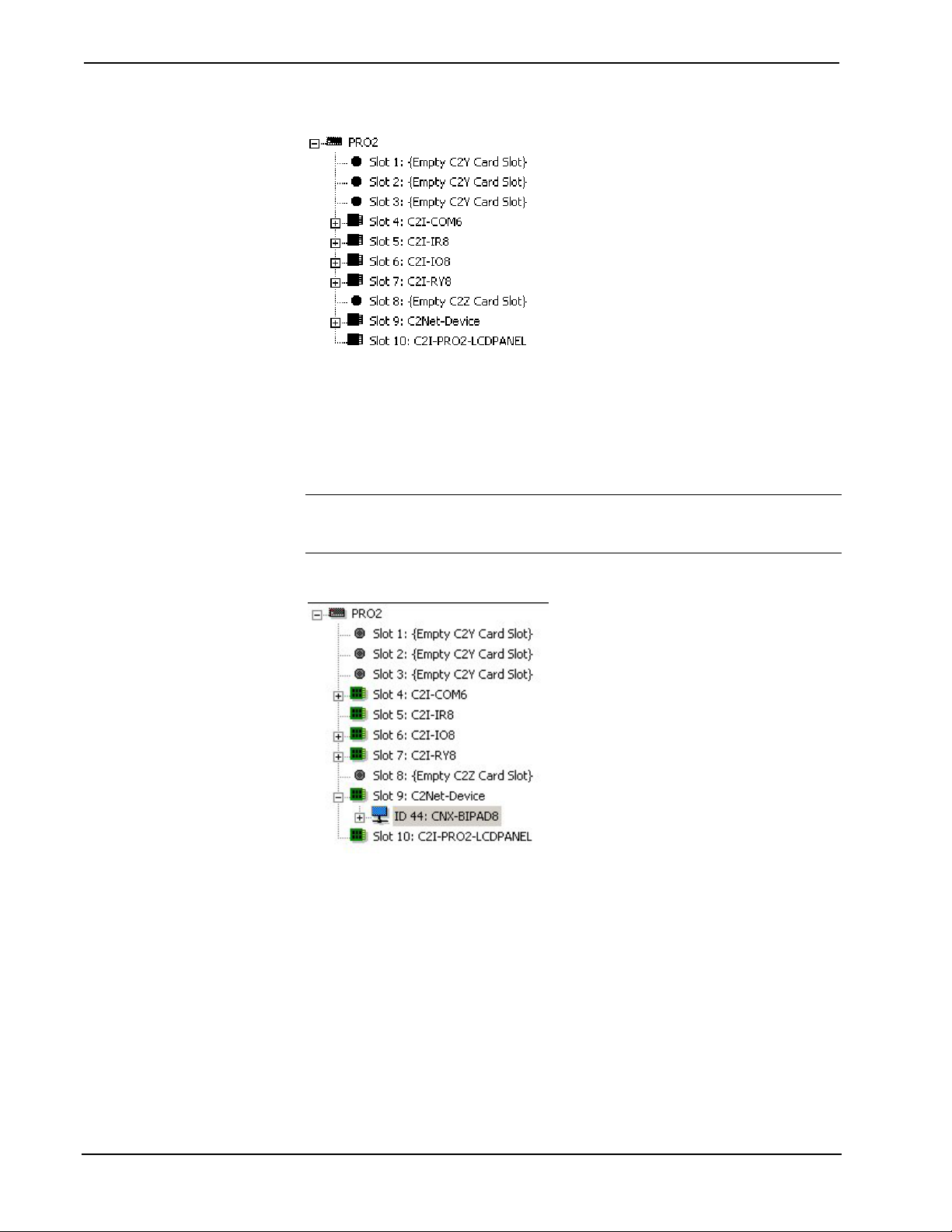

Expanded PRO2 System Tree
C2Net-Device Slot in Configuration Manager
To incorporate a CNX-BIPAD8 into the system, drag the CNX-BIPAD8 from the
Cresnet Control Modules | Cresnet Audio Modules folder of the Device Library and
drop it in System Views. The PRO2 system tree displays the CNX-BIPAD8 in Slot 9,
with a default NET ID of 44 as shown in the following illustration.
NOTE: The first CNX-BIPAD8 in a system is preset with a NET ID of 44 when its
symbol is dragged into the upper pane of System Views. Additional units are assigned
different NET ID numbers as they are added.
C2Net Device, Slot 9
Setting the Net ID in Device Settings
Double-click the CNX-BIPAD8 icon to open the “Device Settings” window. This
window displays the CNX-BIPAD8 device information. If necessary, select the NET
ID tab to change the touchpanel NET ID, as shown in the following figure.
