Crestron UC-MMX30-Z User manual

The UC-MMX30-Z(-I) and UC-MMX30-Z-L(-I) Crestron Flex advanced
tabletop conferencing systems provide small room video conference
solutions for use with Zoom Rooms™ software. They support single or
dual video displays and feature a Crestron Flex tabletop conference
device, a UC presentation transmitter, a UC bracket assembly, and a
collaboration camera.
Minimum Requirements:
lA video display (not included) connected to the UC Engine. A second
display is optional.
lA Zoom Rooms account or activation code
In the Box
Tabletop Conference Device
1 Flex MM Tabletop Conference Device, Zoom Rooms
software (6511615 or 6511616)
1 PoE+ Injector (2055605)
2 Cable, CAT5e, RJ-45 - RJ-45, 11.8 ft (3.6 m) (2056204)
1 Cable, USB 2.0, A - Micro B, 5.8 ft (1.8 m) (2055579)
UC Presentation Transmitter
1 Power pack (2056363) with cord (2001134)
1 Bracket, power supply (2056257)
1 Cable, USB to USB, 6.56 ft (2 m) (2056116)
1 Cable, HDMI®, 6.56 ft (2 m) (2056117)
1 Cable, USB 2.0, A to Micro B, 6.56 ft (2 m) (2055504)
8 Screw, 10-9 x 5/8 in. (15.9 mm), Pan Head, Phillips, Black
(2054365)
UC Bracket Assembly
1 UC Bracket Assembly with UC Engine and HDMI® or AV
over CAT5 content ingest
(UC-BRKT-250-P-Z-ASSY,6511477 or
UC-BRKT-260-P-Z-L-ASSY, 6512033)
2 Anchor, Drywall, Plastic, 3/8 in. x 1/2 in. (9.5mm x
12.7mm) (2052565)
2 EDID passthrough (2055728)*
1 Key, Anchor (4529654)
1 Power pack (2045870)
2 Screw, 8-AB x 1-1/2 in. (38.1 mm), Pan Head, Combo
(2052567)
4 Tie Wrap (2047935)
Additional Items
1 Collaboration camera (6510482)
1 Camera wall mount kit (6510998)
2 Cable, CAT6a, RJ-45 - RJ-45, 20 ft (6.1 m) (6507640)
1 Cable, CAT5e, RJ-45 - RJ-45, 7 ft (2.1 m) (6509924)
1 Cable, DisplayPort™ to HDMI, 6 ft (1.8 m) (6508282)
1 Cable, HDMI, 6 ft (1.8 m) (6503565)
1 Cable, USB 3.0, Right angle USB-C® to A, 6 ft (1.8 m)
(6511591)
*EDID passthroughs are not included in the UC-MMX30-Z-L(-I) system.
1
UC-MMX30-Z(-I) and UC-MMX30-Z-L(-I) QuickStart
Crestron Flex Advanced Tabletop Small Room Video Conference System for Zoom Rooms™ Software

Mount Devices
Mount the UC Bracket Assembly
Mount the UC Bracket Assembly to VESA® compliant display devices, a
wall, or other building structure. Anchors and screws are supplied for
installation on walls 3/8 in. (9.5mm) to 3/4 in. (19mm) thickness.
CAUTION: Preinstalled screws may protrude from the back of the UC
Bracket Assembly. Exercise caution when handling the UC Bracket
Assembly to avoid scratching or damaging surfaces.
NOTE: The integrated cable tie wraps are reusable. Avoid damaging
the cable tie wraps.
Mount the UC Presentation Transmitter
Mount the UC Presentation Transmitter to the underside of a table
using the supplied screws. The supplied screws support installation on
tables with a thickness of 1 in. (25.4mm) minimum.
Mount the Camera
Mount the included camera according to the UC-CAM-WMK Quick Start
(Doc. 8257).
2
UC-MMX30-Z(-I) and UC-MMX30-Z-L(-I) QuickStart
Crestron Flex Advanced Tabletop Small Room Video Conference System for Zoom Rooms™ Software

Connect

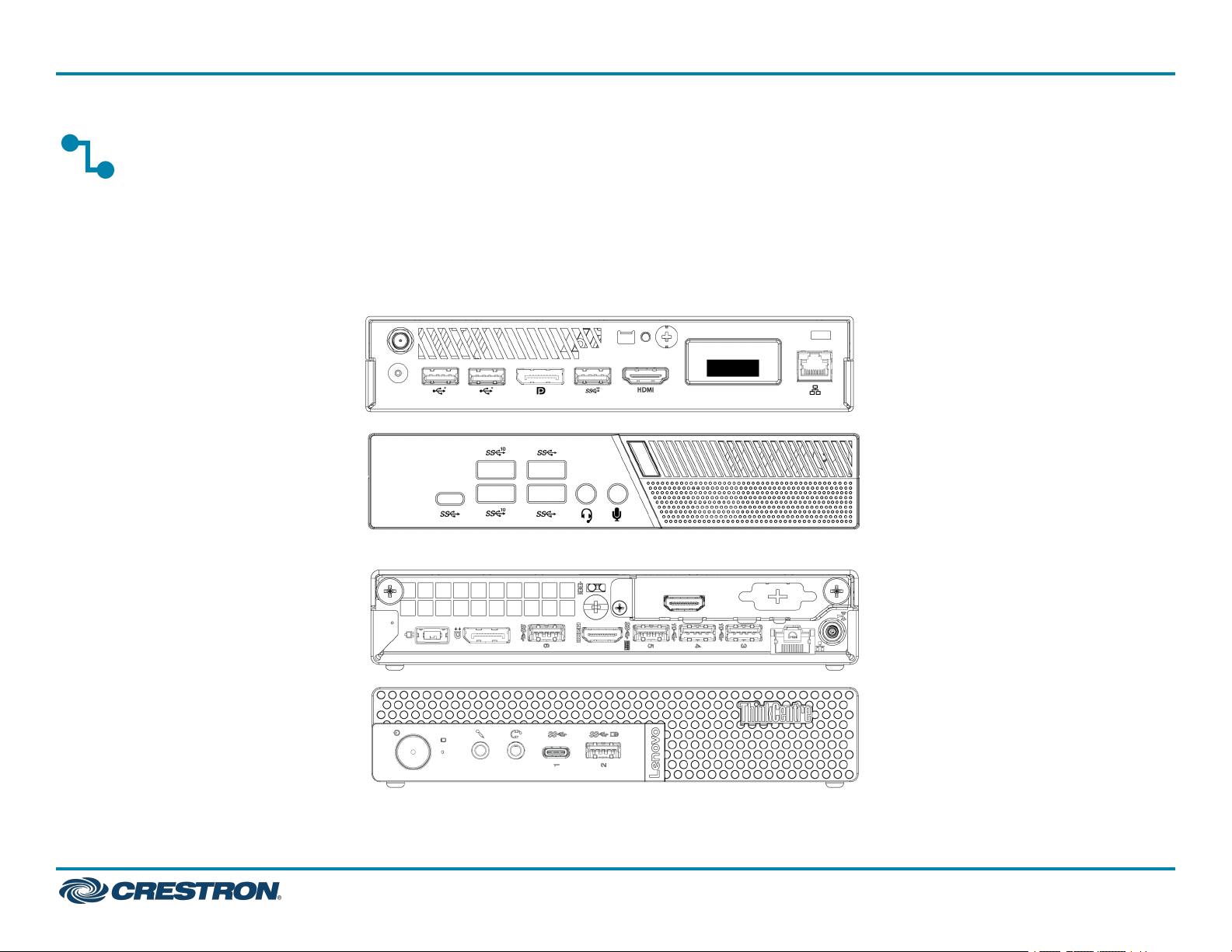

Identify the UC Engine
The UC Engine is available in two models. Identify the model included with your Crestron Flex system. Tap or click the corresponding image below to
navigate to the appropriate connection instructions.
ASUS® Mini PC (UC-MMX30-Z(-I))
Lenovo® M920Q ThinkSmart™ Edition Tiny (UC-MMX30-Z-L(-I))
3
UC-MMX30-Z(-I) and UC-MMX30-Z-L(-I) QuickStart
Crestron Flex Advanced Tabletop Small Room Video Conference System for Zoom Rooms™ Software

System Overview (UC-MMX30-Z(-I))
When connections are complete, the system appears as shown below. The laptop connections shown below may vary based on the selected
connection method. Refer to Make Connections (UC-MMX30-Z(-I)) for detailed connection instructions.
4
UC-MMX30-Z(-I) and UC-MMX30-Z-L(-I) QuickStart
Crestron Flex Advanced Tabletop Small Room Video Conference System for Zoom Rooms™ Software

Make Connections (UC-MMX30-Z(-I))
1. Make UC Engine connections as shown in the following illustration.
5
UC-MMX30-Z(-I) and UC-MMX30-Z-L(-I) QuickStart
Crestron Flex Advanced Tabletop Small Room Video Conference System for Zoom Rooms™ Software

2. Connect the power supply and camera to the bottom of the content ingest device (HD-CONV-USB-250). Connect the power supply to an AC
power outlet.
6
UC-MMX30-Z(-I) and UC-MMX30-Z-L(-I) QuickStart
Crestron Flex Advanced Tabletop Small Room Video Conference System for Zoom Rooms™ Software

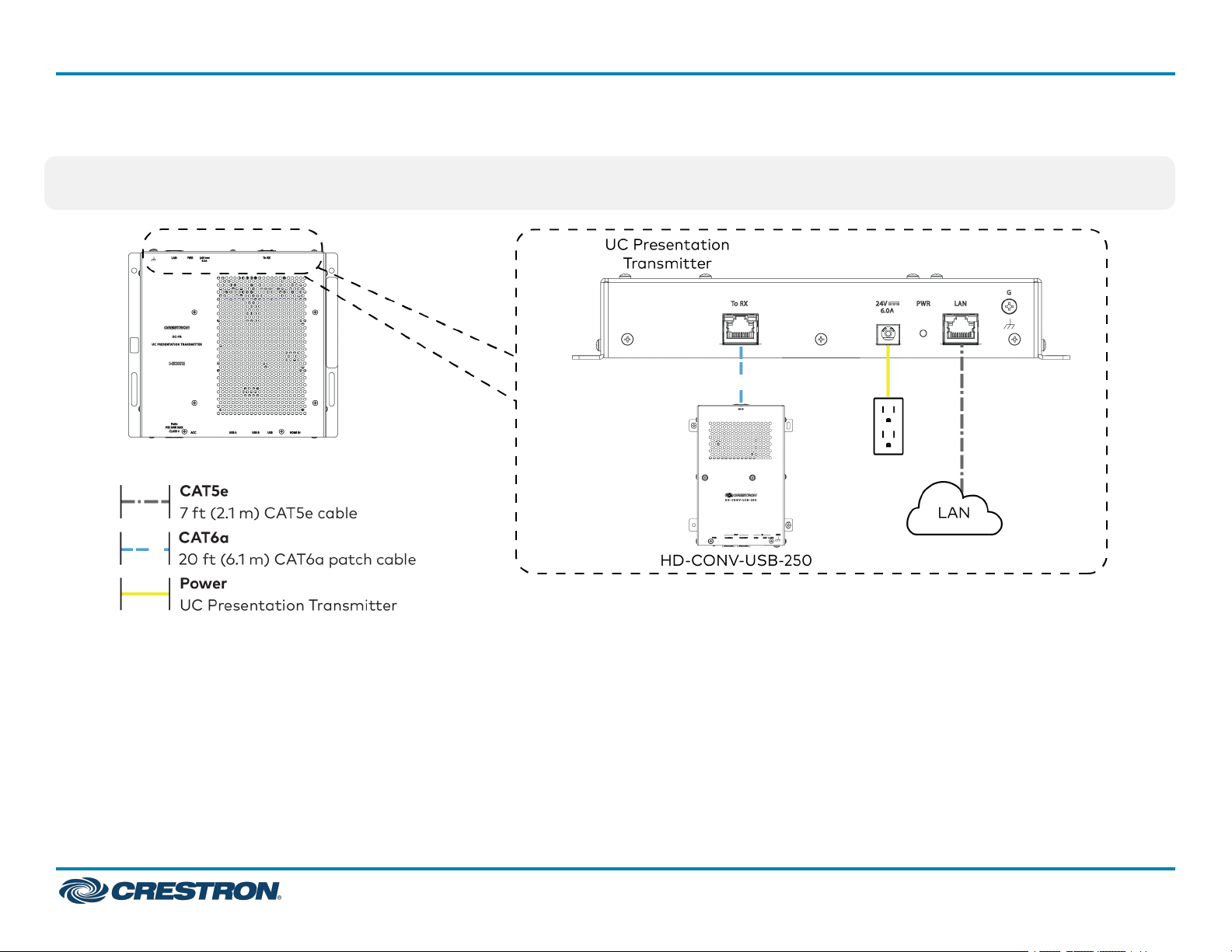

3. Connect power, the content ingest device (HD-CONV-USB-250), and LAN to the top of the UC Presentation Transmitter.
NOTE: If a longer cable between the UC Presentation Transmitter and the HD-CONV-USB-250 is needed, use a DigitalMedia™ Ultra cable only. The
maximum supported cable length is 300ft (91.4 m).
7
UC-MMX30-Z(-I) and UC-MMX30-Z-L(-I) QuickStart
Crestron Flex Advanced Tabletop Small Room Video Conference System for Zoom Rooms™ Software

4. Connect the conference device using the included PoE+ injector and USB A to Micro-B cable to the bottom of the UC Presentation Transmitter.
8
UC-MMX30-Z(-I) and UC-MMX30-Z-L(-I) QuickStart
Crestron Flex Advanced Tabletop Small Room Video Conference System for Zoom Rooms™ Software

5. Connect a laptop to either the USB port or both the HDMI and USB B ports on the bottom of the UC Presentation Transmitter. Select a
connection type based on the available ports on the user's laptop.
NOTES:
lIf the USB port is used along with either the HDMI or USB B port, the UC Presentation Transmitter will communicate via the USB port by
default.
lWhen connecting a laptop for BYOD presentation, select the audio source on the connected laptop.
6. Bundle the cables to the bracket assembly with the integrated cable tie wraps. The cable tie wraps are reusable.
9
UC-MMX30-Z(-I) and UC-MMX30-Z-L(-I) QuickStart
Crestron Flex Advanced Tabletop Small Room Video Conference System for Zoom Rooms™ Software

System Overview (UC-MMX30-Z-L(-I))
When connections are complete, the system appears as shown below. The laptop connections shown below may vary based on the selected
connection method. Refer to Make Connections (UC-MMX30-Z-L(-I)) for detailed connection instructions.
10
UC-MMX30-Z(-I) and UC-MMX30-Z-L(-I) QuickStart
Crestron Flex Advanced Tabletop Small Room Video Conference System for Zoom Rooms™ Software

Make Connections (UC-MMX30-Z-L(-I))
1. Make a network connection to the top of the UC Engine. Connect the bracket assembly's integrated power supply to an AC power outlet.
11
UC-MMX30-Z(-I) and UC-MMX30-Z-L(-I) QuickStart
Crestron Flex Advanced Tabletop Small Room Video Conference System for Zoom Rooms™ Software

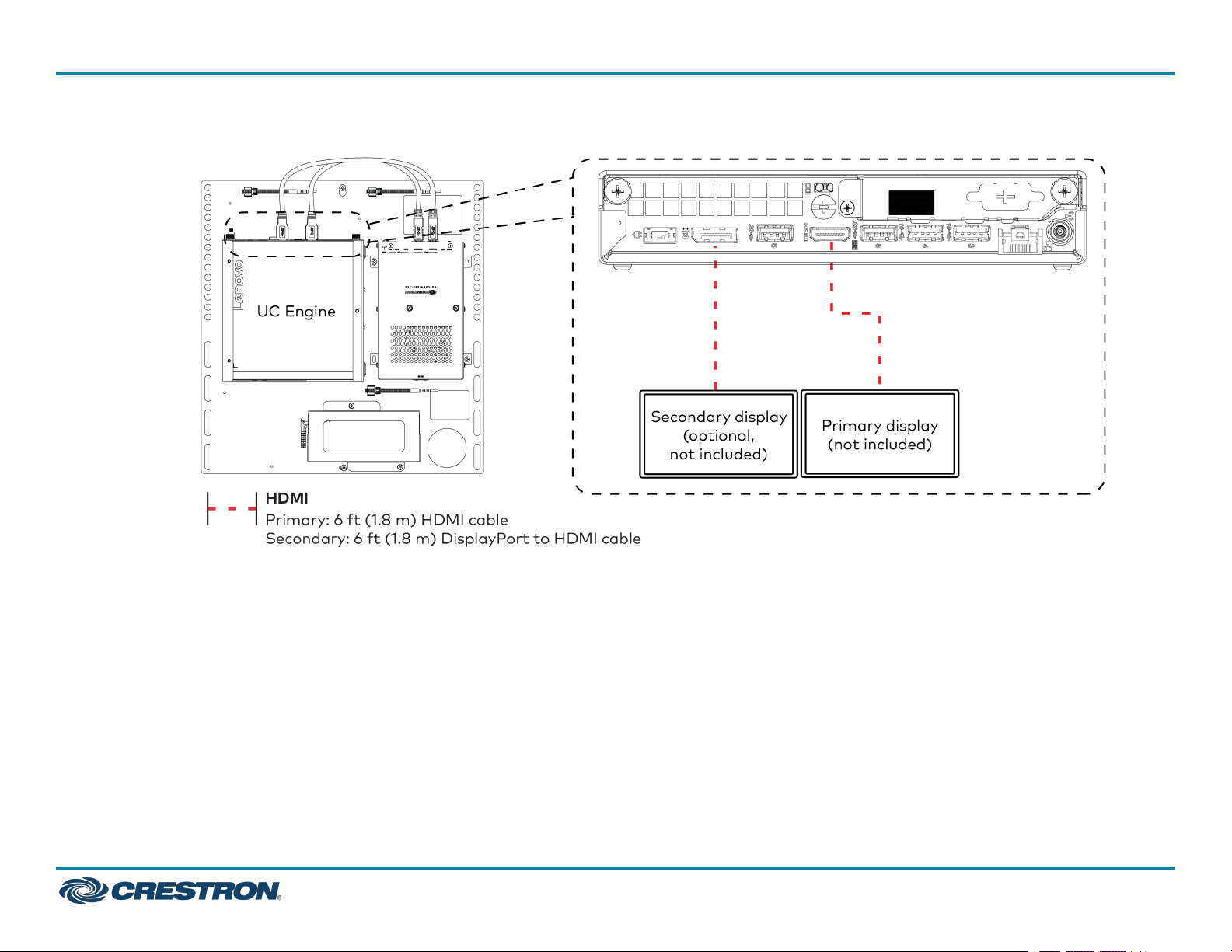

2. Connect displays to the UC Engine.
12
UC-MMX30-Z(-I) and UC-MMX30-Z-L(-I) QuickStart
Crestron Flex Advanced Tabletop Small Room Video Conference System for Zoom Rooms™ Software

3. Connect the power supply and camera to the top of the content ingest device (HD-CONV-USB-260). Connect the power supply to an AC power
outlet.
13
UC-MMX30-Z(-I) and UC-MMX30-Z-L(-I) QuickStart
Crestron Flex Advanced Tabletop Small Room Video Conference System for Zoom Rooms™ Software

4. Connect power, the content ingest device (HD-CONV-USB-260), and LAN to the top of the UC Presentation Transmitter.
NOTE: If a longer cable between the UC Presentation Transmitter and the HD-CONV-USB-260 is needed, use a DigitalMedia™ Ultra cable only. The
maximum supported cable length is 300ft (91.4 m).
14
UC-MMX30-Z(-I) and UC-MMX30-Z-L(-I) QuickStart
Crestron Flex Advanced Tabletop Small Room Video Conference System for Zoom Rooms™ Software

5. Connect the conference device using the included PoE+ injector and USB A to Micro-B cable to the bottom of the UC Presentation Transmitter.
15
UC-MMX30-Z(-I) and UC-MMX30-Z-L(-I) QuickStart
Crestron Flex Advanced Tabletop Small Room Video Conference System for Zoom Rooms™ Software

6. Connect a laptop to either the USB port or both the HDMI and USB B ports on the bottom of the UC Presentation Transmitter. Select a
connection type based on the available ports on the user's laptop.
NOTES:
lIf the USB port is used along with either the HDMI or USB B port, the UC Presentation Transmitter will communicate via the USB port by
default.
lWhen connecting a laptop for BYOD presentation, select the audio source on the connected laptop.
7. Bundle the cables to the bracket assembly with the integrated cable tie wraps. The cable tie wraps are reusable.
16
UC-MMX30-Z(-I) and UC-MMX30-Z-L(-I) QuickStart
Crestron Flex Advanced Tabletop Small Room Video Conference System for Zoom Rooms™ Software

Configure
Apply Power
Press the power button on the bottom of the UC Engine and apply
power to all of the other devices in the system.
Log In to the Zoom Rooms Service
Use the conference device to sign in to the Zoom Rooms service using an
activation code or a Zoom Room Sign-In.
1. Tap Zoom and then tap OK. The device will reboot.
2. Enter the pairing code shown on the display to pair the device with
the UC Engine. The Zoom Rooms controller app is displayed.
3. Log in to the Zoom Rooms service with an activation code or Zoom
Rooms Credentials (email and password).
lActivation Code:
a. Tap Enter Activation Code.
b. Enter the 16-digit activation code provided by the
administrator to activate the Zoom Room that is assigned to
the activation code. The Zoom Rooms Conference Room screen
is shown on the display.
lSign In:
a. Tap Sign In.
b. Enter the Zoom Room credentials and tap Sign In.
c. Select the conference room name from the list and tapNext.
The Zoom Rooms Conference Room screen is shown on the
display.
4. Tap Settings. If a password is required, enter the password (the
default password is "1234"). The Settings screen is displayed.
5. Tap Microphone and select the conference device as the source.
6. Tap Speaker and select the conference device as the source.
7. Tap Meet Now to exit.
Configure the System
Connect a USB keyboard and mouse (sold separately) to a USB port on
the UC Engine to configure system features. For detailed information on
using Zoom Rooms, refer to the Zoom Rooms Help Center.
Factory Reset
A factory reset may be performed when troubleshooting the conference
device.
To perform a factory reset on the conference device:
1. Power cycle the device by disconnecting and reconnecting the CAT5e
cable from the conference device.
2. When the device powers on and the LEDs flash green, tap the button
below the Crestron® logo 10 times. A factory reset confirmation
screen appears.
17
UC-MMX30-Z(-I) and UC-MMX30-Z-L(-I) QuickStart
Crestron Flex Advanced Tabletop Small Room Video Conference System for Zoom Rooms™ Software

3. Tap one of the mute buttons to move the selector on the factory
reset confirmation screen to Yes. Tap the button below the Crestron
logo to confirm the factory reset.
4. The device will reboot.
Visit the Product Page
Scan the QR code to visit the product page.
UC-MMX30-Z
www.crestron.com/model/6511631
UC-MMX30-Z-I
www.crestron.com/model/6511632
UC-MMX30-Z-L
www.crestron.com/model/6512190
UC-MMX30-Z-L-I
www.crestron.com/model/6512191
18
UC-MMX30-Z(-I) and UC-MMX30-Z-L(-I) QuickStart
Crestron Flex Advanced Tabletop Small Room Video Conference System for Zoom Rooms™ Software

Additional Information
Original Instructions
The U.S. English version of this document is the original instructions.
All other languages are a translation of the original instructions.
Crestron product development software is licensed to Crestron dealers and Crestron
Service Providers (CSPs) under a limited nonexclusive, nontransferable Software
Development Tools License Agreement. Crestron product operating system software is
licensed to Crestron dealers, CSPs, and end-users under a separate End-User License
Agreement. Both of these Agreements can be found on the Crestron website at
www.crestron.com/legal/software_license_agreement.
The product warranty can be found at www.crestron.com/warranty.
The specific patents that cover Crestron products are listed at
www.crestron.com/legal/patents.
Certain Crestron products contain open source software. For specific information, visit
www.crestron.com/opensource.
Crestron, the Crestron logo, and DigitalMedia are either trademarks or registered
trademarks of Crestron Electronics, Inc. in the United States and/or other countries.
ASUS is either a trademark or registered trademark of ASUSTeK Computer Inc. in the
United States and/or other countries. HDMI is either a trademark or registered
trademark of HDMI Licensing LLC in the United States and/or other countries. Lenovo
and ThinkSmart are either trademarks or registered trademarks of Lenovo in the United
States and/or other countries. USB-C is either a trademark or registered trademark of
USB Implementers Forum, Inc. in the United States and/or other countries. DisplayPort
and VESA are either trademarks or registered trademarks of Video Electronics
Standards Association in the United States and/or other countries. Zoom Rooms is
either a trademark or registered trademark of Zoom Video Communications, Inc. in the
United States and/or other countries. Other trademarks, registered trademarks, and
trade names may be used in this document to refer to either the entities claiming the
marks and names or their products. Crestron disclaims any proprietary interest in the
marks and names of others. Crestron is not responsible for errors in typography or
photography.
©2021 Crestron Electronics, Inc.
Doc. 8880C
10/12/21
19
UC-MMX30-Z(-I) and UC-MMX30-Z-L(-I) QuickStart
Crestron Flex Advanced Tabletop Small Room Video Conference System for Zoom Rooms™ Software
