Crestron CNMSX Integrated Control System
Integrated Control System:
CNMSX
Description
Functional Description
The CNMSX is an integral part of Crestron’s new generation of control system
technology featuring the newest series of Ethernet/local area network (LAN)
compatible control systems. The CNMSX is an integrated control system with eight
infrared (IR)/serial ports, six bidirectional RS-232/422/485 ports, eight digital/analog
input and digital output ports, eight isolated relays, and an integrated 110/220 VAC
(75W) power supply.
Expansion Slots
There is also room for growth; the unit (depending on configuration) offers four
expansion slots. One of the slots features Crestron’s exclusive Direct Processor
Access (DPA) port for Ethernet/LAN expansion of the control network. This port
provides high-speed access directly to the processor while maintaining bandwidth
network connections. The DPA currently supports the CNXENET (& CNXENET+)
10 BaseT Ethernet cards with future support for Firewire, ATM, 100BaseT, and
popular interfaces. The other three card slots offer system expansion with a variety of
plug-in cards.
LCD Display (available on CNMSX-PRO only)
An 80-character (two 40-character lines) liquid crystal display (LCD) display and an
extended bank of LED indicators are located on the front panel to provide extended
features, status information, and troubleshooting indications.
Configuration Differences
There are two CNMSX configurations available: the PRO and AV. The PRO is the
flagship product in Crestron’s new generation of control systems. It is the model that
has all the features mentioned in the previous section. The AV is a cost-competitive
alternative to the PRO. The AV has all the features of the PRO, except for the
extended bank of status and activity LEDs, front panel LCD screen, and the network
analyzer feature. A “card cage” (CNXCAGE) providing three expansion slots is
Operations Guide - DOC. 8118B Integrated Control System: CNMSX •1

Integrated Control System Crestron CNMSX
optional on the AV. Refer to the table below for a concise list of configuration
features.
CNMSX Configuration Differences
FEATURES CNMSX-PRO CNMSX-AV
Integrated 110/220 VAC Power Supply Standard Standard
2 Crestron Network Ports Standard Standard
8 Isolated Relays Standard Standard
8 IR/Serial Ports Standard Standard
6 Bidirectional RS-232/422/485 Ports Standard Standard
8 Digital/Analog Input & Digital Output Ports Standard Standard
2 Computer (RS-232) Ports Standard Standard
Direct Processor Access (DPA) Slot Standard Standard
Expansion Slots Standard Optional
CNXENET or CNXENET+ (field installed into DPA slot) Optional Optional
Reverse LCD Display Standard Not Available
Extended Bank of Status and Activity LEDs Standard Not Available
COM Analyzer Standard Not Available
Physical Description
An asterisk (*) indicates that
the feature is not standard
(though may be optional) on
the AV configuration.
The CNMSX is housed in a black enclosure with silk-screened labels on the front
and rear panels. On the front panel there is a single RS-232 computer port, standard
LEDs, two reset buttons, a reverse LCD display* with menu function and selection
buttons, and an extended bank of LED indicators*. The front panel of the CNSMX-
PRO and AV are shown below.

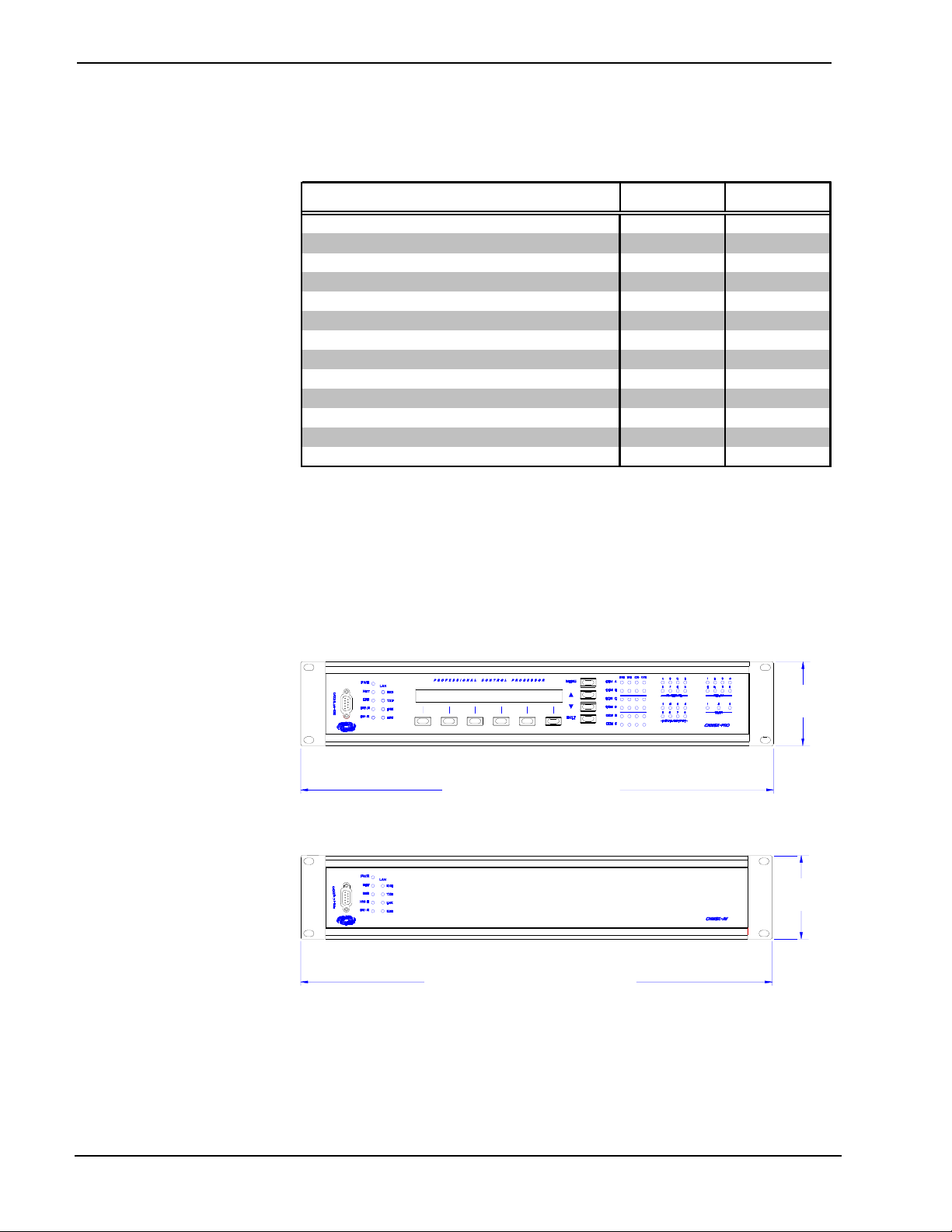

CNMSX-PRO Front Panel
WITHOUT OPTIONAL MOUNTING EARS
WITH OPTIONAL MOUNTING EARS
17.025 in (43.244 cm)
19.000 in (48.260 cm)
3.469 in
(8.811 cm)
CNMSX-AV Front Panel
WITHOUT OPTIONAL MOUNTING EARS
WITH OPTIONAL MOUNTING EARS
17.025 in (43.244 cm)
19.000 in (48.260 cm)
3.469 in
(8.811 cm)
An asterisk (*) indicates that
the feature is not standard
(though may be optional) on
the AV configuration.
Located on the rear panel, shown on the next page for each configuration, there are
three open card slots*, two network connectors, DPA slot, a single RS-232 computer
port, eight IR/serial ports, eight I/O ports, eight relay ports, six COM ports, and a
110/220 VAC male connector for power.
2 •Integrated Control System: CNMSX Operations Guide - DOC. 8118B

Crestron CNMSX Integrated Control System
CNMSX-PRO Rear Panel with Optional DPA Expansion Card and Rack Mounting Ears
Installed
CNMSX-AV Rear Panel with Optional DPA Expansion Card and Rack Mounting Ears Installed
Rubber feet are supplied and can be attached to the base of the unit for stability and to
prevent slippage when resting on a flat surface. The unit may also be rack mounted by
attaching metal flanges, also known as ears (supplied), to each end.
CNMSX Ports
A number of ports are provided on the front and rear panels of the CNMSX. Refer to
the description of each below.
CRESNET
CRESNET 4-Wire and 6-Pin Connectors
On the rear panel there are two network connectors: 4-wire and modular. The 4-pin
male connector (typical Crestron network port labeled 24 Y Z G) and 6-wire RJ-type
connector are used for expansion to Cresnet and SmarTouch peripherals. Depending
on the expansion slot load, there is a 50 W maximum load rating. The ports are wired
in parallel.
NOTE: If using the 4-wire connector, review the latest revision of the network
interconnection drawing (Doc. 5411).
NOTE: If using the modular connector, review the latest revision of the Network
Modular Cable Requirements (Doc. 5682). Most 4-conductor phone cables are wired
in a crisscross fashion and are not compatible with Crestron equipment.
The documents mentioned in the two preceeding notes can be obtained from the
Downloads page (CABLES and MANUAL Libraries) of the Crestron website
(www.crestron.com). Search for the CRESNET.PDF and MODULAR.PDF files.
Operations Guide - DOC. 8118B Integrated Control System: CNMSX •3

Integrated Control System Crestron CNMSX
RELAY OUTPUT
Relay Output Connector

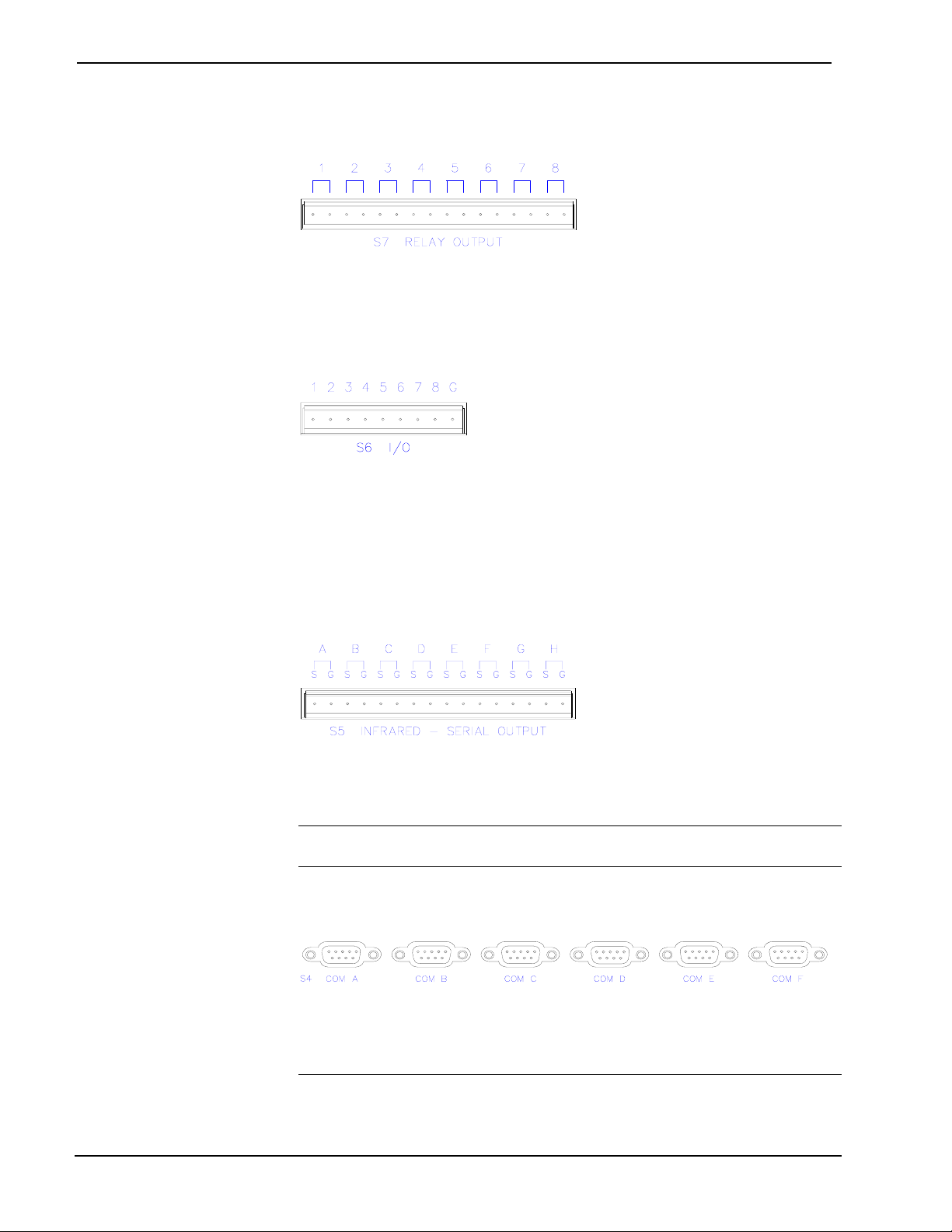

On the rear panel there are eight normally open, isolated relays. Each relay is rated
1A, 30 VAC/DC; MOV arc suppression is provided across contacts for use with “real
world” loads.
I/O
I/O Connector
On the rear panel there are eight software programmable analog and digital inputs as
well as digital outputs. Digital outputs offer 250mA sync from maximum 24 VDC;
catch diodes for use with “real world” loads. Digital inputs are rated 0 - 24 VDC, 20K
ohms input impedance, logic threshold 1.25 VDC. Analog inputs are rated 0 - 10
VDC, protected to 24 VDC maximum, 20K ohms input impedance; pin-
programmable 2K ohms pullup resistor to +5V.
INFRARED - SERIAL - RS 232
Infrared - Serial Output Connector
On the rear panel there are eight serial outputs for IR, one-way RS-232, or serial
interface. Each output is labeled S (signal) and G (ground). Infrared output is rated up
to 1.2 MHz. Serial protocols include RS-232.
NOTE: RS-232 levels on the infrared – serial output connectors provide a 0 – 5V
range, which may not be compatible with all devices.
COM (A - F)
COM (A - F) Connectors
On the rear panel there are six software programmable bidirectional serial ports for
RS-232, RS-422, or RS-485 communication with hardware and software
handshaking. Speeds are rated up to 230,400 bps.
NOTE: The pinout of each 9-pin port is non-standard (refer to table after this note,
titled “Non-Standard COM Pinout” ); it contains RS-422 pins in addition to RS-232.
4 •Integrated Control System: CNMSX Operations Guide - DOC. 8118B

Crestron CNMSX Integrated Control System
This may result in a conflict with some equipment and therefore do not use all nine
pins. Only the required pins for each communication type should be connected.
NOTE: To support RS-485, tie pin 1 (RXD-) to pin 9 (TXD-) and pin 4 (TXD+) to
pin 6 (RXD+) in the cable (refer to table after this note, titled “COM Pinout to RS-
485 Bus”.
Non-Standard COM Pinout
PIN DIRECTION DESCRIPTION
1* To CNMSX (RXD-) RS-422 Receive Data (Idles low)
2 To CNMSX (RXD) RS-232 Received Data
3 From CNMSX (TXD) RS-232 Transmitted Data
4 From CNMSX (TXD+) RS-422 Transmit Data (Idles high)
5 RS-232 and RS-422 Signal Common
6 To CNMSX (RXD+) RS-422 Receive Data (Idles high)
7 From CNMSX (RTS) RS-232 Request to Send
8 To CNMSX (CTS) RS-232 Clear to Send
9 From CNMSX (TXD-) RS-422 Transmit Data (Idles low)
Where: *= RS-422 transmit and receive are balanced signals requiring two lines plus a ground in each
direction. RXD+ and TXD+ should idle high (going low at start of data transmission). RXD-
and TXD- should idle low (going high at start of data transmission). If necessary, RXD+/RXD-
and TXD+/TXD- may be swapped to maintain correct signal levels.
COM Pinout to RS-485 Bus
COM (DB9) CONNECTOR RS-485 BUS
Tie Pins 1 & 9 -
Tie Pins 4 & 6 +
Pin 5 G

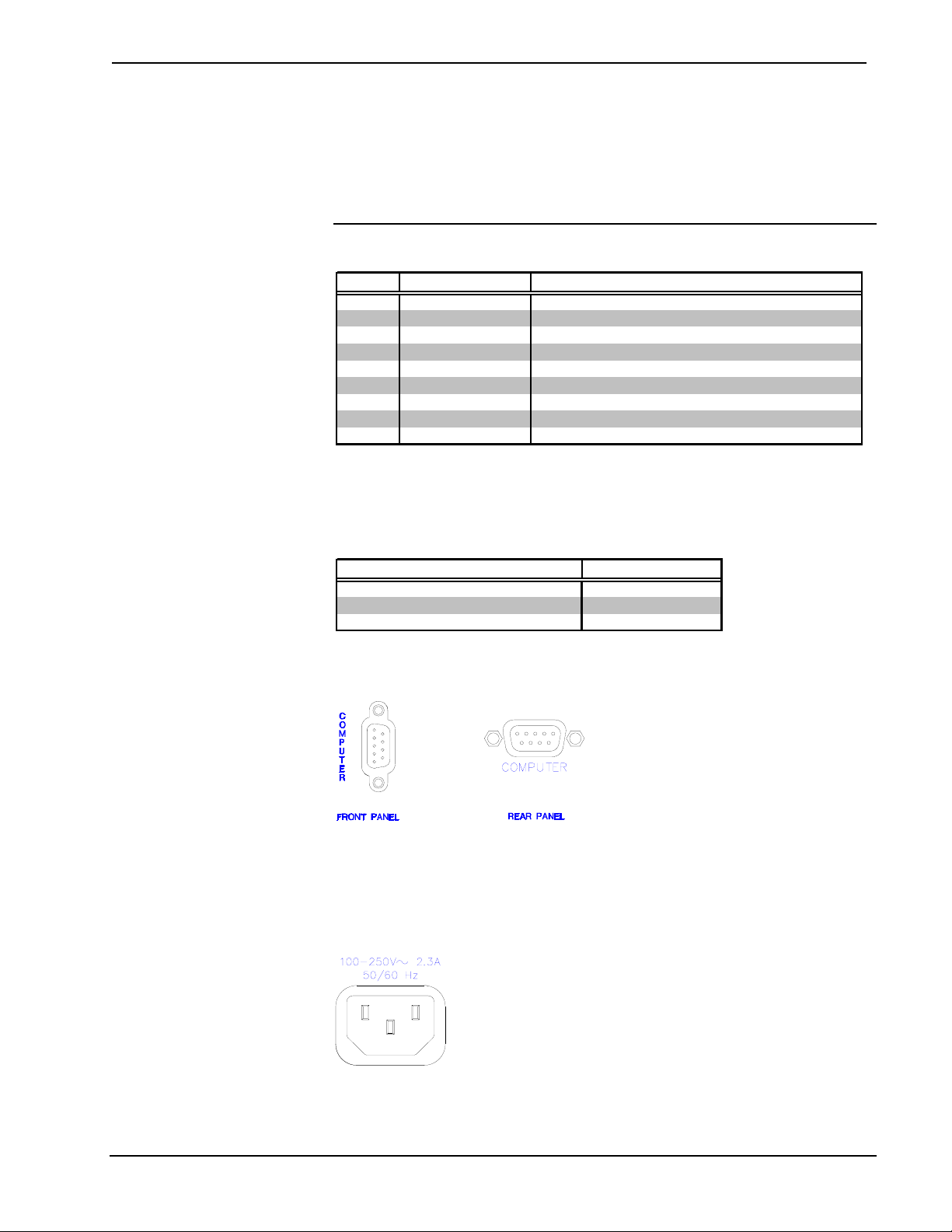

COMPUTER
Computer Connectors
These 9-pin DB9 female connectors (one on front panel and one on rear) are used
when programming with a PC. Each port is modem compatible. The modem cable is
not included.
100 - 250V ~ 2.3A 50/60 Hz (Power Supply)
Universal Power Supply Connector
On the rear panel there is an internal universal power supply connector. Use the
supplied power cord to connect to an AC outlet.
Operations Guide - DOC. 8118B Integrated Control System: CNMSX •5

Integrated Control System Crestron CNMSX
CNMSX Indicators
A number of indicators are provided on the front panel of the CNMSX. Refer to the
description of each below.
PWR
This LED illuminates when the unit is connected to and receives power from an AC
outlet.
NET
This LED illuminates when the central processing unit (CNXPU) is processing or
communicating with system hardware (i.e., button pressed at local panel or network
panel, data being sent out serial port, or permanent memory image being created).
ERR
This LED illuminates when an error condition is detected by the CNXPU. This may
be the result of hardware or software failure, hardware incompatibility with software
definitions, or a programming error. To decipher content, examine the message
available from the menu function buttons.
NOTE: The next four LEDs are active only if the DPA Expansion Card (which is
field installed) occupies the DPA slot.
TXD (LAN)
This LED illuminates during transmission of ethernet data from the DPA slot.
RXD (LAN)
This LED illuminates during reception of ethernet data by the DPA slot.
LNK (LAN)
This LED illuminates when there are attachements to the ethernet network.
ERR (LAN)
This LED illuminates when an ethernet protocol error is detected.
NOTE: The remaining LEDs mentioned after this note are available on the PRO
configuration, but not available on the AV configuration.
COM TX (A - F)
These LEDs illuminate during transmission of data to serial devices attached to
respective COM ports.
COM RX (A - F)
These LEDs illuminate during reception of data from serial devices attached to
respective COM ports.
COM RTS (A - F)
These LEDs illuminate to reflect the state of RTS (A - F). An illuminated LED means
that the RTS line is high. If no handshaking is specified, the RTS line will be high and
therefore, the associated LED is also high. When RTS flow control is enabled, RTS
indicates the unit is ready to receive data from serial devices attached to respective
COM ports.
6 •Integrated Control System: CNMSX Operations Guide - DOC. 8118B

Crestron CNMSX Integrated Control System
COM CTS (A - F)
These LEDs illuminate to reflect the state of CTS (A - F). An illuminated LED means
that the CTS line is high. When CTS flow control is enabled, CTS indicates the serial
devices on the respective COM ports are ready to accept data from the unit.
IR - SERIAL (A - H)
These LEDs illuminate during activity on respective IR/SERIAL lines.
INPUT - OUTPUT (1 - 8)
These LEDs illuminate when the input voltage threshold for respective I/O ports are
exceeded or when the output is active.
RELAY (1 - 8)
These LEDs illuminate when respective relay is closed.
SLOT (1 - 3)
These LEDs illuminate when a CNX expansion card is inserted into respective slots.

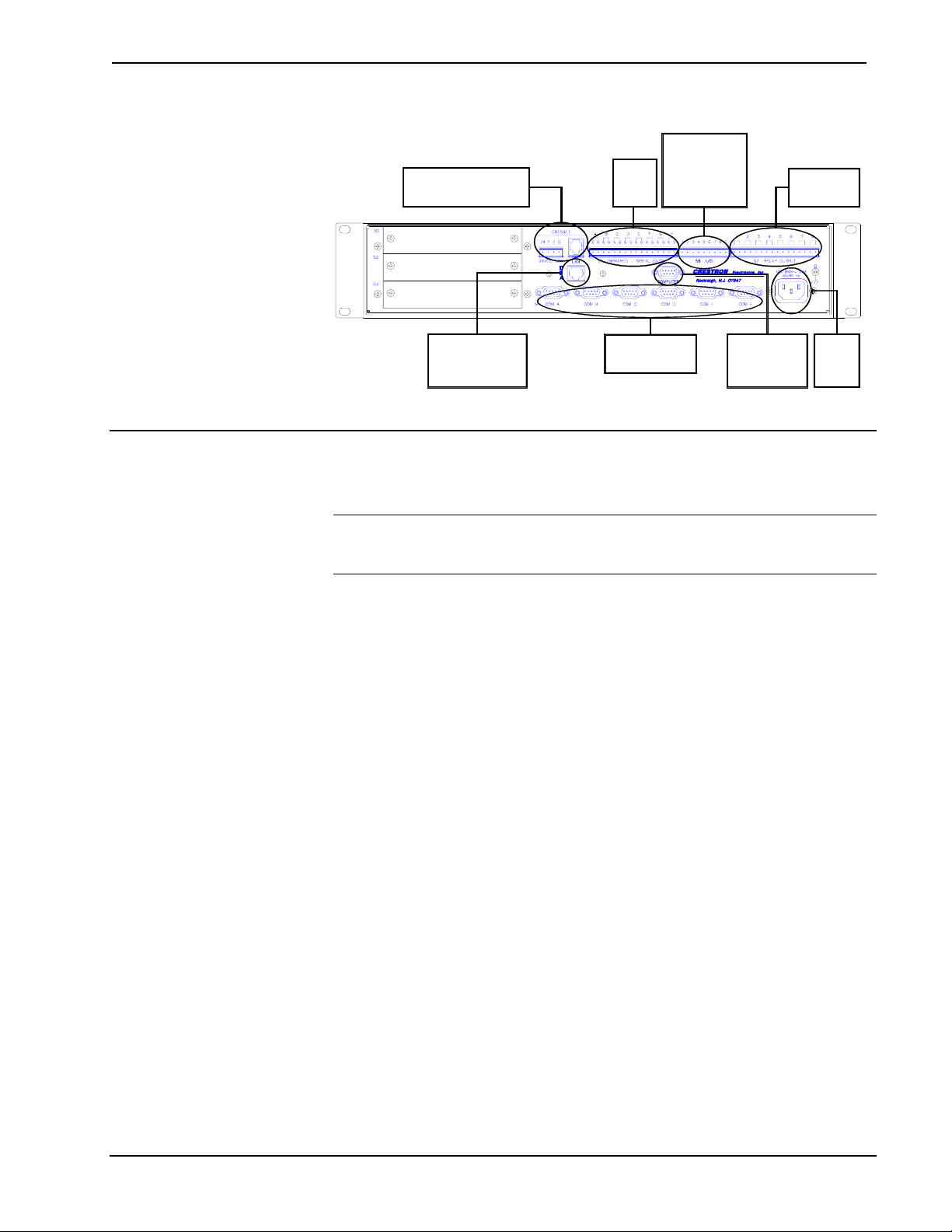

CNMSX Buttons
Two buttons are provided on the front panel of the CNMSX. Refer to the description
of each below.
HW-R
Depression of this button initiates physical reset of the system.
SW-R
Depression of this button in combination with the HW-R button (as described in step
5 of "Troubleshooting Communications" on page 26) performs an overload/reset.
CNMSX LCD Display
The front panel of the CNMSX-PRO incorporates a reverse mode (yellow on black)
LCD display, shown below. The screen contains two lines with 40 characters per line;
it is used to extend features and gain access to the system including the SIMPL
program. To the right of the display are four menu selection buttons. These buttons
permit the user to navigate through the menus and also to control the brightness of the
display backlight. Below the display are six menu function buttons. These buttons
offer extended features of the CNMSX. For details, refer to "Programming the LCD
Display (available on CNMSX-PRO only)" on page 15.

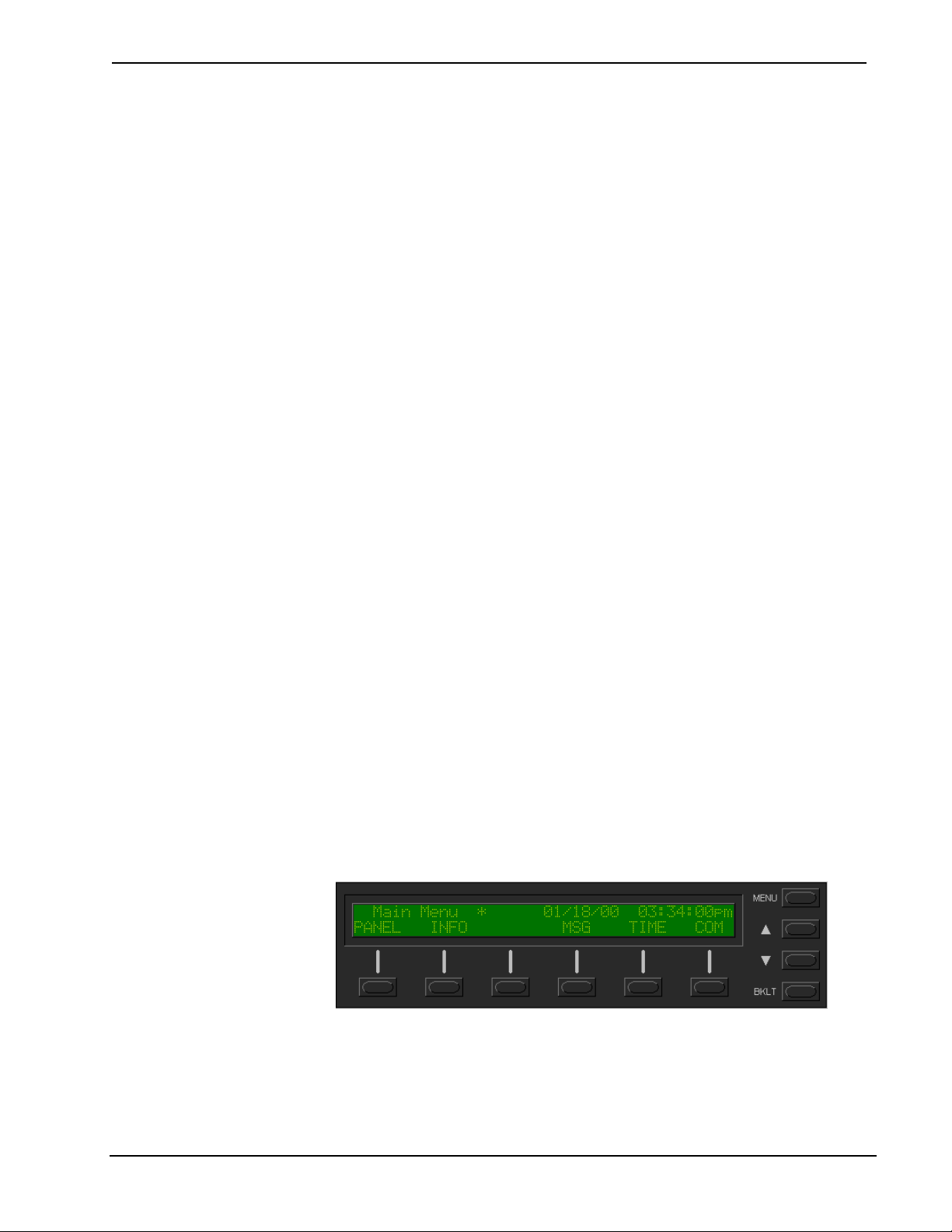

Main Menu
(Default LCD Display)
LCD Display with Menu Selection and Menu Function Buttons
Operations Guide - DOC. 8118B Integrated Control System: CNMSX •7

Integrated Control System Crestron CNMSX
Menu Selection Buttons MENU
This menu selection button functions as a return and will eventually bring the screen
display to the menu default state.
This button scrolls the listed information UP.
This button scrolls the listed information DOWN.
BKLT
This button adjusts the brightness of the LCD backlight and the front panel LEDs.
Menu Function Buttons PANEL
This menu function button displays a programmable interface offering command text,
indirect text, and hierarchical screen structure. The menu contents are subject to
programming and an example of this display is provided in "Programming the LCD
Display (available on CNMSX-PRO only)" on page 15.
INFO

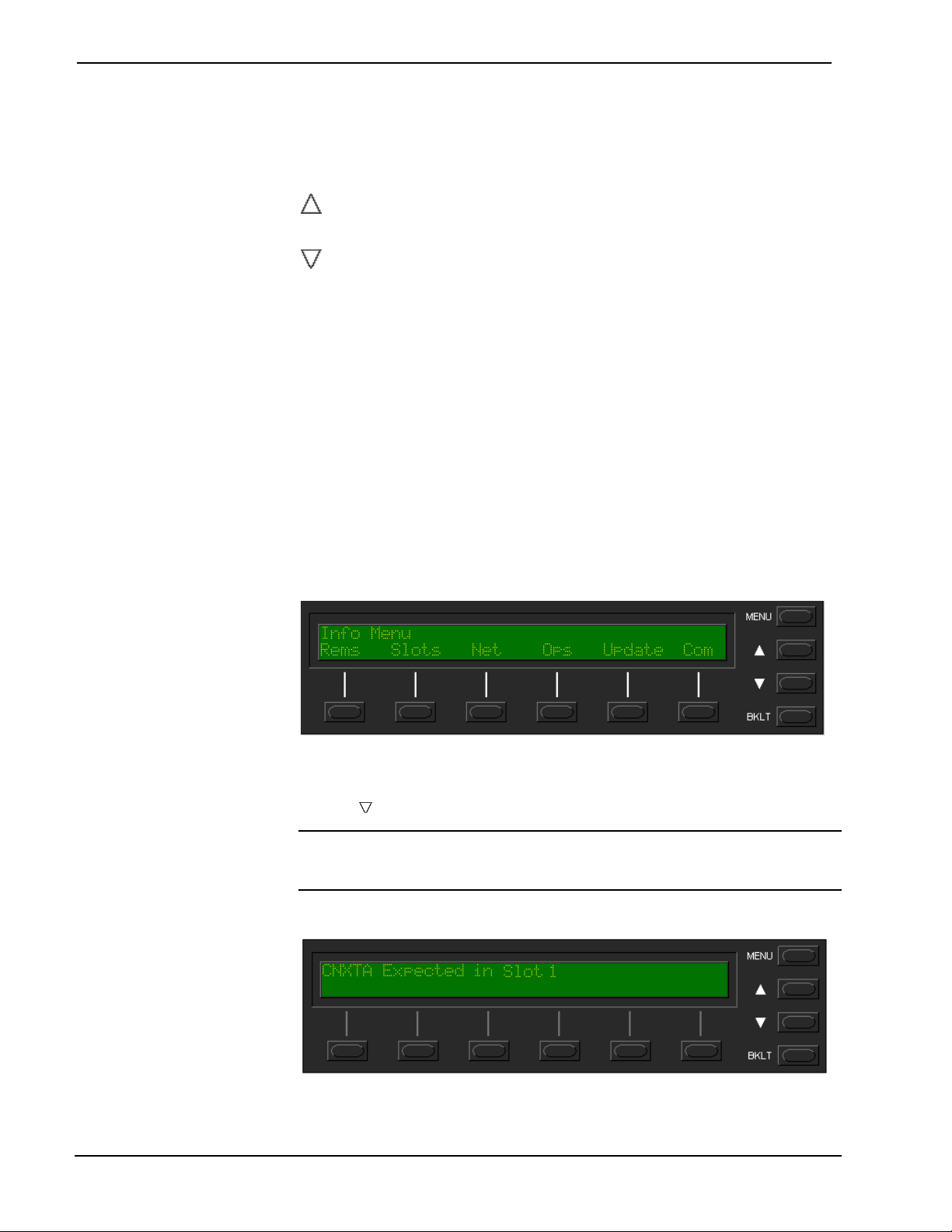

This button displays a default Info Menu, shown below. System information,
including the loaded SIMPL program version, types of CNX expansion cards
installed in the card slots, the Cresnet devices detected, the Ops/ROM version, and the
communication settings, is displayed.
Default Info Menu
MSG
This button displays system error messages or alarms. If there are one or more errors,
press the menu selection button to reveal the next message.
NOTE: Error messages may be the result of hardware or software failure, hardware
incompatibility with software definitions, or a programming error. After the last
message has been read, the ERR front panel LED extinguishes.
Example Message
8 •Integrated Control System: CNMSX Operations Guide - DOC. 8118B

Crestron CNMSX Integrated Control System
TIME
This menu can only be obtained by entering the correct access code. The default
access code is 1234. Use the Viewport (Functions | Set CNX Front Panel
Password) to assign a unique access code.

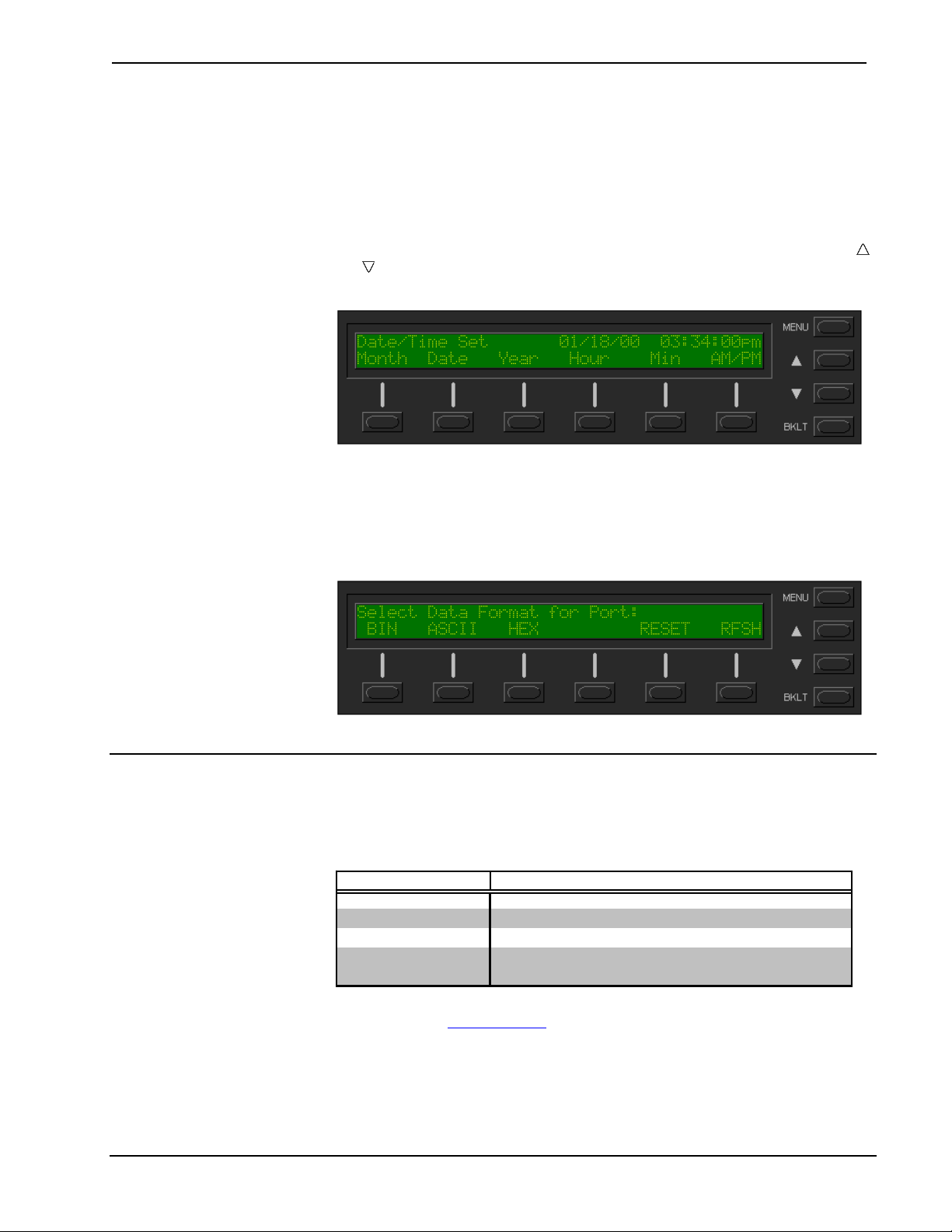

The default Time Menu, shown after this paragraph, permits alterations to system date
and time. Selecting a date/time parameter from the menu increments it by one.
Additional incremental or decremental changes can then be done by depressing the
and menu selection buttons, respectively.
Default Time Menu
COM
This button monitors the transmission and reception traffic on each COM port for a
given data format, as shown below in the default COM Menu. For more details refer
to "Network Analyzer (available on CNMSX-PRO only)" on page 34.
Default COM Menu
Leading Specifications
The tables below and on the next page provide a summary of leading specifications
for the CNMSX. Dimensions and weight are rounded to the nearest hundredth unit.
Leading Specifications of the CNMSX
SPECIFICATION DETAILS
Power Requirements 100-250 VAC, 2.3 A, 50/60 Hz Internal Universal Power Supply
SIMPLTM Windows® Version 1.30.01 or later with the addition of smwlib49.exe
CNX Upgrade File (.upz) Version 5.10.24X or later.2
Reset Buttons HW-R (permits physical reset of system) &
SW-R (assists with overload/reset).
1The latest software versions can be obtained from the Downloads page (SIMPLWIN Library) of the
Crestron website (www.crestron.com). New users are required to register in order to obtain access to
the FTP site.
2Filenames for CNX upgrades have a UPZ extension and can be obtained from the Downloads page
(OPSYS Library) of the Crestron website. For a CNMSX with e-control™ use the latest UPZ upgrade
file from the ECONTROL Library.
Operations Guide - DOC. 8118B Integrated Control System: CNMSX •9

Integrated Control System Crestron CNMSX
Leading Specifications of the CNMSX (Continued)
SPECIFICATION DETAILS
LCD Display (1) reverse mode (yellow on black) LCD back light; (2) lines,
(40) characters per line.3
MaxDigitalSignals 16373
MaxAnalogSignals 2048
MaxNVRAM 64K
MaxProgramSize 256K (no DPA card installed, CNXENET+ card installed, or
CNXENET installed and its IP Address set to 0.0.0.0)
100K
(
CNXENET card installed with valid IP Address
)
4
Dimensions & Weight Height: 3.47 in (8.81 cm)
Width: 19.00 in (48.26 cm)
Depth: 8.43 in (21.41 cm)
Weight: 6.29 lb (2.85 kg) for AV
Weight: 7.01 lb (3.18 kg) for PRO
3The LCD display is not available on the CNMSX-AV.
NOTE: There is no restriction
with the CNXENET+ card.
4The program size restriction of 100K with the CNXENET card exists if the control system has
the CNXENET installed and a valid IP address is assigned. SIMPL Windows limits the size of
the compiled file to 100K only if the CNXENET has been dropped onto the DPA Card slot.
Typically, if the CNXENET is being used for remote maintenance and not for programming
Ethernet devices (such as e-control touchpanels, etc), most users do not drop the CNXENET
into the program in SIMPL Windows. Please note that the maximum program size is still 100K,
even though SIMPL Windows states 256K during a compile. To make SIMPL Windows enforce
the restriction, drop a CNXENET into the DPA Card slot.
Leading Specifications of the CNMSX Connectors
CONNECTOR DETAILS
NET (1) 6-wire RJ-type connector and (1) 4-pin male connector for expansion
to CRESNET or SmarTouch peripherals.
50 Watt maximum load depending on expansion slot load
RELAYS (8) normally open,isolated relays; each relay is rated 1 A, 30 VAC/DC MOV
arc suppression devices across contacts for use with "real world" loads
INPUT/OUTPUT (8) programmable digital/analog inputs & digital outputs; digital outputs
offer 250 mA sync from maximum 24 VDC; catch diodes for use with "real
world" loads; digital inputs rated for 0-24 VDC, 20 K ohms input impedance,
logic threshold 1.25 VDC; analog inputs rated 1-10 VDC, protected to
24 VDC maximum, 20 K ohms input impedance; programmable 2 K ohms
pullup resistor (per pin, software reference to GND or closure to GND)
IR/SERIAL (8) serial outputs or IR, RS-232, or serial interface; signal (S) and ground
(G) pins, infrared output up to 1.2 MHz, serial protocols include RS-232
COM (6) bidirectional serial ports for RS-232, RS-422, or RS-485 communication
with hardware and software handshaking; speeds up to 230,400 bps
COMPUTER (2) 9-pin DB9 female connector for programming with a PC; modem
compatible, null modem cable; not included
Leading Specifications of the CNMSX Slots
SLOT DETAILS
1 through 3 (3) open "card cage" slots accept any "X" CRESNET control card5
DPA Direct Processor Access expansion slot for optional local area network
(LAN) interface card; CNXENET+ requires field installation and has (1)
8-wire RJ45 connector for communication acces
5CNXCAGE, 3-card cage, installation required for CNMSX-AV.
10 •Integrated Control System: CNMSX Operations Guide - DOC. 8118B

Crestron CNMSX Integrated Control System
As of the date of manufacture, the unit has been tested and found to comply with
specifications for CE marking.
NOTE: This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
Setup
Rack Mounting
WARNING: To prevent bodily injury when mounting or servicing this unit in a
rack, take special precautions to ensure that the system remains stable. The following
guidelines are provided to ensure your safety:
 The unit should be mounted at the bottom of the rack if it is the only unit in the
rack.
 When mounting this unit in a partially filled rack, load the rack from the bottom
to the top with the heaviest component at the bottom of the rack.
 If the rack is provided with stabilizing devices, install the stabilizers before
mounting or servicing the unit in the rack.
NOTE: If rack mounting is not required, rubber feet are provided for table-top
mounting or stacking. Apply the feet near the corner edges on the underside of the
unit.
NOTE: Reliable earthing of rack mounted equipment should be maintained.
Particular attention should be given to supply connections other than direct
connections to the branch circuit. (e.g., use of power strips).
Two “ears” are provided with the CNMSX so that the unit can be rack mounted.
These ears must be installed prior to mounting. Complete the procedure below to
attach ears to CNMSX. The only tool required is a #2 Phillips screwdriver.
1. There are 12 screws (#6-32 x 0.375" LG) that secure the sides of the
CNMSX top cover. Using a #2 Phillips screwdriver, remove the three
screws closest to the front panel from one side of the unit.
2. Position a rack ear so that its mounting holes align with the holes
vacated by the screws in step 1.
3. Secure the ear to the CNMSX with three screws from step 1, as shown
on the next page.
Operations Guide - DOC. 8118B Integrated Control System: CNMSX •11

Integrated Control System Crestron CNMSX

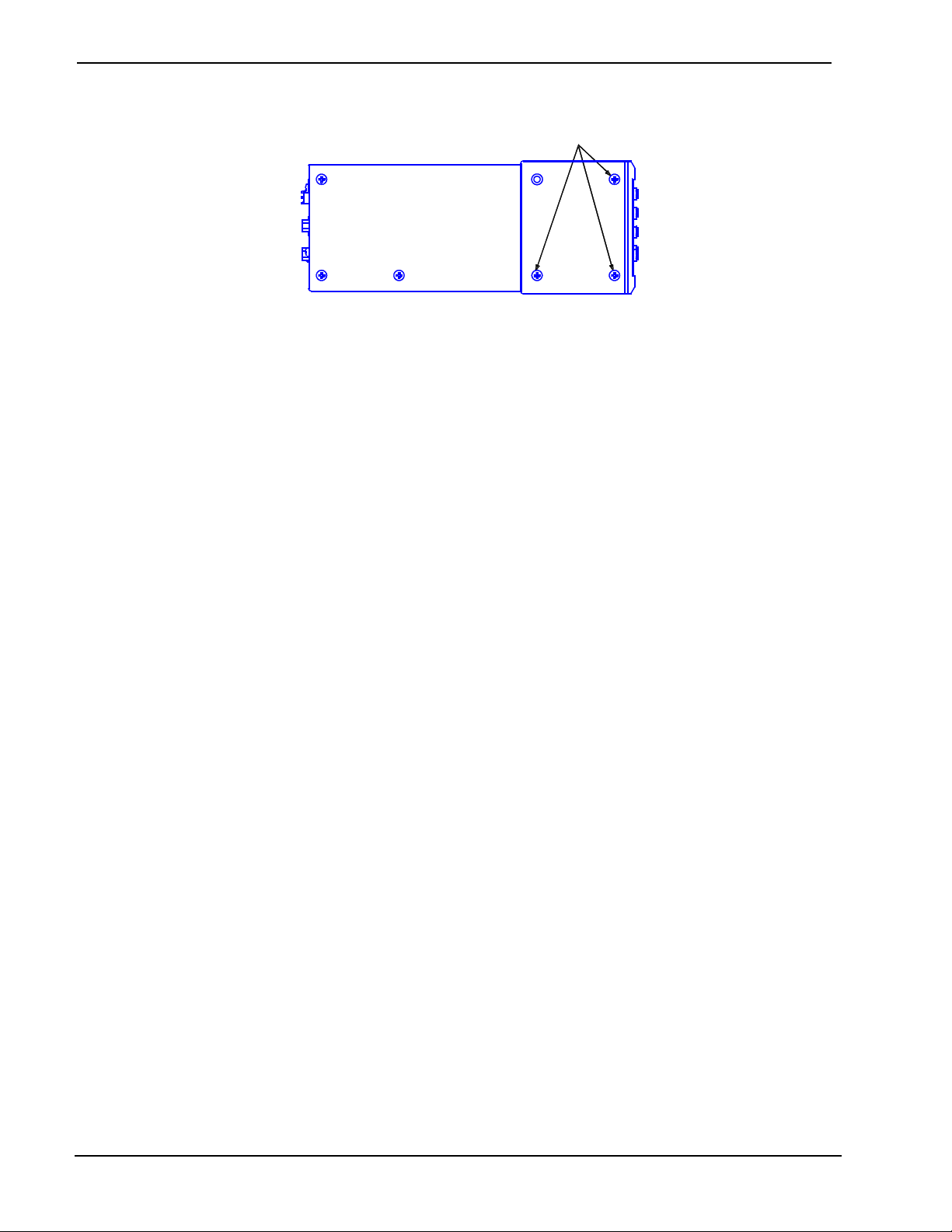

Ear Attachment for Rack Mounting
LEFT SIDE VIEW OF CNMSX-PRO/AV WITH
OPTIONAL RACK MOUNTING EARS INSTALLED
FASTEN WITH THE SAME (3) COVER SCREWS
4. Repeat procedure (steps 1 through 3) to attach remaining ear to opposite
side.
Bussing Strip Installation
The CNMSX is supplied with a brass bussing strip to facilitate commoning (linking)
of multiple terminal block connections. The bussing strip is constructed with eight
terminal block position, and may be trimmed to size for various applications or
different devices. One strip is supplied for each 16-position terminal block.
1. To utilize the bussing strip, determine the number of relays to be
commoned for the equipment being installed. If less than eight, the strip
can be trimmed to size with a pair of scissors or wire snips.
2. Loosen the terminal block screws and insert the first leg of the bussing
strip into the first common position on the terminal block. The strip
engages the other common positions automatically.
3. Remove approximately 1/8" of the jacket from the common wire and
insert the conductor into one of the terminal block common positions.
Tightenthe terminal block screws to lock the wire and bussing strip into
place. Insulate the strip by folding a piece of ¾" wide vinyl electrical
tape (such as Scotch 33+) over the spine and as much of the individual
legs as possible. Excess tape at each end of the strip should be pressed
closed, then trimmed to within approximately 1/16" of the end of the
strip.
4. When wiring the remaining conductors, remove approximately 1/8" of
the jacket and insert the wires into the proper terminal block positions.
To prevent the possibility of electrical shorts, it is essential that these
conductors do not touch any uninsulated portion of the bussing strip.
5. Securing a tie wrap around the bussing strip is a useful way to strain
relieve the wires connected to the terminal block.
Network Wiring
When calculating the wire gauge for a particular network run, the length of the run
and the power factor of each network unit to be connected must be taken into
consideration. If network units are to be daisy-chained on the run, the power factor of
each network unit to be daisy-chained must be added together to determine the power
factor of the entire chain. The length of the run in feet and the power factor of the run
should be used in the following resistance equation to calculate the value on the right
side of the equation.
12 •Integrated Control System: CNMSX Operations Guide - DOC. 8118B

Crestron CNMSX Integrated Control System
Resistance Equation
R = Resistance (refer to table below).
L = Length of run (or chain) in feet.
PF = Power factor of entire run (or chain).
R < L x PF
40,000 Where:
The required wire gauge should be chosen such that the resistance value is less than
the value calculated in the resistance equation. Refer to the table after this paragraph.
Wire Gauge Values
RESISTANCE (R) WIRE GAUGE
416
618
10 20
15 22
13 Doubled CAT5
8.7 Tripled CAT5
NOTE: All network wiring must consist of two twisted-pairs. One twisted pair is the
+24V conductor and the GND conductor and the other twisted pair is the Y conductor
and the Z conductor.
NOTE: When daisy-chaining Cresnet units, strip the ends of the wires carefully to
avoid nicking the conductors. Twist together the ends of the wires that share a pin on
the network connector, and tin the twisted connection. Apply solder only to the ends
of the twisted wires. Avoid tinning too far up the wires or the end becomes brittle.
Insert the tinned connection into the Cresnet connector and tighten the retaining
screw. Repeat the procedure for the other three conductors.

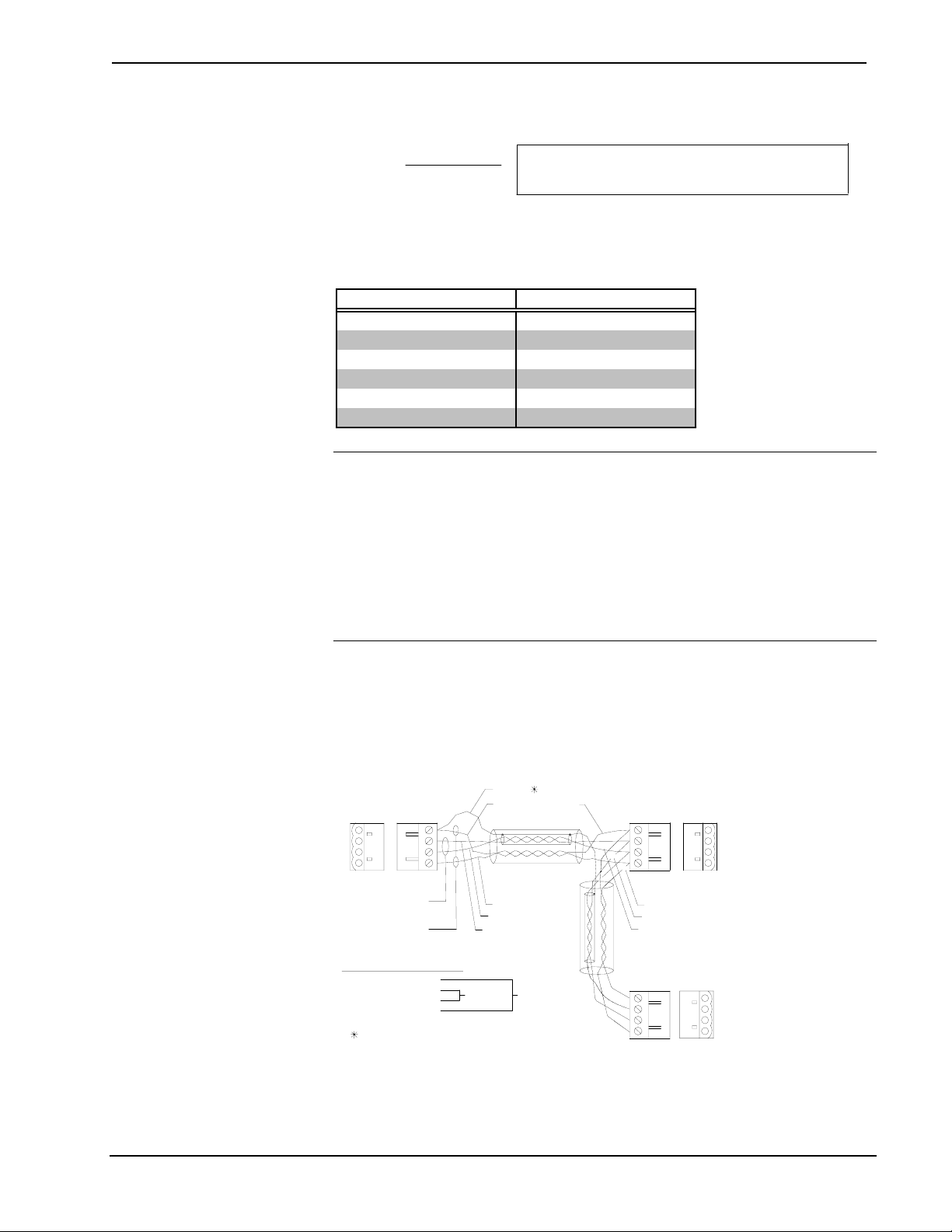

Four-Pin Network Connector
For four-pin network cable connections in a Crestron remote control system, the
Cresnet cable is used to power Crestron devices. Before making any four-pin network
connections to the CNMSX, refer to the network interconnection after this paragraph.
Recommended Network Cable, Liberty Wire Reference: Cresnet
NETWORK DEVICE
BLACK
BLUE
WHITE
NETWORK
RECOMMENDED COLOR CODE
BLACK
REFER TO LATEST REVISION OF DOC. 5411.
WHITE
BLUE
RED
GND =
24
=
=
=
(-) Z
(+) Y PAIR B
PAIR A
TWISTED
PAIR A
PAIR B
TWISTED
CONTROL SYSTEM
G
Y
2
4
FRONT VIEW
Z
TO
RED
BLUE
WHITE
SHIELD
BLACK RED
G
24
Y
Z
TO OTHER
24
Z
G
FRONT VIEW
Y
TO
DEVICE
Modular Network Connector
For modular cable connections in a Crestron remote control system, the six-conductor
modular cable is used to power Crestron devices. That cable must be rated for 30
Operations Guide - DOC. 8118B Integrated Control System: CNMSX •13

Integrated Control System Crestron CNMSX
VDC, 140°F (60°C) minimum. Also, the cable must be rated to carry sufficient
current for the loads. UL style 20251cable can be used to carry up to 2A when used in
a dual power and dual ground configuration, as shown below.

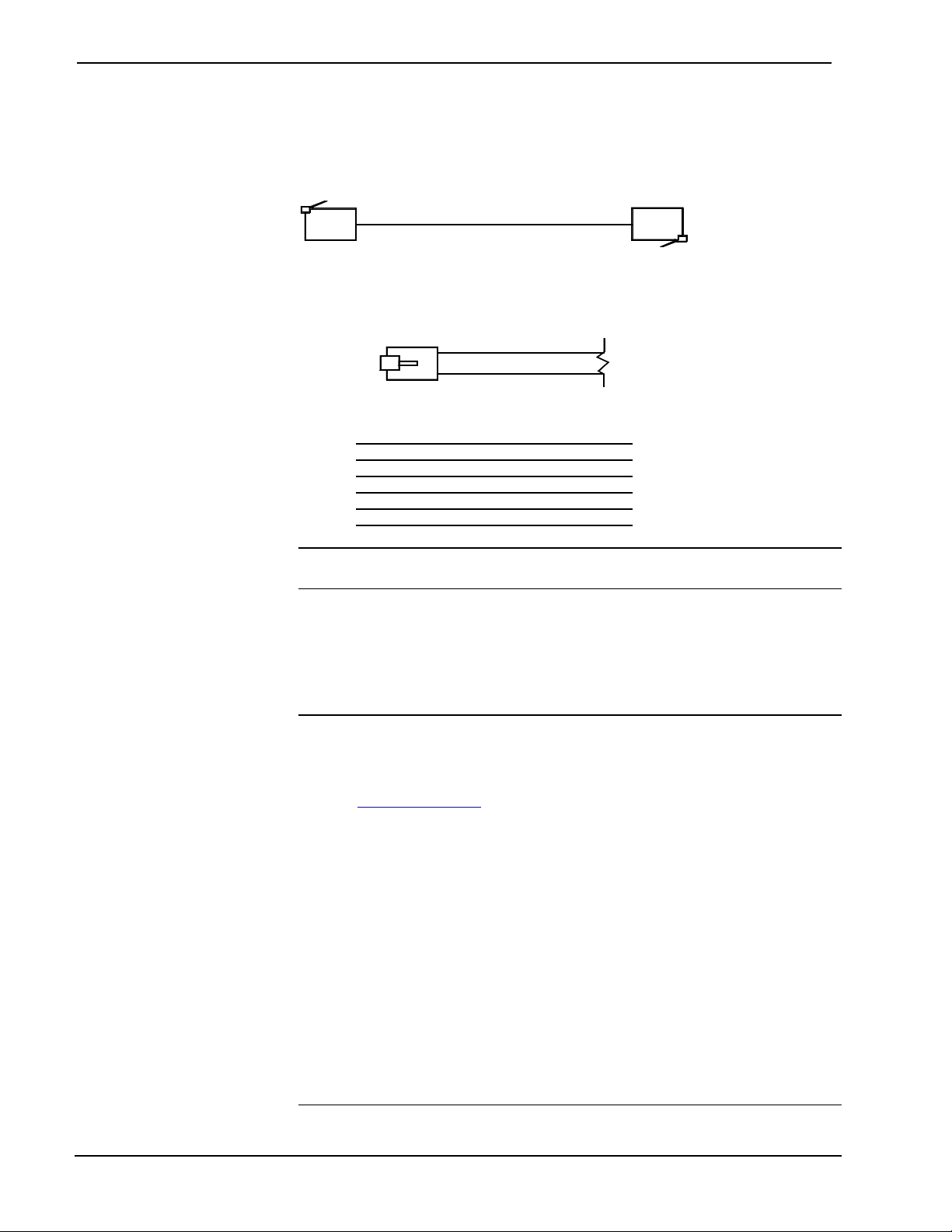

Crestron Network Modular Cable Requirements
6-CONDUCTOR MODULAR CABLE
MODULAR
CONNECTOR
(6-POSITION,
6-CONTACT)
PIN ORIENTATION
PIN TO PIN WIRING
+24V
+24V
Y
Z
GND
GND
2
3
4
5
6
1
2
3
4
5
1
6
#1
MODULAR
CONNECTOR
(6-POSITION,
6-CONTACT)
NOTE: Most 6-conductor phone cables are wired in a crisscross fashion and are not
compatible with Crestron equipment.
Hardware Hookup
Refer to the hookup diagram on the next page and aside from attaching power last,
complete the connections in any order.
NOTE: Refer to the latest revision of the Crestron Network Modular Cable
Requirements (Doc. 5682) or Network Interconnect Drawing (Doc. 5411) when
making connections to the port labeled CRESNET. These documents can be obtained
from the Downloads page (CABLES and MANUAL Libraries) of the Crestron
website (www.crestron.com). Search for the MODULAR.PDF and CRESNET.PDF
files, respectively.
NOTE: To prevent overheating, do not operate this product in an area that exceeds
the recommended ambient temperature of 104°F (40°C). Consideration must be
given if installed in a closed or multi-unit rack assembly since the operating ambient
temperature of the rack environment may be greater than the room ambient. Contact
with thermal insulating materials should be avoided on all sides of the unit.
NOTE: The maximum continuous current from equipment under any external load
conditions shall not exceed a current limit that is suitable for the minimum wire gauge
used in interconnecting cables. The ratings on the connecting unit's supply input
should be considered to prevent overloading the wiring.
NOTE: Since the plug on the power supply cord is used to disconnect power from
the unit, the socket-outlet shall be installed near the equipment and shall be easily
accessible.
14 •Integrated Control System: CNMSX Operations Guide - DOC. 8118B

Crestron CNMSX Integrated Control System
Hookup Connections for CNMSX
TO ETHERNET OR
LOCAL AREA NETWORK
(IF DPA EXPANSION CARD
HAS BEEN INSTALLED)
TO ANY STS OR CRESNET
NETWORK DEVICE
TO SERIAL
PORT ON PC
(ANOTHER DB9
CONNECTOR ON
FRONT PANEL)
TO ANY RS-232,
-422, OR -485 DEVICE
TO
OUTLET
(POWER
CORD
SUPPLIED)
TO
CONTROLLABLE
DEVICES
TO CONTROLLABLE
DEVICES
FROM
DEVICE OUTPUTS
- CONTACT CLOSURES
- SOLID STATE CLOSURES
TO CNXIRP
OR SERIAL
DEVICES
Programming the LCD Display (available on CNMSX-PRO
only)
NOTE: The following description assumes that the reader has some knowledge of
SIMPL™ Windows®. If not, please refer to the extensive help information provided
with the software.
SIMPL (Symbol Intensive Master Programming Language) is an easy-to-use
programming language that is completely integrated and compatible with all Crestron
system hardware. The objects that are used in SIMPL are called symbols. SIMPL
Windows offers drag and drop functionality in a familiar Windows® environment.
SIMPL Windows is Crestron Electronics development environment for programming
Crestron control systems. It provides a well-designed graphical environment with a
number of workspaces (i.e., windows) in which a programmer can select, configure,
program, test, and monitor a Crestron control system.
The CNMSX-PRO LCD display is preprogrammed with a certain level of diagnostic,
testing, and network device information. Assuming the CNMSX is connected to a PC
running SIMPL Windows, a LCD display programming utility (Front Panel Editor)
can be accessed. This editor enables a programmer to program multi-level pages
under the PANEL (left-most, function) button on the LCD display.
Front Panel Editor
The LCD display on a CNMSX-PRO has different pages that are defined by the
programmer. Menu function buttons are assigned to different pages or objects. The
LCD display has a 2x40 character display with six-programmable buttons.
In Front Panel Editor, pages are designed and added to the panel. An example of the
default page is shown after this paragraph. Each front page is one display (2x40
characters) and can have as many objects as the physical size of the display allows
(objects can not overlap). The top line of the panel is used for informative object
displays, such as headings, indirect text, bar graphs, and time/date displays. The
bottom line of the panel is for objects that are accessed by the six menu function
buttons below the display. The buttons only access the page or object whose field is
directly over the button. Objects added to the bottom line of the display can have page
Operations Guide - DOC. 8118B Integrated Control System: CNMSX •15

Integrated Control System Crestron CNMSX
jumps or logic programming in SIMPL Windows that cause specific events to occur.
These objects are initiated by pressing the function button that is associated with it.
Default Front Panel Page
Creating a Page with Front Panel Editor
NOTE: The creation of a front panel page is discussed in this section. For more
details, consult the SIMPL Windows help file. Search for Front Panel Editor.
Assume that a page, as shown below, is required. The concept of such an application
is that the user can then choose a given device and then, from a lower-level page,
control one or more transport functions of the device.
Example of a Front Panel Page
Adding Top-Level Pages and Objects
Use SIMPL Windows and access the Front Panel Editor by selecting Project | Edit
Front Panel. Click on the Add button and enter a new name for the new page. For
this example, use “Menu1 – Choose Device” as the name.
Double click inside the display area of the front panel on the screen to open the “Edit
Panel Object” dialog box. This example requires that headings be added to the page,
so choose Text Object from the Object Type area. In the Inactive Text field, enter
“Choose device”. The object is displayed on the panel. Click on and drag the object to
its desired location on the panel, top row.
Add additional objects (VCR, LaserDisc, CD, Lights, and Volume) to the page by
double clicking in the display area where the object is to appear. Repeat the procedure
in the previous paragraph; place objects over the appropriate menu function button.
Adding Lower-Level Pages and Objects
Lower-level pages can be added for each of the objects on the bottom row of the page
just created. For the purposes of this example, one lower-level page is added for the
VCR object. Simply click on the Add button and enter a new name for the new page.
For this example, use “Menu2 – VCR Control” as the name.
Return to the “Menu1 – Choose Device” and double click on the VCR object. The
“Edit Panel Object” dialog box appears. From the Menu Jump field, select “Menu2 –
VCR Control” and click OK. Select the Simulate check box to make the Front Panel
16 •Integrated Control System: CNMSX Operations Guide - DOC. 8118B
