INSTALLATION & OPERATING INSTRUCTIONS
CS-845RKE Series II / CS-855RKE
INTRODUCTION
CONGRATULATIONS on your choice of a Remote Keyless Entry System by Crimestopper Security Products
Inc. This booklet contains the information necessary for installing, and using your system. If any questions
arise, contact your installation dealer or Crimestopper Security Products Inc. at the Tech Support number
below.
*IMPORTANT INFORMATION: Primary and Optional Features
-PRIMARY: These are features that must be connected in order for the system to operate properly i.e. Power,
Ground, Lights, Power Locks, etc.
-OPTIONAL: Optional features are connected only if desired or agreed upon by the installing dealer i.e. Horn
Honk, Dome light illumination, Starter Kill, L.E.D., Trunk Pop, etc. These features may require additional parts
and labor charges. Consult with your installer about these features before installation.
This device complies with FCC Rules part 15. Operation is subject to the
following two conditions: 1) This device may not cause interference, and (2)
this device must accept any interference that may be received, including
interference that may cause undesired operation. The manufacturer is not
responsible for any radio or TV interference caused by unauthorized
modification to this equipment. Such modification could void the user's
authority to operate the equipment.
TECH SUPPORT
Mon-Fri 8:00 AM-4:30 PM Pacific Time
[phone]
www.crimestopper.com
[email protected]
REV. C 12.2002

INSTALLATION CAUTIONS & WARNINGS
BEFORE BEGINNING, check all vehicle manufacturer cautions and warnings regarding electrical service (AIR
BAGS, ABS BRAKES, AND BATTERY).
DO NOT ROUTE ANY WIRING THAT MAY BECOME ENTANGLED with brake, and gas pedals, steering
column, or any other moving parts in the vehicle.
REMOVE MAIN SYSTEM FUSE(S) before jump starting the vehicle or charging the battery at high boost.
DAMAGE MAY OCCUR TO SYSTEM IF PROPER PRECAUTIONS ARE NOT OBSERVED.
COMPONENT MOUNTING
CONTROL MODULE: Locate the module underdash as high as possible. Driver’s Side usually provides an
easy location for the majority of the wiring connections. Keep the module away from moving parts such as
brake/gas/clutch pedals, or the steering column. The Placement of the module will affect the distance from
which the remote transmitter can control the unit. The antenna wire should be routed away from any metal if
possible. DO NOT alter the length of the antenna wire, route it with other wires, or ground the antenna wire.
OVERRIDE / PROGRAM BUTTON: Mount the button in a hidden but accessible location. It is used for
emergency-disarm (when optional starter disable is installed) without the use of the transmitter and for
programming certain features.
LED: The red LED provides a useful theft deterrent and serves as the indicator when changing
programming options. Choose a visible location in the dash where running the wire down through the dash
will not create any problems. Always check behind surfaces before drilling any holes!

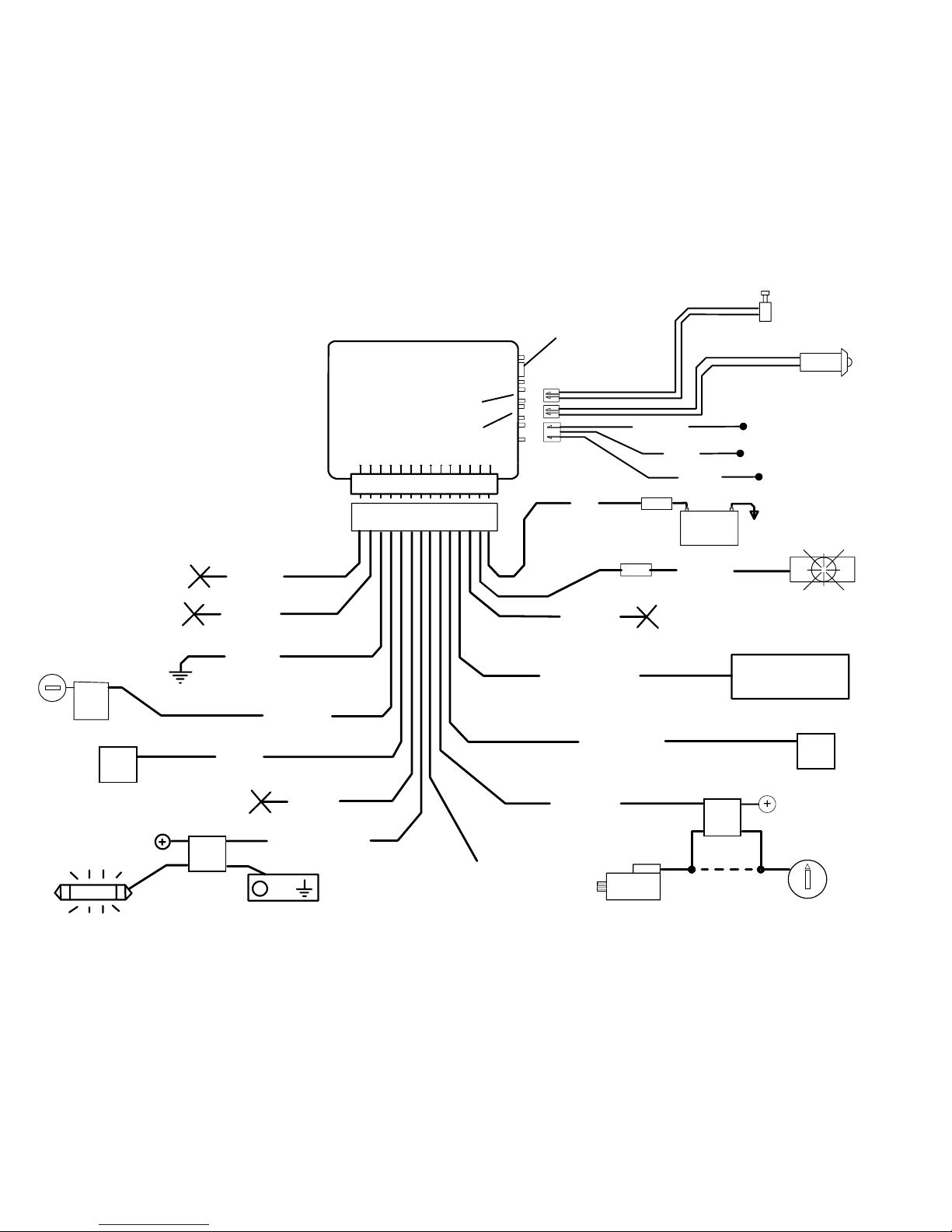

WIRING
YELLOW WIRE: IGNITION SWITCHED “ON” AND “START” +12 VOLTS
Connect to an ignition wire (or fuse in the fuse box) that shows +12 Volts when the key in both “On” and “Start”
positions.
845-BLUE/WHITE / 855-VIOLET WIRE: (-) PASSENGER(S) DOOR UNLOCK OUTPUT (Optional, requires relay)
Connects to unlock circuit for passenger door(s) when using separate driver’s door unlock option. See DOOR LOCK
WIRING for configuration options.
845-BROWN/WHITE / 855-BLUE WIRE: (-) HORN HONK/CHIRP OUTPUT (Optional, requires relay)
Connects to terminal 85 of a relay. Connect terminal 86 to +12V Constant. Connect terminal 87 to +12V or GROUND
depending on the type of horn activation circuit in the vehicle. Connect terminal 30 to the horn activation circuit.

WIRING
GRAY WIRE: (-) AUXILIARY REMOTE OUTPUT 1 (Optional, requires relay)
Connect to terminal 85 of relay. Connect terminal 86 to constant. Connect terminal 87 to +12V or Ground depending
on the type of circuit that needs to activated. Connect terminal 30 to the device/circuit to be activated. Controlled by
pressing and holding Button (3) Trunk Pop for more than 1 second.
845 RED/WHITE / 855-GREEN WIRE: (-) AUXILIARY REMOTE OUTPUT 2 (Optional, requires relay)
This wire connects the same way as Remote Output 1 see GRAY WIRE above. Controlled by Pressing and Holding
Button (1) Lock for more than 1 second.
ORANGE WIRE: NEGATIVE ARMED OUTPUT
This wire provides a GROUND output when system is locked with the remote transmitter. This output can used for an
starter disable relay or a device such as a window roll-up module. For a Starter Disable Circuit, a relay is required.
(Not included) Cut starter wire and connect to terminals 87A and 30 on relay. Connect orange wire to 85 and connect
86 to an IGNITION source that has voltage in the ON and CRANKING position. See Wiring Diagram.
BLACK WIRE: SYSTEM CHASSIS GROUND
THIS WIRE MUST BE CONNECTED TO CHASSIS METAL OF THE VEHICLE. Scrape away any paint or dirt from
the connection point to ensure a good connection. Keep ground wire short and try not to use factory ground locations.
845-BLACK/WHITE WIRE E: (-) DOME LIGHT
ILLUMINATION OUTPUT (Optional, may require
external relay): Connects to Dome light activation
circuit for Negative dome light systems or to terminal
85 of an external relay for Positive circuits.

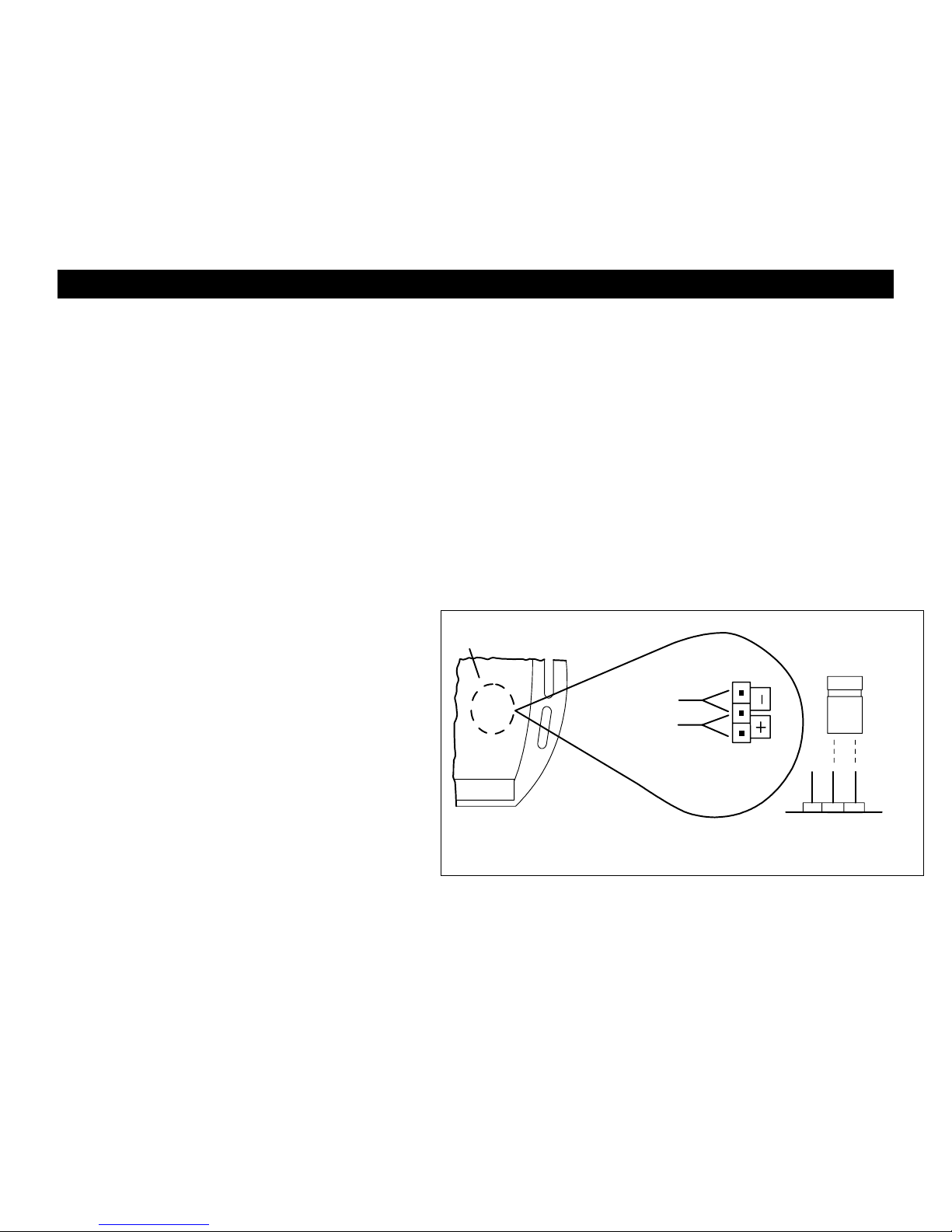

JUMPER
PLUG
SIDE VIEW
JUMPER
PINS
*NEGATIVE DOME
CS855RKE MODULE
POSITIVE DOME
*DEFAULT SETTING IS NEGATIVE
NOTE: DOES NOT APPLY TO CS-845RKE
855-BROWN WIRE: (+ or -) DOME LIGHT
OUTPUT (On-Board Relay): Connect to dome light
activation circuit for Negative type circuits. For
Positive type circuits, open the control module and
switch jumper the plug as shown in illustration >>>.
RED WIRE: +12V POWER INPUT (15 amp fuse)
Connect to +12 Volt source with supplied fuse &
holder. Recommended location for this connection
is at the vehicle battery positive terminal.
WHITE WIRE: +12V FLASHING PARKING LIGHT OUTPUT
Connect to switched parking light wire at back of light switch. If this is not possible, connect directly to one of the
parking lights at the front of the vehicle. European vehicles require separate right and left circuits. Use a dual relay or
2 diodes to separate the output signal.

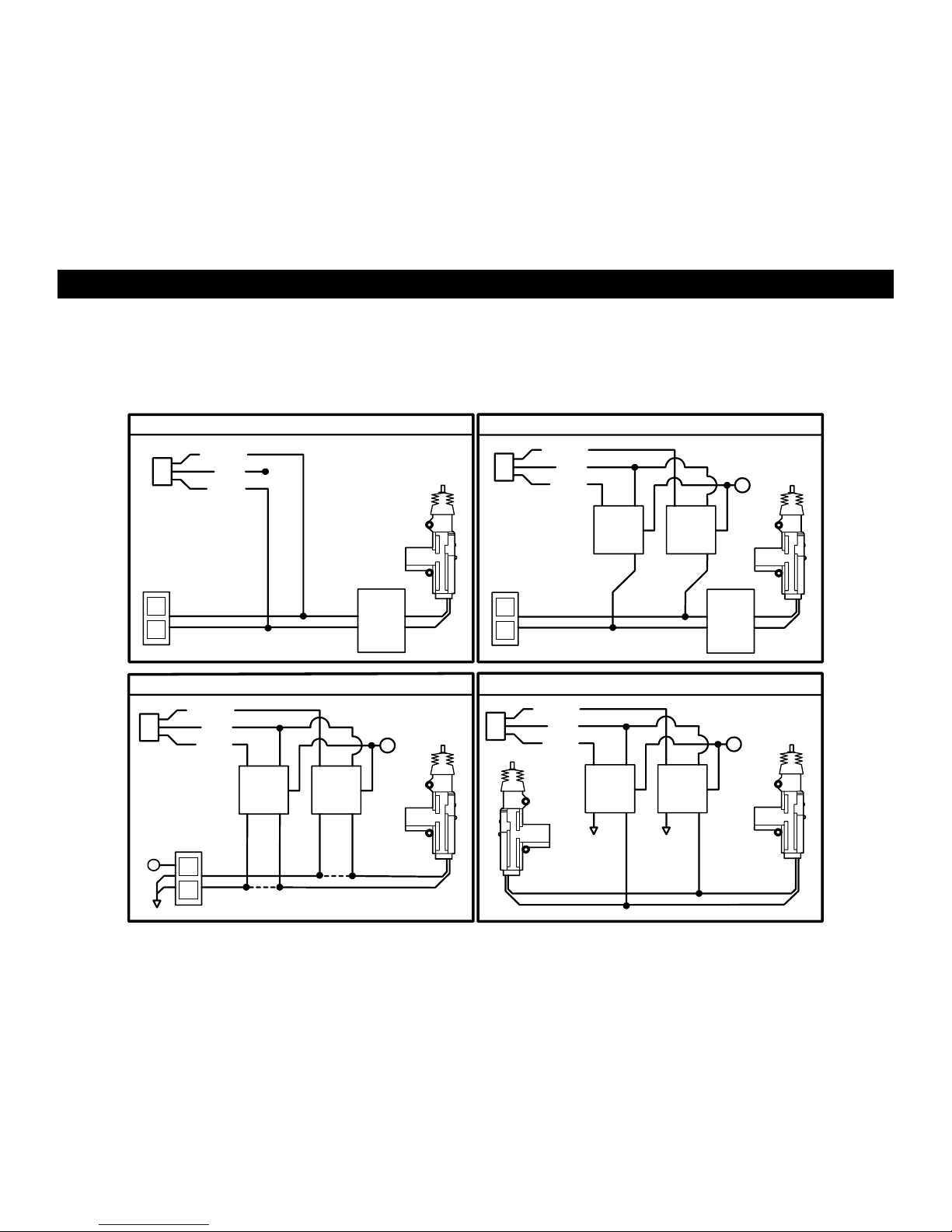

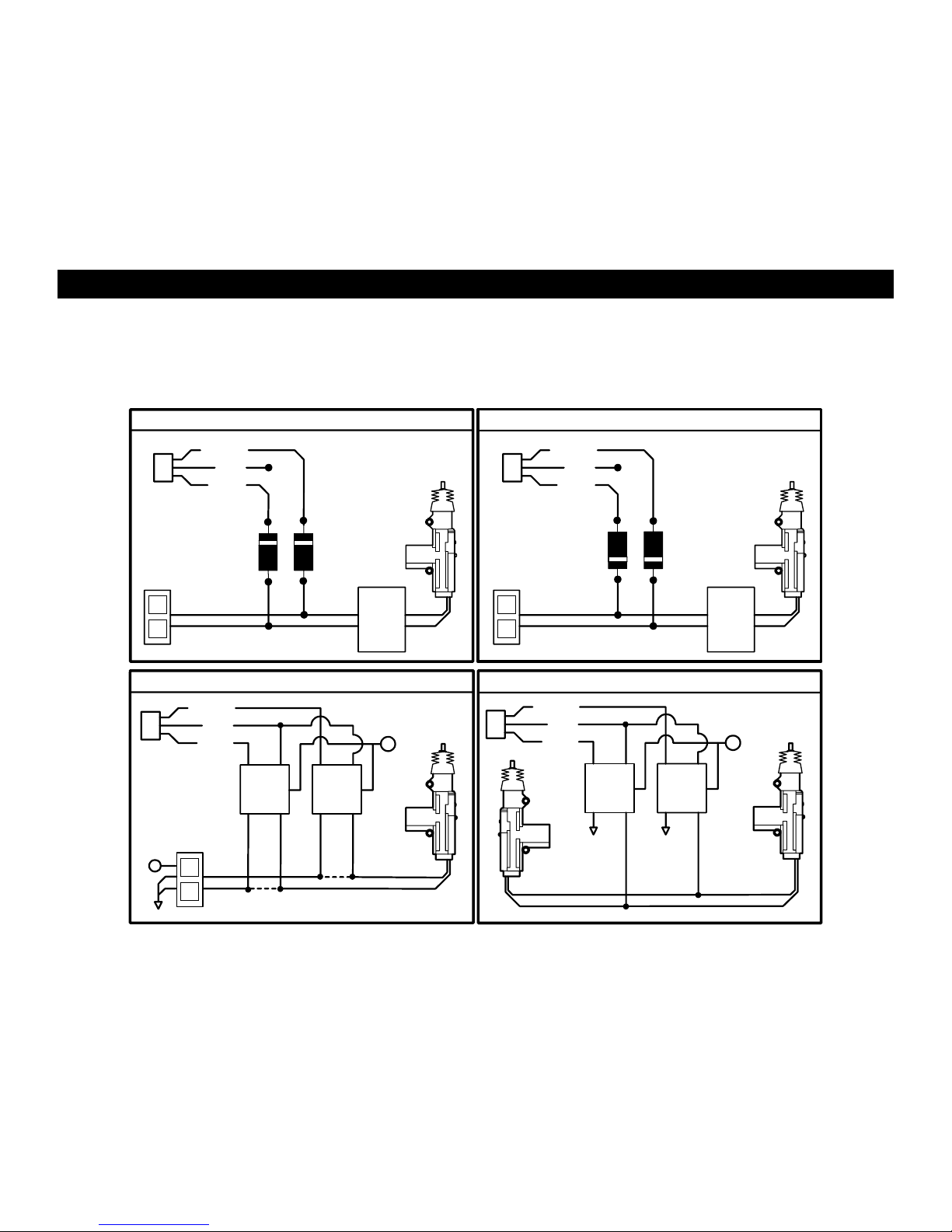

CS-845 RKE POWER DOOR LOCK WIRING
3 PIN (WHITE): DOOR LOCK OUTPUT PLUG
GREEN: (-) Negative LOCK pulse
RED: +12V Coil Power for external relays (Term. 86).
BLUE: (-) Negative UNLOCK pulse
CS-845RKE NEGATIVE TRIGGER DOORLOCK WIRING
CS-845RKE POSITIVE TRIGGER DOORLOCK WIRING
GREEN
GREEN FUSED
RED +12VRED
BLUE +
BLUE
86
858685
8787
3087A30
87A
FACTORY
FACTORY
LL
POWER
POWER
LOCKING
LOCKING
UL UL
RELAYS RELAYS
CS-845RKE AFTERMARKET DOOR LOCK WIRINGCS-845RKE REV. POLARITY DOOR LOCK WIRING
GREEN
GREEN FUSED
FUSED RED
RED +12V
+12V
BLUE
BLUE +
+
86858685
86858685
8787
8787
3087A3087A
3087A3087A
+L
CUT
UL
CUT
MASTER
SWITCH
LOCK WIRE
UNLOCK WIRE

CS-855 RKE POWER DOOR LOCK WIRING
3 PIN (WHITE): DOOR LOCK OUTPUT PLUG
GREEN: (-) Negative LOCK pulse / (+) Positive UNLOCK pulse
RED: +12V Coil Power for external relays (Term. 86).
BLUE: (-) Negative UNLOCK pulse / (+) Positive LOCK pulse
CS-855 RKE NEGATIVE TRIGGER DOORLOCK WIRING CS-855 RKE POSITIVE TRIGGER DOORLOCK WIRING
GREENGREEN
REDRED
BLUEBLUE
DIODES *
FACTORYFACTORY
LL
LOCK
LOCK
POWERPOWER
LOCKINGLOCKING
ULUL
RELAYSRELAYS
UNLOCK UNLOCK
IN4001
DIODES *
IN4001
CS-855 RKE AFTERMARKET MOTOR/DOOR LOCK WIRING
CS-855 RKE REVERSE POLARITY DOOR LOCK WIRING
GREEN
GREEN FUSED
FUSED RED
RED +12V
+12V
BLUE
BLUE +
+
86858685
8685
8685
8787
8787
3087A3087A
3087A3087A
+
L
CUT
UL
CUT
MASTER
SWITCH
*Diodes are recommended to prevent shorting door lock outputs.

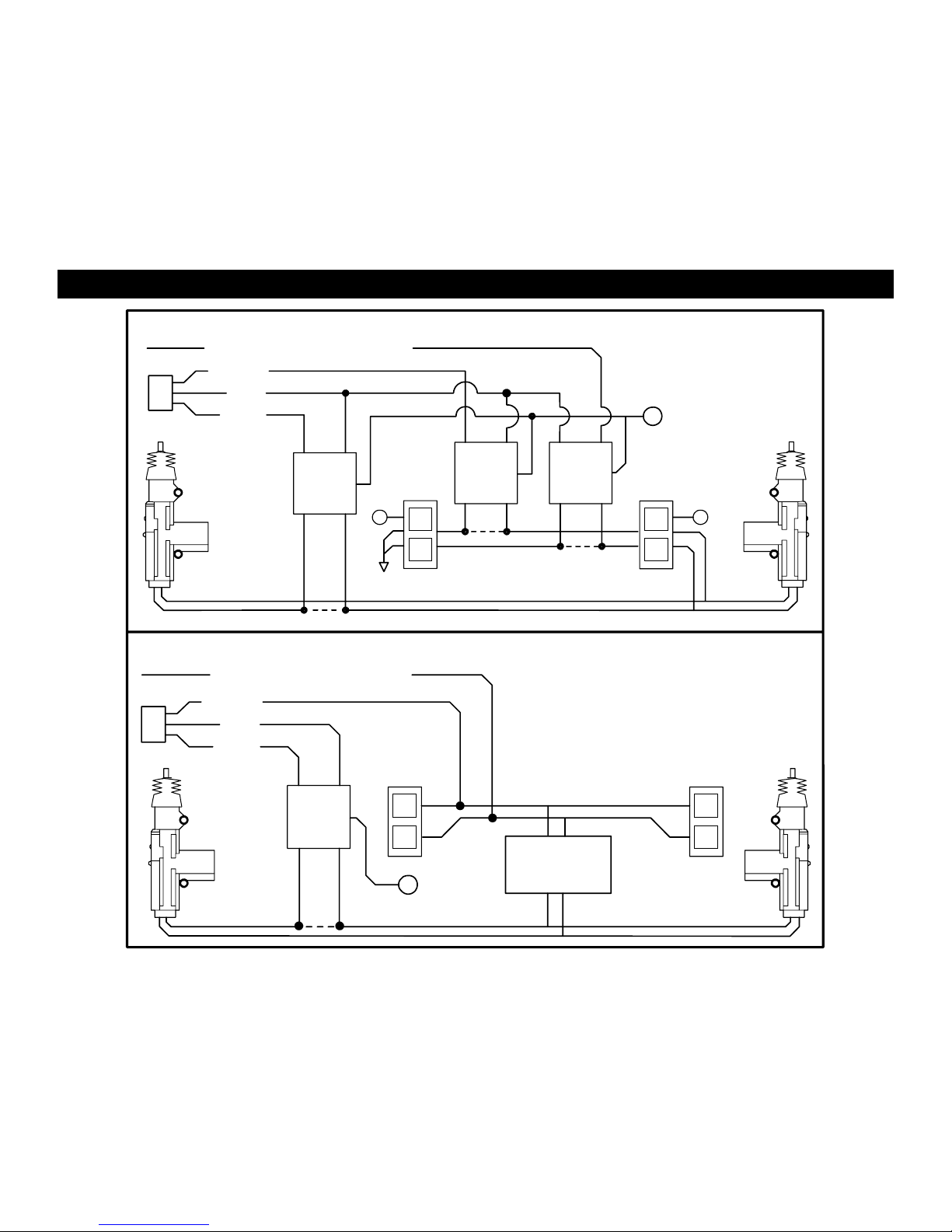

CS-845/855 SEPARATE DRIVER’S DOOR UNLOCK DIAGRAMS
REVERSE POLARITY DOOR LOCKS
VIOLET (BLUE/WHITE 845)
GREEN FUSED
RED +12V
BLUE
+
DRIVER'S
86858685
DOOR MOTOR
8685 8787
87 3087A3087A
30 87A
+
+
LL
CUT
UL UL
CUT
CUTUNLOCK WIRE
NEGATIVE TRIGGER DOOR LOCKS
VIOLET (BLUE/WHITE 845)
GREEN
RED
BLUE
DRIVER'S
DOOR MOTOR
8685 LL
87
ULUL
87A
30
FACTORY LOCK
RELAYS
+12V
+FUSED
UNLOCK WIRE CUT

CS-855RKE TRANSMITTER PROGRAMMING
1. Turn Ignition ON and OFF 3 times quickly, leaving it ON the 3rd time. (ON/OFF, ON/OFF, ON) Lights should
flash once and one horn chirp if horn chirp feature is installed.
2. Push and hold the Program/Override Button for 5 seconds until you hear 3 horn chirps and lights flash 3 times.
3. Press the #1 (LOCK) on new transmitter – lights will flash for code learn confirmation.
Repeat step 3 for up to 2 additional transmitters. The system will learn a total of 3 transmitter codes.
4. Turn off Ignition.
Note 1: All transmitters must be learned at the time of programming.
Note 2: If only 1 transmitter is being programmed to the system, continue pressing Button #1 until the unit exits
program mode by unlocking the door and flashing the lights 2 times.
CS-845RKE II TRANSMITTER PROGRAMMING
1. Turn Ignition ON and OFF 3 times quickly, leaving it ON the 3rd time. (ON/OFF, ON/OFF, ON)
2. Lights should flash 3 times & horn will chirp 3 times if horn feature is installed.
3. Push and hold the Program/Override Button for about 5 seconds until you get 3 lights/LED flashes & 3 Horn
chirps. Release the button.
4. Press the #1 (LOCK) on new transmitter – lights will flash for code learn confirmation.
5. Repeat step 3 for up to 2 additional transmitters. The system will learn a total of 3 transmitter codes.
6. Turn off Ignition.
Note 1: All transmitters must be learned at the time of programming.
Note 2: If only 1 transmitter is being programmed to the system, continue pressing Button #1 until the unit exits
program mode by unlocking the door and flashing the lights 2 times.
OPTION PROGRAMMING
To change programmable options:
1. Turn the Ignition ON, wait one second, and press the Override/Program button 5 times.
2. The system should flash the parking lights 8 times in quick succession. (CS-845 RKE II: LED will flash 5 Times!)
3. Within the next few seconds, press the Override/Program button [again] the number of times that corresponds to
the options chart below. Parking lights and/or optional LED should flash for each button press. Don’t lose count!
4. When you get to the desired option number, press the appropriate button on the remote according to the chart
below. Turn Ignition off. (See Below for Option numbers, descriptions, and values.)
5. Change one option at a time repeating these same steps. When you are finished customizing options, check
operation to see if the option(s) have changed.

OPTION PROGRAMMING cont.
PROGRAMMING OPTIONS CHART * = DEFAULT SETTING
Option # Option Description Selection Lock Button Unlock
Button
1. Auto Lock & Unlock with Ignition ON or OFF ON* OFF
2. Double Unlock Pulse ON or OFF OFF* ON
3. Horn Chirp ON or OFF ON* OFF
4. Lock/Unlock Pulse Time 0.8 Sec. or 3 Sec. 0.8 Sec.* 3 Sec.
5. Passive Starter Disable ON or OFF OFF* ON
6. Ignition Trigger ON or OFF OFF* ON
7. Extended Horn Chirp Normal or Extended Normal* Extended
1. AUTOLOCK / UNLOCK WITH IGNITION
Controls whether the doors will automatically lock when the ignition is turned on and will unlock when the ignition is
turned off. Note: When Separate Driver’s Door Unlock feature is installed, only driver’s door will unlock when
IGN. is turned off.
2. DOUBLE UNLOCK PULSE
The unit will send 2 unlock pulses when the #2 Unlock button is pressed. This feature may be required for interfacing
this system into specific Nissan, VW, Toyota, and Lexus vehicles that require 2 unlock pulses to unlock the vehicle.
3. HORN CHIRP CONFIRMATION
This option turns the horn chirps for lock/unlock on or off.
4. DOOR LOCK/UNLOCK PULSE TIME
Controls the amount of time (0.8 sec. or 3 sec.) for the lock/unlock pulse. The 3 sec. setting may be required for
1980’/90’s European Vehicles that require a long pulse to operate electric vacuum type door lock systems.
5. PASSIVE STARTER DISABLE OUTPUT (Applies to OPTIONAL starter disable feature)
This option modifies the unit’s (-) Negative Armed Starter Disable output operation. When this option is turned ON, the
unit will PASSIVELY activate the Starter Disable 45 seconds after the ignition is turned off. Starter disable output is
deactivated through the remote when unlocking the vehicle or a manual override.
6. IGNITION TRIGGER
This option controls the unit’s optional Ignition trigger feature. If selected to ON, then the vehicle’s horn will honk if an
unauthorized operator turns on the Ignition after the vehicle had been locked with the remote. This function is similar
to an alarm system. To avoid a trigger, use the remote for BOTH LOCKING and UNLOCKING the vehicle. If system
accidentally triggers, press button #4 to reset.

OPTION PROGRAMMING cont.
7. EXTENDED HORN CHIRP
This option allows the unit to provide a slightly longer lock/unlock horn chirp output. This option is ONLY required on
specific vehicles where the normal horn chirp is not long enough to activate the factory horn and produce a chirp.
OPTION RESET PROCEDURE:
Programmable Options can be instantly restored to Factory Default Values (*): To restore default values, perform step
#1 on page 8, then just press button #3 (Trunk) on the remote. Parking lights should flash 4 times. Turn OFF Ignition.
All programming options should be restored to * values (See chart page 8).

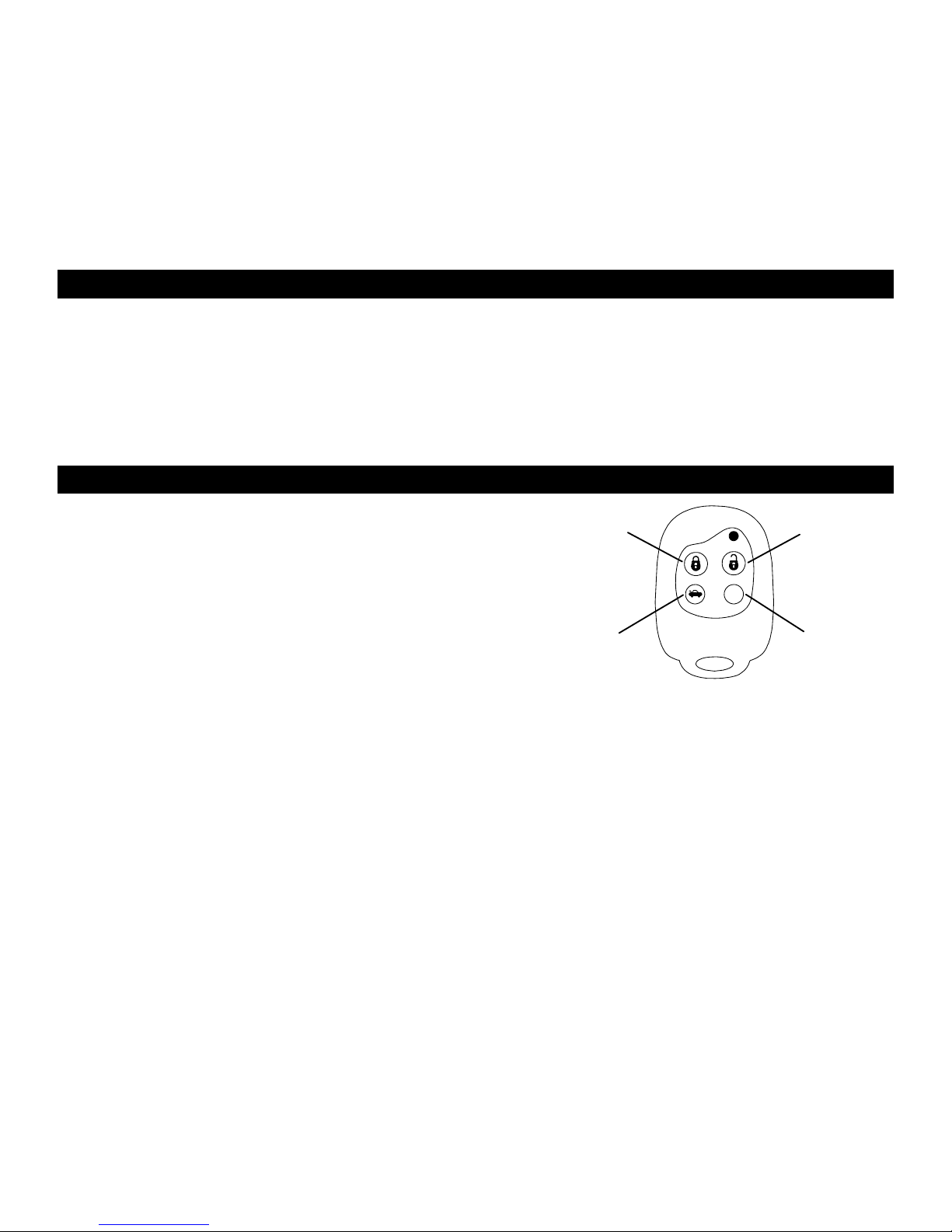

OPERATION
REMOTE LOCK
#3
#1 #2
#4
PANIC
TRUNK
PANIC
LOCK UNLOCK
REMOTE
POP
To lock the doors, press the #1 (Lock Symbol) button on the
transmitter. You will hear a single horn chirp (if horn chirp enabled),
lights will flash once and LED will begin flashing. Optional: If starter
disable is installed, it will become active.
REMOTE UNLOCK
To unlock the doors, press the #2 (Unlock Symbol) button on the
transmitter. You will hear 2 horn chirps (if horn chirp enabled) and the
lights will flash 2 times. Optional starter disable will turn off.
DRIVER’S DOOR UNLOCK (OPTIONAL)
Press the #2 Unlock button (Unlock Symbol) a second time to unlock remaining door or doors if this feature is installed
on your particular vehicle.
REMOTE PANIC PROTECTION
To sound the panic alarm in an emergency situation or to draw attention to your vehicle press and hold Button #4
(Panic) for at least 2 seconds. The horn will begin to pulse and parking lights will flash for up 45 seconds or until the
Panic Button on the transmitter is pressed to reset this mode.
TRUNK / HATCH POP (REMOTE AUX. OUTPUT 1, OPTIONAL)
To pop the trunk (Optional), press Button #3 (Open Trunk Symbol) on the transmitter for at least 2 seconds.
2nd AUX. OUTPUT (REMOTE AUX. OUTPUT 2, OPTIONAL)
To activate the Second auxiliary output press and hold Button #1 (Lock) and hold for more than (1) second. This
output can be used to control other optional add-on accessories such as a Remote Engine Start Module.

OPERATION
IGNITION TRIGGER (OPTIONAL)
This optional feature allows the unit to activate the panic mode if an unauthorized operator turns on the Ignition after
the vehicle had been locked using the remote. This is similar to an alarm feature. To avoid an Ignition trigger, use the
remote for BOTH LOCKING and UNLOCKING the vehicle. If system does trigger, press button #4 to reset.
EMERGENCY OVERRIDE/VALET MODE (WITH OPTIONAL STARTER DISABLE FEATURE)
If you have lost the transmitter or it stops working for any reason and the system was locked with the remote
Emergency Disarm is needed to override the Starter Disable circuit. Open the door with the key, turn the ignition on
and press the override/program button for seconds you will get (1) short horn chirp and (1) light flash. This will also put
the system into VALET mode. If Optional LED light is installed, it will turn ON and stay on solid. (CS 845RKE II must
hold button for 10 seconds to reset)
VALET MODE
To get in and out of VALET mode, turn the ignition on and press the override/program button for about 2 seconds.
When going into VALET you will get (1) horn chirp, (1) light flash, and LED will be on SOLID. When coming out of
VALET mode you will get (2) Chirps, (2) Flashes, and LED will go out. Separate driver’s unlock and Starter Disable
features will not operate when in VALET mode. (CS-845 RKE II must hold button for 5 seconds for Valet mode.)
AUTOLOCK/UNLOCK WITH IGNITION
The doors will automatically lock when the ignition is turned on and will unlock when the ignition is turned off. If this is
not desired, See Programming Options to change this feature.
HORN CHIRP CONFIRMATION
This system can be programmed for short chirps of the Factory Car Horn along with the Flashing Parking lights for
LOCK/UNLOCK confirmation. If this is not desired, See Programming Options to change this feature.
DOME LIGHT ILLUMINATION (OPTIONAL)
This feature turns on the vehicles dome light upon disarm for 30 seconds or until the key is inserted and turned on.
This will provide illuminated entry to your vehicle at night or in dimly lit areas for safety and security.
ADDITIONAL INSTALLATION ACCESSORIES
CS-6600 DLM CS-6500 DLI
Plug-in Door lock interface module for CS845/855RKE Plug-in Door Lock pulse inverter for
installation into Reverse Polarity or Aftermarket Motor CS-845RKE installation into vehicles
door lock systems. with Positive Door lock systems.
XX-402A / XX-402B / XX-402PB XX-SRS / XX-DRS
External Relays for use with Power Trunk Release Pre-wired plastic relay sockets for single or
Power Door Locks, Starter Disable etc. dual relay installation

+-
RED
WHITE
BLUE/WHITE
WHITE/RED
ORANGE
BLACK/WHITE
GRAY
YELLOW
BLACK
LED
OVERRIDE/
PROGRAM
BUTTON
BATTERY
(-) LOCK OUTPUT
+12 VOLT FOR RELAYS
(-) UNLOCK OUTPUT
GREEN
BLUE
RED
CS-845RKE II
FUSE
BOX
IGN.
SW
(-) REMOTE OUTPUT 1
CHASSIS GROUND
(+) SWITCHED IGN "ON"
PARKING
NEG. ARMED OUTPUT
OPT.
RELAY
8586
8730
87a
8586
30
87A
8586
8730
87a
10A MAX
LIGHTS
FUSE
15A
CUT
START WIRE
IGNITION
"ON & START"
STARTER
(-) REMOTE OUTPUT 2
8586
8730
87a
(-) DOME LIGHT OUTPUT
+12V POWER
(-) PASSENGER
UNLOCK OUTPUT
ACTIVATES ON
SECOND PRESS
OF UNLOCK BUTTON
+
OR
DOME LIGHT
BROWN/WHITE
(-) HORN HONK/CHIRP
OUTPUT
OPT.
RELAY
NOT USED
THIS PLUG
FUSE
10A
BLUE
RED
OPTIONAL
STARTER DISABLE RELAY
BROWN
GREEN
NOT USED
VIOLET
NOT USED NOT USED
BLUE
NOT USED
