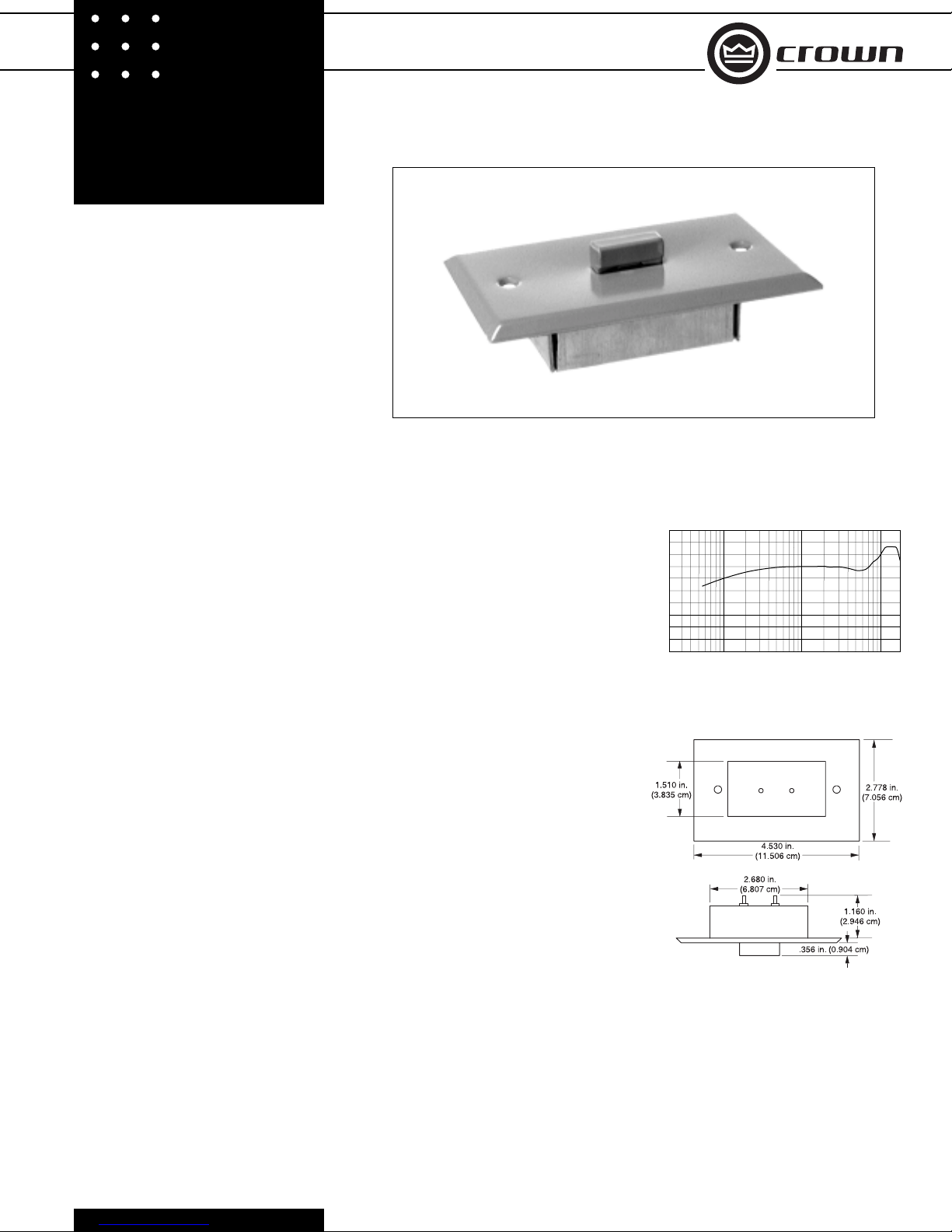

Crown PZM-11 User manual

Specifications
Type: Pressure Zone Microphone.
Element: Electret condenser.
Frequency response (typical): 80 Hz to 20,000 Hz.
See Fig. 1.
Polar pattern: Hemispherical.
Impedance: 225 ohms, balanced. Recommended
minimum load impedance 1000 ohms.
Open circuit sensitivity: 5 mV/Pa* (–46 dBV/Pa).
Power sensitivity: –45.5 dBm/Pa*, EIA rating
–139 dBm.
Equivalent noise level (self-noise): 26 dB SPL
typical (0 dB = .0002 dyne/cm2), A-weighted.
S/N Ratio: 68 dB at 94 dB SPL.
Maximum SPL: 120 dB SPL produces 3% THD.
Output connector: Three screw terminals.
1 = ground, 2 = audio (hot), 3 = audio (return).
Polarity: Positive pressure on the diaphragm
produces a positive voltage on screw terminal 2
with respect to screw terminal 3.
Operating voltage: Standard phantom power, 12 to
48 volts DC on screw terminals 2 and 3 with
respect to screw terminal 1.
Current drain: 400 microamperes.
Materials: Steel plate and high-impact plastic
capsule holder.
Finish: Off-white.
Net weight: 2.5 oz. (71 g).
Dimensions: See Fig.2.
Optional accessories: Crown PH-1A phantom
power supply (1 channel, battery or AC adapter
powered), Crown PH-4B phantom power supply
(4 channels, AC powered).
PRESSURE ZONE
MICROPHONE®
Fig. 1
Fig. 2
The Crown PZM®-11 is a Pressure Zone
Microphone®designed for security, sur-
veillance, and conference-room applica-
tions. It can be mounted in the ceiling or wall
in a standard electrical outlet box. Providing
excellent intelligibility, the PZM-11 is designed
to look like something other than a micro-
phone so as not to draw attention.
Like other Pressure Zone Microphones, the
PZM-11 utilizes the Pressure Recording Pro-
cess™ in which a miniature condenser
microphone capsule is mounted very close to
a sound-reflecting plate or boundary. The
capsule is mounted in the “Pressure Zone” just
above the boundary, a region where sound
coming directly from the sound source com-
bines in-phase with sound reflected off the
boundary. The benefits are a wide, smooth
frequency response free of phase interference,
excellent clarity and “reach,” and consistent
pickup anywhere around the microphone.
In the PZM-11, low frequencies below the
voice range are rolled off to reduce pickup of
air-conditioning rumble. The high-frequency
response is boosted slightly to aid clarity and
articulation.
The microphone connector is a row of screw
terminals for easy installation. The output is
balanced, low impedance, which allows long
cable runs without hum pickup or high-
frequency loss. Powering is via 12 to 48 volts
phantom power.
Installation
1. Please refer to Fig. 3 and locate all the parts
shown.
2. Run a 2-conductor shielded microphone
cable to the ceiling or wall hole where you
intend to install the microphone. Install a
standard electrical outlet box in the hole.
3. Run the mic cable through the hole in the
electrical box and through the hole in the
chassis.
4. Service the end of the mic cable.
5. Attach the leads to the screw terminals.
Connect the cable shield to 1, light-colored
lead to 2, and darker lead to 3.
6. Place the chassis over the two long screws.
Using the nuts provided, secure the chassis to
the faceplate.
7. Using the two screws provided, secure the
faceplate to the electrical box.
*1 pascal = 10 dynes/cm2= 10 microbars = 94 dB SPL.
–20
–25
–30
–35
20 100 1K
+15
+10
+5
dB 0
–5
–10
–15
10K
Frequency Response
Frequency in Hz
PZM-11
®

Crown International
P. O. Box 1000
Elkhart, IN 46515-1000
TEL: [phone]
FAX: [phone]FAX
www.crownaudio.com
©2002 Crown Audio, Inc.
Specifications subject to change without prior notice.
Latest information available at www.crownaudio.com.
Crown, PZM and Pressure Zone Microphone are
registered trademarks of Crown International. Pres-
sure Recording Process™is a trademark of E. M. Long
Associates.
7/02 127006-4
8. If you plan to use a cable connector, solder
the other end of the mic cable to a 3-pin
professional audio connector (XLR-type).
Solder the cable shield to pin 1, light-colored
lead to pin 2, and darker lead to pin 3.
9. If you plan to use a cable connector, con-
nect the 3-pin pro audio connector to the
input of a phantom power supply. Crown
makes a PH-4B phantom power supply (4
channels, AC-powered) and PH-1A phantom
power supply (1 channel, battery or AC-
adapter powered).
PZM-11 Schematic
–
ELECTRICAL
BOX
NUTS
CHASSIS
LONG
SCREWS
MIC
CABLE
FACEPLATE
SCREW
Fig. 3 10. Connect the output of the phantom supply
to your equipment mic input. Or, if your mic
input has phantom power built in, simply
connect the mic cable to the mic input.
11. If the mic cable is run in metal conduit,
ground loops might occur that can cause hum.
If hum is present after installation, remove the
ground-lift jumper (labeled GND LIFT) on the
printed-circuit board.
Architects’ and Engineers’ Specifications
The microphone shall be the Crown Model
PZM-11 or equivalent. The microphone shall
be a Pressure Zone Microphone, electret-
condenser type, with built-in electronics inter-
face. The microphone capsule holder shall be
mounted on a standard switch plate. The
microphone shall be powered from 12-48V
phantom power. The output shall be low im-
pedance balanced. Frequency response shall
be from 80 Hz to 20,000 Hz. Low frequencies
below the voice range shall be rolled off. Open-
circuit sensitivity shall be 5 mV/Pa (–46 dB
re 1V/Pa). Maximum SPL capability shall be
120 dB SPL at 3% THD. Equivalent noise shall
be 26 dBA typical (0 dB = .0002 dyne/cm2).
The Crown model PZM-11 microphone is
specified.
Warranty
Crown professional microphones are guaran-
teed against malfunction for a period of three
years from date of original purchase. See
enclosed warranty sheet for additional infor-
mation.
Service
If the unit fails to work, first replace or repair
the mic cables and check the power supply.
Recheck your connections to the microphone
screw terminals. If service is required, return
the microphone and the electronic interface in
the original packaging to Crown Factory Ser-
vice, 1718 West Mishawaka Road, Elkhart,
IN 46517. For further assistance or technical
support call 800-342-6939.
PZM-11
®
