Crystal Vision ADC104 User manual

Crystal Vision Ltd., Lion Technology Park, Station Road East, Whittlesford, Cambridge, CB22 4WL, England.
E-mail: [email protected] Website: www.crystalvision.tv Tel: [phone] Fax: [phone]
ADC104
Analogue to digital converters

ADC104OperationalManualV3_2 Crystal Vision
18/02/03 Page 1
Contents
1 Introduction 3
Using chroma levels 4
Rear connector options 4
2 Using Statesman 5
2.1 Installation 5
2.2 Statesman operation 6
ADC104F controls 7
ADC104FK controls 8
ADC104N controls 9
3 Using the active control panel 10
3.1 Navigating the display 11
Updating the display 12
3.2 The ADC104 menu structure 12
Selecting time options 13
Selecting control options 13
Selecting test patterns 14
Using the status display 14
4 Card edge operation 15

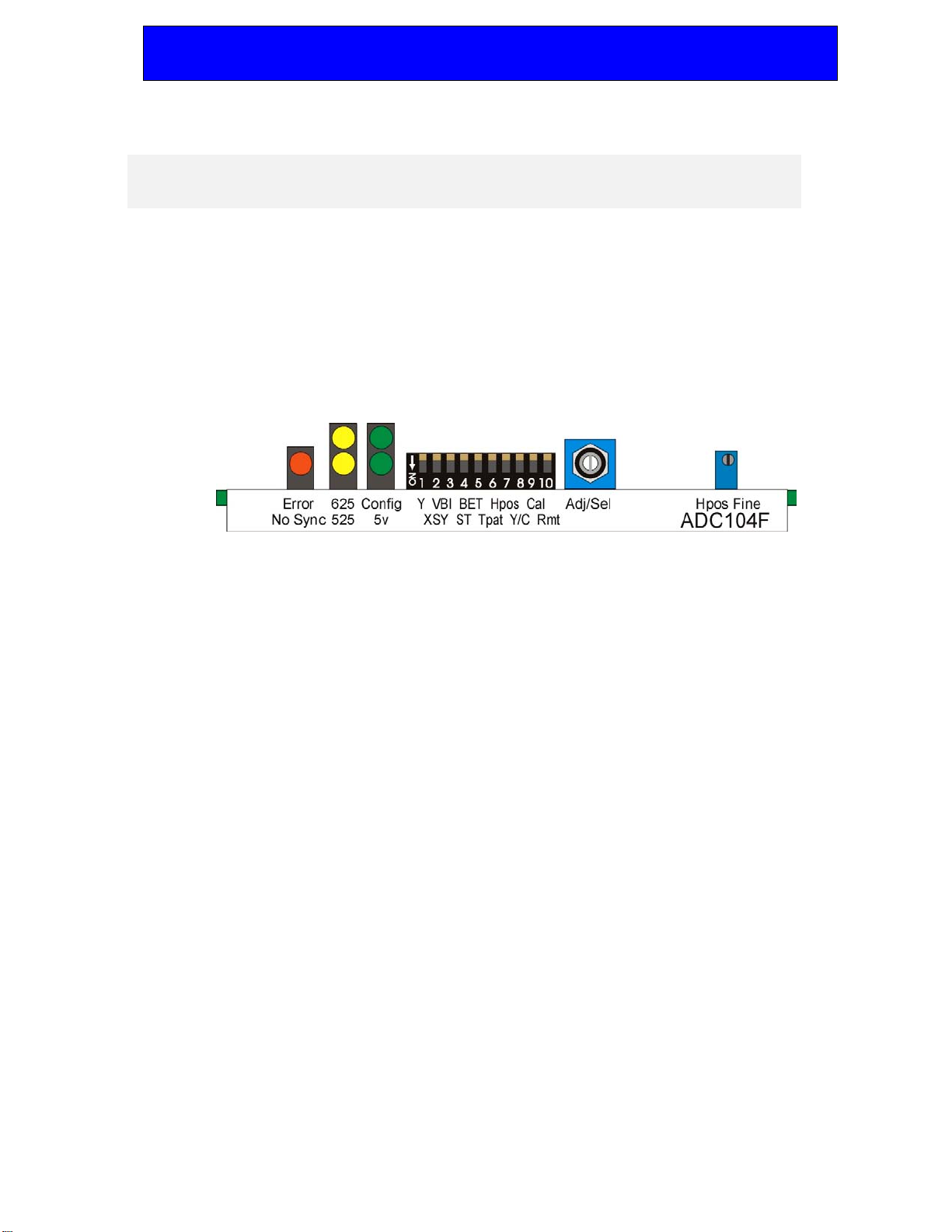

4.1 Card edge controls 15
Setting control options 16
5 Installation 18
5.1 Rear modules and signal I/O 18

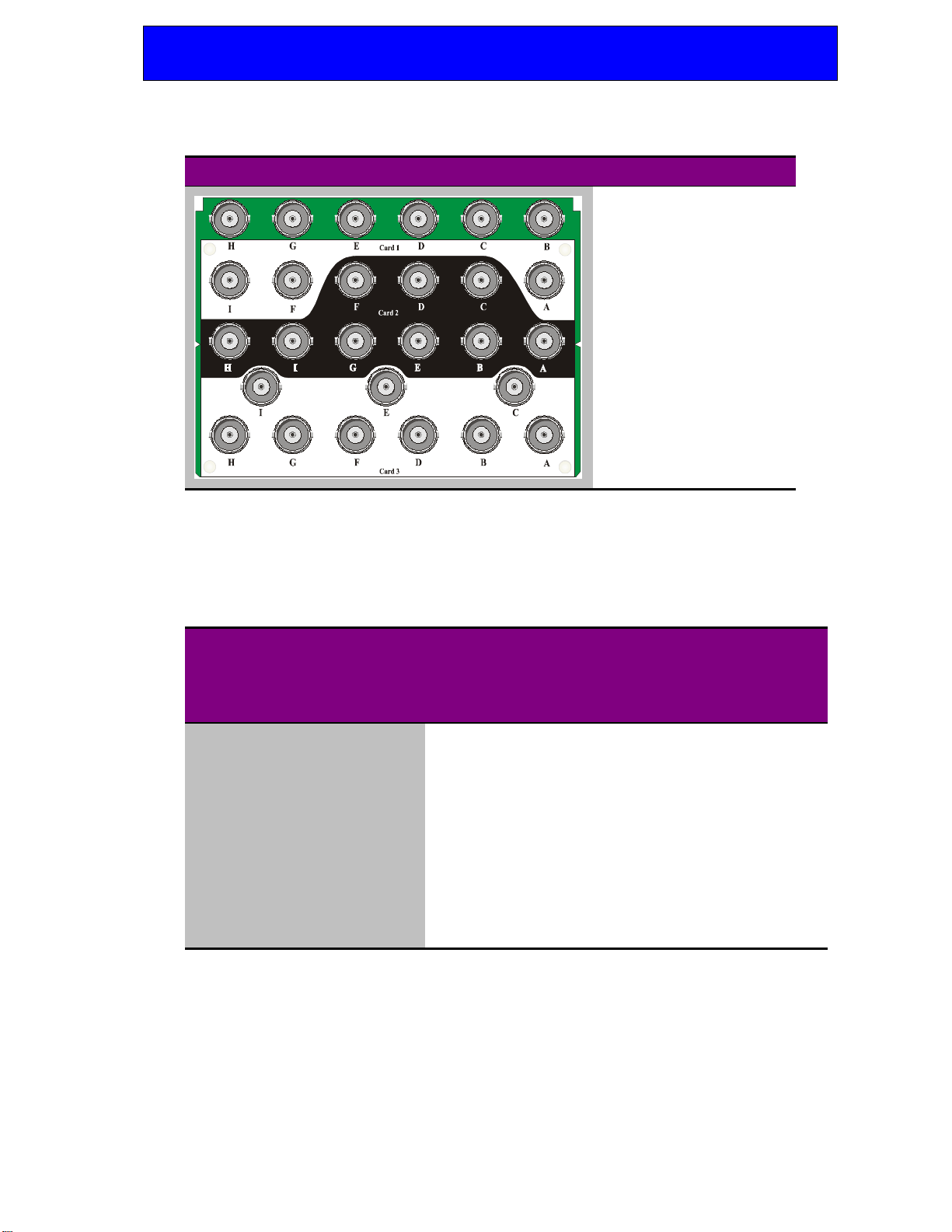

FR2AV FR1AV and DTB-AV frame rear connectors 18

ADC104OperationalManualV3_2 Crystal Vision
Page 219/09/05

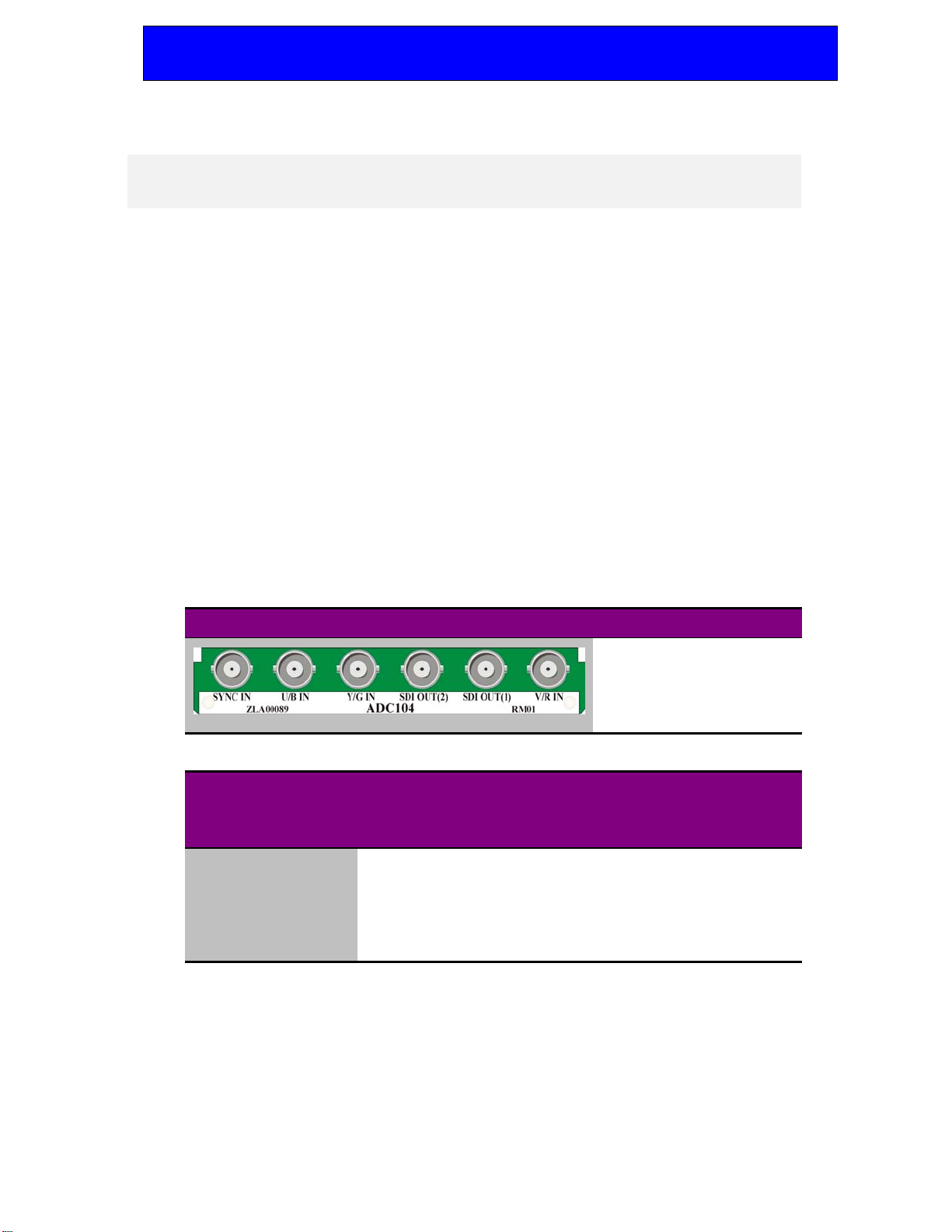

RM01 18
RM02 19
RM18 20
5.2 Configuring external controls 21
GPI control assignment 21
Configuring a second serial port 22
5.3 GPI connections 23
FR2AV GPI Connections 23
FR1-6 GPI Connections 23
FR2-12 GPI Connections 24
FR2-8 GPI Connections 24
DTBAV and DTB-2 GPI connections 24
5.4 Setting the line standard selection 25
5.5 Setting Ext sync options 25
5.6 Setting node addresses 26
5.7 Software upgrades 26
5.8 Jumper setting summary 27
6 Problem solving 28
6.1 Card edge LEDs 28
7 Specification 30

Crystal Vision Introduction
18/02/03 Page 3
1 Introduction
The ADC104 series of 10-bit analogue to digital converters are designed to convert
RGBS/YUVS signals to SDI serial digital video.
The range consists of the ADC104F which fully meets ITU 601 specifications for
component video filtering, the ADC104N which nearly meets the ITU 601 specification
and the ADC104FK, designed for use with graphics keys and which accepts only a Y and
sync input. The ADC104F and ADC104FK also provide eight test patterns.
The ADC104 10-bit analogue to digital converters
The common features are as follows:
•Timing from external analogue reference or syncs on Y or Green
•Horizontal position adjustment
•Enable or disable vertical blanking
•Enable or disable 525 line setup on Y
•Select normal N10 or ‘Betacam’ chrominance levels
•High quality digital clamp
•Manual or automatic 525/625 line standard selection (jumper selection.)
•GPI, Active Remote Panel, Statesman and board edge control
•Fine horizontal picture position (+/- 100 ns) adjustment available in either local or
remote mode.

ADC104OperationalManualV3_2 Crystal Vision
Page 419/09/05
Using chroma levels
The ADC104F supports ‘normal’ EBU/SMPTE N10 levels, which have been selected as
the analogue equivalent of SDI levels, and ‘Betacam’ levels, which may be met with early
recordings and/or equipment.
The N10 levels are based on 100% bars as its maximum signal, whilst Betacam levels
were based on 75% bars.
The following table describes expected input levels for 100% bars for the available
settings:
Input SMPTE/EBU N10 ‘Betacam’
RGB 625: 3x700mV video, 300mV sync Not applicable
Y U V 625/525: 700mV Lum, 2x350mV UV,
300mV sync
625/525: 700mV Lum, 2x350mV UV,
300mV sync
Y U V +
setup 525
714.3mV (max) 53.55mV (min) Luma, 2
x 350mV UV, 285.7mV sync
714.3mV (max) 53.55mV (min) Lum, 2
x 467mV UV, 285.7mV sync.
Note: The Betacam chroma levels control has no effect on RGB inputs.
The facility to apply setup compensation in 525 is provided to cater for situations where
NTSC has been decoded with from a source that has had +7.5% setup applied to the
luminance.
Rear connector options
The ADC104 is a single height module and will fit into all Crystal Vision rack frames.
Three rear connectors are available, the RM01 providing two outputs, the RM02
providing three outputs plus a sync loop-through output and the RM18 which provides
four outputs and a sync loop-through output.
For frame packing density with the available rear connectors, refer to the Specification
chapter.

Crystal Vision Using Statesman
18/02/03 Page 5
2 Using Statesman
The Crystal Vision Statesman PC control software is designed to control a range of
Crystal Vision modules via serial control from a PC.
Statesman provides a user friendly means of configuring and operating Crystal Vision
modules with the benefit of see-at-a-glance status monitoring.
The main Statesman application communicates with each module in a frame through an
active control panel. An active panel must be fitted to allow for Statesman control.
2.1 Installation
Minimum pre-requisites:
•Windows 98, NT4 with SP 5 or higher, Windows 2000, or Windows XP
•A parallel port dongle supplied with the Statesman software package
•An RS422 serial connection from the host PC to the Remote 2 connector of an
FR2AV Crystal Vision frame and at least one Statesman compatible module
•An active control panel MUST be fitted to the frame with version 1.5 or above
firmware
•An optional RS422 to RS232 converter if the PC has no RS422 ports
Installing Statesman
•To view all application windows, set graphics resolution to at least 1024 x 768
•Remove any previous version of the Statesman software using the Add/Remove
Programs application in the Windows Control Panel
•Ensure that the Statesman dongle is fitted to the parallel port of the host PC
•Insert the Statesman CD and the installation should start immediately – if it does not,
run the setup.exe file on the CD
•Obey any installation program prompts and restart the PC when prompted
Running Statesman for the first time
Statesman may be run from the Crystal Vision programs folder via the Start menu or by
double-clicking on the Statesman.exe file in the installed program directory (default is
C:\Program Files\CrystalVision).
When the program runs it should automatically detect any Statesman compatible modules
in the connected frame or frames and display them in the main application left hand
explorer-style window.

ADC104OperationalManualV3_2 Crystal Vision
Page 619/09/05
2.2 Statesman operation
The initial view will show an explorer style view of the connected frames and modules.
Open any frame by clicking on the ‘+’ sign or by double clicking on a frame. Installed
modules should be shown with module icons. Frame and module icons can be named as
desired by right-clicking or using the edit menu.
Double-clicking on a module will enable the display of the main application menu.

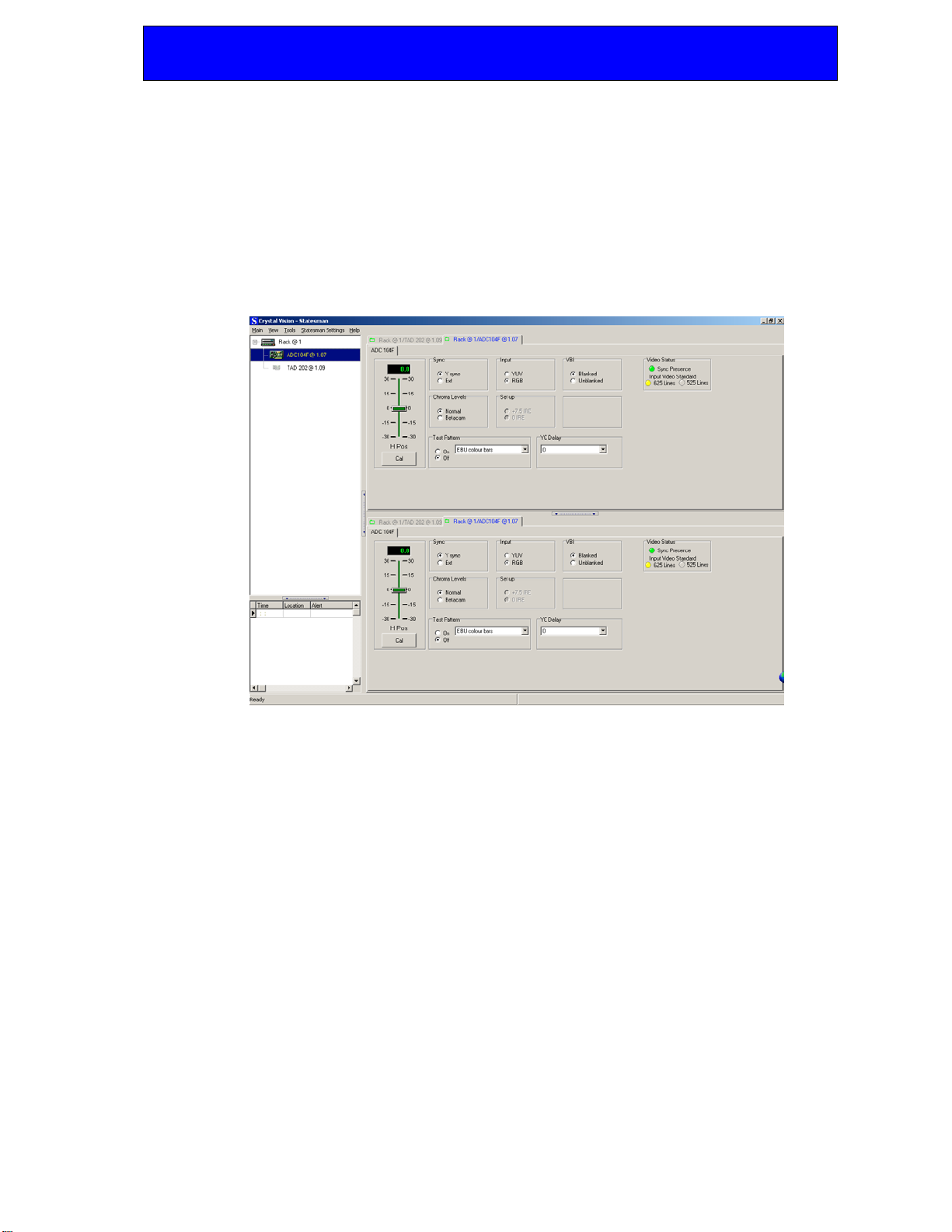

The Statesman ADC104F main application window
The menu display is repeated for convenience to allow dual-module display, dual-control
display of modules with duplicate signal paths or to allow two functions to be viewed at
the same time.
Note: Features and controls that are inappropriate in certain modes or mutually exclusive with
other controls will be automatically ‘greyed out’ to indicate that they are currently
unavailable.
Warning: Ensure that DIL lever 10 is set for in the DOWN position for Statesman control. A
message will appear to indicate that Statesman controls may be overridden by the card
edge if the ADC104 is set to local mode (DIL lever 10 UP)

Crystal Vision Using Statesman
18/02/03 Page 7
ADC104F controls
The following controls are available:
•H Pos slider: adjust horizontal position of SDI output picture from 30 pixels to –30
pixels (+/- 2µs)
•Sync: Y sync/Ext – use syncs on green/luminance or external analogue syncs
•Input: YUV/RGB – use YUV or RGB analogue component inputs
•VBI: Blanked/Unblanked – blank or pass the VBI content of the component input
•Chroma Levels: Normal N10 or Betacam
•Set up: +7.5%/0% IRE – pass or remove 525 line setup or pedestal on luminance
•Test Pattern: display one of a range of full or split-screen test signals
•Y/C Delay: luminance/chrominance delay from -111ns to 111ns in 9.25ns steps
•Video status: sync presence and either selected or detected video standard

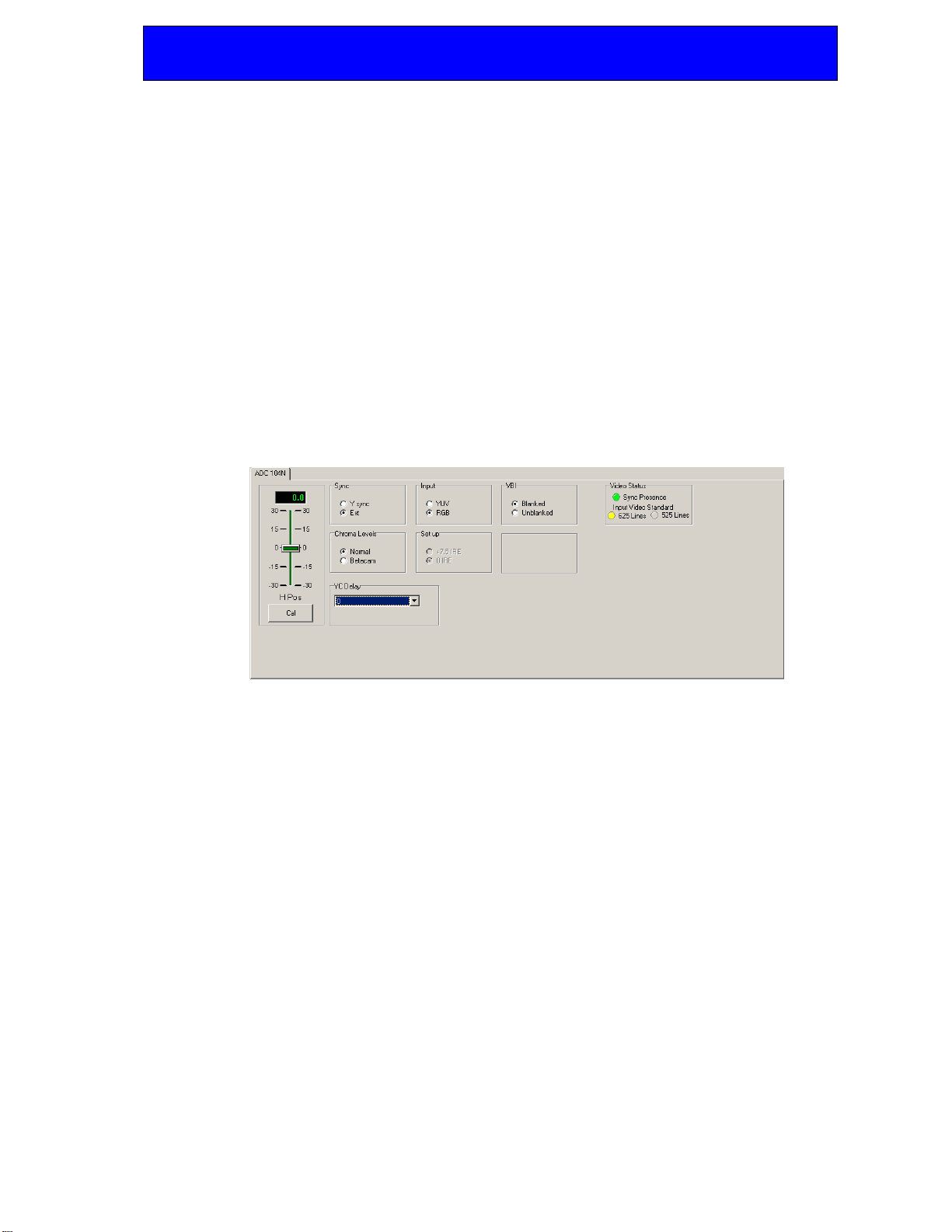

ADC104F menu
Note: Beta chroma levels are intended for use with 625/525 YUV inputs only
Adjusting picture position
The H Pos slider may be used to the adjust horizontal position of the SDI output picture
from 30 pixels to –30 pixels (+/- 2µs) in conjunction with the card-edge Hpos Fine
potentiometer which has a range of +/- 100ns and is always active.
Tip: It may be useful to enable a split-screen test signal to facilitate horizontal picture position
adjustment.

ADC104OperationalManualV3_2 Crystal Vision
Page 819/09/05
ADC104FK controls
The following controls are available:
•H Pos slider: adjust horizontal position of SDI output picture from 30 pixels to –30
pixels (+/- 2µs)
•Sync: Y sync/Ext – use syncs on green/luminance or external analogue syncs
•Input: derive luminance from Y or RGB analogue component input
•VBI: Blanked/Unblanked – blank or pass the VBI content of the component input
•Set up: +7.5%/0% IRE – pass or remove 525 line setup or pedestal on luminance
•Test Pattern: display one of a range of full or split-screen test signals
•Video status: sync presence and either selected or detected video standard

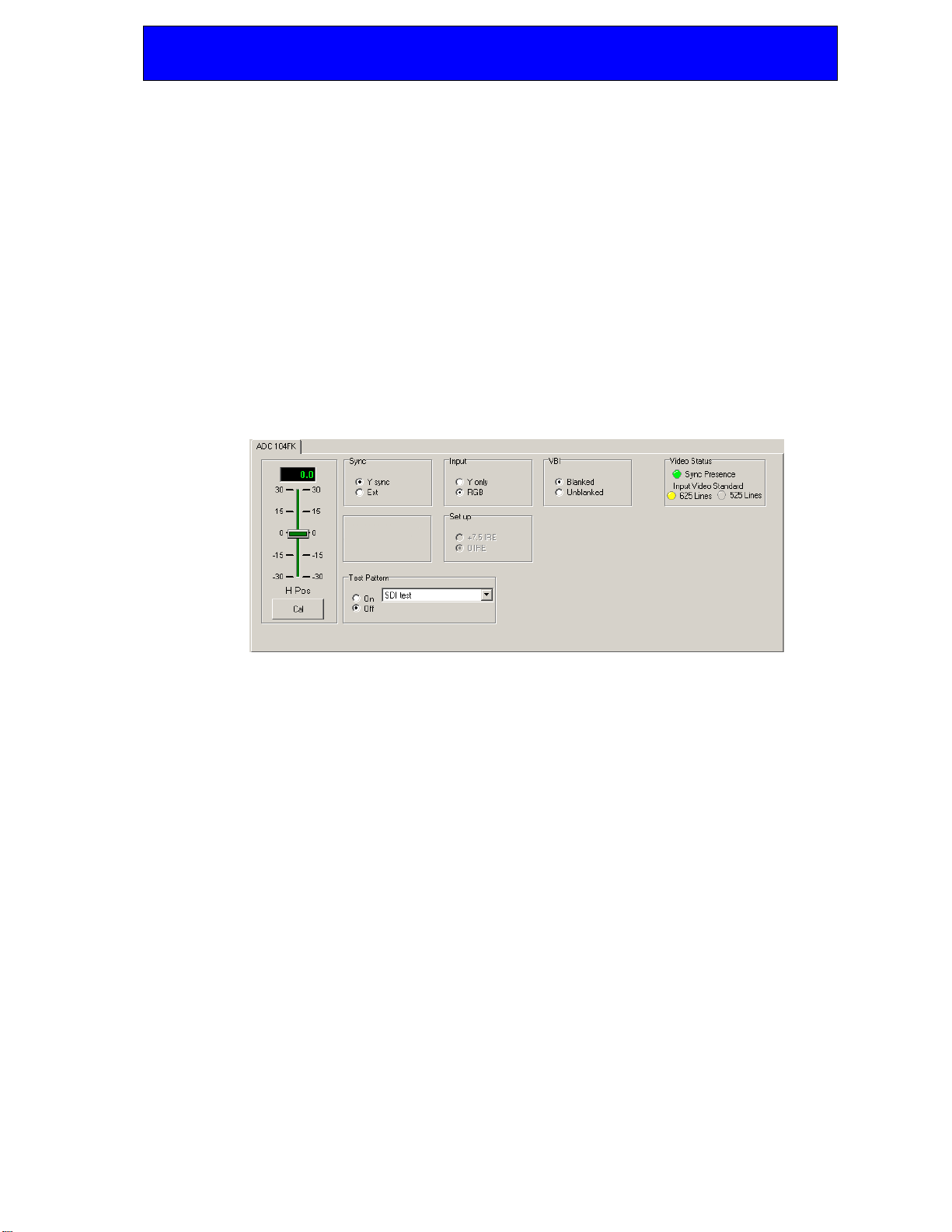

ADC104FK menu
Note: The Y/RGB menu derives luminance from Y or RGB inputs. The ADC104FK does not
provide chroma processing.
Adjusting picture position
The H Pos slider may be used to the adjust horizontal position of the SDI output picture
from 30 pixels to –30 pixels (+/- 2µs) in conjunction with the card-edge Hpos Fine
potentiometer which has a range of +/- 100ns and is always active.
Tip: It may be useful to enable a split-screen test signal to facilitate horizontal picture position
adjustment.

Crystal Vision Using Statesman
18/02/03 Page 9
ADC104N controls
The following controls are available:
•H Pos slider: adjust horizontal position of SDI output picture from 30 pixels to –30
pixels (+/- 2µs)
•Sync: Y sync/Ext – use syncs on green/luminance or external analogue syncs
•Input: YUV/RGB – use YUV or RGB analogue component inputs
•VBI: Blanked/Unblanked – blank or pass the VBI content of the component input
•Chroma Levels: Normal N10 or Betacam
•Set up: +7.5%/0% IRE – pass or remove 525 line setup or pedestal on luminance
•Y/C Delay: luminance/chrominance delay from -111ns to 111ns in 9.25ns steps
•Video status: sync presence and either selected or detected video standard
ADC104N menu
Note: Beta chroma levels are intended for use with 625/525 YUV inputs only
Test signals are not available with the ADC104N.

ADC104OperationalManualV3_2 Crystal Vision
Page 10 19/09/05
3 Using the active control panel
The Crystal Vision active control panel is available as an integral part of the FP2-LF front
door for the FR2AV 2U frame, the FR1AV frame, and the DTBAV desktop box or as a
remote panel. Only one control panel can be connected to any frame, although one panel
can control two frames.
DEVICE
F1
HOME ENTER CAL
F2 F3 F4

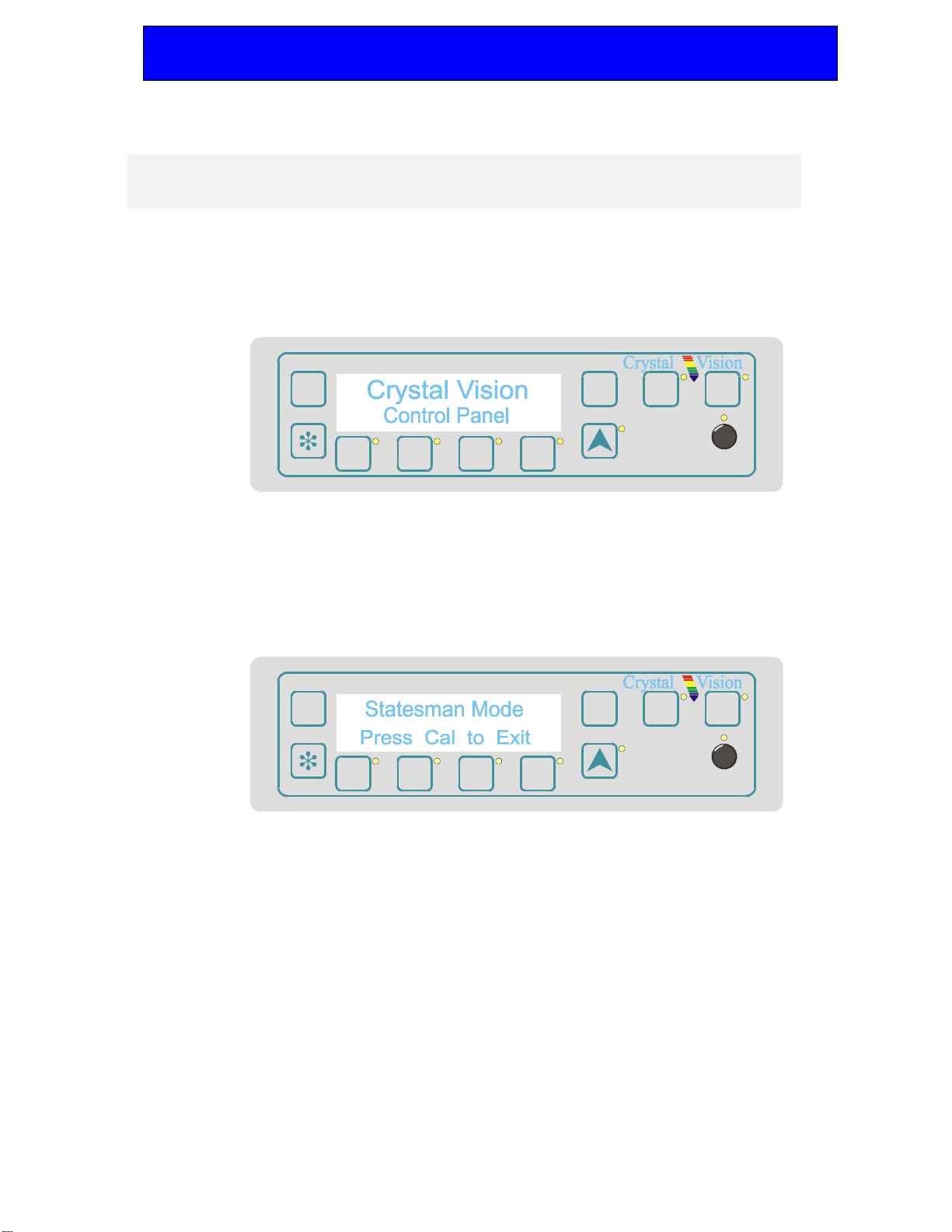

The Crystal Vision control panel
At power up, the two line 20-character screen will display ‘Crystal Vision’ followed by
the firmware version number for the control panel. If the control panel firmware has been
updated for Statesman control, Statesman Mode will be entered and the message, ‘Press
CAL to Exit’ will be displayed.
DEVICE
F1
HOME ENTER CAL
F2 F3 F4
Statesman mode is entered by default
To continue with active control panel operation or configuration, press the ‘CAL’ button
once. A second press of the ‘CAL’ button will return to Statesman control.
Each module in a frame is polled during control panel initialisation. Modules that have
completed their own initialisation will respond with a node address.
Please refer to the Installation chapter and the appropriate Frame manual for further
information on node addresses.

Crystal Vision Using the active control panel
18/02/03 Page 11

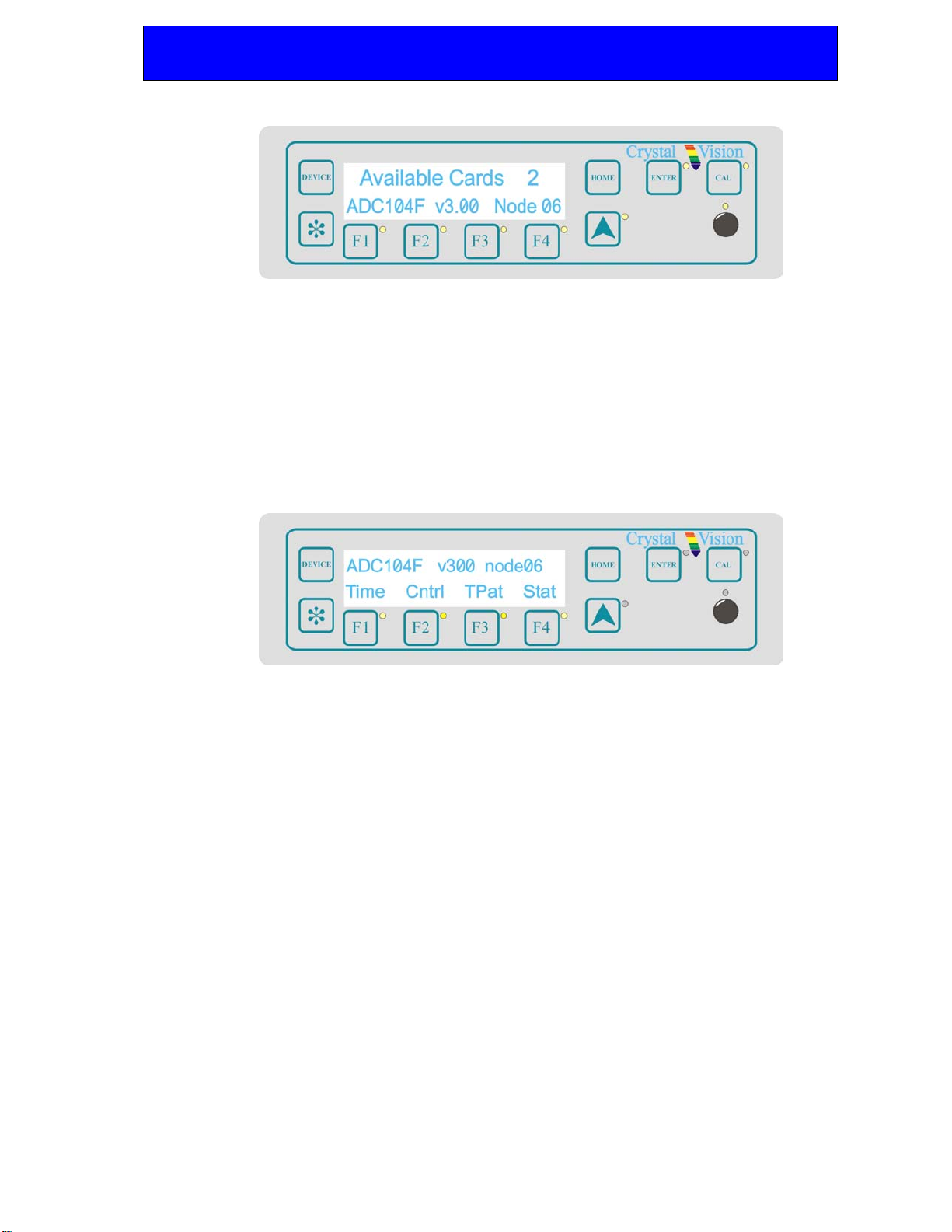

Control panel showing available cards
To list the available modules in a frame, press the DEVICE key. The top line of the
display will change to show ‘Available Cards X’, where X is the number of cards that
have responded so far to the polling request. Rotating the shaft encoder will cause the
bottom row of the display to cycle through the successfully polled cards by name and
node number.
When the desired module is selected press the ENTER key to access that module’s
HOME menu.
The ADC104 home menu
Note: Ensure that DIL lever 10 is set for remote control (DOWN) to use the front control panel.
3.1 Navigating the display
The control panel keys are assigned the following functions when controlling the
ADC104:
•DEVICE – lists available modules in a frame
•Asterisk – no function assigned
•F1 to F4 – soft keys, function assigned within each menu
•HOME – moves the display to the home menu
•ENTER – selects module to control
•CAL – enter or leave statesman mode
•Upward arrow – used to move up the menu structure
•Rotary control – shaft encoder used to select options or variable data

ADC104OperationalManualV3_2 Crystal Vision
Page 12 19/09/05
Updating the display
The values displayed on an active front panel are only updated when an adjustment is
made and when changing menu level. If mode changes occur through the use of card edge
controls or through automatic response to the input video signal, the text displayed on the
active front panel will not be updated immediately. If necessary, use the upward arrow to
leave and then re-enter a menu to update the display.
3.2 The ADC104 menu structure
The main top-level menus for a module are obtained by pressing the F1, F2, F3 and F4
keys from that module’s HOME menu. Menu keys are illuminated when active and when
further menus are available. The four top-level menus are:
•Time – press F1
•Cntrl – press F2
•Tpat (Test patterns – not ADC104N) – press F3
•Stat – press F4
The following chart shows the available menus.
The ADC104 menu tree
Note: Function keys and shaft encoder LEDs are illuminated when active.
Menus or function keys associated with the shaft encoder are shown with a black circle.

Crystal Vision Using the active control panel
18/02/03 Page 13
Selecting time options
The Time menu provides access to the following options:
•Adjust horizontal position of SDI output picture from 30 pixels to –30 pixels (+/-
2µs)
•Use syncs on green/luminance or external analogue syncs
•Luminance/chrominance delay from -111ns to 111ns in 9.25ns steps (not
ADC104FK)
The time menu Description
Press F1 to toggle between external sync or sync on
Y/G
Press F2 to enable the shaft encoder to control the
horizontal position from 30 to –30 pixels
Press F4 to enable the shaft encoder to control the Y/C
delay from -111ns to 111ns in 9.25ns steps
Note: The YC Dlay menu is not available with ADC104FK (luminance only) converters.
Selecting control options
The CNTRL menu provides access to the following configuration options:
•Blank or pass the VBI content of the component input
•Use YUV or RGB analogue component inputs
•Normal N10 or Betacam chroma levels (not ADC104FK)
•Pass or remove 525 line setup or pedestal on luminance
The control menu Description
Press F1 to toggle VBI blanking On/Off
Press F2 to toggle 525 setup between 0% or +7.5%
Press F3 to select between Y or G input
Press F4 to toggle between normal N10 or Betacam levels
(not ADC104FK)
Notes:
Beta chroma levels are intended for use with 625/525 YUV inputs only
The Chroma level menu is not available with the ADC104FK
The YUV/RGB menu only selects between Y and G with the ADC104FK

ADC104OperationalManualV3_2 Crystal Vision
Page 14 19/09/05
Selecting test patterns
The Test Pattern menu allows one of eight test patterns to be selected:
The test pattern menu Description
Press F1 to toggle between test patterns On/Off
Then rotate the shaft encoder to select the desired full-
screen or split-screen pattern:-
SDI Test, Grey, EBU Bars, Frequency Sweep, 100%
Bars, Frame Markers, Multi-Frequency, Ramp, Black.
Note: The Tpat menu is not available with ADC104N converter.
Using the status display
The status display provides the following information:
The status menu Description
The ADC104 status display shows the presence of the
selected reference sync along with the video input
standard which may be 525L or 625L.
The input standard will only be auto-detected if Jumper
J2 is in the AUTO position – see the Installation
chapter for more information.
Note: The status display is available with all ADC104 versions.

Crystal Vision Card edge operation
18/02/03 Page 15
4 Card edge operation
Although, the ADC104 may be operated through a remote interface such as the Active
Control Panel or Statesman, all functions can be accessed using card edge controls.
4.1 Card edge controls
The front edge of the card provides LED status and power rail monitoring, menu
selection, rotary set-up control and a ten-way DIL menu selector.
Card-edge menu selection is only available when DIL lever 10 is in the UP position.
The ten-way DIL switch selects available menus, whilst the Adjust/Select control is used
to select the required value or parameter.
Hpos fine
This is a multiturn potentiometer which allows fine adjustment of horizontal picture
position relative to in incoming syncs.. The adjustment range of this potentiometer is
approximately +/- 100 ns.
Shaft Encoder
The shaft Encoder is a rotary control labelled Adj/Sel and is used in combination with the
10 way DIL switch to adjust various parameters when setting up the board. It is only used
in local mode. It should be noted that the same parameters can also be adjusted from
Statesman or by the shaft encoder on an active remote control panel while in remote
mode.
In all cases the values set are retained through power down, and restored when the unit is
powered up.
Note: Selections made with levers 1 to 9 only apply when lever 10 (Rmt) is in the up position.
When lever 10 is down, the sections for levers 1 to 9 are determined by Statesman or the
settings from the active control panel.

ADC104OperationalManualV3_2 Crystal Vision
Page 16 19/09/05
Setting control options
Select the control method with the DIL switch as follows:
Lever Label Description
1Y Up selects an RGB input, down selects a YUV input
2XSY Up selects sync input on Y/Green, down selects sync on the external input
3VBI Up for normal blanking, down unblanks lines 6 to 22 and 319 to 335 in 625
standard and lines 10 to 20 and 273 to 282 in 525 standard
4ST Down compensates for setup on incoming Y signal.
Only applies to 525 standard. Removes 7.5 IRE of setup on Y input, and
increases the Y gain as required
5BET Up selects normal chrominance input levels, down selects ‘Betacam’ levels
6Tpat Up selects incoming video, down selects internal pattern or incoming
video/internal pattern split-screen. Select pattern with Adj/Sel rotary control
7Hpos* Down allows adjustment of horizontal picture position up to +/- 2uS from
reference sync input. Adjusted by Adj/Sel control.
Note: Hpos fine rotary control is always active and can adjust hozizontal
picture position by +/- 100 ns
8Y/C Down allows adjustment of Y to Cb/Cr delay timing. Adjust luminance to
chrominance delay using Adl/Sel. Range is +/- 100ns in approximately 9ns
steps. Switch Cal (lever 9) down then up again to recall factory default
setting of 0ns.
9Cal Normally Up. Switch down then up again to force horizontal picture position
and Y to Cb/Cr delay to their default factory settings. Only applies in local
mode and when Hpos and Y/C levers are down.
10 Rmt Up local board edge control (local mode )
Down remote control by active front panel (remote mode )
Notes: The Hpos fine (+/- 100 ns) adjustment is available in either local or remote mode.
Betacam chroma levels are intended for use with 625/525 YUV inputs only
Chroma level adjustment is not available with the ADC104FK
The Y control selects between Y and G with the ADC104FK
The Tpat patterns are not available with ADC104N converter.

Crystal Vision Card edge operation
18/02/03 Page 17
Using split screen test signals
The eight test signals (not ADC104N) may be displayed in split-screen mode (TPat
DOWN) whilst adjusting the horizontal picture position (Hpos DOWN).
Function Notes Tpat Hpos
Normal Up Up
Eight full-screen and split-
screen test signals
Split-screen has incoming video in
bottom half, test signal in upper
half
Down Up
Adjust horizontal position
of incoming video by +/- 2µ
using Adj/Sel
Hpos fine is always active
irrespective of and control surface
setting
Up Down
Adjust horizontal position
of incoming video by +/- 2µ
using Adj/Sel, whilst
viewing a test signal
Use a split-screen test signal to
view both incoming video in the
lower half on the screen and an
internally generated test signal in
the upper half of the screen.
Down Down
The available internally generated digital test patterns are:
•Ramps
•Edge of frame markers
•Frequency sweep
•Grey
•Multi frequency burst
•100% Colour Bars
•EBU Colour Bars
•SDI test
Card-edge LED assignments:
LED Meaning Notes
Error (red) On
Off
No valid syncs on selected sync input
Valid syncs selected.
Input syncs can be extracted from
the Y/Green input or the external
sync input.
625/525
(amber)
Upper On
Lower On
625 input set or detected
525 input set or detected
Card jumpers set Auto or Manual
standard selection
Config
(green)
Upper On
Upper Off
Power on configuration has finished
Power on configuration is taking place
Usually lasts 2-3 seconds
5V (green) Lower On
Lower Off
The onboard +5V and –6V power rails
are OK
One or both of the onboard +5V and –
6V power rails has a problem (low
value) or is not present.
5V LED illuminates for both +5V
and –6V power rails

ADC104OperationalManualV3_2 Crystal Vision
Page 18 19/09/05
5 Installation
The ADC104 series of analogue component to SDI converters are single height modules,
which will fit into all Crystal Vision rack frames. The FR2AV 2U frame will
accommodate up to 12 single height Crystal Vision modules and six single height
modules will fit in the FR1AV 1U frame. The 1U high Desk Top Box DTB-AV will
house up to 2 modules and has a built-in power supply. All modules can be plugged in
and removed while the frame is powered without damage.
5.1 Rear modules and signal I/O
FR2AV FR1AV and DTB-AV frame rear connectors
Up to twelve single height modules may be fitted in a FR2AV frame depending on the
choice of rear connector. The two types of rear connector available provide system
flexibility by allowing a mix between access to all connections and maximum module
packing density. The available rear connectors are as follows:
RM01
FR2AV RM01 rear connectors Description
RM01
•12 modules per FR2AV
frame
•All frame slots can be
used
General Label
Name
(ZLA00073)
Special Label Name
(ZLA00089)
Description
SYNC/OPD SYNC IN Reference analogue sync in
U/B/OPB U/B IN U or Blue component input
Y/G/OPA Y/G IN Luminance or Green component input
SDI2 SDI OUT (2) Serial Digital Output
SDI/1 SDI OUT (1) Second Serial Digital Output
V/R/OPC V/R IN V or Red component input

Crystal Vision Installation
18/02/03 Page 19
RM02
FR2AV RM02 rear connectors Description
RM02
ZLA00128
RM02 (ZLA00128 artwork)
•9 modules per FR2AV
frame
•3 modules per rear
connector
•9 connections available
•Card 1 fits in slots 1, 5
and 9
•Card 2 fits in slots 2, 6
and 10
•Card 3 fits in slots 4, 8
and 12
No card fits in 3, 7 or 11
Note: ZLA00128 is the current generic artwork shown for RM02.
ZLA00110 is the previous artwork and labelling is shown only in the pin-out tables.
General
Label
Names
(ZLA00110)
General
Label Names
(ZLA00128)
Special Label Name
(not available)
Description
IN ASDI Output (1) Serial Digital Output
1 B SDI Output (2) Second Serial Digital Output
2 C Y/G input Luminance or Green component
input
3 D SDI Output (3) Third Serial Digital Output
4 E U/B Input U or Blue component input
5 F V/R in V or Red component input
6 G N/C N/C
7 H Sync out External Sync loop out ( see
jumper setting J1 )
8/IN2 ISync in External analogue reference
sync in
For details of fitting rear connectors please refer to the FR2AV frame manual.
