Culligan HE Twin Water Softener User manual

Culligan®High
Efficiency Twin
Automatic
Water
Softeners
Owners Guide

ii 01023052
The installation, service and maintenance of this equipment should be rendered by a qualified and trained
service technician. Your local independently operated Culligan dealer employs trained service and main-
tenance personnel who are experienced in the installation, function and repair of Culligan equipment. This
publication is written specifically for these individuals and is intended for their use.
We encourage Culligan users to learn about Culligan products, but we believe that product knowledge is
best obtained by consulting with your Culligan dealer. Untrained individuals who use this manual assume
the risk of any resulting property damage or personal injury.
WARNING! Electrical shock hazard! Prior to servicing equipment, disconnect
power supply to prevent electrical shock.
NOTE This system is not intended for use where water is microbiologically unsafe or with
water of unknown quality.
WARNING! If incorrectly installed, operated or maintained, this product can cause
severe injury. Those who install, operate, or maintain this product
should be trained in its proper use, warned of its dangers, and
should read the entire manual before attempting to install, operate,
or maintain this product.
WARNING! This device complies with part 15 of the FCC rules subject to the
two following conditions: 1) This device may not cause harmful
interference, and 2) This device must accept all interference received
including interference that may cause undesired operation.
This equipment complies with Part 15 of the FCC rules. Any changes or modifications not expressly approved
by the manufacturer could void the user’s authority to operate the equipment. Changes or modifications not
expressly approved by the party responsible for compliance could void the user’s authority to operate the
equipment.
CAUTION! To reduce the risk of fire, use only No. 26 AWG or larger
telecommunicaitons line cord.
CAUTION! This product is not to be used by children or persons with reduced
physical, sensory or mental capabilities, or lack of experience or
knowledge, unless they have been given supervision or instruction.
CAUTION! Children should be instructed not to play with this appliance.
CAUTION! If the power cord from the transformer to the unit looks or becomes
damaged, the cord and transformer should be replaced by a Culligan
Service Agent or similarly qualified person in order to avoid a hazard.
Products manufactured and marketed by Culligan International Company (Culligan) and its affiliates are
protected by patents issued or pending in the United States and other countries. Culligan reserves the right to
change the specifications referred to in this literature at any time, without prior notice. Culligan, AquaSensor,
Tripl-Hull, and SoftMinder are trademarks of Culligan International Company or its affiliates.
Culligan International Company
9399 West Higgins Road, Suite 1100
Rosemont, Illinois 60018
1-847-430-2800
www.culligan.com
Attention
Culligan
Customer

iii
01023052
Contents
Thank You .................................................................................................................................................................................................... 1
Specifications.............................................................................................................................................................................................. 2
Introduction ................................................................................................................................................................................................ 4
How Your Water Conditioner Works.................................................................................................................................................. 5
The Culligan Process ................................................................................................................................................................................ 6
Modes of Operation ................................................................................................................................................................................. 7
Installation ................................................................................................................................................................................................... 9
Navigating the Menus and Keypad .................................................................................................................................................29
First Time Setup .......................................................................................................................................................................................31
Set Date and Time...................................................................................................................................................................................34
Information................................................................................................................................................................................................36
Regeneration ............................................................................................................................................................................................38
Final Startup..............................................................................................................................................................................................40
Salt Supply, Usage and Service .........................................................................................................................................................42
Care and Cleaning of Your Water Conditioner.............................................................................................................................43
Cleaning
Out the Salt
Storage Tank .............................................................................................................................................................................................44
Sanitizing Procedure .............................................................................................................................................................................45
Things to Check Before You Call for Service..................................................................................................................................46
Error Codes ................................................................................................................................................................................................47
When and How to Bypass Your Water Softener...........................................................................................................................48
Performance Data Sheets.....................................................................................................................................................................49
California Department of Public Health Certificates ..................................................................................................................61
mportant Data on Your Water Softener ........................................................................................................................................65
Electrical Schematic................................................................................................................................................................................66
Parts Lists....................................................................................................................................................................................................67
Culligan Limited Warranty ...................................................................................................................................................................76
With Culligan You Get More Than A Quality Product ................................................................................................................77
Index ............................................................................................................................................................................................................78

iv 01023052
This manual:
• familiarizes the operator with the equipment
• explains installation and setup procedures
• provides basic programming information
• explains the various modes of operation
• gives specifications and troubleshooting information
Read this Manual First
Before you operate the Culligan High Efficiency Twin Automatic Water Softener, read this manual to
become familiar with the device and its capabilities.
Safe Practices
Throughout this manual there are paragraphs set off by special headings.
Notice (or Note) is used to emphasize installation, operation or maintenance information which is impor-
tant, but does not present any hazard. For example,
NOTICE The nipple must extend no more than 1 inch above the cover plate.
Caution is used when failure to follow directions could result in damage to equipment or property.
CAUTION! Disassembly while under water pressure can result in flooding.
Warning is used to indicate a hazard which could cause injury or death if ignored.
WARNING! Electrical shock hazard! Unplug the unit before removing the
timer mechanism or cover plates!
The CAUTION and WARNING paragraphs are not meant to cover all possible conditions and situations that may
occur. Understand that common sense, caution, and careful attention are conditions which cannot be built
into the equipment. These MUST be supplied by the personnel installing, operating, or maintaining the system.
Be sure to check and follow the applicable plumbing codes and ordinances when installing this equip-
ment. Local codes may prohibit the discharge of sanitizing or descaling solutions to drain.
Use protective clothing and proper face or eye protection equipment when handling chemicals or tools.
NOTE The Culligan High Efficiency Twin Softener is not intended for use with water
that is microbiologically unsafe or of unknown quality without adequate
disinfection either before or after the system.
NOTE Check with your public works department for applicable local plumbing
and sanitation codes. Follow local codes if they differ from the standards
used in this manual. To ensure proper and efficient operation of the Culligan
High Efficiency Twin Softener to your full satisfaction, carefully follow the
instructions in this manual.
About this
Manual

1
01023052
Thank You
Welcome To Your New World of Better Living with Culligan Water.
The Culligan HE Twin Water Softeners with Soft-Minder®Meter and Aqua-Sensor®sensing
device are tested and certfied by the Water Quality Association (WQA) against NSF/ANSI
Standard 372, CSA B483.1, and NSF/ANSI Standard 44 for the effective reduction of hardness
(calcium and magnesium), barium, and radium 226/228, as verified and substantiated by
test data.
For installations in Massachusetts, Massachusetts Plumbing Code 248 CMR shall be adhered
to. Consult your licensed plumber for installation of this system. This system and its installa-
tion must comply with state and local regulations. The use of saddle valves is not permitted.
The Culligan HE 1” Twin water softener requires the use of a Culligan connector, PN 01023290 (plastic)
or PN 01021077 (copper).
The Culligan HE 1” Twin NC model has not been tested or certified by WQA and does not include the
Culligan connector.
The Culligan HE Twin water softener outdoor controller enclosure complies with the UL 50/50E and UL
746C standards for a NEMA 3R Enclosure Rating.
If this is your first experience having soft, conditioned water in your home, you’ll be amazed at the marvel-
ous difference it makes. We promise that you’ll never want to be without it again.
Congratulations, too, on selecting one of the “first family” of water conditioners in the prestigious Culligan
High Efficiency Water Softeners. With Culligan’s many years of knowledge and experience in water treat-
ment, you can be confident that the model you selected has been designed and engineered to provide
years of service with a minimum of care and attention.
Some localities have corrosive water. A water softener cannot correct this problem and so its printed
warranty disclaims liability for corrosion of plumbing lines, fixtures or appliances. If you suspect corrosion,
your Culligan Dealer has equipment to control the problem.
NOTICE Sodium Information: Water softeners using sodium chloride for regenera-
tion add sodium to the water. Persons who are on sodium restricted diets
should consider the added sodium as part of their overall sodium intake.
Serial Numbers
The control valve serial number is located on the back of the timer case.
The media tank serial number is located on the top surface of the tank.
NOTE DO NOT remove or destroy the serial number. It must be referenced on
request for warranty repair or replacement.

201023052
Culligan High Eciency Twin Water Conditioners with
Aqua-Sensor®Device or Soft-Minder®Meter—Downow Regeneration
Model 9" Model 10" Model 12" Model 14" Model
Control Valve 1” Reinforced Thermoplastic w/ HE Circuit Boards
Overall Conditioner Ht 56 in 62 in 60 in 73 in
Media Tank Design Quadra-Hull™
Media Tank Dimensions
(Dia x Ht) 9 x 48 in 10 x 54 in 12 x 52 in 14 x 65 in
Salt Storage Tank
Dimensions (Dia x Ht) 18 x 43 in 18 x 43 in 18 x 43 in 24 x 42 in
Exchange Media, Type
and Quantity Cullex® Media, 1.0 ft3Cullex Media, 1.5 ft3Cullex Media, 2.0 ft3Cullex Media, 3.0 ft3
Underbedding, Type and
Quantity
Cullsan®
Underbedding, 12 lb
Cullsan
Underbedding, 15 lb
Cullsan
Underbedding, 20 lb
Cullsan
Underbedding, 25 lb
Exchange Capacity @
Salt Dosage Per Recharge
(per tank)
17,854 gr @ 4.0 lb 26,781 gr @ 6.0 lb 31,352 gr @ 7.0 lb 51,726 gr @ 12 lb
27,108 gr @ 8.0 lb 40,662 gr @ 12.0 lb 48,458 gr @ 16.0 lb 75,582 gr @ 24 lb
31,736 gr @ 12.0 lb 47,604 gr @ 18.0 lb 59,267 gr @ 24.0 lb 88,549 gr @ 36 lb
Efficiency rated dosage1
(per tank)
4,463 gr/lb @ 4 lb
salt dosage
4,463 gr/lb @ 6 lb
salt dosage
4,479 gr/lb @ 7 lb
salt dosage
4,310 gr/lb @ 12 lb
salt dosage
Freeboard to Media214.5 in 14.5 in 16 in 25 in
Freeboard to
Underbedding344.5 in 47.5 in 46 in 59 in
Salt Storage Capacity 375 lb 375 lb 375 lb 600 lb
Rated Service Flow @ Pres-
sure Drop 9.0 gpm @ 11 psi 9.4 gpm @ 12 psi 10.0 gpm @ 10 psi 10.6 gpm @ 11 psi
Auxiliary Flow Rate410.8 gpm @ 15 psi 11.0 gpm @ 15 psi 12.6 gpm @ 15 psi 12.8 gpm @ 15 psi
Total Hardness, Maximum 75 gpg 99 gpg 99 gpg 99 gpg
Total Iron, Maximum 5 ppm
Hardness to Iron Ratio,
Minimum 8 gpg to 1 ppm
Operating Pressure 20-125 psi (138–862 kPa)
Operating Pressure
(Canada) 20-90 psi (138–621 kPa)
Operating Temperature 33-120°F (0–49°C)
Electrical Requirements 24V/60 Hz
Electrical Power Consump-
tion, Min/Max 8.4 watts/21.6 watts
Drain Flow, Maximum52.5 gpm 2.5 gpm 3.0 gpm 5.3 gpm
Recharge Time, Average6
Recharge Water 78 minutes 67 minutes 62 minutes 76 minutes
Consumption, Average647 gallons 45 gallons 67 gallons 155 gallons
1The efficiency rated dosage is only valid at the stated salt dosage and is efficiency rated according to NSF/ANSI Standard 44.
2Measured from top of media to top surface of tank threads (backwashed and drained).
3Measured from top of underbedding to top surface of tank threads.
4Auxiliary flow rates do not represent the maximum service flow rate used for determining the softener’s rated capacity and efficiency and that continuous
operation at these flow rates greater than the maximum service flow rate may affect capacity and efficiency performances.
5Backwash at 120 psi.
610 minute backwash, 4 lb. 9” model, 6 lb. 10” model, 7 lb. 12” model, or 12 lb. 14” model salt dosage.
Specifications

3
01023052
Culligan High Eciency Twin Softener—Upow Regeneration
Model 9" Model 10" Model
Control Valve 1” Reinforced Thermoplastic with HE Circuit Board
Overall Conditioner Height 56 in 62 in
Media Tank Design Quadra-Hull™
Media Tank Dimensions (Dia x Ht) 9 x 48 in 10 x 54 in
Salt Storage Tank Dimensions (Dia x Ht) 18 x 43 in
Exchange Media, Type and Quantity Cullex® Media, 1.0 ft3 Cullex Media, 1.5 ft3
Underbedding, Type and Quantity Cullsan® Underbedding, 12 lb Cullsan Underbedding, 15 lb
Exchange Capacity @ Salt Dosage Per Recharge (per tank)
9,792 gr @ 2.0 lb 30,081 gr @ 6.0 lb
17,366 gr @ 4.0 lb 47,726 gr @ 12.0 lb
27,306 gr @ 8.0 lb 54,975 gr @ 18.0 lb
Efficiency Rated Dosage (per tank)14,896 gr/lb @ 2 lb salt dosage 5,014 gr/lb @ 6 lb salt dosage
Proportional Brining Efficiency Rating (per tank)25,760 gr/lb @ 2 lb salt dosage 5,898 gr/lb @ 6 lb salt dosage
Freeboard to Media314.5 in 14.5 in
Freeboard to Underbedding444.5 in 47.5 in
Salt Storage Capacity 375 lb
Rated Service Flow @ Pressure Drop 9.0 gpm @ 11 psi 9.4 gpm @ 12 psi
Auxiliary Flow Rate510.8 gpm @ 15 psi 11.0 gpm @ 15 psi
Total Hardness, Maximum 30 gpg
Total Iron, Maximum 2 ppm
Hardness to Iron Ratio, Minimum 8 gpg to 1 ppm
Operating Pressure 20-125 psi (138–862 kPa)
Operating Pressure (Canada) 20-90 psi (138–621 kPa)
Operating Temperature 33-120°F (0–49°C)
Electrical Requirements 24V/60 Hz
Electrical Power Consumption, Min/Max 8.4 watts/21.6 watts
Drain Flow, Maximum62.2 gpm 2.3 gpm
Recharge Time, Average7Recharge Water 68 minutes 57 minutes
Consumption, Average733 gallons 35 gallons
1The efficiency rated dosage is only valid at the stated salt dosage and is efficiency rated according to NSF/ANSI 44.
2The Proportional Brining Efficiency Rating assumes a 20 percent reserve capacity at the time of regeneration that is typical of what the manufacturer expects
under real-world operation. Proportional brining is not measured by NSF/ANSI 44, and so this cliam is not, and can not, be rated to NSF/ANSI 44.
3Measured from top of media to top surface of tank threads. (backwashed and drained).
4Measured from top of underbedding to top surface of tank threads.
5Auxiliary flow rates do not represent the maximum service flow rate used for determining the softener’s rated capacity and efficiency and that continuous
operation at these flow rates greater than the maximum service flow rate may affect capacity and efficiency performances.
6Backwash at 120 psi (830 kPa).
75-minute backwash, 2 lb. 9” model, 6 lb. 10” model salt dosage

401023052
Introduction It’s All So Easy, So Economical, So Efficient, So Enjoyable!
Kind To Skin And Complexion
Soft water will help prevent red, itchy or dry skin because there are no hardness impurities to cause sore-
ness, no soap curd to coat the skin. Shaving is easier, smoother—either with a blade or electric shaver.
Bathing And Showering
You’ll use far less soap with conditioned water. Use your soap very sparingly—not as you did before soft
water. Just a quick rinse removes all lather, leaving your skin pleasantly smooth and silky because now it’s
free of sticky soap curd and film.
Saves Washing Costs. Helps Control Environmental Pollution
Soft water washes whiter and cleaner with less soap or detergent. Because the hardness impurities are re-
duced, your soap can concentrate solely on washing. People usually find that they can reduce the amount
of soap they use substantially. If you normally use a cup per wash load with hard water, try using 1/3 cup
depending on the size of your wash load and the degree of soil. Different amounts are required, but you
can use less with softened water. An added bonus is the fact that your washable fabrics will last longer.
Super Hair Conditioning
Soft water is great for scalp and hair care. No insoluble deposits are formed. Hair is shinier, softer, more
manageable. Reduce the amount of shampoo you have normally used.
Dishes Are A Delight
Washed by hand or in a dishwasher, glassware, dishes and silver wash cleaner, easier. Follow your
dishwasher manufacturer’s instructions. Soft water promotes sanitation because no greasy hard water film
can form to collect or harbor bacteria.
Easier Housekeeping, Gleaming Fixtures
You’ll be amazed at the marvelous difference. Just a swish of the cloth, and the bathtub or shower and
fixtures are clean and sparkling. Imagine, no scouring! No hard water scum to cause rings, streaks, spots
and stains. To keep their gleaming luster, simply wipe fixtures with a towel after use. Formica, tile, walls,
floors, woodwork surfaces clean easier, stay clean longer. You’ll save on cleaning aids and save on time.
Saves Water-Heating Energy, Helps Water-Using Appliances
Soft water reduces the formation of rock-like hard water scale that encrusts water heaters, hot water pipes,
shower heads, and water-using appliances. This scale can cause premature maintenance and failure.
Elimination of hard water also provides substantial energy savings because scale acts as an insulator,
wasting electricity or gas used to heat water.
Water For Lawns And Household Plants
If possible, lawn sprinkling faucets should be supplied with hard water primarily because it is uneconomi-
cal to soften so much water.
Household plants are much more sensitive than lawns with respect to the kind of water which is best. First,
because they receive no rainfall and, second, there is little or no drainage of the soil. Preferably they
should be watered with rainwater or water which is low in mineral content such as distilled or demineral-
ized water. Softened water is not recommended for house plants because a build-up of sodium in the soil
may interfere with efficient absorption of water by the plant root system. Additional information may be
obtained from your independently operated Culligan dealer.

5
01023052
How Your
Water
Conditioner
Works
Why Water Gets Hard And How It Is Softened
All of the fresh water in the world originally falls as rain, snow, or sleet. Surface water is drawn upward
by the sun, forming clouds. Then, nearly pure and soft as it starts to fall, it begins to collect impurities as it
passes through smog and dust-laden atmosphere. And as it seeps through soil and rocks it gathers hard-
ness, rust, acid, unpleasant tastes and odors.
Water hardness is caused primarily by limestone dissolved from the earth by rainwater. Because of this,
in earlier times people who wanted soft water collected rainwater from roofs in rain barrels and cisterns
before it picked up hardness from the earth.
Some localities have corrosive water. A softener cannot correct this problem and so its printed warranty
disclaims liability for corrosion of plumbing lines, fixtures or appliances. If you suspect corrosion, your
Culligan Man has equipment to control the problem.
Iron is a common water problem. The chemical/physical nature of iron found in natural water supplies is
exhibited in four general types:
1. Dissolved Iron—Also called ferrous or “clear water” iron. This type of iron can be removed
from the water by the same ion exchange principle that removes the hardness elements, calcium
and magnesium. Dissolved iron is soluble in water and is detected by taking a sample of the
water to be treated in a clear glass. The water in the glass is initially clear, but on standing
exposed to the air, it may gradually turn cloudy or colored as it oxidizes.
2. Particulate Iron—Also called ferric or colloidal iron. This type of iron is an undissolved par-
ticle of iron. A softener will remove larger particles, but they may not be washed out in regen-
eration effectively and will eventually foul the ion exchange resin. A filtering treatment will be
required to remove this type of iron.
3. Organic Bound Iron—This type of iron is strongly attached to an organic compound in the
water. The ion exchange process alone cannot break this attachment and the softener will not
remove this type of iron.
4. Bacterial Iron—This type of iron is protected inside a bacteria cell. Like the organic bound
iron, it is not removed by a water softener.
When using a softener to remove both hardness and dissolved iron it is important that it regenerates more
frequently than ordinarily would be calculated for hardness removal alone. Although many factors and
formulas have been used to determine this frequency, it is recommended that the softener be regenerated
when it has reached 50–75 percent of the calculated hardness alone capacity. This will minimize the
potential for bed fouling. (Iron removal claims have not been verified by the Water Quality Association.)
If you are operating a water softener on clear water iron, regular resin bed cleaning is needed to keep
the bed from coating with iron. Even when operating a softener on water with less than the maximum
of dissolved iron, regular cleanings should be performed. Clean every six months or more often if iron
appears in your conditioned water supply. Use resin bed cleaning compounds carefully following the
directions on the container.
CAUTION! Do not use where the water is microbiologically unsafe or with water
of unknown quality without adequate disinfection before or after the
unit.

601023052
The Culligan
Process

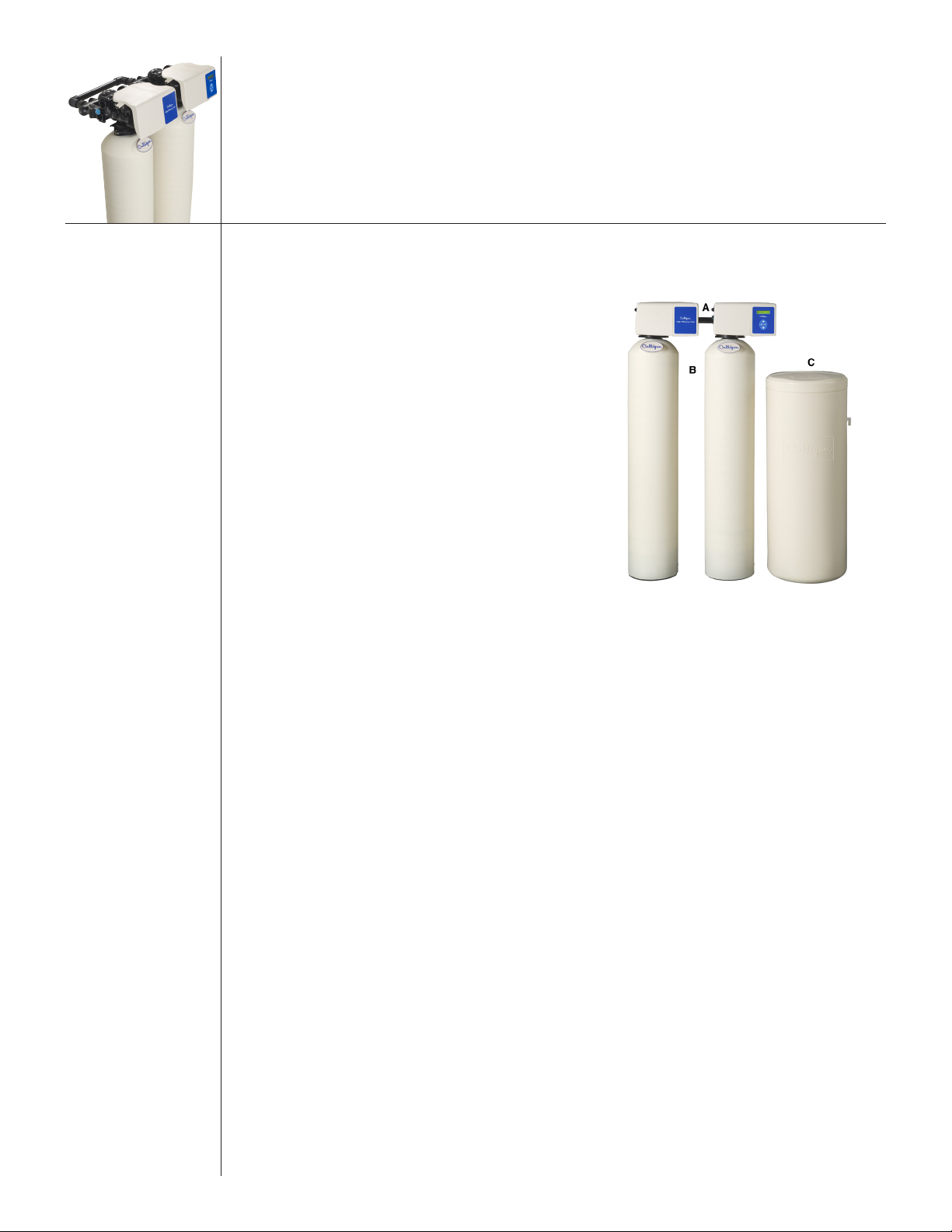

Your Culligan water conditioner consists of three basic components, (A) the Control Valve, (B) the Mineral
Tank, and (C) the Brine System.
A. Control Valve
The exclusive Culligan control valve automatically
performs a variety of tasks that are necessary for the
proper operation of your water conditioner. These tasks,
commonly referred to as cycles or operating positions,
are Service, Regeneration, and Brine Refill.
1. Service: While the control valve is in the
service cycle, hard water is directed down
through the column of Cullex®resin where
hardness minerals are removed from the
water. The softened water is then directed into
your household plumbing lines. The ability of
the Cullex resin to remove hardness minerals
needs to be periodically replenished; this is
referred to as …
2. Regeneration: While the control valve is in
the regeneration cycle, water is first directed
up through the column of Cullex resin to flush accumulated sediment out of the resin and down
the drain. Then, the regenerant brine solution is slowly drawn from the bottom of the salt storage
tank of the Brine System and is directed down through the column of Cullex resin, restoring the
ability of the resin to remove hardness minerals from your water supply. Once completed, the
regeneration cycle is followed by …
3. Brine Refill: While the control valve is in the brine refill cycle, a predetermined amount of
water is directed to the salt storage tank of the Brine System so that additional salt can be dis-
solved to provide the brine solution that will be needed for the next regeneration cycle.
B. The Mineral Tank
The Mineral Tank contains the Cullex resin column, Cullsan®underbedding, and an outlet manifold (the
Culligan Municipal also includes carbon media for chlorine taste & odor reduction). The number of gallons
of hard water that can be softened by the Cullex resin column before it needs regeneration is called the
“capacity” of the resin column, and depends upon the amount of hardness minerals in each gallon of
water (expressed as grains per gallon) and upon the amount of regenerant brine solution (expressed as
pounds of salt) passed through the resin column during regeneration.
Your Culligan service person, taking into account the hardness of your water and the amount of softened
water your household may reasonably expect to use each day, has carefully established how often the
softener will regenerate and how much salt will be used for each regeneration. This will ensure that all of
your soft water needs will be fulfilled without using an excessive amount of salt.
C. The Brine System
The Brine System consists of a salt storage container and hydraulic Dubl-Safe™valve. The salt storage con-
tainer holds the salt that is used to make the regenerant brine solution. The hydraulic Dubl-Safe valve limits
the amount of water that is returned to the salt storage tank during the brine refill cycle.
Because a predetermined amount of salt is dissolved with each brine refill cycle, the salt must be periodi-
cally replenished in order to maintain efficient operation. Your Culligan service person will be able to tell
you about how often salt must be added to the salt storage container.

7
01023052
Modes of
Operation
Water Meter Mode
In water meter mode, the controller keeps track of the quantity of water that has flowed through the resin
bed. Based on the influent water hardness and the hardness capacity of the resin bed, a service life expec-
tancy in the quantity of softened water is calculated and programmed into the control. When the set point
is reached, regeneration is triggered. If the predict mode is not selected the regeneration will start at time
of regeneration. In immediate mode the regeneration starts as soon as the regeneration signal is provided.
If time clock backup is set and the capacity has not been exhausted but the days since last regen is greater
than time clock backup, setting the softener will immediately regenerate.
Aqua-Sensor®Mode
The Aqua-Sensor is a conductivity probe that senses when the hardness front passes through the resin
bed. It functions independently of the influent water hardness so therefore, is useful in conditions when the
influent water hardness varies throughout the year. It provides for the most efficient mode of operation. In
addition to sensing when a resin bed is exhausted, it can also be used to determine when the brine solu-
tion is rinsed from the resin bed during the Brine Draw/Slow Rinse cycle triggering the control to move to
fast rinse. This patented feature provides water savings by optimizing the amount of rinse water required
to completely rinse out the resin bed.
Smart Brine Tank Probe
The smart brine tank probe monitors conditions inside the brine tank. It predicts when salt needs to be
added to the brine tank, detects the presence of salt-bridging, eductor line plugging and brine tank overfill-
ing.
Wireless Remote Control
The wireless remote control displays the current status of the water softener or filters and allows for remote
control. It can be located up to 200 feet away from the softener (depending upon building construction
materials). The wireless remote displays information about softener performance, problems, days of salt
remaining and allows remote control for regeneration.
The wireless remote control is designed to communicate at 915 MHz and to work without interference with
other 915 MHz devices such as cordless telephones and baby monitors.
Modem
The modem allows for the system to be remotely monitored detecting problems before they occur, to sched-
ule salt delivery when it is needed and to keep the system software up to date with the latest advances.
Manual Regeneration
Manual regeneration can be initiated via the softener control valve or wireless remote display. Manual regen-
eration can be initiated to begin regeneration immediately or that night. To immediately initiate regeneration,
press and hold for at least ten (10) seconds. To cancel a delayed regeneration, press and hold for at least
five (5) seconds.
Predict Mode
The Predict Mode is used with the flow meter to determine the optimum regeneration point. Before the re-
generation starts, the control will compare the remaining capacity value with the average daily water use.
If the average daily water usage is less than the reserve capacity, the controller will wait 24 more hours
before regeneration. If the reserve capacity is less than the average daily water usage, the control will
initiate regeneration. This works in delay mode only. At any time, if the total capacity value is reached,
the control will initiate an immediate regeneration.
Pre-Rinse Mode
The Pre-rinse mode is used to pre-rinse the softener resin bed or filter media. The pre-rinse in flow meter
mode will occur after the control has sensed that no water has flowed through the control for a period of X
hours (can be set through the programming menu). When the control is in this mode, once the X amount

801023052
of hours have elapsed the control will cycle to the fast rinse position for the pre-set length of minutes and
then return to the home or service position.
Down Flow Regeneration
Water and regenerate flow downward through the media tank.
Up Flow Regeneration
Water flow is downward and regenerate flow is upward through the media tank. The significance of this
is that regeneration will be most effective in those parts of the resin bed which are treated with the freshest
regenerate solution. There will tend to be less hardness leakage with up-flow regeneration.
Proportional Brining
The control monitors your softened water usage making only enough brine to regenerate that part of the
resin bed that has been exhausted. In this way the amount of salt used relates directly to the amount of
softened water used, making it more efficient and cost effective. Proportional brining can only be used
with upflow regeneration. The Aqua-Sensor or meter can be used to initiate a regeneration.
Dial-a-Softness®
Dial-a-softness is a manual adjustment built into the control valve that allows for variable hardness bypass
into the softened water. The hard water bypass can be adjusted from 0% to 30%. The Dial-a-Softness also
increases the softener capacity in proportion to the percent hard water bypass (less salt used).

9
01023052
Installation
NOTE Read this section entirely before starting the installation. Follow all applicable
plumbing and electrical codes.
Component Description
The water conditioner is shipped from the factory in a minimum of five cartons. With the exception of
media containers, remove all components from their cartons and inspect them before starting installation.
Control Valve Assembly
Includes the control valve, bypass valve, and meter. Small parts packages will contain additional installa-
tion hardware, and the conditioner Owner’s Guide.
Media Tank
Includes Quadra-Hull™ media tank complete with Cullex®ion exchange resin, underbedding and outlet
manifold (12” and 14” tanks are shipped without media).
Salt Storage Tank Assembly
Includes salt storage container with support plate and Dubl-Safe™ brine refill valve and chamber.
Tools and Materials
The following tools and supplies will be needed, depending on installation method.
NOTE Check and comply with your state and local codes. You must follow these
guidelines.
For installations in Massachusetts, Massachusetts Plumbing Code 248 CMR
shall be adhered to. Consult your licensed plumber for installation of this
system. This system and its installation must comply with state and local
regulations. The use of saddle valves is not permitted.
All Installations
• Safety glasses
• Phillips screwdrivers, small and medium tip.
• Gauge assembly (PN 00304450 or equivalent)
• Silicone lubricant (PN 00471507 or equivalent)—Do Not Use Petroleum-Based Lubricants
• A bucket, preferably light-colored
• Towels
Special Tools
• Torch, solder and flux for sweat copper connections
• Use only lead-free solder and flux for all sweat-solder connections as required by state and federal
codes.
• Threading tools, pipe wrenches and thread sealer for threaded connections.
• Saw, solvent and cement for plastic pipe connections.

10 01023052
Materials
• Brine line, 3/8” (PN 01009819 or equivalent)
• Drain line, 1/2” (PN 00303082, gray, semi-flexible; PN 00331946, black, semi-rigid; or
equivalent)
• Thread sealing tape
• Pressure reducing valve (if pressure exceeds 125 psi [860 kPa])
• Pipe and fittings suited to the type of installation
• Water softener salt (rock, solar or pellet salt formulated specifically for water softeners)
Application
Water Quality
Verify that raw water hardness and iron are within limits. Note the hardness for setting the salt dosage
and recharge frequency.
Iron is a common water problem. The chemical/physical nature of iron found in natural water supplies is
exhibited in four general types: Dissolved Iron, Particulate Iron, Organic Bound Iron and Bacterial Iron.
Hardness sample kits are available through your local Culligan dealer.
Pressure
If pressure exceeds 125 psi (860 kPa), install a pressure reducing valve (see materials checklist). On pri-
vate water systems, make sure the minimum pressure (the pressure at which the pump starts) is greater than
20 psi (140 kPa). Adjust the pressure switch if necessary.
CAUTION! Do not use where the water is microbiologically unsafe or with
water of unknown quality adequate disinfection before or
after the unit.
CAUTION! The use of a pressure reducing valve may limit the flow of
water in the household.
Temperature
Do not install the unit where it might freeze, or next to a water heater or furnace or in direct sunlight.
Outdoor installation is not recommended, and voids the warranty. Use the Culligan Outdoor HE softener
for outdoor installations. The Culligan Outdoor HE softener has been certified by Underwriter’s Laborato-
ries for outdoor installation. If installing in an outside location, you must take the steps necessary to assure
the softener installation plumbing, wiring, etc. Areas well protected from the elements (sunlight, rain, wind,
heat, cold), contamination, vandalism, etc. as when installed indoors.
Location
Space Requirements
Allow 6–12 inches (15–30 cm) behind the unit for plumbing and drain lines and 4 feet (1.3 meters) above
for service access and filling the salt container.
Floor Surface
Choose an area with solid, level floor free of bumps or irregularities. Bumps, cracks, stones and other
irregularities can cause the salt storage tank bottom to crack when filled with salt and water.

11
01023052
Drain Facilities
Choose a nearby drain that can handle the rated drain flow (floor drain, sink or stand pipe). Refer to “Ta-
ble 3. Height of Discharge Above Floor Level Operating” on page 22, for maximum drain line length.
NOTE Most codes require an anti-siphon device or air gap. Observe all local
plumbing codes and drain restrictions. The system and installation must
comply with all state and local laws and regulations.
Electrical Facilities
A 10-foot cord and wall mount plug-in transformer are provided. The customer should provide a recepta-
cle, preferably one not controlled by a switch that can be turned off accidentally. Observe local electrical
codes.
NOTE The softener works on 24 Volt/60 Hz electrical power only. Be sure to use the
included transformer. Be sure the electrical outlet and transformer are in an
inside location to protect from moisture. Properly ground to conform with all
governing codes and ordinances. Observe all local plumbing codes and drain
restrictions. The system and installation must comply with all state and local
laws and regulations.
NOTE PN 01020620 and PN 01018133 plug-in transformer are rated for indoor
installations only.

12 01023052
Placement
NOTE Read this section entirely before starting the installation. Follow all applicable
plumbing and electrical codes.
Refer to Figure 1 for system placement.
1. With the exception of media containers, open the remaining containers, remove all the compo-
nents, and inspect them before starting installation.
2. Set the media tank on a solid, level surface near water, drain and electrical facilities.
3. Set the brine system on a flat, smooth, solid surface as near the media tank as possible.
Tank Assembly
9” and 10” tanks are filled with media at the factory.
1. Before the unit can be connected to the plumbing, you must insert the manifold and load the
media into the tank for 12” and 14” units.
CAUTION! Do not lay the tank down unless a suitable lifting device
is available. Personal injury and damage to the unit can
result if dropped.
Position the Mineral Tank(s)
Determine the location for the mineral tanks(s) prior to loading, because they will be difficult to move after
the underbedding and gravel are loaded.
Drain Line
Hard Water In
Heater
Treated Water Out
Brine Tank
Water
Meter
or
Pump
To Hose
Bibs
Air Gap
(2X Pipe Diameter
or 1 inch, whichever
is larger)

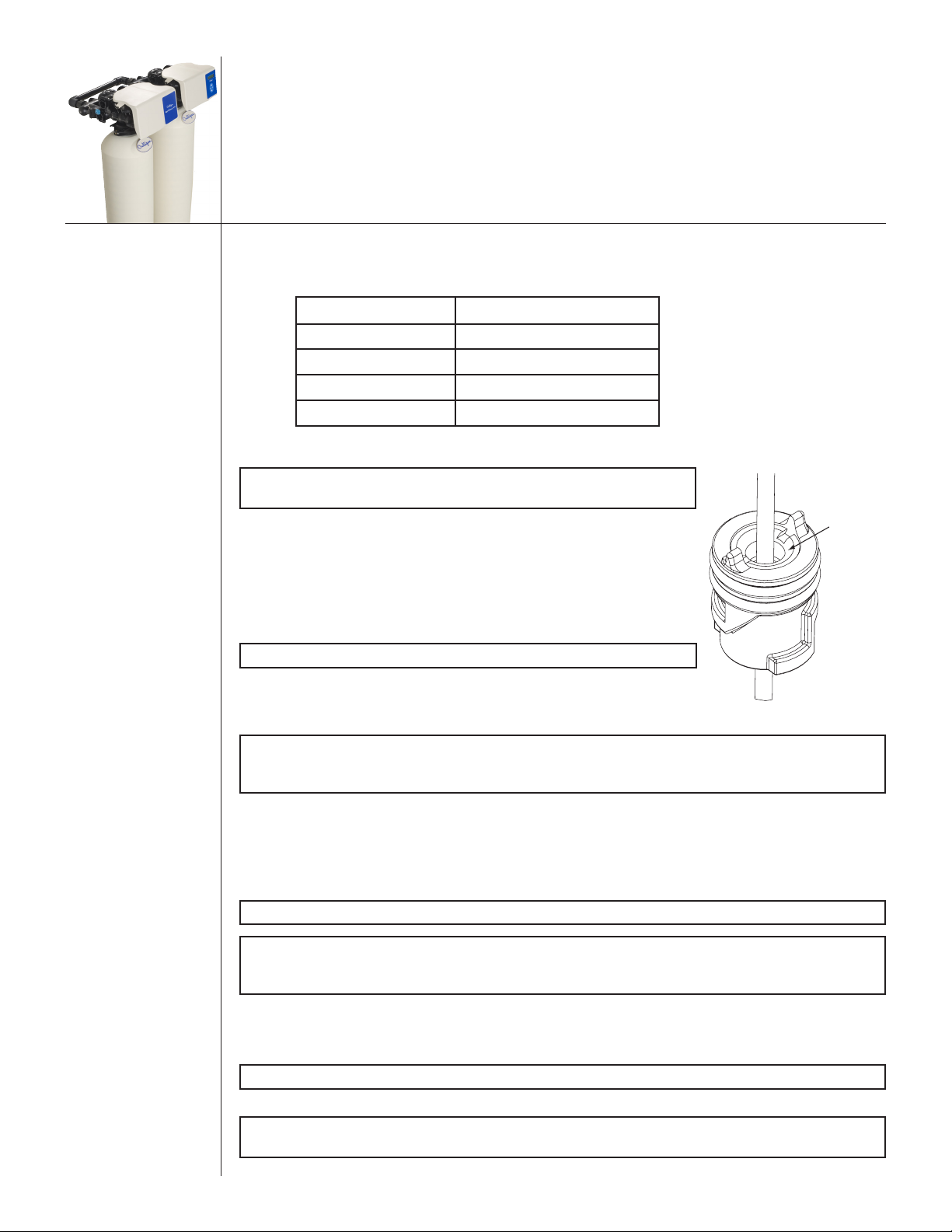

Figure 1. HE Twin system placement.

13
01023052
Load the Tank (12” and 14” Tanks)
Position the tank so that the Culligan® logo is in the front.
2. Remove the inlet strainer.
3. Install the outlet manifold into the tank (Figure 2).
4. Cover the tops of the manifolds with a clean rag.
5. Using a large-mouth funnel, load the Culligan underbedding
through the top of the tank.
CAUTION! DO NOT allow the outlet manifold
to move when loading the media.
The manifold must remain vertical
to ensure a good seal at the gasket.
Rap the tank near the bottom with a
rubber mallet to level the sand.
6. Load the tank with the Cullex® ion exchange resin. Leveling is not
required.
7. Remove the funnel.
8. Install the inlet strainer making sure to thread the strainer until it
bottoms out on the tank thread. Failure to install the strainer cor-
rectly can cause the control to leak.
Figure 2. HE Softener tank.

14 01023052
Install Aqua-Sensor
1. Measure the sensor cable length as shown in Figure 2 and Table 1 (the Aqua-Sensor cord is set
at the factory for a 9” tank).
Tank Model Dimension Y
9” Quadra-Hull™ Tank 40"
10” Quadra-Hull Tank 44"
12” Quadra-Hull Tank 42"
14” Quadra-Hull Tank 52"
Table 1. HE cable lengths.
NOTE Use only one Aqua-Sensor probe for HE Twin
applications.
2. Loosen the small Aqua-Sensor Plug; a needle-nose pliers works
best. See Figure 3.
3. Moisten the cable sheath and slide the cable grip up or down to
the proper cable length.
4. Tighten the small Aqua-Sensor plug so that the fitting cannot slide
along the cable.
NOTE There must be no kinks or bends in the cable.
5. Insert the probe and cable through the Aqua-Sensor port.
6. Tighten the Aqua-Sensor plug into the Aqua-Sensor port.
NOTE The media tank must be backwashed so that the Aqua-Sensor probe can
fall into the proper position. See “Recommended Aqua-Sensor® Start-Up
Procedure” on page <?>.
Mount the Control Valve
See Figure 4 for an illustration on mounting the control valve to the tank.
1. Assemble the O-rings, located in the parts pack, to the tank adapter.
2. The valve adapter O-ring sits on the first step on the adapter. See Figure 5.
NOTE Do not push the top O-ring down to the flange surface on the adapter.
NOTE The larger of the two O-rings in the parts should be positioned between the
adapter and the valve. Do not stretch the smaller O-ring onto the top of the
tank adapter.
3. Lubricate only the top O-ring on the tank adapter and the outlet manifold o-ring with silicone lubri-
cant.
4. Screw the adapter into the tank until the adapter bottoms out on the tank flange.
NOTE The adapter only needs to be tightened hand-tight to the tank flange.
5. Align the manifold with the center opening in the valve, and firmly press the valve onto the adapter.
NOTE Make sure to push the valve straight down onto the manifold. If the valve is
cocked, it may cause the O-ring to slip off the manifold.
6. Assemble the tank clamp to the control, and tighten the clamp screw.
Small
Aqua-Sensor®
Plug

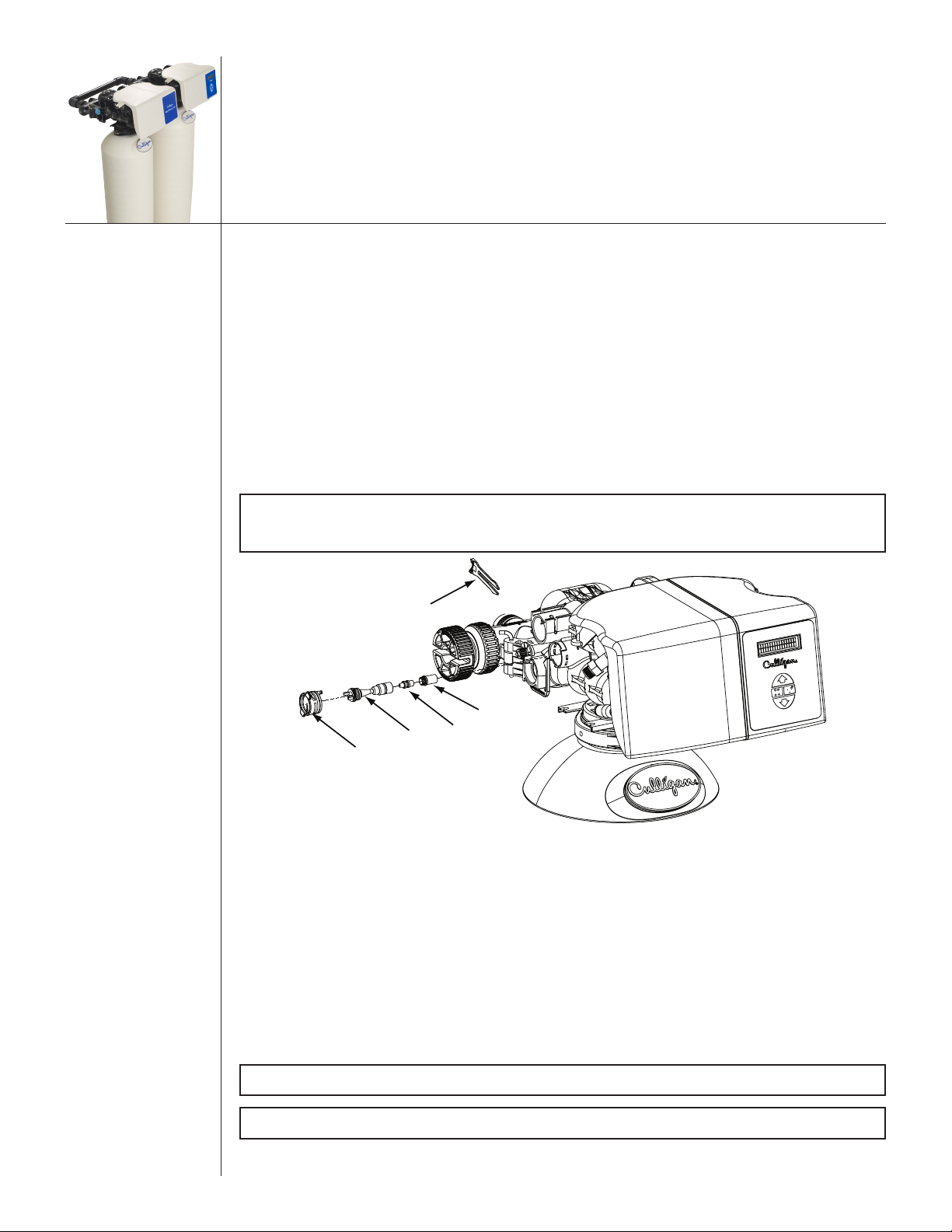

Figure 3. Aqua-Sensor plug.

15
01023052
NOTE The clamp and valve will be able to rotate on the tank until pressure is
applied.
Add O-Rings

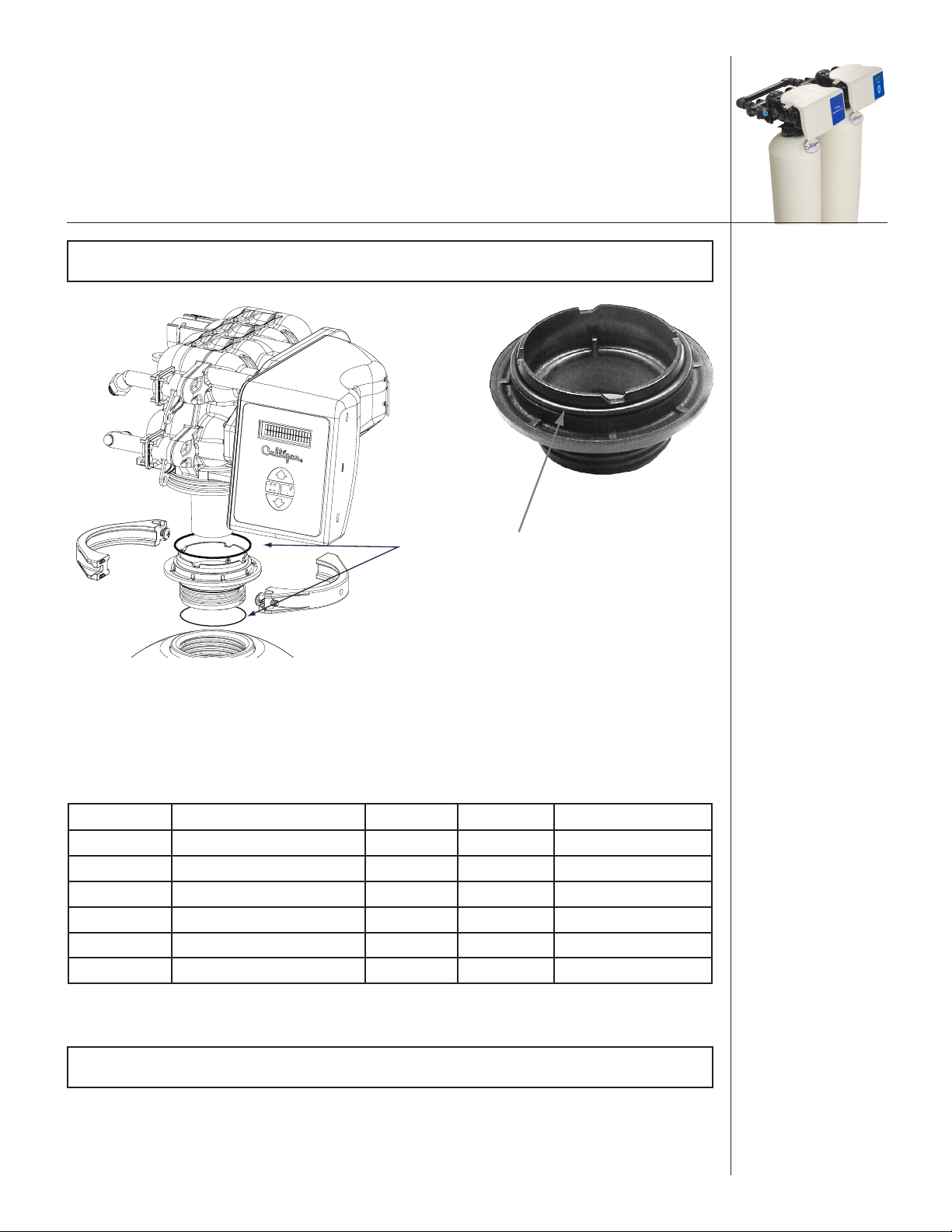

Figure 4. Mounting the control valve.
O-Ring
Figure 5. Valve adapter O-ring.
Backwash Flow Control, Eductor Nozzle—Throat
Use the recommended backwash flow control, eductor nozzle, and eductor throat for various size tanks.
See Table 2.
Refer to Figure 6 through Figure 9 and instructions below for changing the backwash flow control, eductor
nozzle, and eductor throat.
Unit Backwash Flow Nozzle Throat Brine Refill Flow
9" Upflow 2.5–3.1 gpm (#2 Brown)* Blue* Gray* 0.45 gpm
10" Upflow 2.5–3.1 gpm (#2 Brown)* Blue White 0.45 gpm
9" Downflow 2.5–3.1 gpm (#2 Brown)* Blue* Light Brown* 0.45 gpm
10" Downflow 2.5–3.1 gpm (#2 Brown)* Beige Light Brown 0.45 gpm
12" Downflow 3.0–3.2 gpm (#3 Green) Beige Light Brown 0.8 gpm
14" Downflow 5.3 gpm (Black) Green Blue 0.8 gpm
* Shipped assembled inside the control standard from factory
Table 2. Flow Restrictors.
NOTE For upflow models, the backwash and fast rinse default times are set at five
(5) minutes.

16 01023052
Eductor Nozzle and Throat Replacement
Refer to Figure 6 and the instructions below when changing the eductor nozzle and throat.
1. Remove the eductor cap clip.
2. Remove the eductor cap.
3. Remove the eductor assembly.
4. Remove the eductor screen from the assembly
5. Remove the blue nozzle and replace it with the correct nozzle. See Table 2.
6. Make sure to put the O-ring on the nozzle.
7. Replace the eductor throat if required.
8. Reverse the procedure to reassemble.
NOTE Observe the orientation of the arrow on the eductor cap. The arrow faces
down for downflow regeneration applications; the arrow faces up for
upflow/proportional brining regeneration applications.
Nozzle
Throat
Eductor Cap
Screen
Clip
Figure 6. Removing the eductor nozzle and throat.
Backwash Flow Control Replacement
Refer to Figure 7 through Figure 9, Table 2, and instructions below to replace the backwash flow control.
1. Remove the cover by releasing the cover fastener from the control valve. See Figure 7 and
Figure 8.
2. Remove the drain clip and pull the drain elbow straight off. See Figure 9.
3. Remove the backwash flow control located behind the elbow.
4. Install the correct backwash flow control. See Table 2.
5. Reverse the procedure to reassemble.
NOTE The number on the flow control should face into the valve body.
NOTE Do not re-install the cover until the drain line tubing is connected.
