CULLMANN Culight FR 60MFT User manual

FR 60MFT
for Olympus /
Panasonic
CUlight_FR 60MFT 171010.indd 29 10.10.2017 16:22:18

30
Foreword
Thank you for purchasing this product.
This CUlight FR 60MFT camera ash applies to Olympus/Panas-
onic series cameras and is compatible with TTL autoash. With
this TTL compatible ash, your shooting will become simpler.
You can easily achieve a correct ash exposure even in complex
light-changing environments. This camera ash features:
• GN60 (m ISO 100, @200mm). 22 steps from 1/1 to 1/128.
• Fully support Olympus/Panasonic series TTL camera ash.
Workable as Master or Slave unit in a wireless ash group.
• Use dot-matrix LCD panel to make clear and convenient
operations.
• With built-in 2.4GHz wireless remote system to support
transmitting and receiving.
• Provided multiple functions, include HSS (up to 1/8000s),
secondcurtain sync, FEC, etc.
• Stable consistency and color temperature with good even
lighting.
• Support with rmware upgrade.
CUlight_FR 60MFT 171010.indd 30 10.10.2017 16:22:18

31
ForYour Safety
Always keep this product dry. Do not use in rain or in damp
conditions.
This product contains high-voltage electronic parts. Touching
the high-voltage circuit inside it may result in electric shock.
Do not disassemble. Should repairs become necessary, this
product must be sent to an authorized maintenance center.
Stop using this product if it breaks open due to extrusion,
falling or strong hit. Otherwise, electric shock may occur if
you touch the electronic parts inside it.
Do not re the ash directly into the eyes (especially those of
babies) within short distances. Otherwise visual impairment
may occur. When taking pictures for babies, keep the ash
unit at least 1 meter (3.3 feet) away from them. Using bounce
ash to reduce light intensity is also recommended.
Do not use the ash unit in the presence of ammable
gases, chemicals and other similar materials. In certain cir-
cumstances, these materials may be sensitive to the strong
light emitting from this ash unit and re or electromagnetic
interference may result.
Do not leave or store the ash unit in places where the
ambient temperature reads over 50°C (e.g. in automobile).
Otherwise the electronic parts may be damaged.
CUlight_FR 60MFT 171010.indd 31 10.10.2017 16:22:18

32
CUlightTTL Camera Flash
Conventions used in this Manual
• This manual is based on the assumption that both the camera
and camera ash’s power switches are powered on.
• Reference page numbers are indicated by “p.**”.
• The following alert symbols are used in this manual:
The Caution symbol gives supplemental information.
The Note symbol indicates a warning to prevent shooting
problem.
CUlight_FR 60MFT 171010.indd 32 10.10.2017 16:22:18

33
Contents
Foreword ..................................30
For Your Safety .............................31
CUlight TTL Camera Flash ...................32
Name of Parts ..............................34
Body ......................................34
Control Panel................................34
LCD Panel ..................................35
What’s in the Box of CUlight FR 60MFT? .........36
Separately Sold Accessories ...................36
Attaching to a Camera.......................37
Power Management.........................37
Flash Mode: TTL Autoash ...................38
FEC: Flash Exposure Compensation ..........38
High-Speed Sync..........................39
Second-Curtain Sync .........................39
Flash Mode – M: Manual Flash ................40
Flash Mode – Multi:Stroboscopic Flash ........ 41
Wireless Flash Shooting:
Radio (2.4G) Transmission ...................42
Other Applications..........................47
Sync Triggering ..............................47
Bounce Flash ...............................48
Creating a Catchlight..........................48
ZOOM: Setting the Flash Coverage
and Using the Wide Panel .....................49
C.Fn: Setting Custom Functions ..............50
Firmware Upgrade ..........................50
Protection Function .........................51
Technical Data..............................52
Troubleshooting ............................53
Compatible Camera Models..................54
Maintenance ...............................54
Declaration of Conformity ...................55
CUlight_FR 60MFT 171010.indd 33 10.10.2017 16:22:18

34
Name of Parts
• Body
01. Catchlight Panel
02. Built-in Wide Panel
03. Flash Head
04. Optic Control Sensor
05. Sync Cord Jack
06. Hotshoe
07. Dot-marix LCD Panel
08. Lock Ring
09. Battery Compartment
10. USB Port
11. Slave Flash Ready Indicator
12.External Power Supply
Socket
• Control Panel
14.<MODE> Mode Selection
Button / Lock button
15.< > Wireless Selection
Button
16. Select Dial
17. <SET> Set Button
18. ON/OFF Power Switch
19.< > Test Button / Flash
Ready Indicator
20. Function Button 1
21. Function Button 2
22. Function Button 3
23. Function Button 4
07
05
10
06
0
8
09
1
1
04
03
02
01
12
R
CUlight_FR 60MFT 171010.indd 34 10.10.2017 16:22:18

35
• LCD Panel
(1) TTL Autoash
Zoom: zoom display
(Page 49)
Automatic
Manual (Page 40)
TTL: TTL autoash
Flash exposure
compensation
(Page 38)
Flash exposure
compensation amount
Focus length
(Page 49)
 High-speed sync
(Page 39)
Distance indicator
display
•The display will only show the settings currently applied.
•The functions displayed above function buttons 1 to 4,
such as
SYNC
and , change according to settings’
status.
•When a button or dial is operated, the LCD panel
illuminated.
• (2) M Manual Flash
M: Manual ash
Manual ash output
• (3) Multi Stroboscopic Flash
Multi: Stroboscopic
ash
Number of ashes
Flash frequency
CUlight_FR 60MFT 171010.indd 35 10.10.2017 16:22:19

36
(4) Radio Transmission Shooting
•Master Unit
Radio transmission
wireless shooting
Flash mode
Gr:Group ash
(radio transmission)
FEC
Channel
•Slave Unit
Slave
icon
: Slave
•What’s in the Box of CUlight FR 60MFT?
1. Flash unit 2. Mini stand
3. Protection case 4. Instruction manual
•Separately Sold Accessories
The product can be used in combination with the following
separately sold accessories:
1. CUlight 2.4 GHz Transmitter RT 500MFT
2. CUlight Power Pack PP 4500
3. CUlight Power Pack Battery B 4500
4. CUlight Power Pack Cable PC 150C
5. CUlight Softbox Kit with Flashgun Holder SB 40-40 Kit
6. CUlight Softbox Kit with Flashgun Holder SB 60-60 Kit
7. CUlight Light Stand LS 2000 (216 cm)
8. CUlight Light Stand LS 2500 (308 cm)
Firing
group
CUlight_FR 60MFT 171010.indd 36 10.10.2017 16:22:19

37
Power Management
Use ON/OFF Power Switch to power the ash unit on or off.
Turn off if it will not be used for an extended period of time.
Setting as a master ash, it will turn the power off automatically
after a certain period (approx. 90 seconds) of idle use. Pressing
the camera shutter halfway or pressing any ash button will
wake up the ash unit. Setting as a slave ash, it will enter sleep
mode after 60 minutes (adjustable, 30 minutes by default) of idle
use. Pressing any ash button will wake it up.
Attaching to a Camera
C.Fn
C.Fn
Attaching to a Camera
Attach the Camera Flash.
1● Slip the camera flash’s
mounting foot into the
camera’s hotshoe all the
way.
Secure the Camera Flash.
2● Rotate the lock ring on the
mounting foot until it locks
up.
Detach the Camera Flash.
3● Rotate the lock ring on the
mounting foot until it is
loosened.
Power Management
Use ON/OFF Power Switch to power the flash unit on or off. Turn off
if it will not be used for an extended period of time. Setting as a
master flash, it will turn the power off automatically after a certain
period (approx. 90 seconds) of idle use. Pressing the camera
shutter halfway or pressing any flash button will wake up the flash
unit. Setting as a slave flash, it will enter sleep mode after a certain
period (adjustable, 60 minutes by default) of idle use. Pressing any
flash button will wake it up.
Disabling Auto Power Off function is recommended
when the flash is used off camera. (C.Fn-APO, Page 74)
Slave Auto Power Off Timer is set to 60 minutes by
default. Another option “30 minutes” is available. (C.Fn-
Sv APOT, Page 74)
FEC: Flash Exposure Compensation
With FEC function, this flash can adjust from -3 to +3 in 1/3rd stops.
It is useful in situations where minor adjusting of the TTL system is
needed based on the environment.
Setting FEC:
Set the flash exposure
2compensation amount.
● Turn the Select Dial to set
the amount.
● “0.3”means 1/3 step,
“0.7”means 2/3 step.
● To cancel the flash
exposure compensation,
set the amount to “+0”.
Press < SET > button again
3to confirm the setting.
Press Function Button 2
1< >. The icon < >
and flash exposure
compensation amount will be
highlighted on the LCD
panel.
FEB: Flash Exposure Bracketing
You can take three flash shots while automatically changing the
flash output for each shot from -3 to +3 in 1/3rd stops. The camera
will record three images with different exposures: one exposed
according to camera calculations, one over-exposed and another
under-exposed. Over and under exposure amount is user
adjustable. This function helps get correct exposure especially in
shooting moving objects or when environmental lights are complex.
Flash Mode—E-TTL Autoflash
This flash has three flash modes: E-TTL, Manual (M), and Multi
(Stroboscopic). In E-TTL mode, the camera and the flash will work
together to calculate the correct exposure for the subject and the
background. In this mode, multiple TTL functions are available:
FEC, FEB, FEL, HSS, second curtain sync, modeling flash, control
with the camera’s menu screen.
* Press < MODE > Mode Selection Button and three flash modes
will display on the LCD panel one by one with each pressing.
ETTL Mode
Press < MODE > Mode Selection Button to enter E-TTL mode. The
LCD panel will display.
● Press the camera release button halfway to focus. The aperture
and effective flash range will be displayed in the viewfinder.
● When the shutter button is fully pressed, the flash will fire a pre-
flash that the camera will use to calculate exposure and flash
output the instant before the photo is taken.
- 47 - - 48 -
1Attach the Camera Flash. •Slip the camera ash’s
mounting foot into the
camera’s hotshoe all the
way.
2Secure the Camera Flash. •Rotate the lock ring on
the mounting foot until it
locks up.
3Detach the Camera Flash. •Rotate the lock ring on the
mounting foot until it is
loosened.
C.Fn
Disabling Auto Power Off function is recommen-
ded when the ash is used off camera. (C.Fn-
APO, Page 50)
C.Fn
Slave Auto Power Off Timer is set to 60 minutes
by default. Another option “30 minutes” is availab-
le. (C.Fn-Sv APOT, Page 50)
CUlight_FR 60MFT 171010.indd 37 10.10.2017 16:22:19

38
Flash Mode:TTL Autoash
This ash has three ash modes: TTL, Manual (M), and Multi
(Stroboscopic). In TTL mode, the camera and the ash will work
together to calculate the correct exposure for the subject and the
background. In this mode, multiple TTL functions are available:
FEC, HSS, second curtain sync, etc.
* Press <MODE> Mode Selection Button and three ash modes
will display on the LCD panel one by one with each pressing.
TTL Mode
Press <MODE> Mode Selection Button to enter TTL mode. The
LCD panel will display <TTL>.
•Press the camera release button halfway to focus. The
aperture and effective ash range will be displayed in the
viewnder.
•When the shutter button is fully pressed, the ash will re a
preash that the camera will use to calculate exposure and
ash output the instant before the photo is taken.
FEC: Flash Exposure Compensation
With FEC function, this ash can adjust from -3 to +3 in 1/3rd
stops. It is useful in situations where minor adjusting of the TTL
system is needed based on the environment.
Setting FEC:
1Press Function Button 2 < >. The icon <
> and ash exposure
compensation amount will
be highlighted on the LCD
panel.
2Set the ash exposure compensation amount.
•Turn the Select Dial to set
the amount.
•“0.3”means 1/3 step,
“0.7”means 2/3 step.
•To cancel the ash expo-
sure compensation, set
the amount to “+0”.
3Press <SET> button again to conrm the setting.
Flash Mode: TTL Autoflash
This flash has three flash modes: TTL, Manual (M), and Multi
(Stroboscopic). In TTL mode, the camera and the flash will work
together to calculate the correct exposure for the subject and the
background. In this mode, multiple TTL functions are available:
FEC, HSS, second curtain sync, etc.
* Press <MODE> Mode Selection Button and three flash modes will
display on the LCD panel one by one with each pressing.
TTL Mode
Press <MODE> Mode Selection Button to enter TTL mode. The
LCD panel will display <TTL>.
●Press the camera release button halfway to focus. The aperture
and effective flash range will be displayed in the viewfinder.
●When the shutter button is fully pressed, the flash will fire a pre-
flash that the camera will use to calculate exposure and flash
output the instant before the photo is taken.
FEC: Flash Exposure Compensation
With FEC function, this flash can adjust from -3 to +3 in 1/3rd stops.
It is useful in situations where minor adjusting of the TTL system is
needed based on the environment.
Setting FEC:
Set the flash exposure
2compensation amount.
● Turn the Select Dial to set
the amount.
● “0.3”means 1/3 step,
“0.7”means 2/3 step.
● To cancel the flash
exposure compensation,
set the amount to “+0”.
Press < SET > button again
3to confirm the setting.
Press Function Button 2
1< >. The icon < >
and flash exposure
compensation amount will be
highlighted on the LCD
panel.
High-Speed Sync
High Speed Sync (Hss flash) enables the flash to synchronize with
all camera shutter speeds. This is convenient when you want to use
aperture priority for fill-flash portraits.
● Setting the flash to High-speed Sync mode when it is on the camera:
Use the Flash Setting ＞ Flash Light Function Setting on the
camera’s shooting menu to adjust settings of the flash light. More
details please refer to camera’s instruction menu.
●When choosing FP on the “SYNC” setting, it means the
high-speed sync function is turned on.
SYNC.MODE
TTL ±0
-5.0+5.0
TTL MODE TTL
ZOOM M 16mm
LED AF
SYNC.
ANGLE
FP
BACK
ADJUST END
SHOE MOUNT FLASH
Second-Curtain Sync
With a slow shutter speed, you can create a light train following the
subject. The flash fires right before the shutter closes.
●Setting second-curtain sync:
Use the Flash Setting ＞Flash Light Function Setting on the
camera’s shooting menu to adjust settings of the flash light. More
details please refer to camera’s instruction menu.
●When choosing REAR on the “SYNC” setting, it means the
second-curtain sync function is turned on.
● With high-speed sync, the faster the shutter speed, the
shorter the effective flash range.
● Multi flash mode cannot be set in high-speed sync mode.
● Over-temperature protection may be activated after 15
consecutive high-speed sync flashes.
SYNC.MODE
TTL ±0
-5.0+5.0
TTL MODE TTL
ZOOM M 16mm
LED AF
SYNC.
ANGLE
REAR
BACK
ADJUST END
SHOE MOUNT FLASH
- 33 - - 34 -
R
R
R
R
CUlight_FR 60MFT 171010.indd 38 10.10.2017 16:22:20

39
High-Speed Sync
High Speed Sync (FP ash) enables the ash to synchronize with
all camera shutter speeds. This is convenient when you want to
use aperture priority for ll-ash portraits.
Setting the ash to High-speed Sync mode when it is on the
camera: Press the <SYNC> button to turn on high-speed sync
ash and is displayed. Then, adjust the camera’s shutter to
achieve high-speed sync ash.
•With high-speed sync, the faster the shutter speed, the
shorter the effective ash range.
•Multi ash mode cannot be set in high-speed sync mode.
•Over-temperature protection may be activated after 15
consecutive high-speed sync ashes.
•Try not to use high-speed sync ash, for using this functi-
on will reduce ash tube’s service life.
Note: In the wireless remote control mode, using high-
speed sync ash with Panasonic camera may occur out
of sync.
Second-Curtain Sync
With a slow shutter speed, you can create a light train following
the subject. The ash res right before the shutter closes.
•Setting second-curtain sync:
Setting second-curtain sync: Second-curtain sync function
shall be set on the camera’s menu. More details please refer to
camera’s instruction menu.
CUlight_FR 60MFT 171010.indd 39 10.10.2017 16:22:20

40
Optical S1 Secondary Unit Setting
In M manual ash mode, press Function Button 3 < >
button so that this ash can function as an optic S1 secondary
ash with optic sensor. With this function, the ash will re
synchronously when the main ash res, the same effect as that
by the use of radio triggers. This helps create multiple lighting
effects.
Optical S2 Secondary Unit Setting
Press Function Button 3 < > button so that this ash can
also function as an optic S2 secondary ash with optic sensor
in M manual ash mode. This is useful when cameras have pre-
ash function. With this function, the ash will ignore a single
“preash” from the main ash and will only re in response to
the second, actual ash from the main unit.
Manual Off Camera High-speed Setting
In M manual ash mode, press Function Button 4 <
SYNC
>
button to select high-speed mode and is displayed.

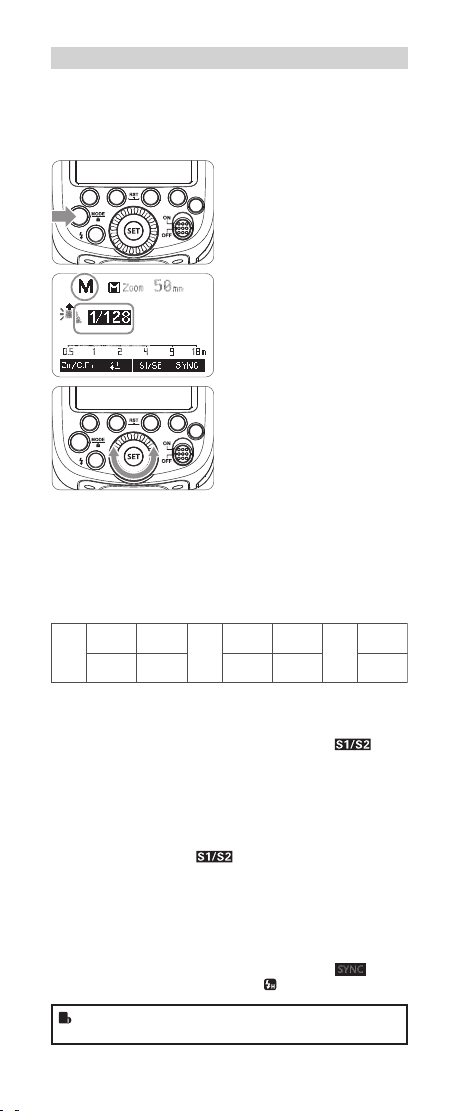

Flash Mode – M: Manual Flash
The ash output is adjustable from 1/1 full power to 1/128th
power in 1/3rd stop increments. To obtain a correct ash
exposure, use a hand-held ash meter to determine the required
ash output.
1Press <MODE> button so
that <M> is displayed.
2Turn the Select Dial to choose a desired ash
output amount.
3Press <SET> button again to conrm the setting.
Flash Output Range
The following table makes it easier to see how the stop changes
in terms of f/stop when you increase or decrease the ash
output. For example, when you decrease the ash output to 1/2,
1/2-0.3, or 1/2-0.7, and then increase the ash output to more
than 1/2, 1/2+0.3, 1/2+0.7, and 1/1 will be displayed.
Figures displayed when reducing ash output level 
 Figures displayed when increasing ash output level
1/41/2
1/1
1/1-0.3
1/2+0.7
1/1-0.7
1/2+0.3
1/2-0.3
1/4+0.7
1/2-0.7
1/4+0.3
······
······
•S1 and S2 optic triggering and off camera high-speed
mode are only available in M manual ash mode.
The flash output is adjustable from 1/1 full power to 1/128th power
in 1/3rd stop increments. To obtain a correct flash exposure, use a
hand-held flash meter to determine the required flash output.
M: Manual Flash
Press < MODE > button so
1that < M > is displayed.
Turn the Select Dial to choose
2a desired flash output amount.
Press < SET > button again to
3confirm the setting.
Figures displayed when reducing flash output level→
←Figures displayed when increasing flash output level
1/41/2
1/1
1/1-0.3
1/2+0.7
1/1-0.7
1/2+0.3
1/2-0.3
1/4+0.7
1/2-0.7
1/4+0.3
······
······
Flash Output Range
The following table makes it easier to see how the stop changes in
terms of f/stop when you increase or decrease the flash output. For
example, when you decrease the flash output to 1/2, 1/2-0.3, or 1/2-
0.7, and then increase the flash output to more than 1/2, 1/2+0.3,
1/2+0.7, and 1/1 will be displayed.
Optic S1 Secondary Unit Setting
In M manual flash mode, press <S1/S2> button so that this flash can
function as an optic S1 secondary flash with optic sensor. With this
function, the flash will fire synchronously when the main flash fires,
the same effect as that by the use of radio triggers. This helps create
multiple lighting effects.
Optic S2 Secondary Unit Setting
Press <S1/S2> button so that this flash can also function as an optic
S2 secondary flash with optic sensor in M manual flash mode. This
is useful when cameras have pre-flash function. With this function,
the flash will ignore a single “preflash” from the main flash and will
only fire in response to the second, actual flash from the main unit.
●S1 and S2 optic triggering is only available in M manual
flash mode.
Set the flash frequency and
3flash times.
● Press < > button to
select the item (blinks).
● Turn the Select Dial to set
the number and press
< > button again to
confirm. The next item to be
set will blink.
● After you finish the setting,
press <SET> button and all
the settings will be
displayed.

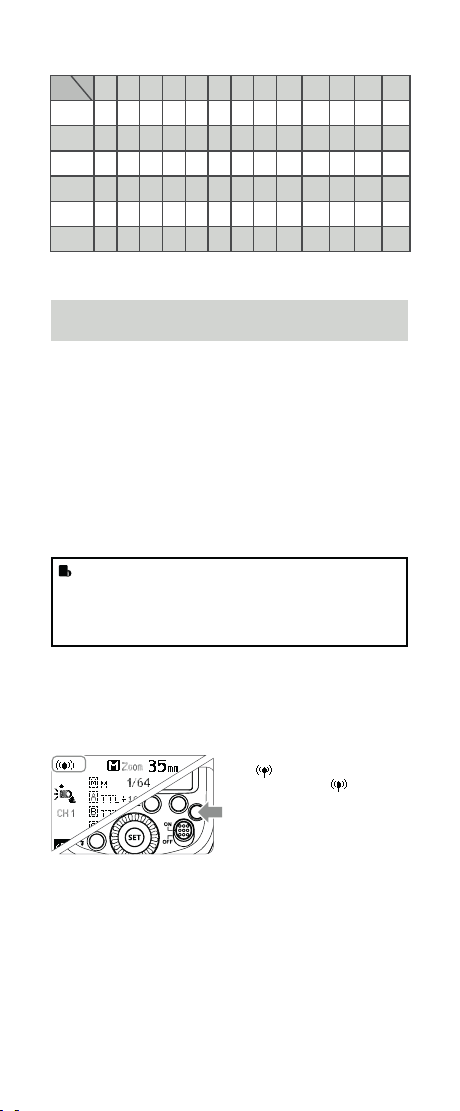

Multi: Stroboscopic Flash
With stroboscopic flash, a rapid series of flashes is fired. It can be
used to capture a multiple images of a moving subject in a single
photograph.
You can set the firing frequency (number of flashes per sec.
expressed as Hz), the number of flashes, and the flash output.
Press <MODE> button so
1that < > is displayed.
Turn the Select Dial to choose
2a desired flash output.
Calculating the Shutter Speed
During stroboscopic flash, the shutter remains open until the firing
stops. Use the formula below to calculate the shutter speed and set
it with the camera.
For example, if the number of flashes is 10 and the firing frequency is
5 Hz, the shutter speed should be at least 2 seconds.
Number of Flashes / Flash Frequency = Shutter Speed
To avoid overheating and deteriorating the flash head, do not
use stroboscopic flash more than 10 times in succession.
After 10 times, allow the camera flash to rest for at least 15
minutes. If you try to use the stroboscopic flash more than 10
times in succession, the firing might stop automatically to
protect the flash head. If this happens, allow at least 15
minutes’ rest for the camera flash.
● Stroboscopic flash is most effective with a highly reflective
subject against a dark background.
● Using a tripod and a remote control is recommended.
● A flash output of 1/1 and 1/2 cannot be set for stroboscopic
flash.
● Stroboscopic flash can be used with“buLb”.
● If the number of flashes is displayed as “--”, the firing will
continue until the shutter closes or the battery is
exhausted. The number of flashes will be limited as shown
by the following table.
MULTI
MULTI
Hz
- 51 - - 52 -
R
R
CUlight_FR 60MFT 171010.indd 40 10.10.2017 16:22:21

41
Calculating the Shutter Speed
During stroboscopic ash, the shutter remains open until the r-
ing stops. Use the formula below to calculate the shutter speed
and set it with the camera.
Number of Flashes / Flash Frequency = Shutter Speed
For example, if the number of ashes is 10 and the ring fre-
quency is 5 Hz, the shutter speed should be at least 2 seconds.
Flash Mode – Multi:Stroboscopic Flash
With stroboscopic ash, a rapid series of ashes is red. It can
be used to capture a multiple images of a moving subject in a
single photograph.
You can set the ring frequency (number of ashes per sec.
expressed as Hz), the number of ashes, and the ash output.
1Press <MODE> button so that < M ULTI > is displayed.
2Turn the Select Dial to choose a desired ash
output.
3Set the ash frequency and ash times.
•Press Function Button 3
< MULTI > to select the
ash times. Turn the Select
Dial to set the number.
•Press Function Button 4
< HZ > to select the ash
frequency. Turn the Select
Dial to set the number.
•After you nish the setting,
press <SET> button and
all the settings will be
displayed.
To avoid overheating and deteriorating the ash head, do
not use stroboscopic ash more than 10 times in succes-
sion. After 10 times, allow the camera ash to rest for at
least 15 minutes. If you try to use the stroboscopic ash
more than 10 times in succession, the ring might stop
automatically to protect the ash head. If this happens,
allow at least 15 minutes’ rest for the camera ash.
•Stroboscopic ash is most effective with a highly reec-
tive subject against a dark background.
•Using a tripod and a remote control is recommended.
•A ash output of 1/1 and 1/2 cannot be set for strobo-
scopic ash.
•Stroboscopic ash can be used with“bulb”.
•If the number of ashes is displayed as “--”, the ring
will continue until the shutter closes or the battery is ex-
hausted. The number of ashes will be limited as shown
by the following table.
R
The flash output is adjustable from 1/1 full power to 1/128th power
in 1/3rd stop increments. To obtain a correct flash exposure, use a
hand-held flash meter to determine the required flash output.
Flash Mode -- M: Manual Flash
Press < MODE > button so
1that < M > is displayed.
Turn the Select Dial to choose
2a desired flash output amount.
Press < SET > button again to
3confirm the setting.
Figures displayed when reducing flash output level→
←Figures displayed when increasing flash output level
1/41/21/1
1/1-0.3
1/2+0.7
1/1-0.7
1/2+0.3
1/2-0.3
1/4+0.7
1/2-0.7
1/4+0.3
······
······
Flash Output Range
The following table makes it easier to see how the stop changes in
terms of f/stop when you increase or decrease the flash output. For
example, when you decrease the flash output to 1/2, 1/2-0.3, or 1/2-
0.7, and then increase the flash output to more than 1/2, 1/2+0.3,
1/2+0.7, and 1/1 will be displayed.
Optical S1 Secondary Unit Setting
In M manual flash mode, press Function Button 3 < > button so
that this flash can function as an optic S1 secondary flash with optic
sensor. With this function, the flash will fire synchronously when the
main flash fires, the same effect as that by the use of radio triggers.
This helps create multiple lighting effects.
Optical S2 Secondary Unit Setting
Press Function Button 3 < > button so that this flash can also
function as an optic S2 secondary flash with optic sensor in M
manual flash mode. This is useful when cameras have pre-flash
function. With this function, the flash will ignore a single “preflash”
from the main flash and will only fire in response to the second,
actual flash from the main unit.
● S1 and S2 optical triggering is only available in M manual
flash mode.
Manual Off Camera High-speed Setting
In M manual flash mode, press Function Button 4< > button to
select high-speed mode and is displayed.
Set the flash frequency and
3flash times.
● Press Function Button 3
< > to select the flash
times. Turn the Select Dial to
set the number.
● Press Function Button 4
< > to select the flash
frequency. Turn the Select
Dial to set the number.
● After you finish the setting,
press <SET> button and all
the settings will be displayed.
Flash Mode -- Multi:Stroboscopic Flash
With stroboscopic flash, a rapid series of flashes is fired. It can be
used to capture a multiple images of a moving subject in a single
photograph.
You can set the firing frequency (number of flashes per sec.
expressed as Hz), the number of flashes, and the flash output.
Press <MODE> button so
1that < > is displayed.
Turn the Select Dial to choose
2a desired flash output.
Calculating the Shutter Speed
During stroboscopic flash, the shutter remains open until the firing
stops. Use the formula below to calculate the shutter speed and set
it with the camera.
For example, if the number of flashes is 10 and the firing frequency is
5 Hz, the shutter speed should be at least 2 seconds.
Number of Flashes / Flash Frequency = Shutter Speed
To avoid overheating and deteriorating the flash head, do not
use stroboscopic flash more than 10 times in succession.
After 10 times, allow the camera flash to rest for at least 15
minutes. If you try to use the stroboscopic flash more than 10
times in succession, the firing might stop automatically to
protect the flash head. If this happens, allow at least 15
minutes’ rest for the camera flash.
● Stroboscopic flash is most effective with a highly reflective
subject against a dark background.
● Using a tripod and a remote control is recommended.
● A flash output of 1/1 and 1/2 cannot be set for stroboscopic
flash.
● Stroboscopic flash can be used with“buLb”.
● If the number of flashes is displayed as “--”, the firing will
continue until the shutter closes or the battery is
exhausted. The number of flashes will be limited as shown
by the following table.
MULTI
SYNC
Hz
MULTI
- 35 - - 36 -
S1/S2
S1/S2
R
CUlight_FR 60MFT 171010.indd 41 10.10.2017 16:22:22

42
Maximum Stroboscopic Flashes:
•Even with multiple slave units, the master unit can control
all of them via wireless.
•In this user manual, “master unit” refers to the camera
ash on a camera and “slave unit” will be controlled by
the master unit.
29 99
&9;
&9/
&9&.
&9'8
&9.;
&9&8/

:
K
&;
'+
.+
O+
&++

.
&;
'+
.+
O+
&++
4
*
&8
'+
.+
O+
&++

;
&+
8+
*+
/+
&++
1
;
/
8+
*+
/+
&++
2 5
'
.
8+
;+
K+
O+
6 3
'
*
&+
'+
.+
/+
:9
8
;
/
8+
*+
K+
::
8
;
/
8+
;+
K+
8
;
/
8+
;+
.+
8
;
/
&/
'*
*+
: :
8
;
/
&8
8+
;+
8
;
/
&.
'+
;+
9 19:1 :3
)ODVK
RXWSXW
Wireless Flash Shooting:
Radio (2.4G) Tr ansmission
•You can set up three slave groups for TTL autoash shooting.
With TTL autoash, you can easily create various lighting
effects.
•Any ash settings for the slave units on the master ash in
TTL/Manual/Multi mode will be automatically sent to the
slave units. So the only thing you need to do is to set the
master unit for each slave group without any operation for the
slave units at all during the shooting.
•This ash can work in TTL/M/Multi/OFFash modes when
set as a master unit.
As a slave unit, CUlight FR 60MFT is compatible with the Culight
FR 36MFT ash unit or with CUlight RT 500MFT transmitter.
1. Wireless Settings
You can switch between normal ash and wireless ash. For
normal ash shooting, be sure to set the wireless setting to OFF.
Master Unit Setting
1Press < R> button so that < > is displayed on the
LCD panel. If < MULTI >
is displayed, it means Multi
mode is ON.
2The backlight turns green now.
43
Slave Unit Setting
1Press < R> button so that
< > and < > are
displayed on the LCD panel.
2The backlight turns orange
now.
2. Setting Master Unit’s Flash Mode
1Press Function Button 4
< Gr > to choose the group
from M/A/B/C. Then, press
Function Button 3 <MODE>
so that the master unit can
work in OFF/TTL/Mash
mode. Choose one of them
as the ash mode of master
unit.
2Press < MODE > button to
switch to Multi mode.
3. Setting the Communication Channel
If there are other wireless ash systems nearby, you can change
the channel IDs to prevent signal interference. The channel IDs
of the master unit and the slave unit(s) must be set to the same.
1Press Function Button 3 < CH > and turn the Select
Dial to choose a channel ID
from 1 to 32.
2Press the < SET > button to conrm.
4.TTL: Fully Automatic Wireless Flash
Shooting
Autoash Shooting with One Slave Unit
1Master Unit Setting
•Attach a CUlight FR 60MFT
camera ash on the camera
and set it as the master
unit. (Page 42)
•M/A/B/Ccan be set as TTL
mode independently.
R
CUlight_FR 60MFT 171010.indd 42 10.10.2017 16:22:24

42
Maximum Stroboscopic Flashes:
•Even with multiple slave units, the master unit can control
all of them via wireless.
•In this user manual, “master unit” refers to the camera
ash on a camera and “slave unit” will be controlled by
the master unit.
29 99
&9;
&9/
&9&.
&9'8
&9.;
&9&8/

:
K
&;
'+
.+
O+
&++

.
&;
'+
.+
O+
&++
4
*
&8
'+
.+
O+
&++

;
&+
8+
*+
/+
&++
1
;
/
8+
*+
/+
&++
2 5
'
.
8+
;+
K+
O+
6 3
'
*
&+
'+
.+
/+
:9
8
;
/
8+
*+
K+
::
8
;
/
8+
;+
K+
8
;
/
8+
;+
.+
8
;
/
&/
'*
*+
: :
8
;
/
&8
8+
;+
8
;
/
&.
'+
;+
9 19:1 :3
)ODVK
RXWSXW
Wireless Flash Shooting:
Radio (2.4G) Tr ansmission
•You can set up three slave groups for TTL autoash shooting.
With TTL autoash, you can easily create various lighting
effects.
•Any ash settings for the slave units on the master ash in
TTL/Manual/Multi mode will be automatically sent to the
slave units. So the only thing you need to do is to set the
master unit for each slave group without any operation for the
slave units at all during the shooting.
•This ash can work in TTL/M/Multi/OFFash modes when
set as a master unit.
As a slave unit, CUlight FR 60MFT is compatible with the Culight
FR 36MFT ash unit or with CUlight RT 500MFT transmitter.
1. Wireless Settings
You can switch between normal ash and wireless ash. For
normal ash shooting, be sure to set the wireless setting to OFF.
Master Unit Setting
1Press < R> button so that < > is displayed on the
LCD panel. If < MULTI >
is displayed, it means Multi
mode is ON.
2The backlight turns green now.
43
Slave Unit Setting
1Press < R> button so that
< > and < > are
displayed on the LCD panel.
2The backlight turns orange
now.
2. Setting Master Unit’s Flash Mode
1Press Function Button 4
< Gr > to choose the group
from M/A/B/C. Then, press
Function Button 3 <MODE>
so that the master unit can
work in OFF/TTL/Mash
mode. Choose one of them
as the ash mode of master
unit.
2Press < MODE > button to
switch to Multi mode.
3. Setting the Communication Channel
If there are other wireless ash systems nearby, you can change
the channel IDs to prevent signal interference. The channel IDs
of the master unit and the slave unit(s) must be set to the same.
1Press Function Button 3 < CH > and turn the Select
Dial to choose a channel ID
from 1 to 32.
2Press the < SET > button to conrm.
4.TTL: Fully Automatic Wireless Flash
Shooting
Autoash Shooting with One Slave Unit
1Master Unit Setting
•Attach a CUlight FR 60MFT
camera ash on the camera
and set it as the master
unit. (Page 42)
•M/A/B/Ccan be set as TTL
mode independently.
R
CUlight_FR 60MFT 171010.indd 43 10.10.2017 16:22:25

44
2Slave Unit Setting
•Set the other camera ash
as the wireless slave unit.
(Page 43)
•The slave unit can be set
as A/B/C.
3Check the communication channel
•If the master unit and slave
unit(s) are set to a different
channel, set them to the
same channel. (Page 43)
4Position the camera and ashes
•Position the camera and
ashes as the picture
shows. (Page 46)
5Check that the ash is ready
•Check that the master ash
ready indicator is lightened.
•When the slave ash ready
indicator is ready, the
AF-assist beam lighting
area will blinks at 1 second
intervals.
6Check the ash operation
•Press the master unit’s
Test Button < >.
•Then, the slave unit will
re. If not, check whether
the slave unit is put in the
right position or not.
Setting <Multi>
1stroboscopic flash.
● Press <MODE> button so
that < MULTI> is
displayed.
● Setting the stroboscopic
flash.
Slave Unit Setting
2● Set the other camera
flash as the wireless slave
unit. . (Page 42)
● The slave unit can be set
as A/B/C.
Check the communication
3channel
● If the master unit and
slave unit(s) are set to a
different channel, set them
to the same channel.
(Page 41)
Position the camera and
4flashes
● Position the camera and
flashes as the picture
shows. (Page 43)
Check that the flash is
5ready
● Check that the master
flash ready indicator is
lightened.
● When the slave flash
ready indicator is ready,
the AF-assist beam
lighting area will blinks at
1 second intervals.
Check the flash operation
6● Press the master unit’s
Test Button < >.
● Then, the slave unit will
fire. If not, check whether
the slave unit is put in the
right position or not.
The slave unit might be out of order or fire an unwanted flash
due to the nearby fluorescent lamp or computer screen.
● If the slave unit’s auto power off function is workable, press
the master unit’s test button to power it on. Please note that
test firing is unavailable during the camera’s regular
metering time.
● The effective time of slave auto power off is changeable.
(C.Fn-Sv APOT/ Page 47)
● By making some settings, the auto AF-assist transmitter will
not blink after the slave unit’s flash ready indicator is
lightened. (C.Fn-AF/ Page 47)
Using Fully Automatic Wireless Flash
The FEC and other settings that set on the master unit will also be
appeared on the slave unit automatically. The slave unit does not
need any operation. Use the following settings to make wireless
flashes according to the same methods with normal flash shooting.
● Flash Exposure Compensation （ / Page 33）
About Master Unit
Use two or more master units. By preparing several cameras that
with master units flash attached, cameras can be changed in
shooting while keeping the same lighting source (slave unit).
5. M: Wireless Flash Shooting with Manual Flash
This describes wireless (multiple shooting) using manual flash. You
can shoot with a different flash output setting for each slave unit
(firing group). Set all parameters on the master unit.
Gr
Setting the flash mode to
1<M>
● Press Function Button 4
< > to choose groups.
Then, press Function
Button 3 < MODE > to set
the flash to M mode.
Setting flash output
2● When choosing the state
of the group, press
Function Button 2 < >
to set the power output.
Turn the Select Dial to set
the flash output of the
groups. Press the <SET>
button to confirm.
Taking the picture
3● Each group fires at the set
flash ratio.
Using a flash (master/slave) with a radio transmission wireless
shooting function make it easy to shoot with advanced wireless
multiple flash lighting, in the same way as TTL autoflash shooting.
The basic relative position and operation range are as shown in the
picture. You can then perform wireless TTL autoflash shooting just
by setting the master unit to <TTL>.
6. Multi: Manual Wireless Flash Shooting
- 39 - - 40 -
•The slave unit might be out of order or re an unwanted
ash due to the nearby uorescent lamp or computer
screen.
•If the slave unit’s auto power off function is workable,
press the master unit’s test button to power it on. Please
note that test ring is unavailable during the camera’s
regular metering time.
•The effective time of slave auto power off is changeable.
(C.Fn-Sv APOT/ Page 50)
•By making some settings, the auto AF-assist transmitter
will not blink after the slave unit’s ash ready indicator is
lightened. (C.Fn-AF/ Page 50)
Setting <Multi>
1stroboscopic flash.
● Press <MODE> button so
that < MULTI> is
displayed.
● Setting the stroboscopic
flash.
Slave Unit Setting
2● Set the other camera
flash as the wireless slave
unit. . (Page 42)
● The slave unit can be set
as A/B/C.
Check the communication
3channel
● If the master unit and
slave unit(s) are set to a
different channel, set them
to the same channel.
(Page 41)
Position the camera and
4flashes
● Position the camera and
flashes as the picture
shows. (Page 43)
Check that the flash is
5ready
● Check that the master
flash ready indicator is
lightened.
● When the slave flash
ready indicator is ready,
the AF-assist beam
lighting area will blinks at
1 second intervals.
Check the flash operation
6● Press the master unit’s
Test Button < >.
● Then, the slave unit will
fire. If not, check whether
the slave unit is put in the
right position or not.
The slave unit might be out of order or fire an unwanted flash
due to the nearby fluorescent lamp or computer screen.
● If the slave unit’s auto power off function is workable, press
the master unit’s test button to power it on. Please note that
test firing is unavailable during the camera’s regular
metering time.
● The effective time of slave auto power off is changeable.
(C.Fn-Sv APOT/ Page 47)
● By making some settings, the auto AF-assist transmitter will
not blink after the slave unit’s flash ready indicator is
lightened. (C.Fn-AF/ Page 47)
Using Fully Automatic Wireless Flash
The FEC and other settings that set on the master unit will also be
appeared on the slave unit automatically. The slave unit does not
need any operation. Use the following settings to make wireless
flashes according to the same methods with normal flash shooting.
● Flash Exposure Compensation （ / Page 33）
About Master Unit
Use two or more master units. By preparing several cameras that
with master units flash attached, cameras can be changed in
shooting while keeping the same lighting source (slave unit).
5. M: Wireless Flash Shooting with Manual Flash
This describes wireless (multiple shooting) using manual flash. You
can shoot with a different flash output setting for each slave unit
(firing group). Set all parameters on the master unit.
Gr
Setting the flash mode to
1<M>
● Press Function Button 4
< > to choose groups.
Then, press Function
Button 3 < MODE > to set
the flash to M mode.
Setting flash output
2● When choosing the state
of the group, press
Function Button 2 < >
to set the power output.
Turn the Select Dial to set
the flash output of the
groups. Press the <SET>
button to confirm.
Taking the picture
3● Each group fires at the set
flash ratio.
Using a flash (master/slave) with a radio transmission wireless
shooting function make it easy to shoot with advanced wireless
multiple flash lighting, in the same way as TTL autoflash shooting.
The basic relative position and operation range are as shown in the
picture. You can then perform wireless TTL autoflash shooting just
by setting the master unit to <TTL>.
6. Multi: Manual Wireless Flash Shooting
- 39 - - 40 -
R
Setting <Multi>
1stroboscopic flash.
● Press <MODE> button so
that < MULTI> is
displayed.
● Setting the stroboscopic
flash.
Slave Unit Setting
2● Set the other camera
flash as the wireless slave
unit. . (Page 42)
● The slave unit can be set
as A/B/C.
Check the communication
3channel
● If the master unit and
slave unit(s) are set to a
different channel, set them
to the same channel.
(Page 41)
Position the camera and
4flashes
● Position the camera and
flashes as the picture
shows. (Page 43)
Check that the flash is
5ready
● Check that the master
flash ready indicator is
lightened.
● When the slave flash
ready indicator is ready,
the AF-assist beam
lighting area will blinks at
1 second intervals.
Check the flash operation
6● Press the master unit’s
Test Button < >.
● Then, the slave unit will
fire. If not, check whether
the slave unit is put in the
right position or not.
The slave unit might be out of order or fire an unwanted flash
due to the nearby fluorescent lamp or computer screen.
● If the slave unit’s auto power off function is workable, press
the master unit’s test button to power it on. Please note that
test firing is unavailable during the camera’s regular
metering time.
● The effective time of slave auto power off is changeable.
(C.Fn-Sv APOT/ Page 47)
● By making some settings, the auto AF-assist transmitter will
not blink after the slave unit’s flash ready indicator is
lightened. (C.Fn-AF/ Page 47)
Using Fully Automatic Wireless Flash
The FEC and other settings that set on the master unit will also be
appeared on the slave unit automatically. The slave unit does not
need any operation. Use the following settings to make wireless
flashes according to the same methods with normal flash shooting.
● Flash Exposure Compensation （ / Page 33）
About Master Unit
Use two or more master units. By preparing several cameras that
with master units flash attached, cameras can be changed in
shooting while keeping the same lighting source (slave unit).
5. M: Wireless Flash Shooting with Manual Flash
This describes wireless (multiple shooting) using manual flash. You
can shoot with a different flash output setting for each slave unit
(firing group). Set all parameters on the master unit.
Gr
Setting the flash mode to
1<M>
● Press Function Button 4
< > to choose groups.
Then, press Function
Button 3 < MODE > to set
the flash to M mode.
Setting flash output
2● When choosing the state
of the group, press
Function Button 2 < >
to set the power output.
Turn the Select Dial to set
the flash output of the
groups. Press the <SET>
button to confirm.
Taking the picture
3● Each group fires at the set
flash ratio.
Using a flash (master/slave) with a radio transmission wireless
shooting function make it easy to shoot with advanced wireless
multiple flash lighting, in the same way as TTL autoflash shooting.
The basic relative position and operation range are as shown in the
picture. You can then perform wireless TTL autoflash shooting just
by setting the master unit to <TTL>.
6. Multi: Manual Wireless Flash Shooting
- 39 - - 40 -
CUlight_FR 60MFT 171010.indd 44 10.10.2017 16:22:28

45
Using Fully Automatic Wireless Flash
The FEC and other settings that set on the master unit will also
be appeared on the slave unit automatically. The slave unit does
not need any operation. Use the following settings to make
wireless ashes according to the same methods with normal
ash shooting.
•Flash Exposure Compensation ( / Page 38)
About Master Unit
Use two or more master units. By preparing several cameras
that with master units ash attached, cameras can be changed
in shooting while keeping the same lighting source (slave unit).
5. M:Wireless Flash Shooting
with Manual Flash
This describes wireless (multiple shooting) using manual ash.
You can shoot with a different ash output setting for each slave
unit (ring group). Set all parameters on the master unit.
1
Setting the ash mode
to <M>
•Press Function Button 4
< Gr > to choose groups.
Then, press Function But-
ton 3 < MODE> to set the
ash to M mode.
2
Setting ash output
•When choosing the state of
the group, press Function
Button 2 < > to set
the power output. Turn
the Select Dial to set the
ash output of the groups.
Press the <SET> button to
conrm.
3
Taking the picture
•Each group res at the set
ash ratio.
6. Multi: Manual Wireless Flash Shooting
Setting <Multi> stroboscopic
ash.
•Press <MODE > button so that
< MULTI > is displayed.
•Setting the stroboscopic ash.
Using a ash (master/slave) with a radio transmission wireless
shooting function make it easy to shoot with advanced wireless
multiple ash lighting, in the same way as TTL autoash
shooting.
The basic relative position and operation range are as shown in
the picture. You can then perform wireless TTL autoash shoot-
ing just by setting the master unit to <TTL>.
Setting <Multi>
1stroboscopic flash.
● Press <MODE> button so
that < MULTI> is
displayed.
● Setting the stroboscopic
flash.
Slave Unit Setting
2● Set the other camera
flash as the wireless slave
unit. . (Page 42)
● The slave unit can be set
as A/B/C.
Check the communication
3channel
● If the master unit and
slave unit(s) are set to a
different channel, set them
to the same channel.
(Page 41)
Position the camera and
4flashes
● Position the camera and
flashes as the picture
shows. (Page 43)
Check that the flash is
5ready
● Check that the master
flash ready indicator is
lightened.
● When the slave flash
ready indicator is ready,
the AF-assist beam
lighting area will blinks at
1 second intervals.
Check the flash operation
6● Press the master unit’s
Test Button < >.
● Then, the slave unit will
fire. If not, check whether
the slave unit is put in the
right position or not.
The slave unit might be out of order or fire an unwanted flash
due to the nearby fluorescent lamp or computer screen.
● If the slave unit’s auto power off function is workable, press
the master unit’s test button to power it on. Please note that
test firing is unavailable during the camera’s regular
metering time.
● The effective time of slave auto power off is changeable.
(C.Fn-Sv APOT/ Page 47)
● By making some settings, the auto AF-assist transmitter will
not blink after the slave unit’s flash ready indicator is
lightened. (C.Fn-AF/ Page 47)
Using Fully Automatic Wireless Flash
The FEC and other settings that set on the master unit will also be
appeared on the slave unit automatically. The slave unit does not
need any operation. Use the following settings to make wireless
flashes according to the same methods with normal flash shooting.
● Flash Exposure Compensation （ / Page 33）
About Master Unit
Use two or more master units. By preparing several cameras that
with master units flash attached, cameras can be changed in
shooting while keeping the same lighting source (slave unit).
5. M: Wireless Flash Shooting with Manual Flash
This describes wireless (multiple shooting) using manual flash. You
can shoot with a different flash output setting for each slave unit
(firing group). Set all parameters on the master unit.
Gr
Setting the flash mode to
1<M>
● Press Function Button 4
< > to choose groups.
Then, press Function
Button 3 < MODE > to set
the flash to M mode.
Setting flash output
2● When choosing the state
of the group, press
Function Button 2 < >
to set the power output.
Turn the Select Dial to set
the flash output of the
groups. Press the <SET>
button to confirm.
Taking the picture
3● Each group fires at the set
flash ratio.
Using a flash (master/slave) with a radio transmission wireless
shooting function make it easy to shoot with advanced wireless
multiple flash lighting, in the same way as TTL autoflash shooting.
The basic relative position and operation range are as shown in the
picture. You can then perform wireless TTL autoflash shooting just
by setting the master unit to <TTL>.
6. Multi: Manual Wireless Flash Shooting
- 39 - - 40 -
Setting <Multi>
1stroboscopic flash.
● Press <MODE> button so
that < MULTI> is
displayed.
● Setting the stroboscopic
flash.
Slave Unit Setting
2● Set the other camera
flash as the wireless slave
unit. . (Page 42)
● The slave unit can be set
as A/B/C.
Check the communication
3channel
● If the master unit and
slave unit(s) are set to a
different channel, set them
to the same channel.
(Page 41)
Position the camera and
4flashes
● Position the camera and
flashes as the picture
shows. (Page 43)
Check that the flash is
5ready
● Check that the master
flash ready indicator is
lightened.
● When the slave flash
ready indicator is ready,
the AF-assist beam
lighting area will blinks at
1 second intervals.
Check the flash operation
6● Press the master unit’s
Test Button < >.
● Then, the slave unit will
fire. If not, check whether
the slave unit is put in the
right position or not.
The slave unit might be out of order or fire an unwanted flash
due to the nearby fluorescent lamp or computer screen.
● If the slave unit’s auto power off function is workable, press
the master unit’s test button to power it on. Please note that
test firing is unavailable during the camera’s regular
metering time.
● The effective time of slave auto power off is changeable.
(C.Fn-Sv APOT/ Page 47)
● By making some settings, the auto AF-assist transmitter will
not blink after the slave unit’s flash ready indicator is
lightened. (C.Fn-AF/ Page 47)
Using Fully Automatic Wireless Flash
The FEC and other settings that set on the master unit will also be
appeared on the slave unit automatically. The slave unit does not
need any operation. Use the following settings to make wireless
flashes according to the same methods with normal flash shooting.
● Flash Exposure Compensation （ / Page 33）
About Master Unit
Use two or more master units. By preparing several cameras that
with master units flash attached, cameras can be changed in
shooting while keeping the same lighting source (slave unit).
5. M: Wireless Flash Shooting with Manual Flash
This describes wireless (multiple shooting) using manual flash. You
can shoot with a different flash output setting for each slave unit
(firing group). Set all parameters on the master unit.
Gr
Setting the flash mode to
1<M>
● Press Function Button 4
< > to choose groups.
Then, press Function
Button 3 < MODE > to set
the flash to M mode.
Setting flash output
2● When choosing the state
of the group, press
Function Button 2 < >
to set the power output.
Turn the Select Dial to set
the flash output of the
groups. Press the <SET>
button to confirm.
Taking the picture
3● Each group fires at the set
flash ratio.
Using a flash (master/slave) with a radio transmission wireless
shooting function make it easy to shoot with advanced wireless
multiple flash lighting, in the same way as TTL autoflash shooting.
The basic relative position and operation range are as shown in the
picture. You can then perform wireless TTL autoflash shooting just
by setting the master unit to <TTL>.
6. Multi: Manual Wireless Flash Shooting
- 39 - - 40 -
CUlight_FR 60MFT 171010.indd 45 10.10.2017 16:22:31

46
Transmission distance is about 100m.
● Use the supplied mini stand to position the slave unit.
● Before shooting, perform a test flash and test shooting.
● The transmission distance might be shorter depending on
the conditions such as positioning of slave units, the
surrounding environment and whether conditions.
You can divide the slave units into two or three groups and perform
TTL autoflash while changing the flash ratio (factor). In addition, you
can set and shoot with a different flash mode for each firing group,
for up to 5 groups.
Wireless Multiple Flash Shooting
A
B
A
B
C
● Auto Shooting with Two Slave Groups
● Auto Shooting with Three Slave Groups
Positioning and Operation Range (Example of wireless flash
shooting)
● Autoflash Shooting with One Slave Unit
Other Applications
Wireless Control Function
The flash unit is built in with a Wireless Control Port so that you can
wirelessly adjust the power level of the flash and the flash
triggering.
To control the flash wirelessly, you need a FT-16S
remote control set (on-camera and on-flash). Insert its
receive end into the Wireless Control Port on the flash
and insert the transmit end into the camera hot shoe.
Settings made on the hotshoe-mounted
transmit and receive ends will
be wirelessly communicated
to the flash. Then you can
press the camera shutter
release button to trigger the
flash. You can also hold the
transmit end at hand to control
your off-camera flash.
For full instructions on the use of FT series remote control, see its user
manual.
Sync Triggering
The Sync Cord Jack is a Φ3.5mm plug. Insert a trigger plug here
and the flash will be fired synchronously with the camera shutter.
Auto Focus Assist Beam
In poorly-lit or low-contrast shooting environments, the built-in auto
focus assist beam will automatically light on to make it easier for
autofocus. The beam will light up only when autofocus is difficult
and get out as soon as the autofocus becomes correct.
If you want to turn off the auto focus assist beam, set the “AF” to
“OFF” on the C.Fn settings.
● If you find the auto focus assist beam does not light up, this
is because the camera has got a correct autofocus.
● The auto focus assist beam can only start up in the slow
shutter.
Position
Center
Periphery
Effective Range
0.6~10m / 2.0~32.8 feet
0.6~5m / 2.0~16.4 feet
- 41 - - 42 -
Positioning and Operation Range (Example of wireless
ash shooting)
•Autoash Shooting with One Slave Unit
Transmission distance
is about 100m.
● Use the supplied mini stand to position the slave unit.
● Before shooting, perform a test flash and test shooting.
● The transmission distance might be shorter depending on
the conditions such as positioning of slave units, the
surrounding environment and whether conditions.
You can divide the slave units into two or three groups and perform
TTL autoflash while changing the flash ratio (factor). In addition, you
can set and shoot with a different flash mode for each firing group,
for up to 5 groups.
Wireless Multiple Flash Shooting
A
B
A
B
C
● Auto Shooting with Two Slave Groups
● Auto Shooting with Three Slave Groups
Other Applications
Wireless Control Function
The flash unit is built in with a Wireless Control Port so that you can
wirelessly adjust the power level of the flash and the flash
triggering.
To control the flash wirelessly, you need a FT-16S
remote control set (on-camera and on-flash). Insert its
receive end into the Wireless Control Port on the flash
and insert the transmit end into the camera hot shoe.
Settings made on the hotshoe-mounted
transmit and receive ends will
be wirelessly communicated
to the flash. Then you can
press the camera shutter
release button to trigger the
flash. You can also hold the
transmit end at hand to control
your off-camera flash.
For full instructions on the use of FT series remote control, see its user
manual.
Sync Triggering
The Sync Cord Jack is a Φ3.5mm plug. Insert a trigger plug here
and the flash will be fired synchronously with the camera shutter.
Auto Focus Assist Beam
In poorly-lit or low-contrast shooting environments, the built-in auto
focus assist beam will automatically light on to make it easier for
autofocus. The beam will light up only when autofocus is difficult
and get out as soon as the autofocus becomes correct.
If you want to turn off the auto focus assist beam, set the “AF” to
“OFF” on the C.Fn settings.
● If you find the auto focus assist beam does not light up, this
is because the camera has got a correct autofocus.
● The auto focus assist beam can only start up in the slow
shutter.
Position
Center
Periphery
Effective Range
0.6~10m / 2.0~32.8 feet
0.6~5m / 2.0~16.4 feet
- 41 - - 42 -
•Use the supplied mini stand to position the slave unit.
•Before shooting, perform a test ash and test shooting.
•The transmission distance might be shorter depending
on the conditions such as positioning of slave units, the
surrounding environment and whether conditions.
Wireless Multiple Flash Shooting
You can divide the slave units into two or three groups and
perform TTL autoash while changing the ash ratio (factor). In
addition, you can set and shoot with a different ash mode for
each ring group, for up to 5 groups.
•Auto Shooting with Two Slave Groups
•Auto Shooting with Three Slave Groups
Transmission distance is about 100m.
● Use the supplied mini stand to position the slave unit.
● Before shooting, perform a test flash and test shooting.
● The transmission distance might be shorter depending on
the conditions such as positioning of slave units, the
surrounding environment and whether conditions.
You can divide the slave units into two or three groups and perform
TTL autoflash while changing the flash ratio (factor). In addition, you
can set and shoot with a different flash mode for each firing group,
for up to 5 groups.
Wireless Multiple Flash Shooting
A
B
A
B
C
● Auto Shooting with Two Slave Groups
● Auto Shooting with Three Slave Groups
Positioning and Operation Range (Example of wireless flash
shooting)
● Autoflash Shooting with One Slave Unit
Other Applications
Wireless Control Function
The flash unit is built in with a Wireless Control Port so that you can
wirelessly adjust the power level of the flash and the flash
triggering.
To control the flash wirelessly, you need a FT-16S
remote control set (on-camera and on-flash). Insert its
receive end into the Wireless Control Port on the flash
and insert the transmit end into the camera hot shoe.
Settings made on the hotshoe-mounted
transmit and receive ends will
be wirelessly communicated
to the flash. Then you can
press the camera shutter
release button to trigger the
flash. You can also hold the
transmit end at hand to control
your off-camera flash.
For full instructions on the use of FT series remote control, see its user
manual.
Sync Triggering
The Sync Cord Jack is a Φ3.5mm plug. Insert a trigger plug here
and the flash will be fired synchronously with the camera shutter.
Auto Focus Assist Beam
In poorly-lit or low-contrast shooting environments, the built-in auto
focus assist beam will automatically light on to make it easier for
autofocus. The beam will light up only when autofocus is difficult
and get out as soon as the autofocus becomes correct.
If you want to turn off the auto focus assist beam, set the “AF” to
“OFF” on the C.Fn settings.
● If you find the auto focus assist beam does not light up, this
is because the camera has got a correct autofocus.
● The auto focus assist beam can only start up in the slow
shutter.
Position
Center
Periphery
Effective Range
0.6~10m / 2.0~32.8 feet
0.6~5m / 2.0~16.4 feet
- 41 - - 42 -
CUlight_FR 60MFT 171010.indd 46 10.10.2017 16:22:32

47
Other Applications
SyncTriggering
The Sync Cord Jack is a 3.5mm plug. Insert a trigger plug
here and the ash will be red synchronously with the camera
shutter.
CUlight_FR 60MFT 171010.indd 47 10.10.2017 16:22:32

48
Bounce Flash
By pointing the ash head toward a wall or ceiling, the ash will
bounce off the surface before illuminating the subject. This can
soften shadows behind the subject for a more natural-looking
shot. This is called bounce ash.
To set the bounce direction, hold the ash head and turn it
to a satisfying angle.
360
-7-90
•If the wall or ceiling is too far away, the bounced ash
might be too weak and result in underexposure.
•The wall or the ceiling should be a plain, white color for
high reluctance. If the bounce surface is not white, a
color cast may appear in the picture.
Creating a Catchlight
With the catchlight panel, you can create a catchlight in the
subject’s eyes to add life to the facial expression.
1Point the ash head upward by 90°.
2Pull out the wide panel. The catchlight panel will come
out at the same time.
3Push the wide panel back in.
•Push in only the wide
panel.
•Follow the same proce-
dures as for bounce ash.
•Point the ash head straight ahead and then upward
by 90°. The catchlight will not appear if you swing the
ash head left or right.
•For best catchlight effect, stay 1.5m/4.9ft away from
the subject.
CUlight_FR 60MFT 171010.indd 48 10.10.2017 16:22:33
