Cumberland G54CBF16GA User manual

PNEG-1502
54" Galvanized Butterfly Fan
Model:
G54CBF16GA
Installation and Operation Manual
PNEG-1502
Date: 05-08-14

2PNEG-1502 54" Galvanized Butterfly Fan
Congratulations
You have just purchased one of the best ventilation fans in the industry designed to give years of high
velocity airflow while saving hundreds of dollars in electrical usage. Please take some time to read through
this manual and familiarize yourself with the proper installation methods and operation of the fan.
FEATURES
• 31800+ CFM @ 22.6 CFM/W @ 0.05" S.P.
• One year warranty on parts
• Shutterless operation - No shutters to clean
• Consistent airflow through flock growout
• Easy assembly and maintenance
• On-site service and support
Unpacking
Before beginning installation, check the condition of the fan. Remove the overwrap and packing materials
and examine all parts and components for shipping damage. Any damage incurred must be reported
immediately to the freight carrier.
Model : G54CBF16GA
Size : 54" Galvanized Housing and Cone
Voltage : 115V/230V
Amps : 15.0/7.5
Frequency : 60 Hz Single Phase

Table of Contents
PNEG-1502 54" Galvanized Butterfly Fan 3
Contents
Chapter 1 Safety .....................................................................................................................................................4
Safety Guidelines ...................................................................................................................................4
Safety Instructions ..................................................................................................................................5
General Safety Information ....................................................................................................................7
Chapter 2 Decals ....................................................................................................................................................9
Chapter 3 Installation ..........................................................................................................................................10
Framing and Positioning ......................................................................................................................10
Installation of the Fan on a Vertical Plane ............................................................................................11
Tabbed Cone Panel Assembly .............................................................................................................12
Butterfly Assembly ...............................................................................................................................14
Grill Guard Assembly ...........................................................................................................................15
Inlet Grill Assembly ..............................................................................................................................16
Motor Mounting Instructions (Single Crated Fans Only) ......................................................................17
Chapter 4 Wiring ..................................................................................................................................................18
Electrical Hook-Up ...............................................................................................................................18
Chapter 5 Operation and Maintenance ..............................................................................................................19
Start-Up and Operation of the Butterfly Fan .........................................................................................19
Chapter 6 Troubleshooting .................................................................................................................................20
Troubleshooting Guide .........................................................................................................................20
Chapter 7 Parts List and Exploded Diagram .....................................................................................................22
Exploded Diagram ................................................................................................................................22
Chapter 8 Warranty ..............................................................................................................................................25

4PNEG-1502 54" Galvanized Butterfly Fan
1. Safety
Safety Guidelines
This manual contains information that is important for you, the owner/operator, to know and understand.
This information relates to protecting personal safety and preventing equipment problems. It is the
responsibility of the owner/operator to inform anyone operating or working in the area of this equipment
of these safety guidelines. To help you recognize this information, we use the symbols that are defined
below. Please read the manual and pay attention to these sections. Failure to read this manual and its
safety instructions is a misuse of the equipment and may lead to serious injury or death.
DANGER
WARNING
CAUTION
NOTICE
This is the safety alert symbol. It is used to alert you
to potential personal injury hazards. Obey all safety
messages that follow this symbol to avoid possible
injury or death.
WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION, used with the safety alert symbol, indicates a
hazardous situation which, if not avoided, could result in
minor or moderate injury.
NOTICE is used to address practices not related to
personal injury.
DANGER indicates a hazardous situation which, if not
avoided, will result in death or serious injury.

1. Safety
PNEG-1502 54" Galvanized Butterfly Fan 5
Safety Instructions
Our foremost concern is your safety and the safety of others associated with this equipment. We want to
keep you as a customer. This manual is to help you understand safe operating procedures and some
problems that may be encountered by the operator and other personnel.
As owner and/or operator, it is your responsibility to know what requirements, hazards, and precautions
exist, and to inform all personnel associated with the equipment or in the area. Safety precautions may be
required from the personnel. Avoid any alterations to the equipment. Such alterations may produce a very
dangerous situation where SERIOUS INJURY or DEATH may occur.
This equipment shall be installed in accordance with the current installation codes and applicable
regulations, which should be carefully followed in all cases. Authorities having jurisdiction should be
consulted before installations are made.
Install and Operate Electrical Equipment Properly
Electrical controls should be installed by a qualified electrician
and must meet the standards set by the National Electrical Code
and all local and state codes.
Disconnect and lock out all power sources before installing
wires/cables or servicing equipment.
Electric Shock Hazard
Keep Hands Away from Moving Parts
DO NOT put hand or arm in fan. Rotating parts can
crush and dismember.
DO NOT put any kind of tool inside fan to try and clear
debris while the fan is running. Damage to the equipment
will result.
ALWAYS turn off and lock out all power sources before
servicing equipment. Rotating Fan Blade
Lifting Hazard
Single person lift could cause injury.
Use two or more people or a mechanical lifting device
to lift/move heavy equipment.
Use Assistance When Lifting
or Moving Heavy Equipment

1. Safety
6PNEG-1502 54" Galvanized Butterfly Fan
Prepare for Emergencies
Be prepared if fire starts.
Keep a first aid kit and fire extinguisher handy.
Keep emergency numbers for doctors, ambulance service,
hospital, and fire department near your telephone. Keep Emergency Equipment
Quickly Accessible
Wear Protective Clothing
Wear close-fitting clothing and safety equipment appropriate
to the job.
Remove all jewelry.
Tie long hair up and back.
Wear safety glasses at all times to protect eyes from debris.
Wear gloves to protect your hands from sharp edges on
plastic or steel parts.
Wear steel-toed boots to help protect your feet from falling
debris. Tuck in any loose or dangling shoestrings.
A respirator may be needed to prevent breathing potentially
toxic fumes and dust.
Wear a hard hat to help protect your head.
Wear appropriate fall protection equipment when working at
elevations greater than six feet (6').
Eye Protection
Gloves
Steel-Toed Boots
Respirator
Hard Hat
Fall Protection

1. Safety
PNEG-1502 54" Galvanized Butterfly Fan 7
General Safety Information
Users Manual
This manual contains information and instructions essential to the safe installation and use of the
54'' Galvanized Butterfly Fan. This manual should be read thoroughly before attempting any installation
or use of the fan. Keepthis manual in a location that it can be readily accessed. Failure to read the manual
and its safety instructions constitutes misuse of the product.
Safety in Handling the Butterfly Fan
This unit should be installed and maintained by a qualified technician familiar with the use and function of
ventilation fans. This will prevent situations leading to damaged components and/or injury. Whenever
possible, use mechanical lifting equipment when lifting or moving the fan during installation. Where
manual handling is required, seek assistance from other people.
Correct Use of the Butterfly Fan
The fan is designed solely for the purpose of ventilating agricultural buildings. Use of the fan in any other
way is a misuse of the equipment and may endanger yours or another person’s safety and health.
Intheinstallationanduse of theButterfly Fan, only genuine Cumberlandparts are to be used. Use of other
non-genuine parts is a misuse and may lead to dangerous situations.
This fan is not designed for use in atmospheres where the risk of explosion is foreseen. Such
environments may include enclosed areas of high dust concentrations, gas, vapors and fumes. Use in
such an environment is prohibited. If in doubt, contact Cumberland or your dealer.
Safety Guards
The Butterfly Fan contains moving and electrical parts which will cause serious injury, even death if
touched. Guards are placed on the fan to protect you. Operating the fan at any time with guards removed
or incorrectly fitted is a serious misuse of the fan and endangers you and others safety.
Safety in Maintenance
While the Butterfly Fan is designed to keep maintenance to a minimum, some items such as greasing the
bearings and belt replacement will be required over the life of the fan. Do not attempt any maintenance or
repairs on the fan unless you are competent to do so. Remember that the fan may, in certain situations,
operate under automatic control and will start without warning. Never attempt any work on the fan without
first isolating it from the power supply and locking out the isolator so that only you can turn the power back
ON. For your safety, follow the guidelines given in the Maintenance Section on Page 19 of this manual.
Before re-starting the fan, ensure that all electrical enclosures are locked, closed and all guards and other
safety measures are correctly fitted. If in doubt, contact your dealer or Cumberland for assistance.

1. Safety
8PNEG-1502 54" Galvanized Butterfly Fan
Electrical Safety
Provisions for an adequate and safe power supply to the fan unit is essential to your safety. Cumberland
recommends that a competent and qualified electrician undertake all electrical wiring. All wiring is to be
installed in accordance with National, State and Local electrical codes. Fans used to ventilate
livestock buildings and other rooms where continuous air movement is essential should be connected to
individual electrical circuits with a minimum of two (2) circuits per room.
We strongly recommend the installation of supplementary natural ventilation as well as a back-up
thermostat. There should also be an alarm system on at least one cooling stage. For connection
requirements, refer to the diagram on the motor nameplate as well as information enclosed with the fan
control being used.
For single phase fans, motor overload protection should be provided for each fan. A circuit breaker or
slow blow motor type fuse must be used. A safety cut-off switch should be located adjacent to each fan.
Contact your local distributor for the correct cut-off switch.
The motor must be securely and adequately grounded. This can be accomplished by wiring with a
grounded conduit or a separate ground wire attached to the motor’s ground lug. Do not attempt operation
unless the motor is sufficiently grounded.
Do not kink power cable and never allow cable to come in contact with oil, grease, hot surfaces
or chemicals.
Remember, electrical safety is your responsibility.

PNEG-1502 54" Galvanized Butterfly Fan 9
2. Decals
DC-995 - 2.0" x 4.5"
WARNING Shear Point
Located in lower right corner on both
front and back sides of the fan housing.
DC-1540 - 5.0" x 7.5"
DANGER High Voltage
WARNING Stay Clear of Rotating Blade
WARNING Flying Objects Hazard
Located in lower right corner on both front
and back sides of the fan housing.
WARNING
SHEAR POINT
Keep hands clear of moving
parts. Do not operate with
guard removed. Disconnect
and lockout power before
servicing.
DC-995GSI Group Inc. 217-226-4421
Lockout power
before servicing.
HIGH VOLTAGE
Will cause serious
injury or death.
STAY CLEAR OF
ROTATING BLADE
May cause serious injury.
Blade may start
automatically.
Disconnect and
lockout power sources
before servicing.
FLYING OBJECTS
HAZARD
Danger of eye injury.
Wear eye protection.
DANGERDANGER WARNING
WARNING
DC-1540The GSI Group 217-226-4421

10 PNEG-1502 54" Galvanized Butterfly Fan
3. Installation
Framing and Positioning
1. Construct the opening frame to the correct size (61-1/4" H x 58" W) as shown in Figure 3A.
Remember, framing must be able to support the weight of the fan assembly. Ensure the load
bearing portion of the bottom sill is rigid and properly supported.
2. When installing more than one fan while trying to maintain 60" centers it is necessary to use one
1" x 4" in the side framing. The cone diameter is normally 65" in diameter but the “Arches” in the side
cone panels can be flattened giving a total of 59" side to side. See tabbed cone panel assembly
on Page 12 for details. If not sure of sufficient clearance, contact your local distributor for more
information. (See Figure 3B.)

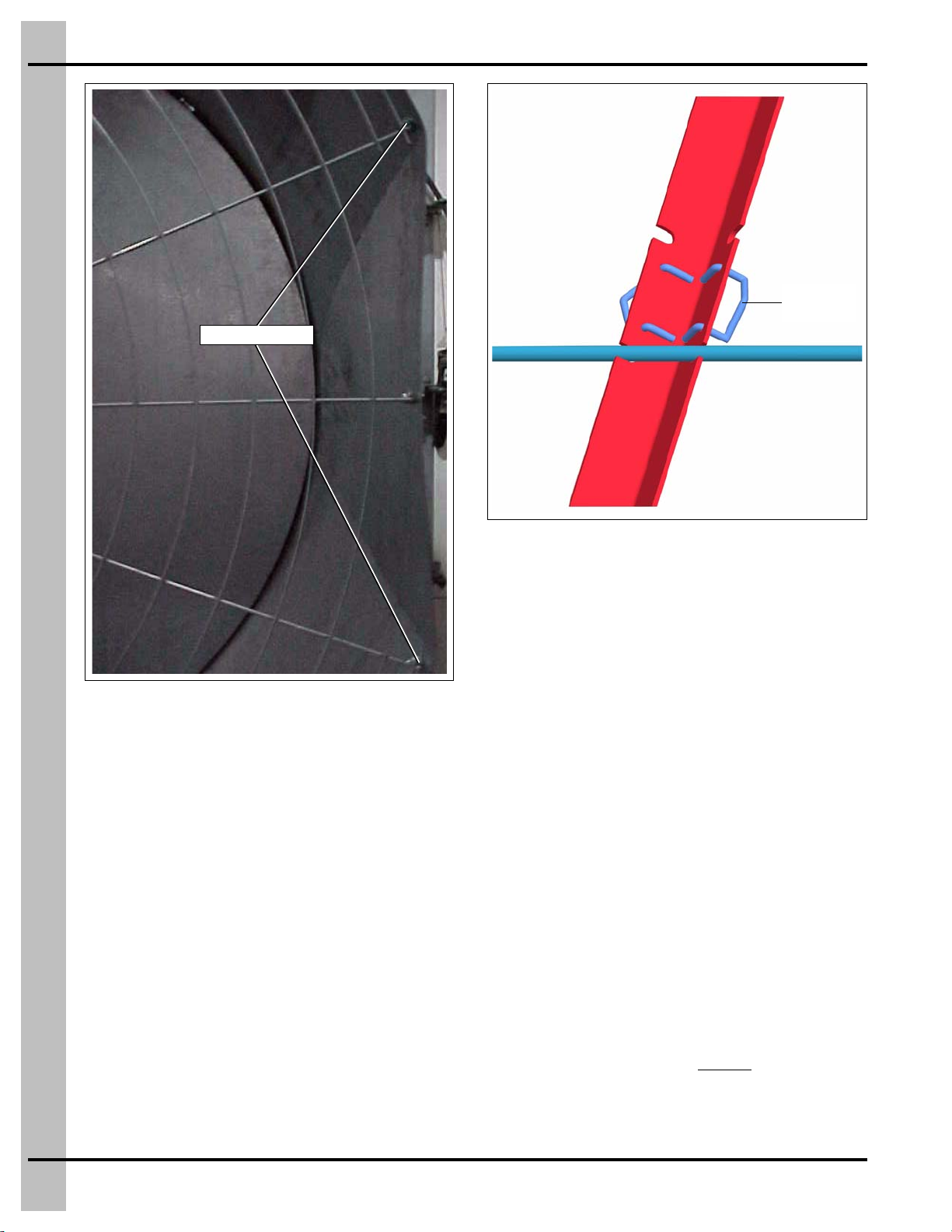

Figure 3A
Figure 3B
61-1/4" Height
58" Width

3. Installation
PNEG-1502 54" Galvanized Butterfly Fan 11
Installation of the Fan on a Vertical Plane
1. Position the fan in front of the opening from the inside of the building. Using a minimum of two (2)
people, lift fan housing into the opening.
2. Because of the design and operation of the butterfly flaps it is necessary to mount the fan
vertical regardless of the angle of the wall to which it is mounted. In order to accomplish this it
is recommended that a level be positioned vertical on the housing and shims (furring strips can be
used) be placed behind either the top or bottom mounting flanges until the fan is fully vertical.
(See Figure 3C.) Once you confirm the fan is setting vertical in the opening, fasten flanges to the
rough opening framework with the wood mounting screws provided. Failure to complete this step
can result in insufficient closure of the butterfly flaps. The fan housing should now be flush and level
inside of the framing.
Figure 3C
Lifting Hazard. Single person lift could cause injury. Use two (2) or more people
or a mechanical lifting device to lift/move heavy equipment.
CAUTION
Use magnetic level at these locations to
ensure square and vertical installation.

3. Installation
12 PNEG-1502 54" Galvanized Butterfly Fan
Tabbed Cone Panel Assembly
Figure 3D
Assembly Steps
1. Lay cone panels on the ground as shown in Figure 3D.
2. Slip four (4) cone panels together using tab and slot connections on edges of each panel.
(Please note that all tabs must be on the inside of the cone assembly.)
3. Place bolts through holes and thread nuts into place to hold four (4) cone panels together.
(Nuts must be located on the outside of the cone assembly.) (Do not tighten nuts.) (See Figure 3E
on Page 13.)
4. Once four (4) cone panels are assembled stand assembly up on large radius side. (See Figure 3D.)
5. Pull both ends together create a heart shape as shown in Figure 3E on Page 13 to slide tabs
into slots.
6. Place remaining bolts through holes and thread remaining nuts into place to hold cone together.
(Nuts must be located on the outside of the cone assembly.) (Do not tighten nuts.)
7. Install assembled cone onto fan venturi unit using cone strut angles provided. (See Figure 3F on
Page 13.) (Make sure bottom panel with drain hole is closest to the ground.)
Ref # Description
ATop Panel
B Side Panel
CBottom Panel
D Drain Hole
ELarge Radius

3. Installation
PNEG-1502 54" Galvanized Butterfly Fan 13
Figure 3E
Figure 3F
Nuts on outside of
cone assembly.
Cone strut angle

3. Installation
14 PNEG-1502 54" Galvanized Butterfly Fan
Figure 3G Clipped Grill Wires
Figure 3H Spring Clip
Butterfly Assembly
1. Install the spring clips (12-0457) (2 pieces) as shown in Figure 3H onto the butterfly frame.
2. The V-shaped center bar of the butterfly frame weldment should be positioned vertically, with the
bottom lining up with the slots farthest out on the cone and the top lined up with the slots farthest in
on the cone. This will give the butterfly frame weldment a slight tilt back (~ 1"). This aids the closing
of the butterfly flaps.
3. Use 1/4" x 1-1/4" bolts and nuts to fasten the butterfly frame weldment to the panels. Tighten the
1/4"nuts.Attach thesprings from thedoors tothespringclip andpushtheflaps openandthey should
close automatically from the spring tension, completely sealed by the magnets on the butterfly frame
weldment assembly. See Figure 3I on Page 15 for assembly inside of cone.
4. To reduce the cone diameter from 65" to 59" side to side, clip the two (2) side wires of the grill as
shown in Figure 3G on both sides. Using a rubber mallet hammer along the “Arches” formed on
both side panels until they flatten as shown in Figure 3J on Page 15. If needed, use the supplied
5/16" x 1-1/4" bolts to connect adjacent side cone panels that will meet flush.
Clip wires here
Spring clip
(12-0457)

3. Installation
PNEG-1502 54" Galvanized Butterfly Fan 15
Grill Guard Assembly
Position grill guard lining up attachment hoops with the holes in the cone panels at all positions. Attach
and tighten using the 5/16" x 3/4" bolts and 5/16" whiz nuts. (See Figure 3J.) Picture shown is with
flattened side cone.
Figure 3I Inside Cone
Figure 3J Grill Guard with Flat Sides

3. Installation
16 PNEG-1502 54" Galvanized Butterfly Fan
Inlet Grill Assembly
1. Removethe folded inlet grillfrom the packaging.Unfold all four (4) sideslining themup perpendicular
to each other. Using the black wire ties, link the sides together using two (2) ties per corner.
(See Figure 3K.) After pulling them tight, clip off excess wire tie. (See Figure 3L.) Attach hanging
hooks in corners as shown in Figure 3M and Figure 3N (upper left and lower right shown).
Figure 3K Un-Clipped Wire Tie Figure 3L Clipped Wire Tie
Figure 3M Inlet Grill Hanging Hook - Top
Figure 3N Inlet Grill Hanging Hook - Bottom

3. Installation
PNEG-1502 54" Galvanized Butterfly Fan 17
Motor Mounting Instructions (Single Crated Fans Only)
SUMMARY:The instructionsdescribe how toproperlyinstall the motor on your new 54"Galvanized
Butterfly Damper Fan. Upon delivery of your 54" Galvanized Fan, you will notice that the motor has
been turned around and bolted into location to decrease the width of pallet and maximize shipping
container space. In order to orient the motor properly for fan operation you will need to follow the
below steps
.
NOTE: Motor instructions on this page do not apply to Q skids.
NOTE: Motor instructions on this page do not apply to single crate fan orders prior to December 2012.
Step 1: Figure 3O shown below shows how the motor will look after the fan is installed in the wall of the
building. (Note that two (2) front bolts/nuts hold the motor in place while two (2) rear bolts/nuts are
installed in holes on the same bracket.)
Step 2: Loosen and remove all four (4) nuts and four (4) bolts shown in Figure 3O.
Step 3: Motor should now be free from bracket. CAREFULLY rotate the motor 180° around on the motor
plate so that the centerline of the motor pulley is located over the rectangular slot in the motor
bracket. (Note that the positioning of the holes in the bracket along with the pre-set pulley should
allow the motor to be placed in only the correct position.)
Step 4: Re-attach motor to plate using the four (4) nuts and four (4) bolts previously removed in Step 2.
Step 5: Tighten the four (4) nuts and four (4) bolts to a torque setting of 13 foot/pounds.
Step 6: The belt is tie wrapped to the fan around one of the vertical uprights. Wrap the belt around the
motor pulley, driven pulley and tensioner arm pulley’s.
Step 7: Fan is now ready to be powered on provided the fan is secured to the wall, all applicable safety
guards are installed and the fan has been wired by a qualified electrician.
Figure 3O
Two (2) rear
bolts/nuts
Two (2) front
bolts/nuts
Rectangular slot
(Refer to Step 3.)
Motor pulley
(Refer to Step 3.)

18 PNEG-1502 54" Galvanized Butterfly Fan
4. Wiring
Electrical Hook-Up
As previously mentioned, All wiring should be installed in accordance with National, State and Local
electrical codes. A certified electrician should complete this portion of the installation to ensure safety and
that the wiring is correct for the application.
1. First, remove the back cover of the motor exposing the wiring block. (See Figure 4A.)
Figure 4A
2. The motor is designed to use either a solid clamping conduit on the side of the motor or the supplied
wire with a three-prong plug attached. In either case, it is important to attach the ground wire to the
ground lug as depicted in Figure 4A. For correct motor rotation (CCW), the Red wire should be
located on the L2 connection as depicted. If this is not the case, switch the Red and Black wires.
Refer to wiring diagram on the side of the motor for correct wiring for 115V and 230V supply.
3. Fans used to ventilate livestock buildingsor other rooms where continuous air movementis essential
should be connected to individual electrical circuits with a minimum of two (2) circuits per room.
For connection requirements refer to diagram on the motor nameplate. For single phase fans, motor
overload protection should be provided for each fan. A safety cut-off switch should be located next
to each fan. A circuit breaker switch or slow blow motor type fuses must be used. (See Figure 4B.)
3 Phase fans require three (3) pole contactors with overload protection.
Figure 4B
Hole for conduit
Ground lug
Gusset for wire (remove
rubber plug)
Information in paranthesis refers to 120 VAC.
L1 (Hot)
L2 (Neu)
120 VAC or
240 VAC Power
L1 (Hot)
L2 (Neu)
G
T1 (Hot)
T2 (Neu)
G
T1 (Hot)
T2 (Neu)
Motor overload protection showing
disconnect single phase.

PNEG-1502 54" Galvanized Butterfly Fan 19
5. Operation and Maintenance
Start-Up and Operation of the Butterfly Fan
1. With the fan de-energized, rotate the prop by turning the fan pulley, look for clearance between
the prop tip and the housing. Replace all guards and check all fasteners to ensure they are tight.
When satisfied, energize the fan and make note of direction of rotation. The prop should turn
counterclockwise when viewed from inside the house and the butterfly flaps should open completely.
They are designed to stay open during fan operation and close when the fan is de-energized.
If the prop is turning backwards, the flaps will not open. If this is the case, refer back to Figure 3J on
Page 15 and switch the black and red wires as noted after de-energizing the fan. Re-check the
operation and when satisfied the fan is operating properly, follow the instructions below.
2. Write down the date that the Butterfly Fan went into service and follow the maintenance schedule as
listed below:
a. Check the belt, pulleys and the bearings after every two (2) months of service. The belt tensioner
should be positioned between the 2nd and the 3rd notch as indicated by the mark on the body of
the tensioner. Under tensioning will result in belt slippage, over tensioning will lead to premature
belt and bearing failure.
b. The motor and shaft bearings are lubricated at the factory. The motor bearings should never
require lubrication over the life of the fan. Pillow block bearings should be re-lubricated every
30 operating days and/or after each wash down cycle with three (3) shots of grease or until
fresh grease is seen purging past seal. Lithium or lithium-complex based #2 NLGI grease must
be used. Other types of grease are incompatible with the factory lubricant and will damage
the bearing.
Incompatible grease or lack of service will void bearing warranty.
3. When cleaning the fans, Do Not Spray bearings, tensioner or motor directly with a pressure washer
as this Will lead to premature failure of these components. After cleaning the fan, simply wipe these
parts with a clean rag to remove dirt and debris. Failure to follow these instructions will void the
warranty on these components.
DANGER
Disconnect and lock out all power sources before servicing equipment.
CAUTION
DO NOT use a pneumatic or powered grease gun.

20 PNEG-1502 54" Galvanized Butterfly Fan
6. Troubleshooting
Troubleshooting Guide
Fan would not Start
1. Check the power supplied to the fan at the point closest to the fan.
2. Check the wiring to the fan.
3. Override the controller (set to manual) and re-check.
4. Contact your Cumberland distributor.
Fan Turns Slow
1. Check the voltage supplied (must be within ±10% if the nominal voltage).
2. De-energize the power and check the wiring at the rear of the motor.
3. De-energize the power, remove the belt and rotate both the motor and fan pulleys. Do they turn
freely? If not, contact your Cumberland distributor.
Fan is Noisy or Vibrates
1.De-energizethefan.Checkfor loose parts,i.e.,bolts,screws,motor,pulleys, prop.Arethefanblades
even? Turn the prop inside of the venturi and look at the blade tips as they move past the same
location. Do they all three appear even? (NOTE: They can be a little different without any problems.)
If they are significantly different contact your Cumberland distributor for more information.
2. Is the noise coming from the bearings? Lubricate per instructions and energize the fan. Did the noise
subside? If not, the bearings are probably damaged and in need of replacement.
Butterfly Flaps do not Close Completely
1. Check vertical alignment of the butterfly frame using a level. If not level, shim the housing out as
described on Figure 3C on Page 11.
2. Check the springs, are they attached? If not, re-attach. Are they stretched and no longer under
tension? Contact your Cumberland distributor for replacements.
3. Check the butterfly flap bushings, are they full of contamination? Rinse with water and remove all
buildup of dirt and contamination. Move the flap by hand until loose and moving freely.
4. Look to see if the flap is bent. With the fan OFF completely close both flaps and look along mating
surface of the butterfly frame. Are all points contacting? If not, bend the flap slightly until all
surfaces contact.
