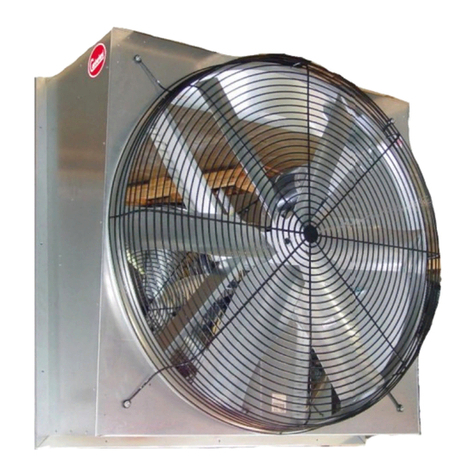

Cumberland Mega-Flow Panel User manual

Cumberland. •1004 E. Illinois St. •Assumption, IL 62510 •Phone [phone] •Fax [phone]
Manual Part No. 4801-5051 Rev. 03-2020 Date: 09-22-20 CN-360777 Page 1of 2
MEGA-FLOW FANS
(See Reverse Side for Framing Formats)
1. Fan should be securely mounted upright in wall.
Refer to Framing Diagram.
2. Fan is provided with wire guards for your protection.
National safety codes require that guards be installed if
fan is installed within 7' of floor or in reach of
personnel or livestock.
FAILURE TO GUARD MOVING PARTS MAY
RESULT IN SERIOUS INJURY OR DEATH.
3. Connect Power Cord and Electrical Power.
4. Unit is ready for operation.
IMPORTANT! INSPECT FAN FOR ANY OBJECT
THAT MAY OBSTRUCT BLACE ROTATION.
INSTALLATION
MAINTENANCE
1. Read WARNING statements before proceeding.
2. Blades, motor, and wire guards should be cleaned
periodically to decrease vibration and ensure
maximum fan life. Remove dirt with a dry brush or
compressed air. DO NOT SPRAY MOTOR WITH
WATER OR CLEANING FLUIDS.
3. Fan performance may be greatly reduced by
damaged or dirty shutters. Clean and inspect shutter
periodically to ensure maximum fan performance.
4. After using a Poultry Litter Treatment (PLT) near
galvanized equipment, make sure there is no (PLT)
residue on any galvanized surfaces, as it will lead to
premature rusting. To clean galvanized surfaces, use
a water based emulsifier, alkaline based cleaners with
a pH of 12 or lower or organic solvents. Then rinse
the area with fresh water and wipe clean with a soft
cloth.
WARRANTY
Your fan has been manufactured with the finest materials and
components available and is backed by a one year warranty
against electrical and mechanical defects in material and
workmanship. If this fan fails to operate during this period,
return it prepaid to the place of purchase for repair or
replacement without charge at the manufacture’s option.
Damage by accident or abuse is not covered by this warranty.
48" Mega-Flow Direct Drive Fans must always have shutters
installed to prevent reverse blade rotation. These fans are not
designed to be used in outdoor or open sidewall buildings.
Cumberland Manufacturing, Inc. makes no guarantees
regarding the proper operation of this appliance when these
conditions are not met.
This warranty gives you specific legal rights and you may have
other rights that vary from state to state.
1. Disconnect power source before installing or
servicing fan. Failure to disconnect power source
can result in property damage, serious injury, or
death.
2. When connected to an automatic controller, FAN
MAY START AT ANY TIME.
3. IMPORTANT! Before Operating Fan, Inspect
Fan For any Object That May Obstruct Blade
Rotation.
4. When this fan is used in a life support ventilation
system where failure could result in loss or injury,
the user should provide adequate backup
ventilation or accept the risk of such loss or injury.
WARNING!
!
BEFORE INSTALLING
1. Inspect fan for damage in transit. Check for
loose, missing, or damaged parts.
2. If there are any missing parts or if there is any
shipping damage, do not attempt to operate fan.
Contact your Distributor.
Do not operate fan until you are completely familiar
with its operation. READ ALL INSTRUCTIONS
PRIOR TO INSTALLATION.
AGRICULTURAL HEATING
& VENTILATION SYSTEMS
Total Systems, Total Control

Cumberland. •1004 E. Illinois St. •Assumption, IL 62510 •Phone [phone] •Fax [phone]
Manual Part No. 4801-5051 Rev. 03-2020 Date: 09-22-20 CN-360777 Page 2of 2
K
Placeedgeof orifice
flangeevenwithinside
edgeof fanopening
Shutter
SIDE VIEW
Fan Size
Fan Model
Rough Openings
J (In.)
K (In.)
24"
Mega-Flow / Econo
Flow
30.75" square
2 x 4
2 x 8
36"
Mega-Flow / Econo
Flow
42.75" square
2 x 4
2 x 8
48"
Mega-Flow / Econo
Flow
54.75" square
2 x 4
2 x 8
52"
Mega-Flow / Panel
56.25" square
2 x 4
2 x 8
52"
Mega-Flow /
Orifice
56.25" square
2 x 4
2 x 8
36"
Mega-Flow /
Slantwall
42.75" horizontal x 43.75"vertical
2 x 4
2 x 8
48"
Mega-Flow /
Slantwall
54.75" horizontal x 55.75"vertical
2 x 4
2 x 8
52"
Mega-Flow /
Slantwall
56.75" horizontal x 57.75"vertical
2 x 4
2 x 8
Mega-Flow Fan
Rough Openings
Horizontal
Vertical
FRAMING DIAGRAM
FRAMING DIMENSIONS
