Curt Manufacturing ECHO User manual

PAGE 1 •51180-INS-RE •87 7.2 87.8 63 4 •NEED ASSISTANCE? •CURTMFG.COM
Read and follow installation manual carefully.
Failure to do so could result in damage to the brake controller unit,
loss of trailer brakes or poor brake performance.
Avoid distracted driving. Only make
adjustments when the vehicle is stationary.
Do not mount the Echo®near the exhaust pipe.
Failure to do so may result in heat damage, loss of functionality
and risk of fire.
Prior to driving, test all trailer lights
while the trailer is plugged into the Echo®.
• The vehicle must have +12V, ground and turn signals connected to
the 7-way socket. Brake output to the 7-way socket is not required.
• See 'Vehicle-Specific Requirements'.
• An existing aftermarket or factory brake controller will not
function if Echo brake controller is installed.
• No special wiring or connectors are required for use.
• Echo Smart Control IS NOT compatible with Apple CarPlay or
Android Auto. However, it will not interfere with these features.
• Echo is designed to provide a Bluetooth connection, without
obstruction, up to 50 ft. Connection may also be limited by the
Bluetooth signal of your phone.
• The Echo brake controller uses the 7-way connector's +12V
connection to power the brakes, and it shares this power with the
trailer. Ensure the fuse for this connection is rated for 30 amps.
See the vehicle owner's manual to determine the fuse location.
If the LED on the Echo does not light when plugged
into the 7-way connector, the +12V power pin may not
have power from the vehicle. Visit a CURT authorized
installer to install a power wire to the battery.
• If the phone application cannot connect to the Echo due to an incorrect
or missing PIN, contact CURT Product Support. They will need the
serial number located on the label of your Echo brake controller.
• Clean and store the Echo in a safe, dry place when not in use.
We recommend applying dielectric grease to the terminals.
• Requires tow / haul mode activation and / or load detection on
7-way before the +12V output is activated on the 7-way connector.
Activate tow mode and connect trailer before attempting Bluetooth
connection to the Echo. The LED on the Echo must be on.
• These vehicles may turn off the +12V output to the 7-way connector
when in park or during gear shifting, making the existing vehicle
wiring incompatible with the Echo. To use Echo with these vehicles,
visit a CURT authorized installer to install a power wire to the battery.
BEFORE YOU BEGIN
51180
ECHO®MOBILE BRAKE CONTROLLER
INSTALLATION MANUAL
Ford F-150 (15 - 17)
Ford F-150 (2018 to Current)
VEHICLE-SPECIFIC REQUIREMENTS
NOTICE
NOTICE
WARNING
WARNING
WARNING
Some vehicles may require a trailer to be connected
to detect a load and activate the +12V power.
Consult the vehicle owner's manual for vehicle-specific details or
contact CURT Product Support if you are having trouble diagnosing
the issue. Known vehicle-specific requirements are listed below:
If your vehicle comes with a trailering app or towing prep
package, it may be necessary to activate a tow / haul mode using
a push button or in-dash screen menu. This allows power at the
7-way connector of the vehicle.
See the vehicle owner's manual to enable this feature.

CURTMFG.COM •NEED ASSISTANCE? •877.287. 86 34 •51180-INS-RE •PAGE 2
Search Select & Connect Enter 6-Digit Pin#
The vehicle needs to be running or the
ignition in the 'ON' position with the vehicle in park.
At any moment during setup, if the LED on the
Echo®is red, stop and refer to the 'Troubleshooting Guide'.
1. Enable Bluetooth in your mobile device settings.
DO NOT pair the Echo®through your phone’s Bluetooth
menu. Bluetooth connection will be done through the app in step 3.
2.Prior to insertion you will need to install the safety strap.
See 'Installing Safety Strap' on adjacent page.
Once the strap and Echo® installed and inserted into
the vehicle's 7-way, the LED will flash blue. The Echo®
is now ready to pair with the mobile application.
3.Launch the app and scan for the Echo®. Once the 'Echo®
Brake Controller' is visible, select it. You will then be prompted
to enter the six-digit PIN, found under the cap of the brake
controller unit or on the provided quick reference card. Once
pairing is complete, the LED light will be solid blue.
4. Plug the trailer's 7-way connector into the Echo®brake controller
while parked on a level surface. The LED light on the Echo®will
flash yellow for five to eight seconds while calibration occurs.
Once the device is calibrated the LED will turn solid green.
INITIAL SETUP FOR BLUETOOTH CONNECTION
NOTICE
NOTICE
NOTICE
DOWNLOAD THE MOBILE APPLICATION
Mobile applications are available for Apple and Android OS. They can be accessed in the App Store
or Google Play by scanning the respective QR code below or searching for 'Echo®Smart Control'.
• Apple OS Requires IOS 5 or higher
• Android OS requires Android 4.3 or higher
• Bluetooth must be enabled on your device for pairing to occur
• After the app is installed, follow the prompts for setup

PAGE 3 •51180-INS-RE •87 7.2 87.8 63 4 •NEED ASSISTANCE? •CURTMFG.COM
INSTALLING THE SAFETY STRAP
1. Remove the button fastener from the strap.
2. Slide the strap through the clasp on the Echo®.
4. Then, insert Echo® into the 7-way.
3. Insert button fastener facing outwards.
5. Wrap the strap around the 7-way cover and pin to secure.
6. Once installed, return to Step 2 in 'Initial Setup for Bluetooth'.

CURTMFG.COM •NEED ASSISTANCE? •877.287. 86 34 •51180-INS-RE •PAGE 4
APPLICATION SETUP ADDING A PROFILE
ACTIVATING A PROFILE
DELETING A PROFILE

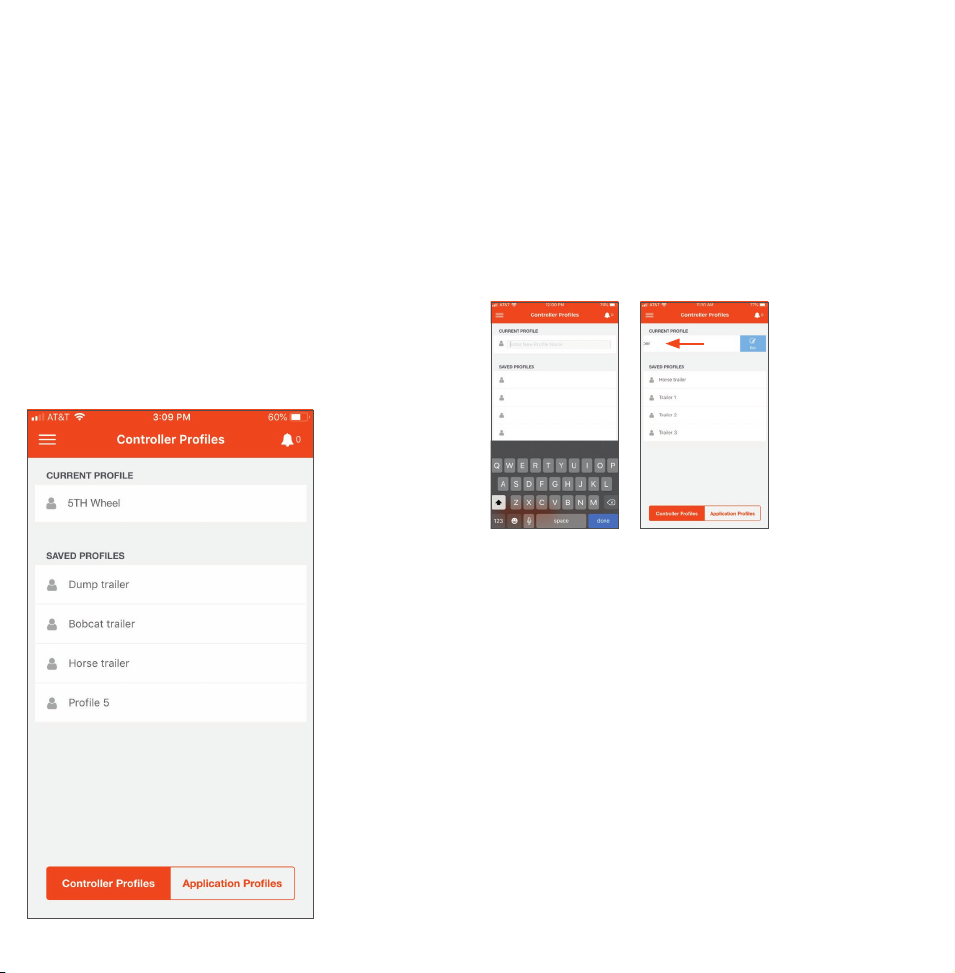

After pairing with the Echo®, you will be directed to the 'Towing
Profiles' screen to setup your trailer's profile. You can create and
save profiles for multiple vehicles, trailers and load conditions.
Note: Setting configuration is required when trailer conditions change
or the brake controller is being used for a different trailer or vehicle.
Within the 'Towing Profiles' screen, there are
two different profiles menus for you to access.
1. Controller Profile
1. On the 'Controller Profiles' menu, select the empty
'Current Profile' seat at the top of the menu.
2.Name the profile with descriptive information
about the trailer you're towing.
3.Click 'Done' to confirm. You will then be directed to the
'Active Profiles' menu to begin set-up and adjustment.
4. You are also able to modify an existing
trailer name by swiping left on the profile.
5. Repeat steps 1 – 3 for additional trailers
(up to five saved on the device).
1. Click on a profile you would like to activate.
2.Follow the screen prompt by selecting 'Ok'.
3.The profile you selected is now the active 'Current Profile'.
1. In the 'Application Profiles' menu,
select the profile you would like to delete.
2.Swipe left to open menu option.
3.Select 'Delete' to remove.
Create Profile Edit Profiles
• In this menu, you can access the five most recently used settings.
These settings are stored within the Echo device. This option allows
you or others who borrow your Echo to access pre-configured tow
settings quickly and easily.
• Your active profile will display at the top of the menu (1A)
• In this menu, you can create an unlimited number of vehicle trailer
profiles. These profiles are stored within the app on your phone.
1
1A
2
2.Application Profile
To create additional profiles, 6 or more, access the
'Application Profiles' section. This menu will allow you
to create and store and unlimited number of profiles within
the app. Select 'Add Profile' to begin and repeat steps 1 – 3.
swipe

PAGE 5 •51180-INS-RE •87 7.2 87.8 63 4 •NEED ASSISTANCE? •CURTMFG.COM
CONFIGURING PROFILE SETTINGS
In your 'Active Profile' screen you can adjust settings.
1. Manual Brake Activation
2. Brake Output Indicator
Activate manual braking, press and hold the orange button.
Manual brake controller activation is used in situations where a slow
reduction in speed is desirable. As the manual control is activated,
the Echo®begins to apply the trailer brakes. Manual output can be
activated by pressing and holding the orange button in the app.
The blue ring indicates current brake output level.
The blue ring is a visual indicator of the current level of power
being applied to the trailer brakes. When the vehicle's brakes
are fully applied, the level of power and position of the ring is
determined by your Max Output setting.
3. Max Output
4. Sensitivity Level
5. Vehicle Hazard Lights
6. Screen Theme
The maximum level of the brake controller.
The output control establishes the max amount of power available
to the trailer brakes when braking. The output should be adjusted
during initial setup, when trailer load changes, when different
trailers are used or when adjustment is needed for changing
road or driving conditions.
The sensitivity of the braking power.
The sensitivity level adjusts trailer aggressiveness when activated
during braking. Sensitivity adjustment has no effect on the manual
brake controller. The sensitivity can be adjusted for individual
driver preference, trailer load changes or changing road conditions.
Turn on any time the vehicle's hazard lights are active.
When the vehicle's hazard lights are activated, the
trailer brakes may pulse on and off as the lights flash.
To prevent this from happening, toggle the switch on
any time the vehicle’s hazard lights are active.
Change from light to dark.
Under the 'Settings' menu, the option to change for day or night
driving situations or application preference is available.
1
2
345
Hazard Lights
Active Profile
Screen Theme

CURTMFG.COM •NEED ASSISTANCE? •877.287. 86 34 •51180-INS-RE •PAGE 6
TEST DRIVE & ADJUSTMENT
Both the output and sensitivity can be adjusted to achieve smooth,
firm stops. Output and sensitivity adjustments should only be made
while stopped, with the transmission in park or neutral, parking
brake applied, foot off the brake pedal, and no manual control
actuation. Note: Perform the adjustments in a safe environment
with minimal vehicle traffic.
Starting with the output adjustment, drive forward on a dry and
level paved or concrete surface. At approximately 25 mph, apply
the vehicle's brakes. If trailer braking is insufficient, increase the
max output setting in the brake controller application. If the trailer
brakes lock up, decrease the max output. Repeat this process
until stops are firm, just short of lock up.
Once the output is set, adjust the sensitivity by driving forward
at approximately 25 mph and press the brake pedal. The vehicle
and trailer should make a smooth stop. If the stop seems slow and
more aggressive braking is desired, increase the sensitivity level
through the brake controller application. If the stop seems too
aggressive, decrease the sensitivity level in the application.
Make several stops at various speeds and adjust the sensitivity until
stops are smooth and firm. Slight adjustment to the output control
may also be desirable. Note: If any problems occur during setup,
refer to the 'Troubleshooting Guide' on the last page of this manual.
LED STATUS INDICATOR
A single LED on top of the Echo®shows the status of the
brake controller unit. Refer to the icons and descriptions below.
Device not paired,
trailer connected
(flashing green)
Device paired,
no trailer connected
(solid blue)
Device paired,
trailer connected
(solid green)
Device not paired,
no trailer connected
(flashing blue)
Hardware fault
(solid red)
No power
(no light on)
Wiring error
(flashing red)
Calibrating
Echo®
(flashing yellow)
Indicator Status
Flashing blue Device not paired, no trailer connected
Solid blue Device paired, no trailer connected
Flashing yellow Calibrating Echo
Flashing green Device not paired, trailer connected
Solid green Device paired, trailer connected
Flashing red Wiring error
Solid red Hardware fault

PAGE 7 •51180-INS-RE •87 7.2 87.8 63 4 •NEED ASSISTANCE? •CURTMFG.COM

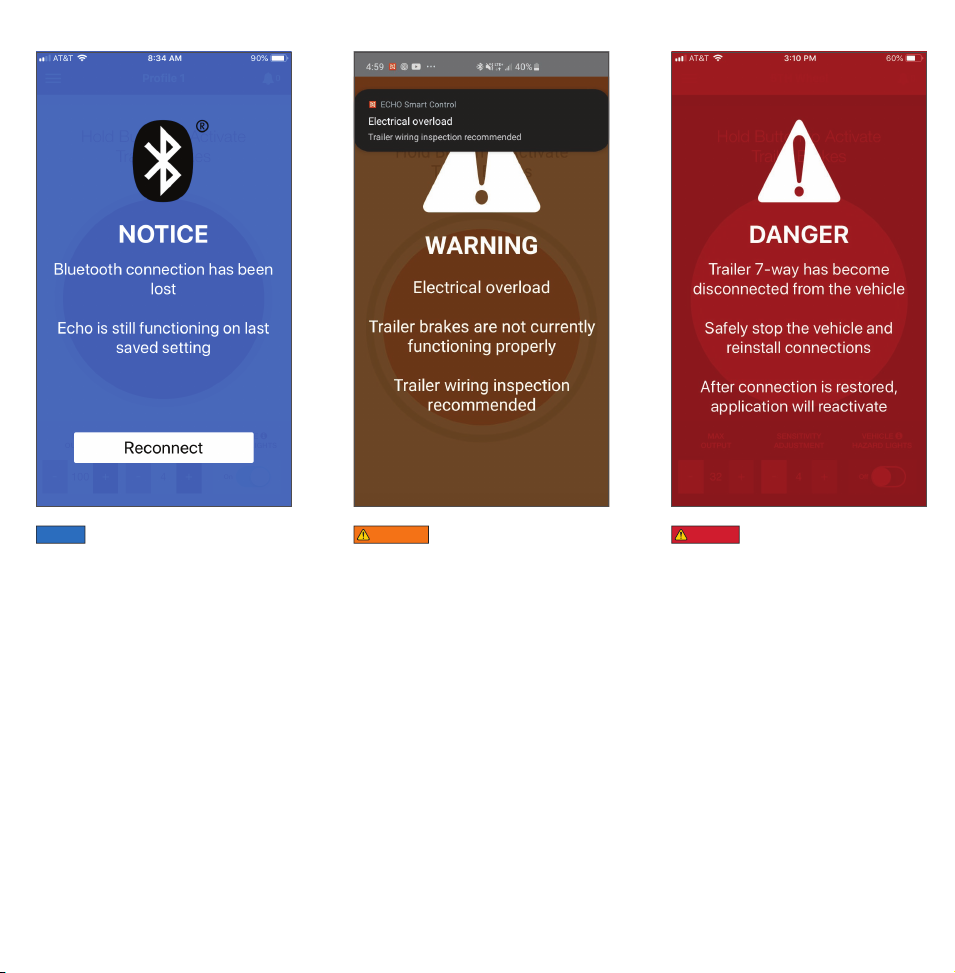

CONDITION NOTIFICATIONS
If a communication error
occurs between the mobile application
and the brake controller, the 'Manual
Brake Activation', 'Max Output' and
'Sensitivity Level' cannot be adjusted
and condition notifications from the
brake controller will not be sent.
The brake controller will continue to
function properly at the most recently
programmed settings and braking
operation will not be affected.
If the trailer 7-way has
become disconnected from the vehicle
a warning will pop up on your screen.
Safely stop the vehicle and reinstall
your connection. Once connections
has been restored, the application
will resume with the most recently
programmed settings.
If the Echo®detects an
overload to the trailer brakes a warning
will pop up on your screen. Safely stop
the vehicle, disconnect and reconnect
the trailer 7-way. If the message
reappears, a trailer wiring inspection is
recommended.
WARNING
DANGER
NOTICE

CURTMFG.COM •NEED ASSISTANCE? •877.287. 86 34 •51180-INS-RE •PAGE 8
TROUBLESHOOTING GUIDE
Condition Problem Cause Possible Solution
LED does not light No power to brake controller,
no ground on vehicle 7-way
Check vehicle power and ground wiring
Trailer mode not activated for vehicle
Vehicle requires trailer to activate 7-way power
Unable to connect to mobile devices No power to brake controller,
no ground on vehicle 7-way
Invalid Bluetooth PIN
Check Echo LED status for power
Input PIN from label or quick reference card
Enable Bluetooth or grant permissions
Check smartphone compatibility
Solid red LED for more than 10 seconds Hardware fault Contact CURT Product Support
Flashing red LED Contamination in trailer plug socket Check for clean and dry trailer plug
Short in trailer brake wiring Locate and correct short
Accelerometer error Unplug the brake controller and plug it back in
Short or overload in trailer brakes Troubleshoot trailer brake circuit per
brake manufacturer's instructions
No trailer brakes, pedal or manual Mis-wired 7-way connector
Improper or corroded trailer wiring
Weak or missing ground
Confirm vehicle and trailer 7-way connections
No trailer brakes, pedal or manual
(device notification of error)
Loss of trailer connection, unplugged or bad wiring Confirm vehicle and trailer 7-way connections
No response on manual
override or brake output
Mis-wired 7-way connector
Improper or corroded trailer wiring
No or intermittent power to brake controller
Weak or missing ground
Wireless connectivity error
Confirm vehicle and trailer 7-way connections
Check Bluetooth and application settings
Reduced braking power on
manual override or brake output
Weak or missing ground
Improper max power or sensitivity settings
Improper or corroded trailer wiring
Confirm vehicle and trailer 7-way connections
Check Bluetooth and application settings
Increase max power or sensitivity settings
Trailer brakes on all the time
(LED shows red)
Mis-wired 7-way trailer connector Confirm vehicle and trailer 7-way connections
App signals 'low voltage' Low battery voltage Check vehicle battery and replace if needed
Confirm vehicle 7-way connections and wiring
App signals a 'disconnect' Trailer connector is disconnected Reconnect the trailer connector
Confirm vehicle 7-way connections and wiring
App signals 'overload' Trailer brakes are overloaded Reconnect the trailer connector
Confirm vehicle 7-way connections and wiring
Check trailer brake wiring for short circuits
PRODUCT REGISTRATION
LET US KNOW WHAT YOU THINK!
CURT Group stands behind our products with industry-leading warranties.
Provide feedback and help us to improve our products by registering your purchase at warranty.curtgroup.com/surveys
Share the love and your experience with Echo by leaving a review on curtmfg.com/51180.
CONNECT WITH US
