Cybex®Eagle Abdominal
Owner’s Manual
Strength Systems
Part Number 11090-999-4 B
www.cybexintl.com

Cybex® and the Cybex logo are registered trademarks of Cybex International, Inc.
Eagle® and its mark are registered trademarks of Cybex International, Inc
DISCLAIMER: Cybex International, Inc., makes no representations or warranties regarding the contents of this manual. We reserve the right to revise
this document at any time or to make changes to the product described within it without notice or obligation to notify any person of such revisions or
changes.
© Copyright 2012, Cybex International, Inc. All rights reserved. Printed in the United States of America.
10 Trotter Drive Medway, MA 02053 • 508-533-4300 • FAX [phone] www.cybexintl.com • 11090-999-4 B August 2012
Table of Contents
Safety
Safety Guidelines and Practices................ 3
Anchoring Equipment ........................ 3
Facility Safety Precautions .................... 3
User Safety Precautions...................... 4
Warnings and Cautions ...................... 6
Label Placement............................ 7
Assembly
Machine Specications....................... 8
Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Assembly Procedure ........................ 8
Exercise
Intended Use ............................. 18
Instructions ............................... 18
Maintenance
Warnings ................................ 20
Daily Procedures .......................... 20
Weekly Procedures ........................ 22
Yearly Procedures ......................... 25
Cable Adjustment .......................... 26
Belt Adjustment............................ 27
Customer Service
Product Registration........................ 28
Contacting Service ......................... 28
Ordering Parts ............................ 28
Return Material Authorization (RMA) ........... 29
Damaged Parts............................ 29

Cybex Owner’s Manual
3
Safety
Safety Guidelines and Practices
Read the Owner’s Manual carefully before assembling, servicing, or using the equipment.
Owner must comply with all safety guidelines in this manual. It is also the owner’s responsibility to
instruct users on the safe and proper operation of the equipment and to properly display any and
all warning labels and instructional placards. All users should read these labels and placards before
using equipment.
WARNING Death or serious injury could occur if the
following safety precautions and instructions are
not followed.
Anchoring Equipment
• Owner should not allow equipment to be used until it is properly anchored
as described below.
• To maximize stability and eliminate rocking, tipping, or falling over,
equipment must be anchored to a solid, level surface, utilizing all
anchoring holes provided.
• Fasteners must have a minimum of 500 lbs. tensile capacity. Cybex
recommends .3/8” grade 2 bolts or better. A minimum pull force of
220 lbs/100 kgs is required for each anchor position.
• If leg frames do not contact surface, DO NOT pull down with anchors.
Shim any leg or frame not in contact with surface using at washers.
• Due to the wide variation of ooring on which machines may be anchored
or installed, consult with a qualied and licensed contractor to ensure
proper anchoring and installation.
Facility Safety Precautions
Do not allow anyone, including trainers, to use equipment in a manner other than that shown on the
warning labels and instructional placards located on every machine.
Do not install equipment on an uneven surface. The solid, level surface should not deviate more than
1/8” over a 10’ distance or as dened and required by local building and architectural codes.

Cybex Owner’s Manual
4
It is the responsibility of the facility owner/owner of the equipment to ensure that there is appropriate
clearance around each machine to allow for safe use and passage.
In compliance with the ADA (American Disabilities Act) there must be clear floor space of at least
30 by 48 inches and be served by an accessible route for at least one of each type of exercise
equipment. If the clear space is enclosed on three sides (e.g., by walls or the equipment itself), the
clear space must be 36 by 48 inches.
All other machines must have a clear floor space of 23” for all access point on the machine, unless
shown in the Owner’s Manual.
The dimensions stated in the assembly instructions of this manual include the maximum foot print (in
use) dimensions.
All equipment should be used in a supervised, access-controlled area.
Do not allow equipment to be used by children 12 and under. Supervise disabled and children 13 and
older.
The owner should ensure that regular inspection and maintenance checks as detailed in this manual
are performed. Keep a log of all maintenance and repair activities.
Each day before use, the owner should inspect the equipment. If there are any loose or worn
components such as belts, cables, grips, pulleys, or any missing, damaged labels, or placards, the
owner should x any deciencies before they allow the equipment to be used.
Use only Cybex components to maintain and repair the equipment.
Display the Facility Safety Sign so it is visible and prominent.
User Safety Precautions
Owners must instruct users to DO the following:
• Follow all warning labels and instructional placards when using equipment.
• Insert weight pin completely before using selectorized equipment.
• Consult a physician prior to commencing an exercise program. If at any time during exercise you
feel faint, dizzy or experience pain, stop and consult your physician.
• Use a spotter for Free Weight equipment.
Owners must instruct users to NOT DO the following:
• DO NOT pin weights on selectorized equipment in an elevated position or use the machine if
found in this position.
• DO NOT increase weight resistance on equipment by any means other than those provided by
Cybex.
• DO NOT wear loose or dangling clothing or jewelry while using equipment. Stay clear of moving
parts.

Cybex Owner’s Manual
5
• DO NOT lean or pull on machine
• DO NOT use machine for support during stretching.
• DO NOT attach resistance straps, ropes or other means to equipment, except those provided by
the manufacturer for intended use on the equipment.
• DO NOT exceed the maximum specied user weight.
• DO NOT use if equipment appears damaged or inoperable upon inspection.
• DO NOT use if guards are missing or damaged.
• DO NOT remove any labeling from equipment.

6
Cybex Owner’s Manual

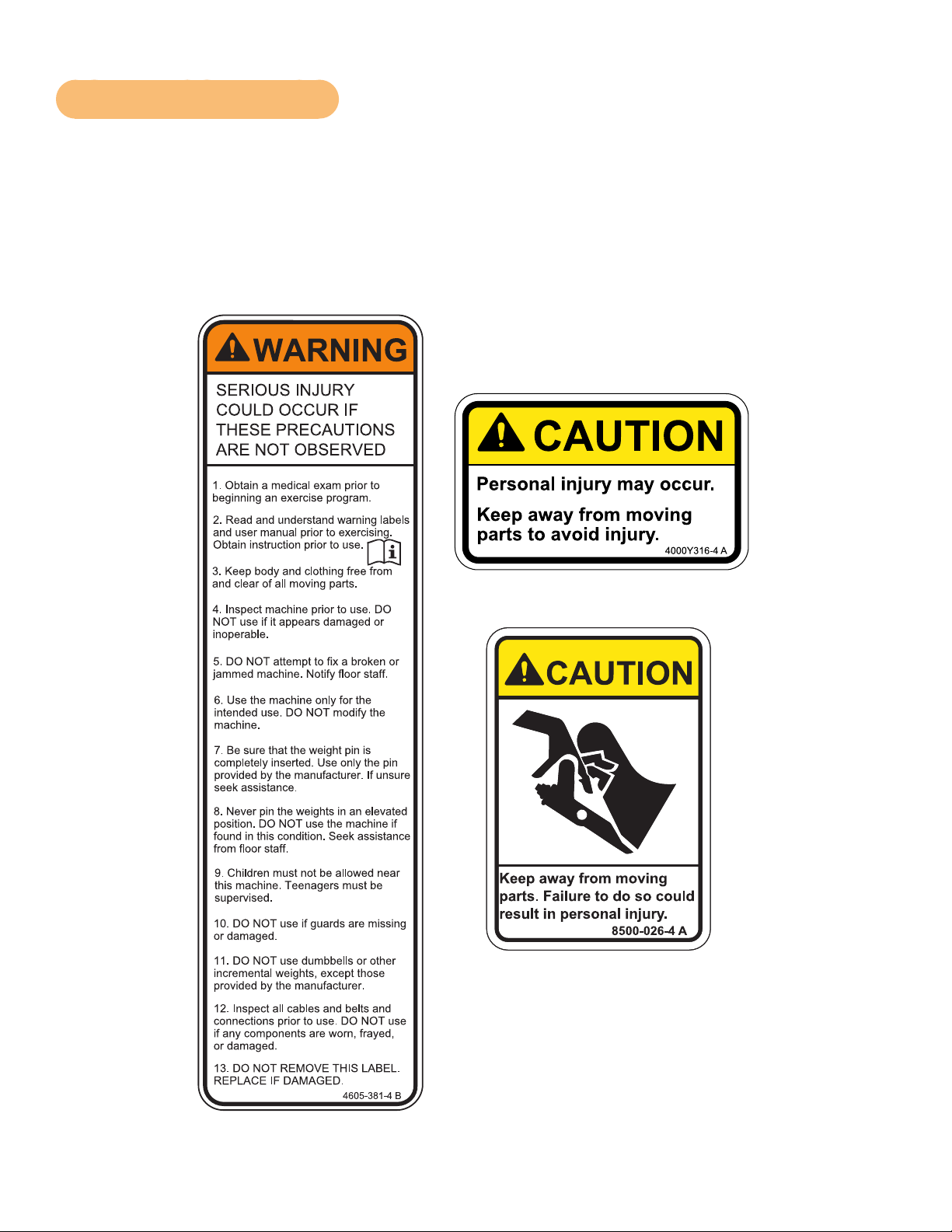

Warnings and Cautions
Warning decals indicate a potentially hazardous situation that could result in death or serious injury if
the precautions are not observed.
Caution decals indicate a potentially hazardous situation, which, if not avoided, could result in minor
or moderate injury.
The diagram following the decals show where each decal is located.
Personal injury may occur.
CAUTION
4000Y316-4 A
2.50
1.50
R .19
4 PLACES
PART NUMBER
6 PT ARIAL BOLD
WHITE BACKGROUND WITH
BLACK 11.5 PT ARIAL BOLD TEXT
SAFETY YELLOW PMS 108
BACKGROUND. BLACK TRIANGLE
W/ YELLOW EXCLAMATION POINT,
BLACK LETTERS 26 PT ARIAL
BOLD FONT
INSET .06
WHITE
Keep away from moving
parts to avoid injury.
DECAL, CAUTION ENGLISH
4000Y316-4
JKW 8/28/06
A
8/28/06
BB
125
1:1
OWATONNA
MFG. APPR.
TECH. PUBS. APPR. DATE
DATE
REV.
DWG. NO.
SCALE
SIZE
CHECKED BY
DWG. BY
TITLE:
FINISH:
MATERIAL:
B
SHEET
OF
1 1
EXCEPT AS NOTED
GENERAL
TOLERANCES:
2 DECIMALS ± .03
3 DECIMALS ± .015
ANGLES ± 1°
FEATURES SHOWN
PERPENDICULAR OR
PARALLEL SHALL BE
SO WITHIN ± 1°
REMOVE ALL BURRS
BREAK SHARP EDGES
.005/.010 R
SURFACE FINISH
INDICATED PER
ANSI B46.1-1985
GENERAL
MACHINING
DIMENSIONS
IN INCHES
DATE
DATE
THIS NOTE REFERS TO ALL PLASTIC PARTS
AND ASSEMBLIES CONTAINING PLASTICS.
RAW MATERIAL AND COMPONENTS ON
SUB-ASSEMBLIES AND ASSEMBLIES MUST
COMPLY WITH EUROPEAN DIRECTIVE
RoHS 2002/95/EC.
REMOVE CARBURIZATION
AND SCALE FROM LASER
AND PLASMA CUT EDGES
NOTE: See Engineering Drawing 4000Y316-X for specifications.
Personal injury may occur.
CAUTION
4000Y316-4 A
Keep away from moving
parts to avoid injury.
125
1:1
OWATONNA
MFG. APPR.
TECH. PUBS. APPR. DATE
DATE
REV.
DWG. NO.
SCALE
SIZE
CHECKED BY
DWG. BY
TITLE:
FINISH:
MATERIAL:
B
SHEET
OF
1 1
EXCEPT AS NOTED
GENERAL
TOLERANCES:
2 DECIMALS ± .03
3 DECIMALS ± .015
ANGLES ± 1°
FEATURES SHOWN
PERPENDICULAR OR
PARALLEL SHALL BE
SO WITHIN ± 1°
REMOVE ALL BURRS
BREAK SHARP EDGES
.005/.010 R
SURFACE FINISH
INDICATED PER
ANSI B46.1-1985
GENERAL
MACHINING
DIMENSIONS
IN INCHES
DATE
DATE
REMOVE CARBURIZATION
AND SCALE FROM LASER
AND PLASMA CUT EDGES
DECAL, CAUTION ENGLISH
8500-026-4 A
JKW 8/31/06 BB 12-13-06
NOTE: See Engineering Drawing 8500-025-X for specifications
2.00 R .19
4 PLACES
2.875
PART NUMBER
8 PT ARIAL BOLD
WHITE BACKGROUND WITH
BLACK 9.5 PT ARIAL BOLD TEXT
SAFETY YELLOW MUNSELL 5Y8/12
BACKGROUND. BLACK TRIANGLE
W/ YELLOW EXCLAMATION POINT,
BLACK LETTERS 21 PT ARIAL
BOLD FONT
INSET .06
WHITE
CAUTION
Keep away from moving
parts. Failure to do so could
result in personal injury.
8500-026-4 A
CAUTION
ALL MATERIAL MUST COMPLY TO
EUROPEAN UNION DIRECTIVE
2002/95/EC RoHS (RESTRICTION
OF HAZARDOUS SUBSTANCES)
125
1:1
OWATONNA
MFG. APPR.
TECH. PUBS. APPR. DATE
DATE
REV.
DWG. NO.
SCALE
SIZE
CHECKED BY
DWG. BY
TITLE:
FINISH:
MATERIAL:
B
SHEET
OF
1 1
EXCEPT AS NOTED
GENERAL
TOLERANCES:
2 DECIMALS ± .03
3 DECIMALS ± .015
ANGLES ± 1°
FEATURES SHOWN
PERPENDICULAR OR
PARALLEL SHALL BE
SO WITHIN ± 1°
REMOVE ALL BURRS
BREAK SHARP EDGES
.005/.010 R
SURFACE FINISH
INDICATED PER
ANSI B46.1-1985
GENERAL
MACHINING
DIMENSIONS
IN INCHES
DATE
DATE
REMOVE CARBURIZATION
AND SCALE FROM LASER
AND PLASMA CUT EDGES
B
WARNING DECAL, ENGLISH
4605-381-4
EML 3/26/2007
NOTE: See Engineering Drawing 4506-381-X for specifications.
ALL MATERIAL MUST COMPLY TO
EUROPEAN UNION DIRECTIVE
2002/95/EC RoHS (RESTRICTION
OF HAZARDOUS SUBSTANCES)
4605-381-4 B
WARNING
SERIOUS INJURY COULD OCCUR IF THESE PRECAUTIONS ARE NOT OBSERVED
2. Read and understand warning labels and user manual prior to exercising. Obtain instruction prior to use.
1. Obtain a medical exam prior to beginning an exercise program.
3. Keep body and clothing free from and clear of all moving parts.
4. Inspect machine prior to use. DO NOT use if it appears damaged or inoperable.
5. DO NOT attempt to fix a broken or jammed machine. Notify floor staff.
6. Use the machine only for the intended use. DO NOT modify the machine. 7. Be sure that the weight pin is completely inserted. Use only the pin provided by the manufacturer. If unsure seek assistance.
8. Never pin the weights in an elevated position. DO NOT use the machine if found in this condition. Seek assistance from floor staff.
9. Children must not be allowed near this machine. Teenagers must be supervised.
10. DO NOT use if guards are missing or damaged. 11. DO NOT use dumbbells or other incremental weights, except those provided by the manufacturer. 12. Inspect all cables and belts and connections prior to use. DO NOT use if any components are worn, frayed, or damaged. 13. DO NOT REMOVE THIS LABEL. REPLACE IF DAMAGED.
2.25
R .19 4 PLACES
PART NUMBER WITH REVISION DESIGNATION 7 PT ARIAL
12 PT ARIAL FONT
R .25 4 PLACES
INSET .06 WHITE
SAFETY ORANGE PMS 152 BLACK TRIANGLE W/ ORANGE EXCLAMATION POINT, BLACK LETTERS 23 PT ARIAL BOLD FONT
8.00
8.25 PT ARIAL FONT
WHITE BACKGROUND BLACK LETTERS

7
Cybex Owner’s Manual
Label Placement
4605-381-X
8500-026-X
Both Sides
4000Y316-X
4000Y316-X

8
Cybex Owner’s Manual

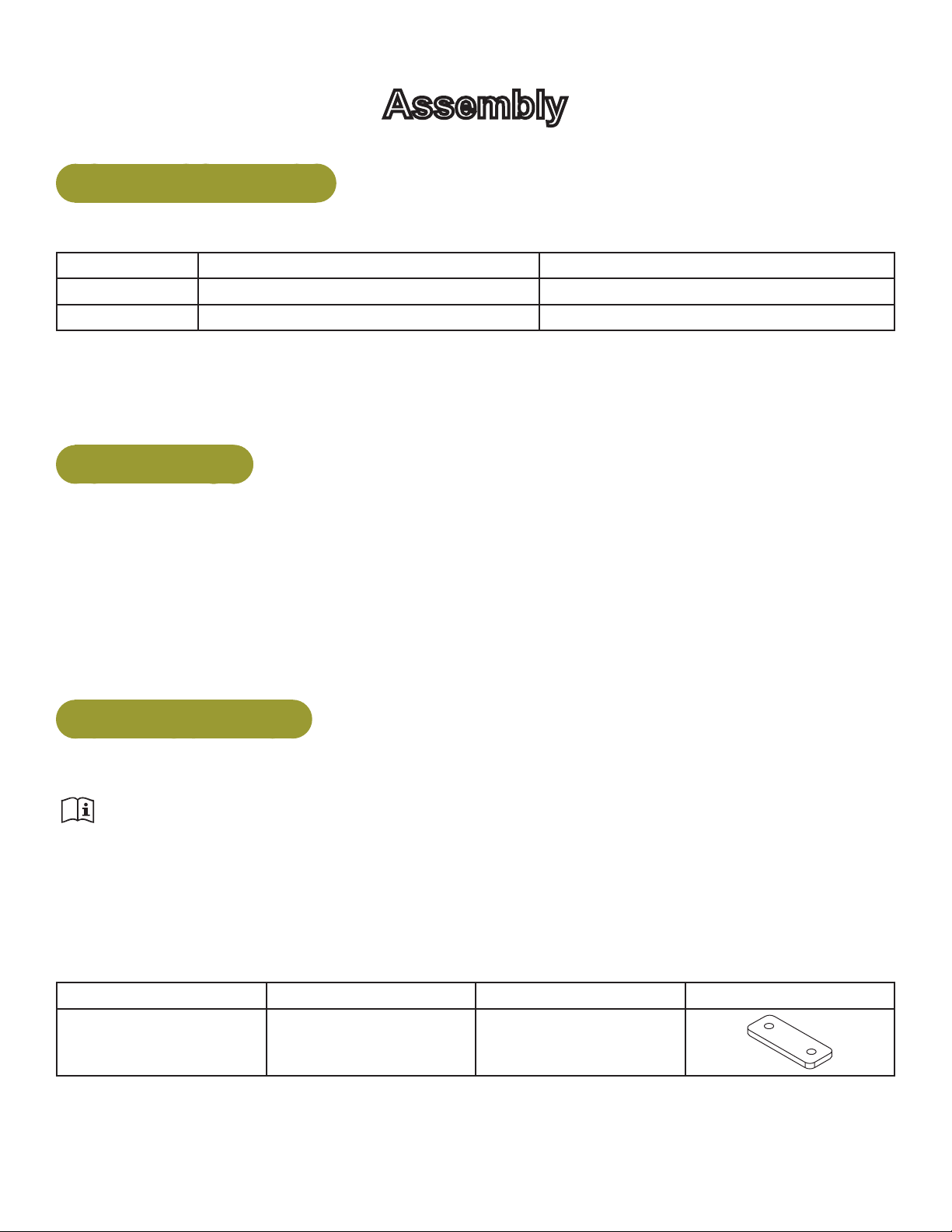

Assembly
Machine Specifications
Total Weight and Size: Eagle 11090 Abdominal
Weight Machine Dimensions at Rest Machine Dimensions at Use
524 lbs 44” W x 59” L x 58” H 44” W x 59” L x 58” H
237.68 kg 111.76 cm W x 149.86 cm L x 147.32 H 111.76 cm W x 149.86 cm L x 147.32 H
The dimensions stated in the installation instructions are the recommended minimum dimensions as
set forth by the manufacturer. The actual area for access and passage shall be the responsibility of
the facility and should take into account any required local codes or regulations.
Tools Required
• 7/32” Allen wrench
• 3/4” Allen wrench
• 9/16” Wrench
• External snap ring pliers
• Phillips screwdriver
• Medium weight automotive engine oil
• Torque Wrench
Assembly Procedure
Two people will be required for this procedure.
Read and understand all instructions thoroughly before assembling this unit. Check all items
carefully. If there is damage, see the Customer Service section of this manual for proper procedure to
return, replace, or reorder parts.
It is the responsibility of the facility owner/owner of the equipment to ensure that there is appropriate
clearance around each machine to allow for safe use and passage.
Verify parts list shown below
Qty Part Number Description Diagram
4 11090-392 Foot pad

9
Cybex Owner’s Manual
Qty Part Number Description Diagram
1 12000-560 Decal, Weight Plate
(30-290)
125
OWATONNA
MFG.APPR.
TECH.PUBS. APPR. DATE
DATE
REV.
DWG.NO.
SCALE
SIZE
CHECKEDBY
DWG.BY
TITLE:
FINISH:
MATERIAL:
SHEET
OF
EXCEPT AS NOTED
GENERAL
TOLERANCES:
2 DECIMALS ± .03
3 DECIMALS ± .015
ANGLES ± 1°
FEATURESSHOWN
PERPENDICULAR OR
PARALLELSHALL BE
SO WITHIN ± 1°
REMOVEALL BURRS
BREAK SHARP EDGES
.005/.010 R
SURFACEFINISH
INDICATEDPER
ANSI B46.1-1985
GENERAL
MACHINING
DIMENSIONS
IN INCHES
DATE
DATE
THIS NOTEREFERS TO ALL PLASTIC PARTS
AND ASSEMBLIES CONTAININGPLASTICS.
RAWMATERIAL AND COMPONENTS ON
SUB-ASSEMBLIES AND ASSEMBLIES MUST
COMPLYWITH EUROPEAN DIRECTIVE
RoHS 2002/95/EC.
REMOVECARBURIZATION
AND SCALE FROMLASER
AND PLASMA CUT EDGES
12000-560
1:1
9/14/05
REL
DECAL, WT PLATE (30 - 290)
B 2 2
9/16/05
BB
NOTES:
1. RIGHT HAND SIDE - 40 POINT HELVETICA BOLD.
HORIZONTALSCALE 80%.
TRACKING-50.
2. LEFT HAND SIDE - 48 POI NT FUTURA CONDENSED BOLD.
14 4000C101 Weight Stack Plate
Move to desired location
1. Determine if you can move your machine through the required doorway(s).
2. If the machine ts through the doorway(s), move machine to desired location.
3. Attach rubber feet to each foot of the frame.
4. If weight stacks need to be installed follow procedure for installing weight stacks.
5. If the machine does not t through the doorway(s) follow doorway procedures below.
Doorway Instructions
1. Remove each (standard) cone-shaped shipping support using a 3/4” socket or wrench.
2. Make a note of the current belt routings and connections. This will assist you in reinstalling
them properly.
3. Cut shipping tie securing top weight.
4. Rotate cam and disconnect weight stack belt from cam (by loosening the two set screws on
the belt clamp with a 7/32” Allen wrench.)
Set
Screws
Cam
5. Locate the belt attached to the pivot shaft. Remove the shoulder bolt and hex nut securing
belt to the pivot arm.
Shoulder
Bolt
Hex
Nut

10
Cybex Owner’s Manual
6. Remove pulley then remove other end of belt from cam.
BHSCS
Pivot Shaft
Washer
Pulley Shaft
Pulley/Cable
7. Remove one of the two BHSCS (Button Head Socket Cap Screws) securing the pivot shaft.
BHSCS
Pivot Shaft
Washer
Pulley Shaft
Pulley/Cable
8. Carefully remove pivot shaft and pulley shaft.
CAUTION: Be extremely careful when removing shaft so you do not ruin the threads on
the shaft.
BHSCS
Pivot Shaft
Washer
Pulley Shaft
Pulley/Cable
9. Remove the six BHSCS securing the two halves of the frame.
Nylon Locknut (6)
BHSCS (qty 6)
10. Carefully move each half through the doorway to the desired location.

11
Cybex Owner’s Manual
11. Attach each half together using the six BHSCS that were removed.
Nylon Locknut (6)
BHSCS (qty 6)
12. Attach pulley shaft using the pivot shaft and BHSCS that were removed.
BHSCS
Pivot Shaft
Washer
Pulley Shaft
Pulley/Cable
13. Reconnect belt to cam and reinstall pulley.
14. Connect other end of belt to the arm using the BHSCS and nylon locknut.
Shoulder
Bolt
Hex
Nut
15. Connect the weight stack belt to the belt clamp of cam that was removed.
Set
Screws
Cam
Install rubber feet
1. Remove each (standard) cone-shaped shipping support using a 3/4” socket or wrench.
2. Cut shipping tie securing top weight.
3. Place rubber feet (supplied with machine) on each foot of the frame.

12
Cybex Owner’s Manual
4. Lift top weight and turn the Increment Weight Adjusting Knob to select 15 lbs (three
increment weights each side.)
5. Remove the three Phillips head screws securing the top (back) shroud and carefully remove
the shroud.
Phillips Head
Screw (3)
6. Loosen but do not remove bottom two screws.
Screw (loosen -
do not remove)
7. Remove the top two screws securing the back shroud.
Screw
8. Slide rear shroud assembly upward and remove.
Install the weight stack
1. Note how the increment weights are installed.
2. With an assistant holding the increment weights, move the adjusting knob to 0 lbs and
remove all six increment weights (three each side.)
3. Using an external snap ring pliers, remove the upper snap ring from one of the guide rods
and carefully lower the guide rod.
Upper snap ring
Lower snap ring
Frame
Guide rod
Wave washer
4. Remove lower snap ring and wave washer from the guide rod. Repeat for the opposite guide
rod.

13
Cybex Owner’s Manual
5. Lean guide rods outward, away from machine in order to provide the most room for installing
weight plates.
6. Slide top weight up and out of machine and carefully set it aside.
7. Wipe guide rods clean over entire length. Lubricate with light coating of medium weight
automotive engine oil.
8. Install each weight plate one at a time. When installing weight plates, position plates so wide
edges of bushing face upward and narrow edges of bushing face downward.
NARROW
bushing edge
WRONG
WIDE bushing
edge faces
upward
CORRECT
NOTE: The narrow
bushing edge must
face downward.
9. Slide top weight onto guide rods.
10. Place lower snap ring and wave washer onto guide rod (about 3” from the top end of guide
rod.)
11. Raise guide rod up through mounting hole and install the upper snap ring.
12. Lower guide rod and secure lower snap ring. Repeat for the opposite guide rod.

14
Cybex Owner’s Manual
Belt Routing
1. Verify belt is routed through top of pulley bracket and then route end of belt down to the top
weight.
2. Verify that the position of the belt clamp (on the top weight) is aligned properly with the top
pulley bracket (on the machine.) The belt must have a straight path from the pulley to the belt
clamp. Figure shows the top view, looking from the top pulley down to the top plate.
Top Pulley
Belt
Insert and Set Screws (not
shown) are on this side.
Increment
Weight
Adjusting
Knob
3. Slide belt through slot in belt clamp.
4. Verify belt and insert are installed properly.
Correct belt routing Wrong belt routing
Stem
Belt
Insert
Stem
Belt
Insert
5. Pull belt tight and secure belt to clamp with the two set screws. Torque set screws 300-350
in-lbs.
Belt clamp
Belt
Belt clamp
insert
Set screws

15
Cybex Owner’s Manual

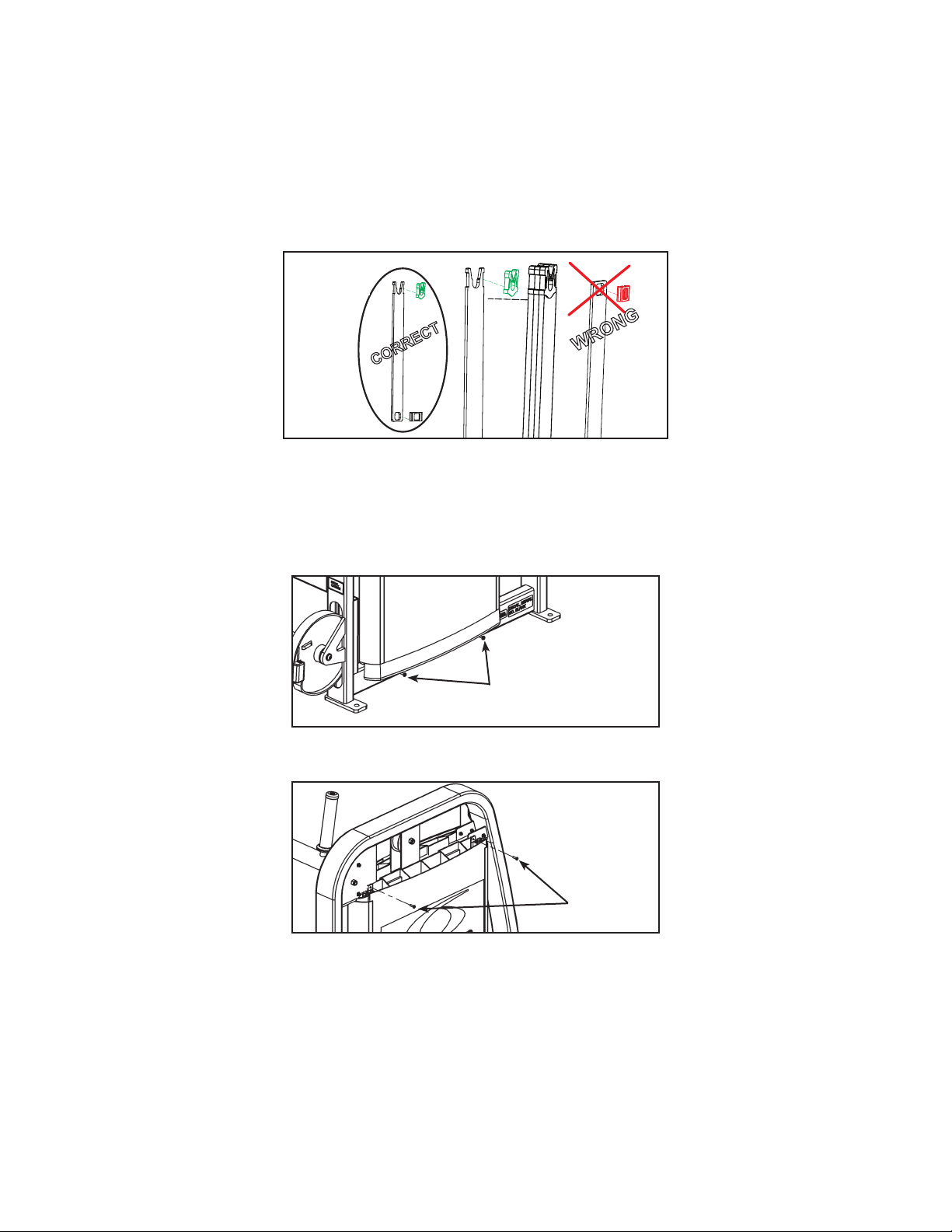

6. Place weight stack pin in each plate to verify proper installation.
7. Without selecting any resistance, lift top weight up and down (simulating normal operation.)
8. Verify that the belt is moving smoothly and is routed straight from the top pulley bracket to the
weight belt clamp.
9. Reinstall the six increment weights that were removed.
WRONG
CORRECT
Increment
Weights
10. Turn the Increment Weight Adjusting Knob to select 15 lbs.
Install back shrouds
1. Place shroud back into position on the two bottom screws.
Screw
2. Install the top two screws securing the back shroud.
Screw

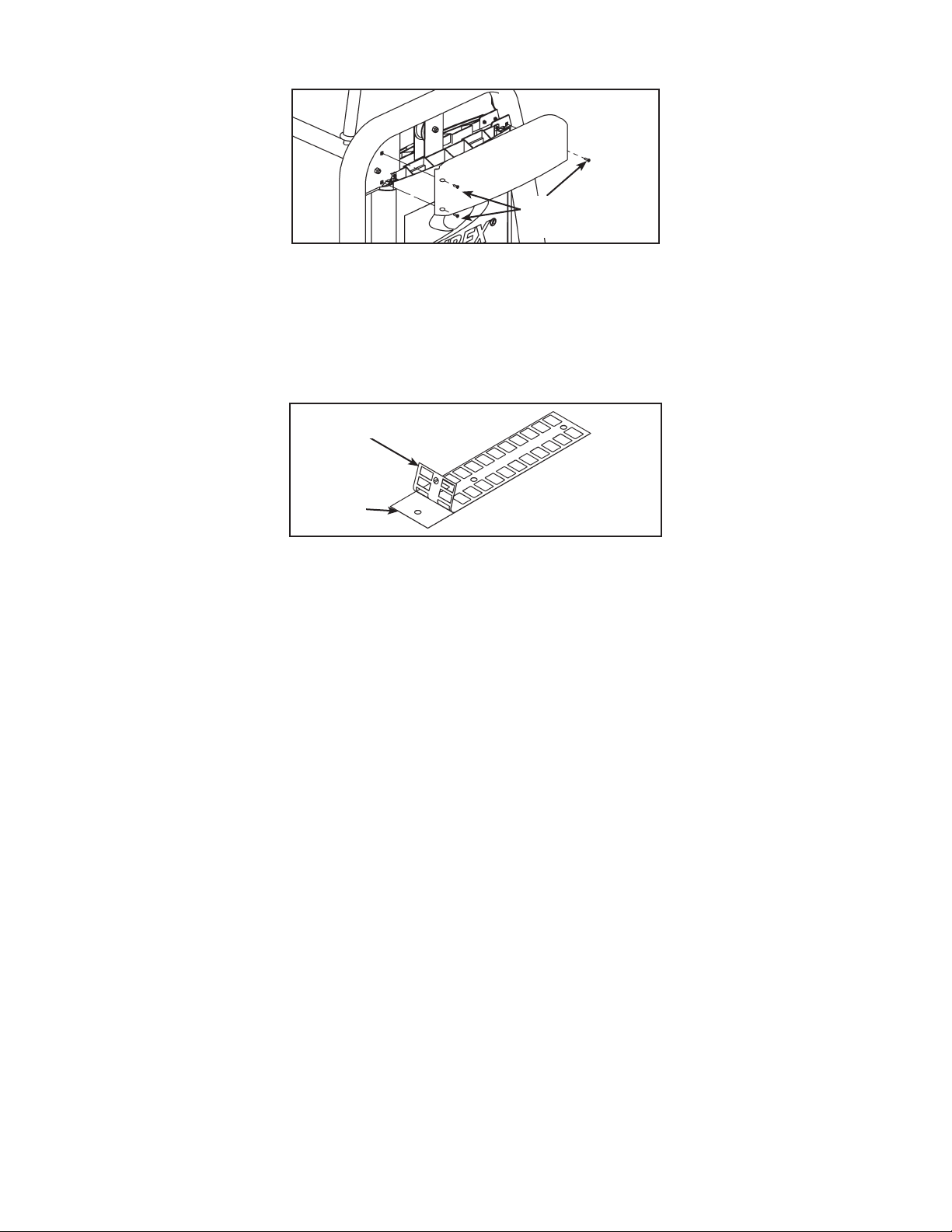

3. Install the three Phillips head screws securing the top (back) shroud.

16
Cybex Owner’s Manual
Phillips Head
Screw (3)
Install weight plate decals
You have the option to use pounds, kilograms or both.
1. Slowly and carefully peel off back side of decal, making sure that the decals remain attached
to the front sticker.
Front
Back
2. Align holes in decal with appropriate holes in weight stack. Do not allow the adhesive to
touch weight stack at this time.
3. Insert a guide pin through each hole of the template. A guide pin can be anything that ts
through the weight stack hole, such as a weight stack selector pin.
4. Align decal and rub it onto weight plates.
5. Remove front side, leaving decals adhering to weight plates.

17
Cybex Owner’s Manual
180 81.0
144.0
135.0
126.0
117.0
108.0
200
99.0
90.0
300
280
260
240
220
320
340 153.0
180.0
360
171.0
162.0
400
380
20 9.0
72.0
63.0
54.0
45.0
36.0
40 18.0
140
120
100
80
60
160
180 81.0
144.0
135.0
126.0
117.0
108.0
200
99.0
90.0
300
280
260
240
220
320
340 153.0
180.0
360
171.0
162.0
400
380
20 9.0
72.0
63.0
54.0
45.0
36.0
40
27.0
18.0
140
120
100
80
60
160
1
2
10
11
8
9
7
5
4
12
14
13
15
16
17
18
19
20
3
6
Pounds
Weight Stack
Guide Rod
Kilograms
IMPORTANT:
It is important that you perform regular inspection and maintenance activities on your equipment.
See the CYBEX Eagle Owner’s Manual for inspection and maintenance activities. If you do not have
a CYBEX Eagle Owner’s Manual or if you have any questions or concerns, call CYBEX Customer
Relations at 888-462-9239.
Securelyanchormachinetotheoor
Cybex strongly recommends to maximize stability, equipment must be secured to a solid level
surface.
CAUTION: Cybex is not responsible for the actual anchoring of equipment. Consult with
a professional contractor.
WARNING: Use fasteners having a minimum of 500 lbs. tensile capacity (3/8’’ grade 2
bolts or better).
WARNING: If legs/frame does not contact surface, DO NOT pull down with anchors. Shim
any leg or frame not in contact with surface using at washers.
Verify proper operation

18
Cybex Owner’s Manual
Exercise
Intended Use
The intended commercial use of this machine is to aid exercise and improve general physical tness.
Instructions
Read and understand all instructions and warnings prior to using this machine in the Safety
section of the Owner’s Manual.
All adjustment points on the machine have yellow handles or knobs.
Set Up
1. Adjust foot bar for a bend at the knees.
2. Extend legs to keep back rmly against pad while keeping a slight bend at the knee.
3. Grasp handles, lean back while extending arms.
Movement
1. Push the handles by bending forward from the trunk while keeping arms fully extended.

19
Cybex Owner’s Manual
CAUTION: Serious injury can result if precautions are not followed. Use equipment
only as described in placards located on each machine. Failure to use in the
manner depicted can result in injury.
ABDOMINAL
Motions Developed
Trunk Flexion
Muscles Used
Rectus Abdominis,
Internal and External
Oblique
START FINISH

20
Cybex Owner’s Manual
Maintenance
All preventive maintenance activities must be performed on a regular basis. Performing routine
preventive maintenance actions can aid in providing safe, trouble-free operation of all Cybex
equipment.
Cybex is not responsible for performing regular inspection and maintenance actions for your
machines. Instruct all personnel in equipment inspection and maintenance actions and also in
accident reporting/recording. Cybex representatives are available to answer any questions that you
may have.
Warnings
Read all warnings in this chapter.
WARNING: For maintenance, service and repair:
• Must be performed by trained service personnel only
• Use only Cybex replacement parts.
Observe the following warnings:
WARNING: Equipment hazard.
To avoid serious injury or death replace worn or damaged components immediately
and keep the equipment out of use until repair is completed.
Daily Procedures
When using strong cleaning agents such as rubbing alcohol or bleach, it is advisable to rst test in an
inconspicuous area. Other cleaning agents may contain harsh or unknown solvents and are subject to
formula changes by the product manufacturer without notice. Should you desire to use other cleaning
agents, carefully try them in an inconspicuous area to determine potential damage to the material.
Never use harsh solvents or cleaners which are intended for industrial applications. To clean stained
or soiled areas, a soft white cloth is recommended. Avoid use of paper towels.
Cleaning products may be harmful/irritating to your skin, eyes, etc. Use protective gloves and eye
protection. Do Not inhale or swallow any cleaning product. Protect surrounding area/clothing from
exposure. Use in well ventilated area. Follow all product manufacturer’s warnings. Cybex and its
vendors cannot be held responsible for damage or injuries resulting from the use or misuse of
cleaning products.
