CYP OR-HD88HC User manual

OR-HD88HC
v1.4 HDMI 8 x 8 Matrix Switcher withsimultaneous
HDMI & CAT Outputs (inc. IR)
OPERATION MANUAL

DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer le, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2011 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sucient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
RDV1 26/03/12 Preliminary Release
RDV2 04/07/12 Controls Function
v1.01 24/07/12 Telnet and Web GUI sections updated

CONTENTS
1. Introduction ...........................................6
2. Applications ...........................................6
3. Package Contents ..................................6
4. System Requirements ...........................6
5. Features ..................................................7
6. Operation Controls and Functions .......8
6.1 Front Panel ................................................... 8
6.2 Rear Panel ..................................................... 9
6.3 Side Panel ...................................................10
6.4 Remote Control ........................................10
6.5 IR Cable Pin Assignment .......................11
6.6 RS-232 Pin Assignment..........................12
6.7 RS-232 and Telnet Commands ............13
6.8 Telnet Control ............................................14
6.9 Web GUI Control ......................................16
7. Connection Diagram .......................... 18
8. Specications ...................................... 20
9. Acronyms ............................................. 21

6
1. INTRODUCTION
The OR-HD88HC Matrix Switcher connects eight HDMI sources to 16
displays. This matrix features 8 HDMI outputs and each HDMI output
is mirrored to provide a Twin CAT output which runs simultaneously.
Connect a PU-1106RX Receiver to each of the Twin CAT outputs to extend
the HDMI signal up to 45m for multi-room connectivity.This matrix
switcher can be controlled via the supplied IR Remote Control, RS-232, or
by using the selection buttons on the front of the unit. This device supports
‘Deep Colour’, High Denition Audio, and 3D signal compatibility.
2. APPLICATIONS
Multi-zoned HD installations
HD and AVR Sub-zone installation
Video and TV wall display and control
Security surveillance and control
Commercial advertising, display and control
University Lecture hall display and control
Retail demonstration and sales
3. PACKAGE CONTENTS
8×8 HDMI over Dual CAT6 Matrix
1×IR Receivers
8×IR Emitters
1×24 V/6.25 A DC Power Adaptor
1×IR Remote Control
Operation Manual
4. SYSTEM REQUIREMENTS
HDMI equipped source devices, connect with HDMI cables or DVI
equipped source, connect with DVI to HDMI cables
HDMI equipped displays (TVs or monitors) or HDMI equipped AV
receivers, connect with HDMI cables
HDMI over dual CAT6 Receiver(s) with industry CAT6 cable

7
5. FEATURES
HDMI, HDCP 1.1, DVI 1.0 compliant
Resolutions supported: PC - VGA to WUXGA ; HDTV - 480i to 1080p
plus 1080p24fps
High Denition audio supported: Dolby TrueHD, Dolby Digital Plus,
DTS-HD Master Audio + LPCM
The HDMI input is compensated, clock / phase adjusted, and jitter
eliminated so the output is a brand new standard HDMI signal running
up to 15m at 1080p
RS-232, CEC Command functionality, IR Remote Control, and IR
receiver supported
Selectable EDID settings - TV (downstream) and STD (xed)
Supports Deep Colour (10 & 12 bit)
Supports 3D signals
Key lock function
Note:
1. Tested with CAT-6/23AWG cable, results may vary with cables of a
dierent specication.
2. Cable distance tested with a Sony PS3 40G, 37" Philips 8-bit LCD TV
and 37" Samsung 12-bit LCD TV.
3. Figures provided in this manual are for reference only, actual gures
may vary depending on the source equipment and display being used
along with the type of cables and their specications.
4. Do not connect the LAN/CONTROL port to CAT outputs of this device.

8
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
POWER LOCK
MENU OUTA 1B2C3D4
IN
E5F6G7H8
2 3 4 5 61
1 LCM: Displays the setting information of each input and output
setting.
2 POWER: Press this button to power the device on/o. The LED will
illuminate green when the power is on, red when it is in 'Standby'
mode.
3 LOCK: Press this button to lock all the buttons on the panel, press
again to unlock.
4 IR: IR Receiver window (accepts the remote control signal of this
device only).
5 MENU: Press this button to access the LCM menu system, from here
EDID settings can be managed and IP system settings are displayed.
6 1~8/A~H and OUT/IN: Press the OUT or IN button to select the
output or input mode and then press the required number button to
make the selection accordingly.
For example, if outputs A~D need to be set to input 1 and outputs
E~H need to be set to input 2, then the following sequence of button
presses need to be performed:
Press: OUTABCDIN1MENU,
and then press: OUTEFGHIN2MENU.
Note: If the menu button is not pressed the selection will not be changed.

9
6.2 Rear Panel
CONTROL
DC 24V
RS232 SERVICE
OEDIVOEDIVOEDIVOEDIVOEDIVOEDIVOEDIVOEDIVIMDH
DDC CDDCDDCDDCDDCDDCDDCDD
OUTPUT A
1
HDMI IN 2 HDMI IN 3 HDMI IN 4 HDMI IN 5 HDMI IN 6 HDMI IN 7 HDMI IN 8 HDMI IN
1
23
4
V+
GND
GND GND
V+
IR
HDMI
OUTPUT B
IR
HDMI
OUTPUT C
IR
HDMI
OUTPUT D
IR
HDMI
OUTPUT E
IR
HDMI
OUTPUT F
IR
HDMI
OUTPUT G
IR
HDMI
OUTPUT H
IR
IR IN
2 4
3
91
6
8
5
7
1 CONTROL: This port is the link for Telnet control, connect to an active
Ethernet link with an RJ45 terminated cable (for further details, please
refer to sections 6.8 and 6.9).
Warning: Please do not connect this port directly to the PC/Laptop as the
Telnet function will not work.
2 RS-232: Connect to a PC or control system with D-Sub 9-pin cable for
the transmission of RS-232 commands.
3 IR IN: Connect to the IR receivers for IR signal reception from the
remote control of the Matrix. Ensure that the remote is within the
direct line-of-sight of the IR receiver when used.
4 SERVICE: Manufacturer use only.
5 IR OUT A~H: Connect to the IR emitters for IR signal transmission.
Place the IR emitter in direct line-of-sight of the equipment to be
controlled.
6 DDC/VIDEO OUTPUT A~H: Connect from these CAT outputs to the
CAT input port of the receiver units with a single CAT5e/6/7 cable for
HDMI Audio/Video and IR control signal transmission.
7 HDMI OUT A~H: Connect to HDMI equipped TVs or monitors for
display of the HDMI input source signal.
8 HDMI IN 1~8: Connect to the HDMI input source devices such as a
DVD player or a Set-top Box with HDMI cable or DVI to HDMI cable.
9 DC 24V: Plug the 24 V DC power supply into the unit and connect the
adaptor to an AC outlet.

10
6.3 Side Panel
1
1 Fan Ventilator: These are air ventilation areas, DO NOT block these
areas or cover it with any object. Please allow adequate space around
the unit for air circulation.
6.4 Remote Control
1 POWER: Press this button to
switch on the device or set it to
standby mode.
2 IN: Input ports selection 1~8.
3 OUT: Output ports selection A~H.
1
23

11
6.5 IR Cable Pin Assignment
3
1
3
1
2
2
Power 5 V
IR Emitter Signal
NC
IR Signal
Power 5 V
Grounding
IR Receiver
IR Emitter

12
6.6 RS-232 Pin Assignment
OR-HD88HC
►
◄
Remote Control Console
PIN Assignment PIN Assignment
1NC 1NC
2Tx 2Rx
3Rx 3Tx
4NC 4NC
5GND 5GND
6NC 6NC
7NC 7NC
8NC 8NC
9NC 9NC
Baud Rate: 19200 bps
Data Bit: 8-bit
Parity: None
Stop Bit: 1-bit
Flow Control: None

13
6.7 RS-232 and Telnet Commands
Command Description
A1~A8 Switch Output A to 1~8
B1~B8 Switch Output B to 1~8
C1~C8 Switch Output C to 1~8
D1~D8 Switch Output D to 1~8
E1~E8 Switch Output E to 1~8
F1~F8 Switch Output F to 1~8
G1~G8 Switch Output G to 1~8
H1~H8 Switch Output H to 1~8
ABCE…1~ABCD…8 Switch Output ABCD… to 1~8 at the
same time
SETIP <IP><SubNet><GW> Setting IP. SubNet.GateWay<Static IP>
RSTIP IP conguration was reset to factory
defaults<DHCP>
IPCONFIG Display the current IP cong
P0 Power Off
P1 Power On
I1~I8 Switch all the output to 1~8
ST Display the current matrix state and
rmware version
RS System Reset to H8
EM Setting EDID MODE. 1-STD 2-TV.
?Display all available commands
QUIT Exit (Telnet only)
Note: Any commands will not be executed unless followed by a carriage
return. Commands are not case-sensitive.

14

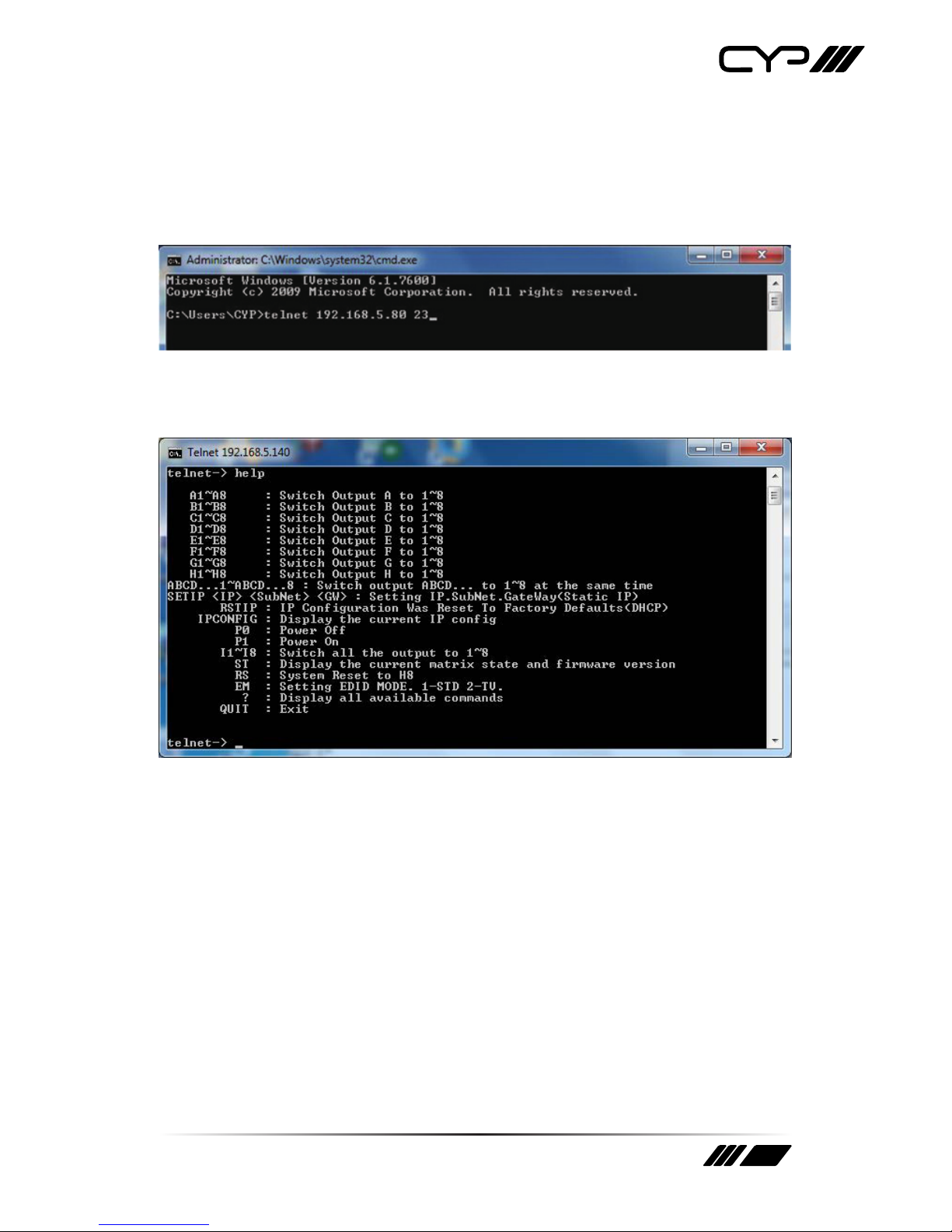

6.8 Telnet Control
Before attempting to use the telnet control, please ensure that both the
Matrix (via the 'LAN /CONTROL' port) and the PC/Laptop are connected to
active networks.
Note: Please do not connect both the Matrix and the PC/Laptop with a single
CAT5e/6 cable as it will not access the telnet function.
To access the telnet control in Windows 7, click on the 'Start' menu and
type "cmd" in the Search eld then press enter.
Under Windows XP go to the 'Start' menu and click on "Run", type "cmd"
with then press enter.
Under Mac OS X, go to GoApplicationsUtilitiesTerminal
See below for reference.

15
Once in the command line interface (CLI) type "telnet", a space, then the
IP address of the unit you wish to control, a space and "23", then hit enter.
Note: The IP address of the Matrix can be displayed on the device's LCM
monitor by pressing the Menu button twice.
This will bring us into the device which we wish to control. Type "HELP" to
list the available commands.
Type “IPCONFIG” To show all IP congurations. To reset the IP, type “RSTIP”
and to use a set static IP, type ”SETIP” (For a full list of commands, see
Section 6.7).
Note: Any commands will not be executed unless followed by a carriage
return. Commands are not case-sensitive. If the IP is changed then the IP
Address required for Telnet access will also change accordingly.

16
6.9 Web GUI Control

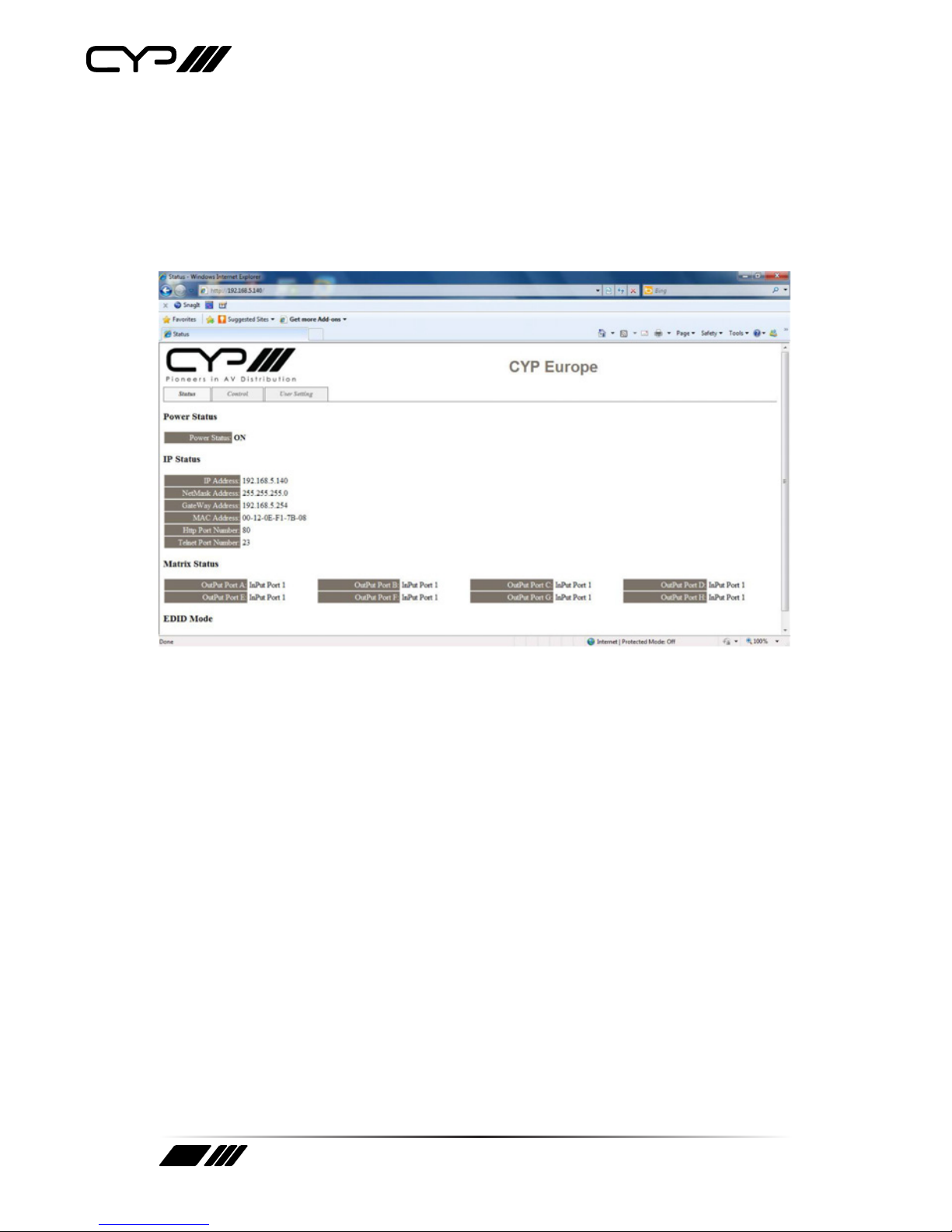

On a PC/Laptop that is connected to an active network, open a web
browser and type the Matrix's IP address on the web address entry bar.
The browser will display the device's status, control and User setting
pages.
Click on the 'Control' tab to control power, input/output ports, EDID and
reset mode.

17
Click on the 'User Setting' tab allows you to reset the IP conguration. The
system will ask for a reboot of the device every time any of the settings
are changed. The IP address needed to access the Web GUI control will
also need to be changed accordingly on the web address entry bar.

18
7. CONNECTION DIAGRAM
DC 24V
RS232 SERVICE
CONTROL
HDMI VIDEO VIDEO VIDEO VIDEO VIDEO V
IDEO VIDEO VIDEO
DDC DDC DDC DDC DDC
DDC DDC DDC
OUTPUT A
1
HDMI IN 2 HDMI IN 3 HDMI IN 4 HDMI IN 5 HDMI IN 6 HDMI IN
7
HDMI IN 8 HDMI IN
1
23
4
V+
GND
GND GND
V+
IR
HDMI
OUTPUT B
IR
HDMI
OUTPUT C
IR
HDMI
OUTPUT D
IR
HDMI
OUTPUT E
IR
HDMI
OUTPUT F
IR
HDMI
OUTPUT G
IR
HDMI
OUTPUT H
IR
IR IN
ZONE A
ZONE B
ZONE C
ZONE D
ZONE E
ZONE F
ZONE G
ZONE H
4 5 6
8
7
321
ZONE F
ZONE EZONE GZONE H
ZONE AZONE BZONE CZONE D
RX RX RX RX RX
RX RX RX
VIDEO DDC
CAT6 INPUT
VIDEO DDC
CAT6 INPUT VIDEO DDC
CAT6 INPUT VIDEO DDC
CAT6 INPUT
VIDEO DDC
CAT6 INPUT VIDEO DDC
CAT6 INPUT VIDEO DDC
CAT6 INPUT
VIDE
O DDC
CAT6 INPUT
IR EMITTER
1.5m
60°
IR RECEIVER
7m
3m 3m
60°
m
RS232 Equipped
PC or Notebook
IR Input
Router or Wireless
Router
Source Equipment

19
DC 24V
RS232 SERVICE
CONTROL
HDMI VIDEO VIDEO VIDEO VIDEO VIDEO VIDEO
VIDEO VIDEO
DDC DDC DDC DDC DDC DDC
DDC DDC
OUTPUT A
1
HDMI IN 2 HDMI IN 3 HDMI IN 4 HDMI IN 5 HDMI IN 6 HDMI IN
7
HDMI IN 8 HDMI IN
1
23
4
V+
GND
GND GND
V+
IR
HDMI
OUTPUT B
IR
HDMI
OUTPUT C
IR
HDMI
OUTPUT D
IR
HDMI
OUTPUT E
IR
HDMI
OUTPUT F
IR
HDMI
OUTPUT G
IR
HDMI
OUTPUT H
IR
IR IN
ZONE A
ZONE B
ZONE C
ZONE D
ZONE E
ZONE F
ZONE G
ZONE H
4 5 6
8
7
321
ZONE F
ZONE
EZONE GZONE H
ZONE AZONE BZONE CZONE D
RX RX RX RX RX
RX RX RX
VIDEO DDC
CAT6 INPUT
VIDEO DDC
CAT6 INPUT VIDEO DDC
CAT6 INPUT VIDEO DDC
CAT6 INPUT
VIDEO DDC
CAT6 INPUT VIDEO DDC
CAT6 INPUT VIDEO DDC
CAT6 INPUT
VIDEO D
DC
CAT6 INPUT
IR EMITTER
1.5m
60°
IR RECEIVER
7m
3m 3m
60°
m
Source Equipment
Main Power Supply
Receiver Units
Dual
CAT6 Cables
45 m
HDMI Outputs
IR Outputs
HDMI Outputs
IR Receivers
Displays
Displays

20
8. SPECIFICATIONS
VIDEO BANDWIDTH 255 MHZ/6.75 GBPS
INPUT PORTS 8×HDMI, 1×IR RECEIVER, 1×RS-232,
1×MINI USB TYPE B (FOR FIRMWARE
UPDATE ONLY)
OUTPUT PORTS 8×DUAL CAT6, 8×IR EMITTER, 8×HDMI
HDMI INPUT CABLE
DISTANCE
15M/8-BIT, 10M/12-BIT
HDMI OUTPUT CABLE
DISTANCE
15M/8-BIT, 15M/12-BIT
CAT6 CABLE DISTANCE 45M/8-BIT
ESD PROTECTION HUMAN-BODY MODEL:
± 8KV (AIR-GAP DISCHARGE)
± 4KV (CONTACT DISCHARGE)
POWER SUPPLY 24 V/6.25 A DC (US/EU STANDARDS, CE/
FCC/UL CERTIFIED)
DIMENSIONS 438 MM (W)×255 MM (D)×93 MM (H)
WEIGHT 4,458 G
CHASSIS MATERIAL METAL
SILKSCREEN COLOUR BLACK
OPERATING TEMPERATURE 0 ºC~40 ºC/32 ºF~104 ºF
STORAGE TEMPERATURE −20 ºC~60 ºC/−4 ºF~140 ºF
RELATIVE HUMIDITY 20~90 % RH (NON-CONDENSING)
Power Consumption 55 W
