CYP SY-P293 User manual

SY-P293
PC to HDMI Converter and Scaler with Audio
OPERATION MANUAL

3
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer file, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2019 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

4
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of fire,
electrical shock and injury to persons.
• To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufficient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
v2.00 08/07/2019 Updated Format/Diagrams

5
CONTENTS
1.Introduction............................................6
2. Applications ...........................................6
3. Package Contents ..................................6
4. SYSTEM REQUIREMENTS.......................6
5. Features..................................................7
6. Operation Controls and Functions.......8
6.1 Front Panel................................................... 8
6.2 Rear Panel..................................................... 9
6.3 OSD Menu Operations...........................10
6.4 Supported Resolutions..........................12
7. Connection and Installation .............. 13
8. Specifications...................................... 14
9. Acronyms............................................. 15

6
1.INTRODUCTION
The SY-P293 is designed to scale analogue video signal from a PC
source to a digital HDMI output boasting a wide-range of HDTV and PC
resolutions. Audio is combined with HDMI video output. This unit offers
a selection of colour space and adjustment to obtain the best picture
quality.
2. APPLICATIONS
Display an analogue PC/HD video signal on an HDMI display
Scale an analogue PC/HD video signal to HD resolutions
Integrate an analogue PC/HD video device, such as a Laptop or non-
HDMI DVD player to an HDMI equipped display or AV receiver
3. PACKAGE CONTENTS
PC to HDMI 1080p Scaler Box
5V DC Power Supply Adaptor
Operation Manual
4. SYSTEM REQUIREMENTS
Input source equipment such as PC/laptop or Blu-ray player and output
to HDTV or HD monitor with HDMI connection cables.

7
5. FEATURES
v1.2 HDMI, HDCP 1.1 and DVI 1.0 compliant
PC to HDMI Scaler Converter with Audio
Scales any PC resolutions to PC or HDTV resolutions
Resolutions Supported: PC - VGA, SVGA, XGA, SXGA, UXGA, WXGA,
WSXGA, WUXGA. SD/HD - 480i, 576i, 480p, 576p, 720p, 1080i and
1080p
Audio Support: Analogue Stereo, Digital stereo PCM, DTS, and
Dolby Digital. Simply select from the audio input source this is then
outputted to HDMI, Optical (Toslink), and mini-jack (stereo only)
simultaneously
On Screen Menu with push button control
Provides output picture adjustment on contrast, brightness, hue,
saturation, sharpness, RGB (colour tone) level and aspect ratio size
Automatic detection of the factory setting of the connected display
and output the corresponding resolution and refresh rate, when the
NATIVE output is selected (default setting)

8
6. OPERATION CONTROLS AND FUNCTIONS

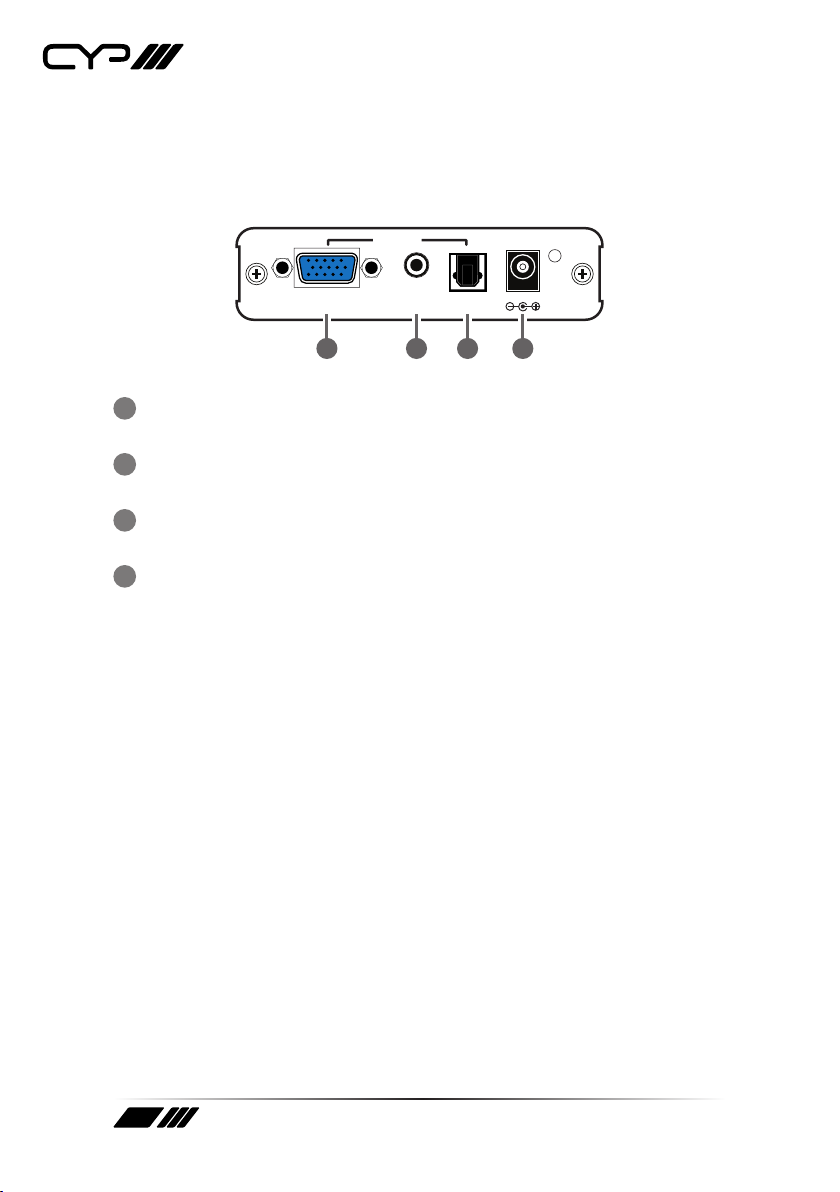

6.1 Front Panel
PC AUDIO OPTICAL
DC 5V
INPUT
1 2 3 4
1PC Input: Connect the PC input D-Sub (15-pin) port to the D-Sub
output port of your source equipment such like PC.
2Audio Input: Connect the PC 3.5mm phone jack input port to the
analogue audio output port of your source equipment.
3Optical Input: Connect the optical input port to the digital audio
output port of your source equipment.
4Power: Plug the 5V DC power supply into the unit and connect the
adaptor to AC wall outlet.

9

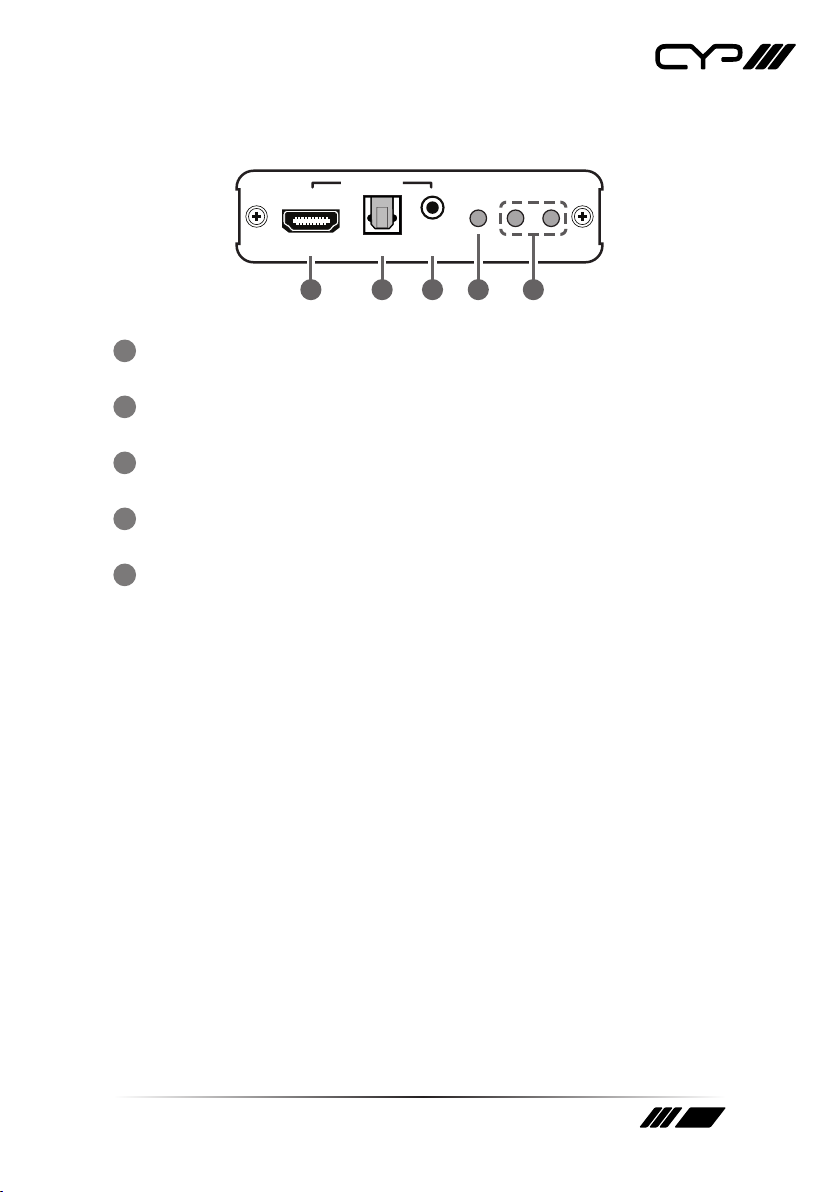

6.2 Rear Panel
HDMI AUDIO
MENU +
-
OPTICAL
OUTPUT
1 2 3 4 5
1HDMI Output: Connect the HDMI output port to the HDMI input port
of your display such like HDTV.
2Optical Output: Connect the optical output port to the digital audio
input port of your amplifier.
3Audio Output: Connect the PC 3.5mm phone jack output port to the
analogue audio input port of your equipment.
4Menu Button: Press the MENU button to bring up OSD operation
menu. (See section “4. OSD Operation” for reference.)
5+/- Button:
a. On the first tier of OSD menu, use + and – buttons to move up/
down the highlight item for selection.
b. Once the desired option is selected, use + and – buttons to toggle
between setting values.
Note: Outside of the OSD menu, press [−] button to active the Auto Adjust
function. The screen will show Auto Adjust.
-Press [MENU] and then minus [ − ] to switch to 480p mode.
-Press [MENU] and then plus + ] to switch to XGA mode.

10
6.3 OSD Menu Operations
1st Tier Option 2nd Tier Option Adjustment
CONTRAST - 0 ~ 100 of Contrast Level
BRIGHTNESS - 0 ~ 100 of Brightness Level
FINETUNE - HUE 0 ~ 100 of Hue Level
- SATURATION 0 ~ 100 of Saturation Level
- SHARPNESS 0 ~ 100 of Sharpness Level
- EXIT Back to 1st Tier
COLOR - RED 0 ~ 100 of Red Colour Level
- GREEN 0 ~ 100 of Green Colour Level
- BLUE 0 ~ 100 of Blue Colour Level
- EXIT Back to 1st Tier
SIZE - FULL / OVERSCAN / UNDERSCAN /
LETTERBOX / PANSCAN
OUTPUT NATIVE / VGA / SVGA / XGA / SXGA
/UXGA / 480i / 480p /
720p@60Hz / 1080i@60Hz /
1080p@60Hz / 576i / 576p /
720p@50Hz / 1080i@50Hz /
1080p@50Hz / WXGA / WSXGA
/ WUXGA
AUDIO - HDMI / EAR PHONE / OPTICAL
OSD - HPOSITION 0 ~ 100 of OSD Horizontal Position
- VPOSITION 0 ~ 100 of OSD Vertical Position
- TIMER 0 ~ 100 of OSD Existing Time (sec.)
- BACKGROUND 0 ~ 100 of OSD Transparent Level
- EXIT Back to 1st Tier

11
1st Tier Option 2nd Tier Option Adjustment
INFORMATION SOURCE (Input Interface)
INPUT (Input Resolution)
OUTPUT (Output Resolution)
VERSION (Firmware Version)
EXIT Close OSD Menu
Note: Finetune function works differently under component and VGA input
therefore, Hue, Saturation and Sharpness are only adjustable when input
signal is component.

12
6.4 Supported Resolutions
Resolutions PC INPUT HDMI OUTPUT
SD/HD PC
480i/576i (NTSC/PAL) 
480p/576p 
720p@50/60 
1080i@50/60 
1080p@50/60 
VGA@60/72/75/85  
SVGA@56/60/72/75/85  
XGA@60/70/75/85  
SXGA@60/75/85  
UXGA@60  
WXGA@60 (1280x800)  
WSXGA@60 (1680x1050)  
WUXGA@60 (1920x1200)  

13
7. CONNECTION AND INSTALLATION
HDMI AUDIO
MENU +
-
OPTICAL
OUTPUT
PC AUDIO OPTICAL
DC 5V
INPUT
Optical
Digital
Audio
Input
Optical
Digital
Audio
Output
Analogue
Audio
Input
D-Sub/
VGA
Input
Analogue
Audio
Output
PC/Laptop
HDMI
Output
Power
Supply
AV ReceiverHDTV

14
8. SPECIFICATIONS
PC Input Port 1 x VGA (15 PIN DSUB)
HDCP Version v1.1
HDMI Output Port 1 x HDMI
HDMI Specication v1.2
Analogue Audio Input 3.5mm Stereo Jack
Analogue Audio Output 3.5mm Stereo Jack
Digital Audio Inputs 1 x Optical (Toslink)
Digital Audio Outputs 1 x Optical (Toslink)
Power Supply 5V DC/2.6A (US/EU standards, CE/FCC/UL Certified)
Dimensions (mm) 154(D) x 100(W) x 25(H)
Chassis Colour Black
Chassis Material Aluminium
Operating Temperature Operating from 0°C ~ 48°C
Weight (g) 340

15
9. ACRONYMS
ACRONYM COMPLETE TERM
HDMI High-Definition Multimedia Interface
WUXGA (RB) Widescreen Ultra Extended Graphics Array
(Reduce blanking)

CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton,
Middlesex, TW17 8BA
Tel: [phone] | Fax: [phone]
Email: [email protected]
www.cypeurope.com
