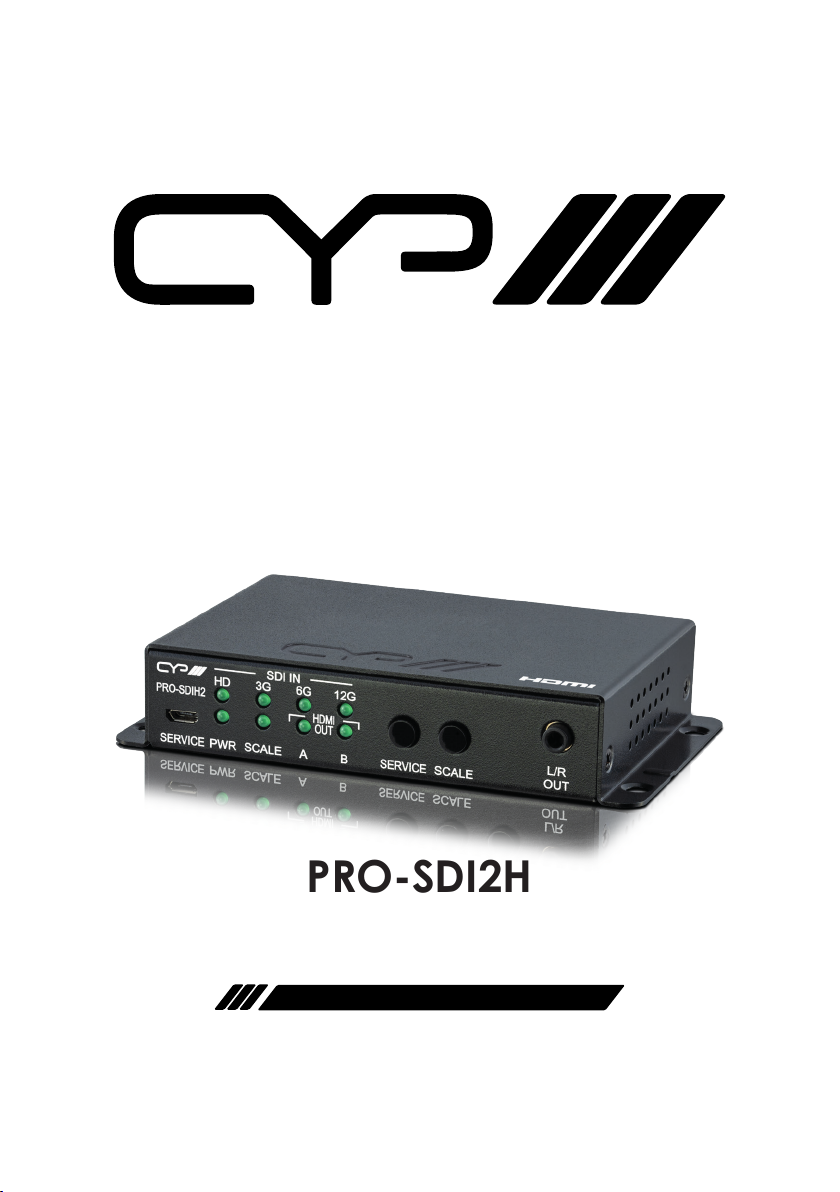

CYP PRO-SDI2H User manual

PRO-SDI2H
12G-SDI to HDMI Converter
OPERATION MANUAL

DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer le, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2022 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply. Please keep the
following in mind as you unpack and install this equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sucient space for air to circulate around the unit.
• Please completely disconnect the power when the unit is not in use
to avoid wasting electricity.
VERSION HISTORY
REV. DATE SUMMARY OF CHANGE
RDV1 2022/03/03 Preliminary release
RDV2 2022/04/27 Updated text in specication section

CONTENTS
1. Introduction..................................................1
2. Applications ..................................................1
3. Package Contents .........................................1
4. System Requirements ..................................1
5. Features.........................................................2
6. Operation Controls and Functions..............3
6.1 Front Panel.............................................................3
6.2 Rear Panel...............................................................4
7. Connection Diagram ....................................5
8. Specications................................................6
8.1 Technical Specications ....................................6
8.2 Video Specications............................................7
8.3 Audio Specications...........................................9
8.3.1 Digital Audio ..............................................9
8.3.2 Analogue Audio........................................9
8.4 Cable Specications ........................................ 10
9. Acronyms.....................................................11

1
1. INTRODUCTION
This 12G-SDI to HDMI Converter allows SDI signals up to 4K UHD+to
be converted for display on standard HDMI video displays. This makes
it easier for professionals to monitor or output professional SDI video
production sources on standard, relatively low-cost, HDMI displays while
allowing the original SDI signal to continue to be looped on to other SDI
equipment in their production environment. Additionally, the inclusion
of a 3.5mm analogue stereo output lets the user monitor the audio using
simple powered speakers or headphones. Basic control is available via
front panel buttons.
2. APPLICATIONS
Display 12G-SDI video signals on standard 4K HDMI displays
Broadcast SDI to consumer HDMI video signal conversion
12G-SDI signal extension via re-clocked loop output
3. PACKAGE CONTENTS
1× 12G-SDI to HDMI Converter
1× 5V/2.6A DC Power Adapter
1× Operation Manual
4. SYSTEM REQUIREMENTS
SDI source equipment such as editing/recording decks, professional
cameras, or video broadcast equipment.
HDMI receiving equipment such as HDTVs, monitors, or audio
ampliers.

2
5. FEATURES
HDMI 2.0 and DVI 1.0 compliant
1 SDI video input
3 mirrored outputs (2×HDMI, 1×12G-SDI) & 1 analogue stereo audio
output
Supports up to 4K UHD (12Gbps, 4K@50/60Hz 4:2:2, 8-bit) digital video
input
SDI input supports the following SMPTE standards: ST 292-1 Level A, ST
425-1, ST 2081-10, ST 2082-10
Looped SDI output is re-clocked
SDI signal extension distance varies based on signal type: 80 meters
(12G-SDI), 100 meters (6G-SDI) 200 meters (3G-SDI), or 260 meters (HD-
SDI)
4K sources can be optionally downscaled to 1080p when output over
the HDMI outputs to support lower cost local monitoring options
Supports pass-through of LPCM audio (up to 8 channels)
Controllable via front panel controls

3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
SCALESCALE SERVICE
SDI IN
3G 6G 12GHD
PWR
SERVICE
AB
HDMI
OUT
L/R
OUT
PRO-SDIH2
1 3 4 5 6 7 8
2
1SERVICE Port: This port is reserved for rmware update use only.
2SDI IN LEDs: These LEDs will illuminate to indicate the SDI format
currently in use on the SDI input.
3PWR LED: This LED will illuminate to indicate the unit is on and
receiving power.
4SCALE LED: This LED illuminate when the HDMI outputs are being
downscaled.
5HDMI OUT A~B LEDs: These LEDs will illuminate to indicate when a
valid sink has been detected on the associated output port. When no
sink is detected the LED will remain o.
6SERVICE Button: Press this button to put the unit into its rmware
update mode.
Firmware Update Process: To update rmware after pressing the
button, connect the unit to a PC/laptop via the Micro-USB Service
port and the unit will appear as an external drive. Drag an appropriate
rmware le onto this drive and the unit will automatically begin
the update process. After the update completes, the unit will
automatically reboot.
7SCALE Button: Press this button to enable or disable the HDMI
outputs’4K to 1080p downscaling function.
Note: 3840x2160 will be downscaled to 1920x1080. 4096x2160 will be
downscaled to 2048x1080.
8L/R OUT Port: Connect to powered speakers or an amplier for
analogue stereo audio output.

4
6.2 Rear Panel
DC 5V
IN OUT
SDI HDMI OUT
BA
1 42 3
1SDI IN Port: Connect to SDI source equipment such as editing/
recording decks, professional cameras, or video broadcast equipment.
SDI signals up to 12G-SDI are supported.
2SDI OUT Port: Connect to SDI receiving equipment such as editing/
recording decks, professional studio monitors, or video broadcast
equipment.
Note: This output is re-clocked to support sequential daisy chain cable
extensions, without signal loss, if desired.
3HDMI OUT A~B Ports: Connect to HDMI TVs, monitors, or ampliers
for digital video and audio output.
4DC 5V Port: Plug the 5V DC power adapter into this port and connect
it to an AC wall outlet for power.

5

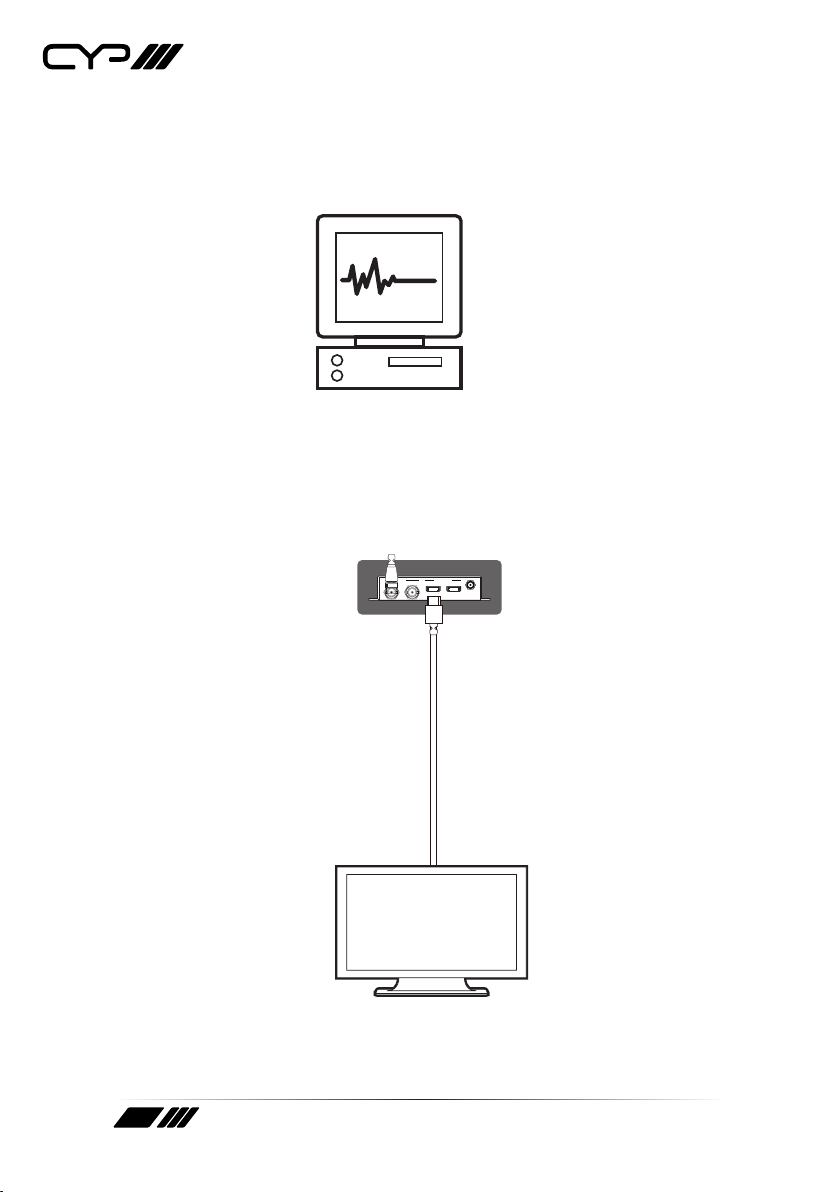

7. CONNECTION DIAGRAM
DC 5V
IN OUT
SDI HDMI OUT
BA
Monitor
HDMI
Output
SDI
Input
Medical
Equipment

6
8. SPECIFICATIONS
8.1 Technical Specications
HDMI Bandwidth 18Gbps
SDI Bandwidth 12Gbps
SMPTE Standard Support ST 292-1 Level A
ST 425-1
ST 2081-10
ST 2082-10
Input Ports 1×12G-SDI (BNC)
Output Ports 1×12G-SDI (BNC)
2×HDMI (Type-A)
1×Unbalanced Stereo Audio (3.5mm)
Service Port 1×USB 2.0 (Micro-B)
Power Supply 5V/2.6A DC
(US/EU standards, CE/FCC/UL certied)
ESD Protection (HBM) ±8kV (Air Discharge)
±4kV (Contact Discharge)
Dimensions (W×H×D) 128mm×25mm×75mm [Case Only]
128mm×25mm×94mm [All Inclusive]
Weight 347g
Chassis Material Metal (Steel)
Chassis Colour Black
Operating Temperature 0˚C – 40˚C/32˚F – 104˚F
Storage Temperature -20˚C – 60˚C/-4˚F – 140˚F
Relative Humidity 20 – 90% RH (Non-condensing)
Power Consumption 4.95W

7
8.2 Video Specications
Supported Resolutions (Hz)
Input Output
SDI HDMI SDI
720×400p@70/85 
640×480p@60/72/75/85 
720×480i@60 
720×480p@60 
720×576i@50 
720×576p@50 
800×600p@56/60/72/75/85 
848×480p@60 
1024×768p@60/70/75/85 
1152×864p@75 
1280×720p@50/59.94/60 
1280×768p@60/75/85 
1280×800p@60/75/85 
1280×960p@60/85 
1280×1024p@60/75/85 
1360×768p@60 
1366×768p@60 
1400×1050p@60 
1440×900p@60/75 
1600×900p@60RB 
1600×1200p@60 
1680×1050p@60 
1920×1080i@50/59.94/60 

8
Supported Resolutions (Hz)
Input Output
SDI HDMI SDI
1920×1080psf (4:2:0) 
1920×[email protected]/24/25/29.97/30 
1920×1080p@50/59.94/60/100/120 
1920×1200p@60RB 
2560×1440p@60RB 
2560×1600p@60RB 
2048×[email protected]/24/25/29.97/30 
2048×1080p@50/59.94/60 
3840×[email protected]/24/25/29.97/30 
3840×2160p@50/59.94/60 (4:2:0) 
3840×2160p@24, HDR10 
3840×2160p@50/60 (4:2:0),HDR10 
3840×2160p@50/59.94/60 
4096×[email protected]/24/25/29.97/30 
4096×2160p@50/59.94/60 (4:2:0) 
4096×2160p@24, HDR10 
4096×2160p@50/60 (4:2:0), HDR10 
4096×2160p@50/59.94/60 

9
8.3 Audio Specications
8.3.1 Digital Audio
SDI Input / Output
LPCM
Max Channels 8 Channels
Sampling Rate (kHz) 48
Bitstream
Supported Formats None
HDMI Output
LPCM
Max Channels 2 Channels
Sampling Rate (kHz) 48
Bitstream
Supported Formats None
8.3.2 Analogue Audio
Analogue Output
Max Audio Level 2Vrms
THD+N < −80dB@0dBFS 1kHz (A-wt)
SNR > 70dB@0dBFS
Frequency Response < ±3dB@20Hz~20kHz
Crosstalk < −60dB@10kHz
Impedance 600Ω
Type Unbalanced

10
8.4 Cable Specications
Cable Length
720p 1080p 4K30 4K60
12-bit 12-bit
(4:4:4)
8-bit
(4:4:4)
8-bit
High Speed HDMI Cable
HDMI Output 15m 10m 5m 3m
Coaxial SDI Cable (Belden 1694A 6GHz Cable)
SDI Input 260m 200m 100m 80m
SDI Output 260m 200m 100m 80m
Note: SDI cable distance measurements are based on Belden 1694A 6GHz
cable. Operating distance may vary if dierent quality cables are used.
Bandwidth category headings are representative examples only, and do not
indicate this product's support for any specic resolution or colour bit depth.
Bandwidth Category Examples:
1080p (FHD Video)
- Up to 1080p@60Hz, 12-bit colour
- Data rates lower than 5.3Gbps or below 225MHz TMDS clock
4K30 (4K UHD Video)
- 4K@24/25/30Hz & 4K@50/60Hz (4:2:0), 8-bit colour
- Data rates higher than 5.3Gbps or above 225MHz TMDS clock but
below 10.2Gbps
4K60 (4K UHD+Video)
- 4K@50/60Hz (4:4:4, 8-bit)
- 4K@50/60Hz (4:2:0, 10-bit HDR)
- Data rates higher than 10.2Gbps

11
9. ACRONYMS
ACRONYM COMPLETE TERM
4K UHD 4K Ultra-High-Denition (10.2Gbps max)
4K UHD+4K Ultra-High-Denition (18Gbps max)
COAX Coaxial
dB Decibel
DVI Digital Visual Interface
EDID Extended Display Identication Data
Gbps Gigabits per second
HD High-Denition
HDCP High-bandwidth Digital Content Protection
HDMI High-Denition Multimedia Interface
HDR High Dynamic Range
kHz Kilohertz
LED Light-Emitting Diode
LPCM Linear Pulse-Code Modulation
MHz Megahertz
SDI Serial Digital Interface
SNR Signal-to-Noise Ratio
THD+N Total Harmonic Distortion plus Noise
TMDS Transition-Minimised Dierential Signaling
UHDTV Ultra-High-Denition Television
USB Universal Serial Bus
VGA Video Graphics Array
WUXGA (RB) Widescreen Ultra Extended Graphics Array
(Reduced Blanking)
XGA Extended Graphics Array
ΩOhm

CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue,
Shepperton, Middlesex, TW17 8BA
Tel: [phone] | Fax: [phone]
Email: [email protected]
www.cypeurope.com
RDV1
